SUMMIT ASDW2412 24" Wide Built-in Wine Cellar, ADA Compliant

summit appliance

SKU: ASDW2412

In stock
On Sale

SUMMIT ASDW2412 24" Wide Built-in Wine Cellar, ADA Compliant

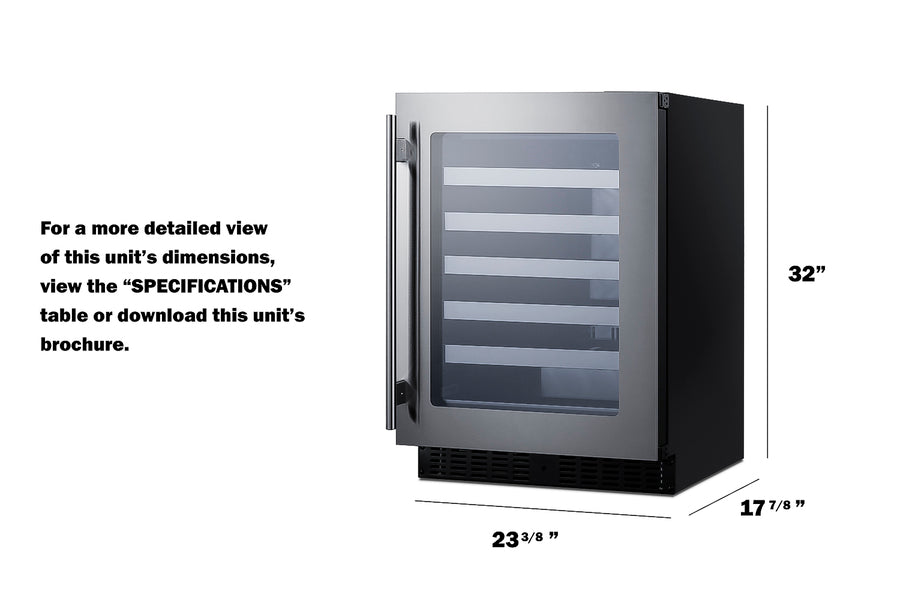

Key Specs

Type: Wine fridges
Width: 23.38 Inch
Depth: 19.63 Inch
Height: 32.0 Inch

More details

Sabbath Mode

Translation missing: en.products.product.product_variants

$1,538.97 $1,970.00 Save $431.03

Check Delivery Options

In stock - Quickship

Quantity:

Extended Protection

5 Year Major Appliance True Extended under $2,500.00
$195.99
3 Year Major Appliance True Extended under $2,500.00
$131.99
Decline Protection

Related items

In stock

WHIRLPOOL EDR1RXD1 everydrop® Refrigerator Water Filter 1 - EDR1RXD1 (Pack of 1)

SKU EDR1RXD1
Type Refrigerator accessories
Dimensions —/—/—

In stock

WHIRLPOOL W10505928RP Refrigerator Water Line Installation Kit

SKU W10505928RP
Type Refrigerator accessories
Dimensions —/—/—

Product Information
Technical Details
Manuals & Guides
Features
Reviews

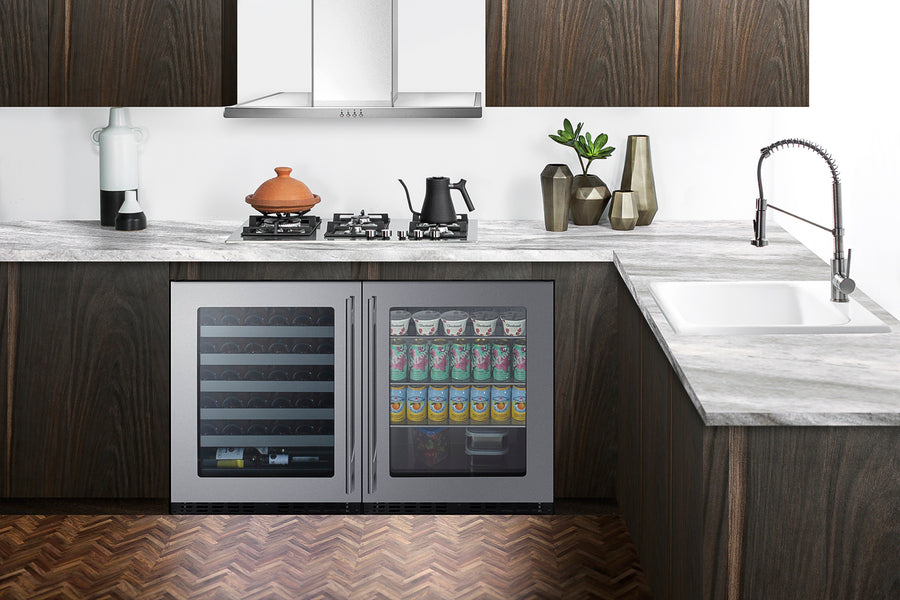

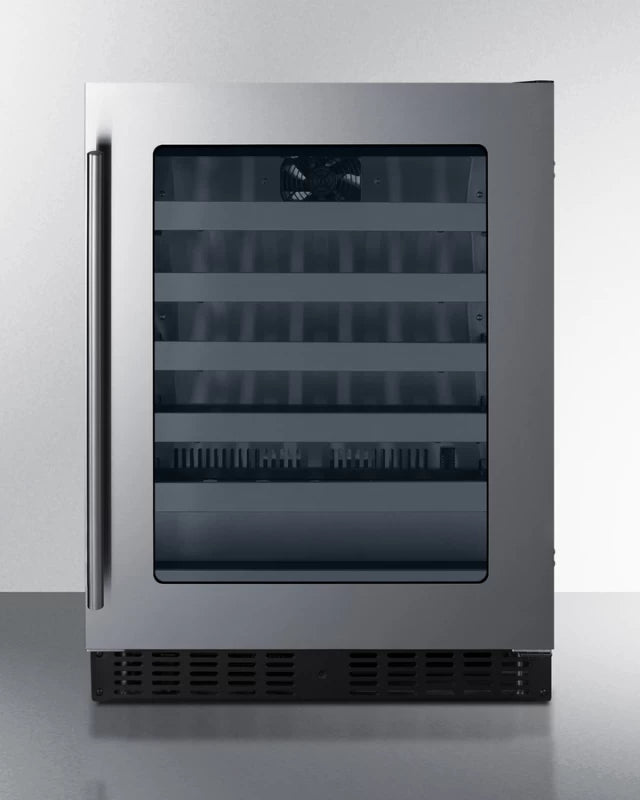

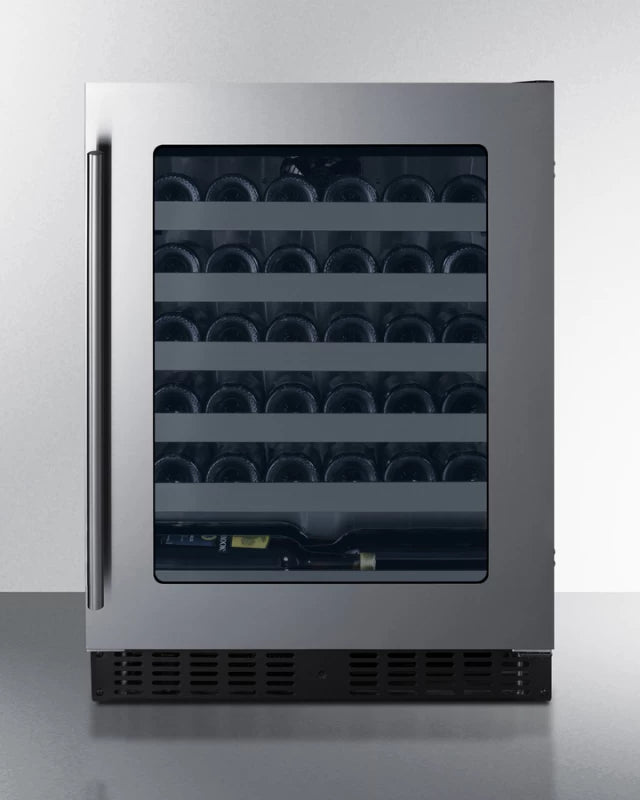

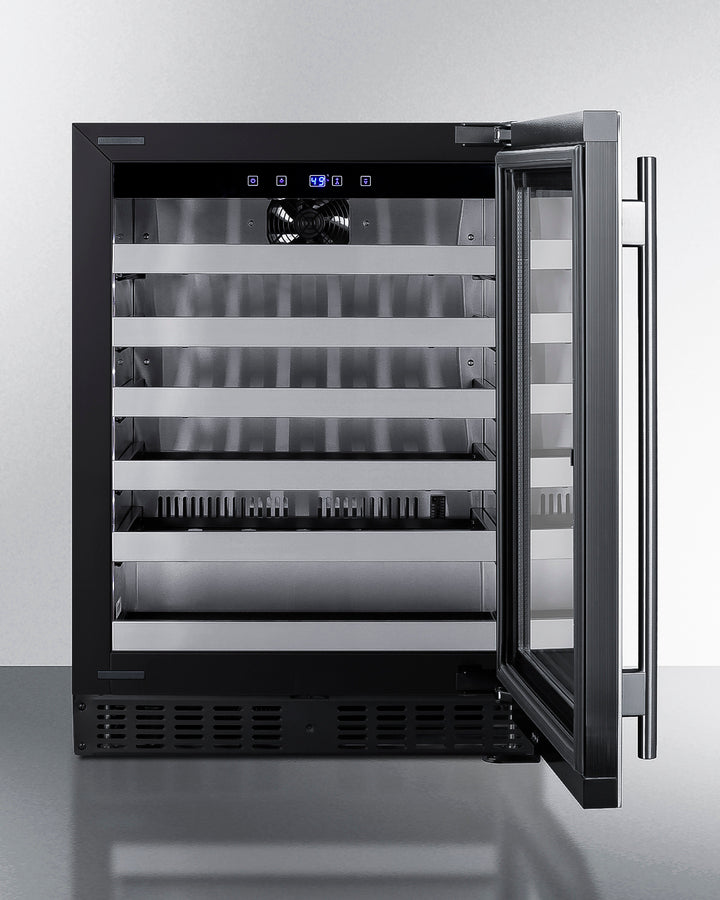

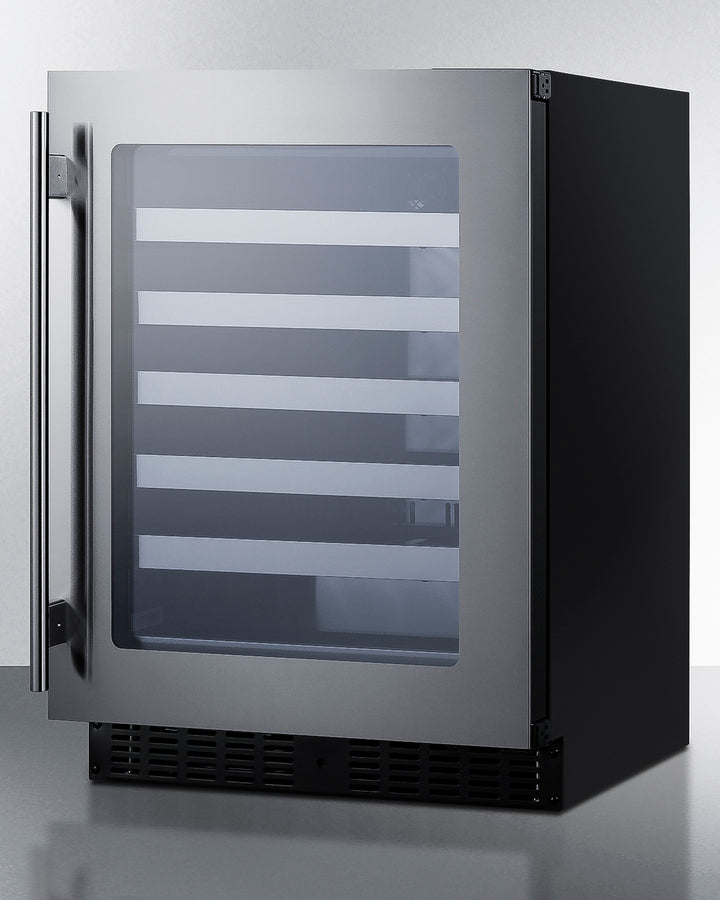

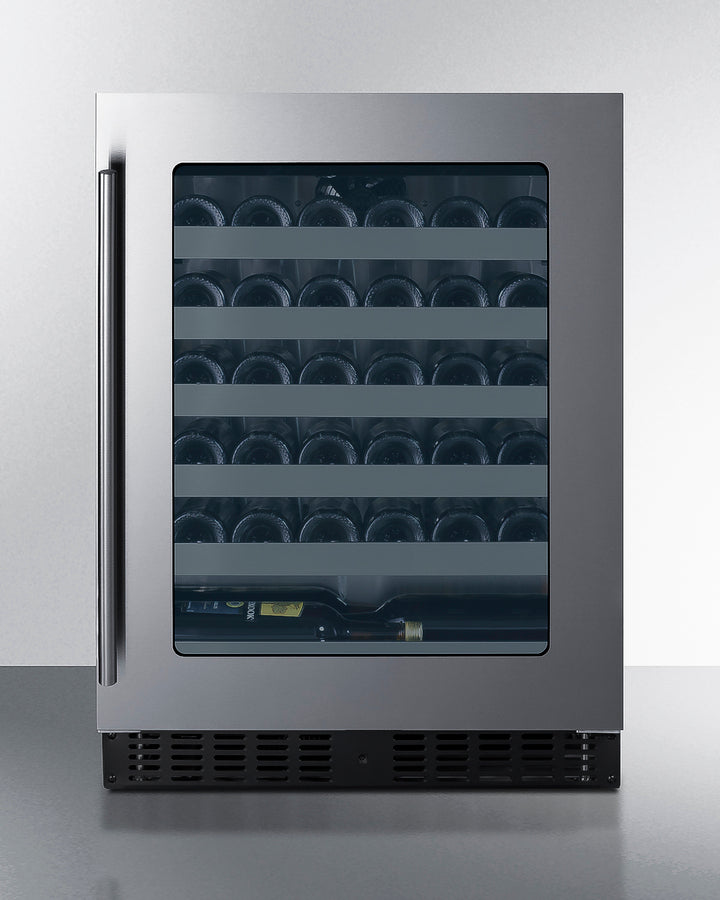

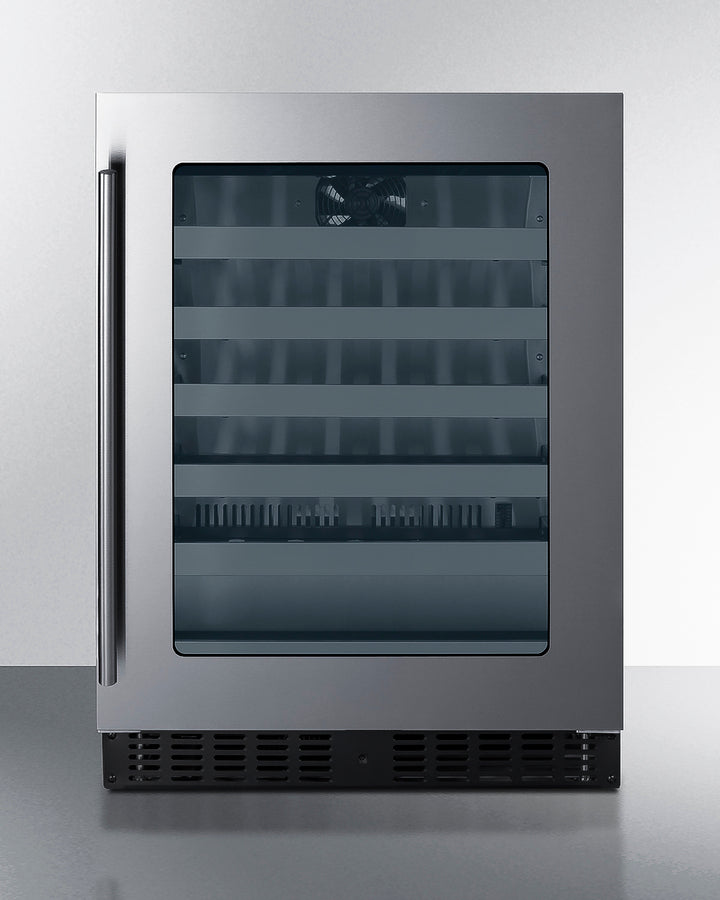

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDW2412 is a 24" wide 33-bottle single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock to protect your collection. Inside, the ASDW2412 features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41 and 64 F to accommodate red, white, or sparkling wine. Our uniquely designed steel shelves in a jet black finish extend smoothly on ball-bearing glides, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The ASDW2412 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2411 beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. NOTE: The interior can store up to 33 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the corks facing the rear for a better fit. Wider Burgundy bottles will also fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle design. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine. The lower shelf is designed to hold Bordeaux-style bottles horizontally. Please use care when loading and unloading this section.

Overview
Height of Cabinet	32.0" (81 cm)
Width	23.38" (59 cm)
Depth	17.75" (45 cm)
Depth with Handle	19.63" (50 cm)
Depth with door at 90°	39.88" (101 cm)
Capacity	3.25 cu.ft. (92 L)
Defrost Type	Frost-Free
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	120.0 lbs. (54 kg)
Shipping Weight	140.0 lbs. (64 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101079462
Wine Cellar
Number of Zones	1
Door Swing	RHD

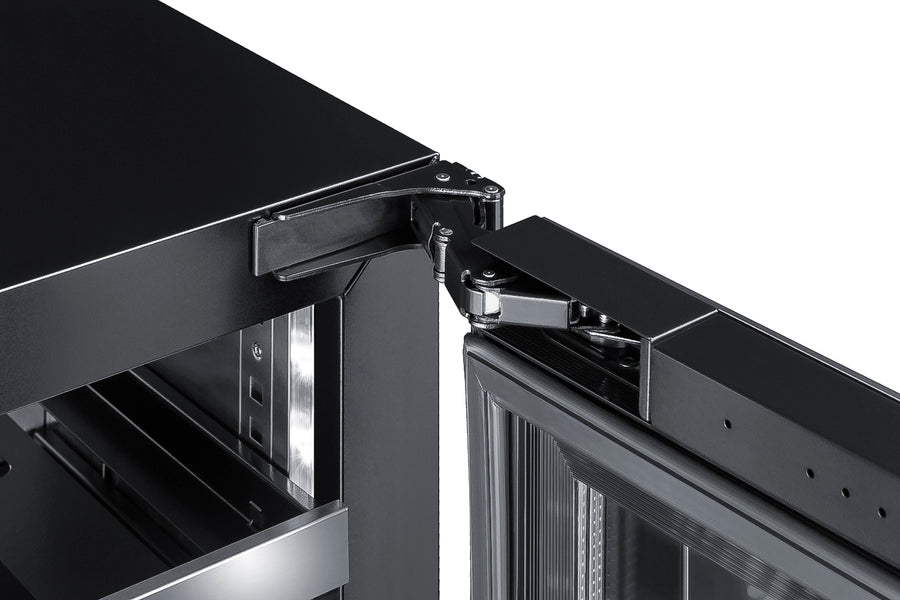

Reversible	Yes
Height Adjustable	Yes

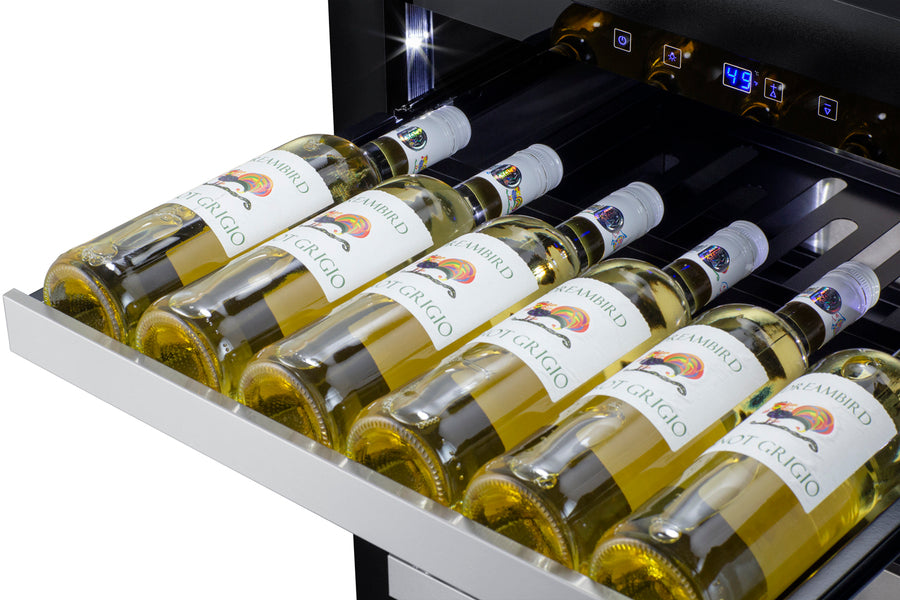

Adjustable Shelves	Yes

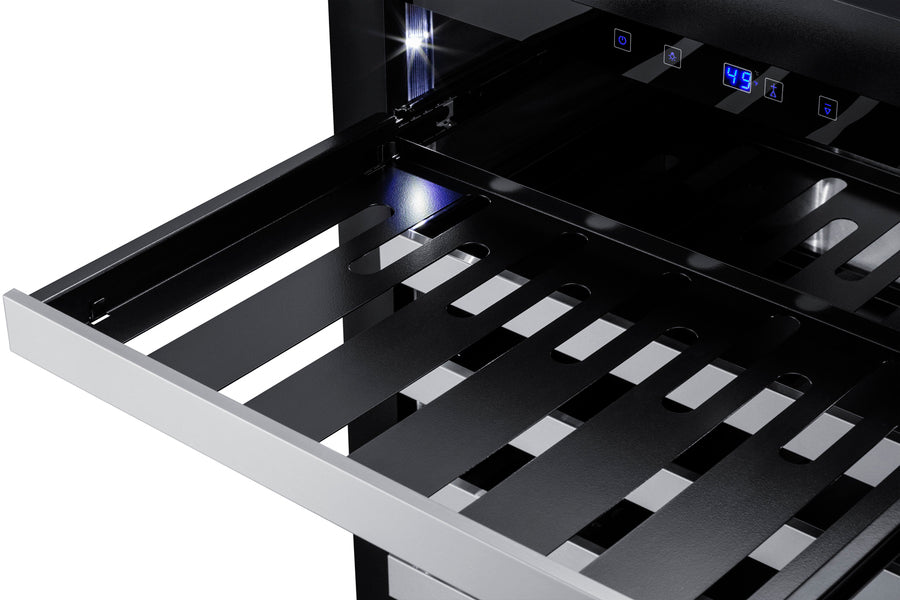

Shelf Type	Steel
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.38 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	24.25" (62 cm)
Interior Width 1	19.5" (50 cm)
Interior Depth 1	12.25" (31 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	19.5" (50 cm)
Compressor Step Depth	4.5" (11 cm)
Level Legs	4
Temperature Range	41 to 64 F
Sabbath Mode	Yes

Single zone wine cooler for residential or commercial cold storage

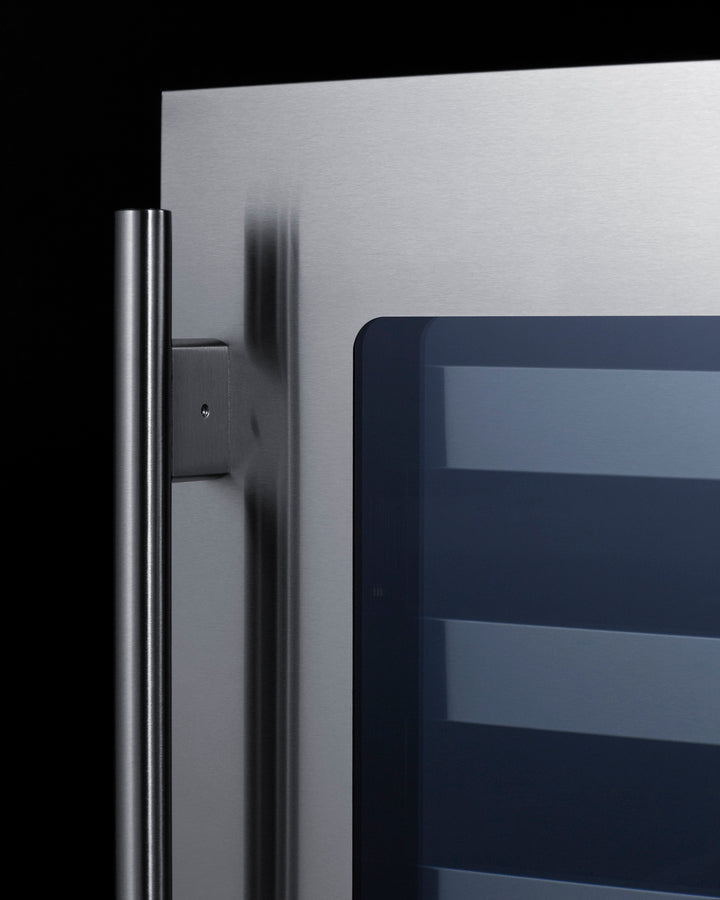

Stainless steel handle completes the look
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
32" height allows easy installation under lower ADA compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Front-breathing design lets you make the best use of space by installing your appliance under the counter

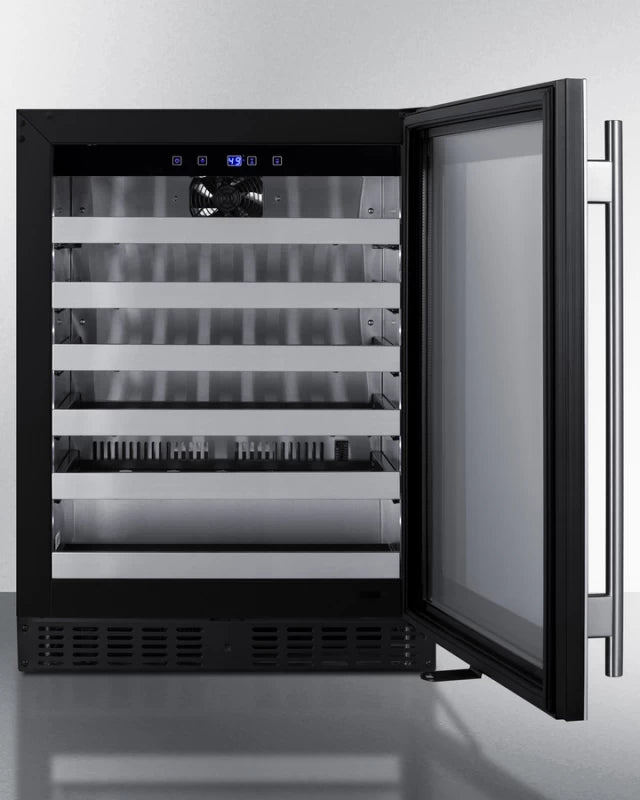

Walls and floor are constructed from stainless steel for added strength and easy cleanup
Elegant design offers a clear but protected view of your interior
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Keyed lock for a secure interior (2 keys included)
