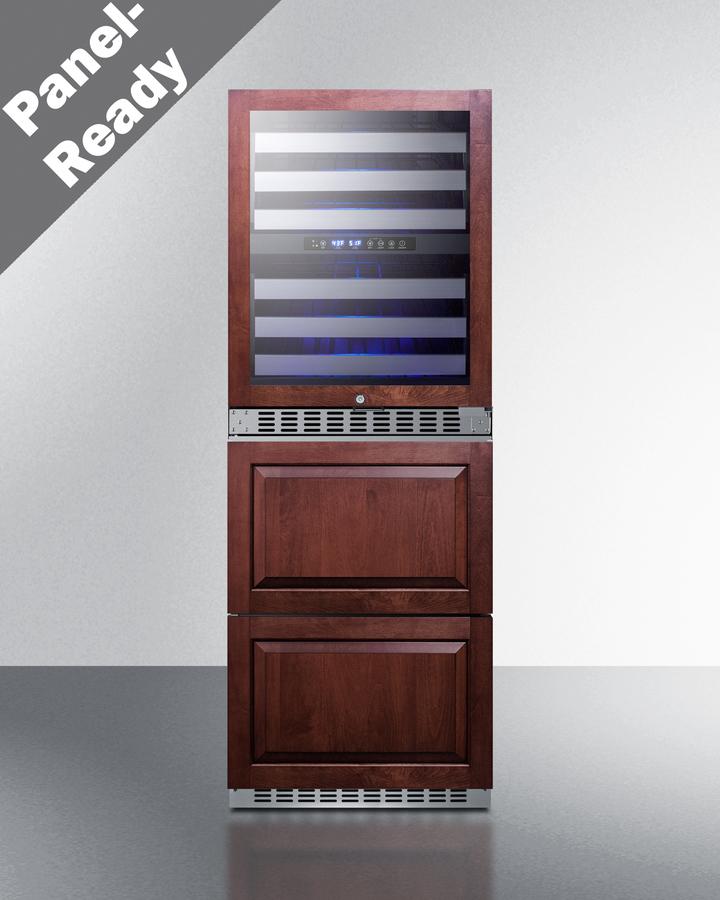

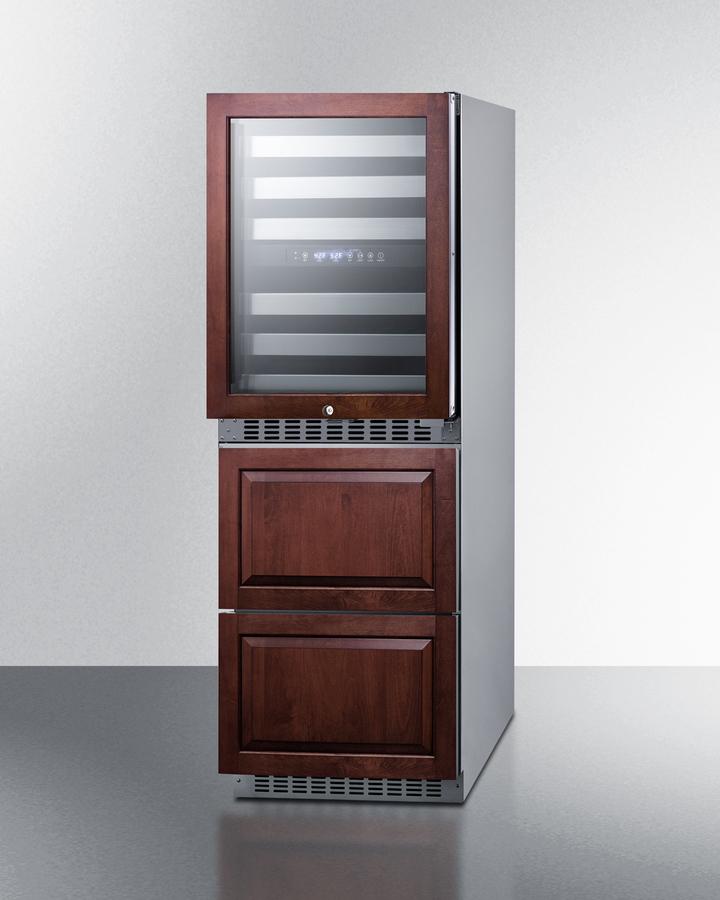

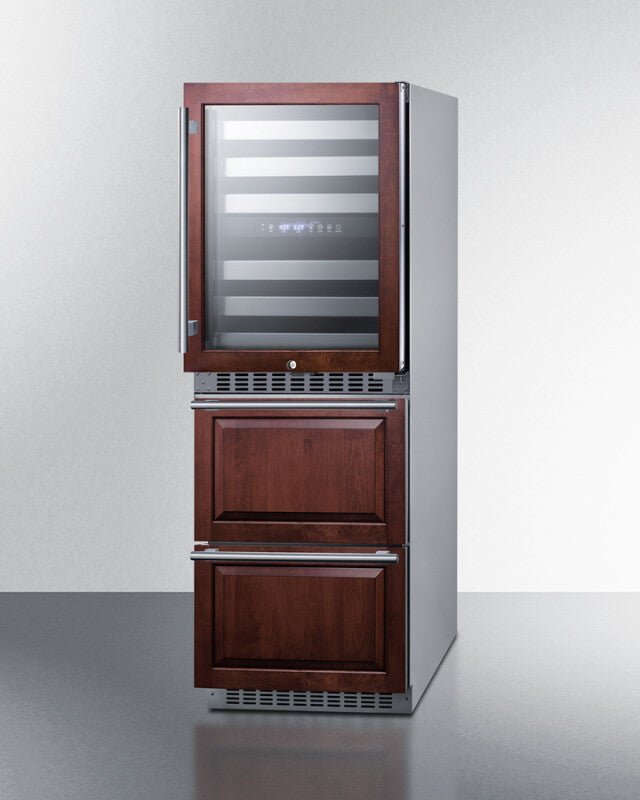

Summit SWCDRF24PNR 24" Wide Combination Dual-Zone Wine Cellar and 2-Drawer Refrigerator-Freezer (Panels Not Included) Panel-Ready

Name: Summit SWCDRF24PNR 24" Wide Combination Dual-Zone Wine Cellar and 2-Drawer Refrigerator-Freezer (Panels Not Included) Panel-Ready
Brand: SUMMIT
SKU: SWCDRF24PNR
Price: 4783.00 USD
Availability: OutOfStock

Quick Specification More details

Width:
23.63"
Depth:
23.75"
Height:
65.63"
Type:
Wine Fridges

About this product

Combination wine cellar and refrigerator-freezer
24" wide
Digital controls (both units)
Built-in capable

Summer Sale

Clearance

SKU: SWCDRF24PNR | UPC: 761101082851

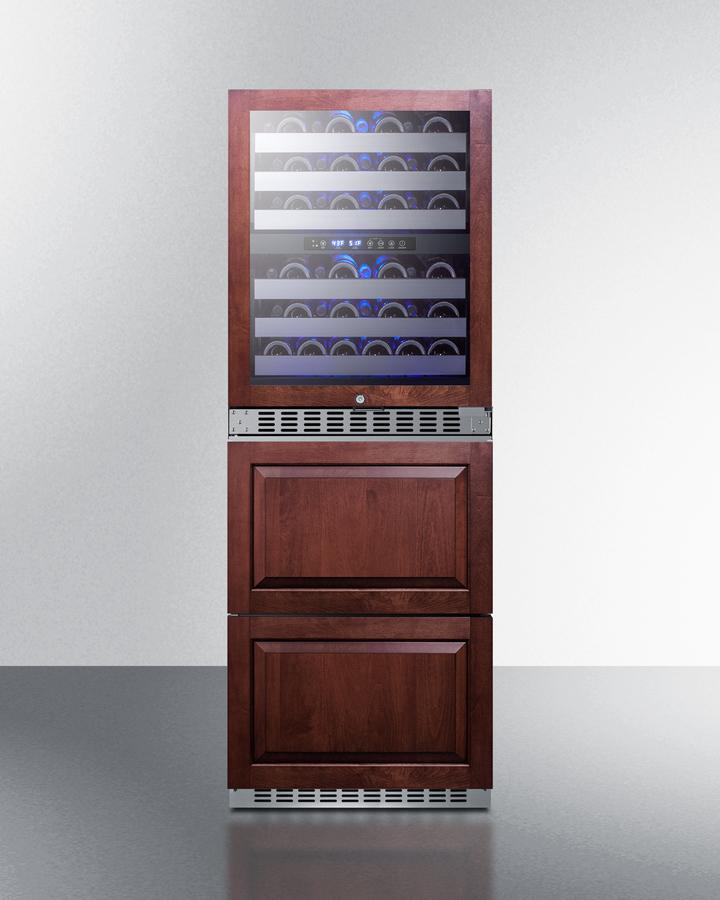

Summit SWCDRF24PNR 24" Wide Combination Dual-Zone Wine Cellar and 2-Drawer Refrigerator-Freezer (Panels Not Included) Panel-Ready

$4,783.00 ~~$6,978.97~~ Save $2,195.97 / 31% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.63"
Depth:
23.75"
Height:
65.63"
Type:
Wine Fridges

About this product

Combination wine cellar and refrigerator-freezer
24" wide
Digital controls (both units)
Built-in capable

Product Details for SUMMIT SWCDRF24PNR

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	23.63 in.
Height	65.63 in.
Length	23.75 in.
Weight	221 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	21.32 ft³
Dimensional Weight	264.98 lbs.
Total of Cubes	21.32 ft³
Total of Dimensional Weight	264.98 lbs.

Overview wine cellar

Nominal Height	66.0" (168 cm)
Height of Cabinet	65.63" (167 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.75" (60 cm)
Depth with door at 90°	45.75" (116 cm)
Capacity	3.9 cu.ft. (110 L)
Bottles	46 bottles
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	380.0kWh/year
Other Energy Info	ALWC532: 1.25Ams; SPRF34D: 1.0 Amp
Amps	2.25
Voltage/Frequency	115 V AC/60 Hz
Weight	221.0 lbs. (100 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101082851
Number of Zones	2
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Wire
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Interior Height 1	11.88" (30 cm)
Interior Width 1	20.5" (52 cm)
Interior Depth 1	18.0" (46 cm)
Interior Height - Drawer 1	10.0" (25 cm)
Interior Width - Drawer 1	18.75" (48 cm)
Interior Depth - Drawer 1	15.5" (39 cm)
Interior Height - Drawer 2	9.25" (23 cm)
Interior Width - Drawer 2	18.75" (48 cm)
Interior Depth - Drawer 2	15.5" (39 cm)
Temperature Range	ALWC532: 41°F to 64°F; SPRF34D: 36°F to 43°F/Freezer: -11°F to 11°F
Interior Height 2	11.63" (30 cm)
Interior Width 2	20.5" (52 cm)
Interior Depth 2	18.0" (46 cm)

Description

Summit brings an innovative, elegant solution to store wine, food, and beverages with its combination two-zone wine cellar and two-drawer refrigerator-freezer - the perfect entertainment station for the home. Sized at just under 24" wide, the SWCDRF24PNR combines the 46 bottle capacity two-zone wine cellar (model ALWC532PNR) with the 3.9 cu.ft. two-drawer refrigerator-freezer (model SPRF34D) into one complete refrigeration station. The front-breathing design allows built-in installation, while the stainless steel cabinet affords freestanding use in a durable design. The sealed back offers added space savings when placing the unit, while the included six-foot Y-shaped NEMA 5-15P cord with a 3-prong right angle plug allows users to operate both units from one outlet without added depth. The wine cellar door frame and refrigerator drawer fronts can be customized with overlay panels to match or accent an existing cabinetry design. Users provide their own handles to complete the look. An anti-tip bracket is included and recommended for use to avoid forward tipping. For user convenience, this model ships fully assembled. The upper two-zone wine cellar has a user-reversible double-pane tempered glass door featuring a seamless stainless steel door for a modern look, while a factory-installed lock offers security as needed. Inside, automatic defrost operation ensures minimal user maintenance. It is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper-temperature zone between 41°F and 50ºF for white wine, while the lower zone is designed to store red wine between 50°F and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for convenient loading. Both zones include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. The bottom two-drawer refrigerator-freezer features complete stainless steel construction inside and out for long-lasting durability in an easy-to-clean design. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers make it easy to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding, removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance. Offering complete refrigeration convenience in a slim-fitting design, the SWCDRF24PNR is ideal for home bars, kitchens, and similar residential settings seeking to store wine, beverages, and food in a modern style. Additional panel-ready options are available with a bottom refrigerator (model SWCDAR24PNR) or a bottom freezer (model SWCDAF24PNR). Note: Panels are not included. The images provided are meant only to be suggestive of what the product with wood panels installed could look like. Users must supply their own wood panels.

Product Features

Combination wine cellar and refrigerator-freezer
Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532PNR) and two-drawer refrigerator-freezer (model SPRF34D, perfect for home bars, kitchens, and similar residential spaces
24" wide
Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint

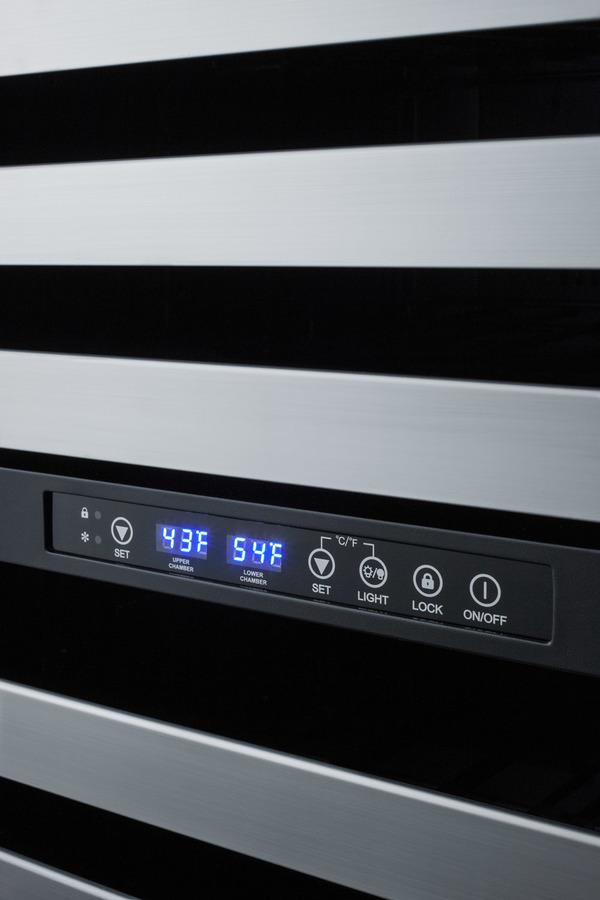

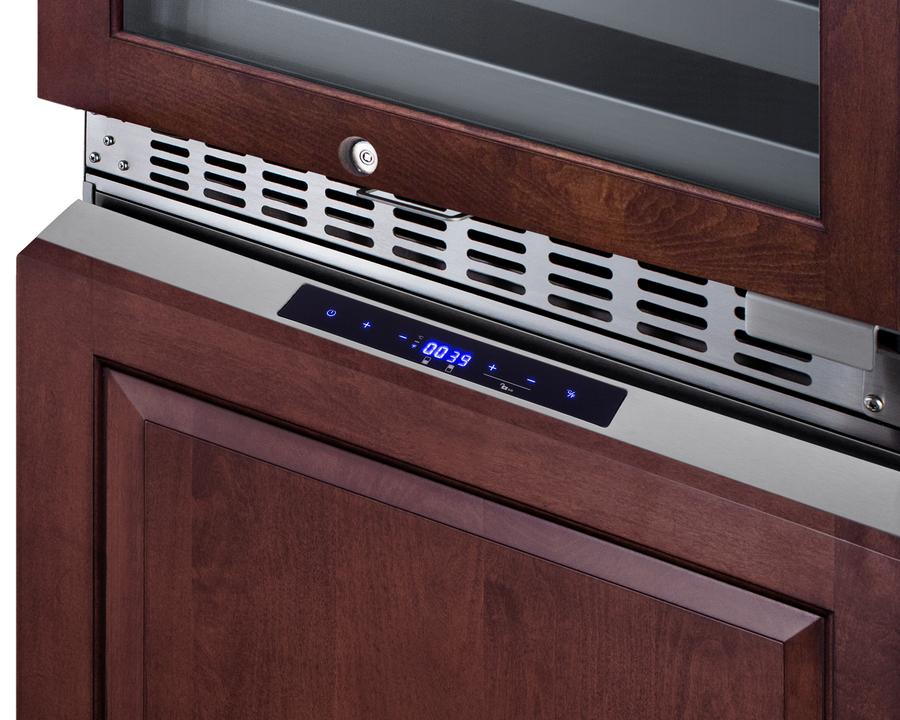

Digital controls (both units)
Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
Built-in capable
Front-breathing design allows this unit be built in for added space savings
LED lighting (both units)
LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of the refrigerator interior for easy access
Double pane tempered glass door (wine cellar)
Provides a full display of the interior, with two levels of glass for added protection
Panel-ready door trim (wine cellar)
Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area
Two temperature zones (wine cellar)
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F
Commercial shelving design (wine cellar)
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

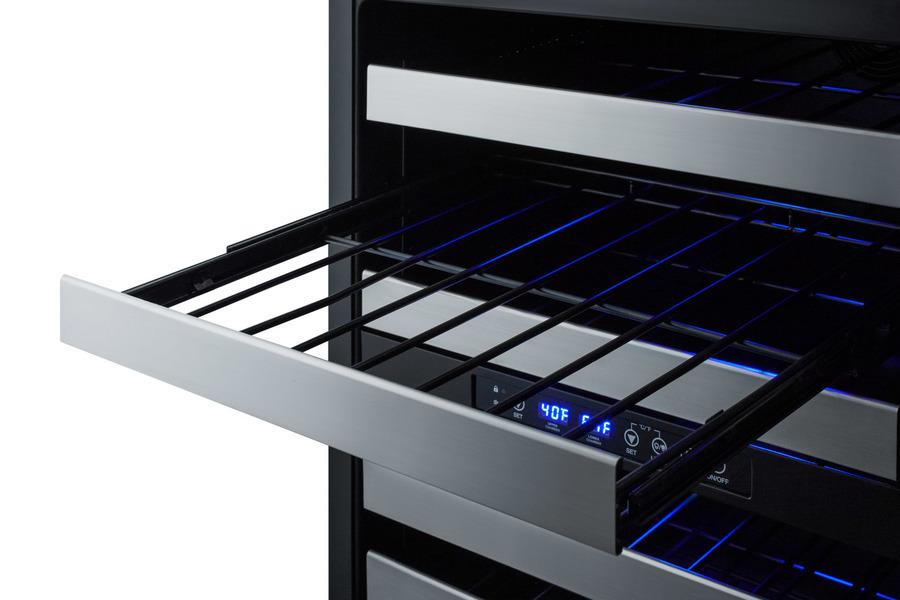

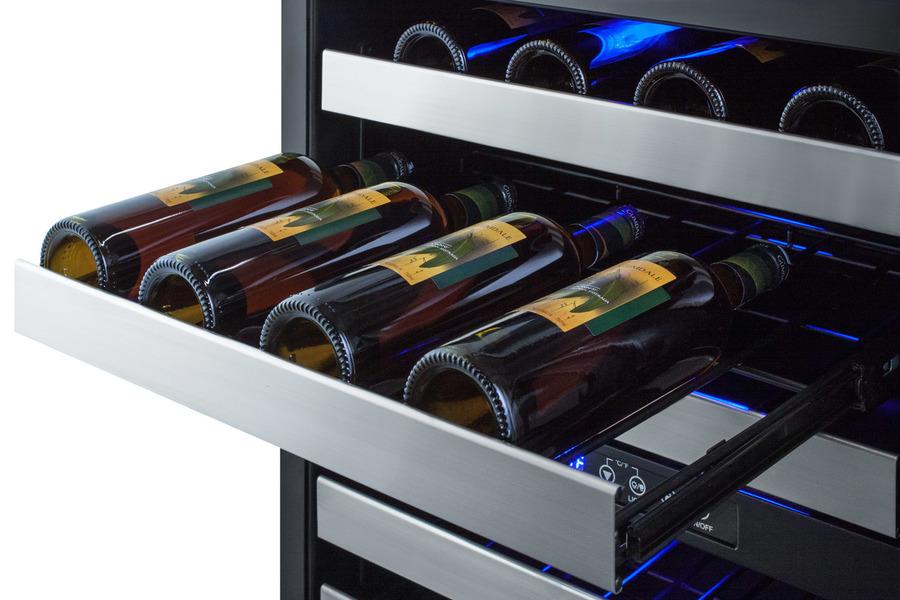

Full-extension shelving (wine cellar)
Shelves move smoothly on ball-bearing glides for easier loading and unloading
Automatic defrost (wine cellar)
Reduced maintenance with auto defrost system
Factory installed lock (wine cellar)
Keyed lock for secure interior, with two keys included
Factory-reversible door swing (wine cellar)
Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"

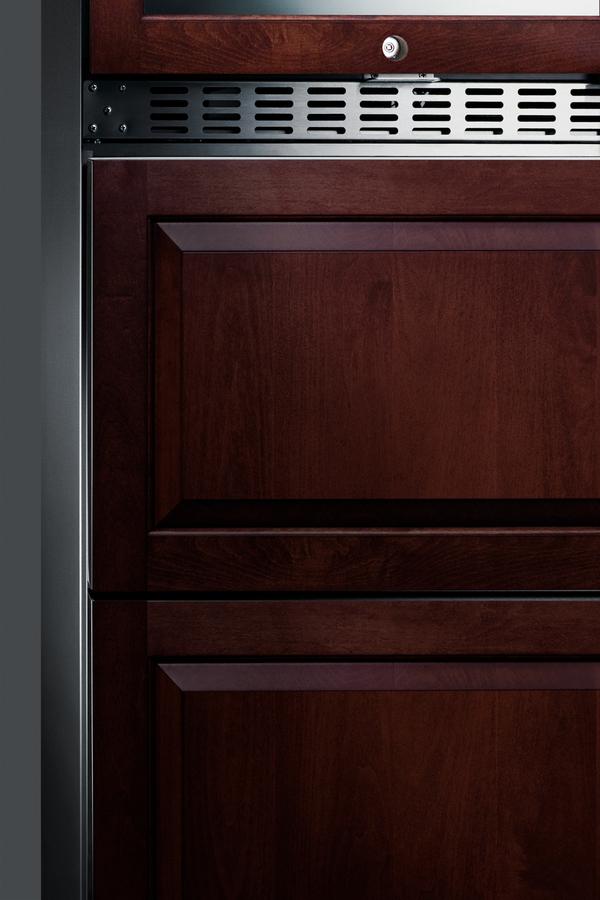

Panel-ready drawer fronts (refrigerator-freezer)
Drawers accept overlay panels (size: 23.43" x 15" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
Stainless steel construction (refrigerator-freezer)
Complete stainless steel construction offers added durability in an easy-cleaning design

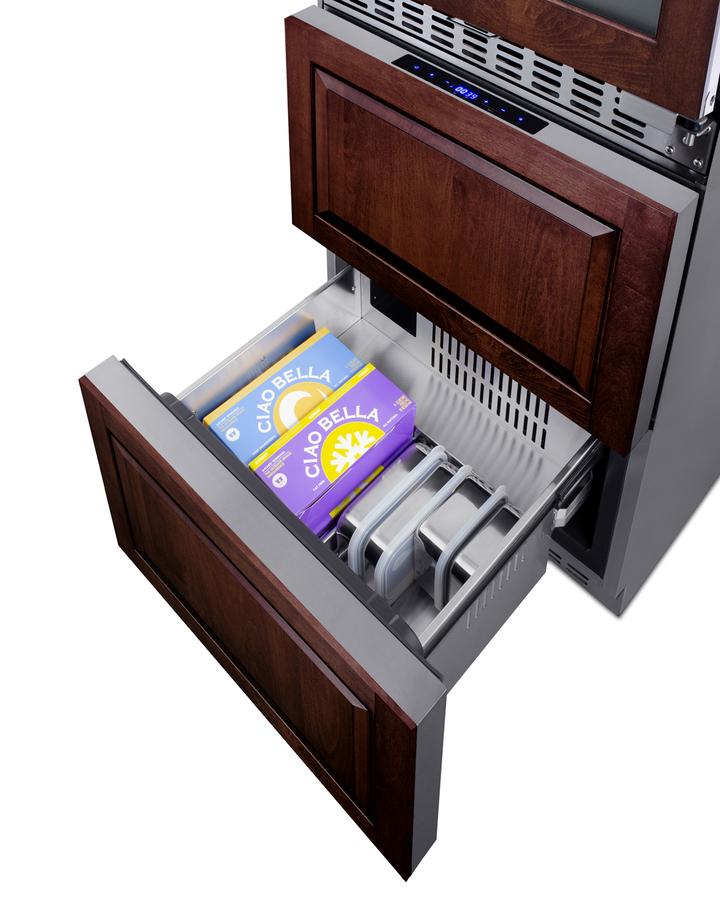

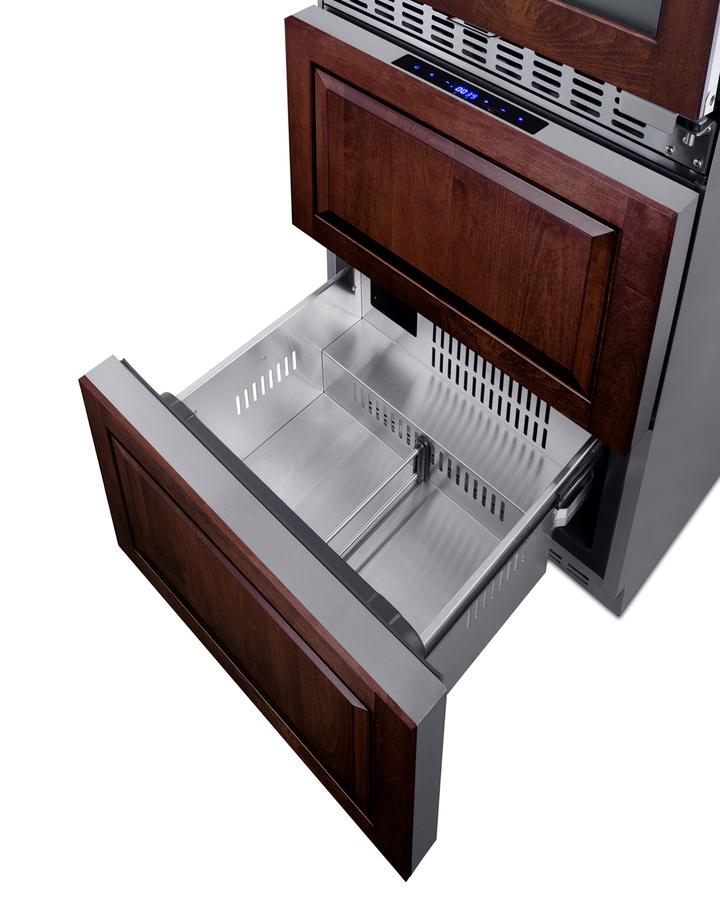

Drawer dividers (refrigerator-freezer)
Two adjustable dividers make it simple to organize the drawer interiors

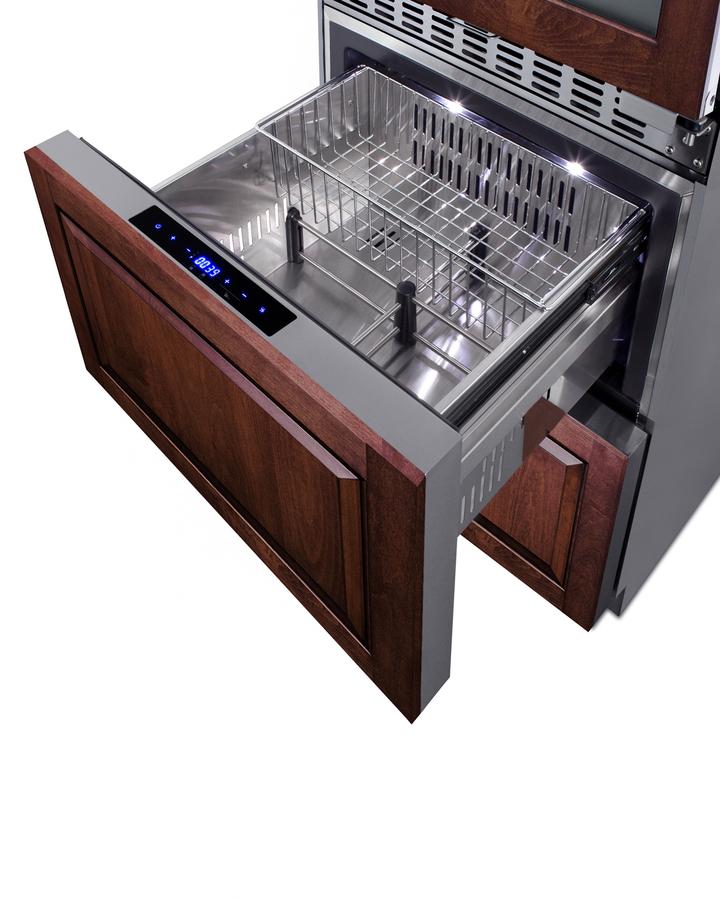

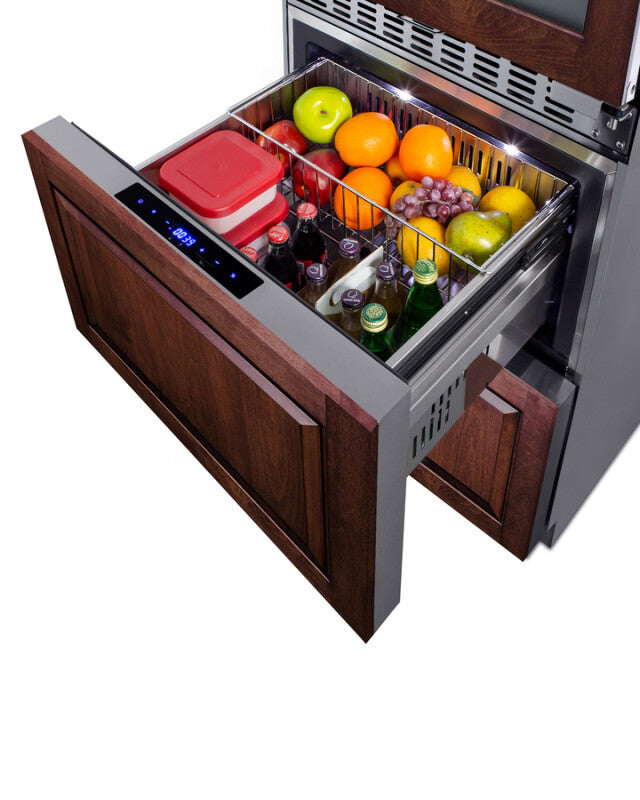

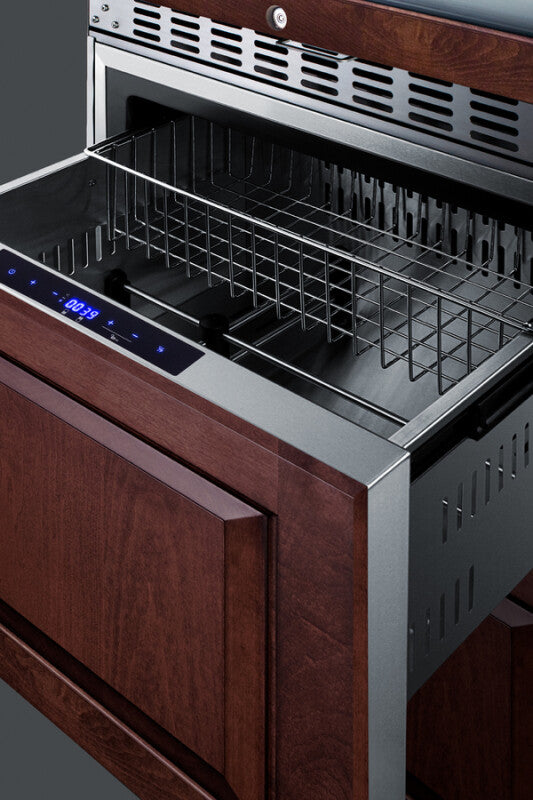

Sliding basket (refrigerator-freezer)
Removable chrome basket included for easier storage convenience
Frost-free operation (refrigerator-freezer)
No-frost operation for minimum user maintenance
Internal fan (refrigerator-freezer)
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Stainless steel kickplate (refrigerator-freezer)
Protects from everyday wear and tear in a durable, elegant design
Temperature alarm (refrigerator-freezer)
High temperature alarm sounds if the unit's interior goes out of the recommended range
Temperature Memory Function (refrigerator-freezer)
Unit will retain its last settings when power is restored in the event of power loss
Child lock (refrigerator-freezer)
Disables digital controls after two minutes of activity for added safety
Sabbath Mode (refrigerator-freezer)
Optional setting lets you disable the lighting and alarm for up to 48 hours

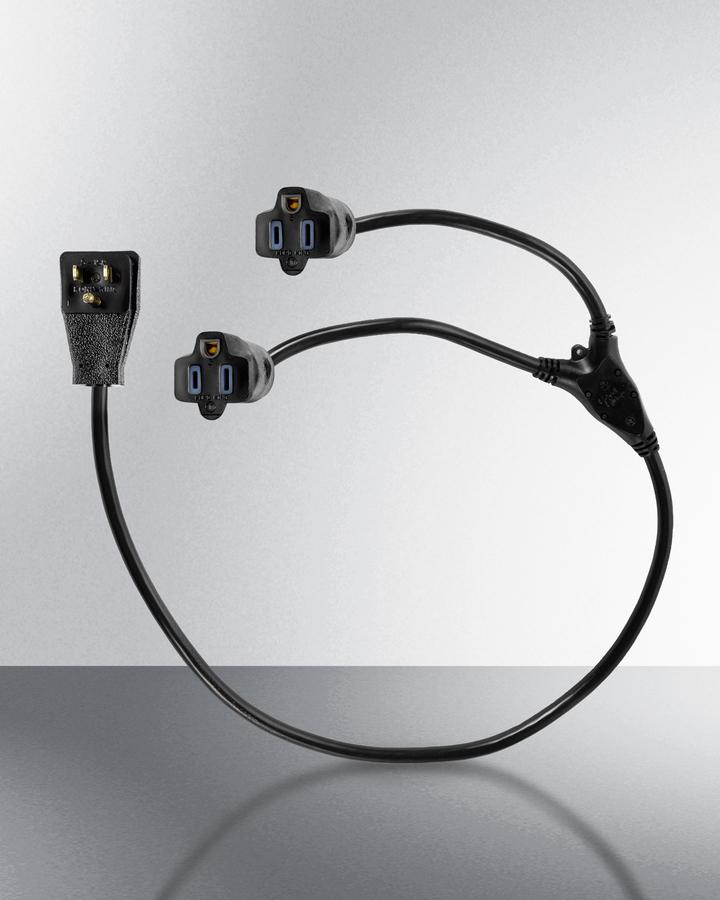

Y-cord with single 3-prong right angle plug included
Included 6 ft. cord allows users to operate both the wine cellar & refrigerator-freezer using a single plug for added convenience
Anti-tip bracket
Included and recommended for user-installation to reduce the risk of tipping
Fully finished stainless steel cabinet
Allows the unit to be used freestanding
Ships fully assembled
Unit comes fully assembled for user convenience
Additional panel-ready choices available
This unit is also available with a bottom refrigerator (see the SWCDAR24PNR) or a bottom freezer (see the SWCDAF24PNR)
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Fully articulating hinge
Smoother opening and a better fit with an integrated European style door hinge on the wine cellar
Open drawer alarm (refrigerator-freezer)
Audible alarm will sound if the drawers are left ajar for over a minute
