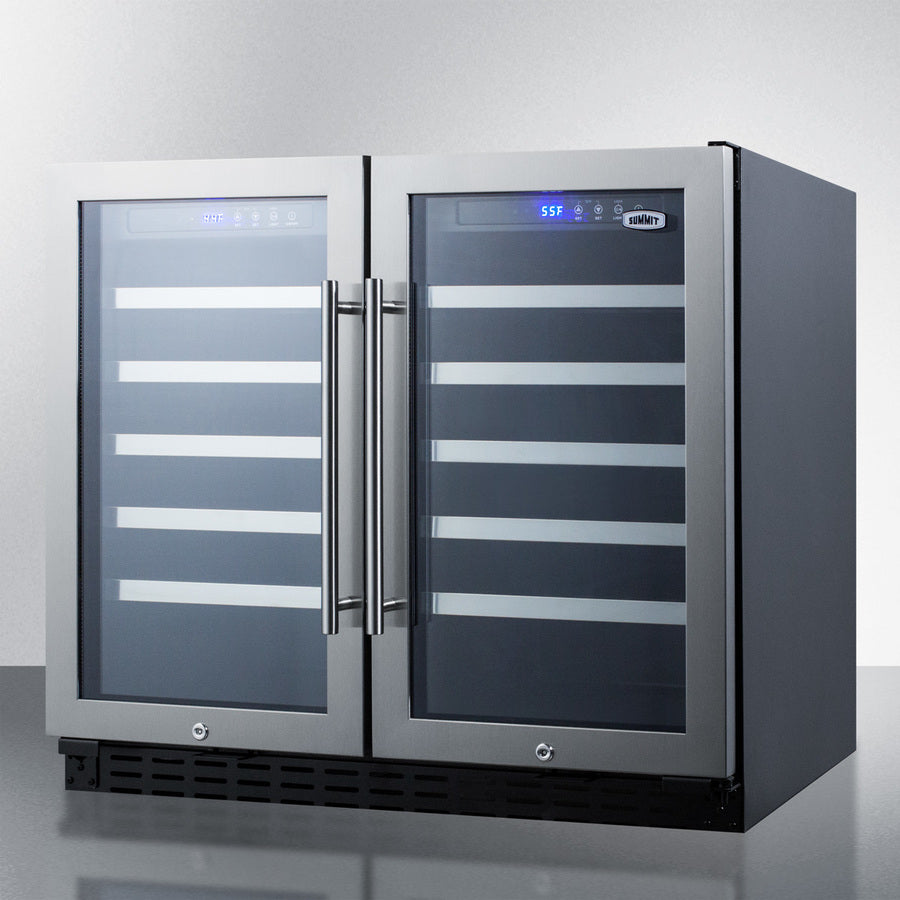

Summit SWC3668ADA 36" Wide Built-In Wine Cellar, ADA Compliant Black

Quick Specification More details

Width:
35.38"
Depth:
23.5"
Height:
31.5"
Type:
Wine Fridges

About this product

ADA compliant height
Built-in capable
Recessed LED lighting
Dual zone design

Summer Sale

Clearance

SKU: SWC3668ADA | UPC: 761101054940

Summit SWC3668ADA 36" Wide Built-In Wine Cellar, ADA Compliant Black

$2,202.70 ~~$2,729.97~~ Save $527.27 / 19% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
35.38"
Depth:
23.5"
Height:
31.5"
Type:
Wine Fridges

About this product

ADA compliant height
Built-in capable
Recessed LED lighting
Dual zone design

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$2,202.70 ~~$2,729.97~~ Save $527.27 / 19% OFF

Product Details for SUMMIT SWC3668ADA

Technical Details

Dimensions & weight

Width	35.38 in.
Height	31.5 in.
Length	23.5 in.
Weight	151 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	15.16 ft³
Dimensional Weight	188.42 lbs.
Total of Cubes	15.16 ft³
Total of Dimensional Weight	188.42 lbs.

Overview wine cellar

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.5" (80 cm)
Nominal Width	36.0" (91 cm)
Width	35.38" (90 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	39.75" (101 cm)
Bottles	68 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	151.0 lbs. (68 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101054940
Number of Zones	2
Door Swing	French
Adjustable Shelves	Yes
Shelf Type	Wood
Shelf Qty	10
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	150.0
Low Side PSI	50.0
Interior Height 1	23.0" (58 cm)
Interior Width 1	14.0" (36 cm)
Interior Depth 1	18.0" (46 cm)
Compressor Step Height	5.0" (13 cm)
Compressor Step Width	14.0" (36 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	4
Temperature Range	40 to 72ºF
Interior Height 2	23.0" (58 cm)
Interior Width 2	14.0" (36 cm)
Interior Depth 2	18.0" (46 cm)
Sound Level	36.0 dB

Description

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style. At just under 32" high and 36" wide, the SWC3668ADA wine cellar is designed for built-in installation under lower ADA compliant counters. The fully finished black cabinet also allows freestanding use. This unit includes two seamless stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks for added security and professional handles to finish the modern look. Two separate zones feature independent digital thermostats, letting you chill white and sparkling wine in one section while preserving reds under warmer temperatures in the other. Both zones include five wooden shelves in a jet black finish with stainless steel trim, as well as slotted floors to accommodate champagne bottles. The interior can store up to 68 standard 750ml Bordeaux bottles. Alternatively, you can fit up to 56 wider "Burgundy" style bottles (often used for Chardonnay and Pinot Noir). Recessed LED lighting offers an attractive view to let you display your wine collection in style. With a professional look and innovative design, SUMMIT SWC3668ADA is a unique addition to any home.

Product Features

ADA compliant height
Less than 32" high to fit under lower counters following ADA guidelines for accessibility
Built-in capable
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Recessed LED lighting
Gentle and energy efficient LED lighting offers an elegant view of your collection
Dual zone design
Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions

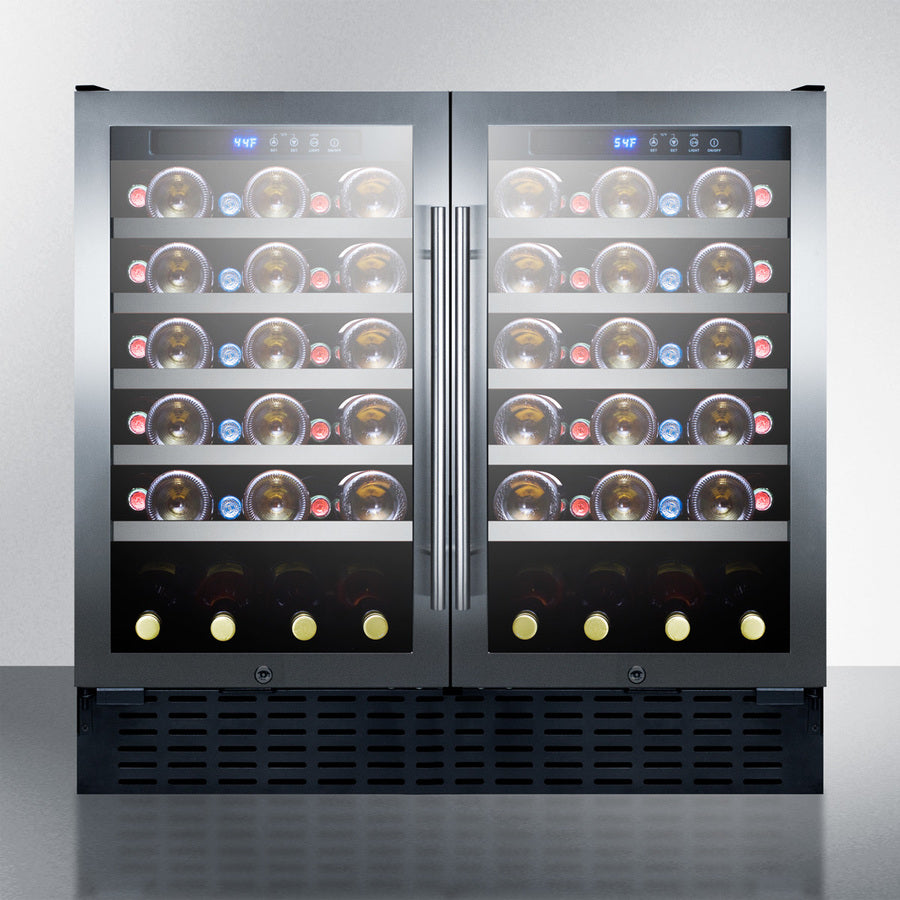

68 bottle capacity
Interior can hold 68 standard 750ml Bordeaux style bottles, or 56 wider Burgundy bottles

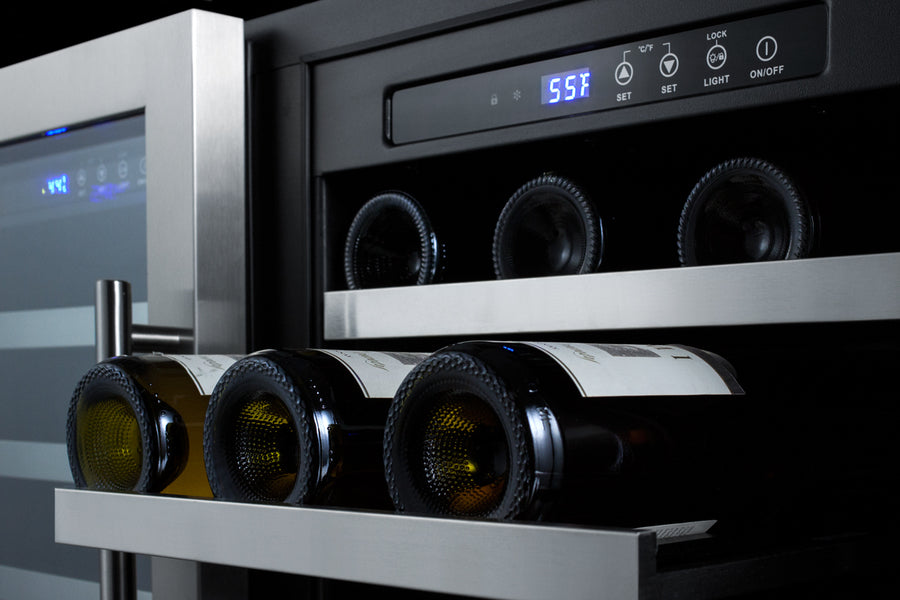

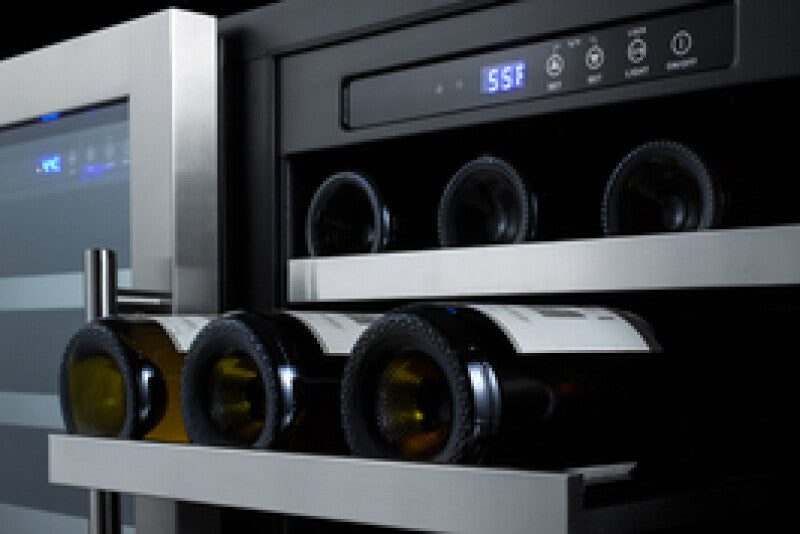

Digital thermostats
Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
Wooden shelves
Stainless steel trimmed wooden shelves with a jet black finish for a modern look
Professional handles
Sleek stainless steel handles add an elegant touch to any setting
Fan-forced cooling
Internal fans ensure both interiors have a consistent temperature from top to bottom
Seamless stainless steel trim
Door trim is completely seamless for a more luxurious look
Factory installed locks
Keyed locks on both zones offer separate security for interior contents
Sealed back
Space-saving design that ensures easier cleanup
Automatic defrost
Reduced user maintenance with automatic defrost
Fully finished cabinet
Allows the unit to be used freestanding
Commercially approved
ETL-S listed to ANSI-NSF Standard 7
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

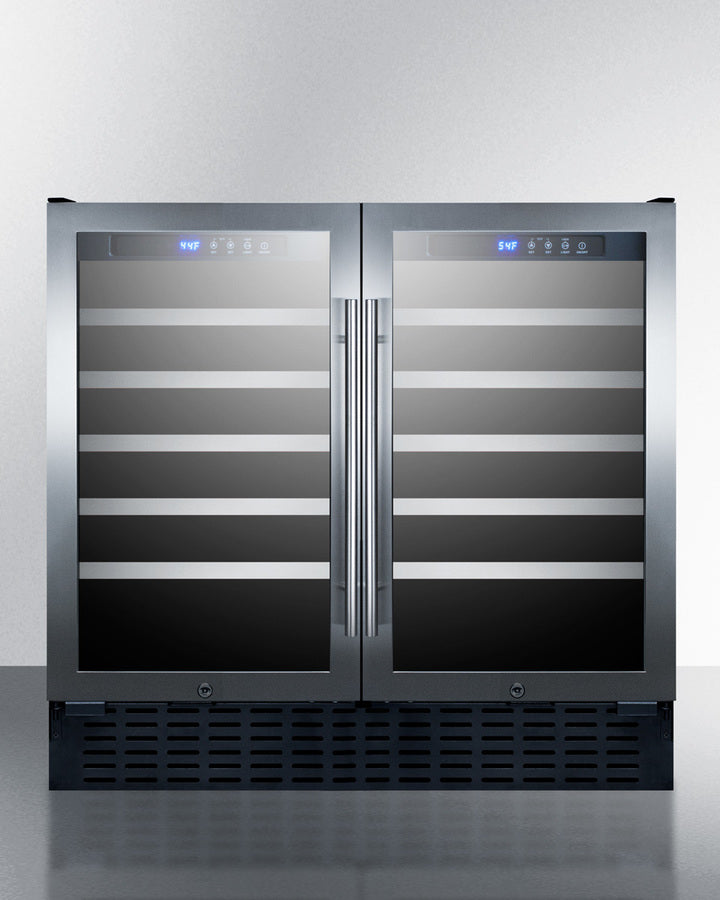

Glass doors
French door swing for a more dramatic presentation
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
