SKU: SWC3066B | UPC: 761101055787

Summit SWC3066B 30" Wide Built-In Wine Cellar Black

Quick Specification More details

Width:
29.5"
Depth:
22" - 25"
Height:
34.38"
Type:
Wine Fridges

About this product

Commercially approved
Built-in capable
66 bottle capacity
Dual zone design

Summer Sale

Clearance

SKU: SWC3066B | UPC: 761101055787

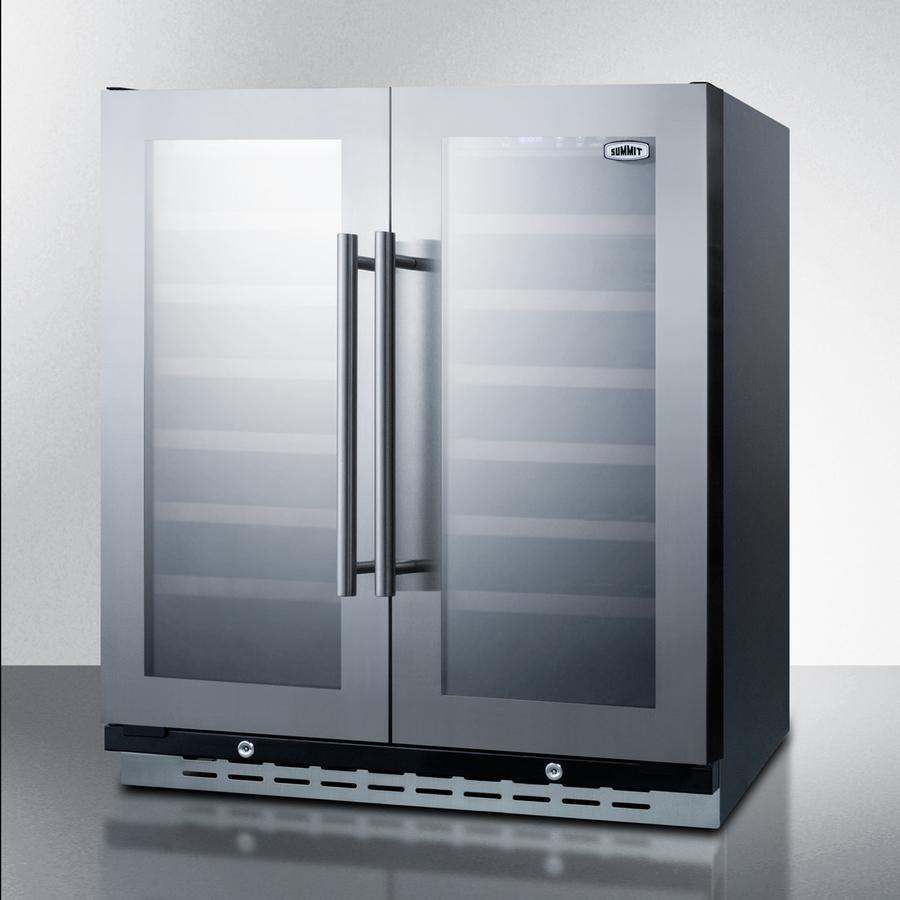

Summit SWC3066B 30" Wide Built-In Wine Cellar Black

$1,640.59 ~~$1,999.97~~ Save $359.38 / 17% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
29.5"
Depth:
22" - 25"
Height:
34.38"
Type:
Wine Fridges

About this product

Commercially approved
Built-in capable
66 bottle capacity
Dual zone design

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$1,640.59 ~~$1,999.97~~ Save $359.38 / 17% OFF

Product Details for SUMMIT SWC3066B

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	29.5 in.
Height	34.38 in.
Length	22.5 in.
Weight	132 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	13.21 ft³
Dimensional Weight	164.17 lbs.
Total of Cubes	13.21 ft³
Total of Dimensional Weight	164.17 lbs.

Overview wine cellar

Nominal Height	35.0" (89 cm)
Height of Cabinet	34.38" (87 cm)
Nominal Width	30.0" (76 cm)
Width	29.5" (75 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.25" (62 cm)
Depth with door at 90°	36.0" (91 cm)
Bottles	66 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	132.0 lbs. (60 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101055787
Number of Zones	2
Door Swing	French
Adjustable Shelves	Yes
Shelf Type	Wood
Shelf Qty	12
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs	4

Description

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style. The SWC3066B is a 30" wide wine cellar designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two seamless stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks and professional handles. Two separate zones feature independent digital thermostats, letting you chill white and sparkling wine in one section while preserving reds under warmer temperatures in the other. Both zones include six wooden shelves in a jet black finish and slotted floors, letting you store up to 66 standard 750ml Bordeaux bottles inside the unit. Alternatively, you can fit up to 46 wider "Burgundy" style bottles (often used for chardonnay and pinot noir) in addition to 10 Bordeaux bottles. The slotted floor can store six champagne bottles. Recessed LED lighting offers an attractive view to let you display your wine collection in style. With a professional look and innovative design, SUMMIT SWC3066B is a unique addition to any home. For a similar unit designed for wine and beverage storage, see the SWBV3067B.

Product Features

Commercially approved
ETL-S listed to ANSI-NSF Standard 7
Built-in capable

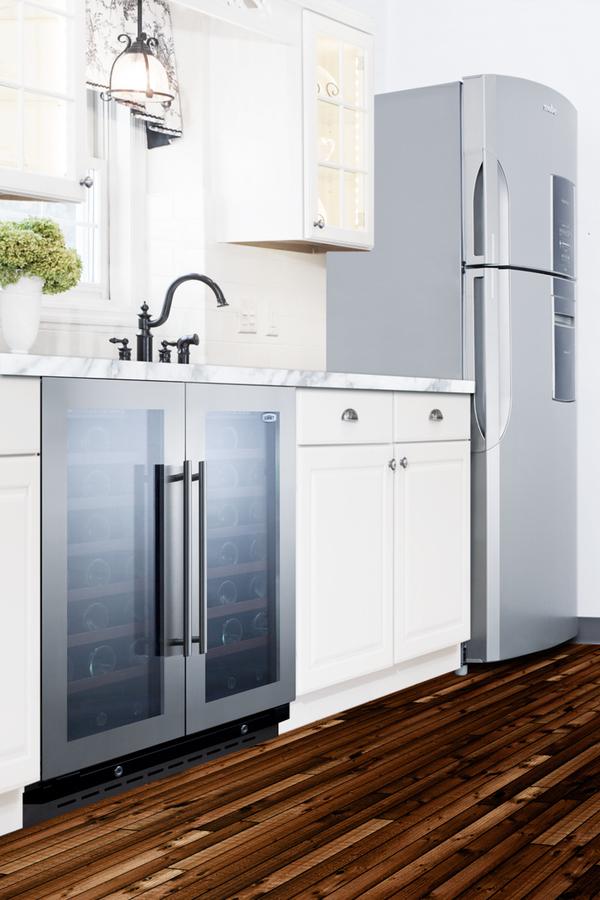

Make the best use of space by installing this unit under the counter and flush with other cabinetry

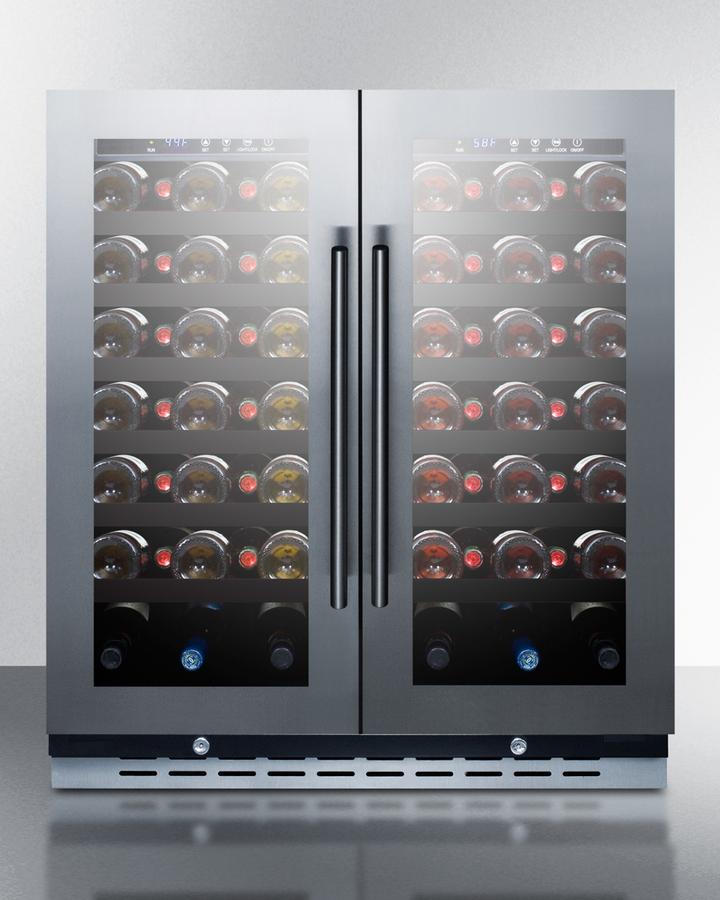

66 bottle capacity
Interior can hold 66 standard 750ml Bordeaux style bottles, or 46 wider Burgundy bottles + 10 Bordeaux bottles
Dual zone design
Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions
Recessed LED lighting
Gentle and energy efficient LED lighting offers an elegant view of your collection

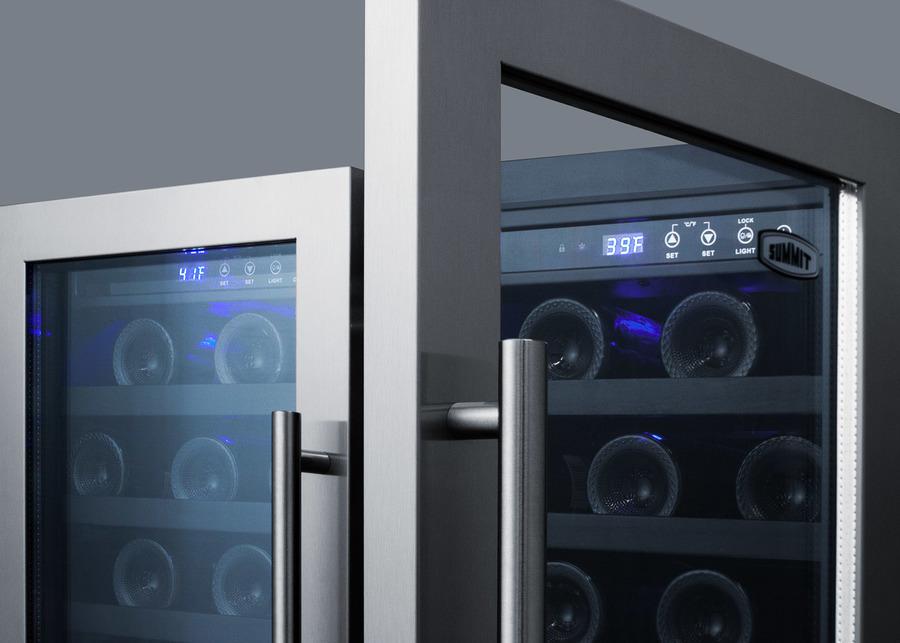

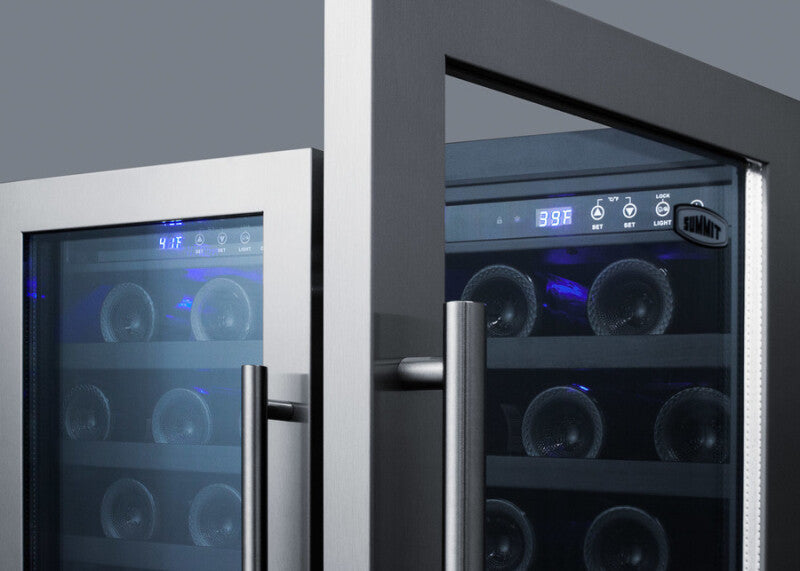

Digital thermostats
Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
Wooden shelves
Classic wood shelves in a jet black finish are specially designed to hold bottles safely in place
Professional handles
Sleek stainless steel handles add an elegant touch to any setting
Glass doors with seamless stainless steel trim
French door swing offers a modern look, with stainless steel door trim for an added accent
Factory installed locks
Keyed locks on both zones offer separate security for interior contents
Automatic defrost
Reduced user maintenance with automatic defrost
Fan-forced cooling
Internal fans ensure both interiors have a consistent temperature from top to bottom
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
