Sale price $3,316.47 Regular price $3,989.97 Save $673.50 / 16% OFF

Product Details for SUMMIT SWC1875BCSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.63 in.
Height 69.63 in.
Length 22.75 in.
Weight 200 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 21.66 ft³
Dimensional Weight 269.29 lbs.
Total of Cubes 21.66 ft³
Total of Dimensional Weight 269.29 lbs.

Overview wine cellar

Nominal Height 70.0" (178 cm)
Height of Cabinet 69.63" (177 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 44.75" (114 cm)
Bottles 118 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 200.0 lbs. (91 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101059228
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 14
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.07 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 27.75" (70 cm)
Interior Width 1 20.0" (51 cm)
Interior Depth 1 17.5" (44 cm)
Temperature Range 41°F to 55°F (upper zone); 55°F to 72°F (lower zone)
Interior Height 2 31.0" (79 cm)
Interior Width 2 20.0" (51 cm)
Interior Depth 2 17.5" (44 cm)
Sabbath Mode Yes
Sound Level 32.9 dB

Description

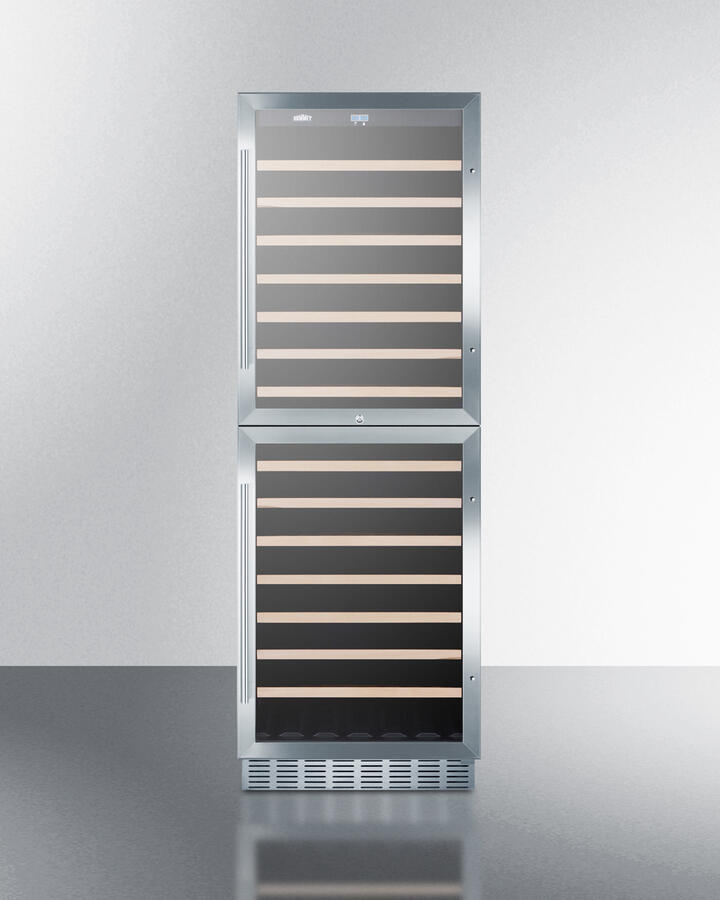

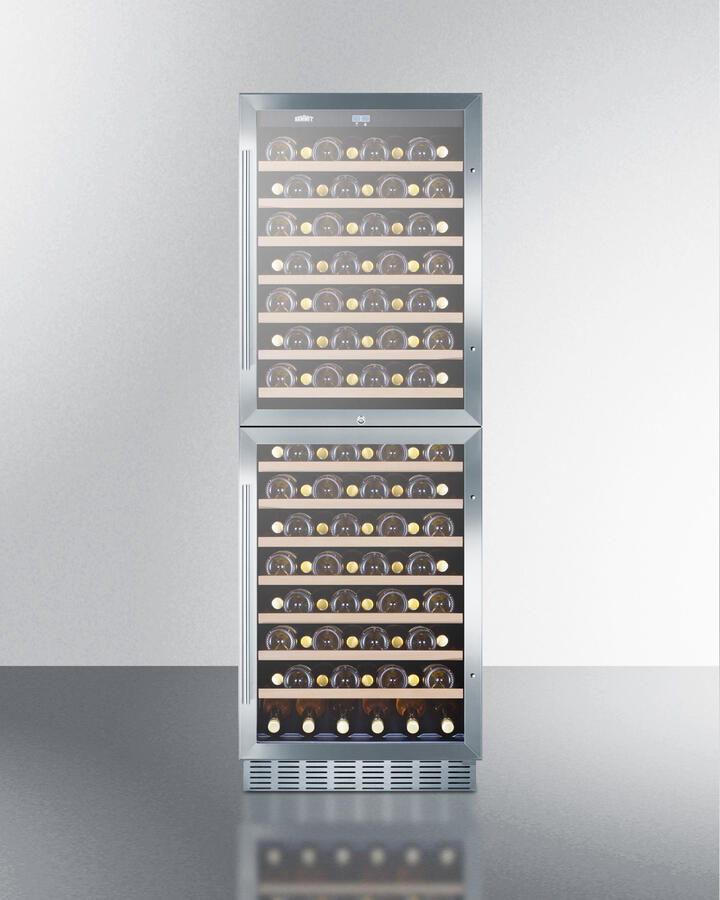

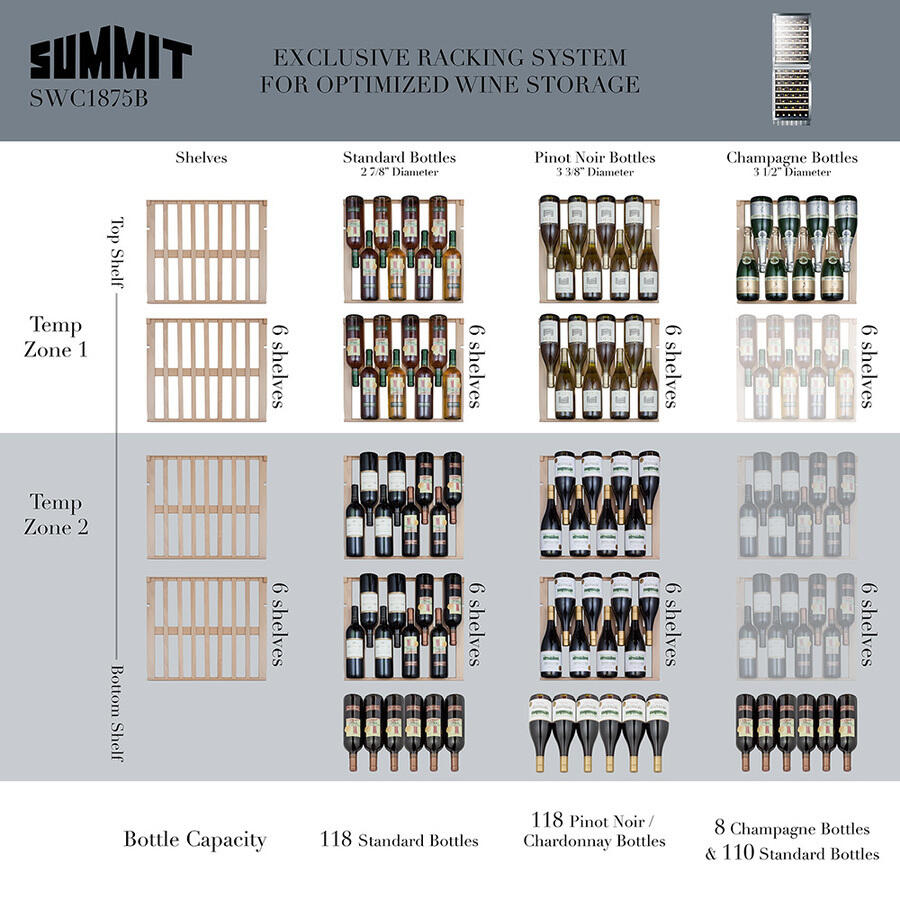

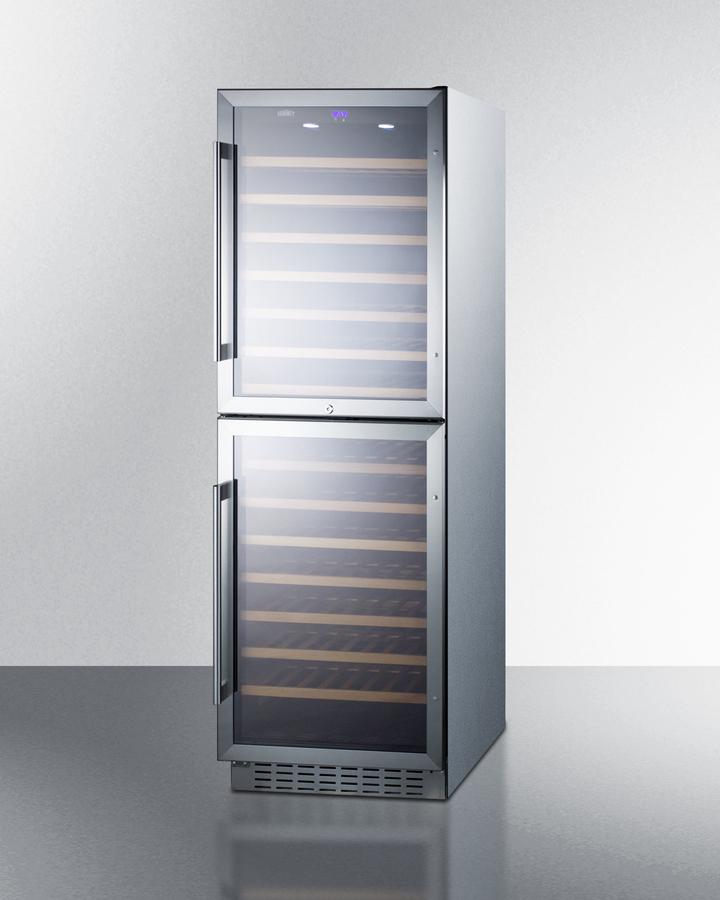

SUMMIT SWC1875BCSS is a built-in capable two-zone wine cellar designed to store up to 118 bottles. Sized with a convenient 24" footprint, the SWC1875BCSS features a front-breathing system for built-in installation and a fully finished stainless steel wrapped to cabinet to also allow freestanding use. The two separate temperature zones include their own reversible stainless steel trimmed glass door, with pro style handles and front locks for added security. A stainless steel kickplate completes the professional look. Inside, the SWC1875BCSS includes 14 slide-out wooden shelves to properly hold bottles. White and sparkling wine is best stored in the upper compartment, with reds preserved at a warmeer temperature below. Store up to 118 standard 750ml Bordeaux style bottles, or 118 wider Burgundy style bottles (generally used for Chardonnay or Pinot Noir). If storing champagne, the top shelf can hold 8 bottles. Recessed LED lighting offers an attractive and efficient display and the digital thermostat ensures easy and intuitive temperature management. The temperature can be displayed in Celsius or Fahrenheit for added convenience. With its user-friendly features and elegant design, the SWC1875BCSS is the perfect way to keep your collection stored and displayed at its best.


Product Features

  • Built-in capable
    Front-breathing unit can be integrated into your cabinetry; 1/4" of space required around sides and top
  • Large capacity
    Stores up to 118 bottles of standard Bordeaux style or wider Burgundy style bottles
  • Stainless steel wrapped cabinet
    Exterior features 304 grade stainless steel for true luxury built to last
  • Two temperature zones
    Chill white and sparkling wine in the upper zone while preserving your reds at a warmer temperature below

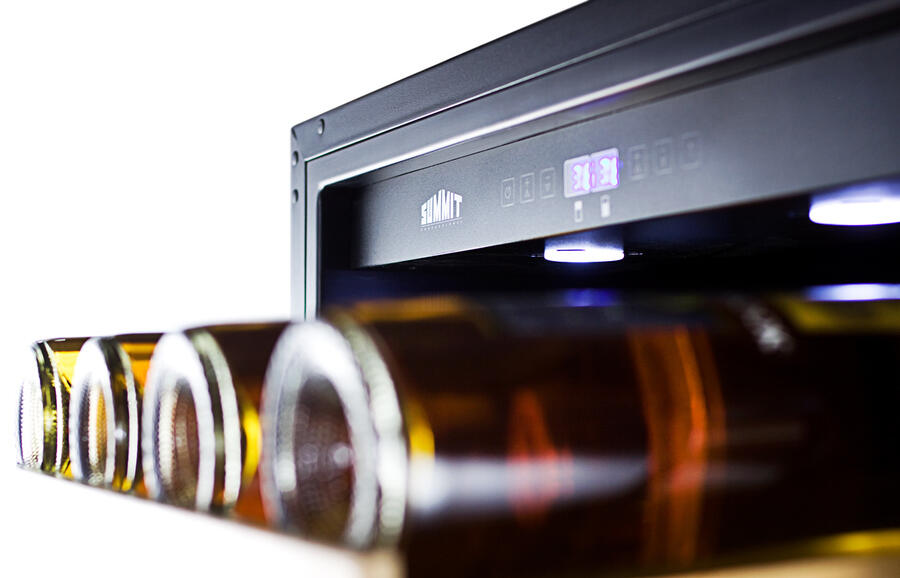

  • Digital thermostat
    Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

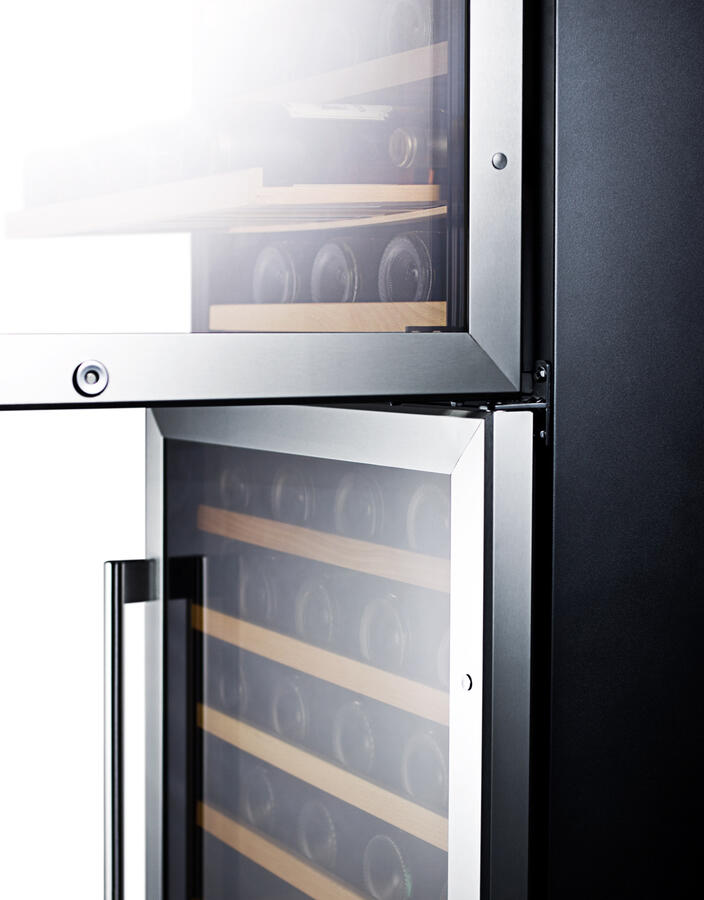

  • Two reversible glass doors
    Elegant tint with user-reversible convenience and stainless steel trim
  • Slide-out wooden shelving
    14 easy gliding shelves
  • Recessed LED lighting
    Attractive and energy efficient illumination for your collection
  • Automatic defrost
    Reduced maintenance with auto defrost system
  • Factory installed lock
    Keyed lock secures both sections
  • Temperature range
    40ºF to 72ºF; Upper zone is ideal for white and sparkling wine served at a cooler temperature; Lower compartment is better suited for holding reds at a warmer temperature
  • Professional handles
    Sturdy chrome handles add a professional look
  • Stainless steel kickplate
    An added touch of elegance
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Fully finished cabinet
    Allows the unit to be used freestanding
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
