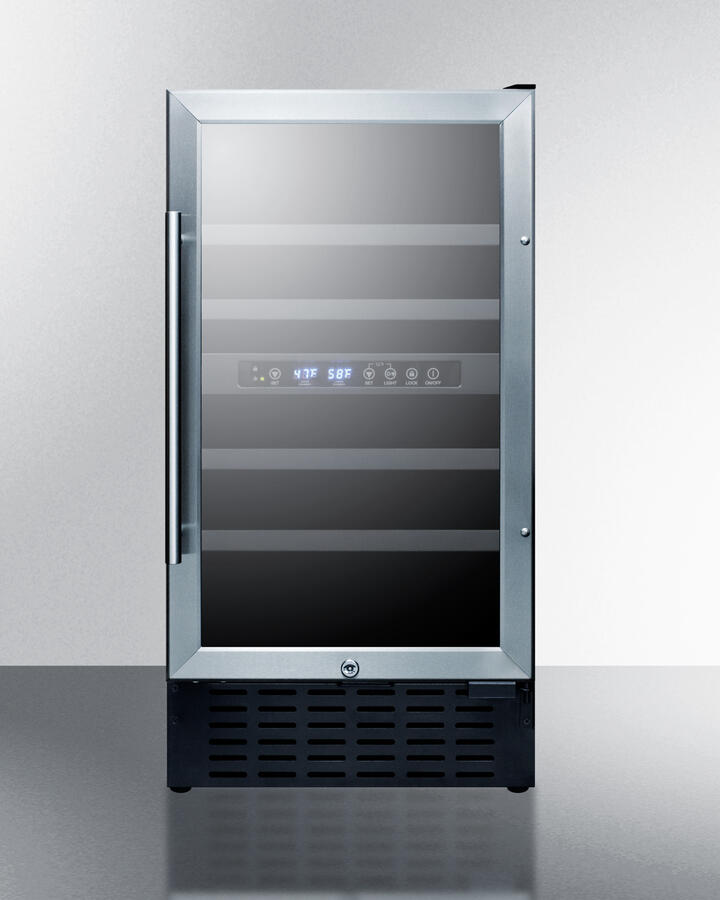

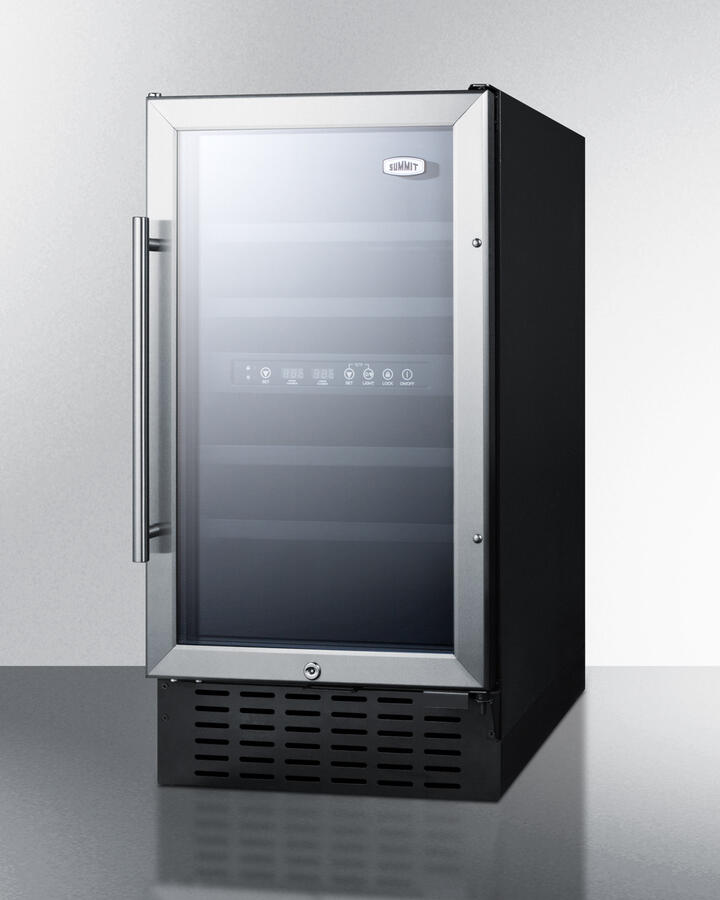

Summit SWC182ZADA 18" Wide Built-In Wine Cellar, ADA Compliant Black

Quick Specification More details

Width:
17.75"
Depth:
23.5"
Height:
31.63"
Type:
Wine Fridges

About this product

28 bottle capacity
Dual zone storage
ADA compliant
Built-in capable

Summer Sale

Clearance

SKU: SWC182ZADA | UPC: 761101055091

Summit SWC182ZADA 18" Wide Built-In Wine Cellar, ADA Compliant Black

$1,325.56 ~~$1,574.97~~ Save $249.41 / 15% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
17.75"
Depth:
23.5"
Height:
31.63"
Type:
Wine Fridges

About this product

28 bottle capacity
Dual zone storage
ADA compliant
Built-in capable

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$1,325.56 ~~$1,574.97~~ Save $249.41 / 15% OFF

Product Details for SUMMIT SWC182ZADA

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	17.75 in.
Height	31.63 in.
Length	23.5 in.
Weight	95 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	7.64 ft³
Dimensional Weight	94.92 lbs.
Total of Cubes	7.64 ft³
Total of Dimensional Weight	94.92 lbs.

Overview wine cellar

Nominal Height	32.0" (81 cm)
Height of Cabinet	31.63" (80 cm)
Nominal Width	18.0" (46 cm)
Width	17.75" (45 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	39.75" (101 cm)
Capacity	3.3 cu.ft. (93 L)
Bottles	28 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101055091
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Wood
Shelf Qty	4
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	150.0
Low Side PSI	50.0
Interior Height 1	10.63" (27 cm)
Interior Width 1	14.25" (36 cm)
Interior Depth 1	18.0" (46 cm)
Compressor Step Height	5.25" (13 cm)
Compressor Step Width	14.25" (36 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	4
Temperature Range	41º to 64ºF
Interior Height 2	12.25" (31 cm)
Interior Width 2	14.25" (36 cm)
Interior Depth 2	18.0" (46 cm)

Description

SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space. Sized just under 18" wide and 32" high, the SWC182ZADA is front-breathing for built-in installation under lower ADA compliant counters, with a fully finished jet black cabinet that also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included. Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management. With its slim fit and convenient design, the SWC182ZADA makes an attractive addition to any room.

Product Features

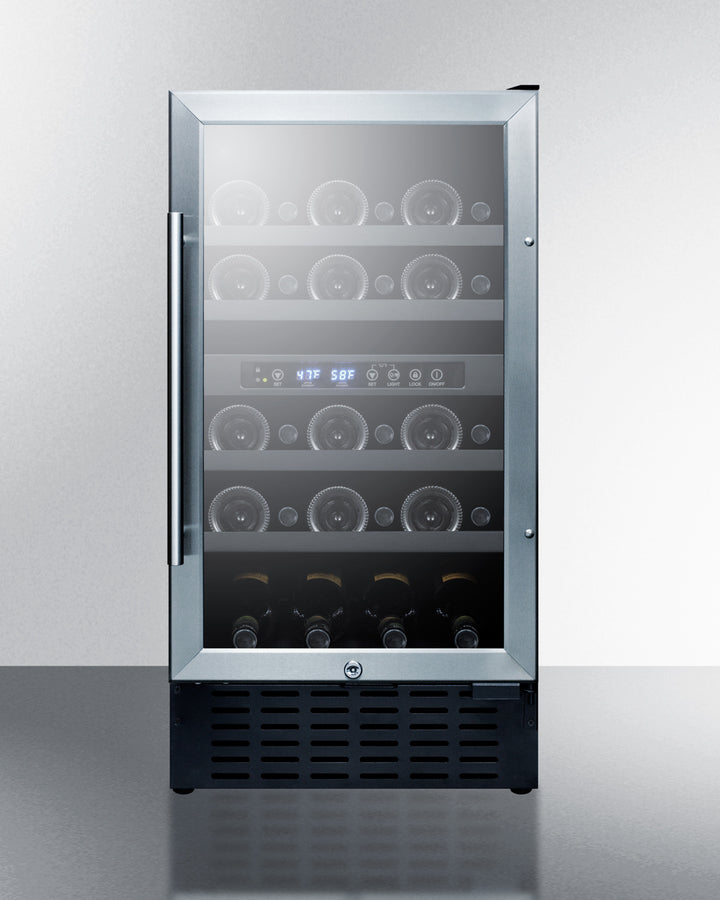

28 bottle capacity

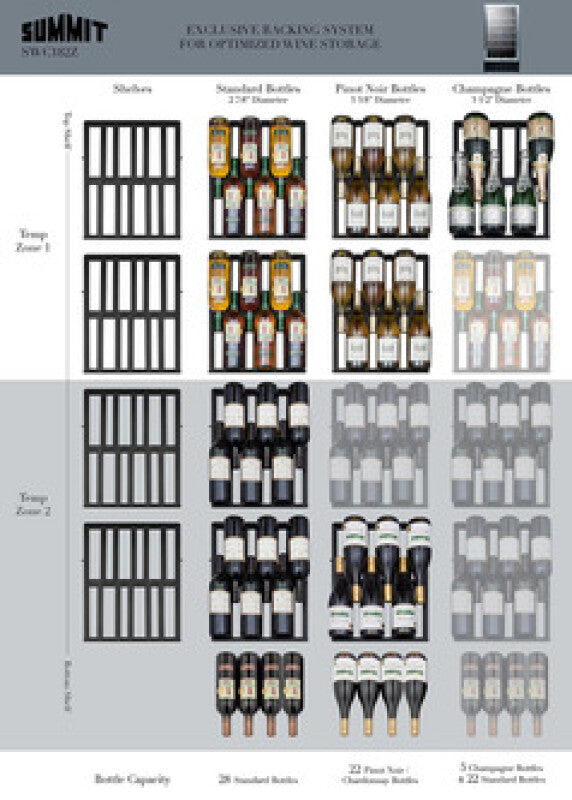

Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
Dual zone storage
Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
ADA compliant
32" height is designed to fit under lower ADA compliant counters
Built-in capable
Make the best use of space by installing your appliance under the counter
Glass door with stainless steel trim
Provides a full display of stored contents with a heat-safe double tempered design
Factory installed lock
Keyed lock for a secure interior, with 2 keys included

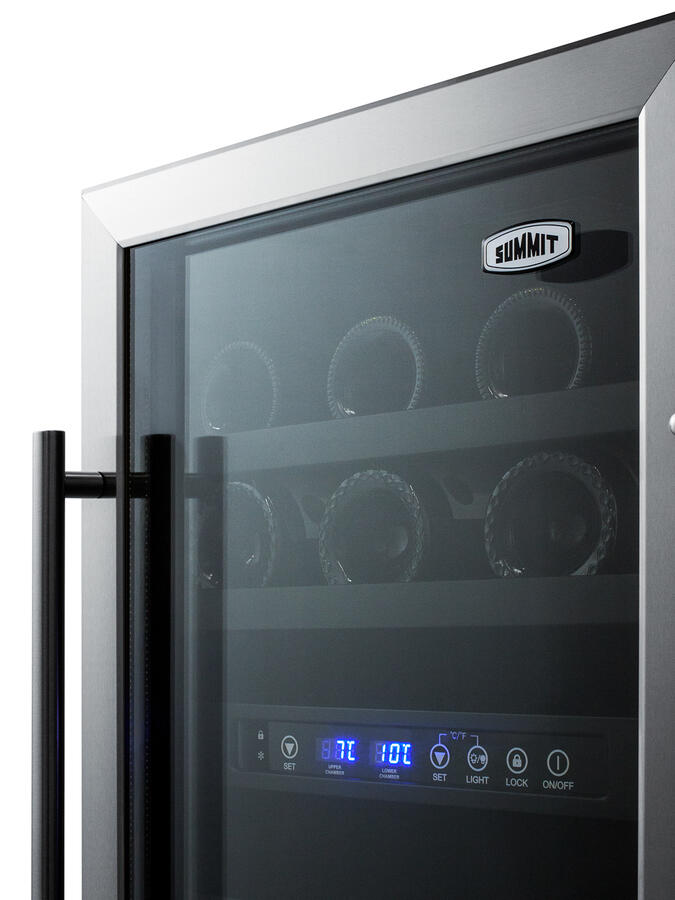

Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination for each temperature zone for an elegant presentation
Automatic defrost
Reduced maintenance with the convenience of auto defrost

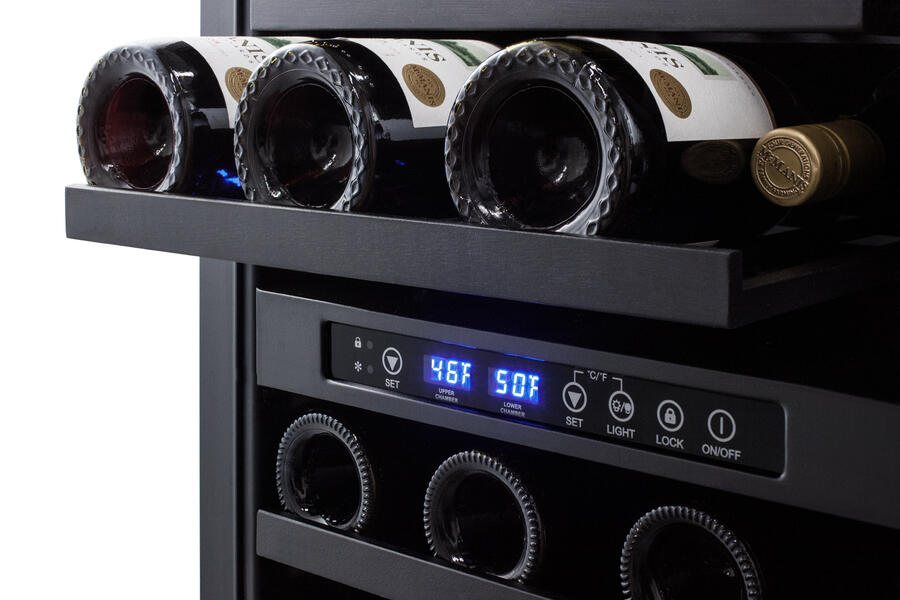

Wooden shelves
4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
Reversible door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Professional handle
Stainless steel handle completes the look
Flush back
Space saving design
Integrated door hinge
Hinge is flush with cabinet, adding no additional height to the unit
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
