Sale price $1,483.69 Regular price $1,769.97 Save $286.28 / 16% OFF

Product Details for SUMMIT SWC1535BCSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 14.75 in.
Height 33.88 in.
Length 22.75 in.
Weight 87 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 6.58 ft³
Dimensional Weight 81.79 lbs.
Total of Cubes 6.58 ft³
Total of Dimensional Weight 81.79 lbs.

Overview wine cellar

Nominal Height 34.0" (86 cm)
Height of Cabinet 33.88" (86 cm)
Nominal Width 15.0" (38 cm)
Width 14.75" (37 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Capacity 2.94 cu.ft. (83 L)
Bottles 33 bottles
Defrost Type Automatic
Door Glass
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 87.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101052441
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 0.64 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 27.0" (69 cm)
Interior Width 1 12.0" (30 cm)
Interior Depth 1 17.5" (44 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 12.0" (30 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Sabbath Mode Yes

Description

Give your wine collection the proper care with SUMMIT SWC1535BCSS, a slim-fitting wine cellar designed for built-in use under counters. At just 14 ¾" wide, the SWC1535BCSS is thoughtfully sized to store up to 33 Bordeaux style bottles on six slide-out wooden shelves (if using this unit for wider Burgundy style bottles, you can remove every other shelf to accommodate their size). An interior LED light provides an elegant view behind a tempered glass door, elegantly trimmed in stainless steel. The reversible door includes a factory installed lock and professional handle. Inside, the digital thermostat makes temperature management easy and intuitive, with indicator lights to show when the interior is ideal for reds, whites, and sparkling wines. The SWC1535BCSS has a stainless steel wrapped cabinet and flush back design for easy installation under any counter. The unit can be used built-in or freestanding. For a matching glass door beverage refrigerator, see the SCR1536BCSS.


Product Features

  • Built-in capable
    Make the best use of space by installing your appliance under the counter
  • Stainless steel cabinet
    Wrapped stainless steel exterior provides a professional look with lasting durability
  • Factory installed lock
    Keyed security on the wine cellar door
  • Digital thermostat
    Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines
  • Glass door
    Heat-safe glass door offers a full view of stored contents
  • Digital display
    Temperature readout can be shown in Celsius or Fahrenheit
  • Wooden shelves
    Classic look holds up to 33 bottles
  • LED lighting
    On/off button to illuminate your collection
  • Automatic defrost
    Reduced maintenance and steady temperature performance
  • Professional handle
    Stainless steel look for added elegance
  • 33 bottle capacity

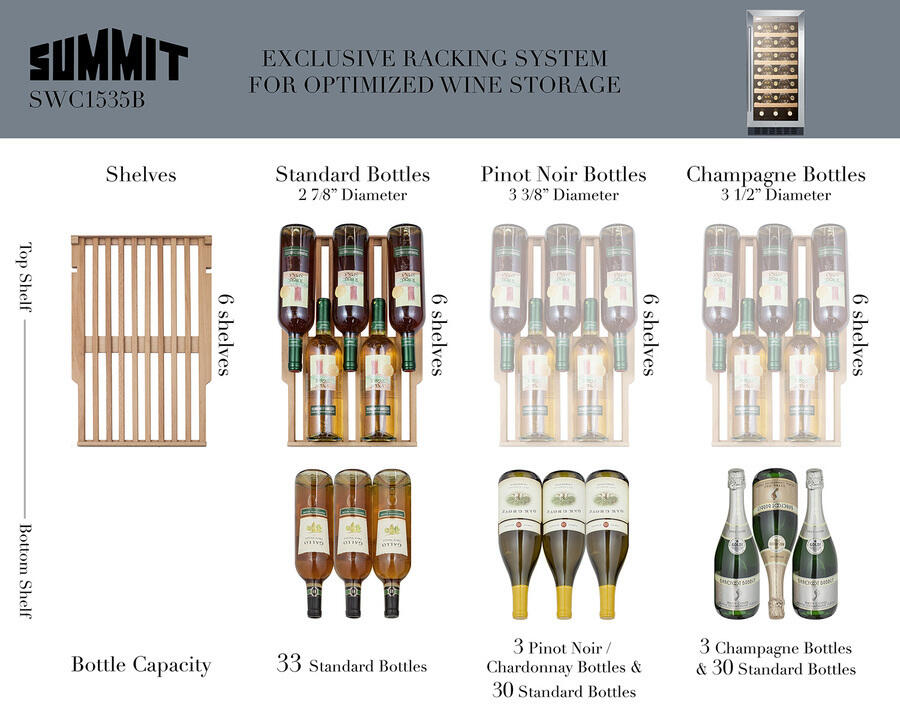

    Interior can store up to 33 standard Bordeaux style bottles. The floor can hold three wider bottles (including the Burgundy style or champagne). Alternatively, you can remove every other shelf to accommodate wider bottles
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Flush back
    Space saving design
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
