Sale price $876.95 Regular price $1,164.97 Save $288.02 / 24% OFF

Product Details for SUMMIT SWC1535B

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 14.75 in.
Height 33.88 in.
Length 22.75 in.
Weight 77 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 6.58 ft³
Dimensional Weight 81.79 lbs.
Total of Cubes 6.58 ft³
Total of Dimensional Weight 81.79 lbs.

Overview wine cellar

Nominal Height 34.0" (86 cm)
Height of Cabinet 33.88" (86 cm)
Nominal Width 15.0" (38 cm)
Width 14.75" (37 cm)
Nominal Depth 23.0" (58 cm)
Depth 22.75" (58 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 36.25" (92 cm)
Capacity 2.94 cu.ft. (83 L)
Bottles 33 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 77.0 lbs. (35 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101029436
Number of Zones 1
Door Swing RHD
Reversible Yes
Shelf Type Wood
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 0.64 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 27.0" (69 cm)
Interior Width 1 12.0" (30 cm)
Interior Depth 1 17.5" (44 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Sabbath Mode Yes

Description

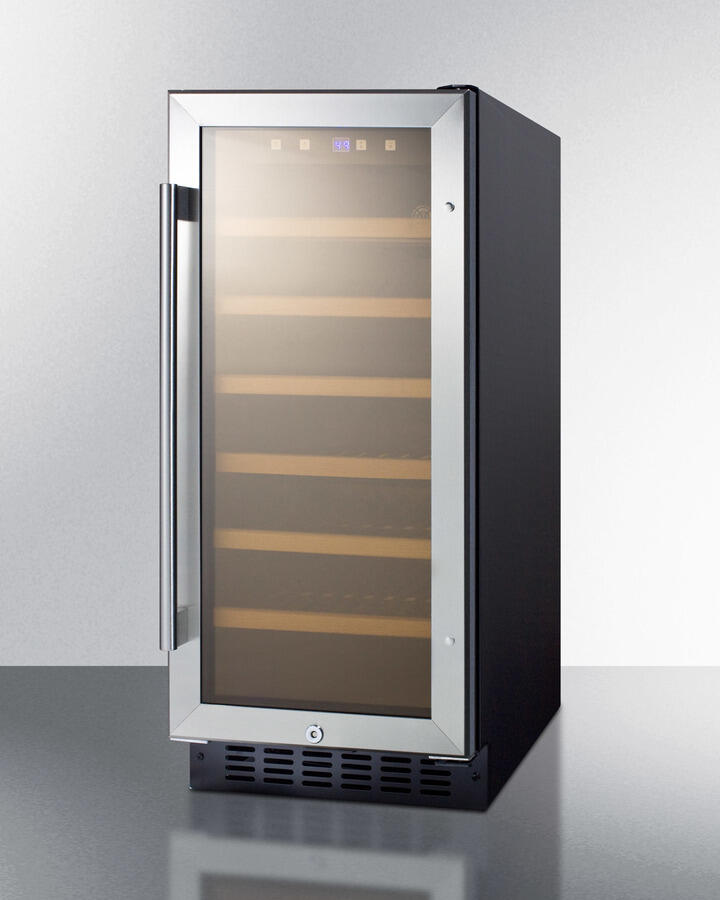

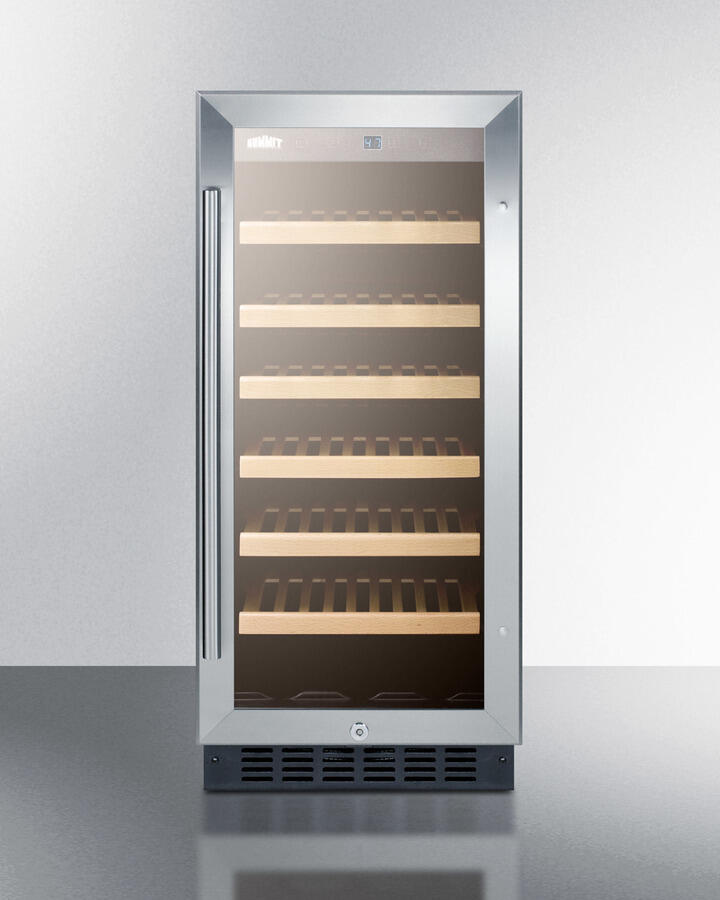

Give your wine collection the proper care with SUMMIT SWC1535B, a slim-fitting wine cellar designed for built-in use under counters. At just 14 ¾" wide, the SWC1535B is thoughtfully sized to store up to 33 Bordeaux style bottles on six slide-out wooden shelves (if using this unit for wider Burgundy style bottles, you can remove every other shelf to accommodate their size). An interior LED light provides an elegant view behind a tempered glass door, elegantly trimmed in stainless steel. The reversible door includes a factory installed lock and professional handle. Inside, the digital thermostat makes temperature management easy and intuitive, with indicator lights to show when the interior is ideal for reds, whites, and sparkling wines. The SWC1535B has a jet black cabinet and flush back design for easy installation under any counter. The unit can be used built-in or freestanding. For a matching glass door beverage refrigerator, see the SCR1536B. This model replaces SUMMIT SWC1535.


Product Features

  • Glass door with stainless steel trim
    Provides a full display of your stored collection with a heat-safe double tempered design

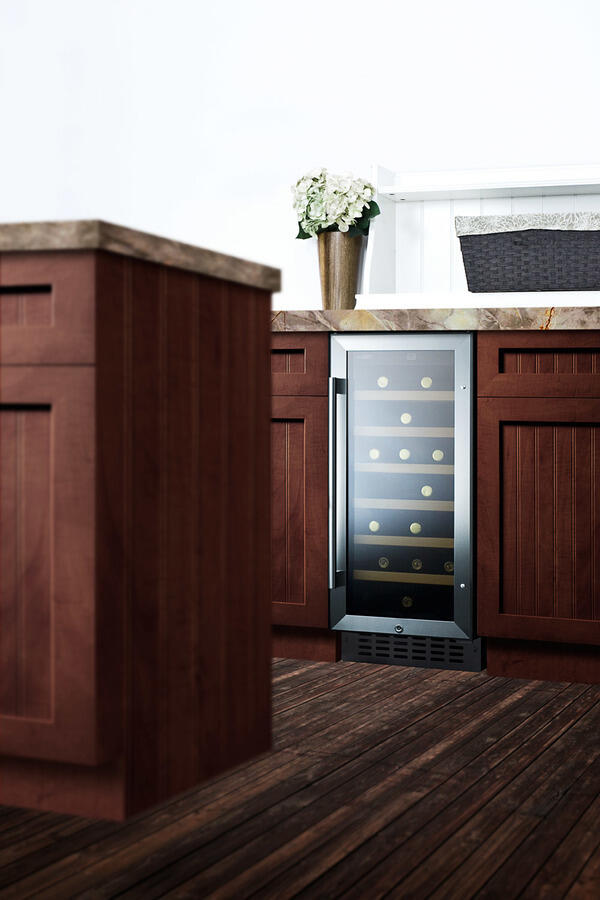

  • Built-in capable
    Make the best use of space by installing your appliance under the counter
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • Commercially Approved
    ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
  • Flush back
    Space saving design
  • Factory installed lock
    Keyed security on the wine cellar door
  • Digital display
    Temperature readout can be shown in Celsius or Fahrenheit
  • Digital thermostat
    Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines
  • Wooden shelves
    Classic look holds up to 33 bottles
  • LED lighting
    On/off button to illuminate your collection
  • Automatic defrost
    Reduced maintenance and steady temperature performance
  • Professional handle
    Stainless steel look for added elegance
  • Reversible door
    Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

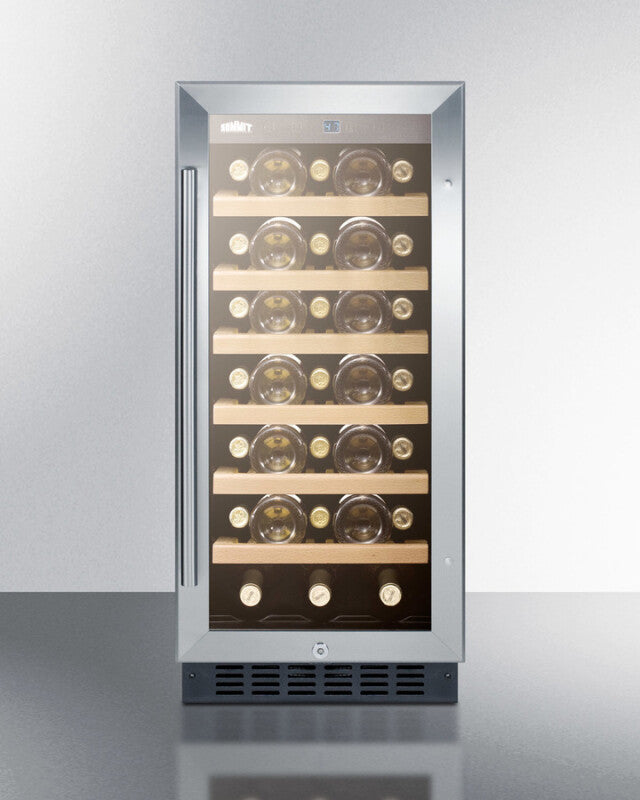

  • 33 bottle capacity

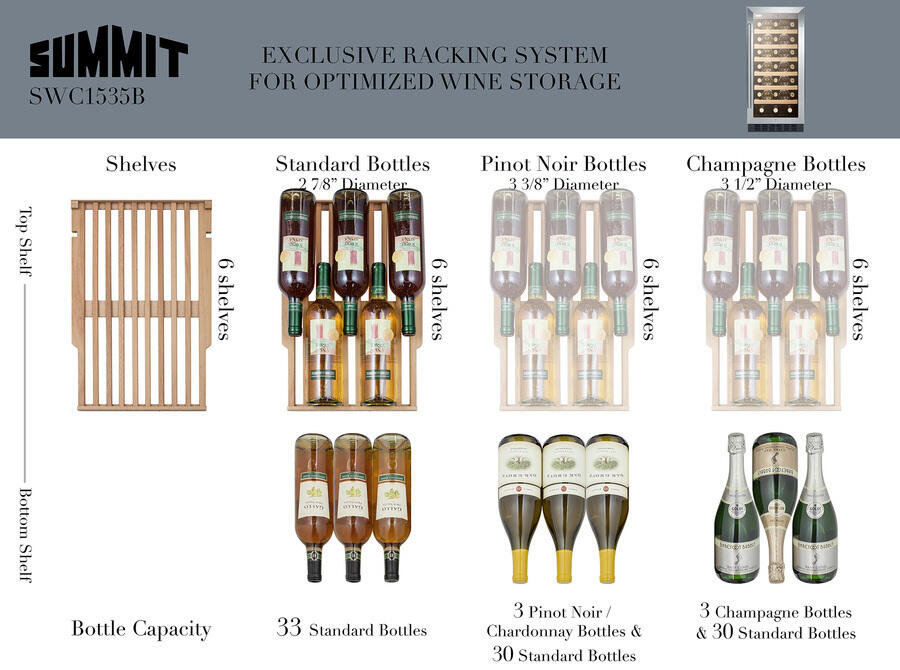

    Interior can store up to 33 standard Bordeaux style bottles. The floor can hold three wider bottles (including the Burgundy style or champagne). Alternatively, you can remove every other shelf to accommodate wider bottles
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • HTS CODE: 8418.50.0080
    Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
