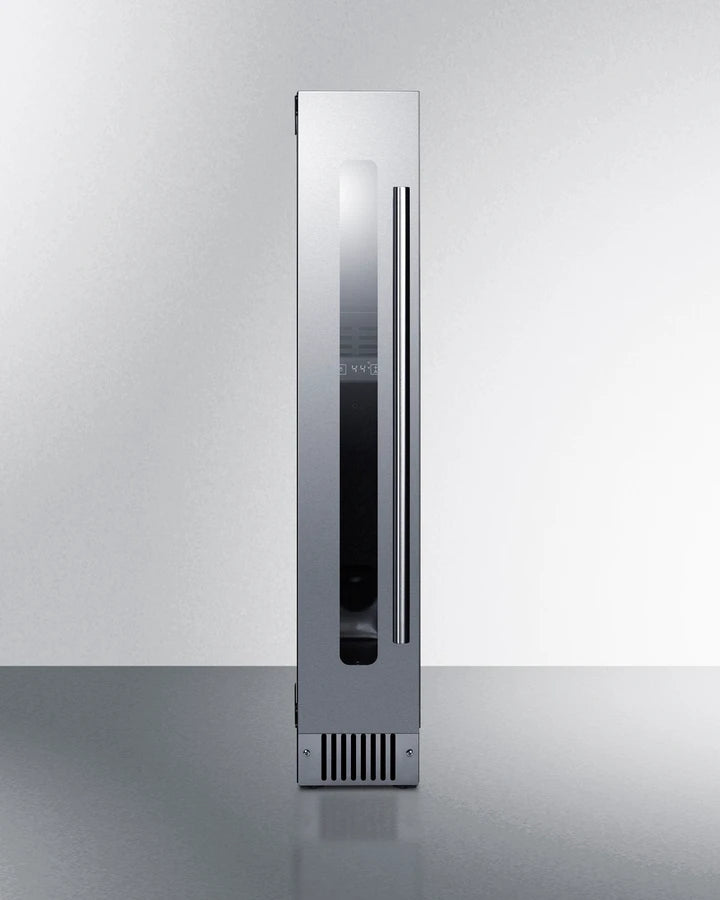

Summit SWC008PNRLHD 6" Wide Built-In Wine Cellar (Panel Not Included) Black
Sale price
$1,026.43
Regular price
$1,369.97
Save
$343.54
/ 25% OFF
Out of stock
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$1,026.43
Regular price
$1,369.97
Save
$343.54
/ 25% OFF
Product Details for SUMMIT SWC008PNRLHD
Technical Details
Overview wine cellar

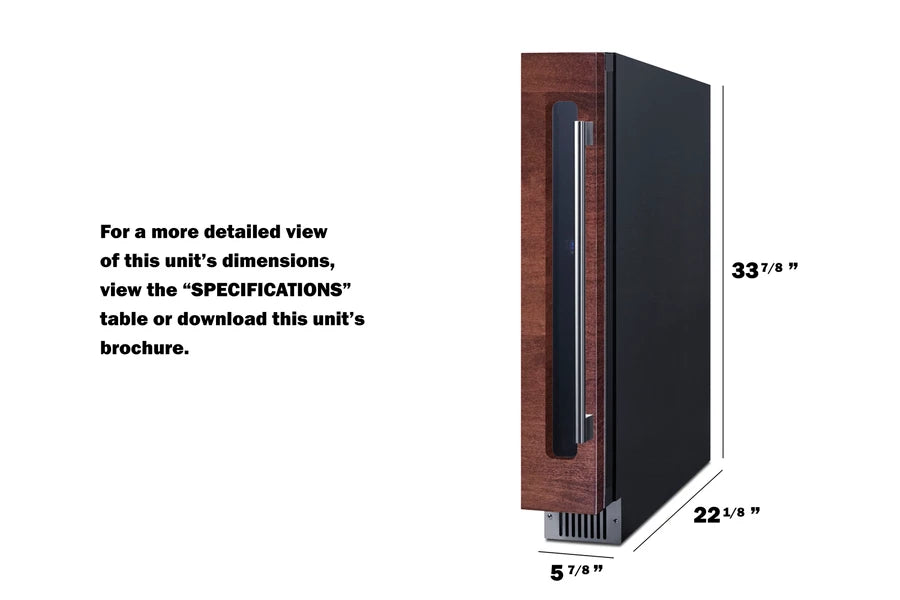

| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.88" (86 cm) |
| Nominal Width | 6.0" (15 cm) |
| Width | 5.88" (15 cm) |
| Nominal Depth | 22.0" (56 cm) |
| Depth | 22.13" (56 cm) |
| Depth with Panel | 22.88" (58 cm) |
| Depth with door at 90° | 28.63" (73 cm) |
| Bottles | 7 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 44.0 lbs. (20 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101161235 |
| Number of Zones | 1 |
| Door Swing | LHD |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.57 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.88" (66 cm) |
| Interior Width 1 | 3.5" (9 cm) |
| Interior Depth 1 | 14.25" (36 cm) |
| Compressor Step Height | 3.0" (8 cm) |
| Compressor Step Width | 3.5" (9 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | 41 to 72ºF |
| Sabbath Mode | Yes |
| Sound Level | 33.8 dB |
Description
Summit lets you transform even the slimmest undercounter space into a fully functional wine cellar with our 6 inch wide SWC008PNR. Designed for built-in installation, the SWC008PNRLHD features a front-breathing compressor-based cooling system to ensure proper wine temperature is maintained. The stainless steel door features a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (recommended panel size: 30" H x 5 3/4" W; maximum weight: 10 lbs.). The door is fully finished with a seamless stainless steel trim over a glass window, giving you the option to keep the look if preferred. This unit has a right angle plug and sealed rear for added space savings. It ships with a left hand door swing. Inside, the SWC008PNRLHD features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit. The temperature can be set between 41 and 72ºF to suit red or white wine. Seven slots let you store wine bottles with ease. The floor is set at a slight angle, ideal for holding an open bottle. This unit is equipped with an open door and high temperature alarm for added assurance. The Sabbath mode setting allows you to disable certain electrical features during periods of observance. The commercial grade compressor operates quietly, keeping the sound levels under 34 dB. With its innovative size and customizable design, the SWC008PNRLHD can be installed in virtually any space to bring reliable wine storage to kitchens, home bars, offices, walk-in closets, and more.
Product Features
-
6" Wide Built-In Wine Cellar
Single zone wine cellar sized for built-in installation in 6" wide spaces -
Customizable look

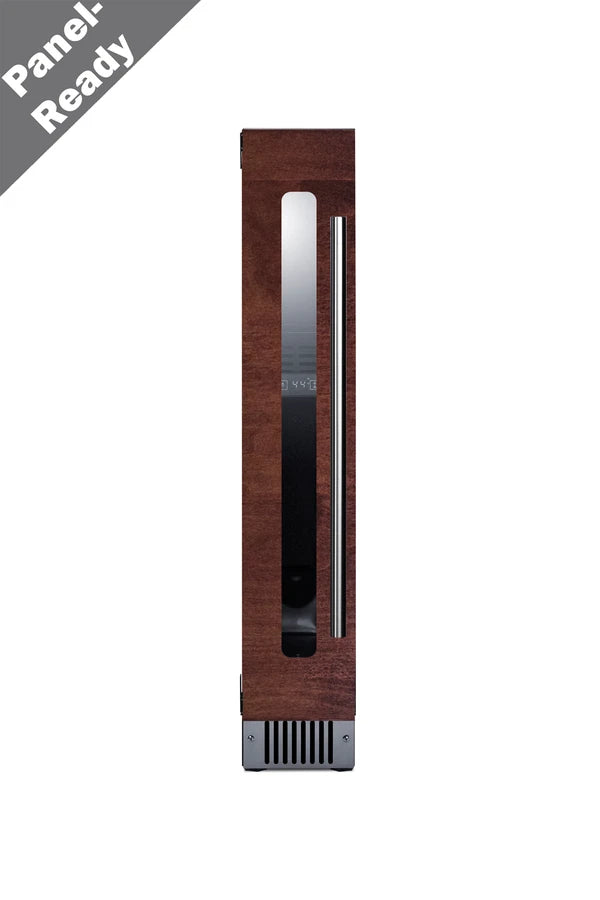

Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen -
Easy panel installation with included 2-piece bracket kit
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 5 3/4 W with a 3 1/4" inner frame) -
Flexible style
Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of a stainless steel trimmed door -
Fully articulating hinge
European style hinge design ensures a flush fit and allows for a smoother opening -
Seamless stainless steel door trim
Single-piece stainless steel door trim frames the window for a premium look -
Slim 6 inch width
Uniquely slim fit lets you transform extra cabinet space into a 7-bottle wine storage center -
Designed for built-in use
Make the best use of space by installing your appliance under the counter -
Commercial grade design
Meets UL-471 commercial standards -
Unbranded exterior
Allows for seamless integration with other appliances -
Glass door
Double pane tempered glass provides a full display of your collection -
Digital thermostat
Electronic controls for precise temperature management -

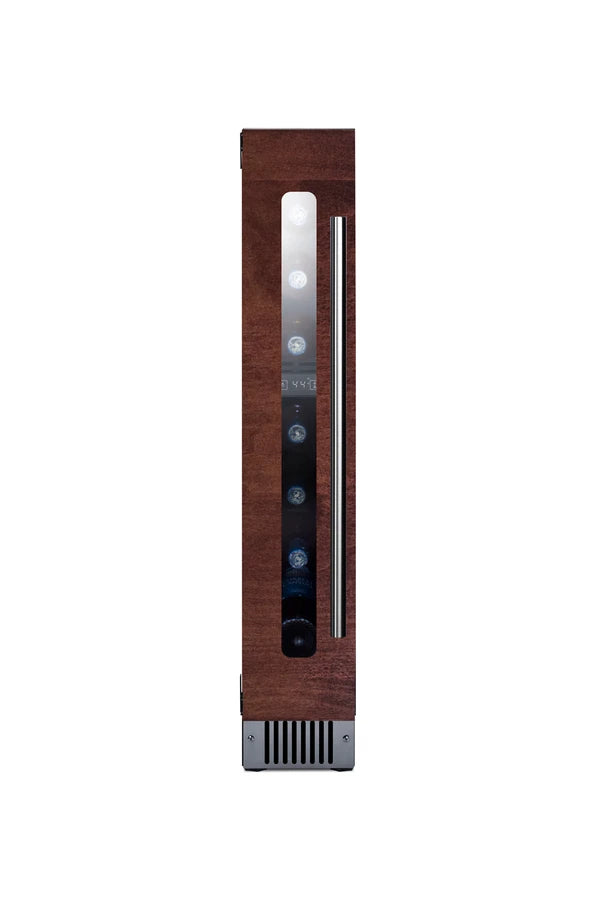

7 bottle capacity
Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well -
Open bottle storage
The floor slight is slightly angled, allowing you store one bottle that has been uncorked at a gentle tilt -
Digital display
Temperature readout can be shown in Celsius or Fahrenheit -
LED lighting
Provides an attractive and efficient bottle display -
Automatic defrost
Reduced maintenance and steady temperature performance -
Fan-forced cooling
Interior fan helps to ensure the temperature is evenly distributed -
Open door alarm
Audible alarm will sound if the door is left ajar for over 60 seconds -
High temperature alarm
If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored -
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours -
Temperature memory function
Unit will retain last temperature settings in the event of a power failure -
Right angle plug
Flat design offers added space savings by requiring no extra depth to plug the unit in -
Flush back
Space saving design with easier cleanability -
Stainless steel kickplate
Complete luxury down to the toe kick -
Quiet operation
Runs at under 34 dB for a quiet performance in any setting -
Quality storage
Compressor-based operation to ensure reliable temperature performance -
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals -
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
