Sale price $986.89 Regular price $1,268.97 Save $282.08 / 22% OFF

Product Details for SUMMIT SWC008PNR

Technical Details

Overview

Nominal Height 13.39
Height of Cabinet 13.34
Nominal Width 2.36
Width 2.31
Nominal Depth 8.71
Depth 8.71
Depth with Panel 9.01
Depth with door at 90(degree) 11.27
Bottles 7
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115
Weight 44.0
Parts & Labor Warranty 1
Compressor Warranty 5
UPC 761101159812

Wine cellar

Number of Zones 1
Door Swing RHD
Reversible Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.57
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 10.19
Interior Width 1 1.38
Interior Depth 1 5.61
Compressor Step Height 1.18
Compressor Step Width 1.38
Compressor Step Depth 2.36
Temperature Range 41
Sabbath Mode Yes
Sound Level 33.8

Features

  • Single zone wine cellar sized for built-in installation in 6" wide spaces

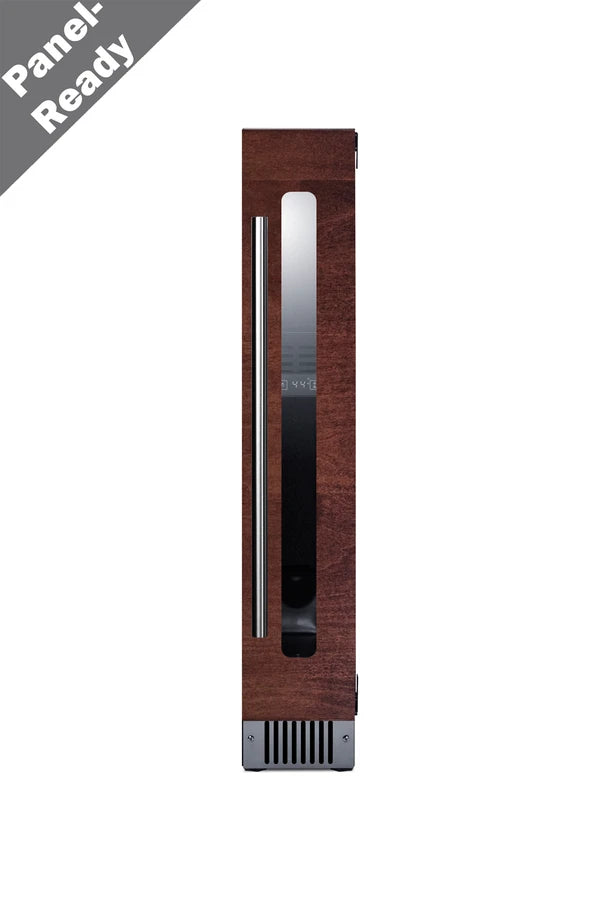

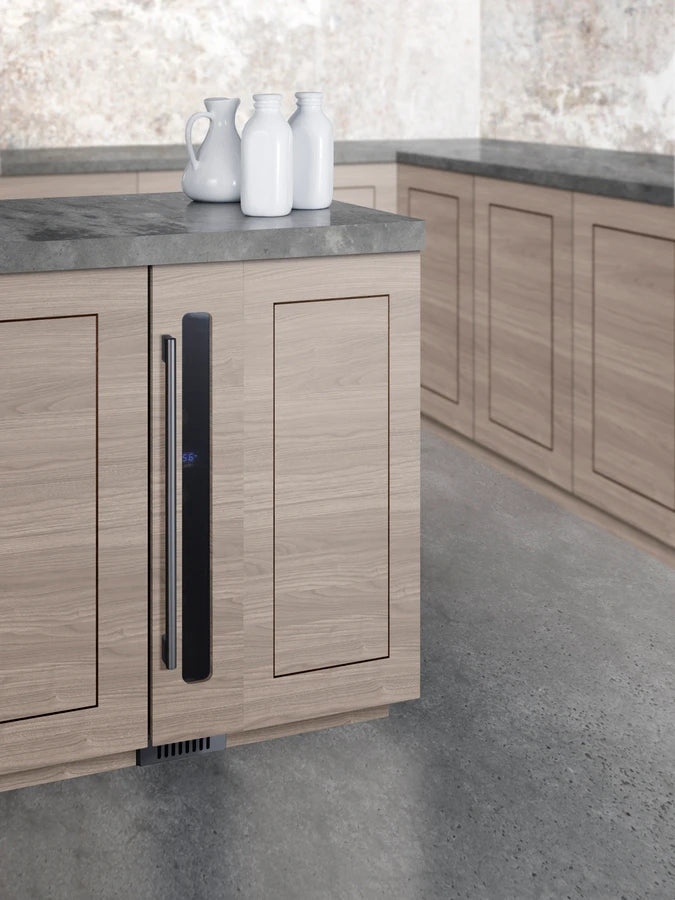

  • Panel-ready door lets you customize the unit for a seamless look that integrates into your kitchen
  • Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 30" H x 5 3/4 W with a 3 1/4" inner frame)

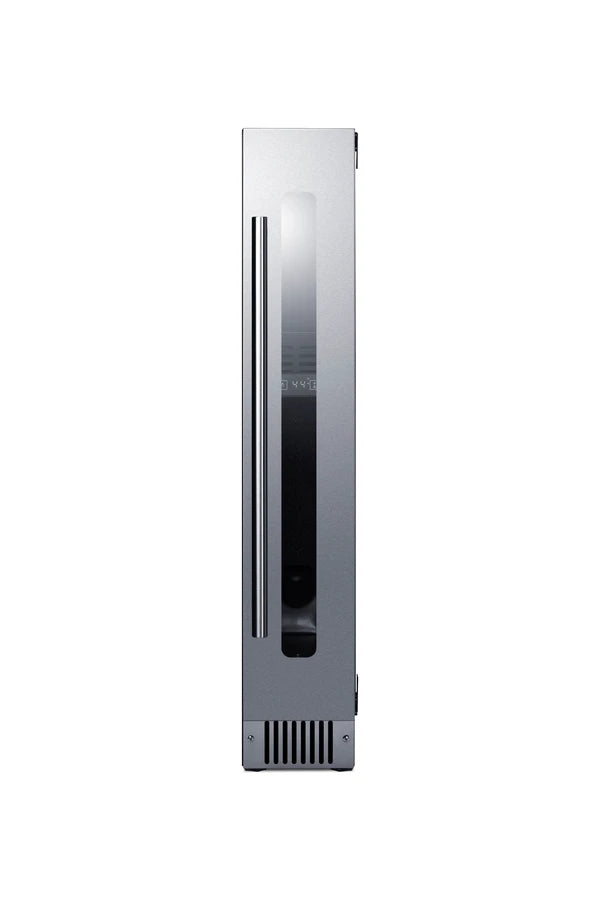

  • Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of a stainless steel trimmed door
  • European style hinge design ensures a flush fit and allows for a smoother opening
  • Single-piece stainless steel door trim frames the window for a premium look
  • Uniquely slim fit lets you transform extra cabinet space into a 7-bottle wine storage center
  • Make the best use of space by installing your appliance under the counter
  • Meets UL-471 commercial standards
  • Allows for seamless integration with other appliances
  • Double pane tempered glass provides a full display of your collection
  • Electronic controls for precise temperature management
  • Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well
  • The floor slight is slightly angled, allowing you store one bottle that has been uncorked at a gentle tilt
  • Temperature readout can be shown in Celsius or Fahrenheit
  • Provides an attractive and efficient bottle display
  • Reduced maintenance and steady temperature performance
  • Interior fan helps to ensure the temperature is evenly distributed
  • Audible alarm will sound if the door is left ajar for over 60 seconds
  • If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored
  • Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Unit will retain last temperature settings in the event of a power failure
  • Flat design offers added space savings by requiring no extra depth to plug the unit in
  • User-reversible door swing to best accommodate your setting
  • Space saving design with easier cleanability
  • Complete luxury down to the toe kick
  • Runs at under 34 dB for a quiet performance in any setting
  • Compressor-based operation to ensure reliable temperature performance
  • Environmentally friendly design with no ozone-damaging chemicals
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



Description

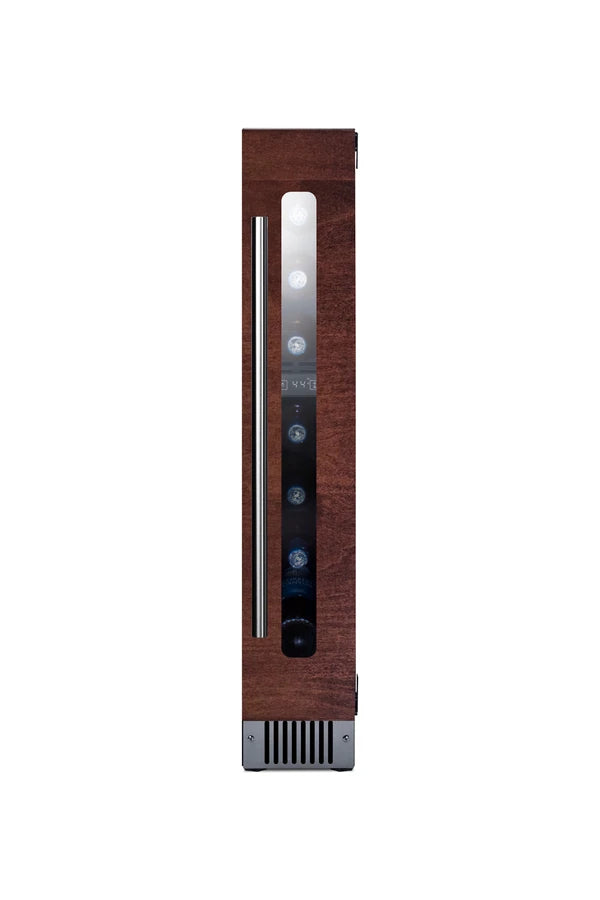

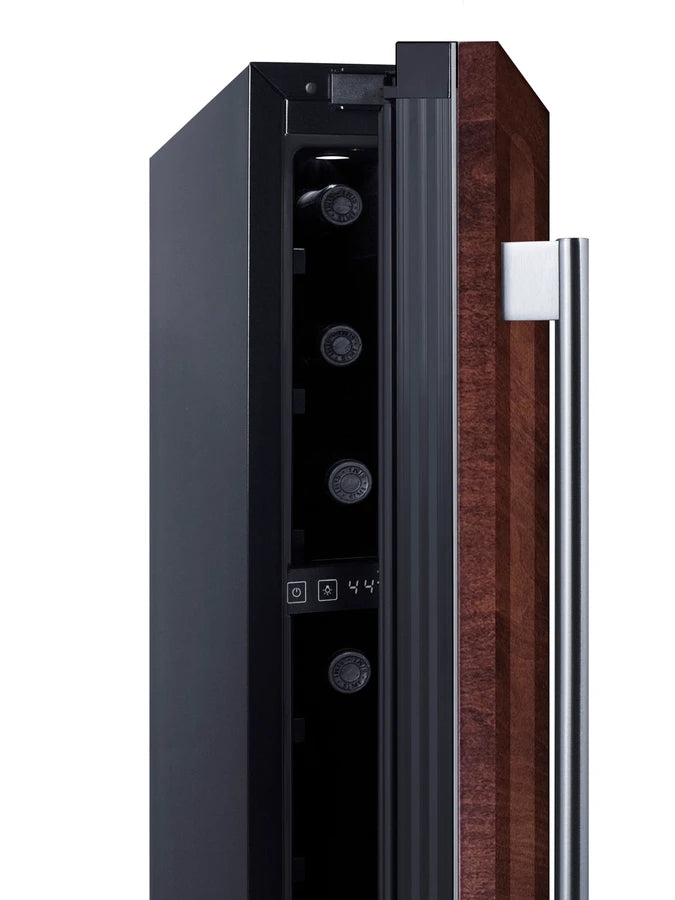

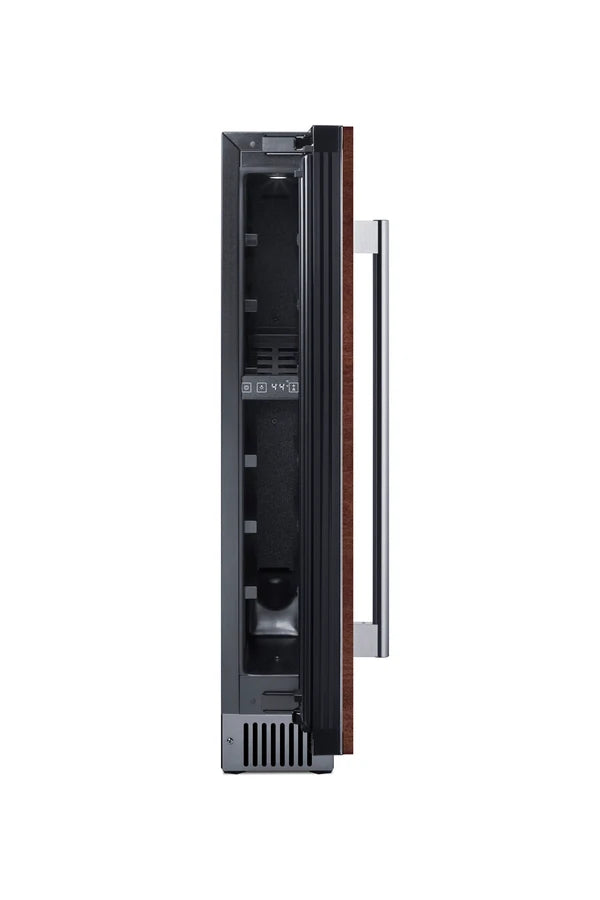

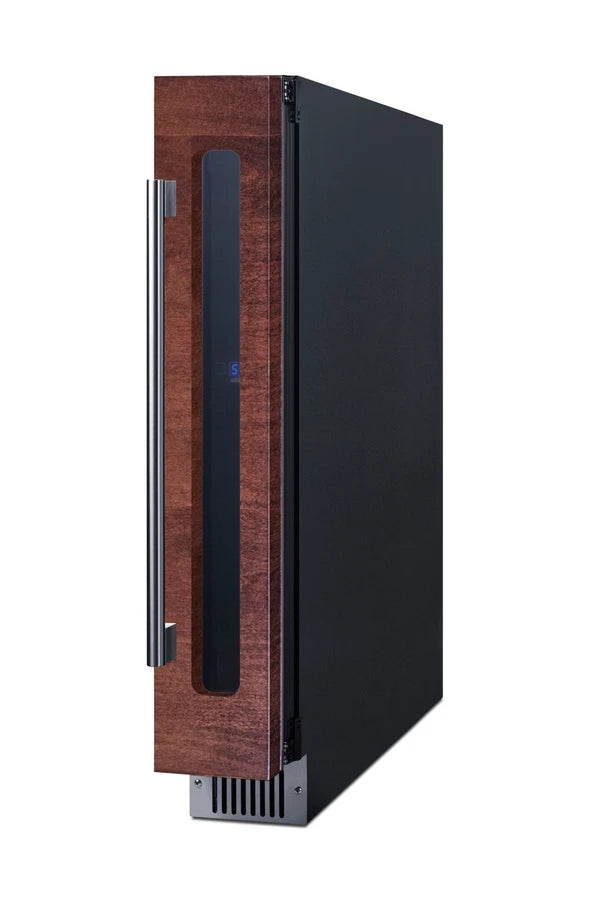

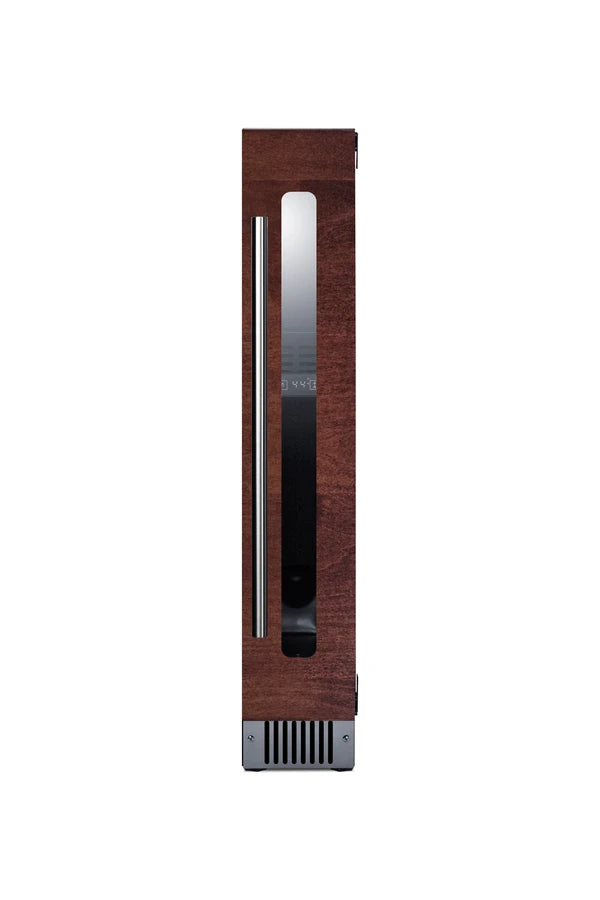

Summit lets you transform even the slimmest undercounter space into a fully functional wine cellar with our 6 inch wide SWC008PNR. Designed for built-in installation, the SWC008PNR features a front-breathing compressor-based cooling system to ensure proper wine temperature is maintained. The reversible stainless steel door comes with a European-style fully articulating hinge for zero clearance opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can seamlessly blend into your existing cabinetry design (recommended panel size: 30" H x 5 3/4" W; maximum weight: 10 lbs.). The door is fully finished with a seamless stainless steel trim over a glass window, giving you the option to keep the look if preferred. This unit has a right angle plug and sealed rear for added space savings. Inside, the SWC008PNR features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit. The temperature can be set between 41 and 72 F to suit red or white wine. Seven slots let you store wine bottles with ease. The floor is set at a slight angle, ideal for holding an open bottle. This unit is equipped with an open door and high temperature alarm for added assurance. The Sabbath mode setting allows you to disable certain electrical features during periods of observance. The commercial grade compressor operates quietly, keeping the sound levels under 34 dB. With its innovative size and customizable design, the SWC008PNR can be installed in virtually any space to bring reliable wine storage to kitchens, home bars, offices, walk-in closets, and more.
