Summit SWC007PNR 6" Wide Built-In Wine Cellar, ADA Height (Panel Not Included) Black
Sale price
Contact us for Pricing
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
Contact us for Pricing
Product Details for SUMMIT SWC007PNR
Technical Details
Dimensions & weight
| Width | 5.88 in. |
| Height | 32.25 in. |
| Length | 20.75 in. |
| Weight | 40 lbs. |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 2.28 ft³ |
| Dimensional Weight | 28.31 lbs. |
| Total of Cubes | 2.28 ft³ |
| Total of Dimensional Weight | 28.31 lbs. |
Overview wine cellar
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.25" (82 cm) |
| Nominal Width | 6.0" (15 cm) |
| Width | 5.88" (15 cm) |
| Nominal Depth | 21.0" (53 cm) |
| Depth | 20.75" (53 cm) |
| Depth with Handle | 22.38" (57 cm) |
| Depth with door at 90° | 25.5" (65 cm) |
| Bottles | 7 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 40.0 lbs. (18 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101146751 |
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.57 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.75" (65 cm) |
| Interior Width 1 | 3.5" (9 cm) |
| Interior Depth 1 | 14.25" (36 cm) |
| Compressor Step Width | 3.5" (9 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41 to 72ºF |
| Sabbath Mode | Yes |
| Sound Level | 33.8 dB |
Description

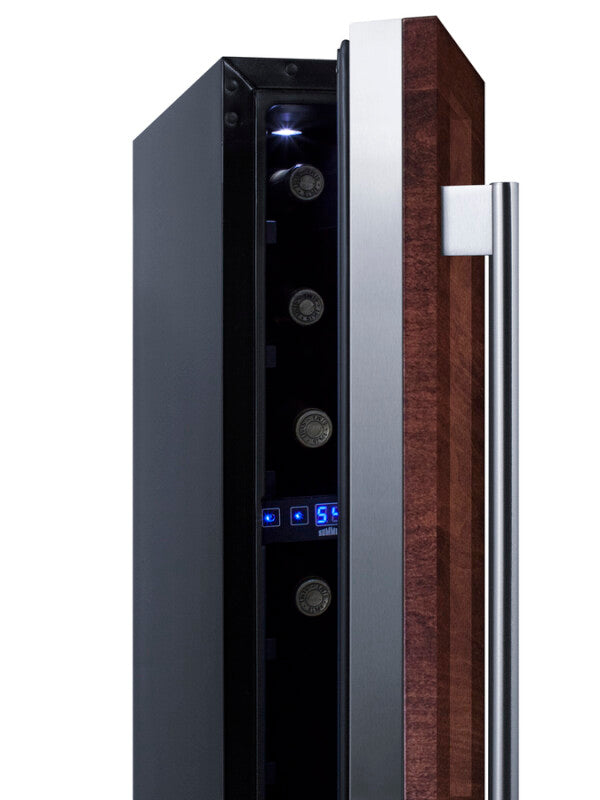

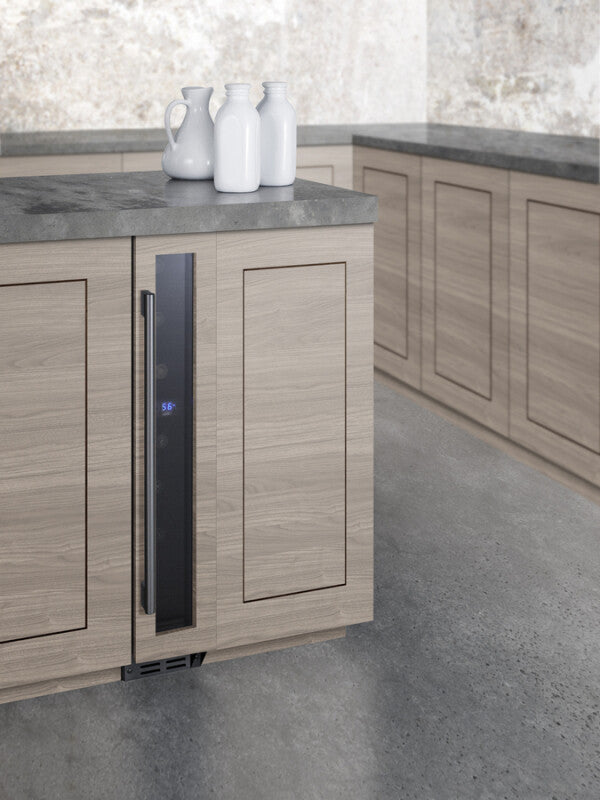

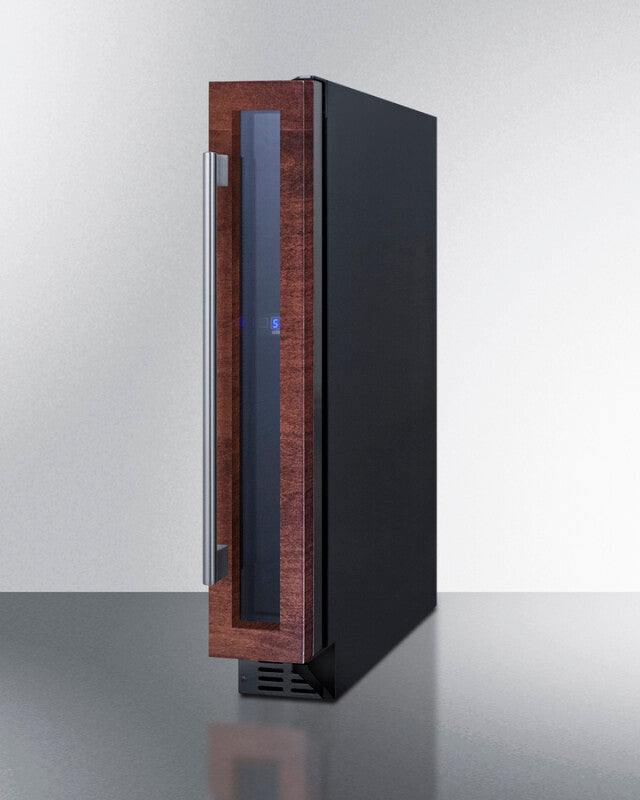

Summit lets you transform even the slimmest undercounter space into a fully functional wine cellar with our 6 inch wide SWC007PNR. Designed for built-in installation, the SWC007PNR features a front-breathing compressor-based cooling system to ensure proper wine temperature is maintained. The double pane tempered glass door comes with specialized hinging that lets you install your own custom panel over the frame, allowing you to match or complement surrounding cabinetry (panel dimensions: 28 1/8" H x 5 5/8" W at 3/4" thickness). At just 32 1/4 inches high, this unit can easily fit under most ADA compliant counters. We include a kickplate extender and leveling legs that allow you to raise the height an additional 2 1/2 inches, ensuring an easy fit under standard countertops as well. This unit has a right angle plug and sealed rear for added space savings. For a left hand door swing, see model SWC007PNRLHD. Inside, the SWC007PNR features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit at the touch of a button. The temperature can be set between 41 and 72ºF to suit red or white wine. Seven slots let you store wine bottles with ease. The floor is set at a slight angle, ideal for holding an open bottle. This unit is equipped with an open door and high temperature alarm for added assurance. The Sabbath mode setting allows you to disable certain electrical features during periods of observance. The commercial grade compressor operates quietly, keeping the sound levels under 34 dB. With its innovative size and customizable design, the SWC007PNR can be installed in virtually any space to bring reliable wine storage to kitchens, home bars, offices, walk-in closets, and more.
Product Features
-
ADA compliant
Sized at 32 1/4" high to fit under most lower ADA compliant counters -
Built-In Wine Cellar
Single zone wine cellar sized for built-in installation in 6" wide spaces -
Slim 6 inch width
Uniquely slim fit lets you transform extra cabinet space into a 7-bottle wine storage center -
Designed for built-in use
Make the best use of space by installing your appliance under the counter -

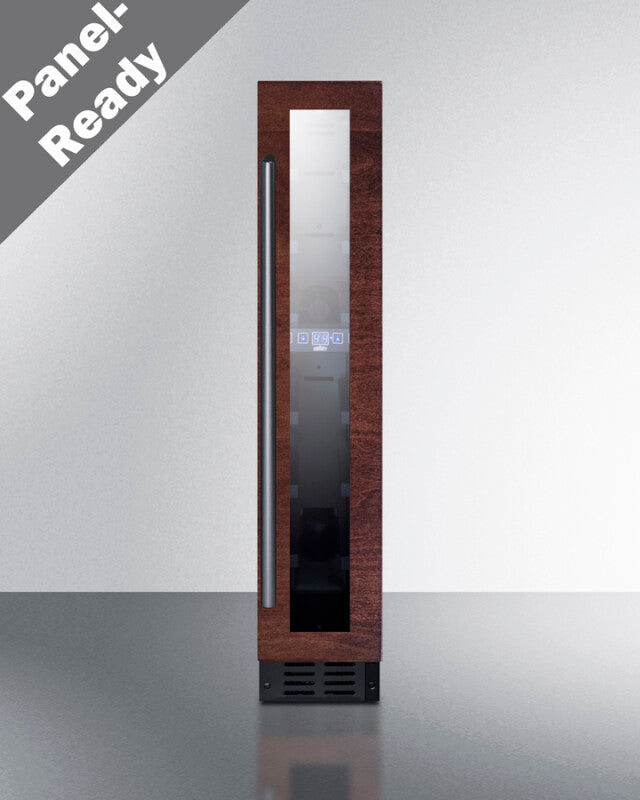

Panel-ready door trim
Specialized hinges allow you to install an overlay panel over the door trim to create a custom look that matches adjacent cabinetry (panel size: 28 1/8" H x 5 5/8" W at 3/4" thickness) -
Height adjustable
Leveling legs can be adjusted to raise the height up to 34.25" for an appropriate fit under standard counters -
Commercial design
Meets UL-471 commercial standards -
Glass door
Double pane tempered glass provides a full display of your collection -
Digital thermostat
Electronic controls for precise temperature management -

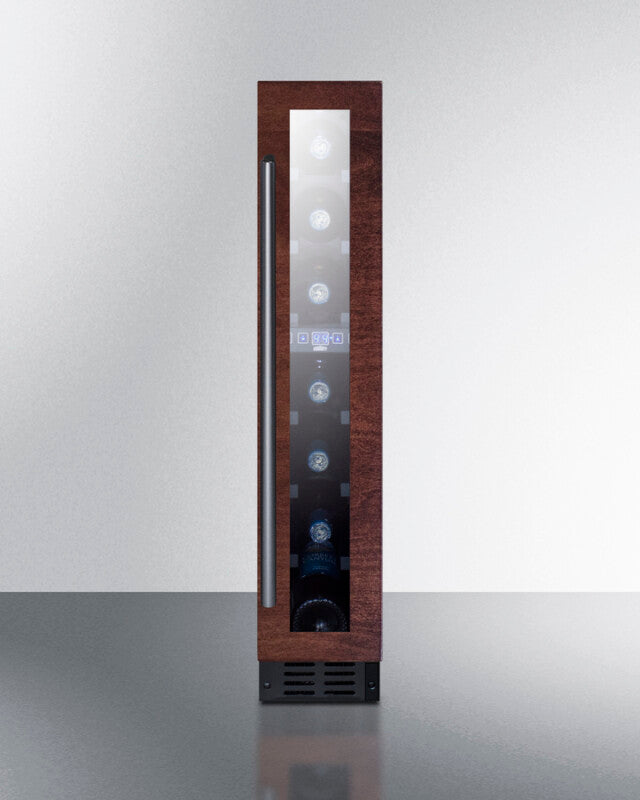

7 bottle capacity
Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well -
Open bottle storage
The floor slight is slightly angled, allowing you store one bottle that has been uncorked at a gentle tilt -
Digital display
Temperature readout can be shown in Celsius or Fahrenheit -
LED lighting
Provides an attractive and efficient bottle display -
Automatic defrost
Reduced maintenance and steady temperature performance -
Fan-forced cooling
Interior fan helps to ensure the temperature is evenly distributed -
Open door alarm
Audible alarm will sound if the door is left ajar for over 60 seconds -
High temperature alarm
If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored -
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 48 hours -
Temperature memory function
Unit will retain last temperature settings in the event of a power failure -
Right angle plug
Flat design offers added space savings by requiring no extra depth to plug the unit in -
Flush back
Space saving design with easier cleanability -
Kickplate extender included
Includes an extra kickplate to cover up the leveling legs if the unit's height is raised -
Quiet operation
Runs at under 34 dB for a quiet performance in any setting -
Quality storage
Compressor-based operation to ensure reliable temperature performance -
Right hand door swing
For this unit with the door opening from the other side, see model SWC007PNRLHD -
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals -
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
