Sale price $791.70 Regular price $984.97 Save $193.27 / 19% OFF

Product Details for SUMMIT SWC007

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 5.88 in.
Height 32.25 in.
Length 20.75 in.
Weight 40 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 2.28 ft³
Dimensional Weight 28.31 lbs.
Total of Cubes 2.28 ft³
Total of Dimensional Weight 28.31 lbs.

Overview wine cellar

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.25" (82 cm)
Nominal Width 6.0" (15 cm)
Width 5.88" (15 cm)
Nominal Depth 21.0" (53 cm)
Depth 20.75" (53 cm)
Depth with Handle 22.38" (57 cm)
Depth with door at 90° 25.5" (65 cm)
Bottles 7 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 40.0 lbs. (18 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101056319
Number of Zones 1
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.57 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 25.75" (65 cm)
Interior Width 1 3.5" (9 cm)
Interior Depth 1 14.25" (36 cm)
Compressor Step Width 3.5" (9 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41 to 72ºF
Sabbath Mode Yes
Sound Level 33.8 dB

Description

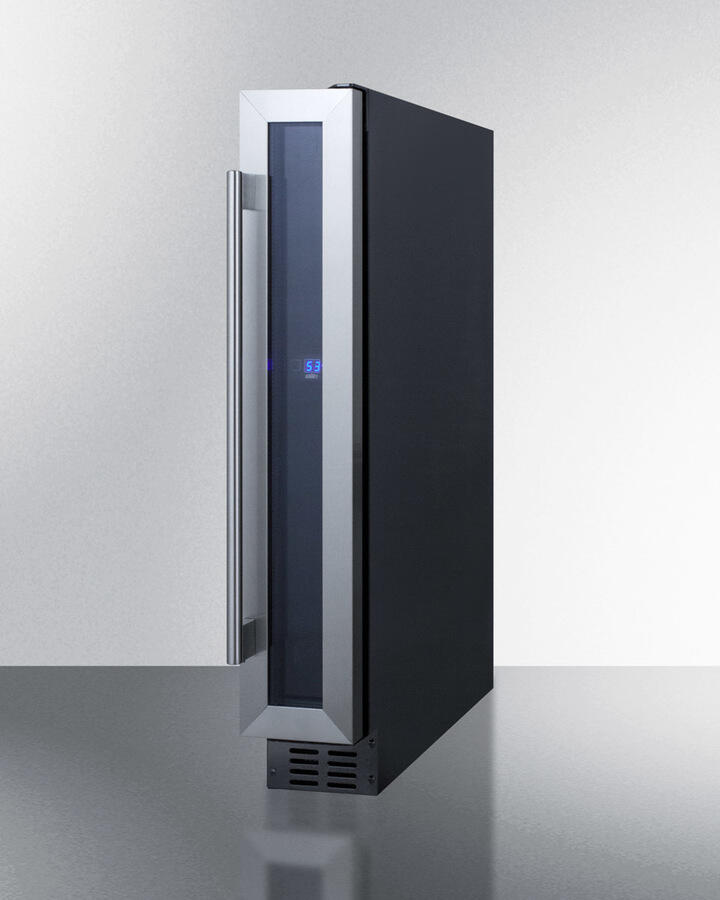

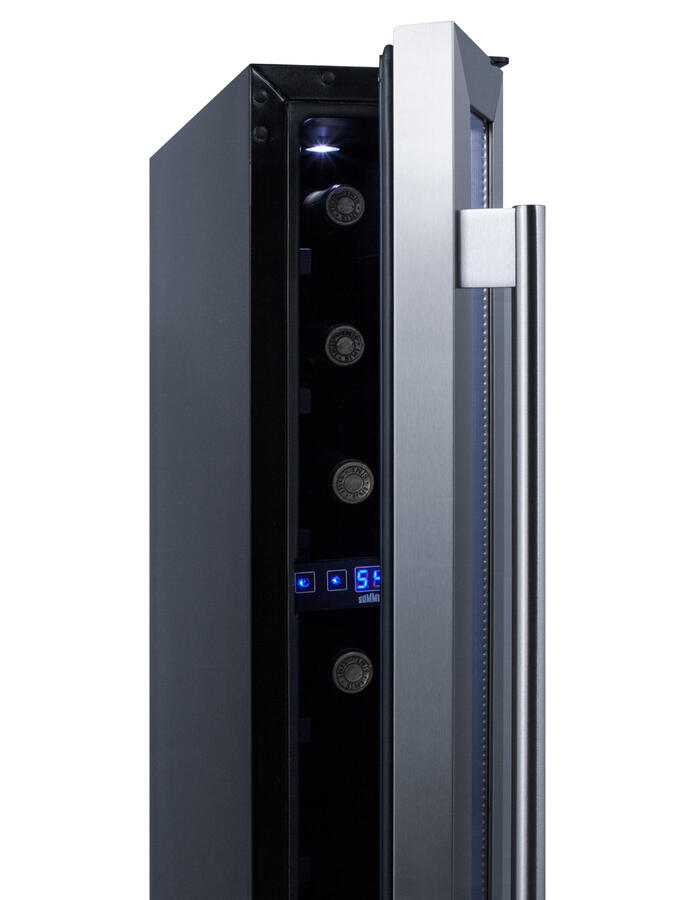

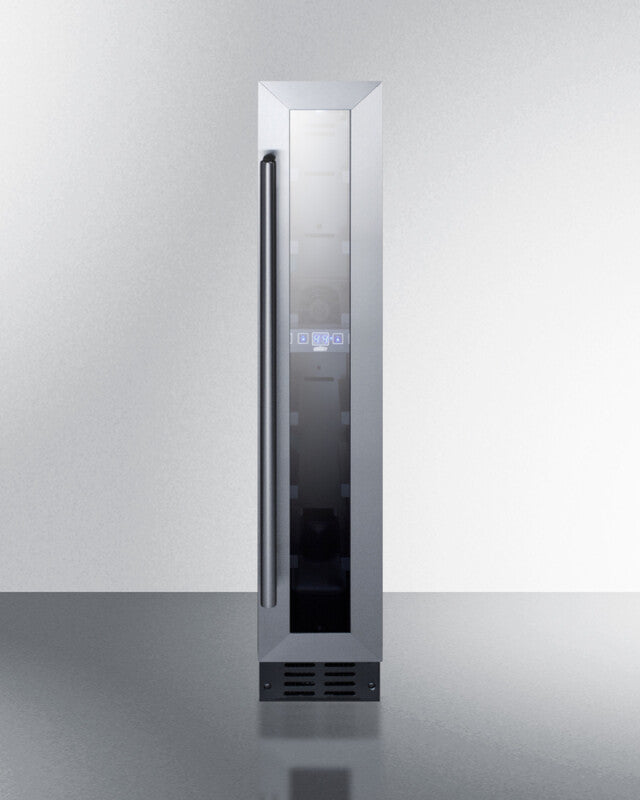

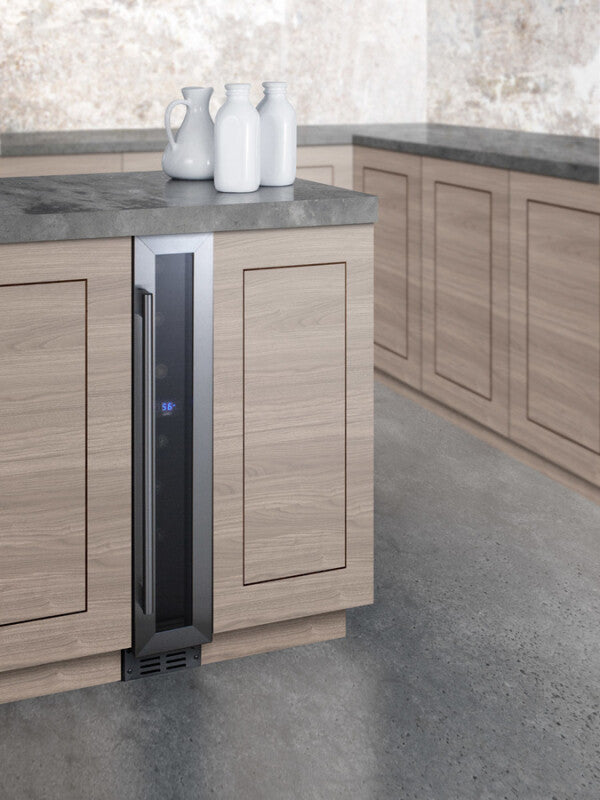

Complete any undercounter space in style with Summit's SWC007, a 6 inch wide wine cellar fully featured for user convenience. Designed for built-in installation, the SWC007 features a front-breathing compressor-based cooling system. The stainless steel trimmed glass door includes a pro style handle and is user-reversible for added flexibility. This unit has a jet black exterior finish. The sealed back and right angle plug make it easy to install flush with cabinetry. At just 32 1/4 inches high, this unit can easily fit under most ADA compliant counters. We include a kickplate extender and leveling legs that allow you to raise the height an additional 2 1/2 inches, ensuring an easy fit under standard countertops as well. Inside, the SWC007 features a digital thermostat with easy touch controls and a temperature readout that can be viewed in Celsius or Fahrenheit at the touch of a button. Seven slots let you store wine bottles with ease, including a slightly angled floor slot that makes it easier to store bottles that have already been opened. This unit is equipped with an open door and high temperature alarm to help ensure your bottles are stored properly. The Sabbath mode setting allows you to disable certain features during periods of observance. With its attractive design and innovative size, the SWC007 is the perfect way to finish any kitchen design.


Product Features

  • Slim 6 inch width
    Perfectly sized to complete any extra undercounter space
  • Designed for built-in use
    Make the best use of space by installing your appliance under the counter
  • ADA compliant
    Sized at 32 1/4" high to fit under most lower ADA compliant counters
  • Commercial design
    Meets UL-471 commercial standards
  • Height adjustable
    Leveling legs can be adjusted to raise the height up to 34.25" for an appropriate fit under standard counters
  • Glass door with stainless steel trim
    Provides a full display of your stored collection with a heat-safe double tempered design
  • Digital thermostat
    Electronic controls for precise temperature management
  • 7 bottle capacity
    Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well
  • Open bottle storage
    The floor slight is slightly angled, allowing you store bottles that have been uncorked at a gentle tilt
  • Digital display
    Temperature readout can be shown in Celsius or Fahrenheit
  • LED lighting
    Provides an attractive and efficient bottle display
  • Automatic defrost
    Reduced maintenance and steady temperature performance
  • Fan-forced cooling
    Interior fan helps to ensure the temperature is evenly distributed
  • Professional handle
    Stainless steel look for added elegance
  • Reversible door
    User-reversible door swing allows you to easily adjust to better accommodate your setting
  • Open door alarm
    Audible alarm will sound if the door is left ajar for over 60 seconds
  • High temperature alarm
    If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Temperature memory function
    Unit will retain last temperature settings in the event of a power failure
  • Right angle plug
    Flat design offers added space savings by requiring no extra depth to plug the unit in
  • Flush back
    Space saving design with easier cleanability
  • Kickplate extender included
    Includes an extra kickplate to cover up the leveling legs if the unit's height is raised
  • Quiet operation
    Runs at under 34 dB for a quiet performance in any setting
  • Quality storage
    Compressor-based operation to ensure reliable temperature performance
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
