Sale price Contact us for Pricing

Product Details for SUMMIT SWBC3041

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 29.5 in.
Height 34.25 in.
Length 23.38 in.
Weight 140 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 13.67 ft³
Dimensional Weight 169.95 lbs.
Total of Cubes 13.67 ft³
Total of Dimensional Weight 169.95 lbs.

Overview beverage kegerator

Nominal Height 35.0" (89 cm)
Height of Cabinet 34.25" (87 cm)
Nominal Width 30.0" (76 cm)
Width 29.5" (75 cm)
Width with Door Open 30.0" (76 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.13" (64 cm)
Depth with door at 90° 36.5" (93 cm)
Capacity 6.3 cu.ft. (178 L)
Bottles 24 bottles
Defrost Type Frost-Free
Door Glass/SS
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.5
Weight 140.0 lbs. (64 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101081571
Number of Zones 2
Door Swing French
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Digital
Interior Light Yes
Fan Interior and Exterior
Refrigerant R600a
Refrigerant Amount 0.78 oz.
High Side PSI 220.0
Low Side PSI 43.0
Level Legs 4
Wheel 4
Temperature Range Left side: 39ºF to 72ºF; Right side: 32ºF to 72ºF
Sound Level 34.1 dB
Interior Height 1 26.75" (68 cm)
Interior Width 1 12.25" (31 cm)
Interior Depth 1 18.5" (47 cm)
Interior Height 2 26.75" (68 cm)
Interior Width 2 12.25" (31 cm)
Interior Depth 2 18.5" (47 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 12.25" (31 cm)
Compressor Step Depth 5.0" (13 cm)
Tap Kit Yes
Number of Taps 1
Height with Tap 40.0" (102 cm)

Description

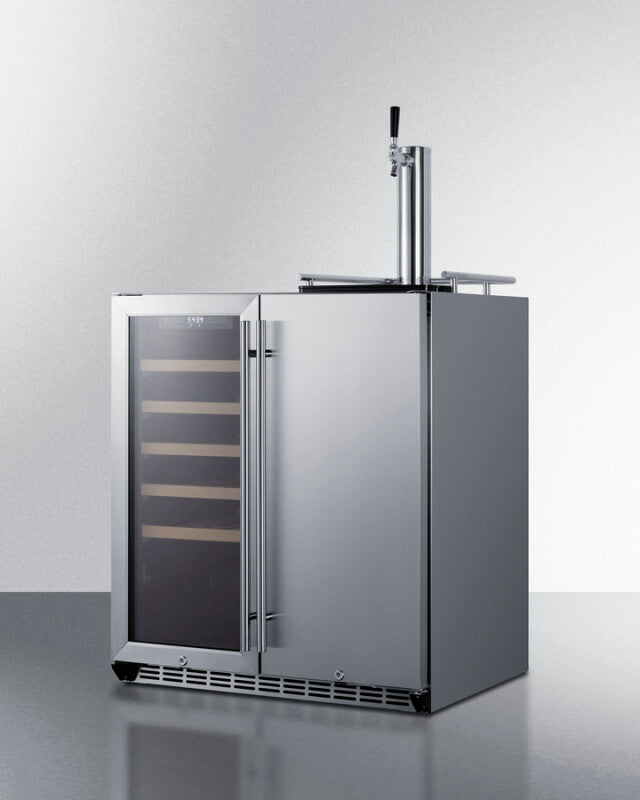

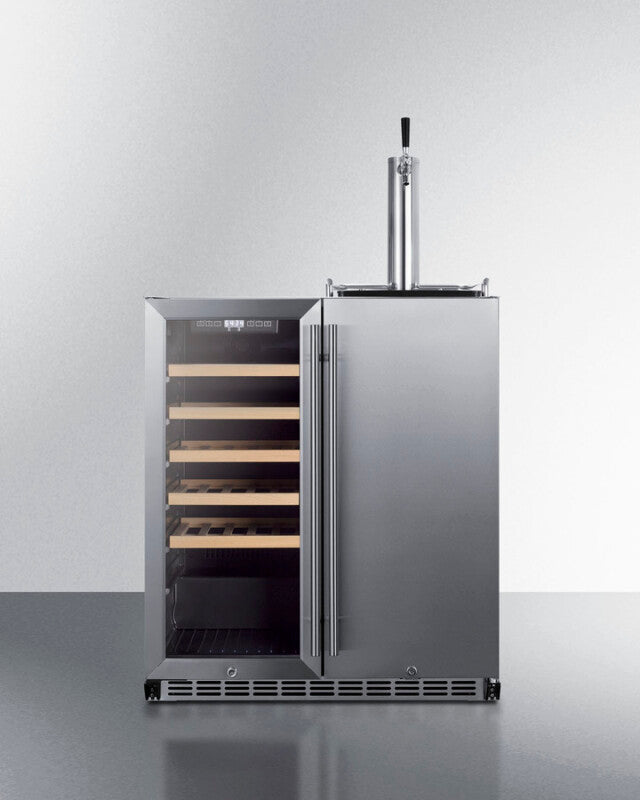

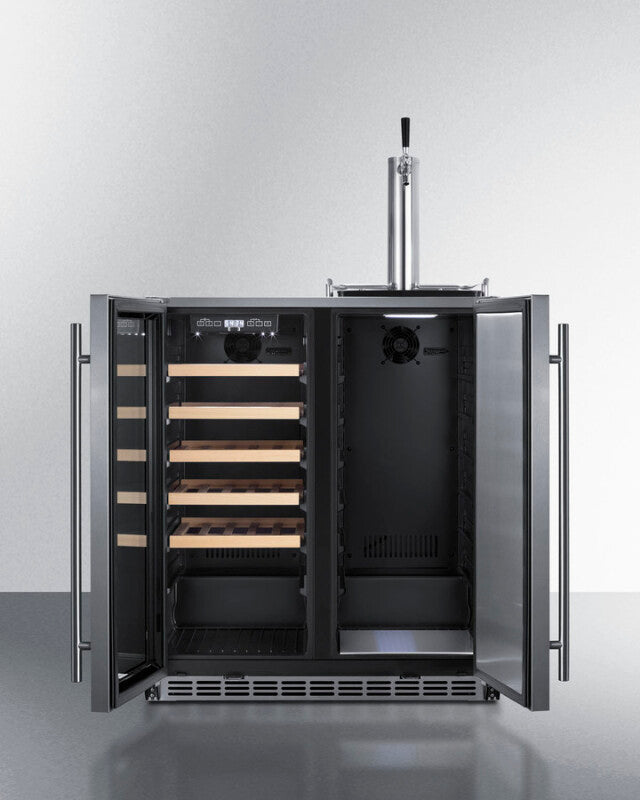

Summit's unique lineup of wine and beer refrigeration creates the perfect all-in-one solutions for home entertainment, with versatile built-in choices that can be used in indoor or outdoor kitchens. Model SWBC3041 is a french door combination wine cellar/kegerator, with two separate sections that let you keep wine properly stored and displayed while also serving beer on tap. The front-breathing design enables built-in installation under counters, while the fully finished stainless steel cabinet also allows freestanding use. We include a set of casters (two locking) for installation if using this cooler for more portable applications. The sealed rear and weatherproof exterior ensure safe use in outdoor kitchens. The left side wine cellar zone features a stainless steel trimmed double tempered glass door to display your bottles in style. White LED lighting offers an attractive and efficient presentation. Adjustable wooden wine shelves let you store your bottles safely. On the right side, a fully featured kegerator is designed to let you serve beer from 1/6 (sixtel) sized kegs. We include all the tapping equipment you need, with a stainless steel draft tower and faucet, CO2 tank, and regulator. A removable guard rail and two-piece drip tray help you keep your serving area clean. Both units utilize intuitive digital controls with wide temperature ranges, letting you accommodate a variety of wine and beer styles for proper storage. Each door includes a pro style handle and factory-installed lock for added security as needed. The SWBC3041 can be used in indoor or outdoor kitchens. With its professional design and versatile functionality, it's the ideal choice for home bars looking to please all beverage tastes.


Product Features

  • Combination wine cellar and beer kegerator
    Single compressor operation with two distinct temperature zones allows you to preserve and display wine on the left while tapping draft beer on the right

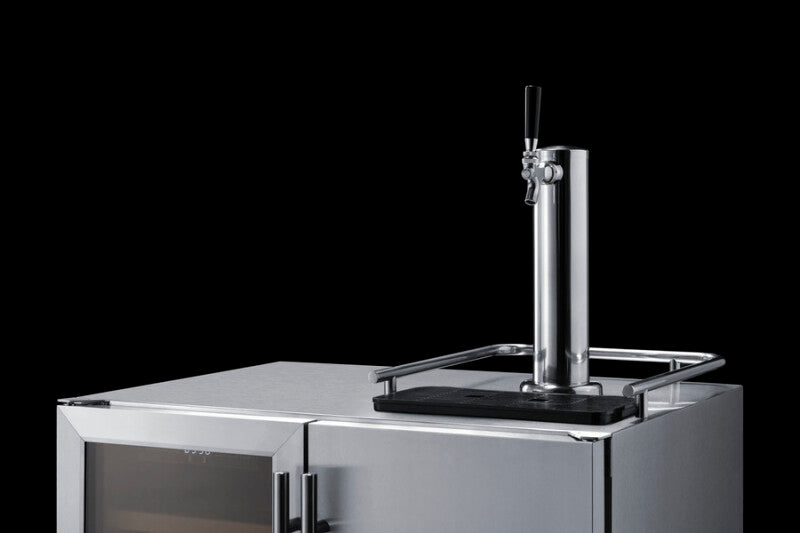

  • Complete tap kit for serving beer
    Includes all the tapping equipment you need to serve beer from a sixtel keg, with a stainless steel tower and faucet, CO2 tank, and regulator
  • Indoor/Outdoor compatible
    Durable, weatherproof construction designed to hold up to the elements
  • Built-in capable
    Front-breathing design allows the unit to be built-in under counters
  • Dual zone operation
    Each compartment features a wide range, allowing you to find the right temperature for a variety of wine and beer
  • Factory installed locks
    Keyed lock on each door provides security as needed
  • Stainless steel exterior
    Cabinet, kegerator door, and wine cellar door trim feature stainless steel construction for a professional look with lasting durability
  • Frost-free
    No-frost operation for minimal user maintenance
  • Fan-forced cooling
    Internal fans ensure both interiors have a consistent temperature from top to bottom
  • LED lighting
    White LED offers an attractive and efficient presentation

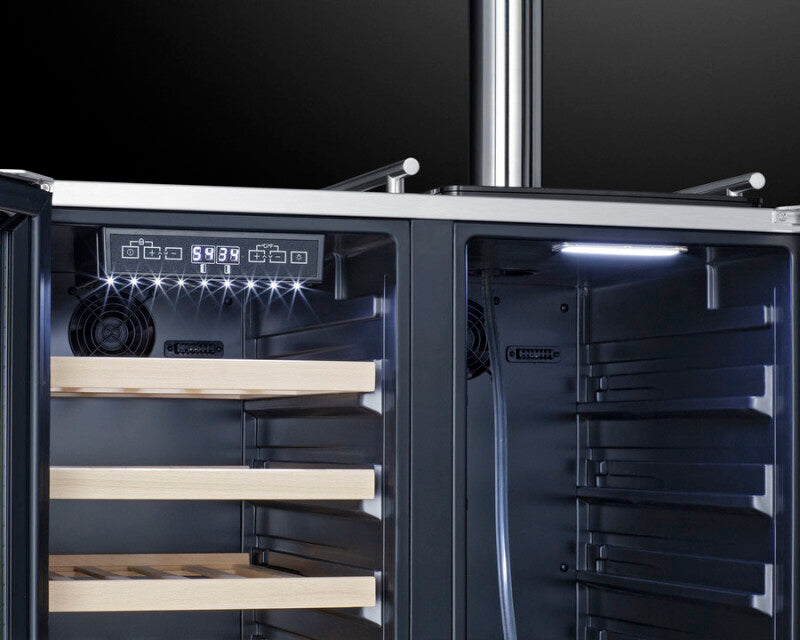

  • Digital thermostat
    Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
  • Adjustable shelving
    Wine cellar includes five slide-out wooden shelves to accommodate your bottles
  • Professional handles
    Stainless steel handles add style to any setting

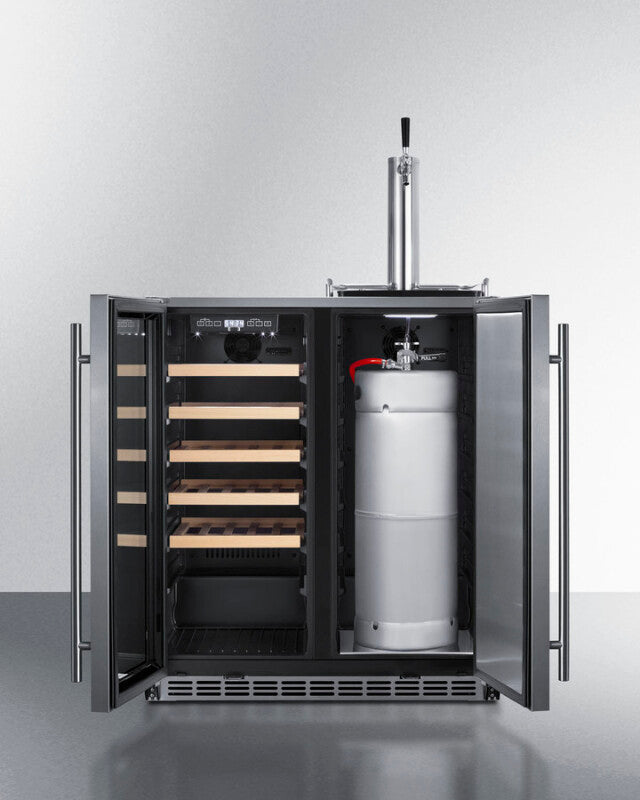

  • Beer dispenser
    Right side is designed to accept a 1/6 (sixtel) barrel keg or corny keg
  • Top guard rail (ships unassembled)
    Attractive chrome guard rail helps to neaten service
  • Drip tray
    Two-piece plastic drip tray included to help catch spills
  • Stainless steel floor cover
    Kegerator interior includes steel cover to protect the floor when loading kegs
  • Sealed back
    Space-saving and makes for quick cleaning of the unit’s exterior
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

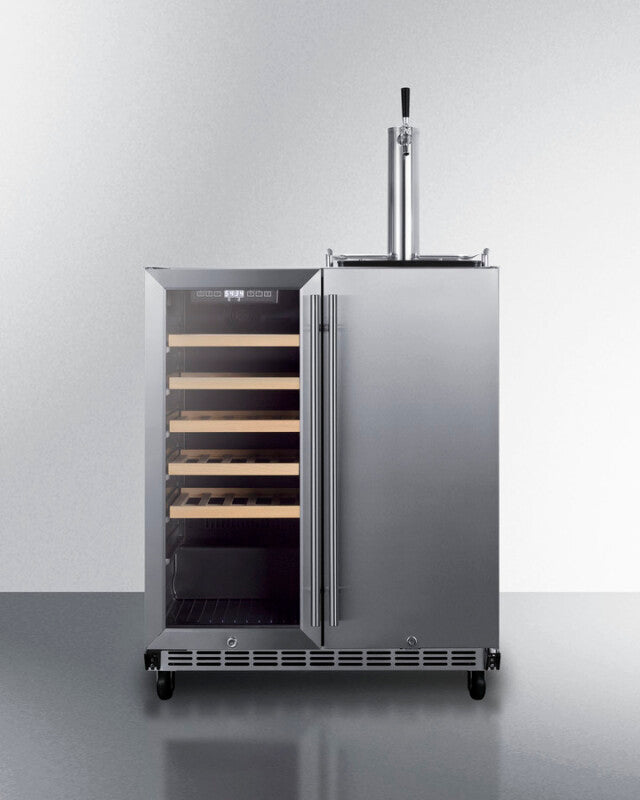

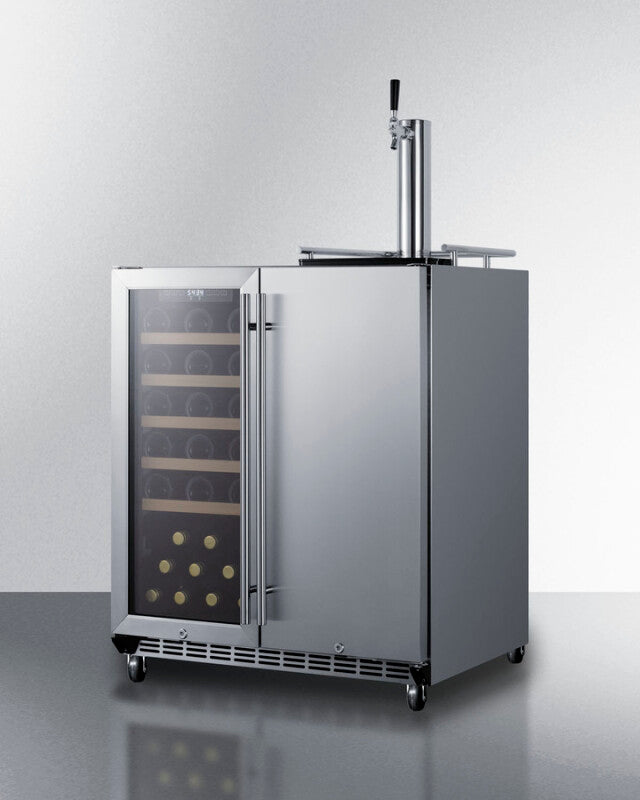

  • Casters included
    Set of four wheels (two with locking brakes) for optional installation to allow more mobility as needed
  • Child lock function
    Allows you to lock the control panel to prevent accidental adjustments
  • Fully finished cabinet
    Allows the unit to be used freestanding
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • 100% CFC free
    Environmentally friendly design with no ozone-damaging chemicals
