Sale price $1,787.60 Regular price $2,149.97 Save $362.37 / 16% OFF

Product Details for SUMMIT SDHW1532PNRLHD

Technical Details

Overview wine cellar

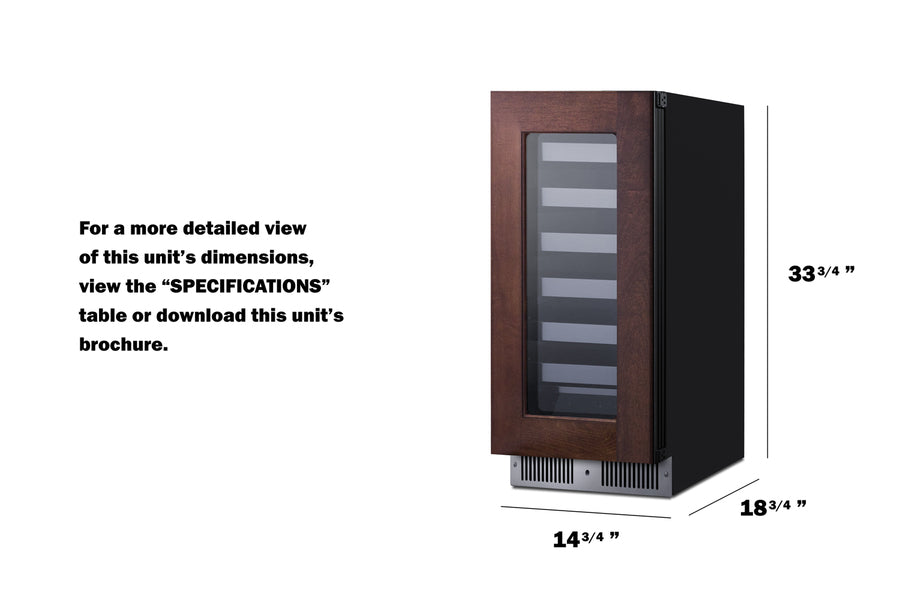

Nominal Height 34.0" (86 cm)
Height of Cabinet 33.75" (86 cm)
Nominal Width 15.0" (38 cm)
Width 14.75" (37 cm)
Nominal Depth 18.0" (46 cm)
Depth 18.0" (46 cm)
Depth with door at 90° 32.63" (83 cm)
Capacity 1.8 cu.ft. (51 L)
Bottles 18 bottles
Defrost Type Frost-Free
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 88.0 lbs. (40 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101145778
Number of Zones 1
Door Swing LHD
Adjustable Shelves Yes
Shelf Type Steel
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 10.63" (27 cm)
Interior Depth 1 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 10.63" (27 cm)
Compressor Step Depth 5.0" (13 cm)
Temperature Range 41°F to 68°F
Sabbath Mode Yes
Sound Level 33.3 dB

Description

Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. The SDHW1532PNRLHD is a 15" wide single-zone wine cellar sized at 18" deep. It comes in a 34" height to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The panel-ready SDHW1532PNRLHD features our fully articulating European hinge, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. This unit comes with a left-hand door swing. For a right-hand version, see the SDHW1532PNR. The inside features stainless steel construction for improved durability and sanitation. White LED lighting in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The angled digital control panel enables you to adjust the temperature between 41º and 68ºF to accommodate red, white, or sparkling wine bottles. Our uniquely designed steel shelves in a jet black finish slide out smoothly, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our SDHG1533PNRLHD beverage center. Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.


Product Features

  • 15" Wide Wine Cellar
    Single zone wine cooler for residential storage
  • 18" Depth
    Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
  • Built-in capable
    Front-breathing design lets you make the best use of space by installing your appliance under the counter

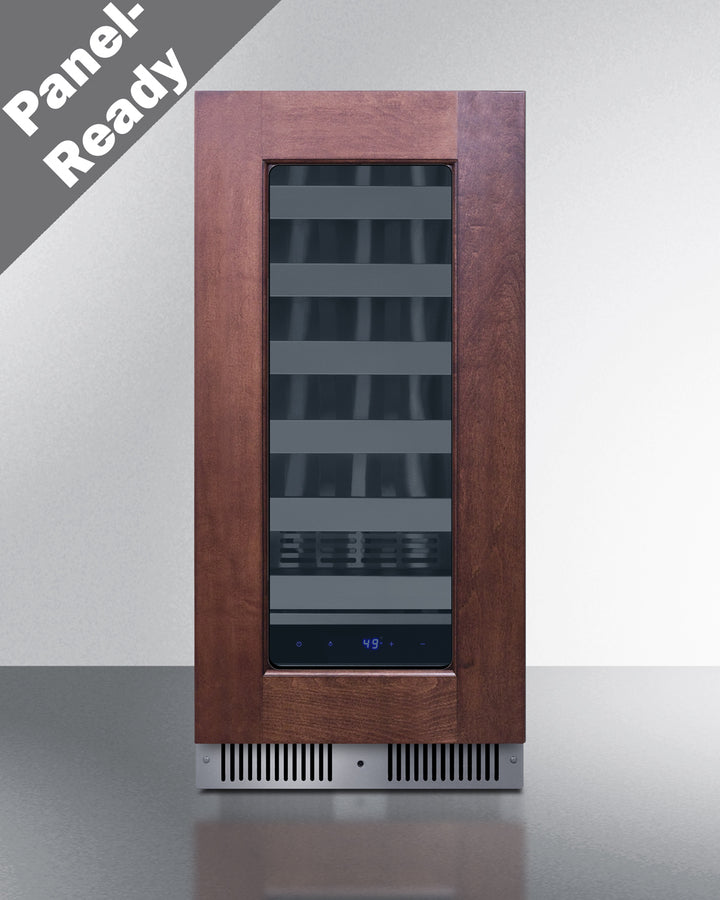

  • Panel-ready door
    European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 14 5/8" W with a 3 1/4" H x 3 1/4" W inner frame
  • Versatile design
    Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of stainless steel door trim
  • Double pane tempered glass door
    Elegant design offers a clear but protected view of your interior

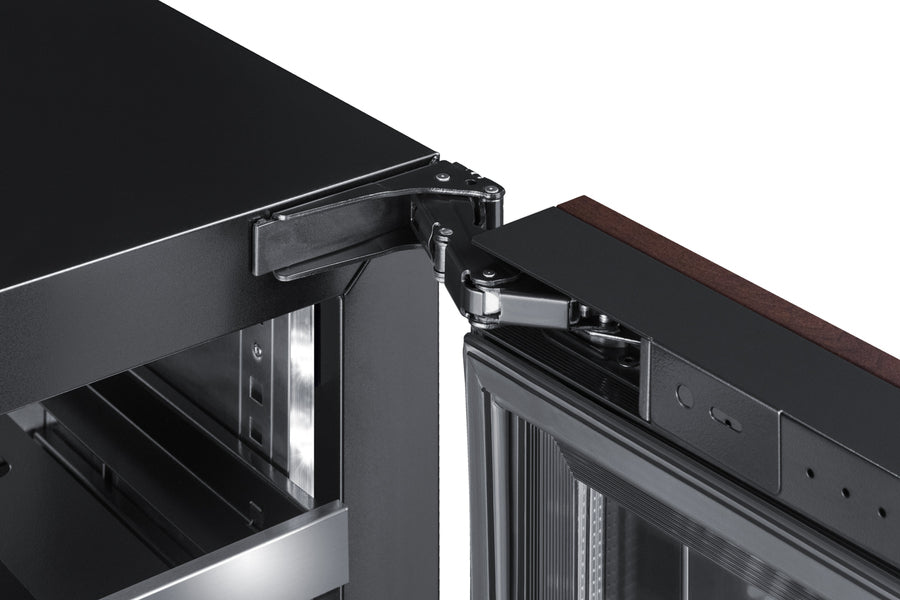

  • Fully articulating European style hinge
    Smoother opening and a better fit with an integrated European hinge
  • Factory installed lock
    Keyed lock for a secure interior (2 keys included)
  • Stainless steel interior
    Walls and floor are constructed from stainless steel for added strength and easy cleanup
  • Frost-free operation
    No-frost operation for minimum user maintenance
  • Digital controls
    Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
  • Ideal temperature range
    The unit's temperature range of 41º to 68ºF is ideal for red, white, or sparkling wine bottles
  • Angled thermostat
    Thermostat’s unique and ergonomic position allows for more accessible temperature readings with zero bending required
  • Dimmable LED light
    Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
  • Open door alarm
    Alarm sounds if the door is left open for more than 60 seconds
  • High/low temperature alarm
    Audible alarm sounds if the interior temperature rises out of set range
  • Internal fan
    Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
  • Sabbath mode
    Optional setting lets you disable the lighting and alarm for up to 96 hours
  • Temperature memory function
    Unit will retain its last settings when power is restored in the event of power loss
  • Full capacity
    18-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • Sealed back
    Space-saving design with no exposed coils that offers easier cleanability
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Left-hand door swing
    For this unit with a standard right-hand door swing, see model SDHW1532PNR
  • Quiet operation
    Runs under 34 dB for a quiet performance that won't interrupt your conversation
  • 100% CFC free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

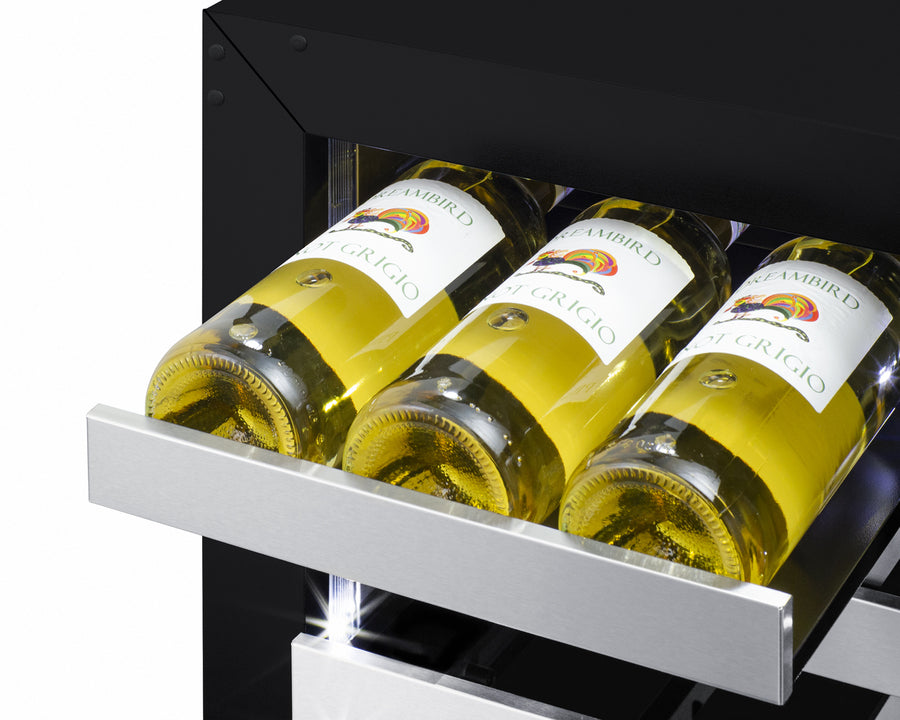

  • Premium wine shelving
    Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
