Summit SCR1156CH 24" Wide Single Zone Commercial Wine Cellar Black

Quick Specification More details

Width:
23.63"
Depth:
22.88"
Height:
58.38"
Type:
Specialty Refrigerators

About this product

Commercially approved
Champagne racks
Bottle display
Interior LED lighting

Summer Sale

Clearance

SKU: SCR1156CH | UPC: 761101059969

Summit SCR1156CH 24" Wide Single Zone Commercial Wine Cellar Black

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.63"
Depth:
22.88"
Height:
58.38"
Type:
Specialty Refrigerators

About this product

Commercially approved
Champagne racks
Bottle display
Interior LED lighting

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for SUMMIT SCR1156CH

Technical Details

Dimensions & weight

Width	23.63 in.
Height	58.38 in.
Length	22.88 in.
Weight	200 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	18.27 ft³
Dimensional Weight	227.07 lbs.
Total of Cubes	18.27 ft³
Total of Dimensional Weight	227.07 lbs.

Overview wine cellar

Nominal Height	59.0" (150 cm)
Height of Cabinet	58.38" (148 cm)
Nominal Width	24.0" (61 cm)
Width	23.63" (60 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.88" (58 cm)
Depth with Handle	24.0" (61 cm)
Depth with door at 90°	64.38" (164 cm)
Capacity	11.0 cu.ft. (311 L)
Bottles	25 bottles
Defrost Type	Frost-Free
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.7
Voltage/Frequency	115 V AC/60 Hz
Weight	200.0 lbs. (91 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101059969
Number of Zones	1
Door Swing	RHD
Reversible	No
Shelf Type	Steel
Shelf Qty	4
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.66 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	50.0" (127 cm)
Interior Width 1	20.0" (51 cm)
Interior Depth 1	16.5" (42 cm)
Temperature Range	36 to 68ºF
Interior Height 2	4.75" (12 cm)
Interior Width 2	20.0" (51 cm)
Interior Depth 2	4.5" (11 cm)

Description

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation. The SCR11561CH is an upright wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 11 cu.ft. The self-closing stainless steel trimmed door includes a pro style handle and factory-installed lock for added security. This unit has a front-breathing cooling system that allows built-in installation, and a fully finished exterior that also enables freestanding use. It comes with a right hand door swing. Inside, the SC1156CH includes stainless steel shelving specially designed to hold champagne and sparkling wine bottles at a slight angle, providing a full display of the label. The interior walls and floor are constructed from stainless steel for lasting durability in busy commercial settings. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel offers a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. The SCR1156CH comes with a fully finished jet black cabinet. Additional choices are available in stainless steel, as well as alternate sizes. Browse our website to explore our full lineup of commercially approved wine cellars.

Product Features

Commercially approved
Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use

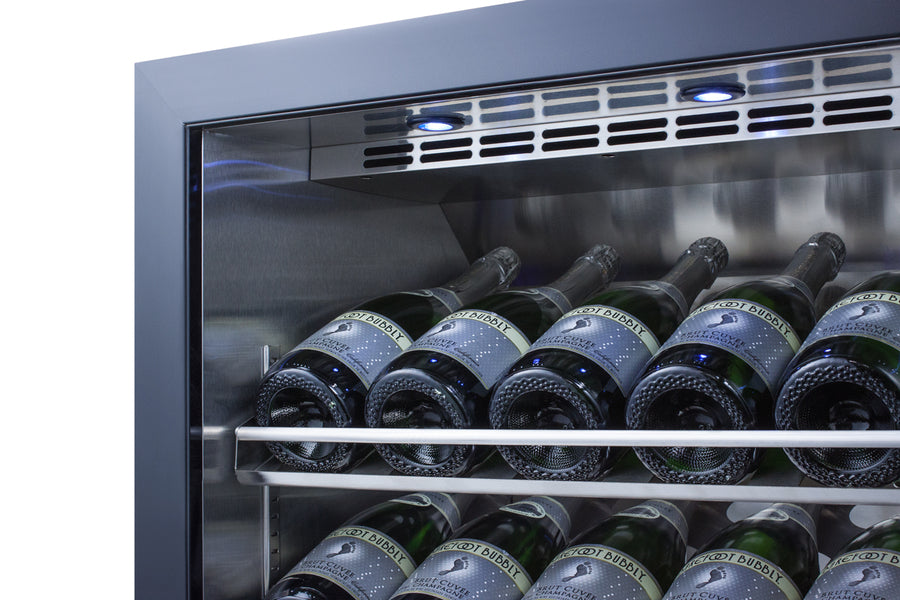

Champagne racks
Stainless steel shelves are specially sized to store wider wine and champagne bottles
Bottle display
Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels
Interior LED lighting
Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
Slim fit
Just 24" wide and deep for an easy fit in any setting
Stainless steel interior
Walls are constructed from stainless steel for added strength and easy cleanup
Double pane tempered glass door
Heat-safe glass door with stainless steel trim offers full display all the way down to the floor
Self-closing door
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Frost-free operation
No-frost convenience requires no manual defrosting
Digital thermostat
Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
Wide temperature range
Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
Professional handle
Attractive design in stainless steel to complete the look
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Built-in or freestanding
Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
