Product Details for SUMMIT SBC635MWKD

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.63 in.
Height 33.5 in.
Length 25 in.
Weight 80 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 11.45 ft³
Dimensional Weight 142.38 lbs.
Total of Cubes 11.45 ft³
Total of Dimensional Weight 142.38 lbs.

Overview kegerator

Nominal Height 34.0" (86 cm)
Height of Cabinet 33.5" (85 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Width with Door Open 25.0" (64 cm)
Nominal Depth 25.0" (64 cm)
Depth 25.0" (64 cm)
Depth with door at 90° 47.0" (119 cm)
Capacity 5.6 cu.ft. (159 L)
Defrost Type Automatic
Door Black
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 0.86
Voltage/Frequency 115 V AC/60 Hz
Weight 80.0 lbs. (36 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101056067
Door Swing RHD
Reversible Yes
Tap Kit Yes
Height with Tap 49.0" (124 cm)
Number of Taps 1
Thermostat Type Digital
Refrigerant R600a
Refrigerant Amount 1.13 oz.
High Side PSI 250.0
Low Side PSI 110.0
Inter Height 28.0" (71 cm)
Interior Width 20.5" (52 cm)
Interior Depth 19.0" (48 cm)
Compressor Step Height 8.25" (21 cm)
Wheel Qty 4
Temperature Range 33º to 50º F

Description

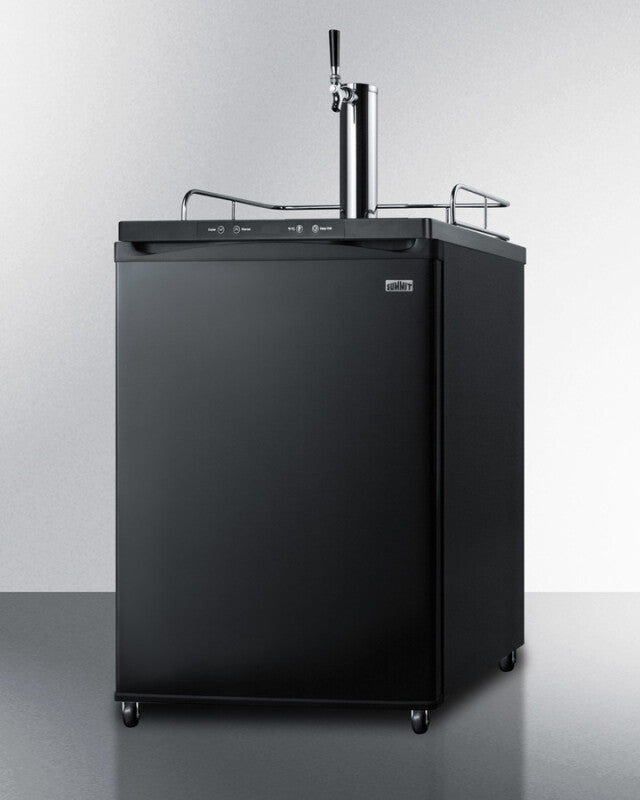

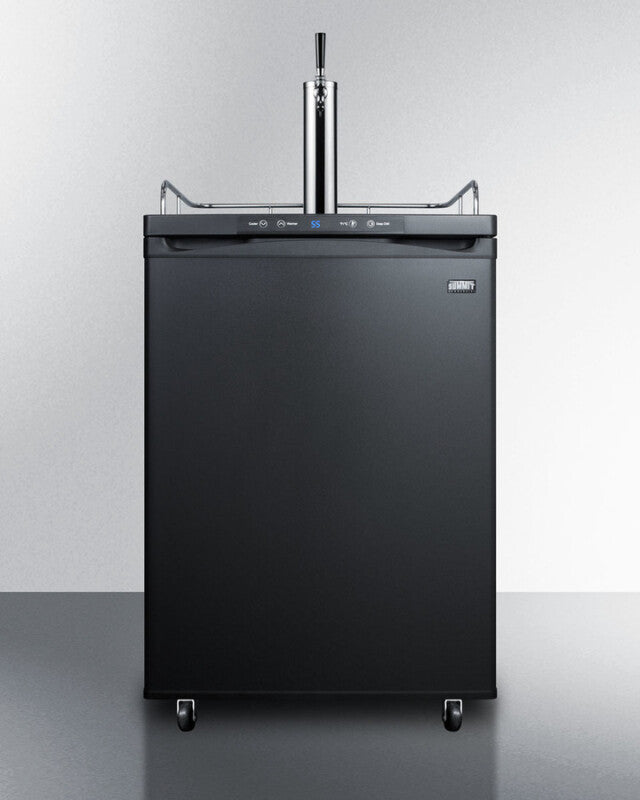

Tap into the growing industry of draft wine with Summit's SBC635MWKD, a versatile wine keg dispenser designed to store wine kegs under the proper conditions. Sized at just under 24" wide, the SBC635MWKD features a jet black finish with a user-reversible door swing. The exterior digital thermostat allows you to store white wine or rosé between 33º and 50ºF. The single tap system can serve one 1/6 wine keg or disposable keg, but the interior offers added room to store an additional 1/6 sized barrel. Automatic defrost operation ensures minimum user maintenance. The SBC635MWKD ships with a complete kit for serving wine on tap, including a draft tower, faucet, and keg coupler probe in complete 304 grade stainless steel. We include an empty canister best suited for a 75% nitrogen/25% CO2 mixture for optimum wine service. Additional features include a removable guard rail and drip tray for easier cleaning, as well as a caster set to allow optional mobility. This unit is designed for freestanding use.


Product Features

  • Automatic defrost
    Reduced user maintenance with auto defrost operation
  • Tap Kit
    Ships with a complete wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg

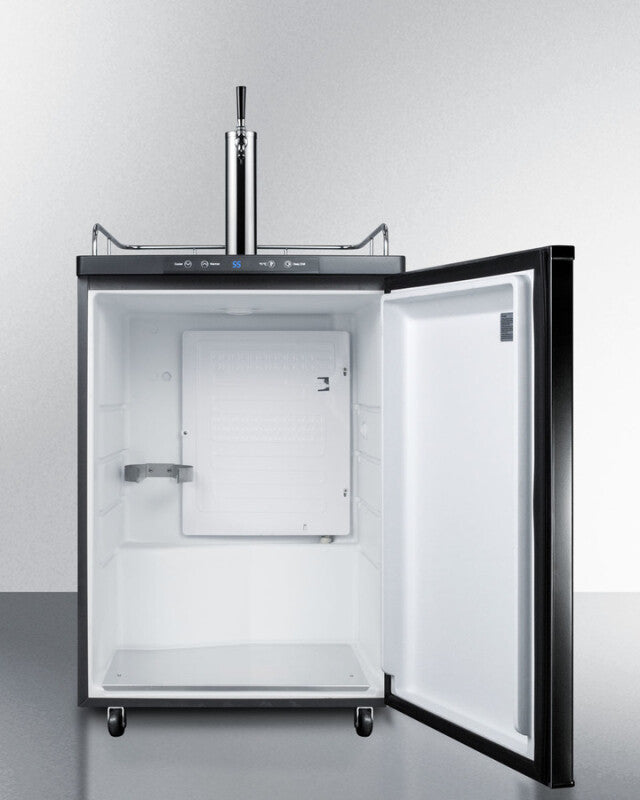

  • Large interior
    5.6 cu.ft. interior allows you to store an extra 1/6 size wine keg inside
  • White wine/rosé temperature
    Operates between 33º and 50ºF to keep a variety of white and blush wine chilled
  • Casters included (ships unassembled)
    To make the dispenser portable, install this set of 2 1/2" high locking casters
  • Reversible door
    User-reversible door swing for added flexibility
  • Top guard rail (ships unassembled)
    Attractive chrome guard rail helps to reduce spills and neaten service
  • Stainless steel floor cover
    Interior includes steel cover to protect the floor when loading kegs
  • Cleaning kit included
    Kit includes everything you need to keep your wine kegerator clean
  • Drip tray
    Removable drip tray catches spills to help contain the mess
  • 100% CFC free
    Environmentally friendly design without ozone-damaging chemicals
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
  • Digital thermostat
    Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
  • Nitrogen/CO2 tank included
    Canister is best suited for a 75% nitrogen/25% CO2 mixture
