SKU: SBC56GBINKCSSADA | UPC: 761101062860

Summit SBC56GBINKCSSADA 24" Wide Built-In Beer Dispenser, ADA Compliant Stainless Steel

Quick Specification More details

Width:
23.63"
Depth:
23"
Height:
32"
Type:
Specialty Refrigerators

About this product

ADA compliant height
Commercially approved
Tap kit not included
Built-in capable

Summer Sale

Clearance

SKU: SBC56GBINKCSSADA | UPC: 761101062860

Summit SBC56GBINKCSSADA 24" Wide Built-In Beer Dispenser, ADA Compliant Stainless Steel

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.63"
Depth:
23"
Height:
32"
Type:
Specialty Refrigerators

About this product

ADA compliant height
Commercially approved
Tap kit not included
Built-in capable

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for SUMMIT SBC56GBINKCSSADA

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	23.63 in.
Height	32 in.
Length	23 in.
Weight	110 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	10.06 ft³
Dimensional Weight	125.12 lbs.
Total of Cubes	10.06 ft³
Total of Dimensional Weight	125.12 lbs.

Overview kegerator

Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	23.0" (58 cm)
Depth	23.0" (58 cm)
Depth with Handle	25.5" (65 cm)
Depth with door at 90°	44.5" (113 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.8
Voltage/Frequency	115 V AC/60 Hz
Weight	110.0 lbs. (50 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101062860
Door Swing	RHD
Reversible	Factory Reversible
Thermostat Type	Dial
Interior Light	Yes
Fan Type	Exterior
Refrigerant	R600a
Refrigerant Amount	0.67 oz.
High Side PSI	124.0
Low Side PSI	30.0
Inter Height	26.0" (66 cm)
Interior Width	21.0" (53 cm)
Interior Depth	18.0" (46 cm)
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	21.0" (53 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	34º to 43ºF

Description

Summit Commercial brings unique appliance choices to ADA compliant settings with a new line of commercial beer dispensers made in Europe. Sized at 32 inches high, the SBC56GBINKCSSADA is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the stainless steel wrapped cabinet also enables freestanding use. This unit features a double pane tempered glass door for a full display of the interior. A factory-installed lock is conveniently located towards the top of the door for added security and a curved towel bar style handle in brushed stainless steel completes the look. We include a removable two-piece stainless steel drip tray for cleaner service. The SBC56GBINKCSSADA does not include any tapping equipment, allowing "do-it-yourselfers" to customize their draft system. Inside, the SBC56GBINKCSSADA is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank inside and save on exterior depth. The SBC56GBINKCSSADA is ETL-S listed to NSF-7 commercial standards. Additional ADA compliant kegerator choices are available with panel-ready or glass doors. Browse our complete line for more choices.

Product Features

ADA compliant height
Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
Commercially approved
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Tap kit not included
Install your own tapping equipment to create a customized beer cooler
Built-in capable
Front-breathing design allows fully recessed installation under counters

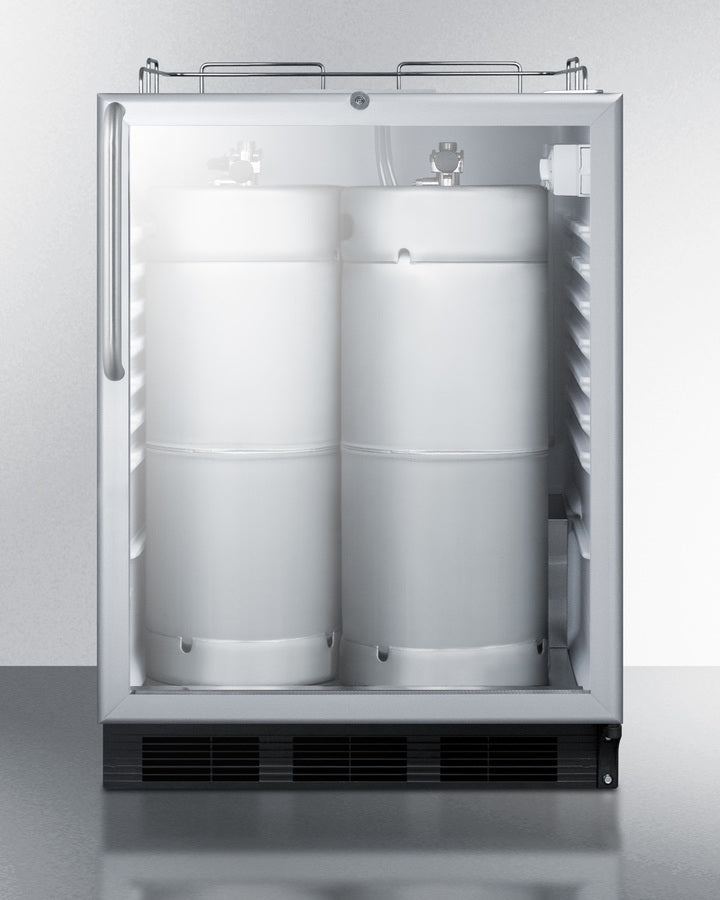

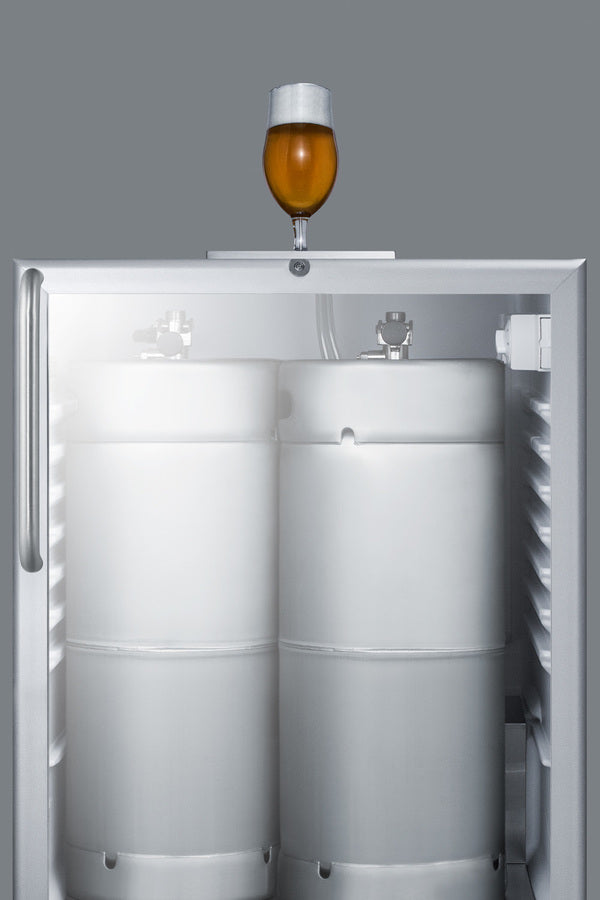

Designed for 1/6 kegs
Interior can store up to two sixtel kegs
Double pane tempered glass door
Heat resistant design provides clear view to promote impulse buys
Stainless steel wrapped cabinet
Exterior features a wrapped stainless steel finish for lasting durability in busy commercial settings
Professional handle
Curved towel bar style handle in brushed stainless steel
Factory-installed lock
Keyed lock conveniently located towards the top of the door for added security (2 keys included)
Adjustable thermostat
Interior dial thermostat ensures easy temperature management
Automatic defrost
No-frost operation for minimum user maintenance
Stainless steel drip tray
Removable two-piece drip tray included for added convenience
Interior light
Turn the light on when you need it and off when you're done with a convenient rocker switch
Interior CO2 holder
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
Stainless steel floor cover
Interior includes steel cover to protect the floor when loading kegs
One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
Factory reversible door
Unit ships with a right hand door swing. For a left hand version, add option LHD upon order
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
CARB Compliant
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
