SKU: RG2402B | UPC: 761101103778

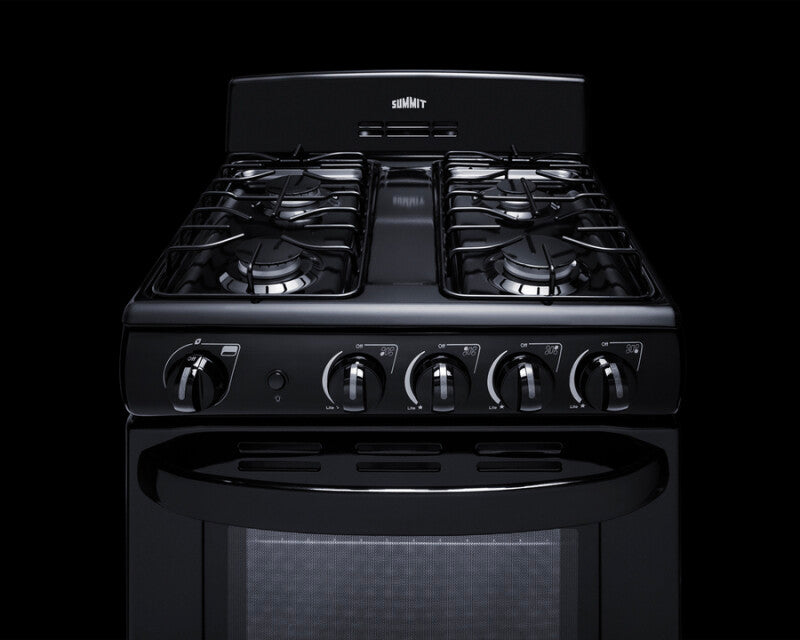

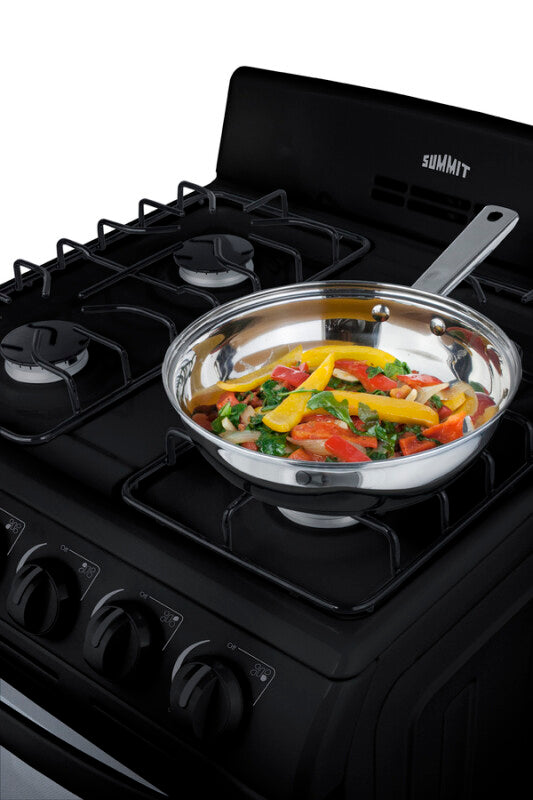

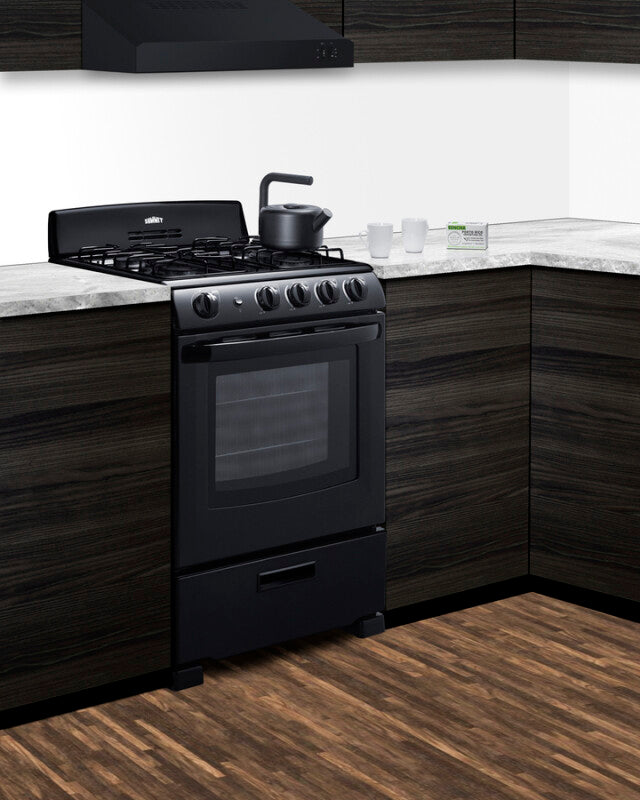

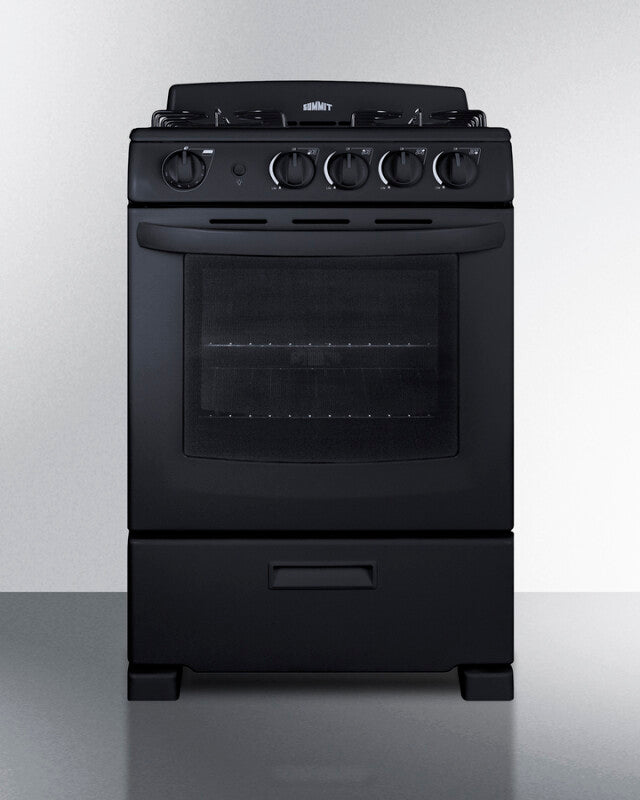

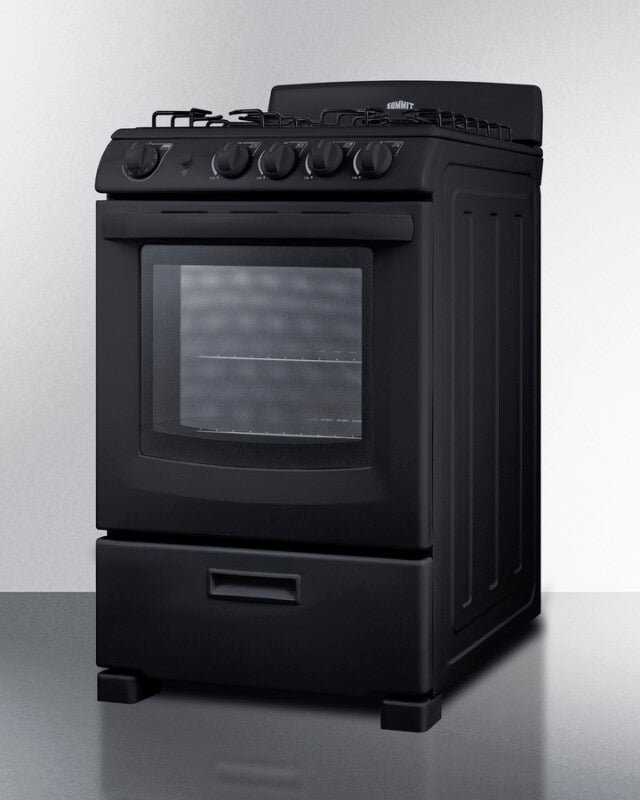

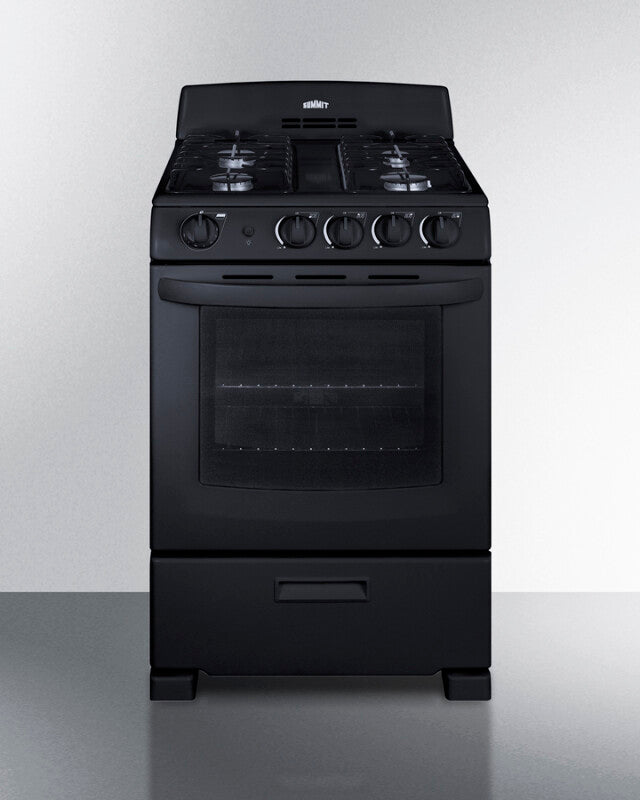

Summit RG2402B 24" Wide Gas Range Black

Quick Specification More details

Width:
23.5"
Depth:
23.5"
Height:
42"
Type:
Freestanding Ranges

About this product

24" Wide Gas Range
LP kit included
Jet black finish
Sealed burners

Summer Sale

Clearance

SKU: RG2402B | UPC: 761101103778

Summit RG2402B 24" Wide Gas Range Black

$987.85 ~~$1,279.97~~ Save $292.12 / 22% OFF

Out of stock

Active Rebates

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.5"
Depth:
23.5"
Height:
42"
Type:
Freestanding Ranges

About this product

24" Wide Gas Range
LP kit included
Jet black finish
Sealed burners

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$987.85 ~~$1,279.97~~ Save $292.12 / 22% OFF

Product Details for SUMMIT RG2402B

Technical Details

Dimensions & weight

Width	23.5 in.
Height	42 in.
Length	23.5 in.
Weight	130 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	13.42 ft³
Dimensional Weight	166.87 lbs.
Total of Cubes	13.42 ft³
Total of Dimensional Weight	166.87 lbs.

Overview gas range

Nominal Height	42.0" (107 cm)
Height of Cabinet	42.0" (107 cm)
Nominal Width	24.0" (61 cm)
Width	23.5" (60 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.75" (65 cm)
Depth with door at 90°	43.25" (110 cm)
Door	Black
Cabinet	Black
US Electrical Safety	CSA
Canadian Electrical Safety	CSA-C
Amps	5.0
Voltage/Frequency	115 V AC/60 Hz
Weight	130.0 lbs. (59 kg)
Parts & Labor Warranty	1 Year
UPC	761101103778
Ignition	Spark
LP Convertible	Yes
Oven Capacity	2.9 cu.ft
Cooktop Surface	Metal
Burner Type	Sealed
Number of Burners	4
Burner #1 BTU	12000.0
Burner #2 BTU	9500.0
Burner #3 BTU	9500.0
Burner #4 BTU	5000.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Backguard	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	15.25" (39 cm)
Oven Interior Width	19.0" (48 cm)
Oven Interior Depth	17.5" (44 cm)
Broiler Location	Below Oven

Description

SUMMIT's line of slim-fitting gas ranges made in North America brings quality and value to space-challenged kitchens. Sized at 24" wide, the RG2402B features a 2.9 cu.ft. oven with an interior light and large window for easy cooking visibility. Two slide-out racks include a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment. The RG2402B comes in a jet black finish, with color-matched push-to-turn knobs and an easy-to-grab handle. This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. The high backguard helps to protect your walls from spills, with enamel grates for lasting durability. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion. With its clean look and unique size, the RG2402B is the ideal gas range for apartment and small home kitchens. Additional choices are available in white and stainless steel, as well as 20" wide options. Browse the full Summit collection to find the perfect fit.

Product Features

24" Wide Gas Range
Slim-fitting gas range with four sealed burners for easy cooking in apartments and other smaller kitchens
LP kit included
Unit is set for natural gas but can be converted aftermarket with the included LP kit
Jet black finish
Modern style to suit any kitchen

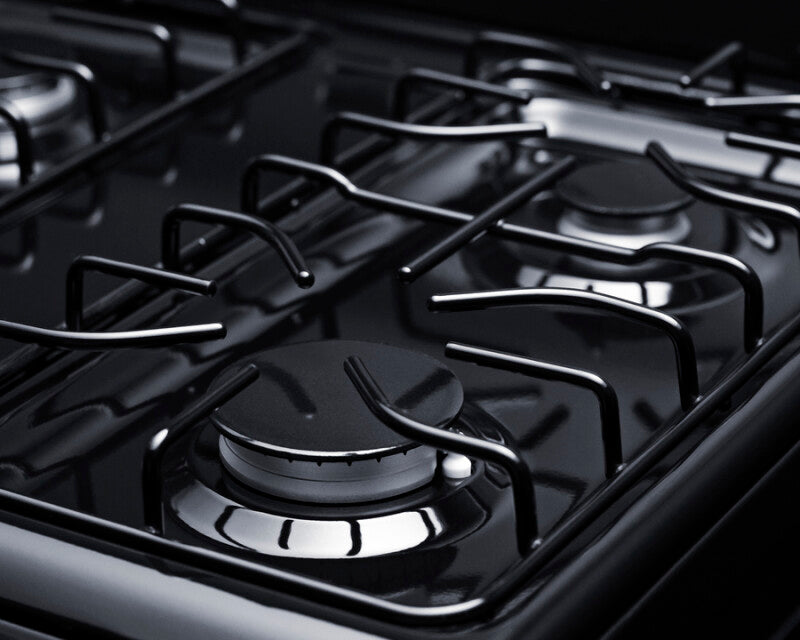

Sealed burners
Four sealed burners with removable cast iron tops ensure safer, cleaner cooking
Two semi-rapid burners
Two right burners operate at 9,500 BTU to handle most heating needs

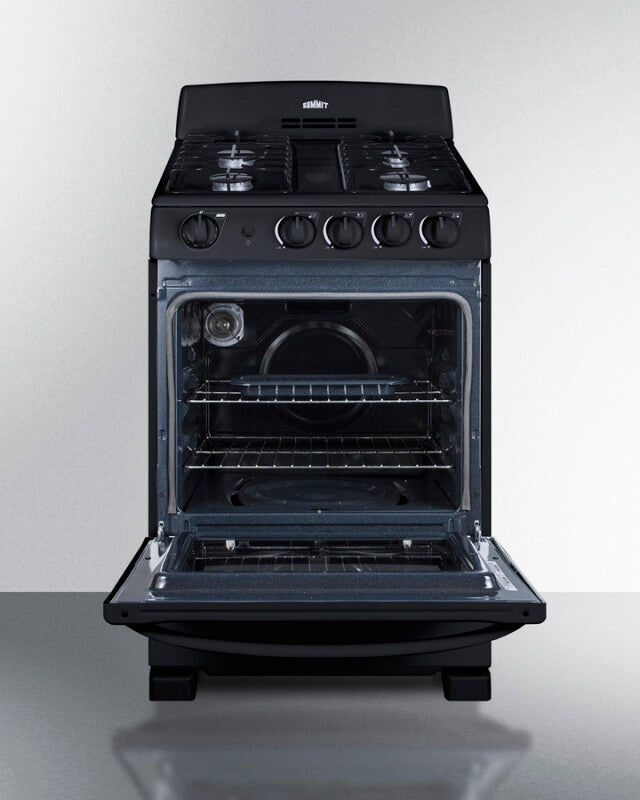

Large oven
Full 2.9 cu.ft. interior in slim 24" width
Low output burner
Rear left burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items
High output burner
Front left burner features 12,500 BTU output for powerful cooking
Continuous grates
Two sets of enamel grates are removable for easy cleaning, with solid construction to support large pots and pans
Broiler compartment
Drop-down lower compartment offers the ideal conditions for broiling
Oven window
Large window makes it easier to monitor your cooking
Oven light
Interior light included for easy viewing
Push-to-turn knobs
Safety knobs help prevent accidents from turning on the oven or burners
Safety brake system for oven racks
Sliding racks will stay in your oven with special brake mechanism
Electronic ignition
Added safety with spark ignition system
Broiler pan included
Two-piece broiler pan with lid included with each range
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility
High backguard
Solid backing prevents stovetop contents from splashing up or boiling over and staining walls
Power cord included
Standard 3-pronged 115V cord included for the electronic ignition
TAA compliant
Made in North America
Anti-tip bracket
Included for user installation to help prevent accidents
