Sale price $1,365.10 Regular price $1,659.97 Save $294.87 / 17% OFF

Product Details for SUMMIT REXH24RSS

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.75 in.
Height 36.5 in.
Length 24.25 in.
Weight 160 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 12.17 ft³
Dimensional Weight 151.24 lbs.
Total of Cubes 12.17 ft³
Total of Dimensional Weight 151.24 lbs.

Overview electric range

Nominal Height 37.0" (94 cm)
Height of Cabinet 36.5" (93 cm)
Nominal Width 24.0" (61 cm)
Width 23.75" (60 cm)
Nominal Depth 25.0" (64 cm)
Depth 24.25" (62 cm)
Depth with Handle 26.25" (67 cm)
Depth with door at 90° 43.5" (110 cm)
Door Stainless Steel
Cabinet Black
US Electrical Safety UL
Amps 40.0
Voltage/Frequency 220 V AC/60 Hz
Weight 160.0 lbs. (73 kg)
Parts & Labor Warranty 1 Year
UPC 761101088013
Oven Capacity 2.9 cu.ft. (82 L)
Cooktop Surface Glass
Element Type Glasstop
Number of Elements 4
Element #1 Size 8.0" (20 cm)
Element #1 Wattage 2000.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1500.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 1500.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 2000.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 15.25" (39 cm)
Oven Interior Width 19.0" (48 cm)
Oven Interior Depth 17.5" (44 cm)
Power Source 220V
Storage Compartment Yes
Broiler Location Inside Oven

Description

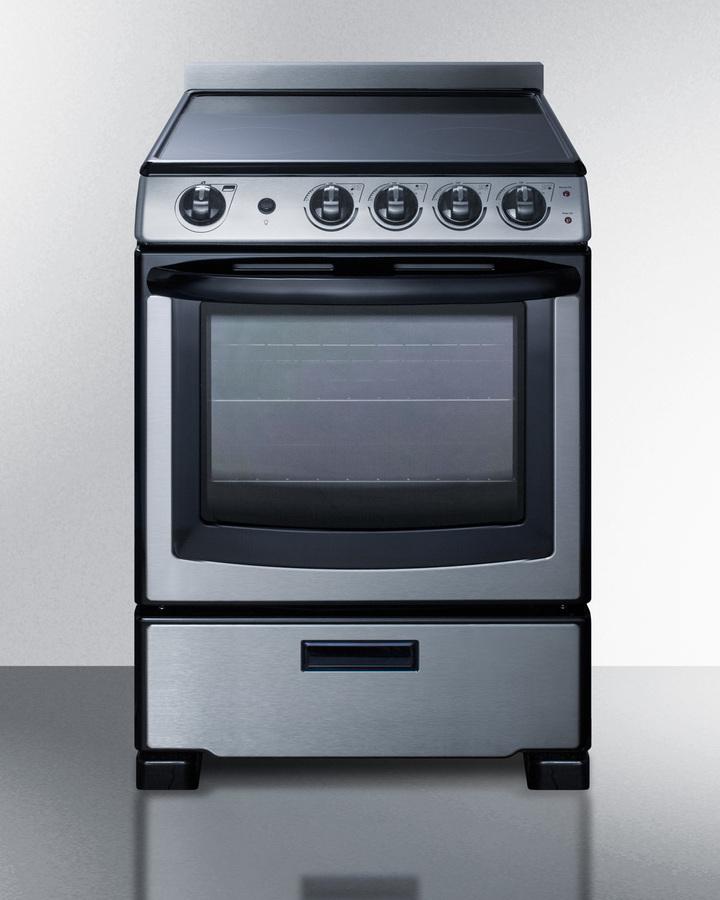

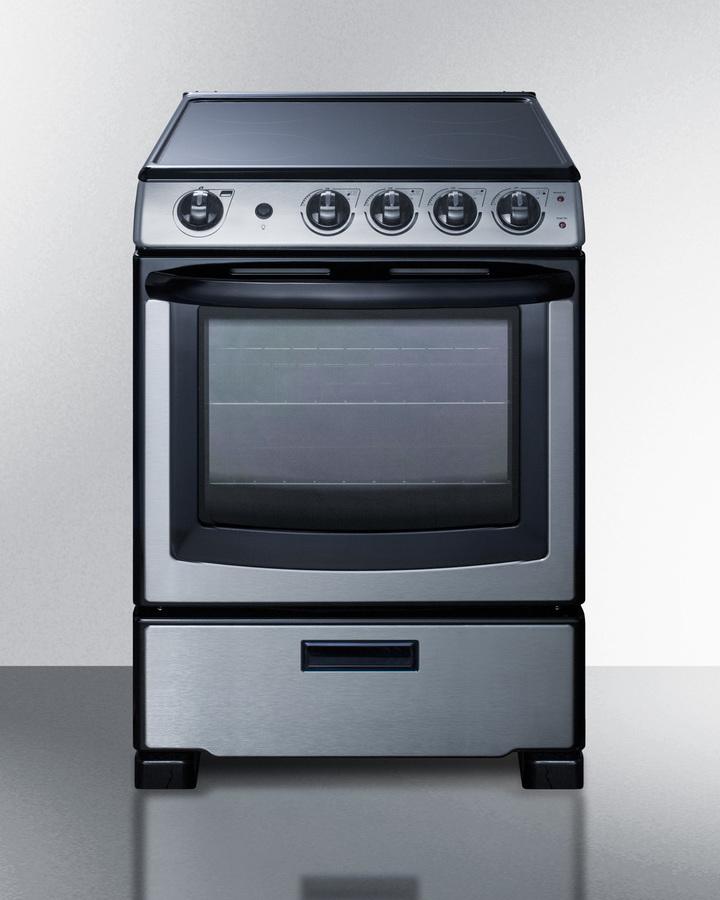

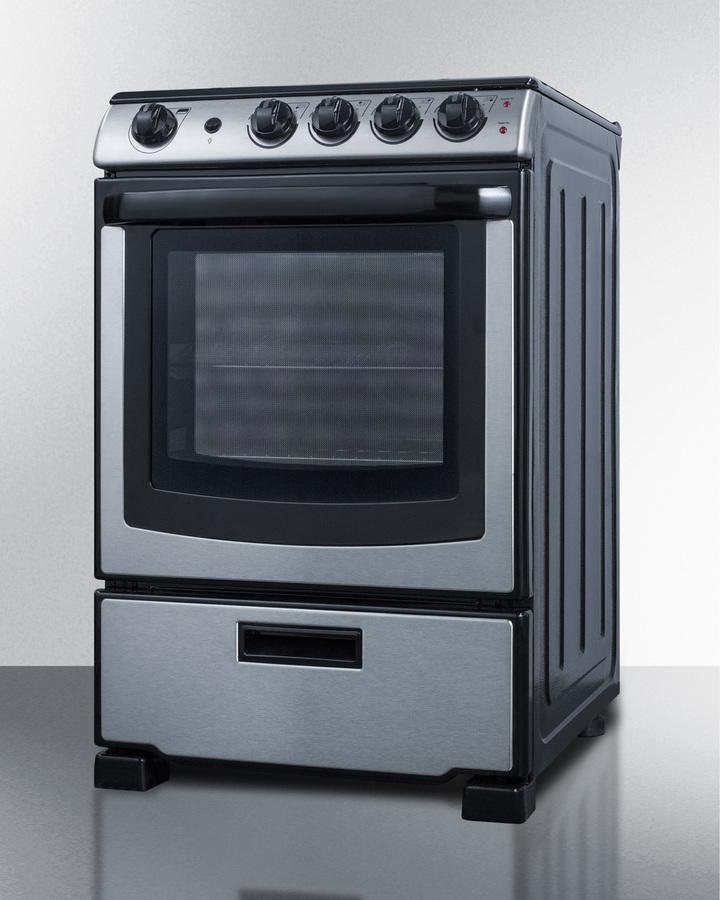

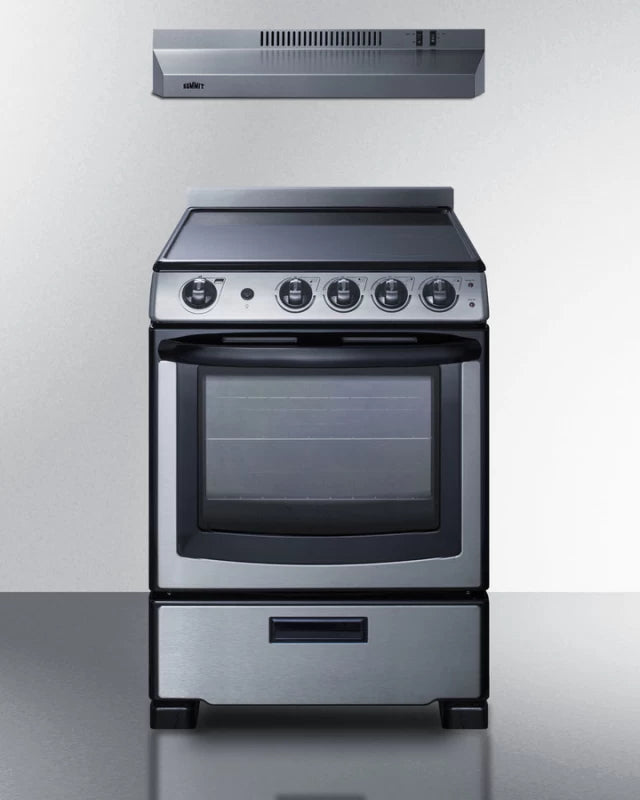

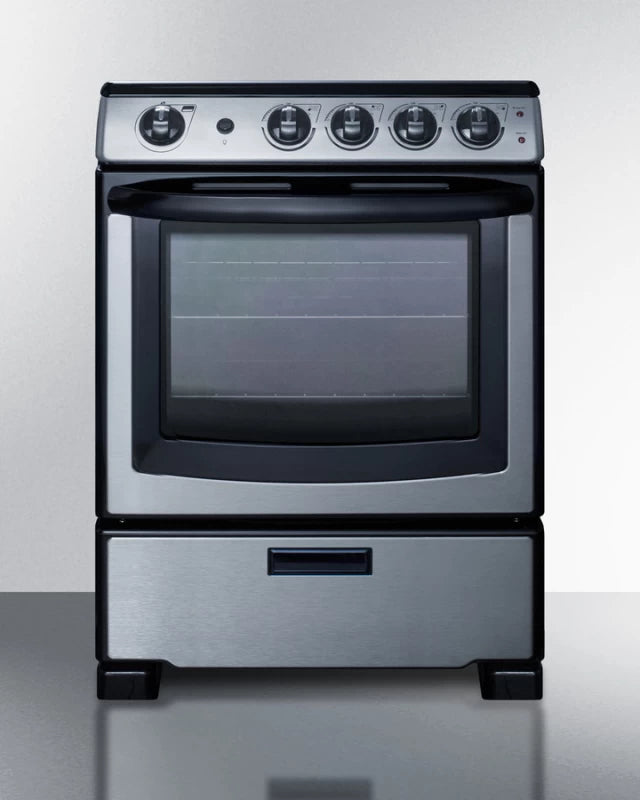

Summit lets you create the perfect small kitchen with our 24" wide range and hood sets. The REXH24RSS combines our popular REX2451SSRT North American-made smooth-top electric range with our convertible H24RSS range hood. Ideal for apartments, this set offers versatile installation options and an attractive finish in black and stainless steel. The REX2451SSRT is a 220V electric range sized at just under 24" wide. The front manifold, oven door, and lower drawer feature a stainless steel finish, with a black trimmed oven window and handle for a modern look. The versatile design includes a removable 2" high stainless steel backguard, allowing you the choice of a standard range style or a slide-in look with a flat surface that allows you to better integrate the unit with your own backsplash design. For added space savings, the REX2451SSRT features a slide-out drawer, perfect for storing your pots and pans and freeing up more kitchen space. The smooth ceramic glass surface includes two 2000W elements to accommodate larger pots and pans, as well as two standard 1500W elements and a hot surface indicator light for added safety. Inside, the REX2451SSRT features a large 2.9 cu.ft. oven made from durable porcelain enamel. The waist-high broiler function is easy to use, with slide-out oven racks that can be adjusted in four different glide positions for the best fit. We include a small two-piece porcelain broiler tray with a grill cover. The large oven window and interior light make it easy to monitor your cooking. The H24RSS range hood ships set for ductless/recirculating use in kitchens without external exhaust options. It can be converted for ducted operation (rear or top venting) in one quick step. We include an aluminum mesh grease filter, as well as an activated carbon filter for recirculating applications. A pre-installed light bulb lets you illuminate your cooking surface with a simple rocker switch light. The fan has a high and low setting to best meet your ventilation needs. Stainless steel construction completes the look and complements the stove. The REXH24RSS ships together on one pallet. For a convertible gas stove and hood combination, see the RGH24RSS.


Product Features

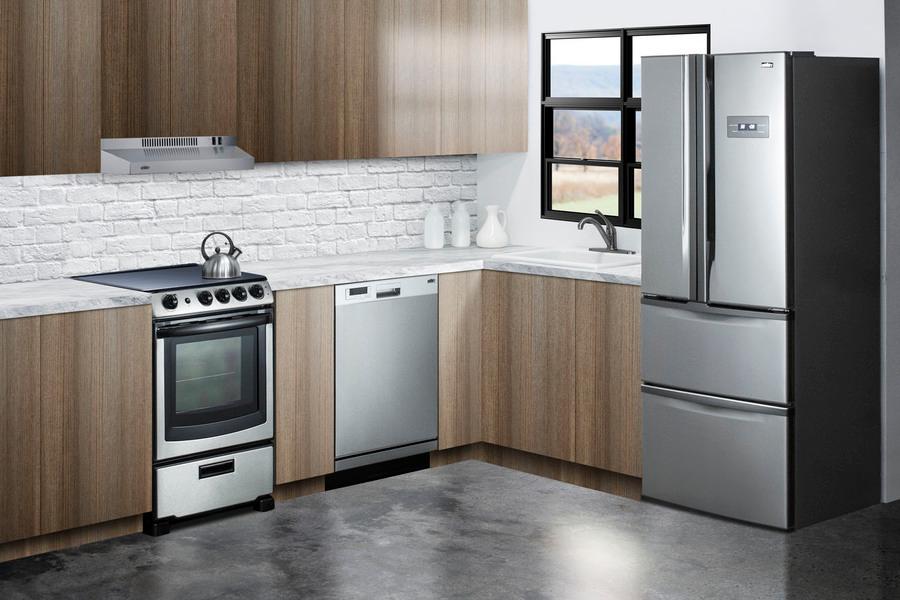

  • Range/hood set
    Includes our REX2451SSRT smooth-top electric range with oven and our H24RSS convertible range hood to create a fully functional cooking and ventilation station in small kitchens

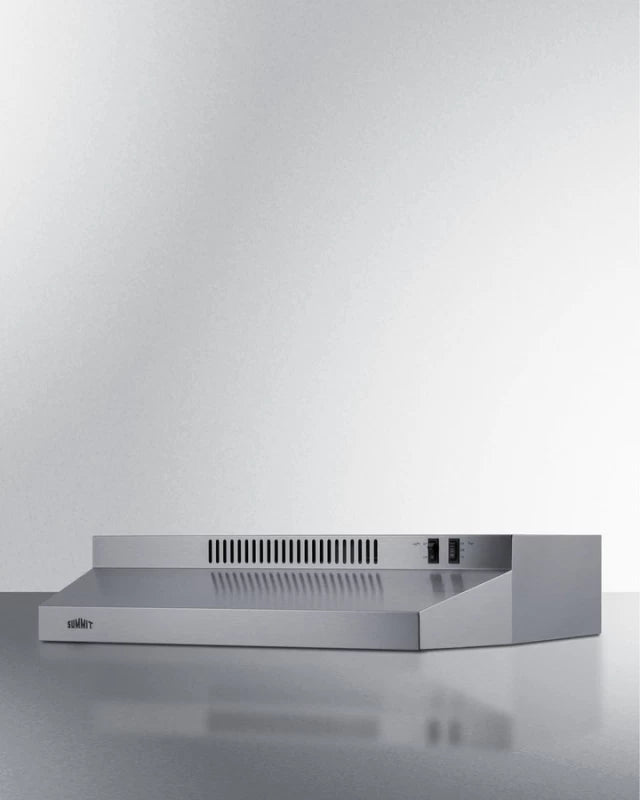

  • Under cabinet range hood in stainless steel
    Low profile design offers a classic way to finish your kitchen, with a complete stainless steel exterior with an easy-to-match horizontal grain
  • Easy 1-step conversion
    Hood ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
  • 24" width
    Perfectly sized for apartments and smaller home kitchens
  • Convertible hood
    Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
  • Versatile top or rear exhaust
    Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)

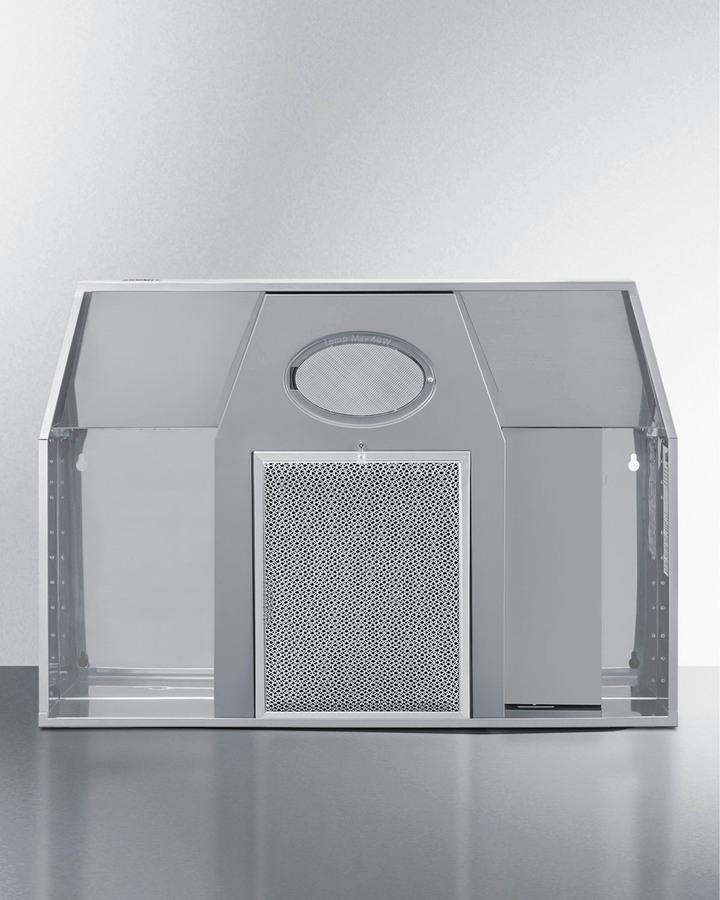

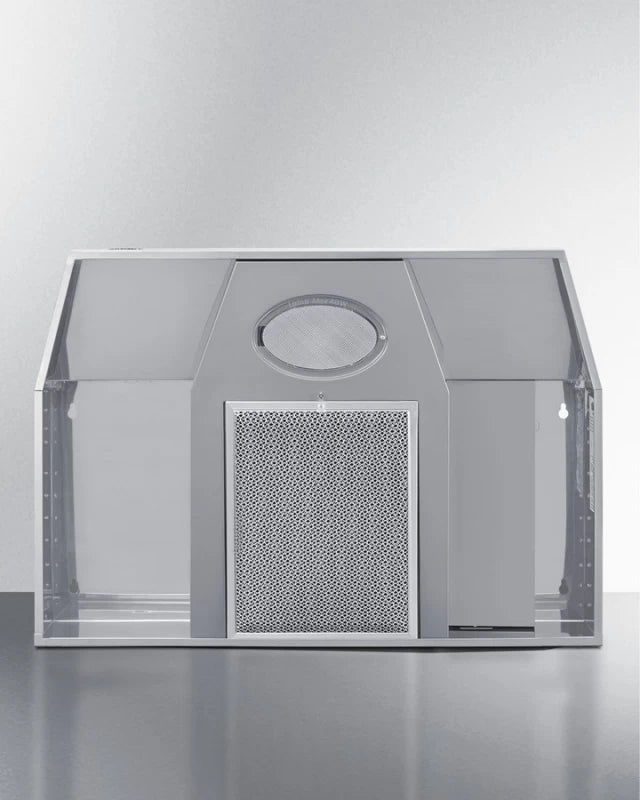

  • Filters included
    Hood ships with a removable easy-to-clean aluminum mesh filter to capture grease, and a charcoal filter to absorb odors when using the hood in recirculating mode

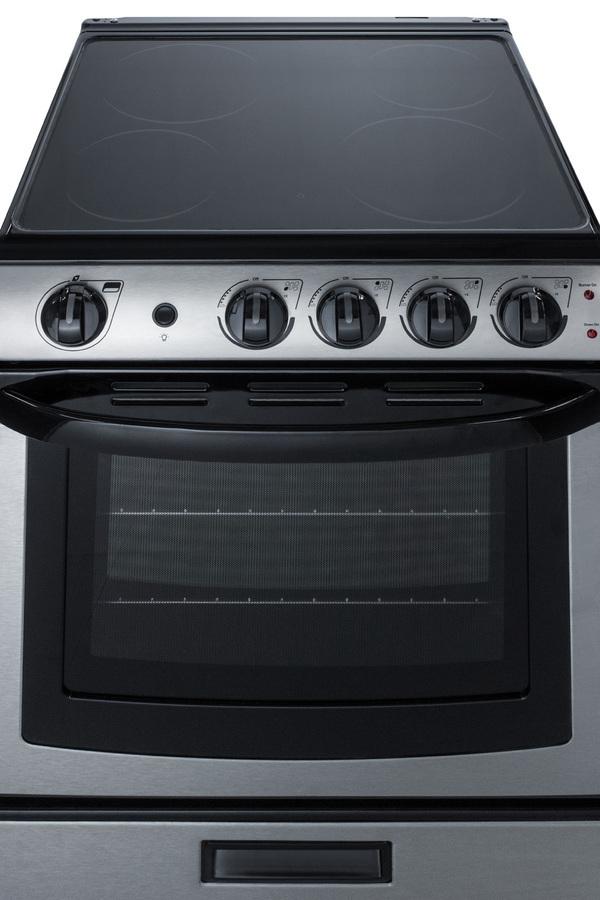

  • Smooth ceramic glass top
    Smooth cooking surface ensures improved safety and easy cleanability

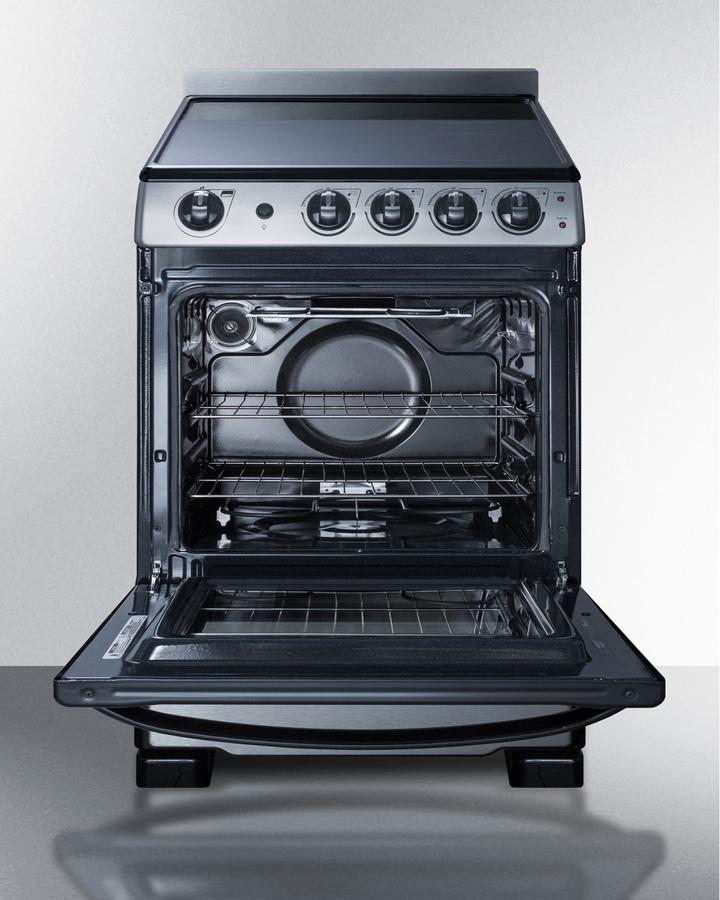

  • Oven window with light
    Easier monitoring of your cooking with an oven window and on/off light
  • Storage drawer
    Save even more space by storing your pots and pans in this pull-out compartment

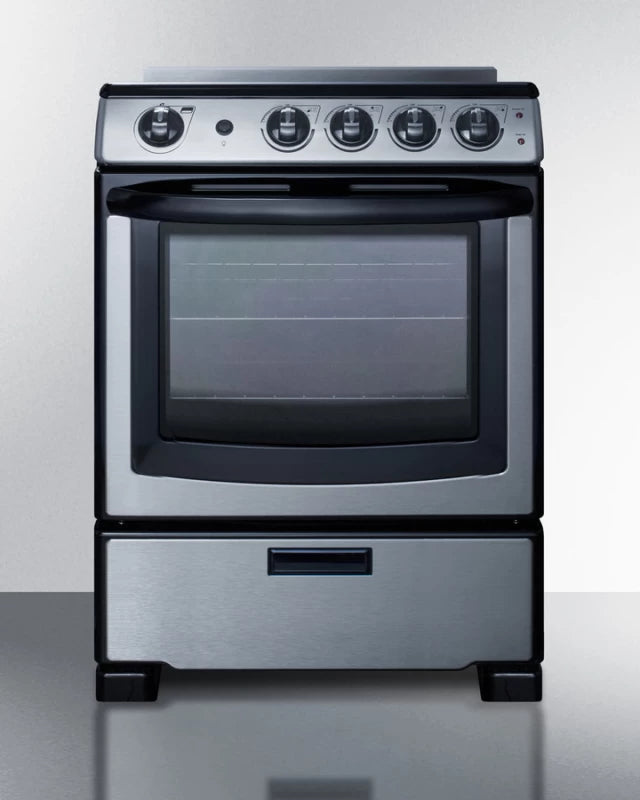

  • Removable backguard
    Unit ships with low stainless steel backguard but can be easily converted to a traditional slide-in style for a more integrated look
  • Waist-high broiler
    Broiler is located inside the oven, making it easier to use
  • Upfront controls
    Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments
  • Push-to-turn knobs
    To prevent accidents, knobs require a small amount of force when turning
  • Four cooking zones
    Surface features two 8" and two 6" elements to accommodate a range of sizes and cooking needs
  • Safety burners
    Cooking elements will cycle off before reaching dangerous flashpoint temperatures to prevent cooking fires, and will cycle back on to resume heating
  • Stainless steel finish
    Oven door, storage drawer, and control panel feature a stainless steel finish

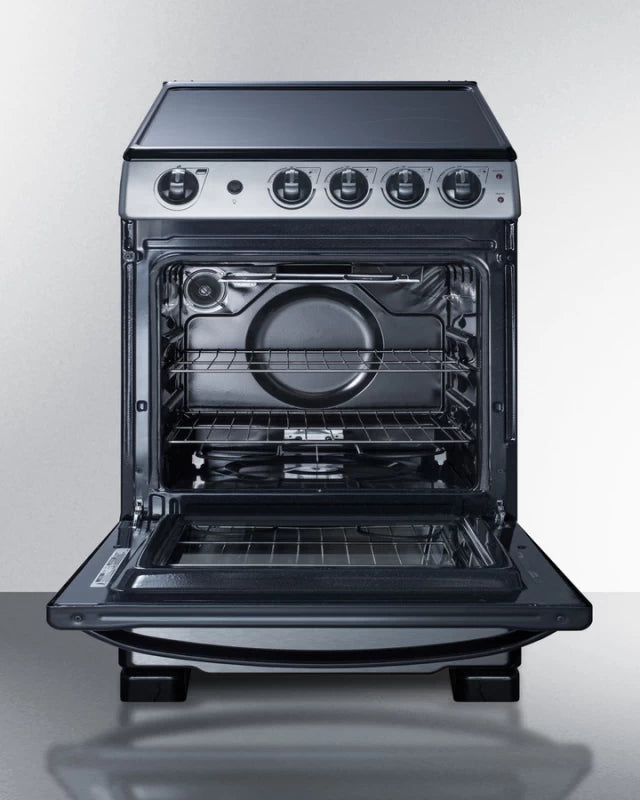

  • Adjustable racks
    Includes two oven racks that can be adjusted to accommodate a variety of sizes when baking or broiling
  • Safety brake system for oven racks
    Sliding racks will stay in your oven with special brake mechanism
  • Hot surface indicator
    Indicator light shows if the cooking surface is still too hot to touch
  • Indicator lights
    Control panel includes an 'on' light for the oven and burners for added safety when using the range
  • Porcelain construction
    Oven interior features high quality porcelain construction for long-lasting durability
  • Anti-tip bracket
    Included for user installation to help prevent accidents
  • Compact broiler tray
    Two-piece pan and cover included
  • Cord not included
    Compatible with standard 40 amp 3 or 4-wire range cords
