Sale price $1,065.36 Regular price $1,672.97 Save $607.61 / 36% OFF

Product Details for SUMMIT RE2413B

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 23.5 in.
Height 41.75 in.
Length 25.13 in.
Weight 133 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 14.27 ft³
Dimensional Weight 177.38 lbs.
Total of Cubes 14.27 ft³
Total of Dimensional Weight 177.38 lbs.

Overview electric range

Nominal Height 42.0" (107 cm)
Height of Cabinet 41.75" (106 cm)
Nominal Width 24.0" (61 cm)
Width 23.5" (60 cm)
Nominal Depth 26.0" (66 cm)
Depth 25.13" (64 cm)
Depth with Handle 27.38" (70 cm)
Depth with door at 90° 46.38" (118 cm)
Door Black
Cabinet Black
US Electrical Safety UL
Amps 40.0
Voltage/Frequency 240 V AC/60 Hz
Weight 133.0 lbs. (60 kg)
Parts & Labor Warranty 1 Year
UPC 761101103754
Oven Capacity 2.9 cu.ft. (82 L)
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1250.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1250.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 1250.0
Element #4 Size 7.5" (19 cm)
Element #4 Wattage 2400.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 15.25" (39 cm)
Oven Interior Width 18.5" (47 cm)
Oven Interior Depth 17.63" (45 cm)
Storage Compartment Yes
Broiler Location Inside Oven

Description

Summit brings outstanding value to small kitchens with fully featured electric ranges in 24" wide fits. Made in North America, the RE2413B is a 240V electric range designed for 24" wide spaces. One 8" and three 6" coil burners include removable chrome drip pans for easy cleaning. For added safety, each coil is equipped with a sensor that will automatically cycle the element off if it reaches dangerous flashpoint temperatures. Heating will resume automatically. All cooking controls are located upfront on push-to-turn knobs for safe and easy use. Indicator lights illuminate when the burners and oven are on. The RE2413B features a large oven window with an interior light to make it easy for users to monitor their cooking. Inside, the 2.9 cu.ft. interior is made from durable porcelain and includes two adjustable racks. The waist-high broiler is conveniently located inside, letting you finish your cooking without transferring contents to an inconvenient drop-down compartment on the floor. The unit's lower compartment is a slide-out storage drawer for added convenience. The RE2413B comes with a jet-black exterior door, handle, and knobs for a contemporary kitchen design. With its slim fit and user-friendly features, this unit is the ideal choice for space-challenged kitchens on a budget. For this unit in a 20" width see model RE2031B. For this unit in white and stainless steel see models RE2411W and PROEL24SS. Summit also manufactures smooth-top ranges and gas units. Browse our website to explore the complete cooking collection.


Product Features

  • 24" Wide Electric 4-Burner Range
    Slim-fitting electric range perfectly sized for apartments and smaller home kitchens
  • Classic coil elements
    Durable design to hold up to everyday cooking

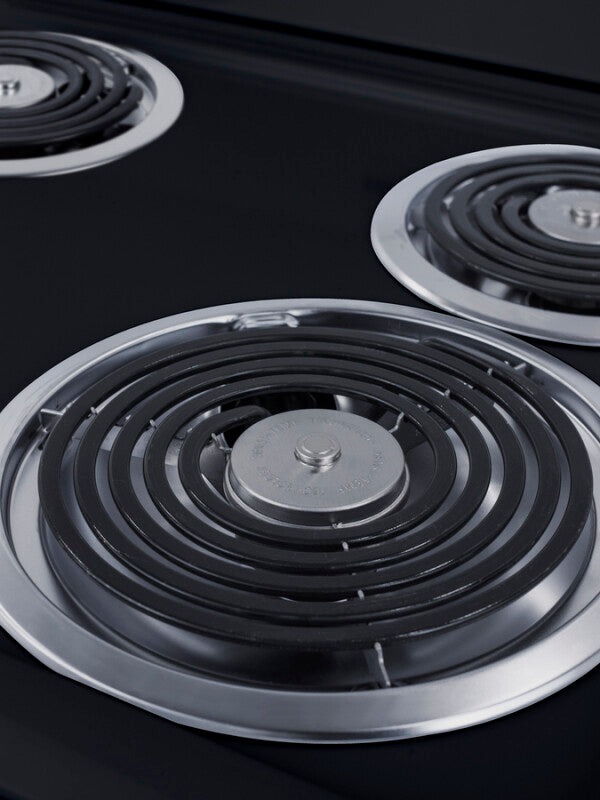

  • Four coil elements with chrome drip pans
    Surface features one 8" and three 6" elements to accommodate a range of sizes and cooking needs
  • Safety elements
    Designed to comply with the latest UL safety standards, each coil element is equipped with a sensor to cycle off if the temperature nears the flashpoint. Coils will resume heating shortly after, causing little interruption to your cooking
  • Slide-out storage drawer
    Save even more space by storing your pots and pans in this pull-out compartment
  • Waist-high broiler
    Broiler is located inside the oven, making it easier to use
  • Oven window
    Large window makes it easier to monitor your cooking
  • Oven light
    Interior light included for easy viewing
  • Backsplash
    High backing prevents stovetop contents from splashing up or boiling over and staining back walls
  • Upfront controls
    Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments
  • Push-to-turn knobs
    To prevent accidents, knobs require a small amount of force when turning
  • Chrome drip pans
    Each element includes a removable chrome pan for easier cleaning
  • Adjustable racks
    Includes two oven racks that can be adjusted to accommodate a variety of sizes when baking or broiling
  • Safety brake system for oven racks
    Sliding racks will stay in your oven with special brake mechanism
  • Compact broiler tray
    Two-piece pan and cover included
  • Porcelain interior
    Oven interior features high quality porcelain construction for long-lasting durability
  • Indicator lights
    Control panel includes an 'on' light for the oven and burners for added safety when using the range
  • Cord not included
    Compatible with standard 40 amp 3 or 4-wire range cords
  • Color matched handle & knobs
    Jet black surface and oven window, with matching knobs and handle for a modern look
  • ADA-compliant design
    Front-located controls and proper sizing meets ADA guidelines for added accessibility
  • TAA compliant
    This electric range was made in North America and meets the TAA guidelines
  • Anti-tip bracket
    Safety feature included for user installation to help prevent accidents
