Sale price $1,534.97 Regular price $1,999.97 Save $465.00 / 23% OFF

Product Details for SUMMIT NOVA22

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 30 in.
Height 31.5 in.
Length 27.25 in.
Weight 110 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 14.9 ft³
Dimensional Weight 185.26 lbs.
Total of Cubes 14.9 ft³
Total of Dimensional Weight 185.26 lbs.

Overview freezer

Nominal Height 32.0" (81 cm)
Height of Cabinet 31.5" (80 cm)
Nominal Width 30.0" (76 cm)
Width 30.0" (76 cm)
Nominal Depth 28.0" (71 cm)
Depth 27.25" (69 cm)
Capacity 7.2 cu.ft. (204 L)
Defrost Type Manual
Door Glass
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation UL-S
Amps 7.2
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101064925
Door Swing Sliding
Interior Height 26.0" (66 cm)
Interior Width 23.75" (60 cm)
Interior Depth 21.0" (53 cm)
Thermostat Type Digital
Refrigerant Type R290
Refrigerant Amount 3.03 oz.
High Side PSI 345.0
Low Side PSI 140.0
Compressor Step Height 9.75" (25 cm)
Compressor Step Width 7.88" (20 cm)
Compressor Step Depth 21.0" (53 cm)
Temperature Range -13 to 23ºF

Description

Summit Commercial's line of flat top ice cream freezers features a deluxe European design to provide quality storage and long-lasting convenience. Made for us by Elcold in Denmark, the NOVA22 features two tempered glass lids on ball-bearing glides that open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. This unit includes a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. We include a set of sturdy commercial casters for users to install if they prefer the freezer more mobile. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF. Inside, the NOVA22 features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include two epoxy coated wire novelty baskets, ideal for storing frozen treats and designed to easily glide back and forth as needed. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting. The NOVA22 is UL-S listed to NSF-7 commercial standards. Additional sizes are available. This freezer can also be ordered as a dipping cabinet with a factory-installed sneezeguard (model NOVA22PDC).


Product Features

  • Commercially approved
    UL-S listed to NSF-7 Standards for use in commercial establishments
  • Wide temperature range
    Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats
  • Strong insulation
    3" thick insulation helps to ensure items stay cold

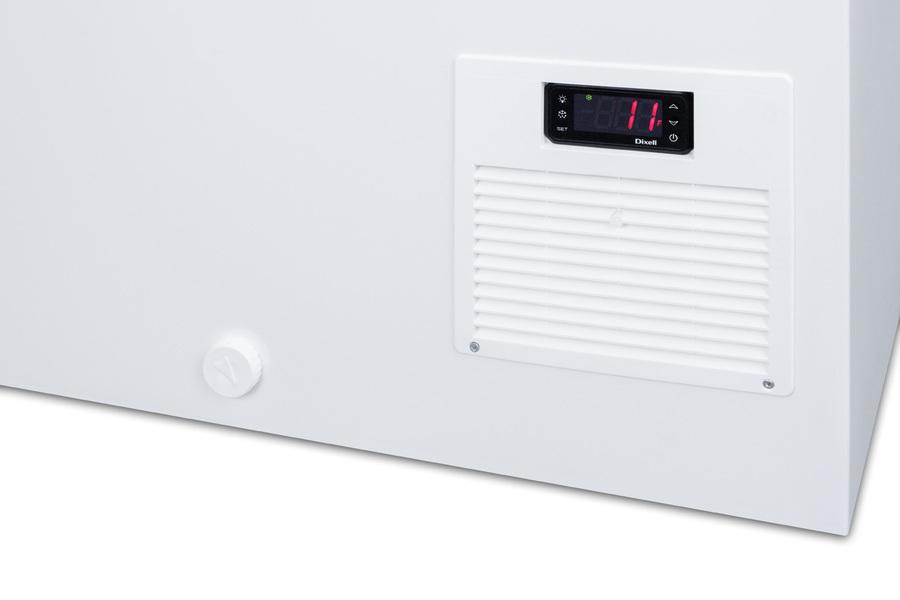

  • Digital thermostat
    Electronic controls for more precise temperature management

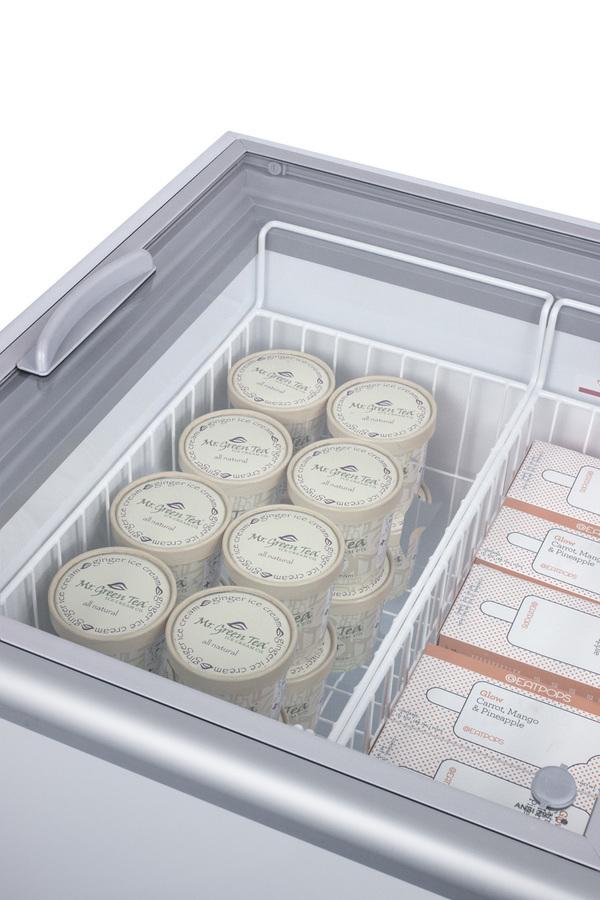

  • Baskets included
    Two epoxy-coated wire baskets included to store novelty items
  • Manual defrost
    Static cooling system for improved temperature stability
  • Sliding glass lid
    Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

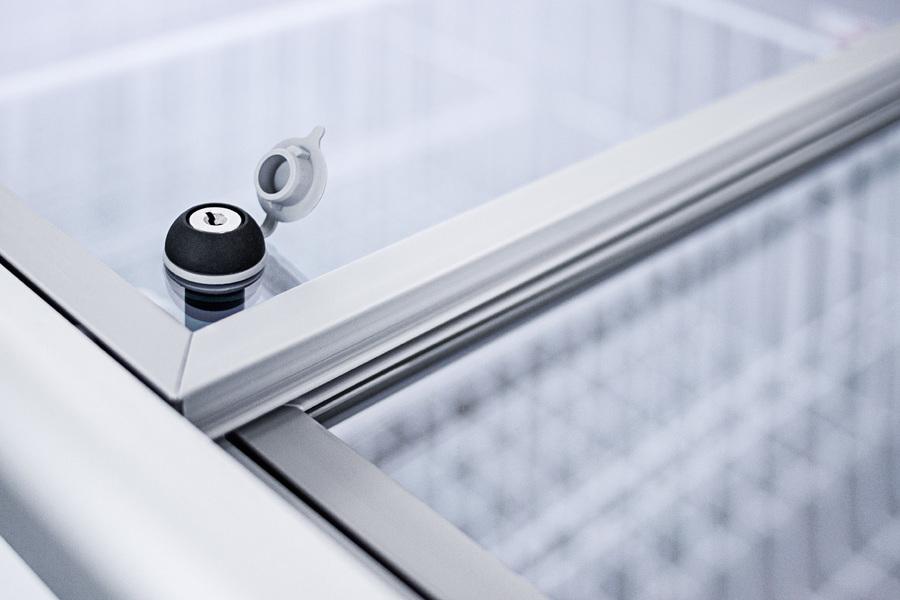

  • Removable lock
    A keyed lock is included for optional use
  • Steel interior
    Durable construction in a white finish for easy visibility
  • Casters
    Heavy duty wheels for smooth mobility (ship unassembled)
  • Fan-cooled compressor
    Offers improved temperature performance throughout the interior
  • Defrost drain
    Front located for easier defrosting
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
