SKU: LAB11 | UPC: 761101085968

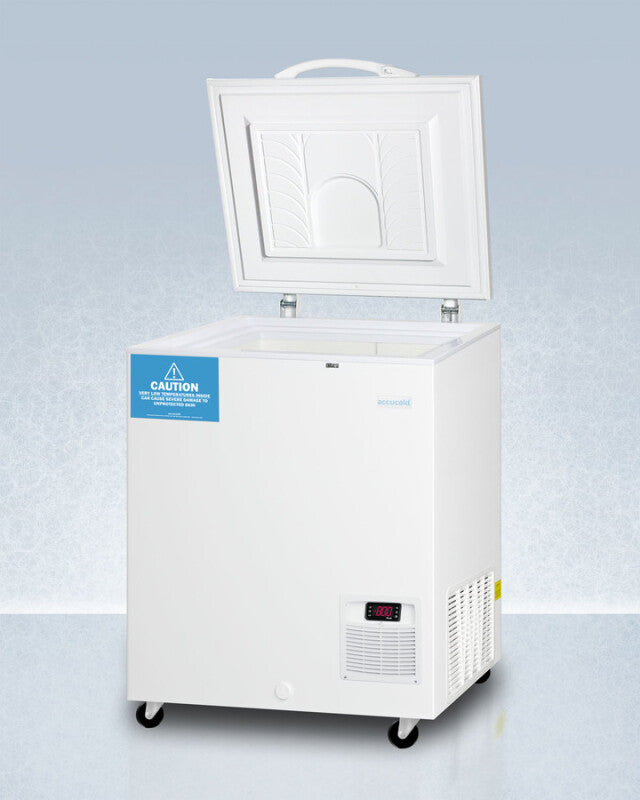

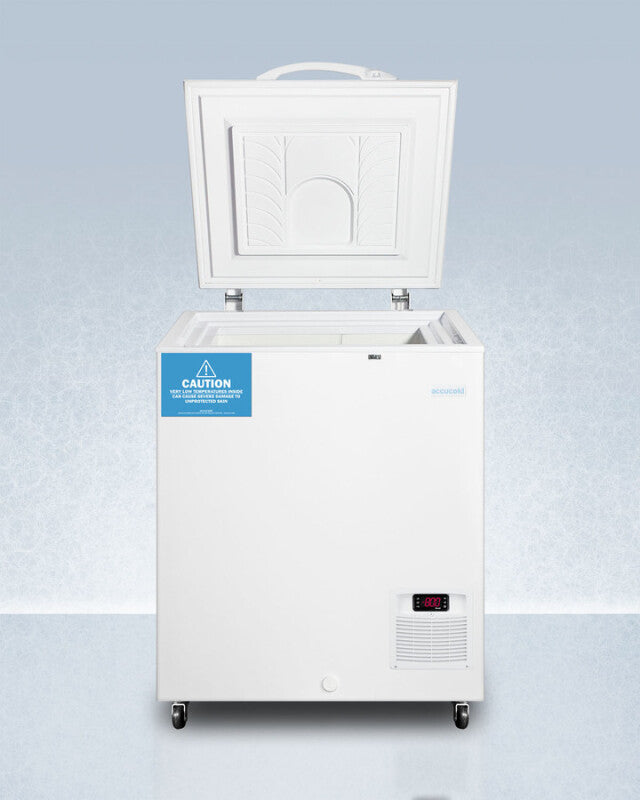

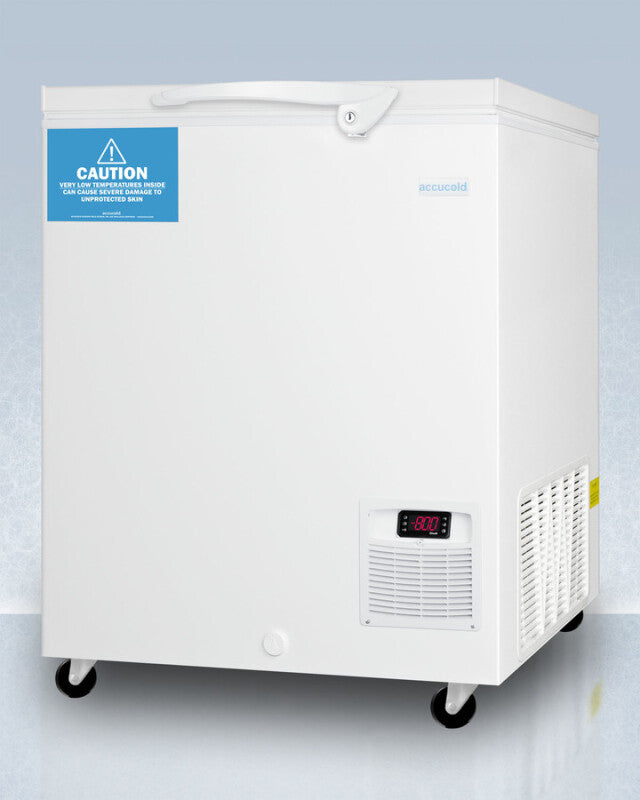

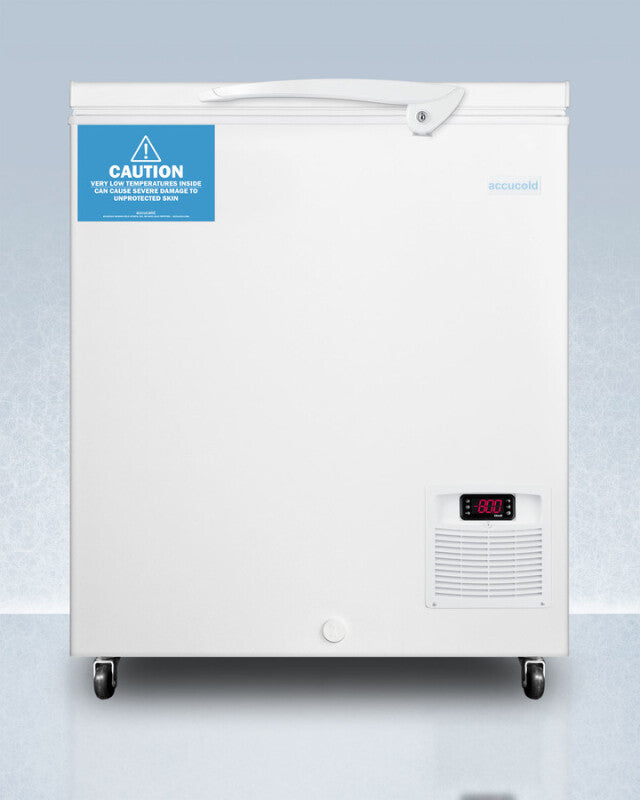

Summit LAB11 4.8 Cu.Ft. -86ºC Ultra Low Chest Freezer White

Quick Specification More details

Width:
28.5"
Depth:
27" - 28"
Height:
36.25"
Type:
Chest Freezers

About this product

Advanced design
Ultra Low Temperature -85ºC Chest Freezer
Factory installed lock
Manufactured by Elcold for Accucold

Clearance

SKU: LAB11 | UPC: 761101085968

Summit LAB11 4.8 Cu.Ft. -86ºC Ultra Low Chest Freezer White

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
28.5"
Depth:
27" - 28"
Height:
36.25"
Type:
Chest Freezers

About this product

Advanced design
Ultra Low Temperature -85ºC Chest Freezer
Factory installed lock
Manufactured by Elcold for Accucold

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Product Details for Summit LAB11

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Freezer

Door Swing	Lift-Up
Interior Height	26.25" (67 cm)
Interior Width	20.25" (51 cm)
Interior Depth	17.5" (44 cm)
Thermostat Type	Digital
High Side PSI	400.0
Low Side PSI	174.0
Wheels	4
Compressor Step Height	9.75" (25 cm)
Compressor Step Width	7.75" (20 cm)
Compressor Step Depth	17.5" (44 cm)
Temperature Range	-50 to -85ºC
Sound Level	49 dB

Dimensions & weight

Width	28.5 in.
Height	36.25 in.
Length	28 in.
Weight	180 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	16.74 ft³
Dimensional Weight	208.11 lbs.
Total of Cubes	16.74 ft³
Total of Dimensional Weight	208.11 lbs.

Other

Number of Boxes	1
Source	Calculation
Capacity	4.8 cu.ft. (136 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	UL-S
Amps	5.3
Voltage/Frequency	115 V AC/60 Hz
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101085968

Description

Accucold introduces a new series of ultra low temperature chest freezers designed for reliable storage at -86ºC for laboratory, life science, and other institutional settings. Manufactured for Accucold in Denmark by ELCOLD, model LAB11 offers 4.8 cu.ft. of storage. Extra thick 4 1/2" insulation and static manual defrost operation help to maintain ultra low temperatures suitable for maintaining the integrity of biological samples, industrial materials, laboratory specimens, select vaccines, and other materials with highly specific cold storage requirements. Two inner lids offer added protection by shielding contents when the outer lid is opened. The digital microprocessor controls are mounted in the front for convenient access. This unit has a temperature range that can be set between -50 and -86ºC, with a display viewable in Celsius or Fahrenheit. The thermostat's high/low temperature alarm warns if the interior goes out of the set range. There is also an audible 9V battery-powered alarm in the rear of the unit that will sound in the event of power failure. For added convenience, the LAB11 comes with pre-installed casters, including two front locking wheels to help keep the unit in place. The easy-grip handle includes a factory-installed keyed lock for added security. We also offer this unit with a set of 9 vertical stainless steel box racks (see model LAB11R9). The LAB11 is UL listed for use in the US and Canada, and also meets ANSI/NSF-7. Additional sizes will be available soon.

Product Features

Advanced design
Interior walls feature more than 8 layers of D-shaped cooling pipes to ensure increased contact with the freezer walls in order to ensure maximum insulation and product efficiency
Ultra Low Temperature -85ºC Chest Freezer
Designed for highly specialized cold storage storage applications of biological samples, DNA/RNA material, chemicals, select vaccines and antibiotics, and other substances with strict low temperature requirements

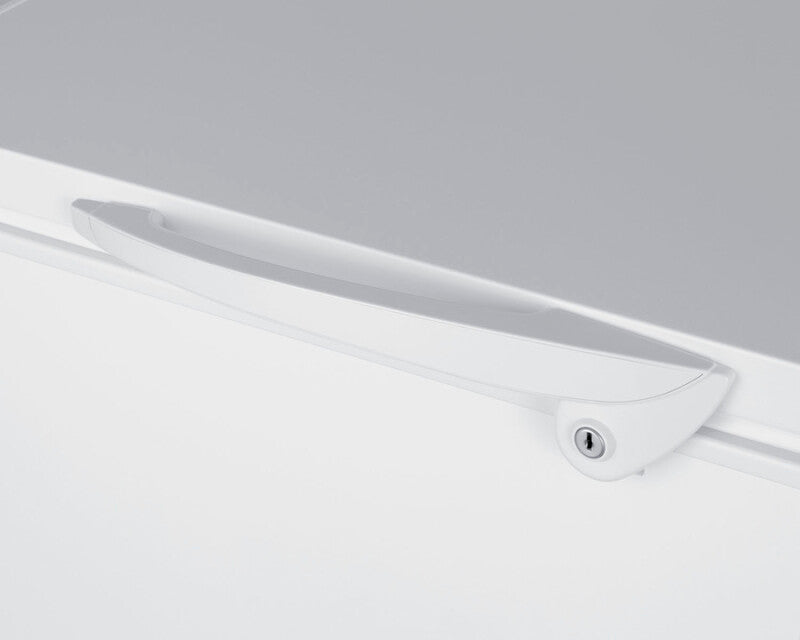

Factory installed lock
Exterior lock on the handle for reliable security (2 keys included)
Manufactured by Elcold for Accucold
Designed and constructed in Denmark

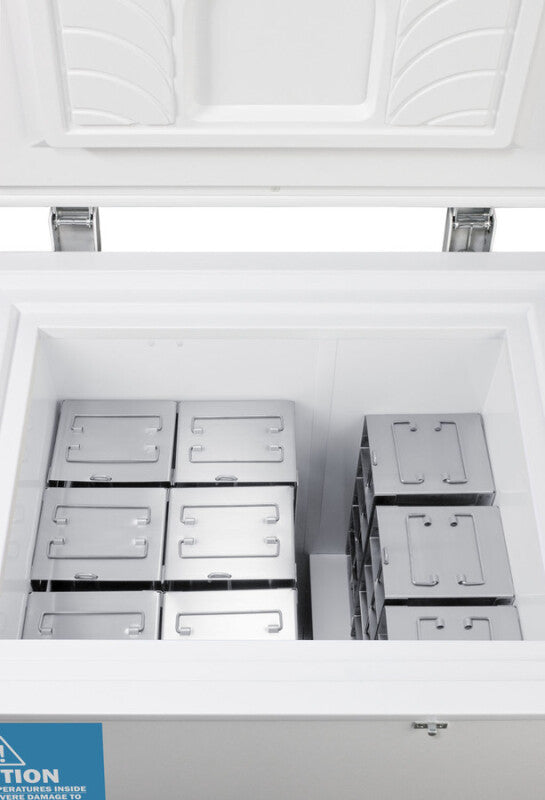

Inner lids
Includes two removable inner lids for added protection from ambient air when opening the outer lid

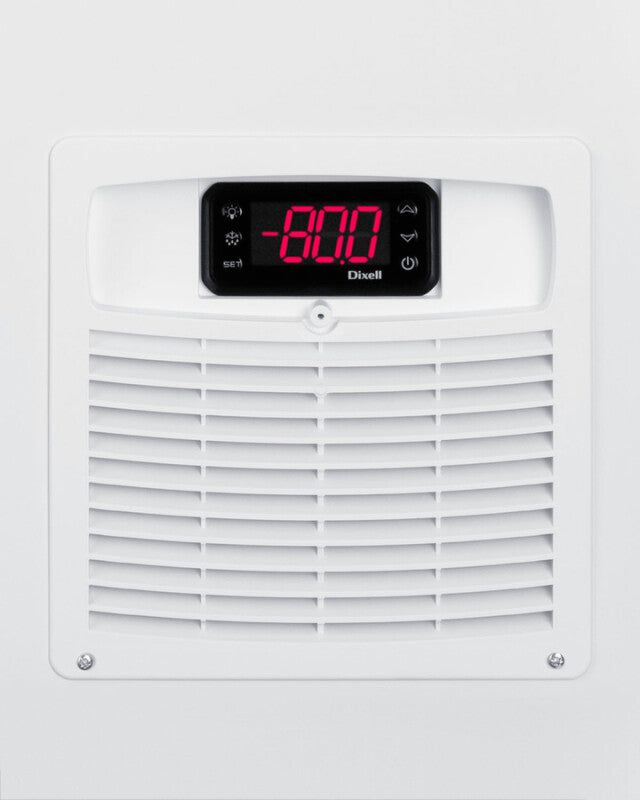

Digital thermostat
Electronic microprocessor controls for precise temperature management, with temperature readout and controls externally located for added convenience
Extra thick insulation
4 1/2" thick walls for added efficiency and stable cooling
ºC/ºF Readout
Temperature display can be alternated between Celsius or Fahrenheit to best suit your preference
High/low temperature alarm
Audible alarm warns if the interior temperature goes out of the set range

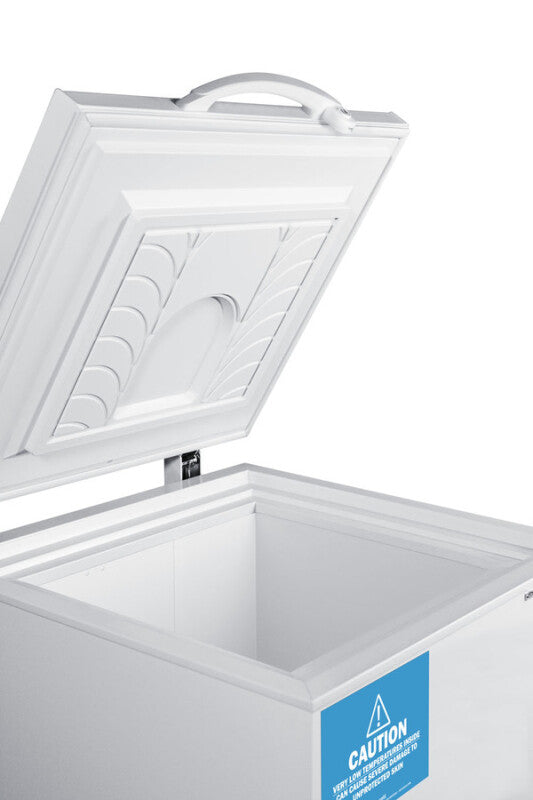

Counterbalanced hinges
Easy and safe loading and unloading with a lid that remains open when lifted past 45º angles
Pre-installed casters
Four wheels (front two locking) to allow easier mobility when cleaning or moving the unit
Manual defrost
Static cooling for a stable interior

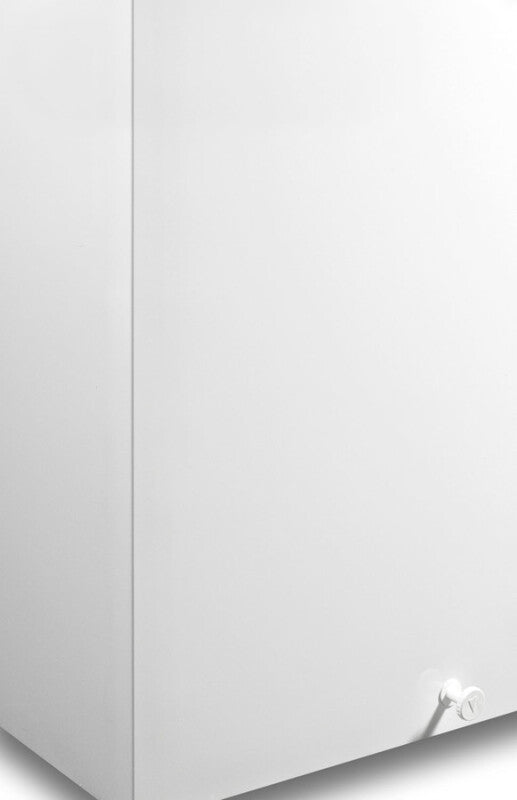

Defrost drain
Front-located drain helps to make the defrosting process more convenient

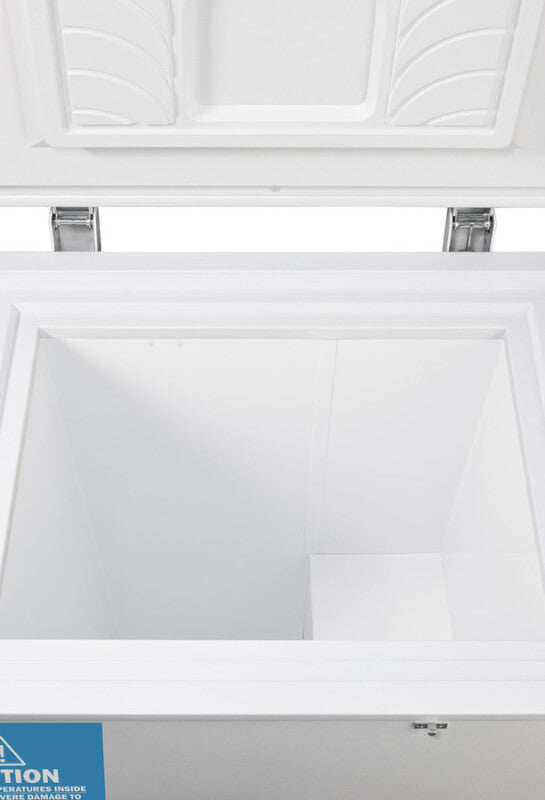

Steel interior
Durable construction in a white finish for easy visibility
Power-out alarm
9V battery-powered audible alarm mounted in the rear sounds in the event of power failure
Hermetically sealed compressor
Ensures lasting durability and reduced maintenance in busy facilities
Approved for use in USA and Canada
UL and UL-C listed
Approved to ANSI/NSF-7
UL-S listed to the National Sanitation Foundation standard
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
CARB Compliant
Environmentally friendly proprietary blend of hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
