Sale price $1,142.97 Regular price $1,605.00 Save $462.03 / 28% OFF

Product Details for Summit FFBF235PL

Technical Details

Overview

Nominal Height 28.74
Height of Cabinet 28.54
Height to Hinge Cap 28.74
Nominal Width 9.45
Width 9.25
Nominal Depth 9.45
Depth 9.15
Depth with Handle 10.14
Depth with door at 90(degree) 17.57
Capacity 10.8
Defrost Type Frost-Free/Automatic
Door Stainless Look
Cabinet Gray
US Electrical Safety CSA
Canadian Electrical Safety CSA-C
Energy Usage/Year 391.0
Amps 1.3
Voltage/Frequency 115
Weight 135.0
Parts & Labor Warranty 1
Compressor Warranty 5
UPC 761101103563

Refrigerator-freezer

Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Interior Drawers Yes
Drawer Qty 4
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Plastic
Wine Bottle Shelving Yes
Interior Light Yes
Refrigerator - Interior Height 14.57
Refrigerator - Interior Width 8.07
Refrigerator - Interior Depth 6.99
Refrigerator - Capacity 7.35
Refrigerator - Shelf Type Glass and Scalloped
Refrigerator - Shelf Qty 3
Refrigerator - Full Door Shelves 2
Freezer - Interior Height 10.53
Freezer - Interior Width 6.69
Freezer - Interior Depth 5.51
Freezer - Capacity 3.43
Freezer - Shelf Type Drawers
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.58
High Side PSI 250.0
Low Side PSI 88.0
Level Legs 2
Interior Height - Drawer 1 2.17
Interior Width - Drawer 1 8.07
Interior Depth - Drawer 1 4.72
Interior Height - Drawer 2 3.15
Interior Width - Drawer 2 8.07
Interior Depth - Drawer 2 6.5
Interior Height - Drawer 3 3.74
Interior Width - Drawer 3 6.69
Interior Depth - Drawer 3 5.02
Interior Height - Drawer 4 3.54
Interior Width - Drawer 4 6.69
Interior Depth - Drawer 4 3.35
Compressor Step Height 3.94
Compressor Step Width 6.69
Compressor Step Depth 1.97
Sound Level 32.9

Features

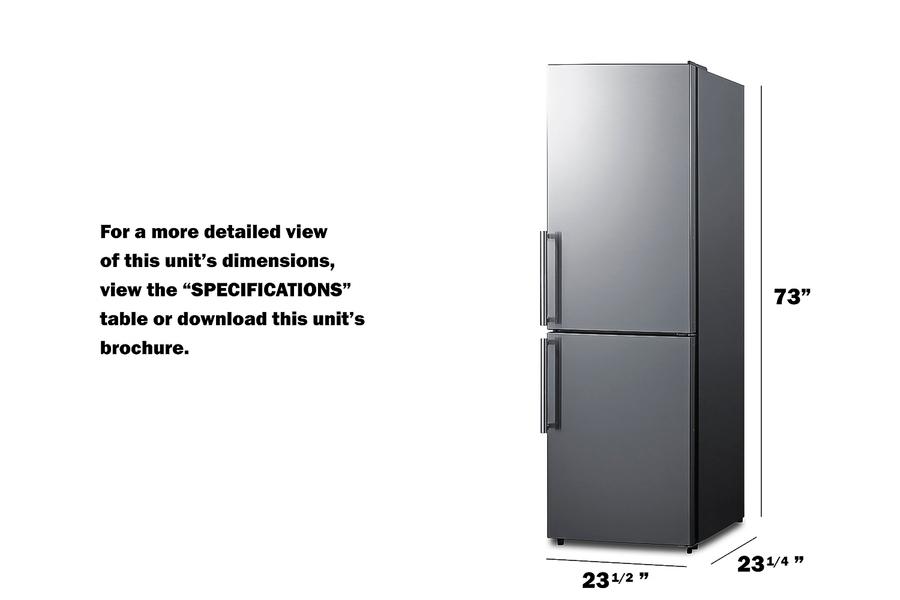

  • 10.8 cu. Ft. Refrigerator-freezer in a unique 23.5" W x 23.25" D fit is ideal for smaller kitchens and apartments
  • This unit is recognized as an efficient appliance by ENERGY STAR standards
  • Frost-free operation for minimum user maintenance
  • Doors offer the look of stainless steel complete with a horizontal grain but the easier cleanability of a fingerprint-resistant steel finish

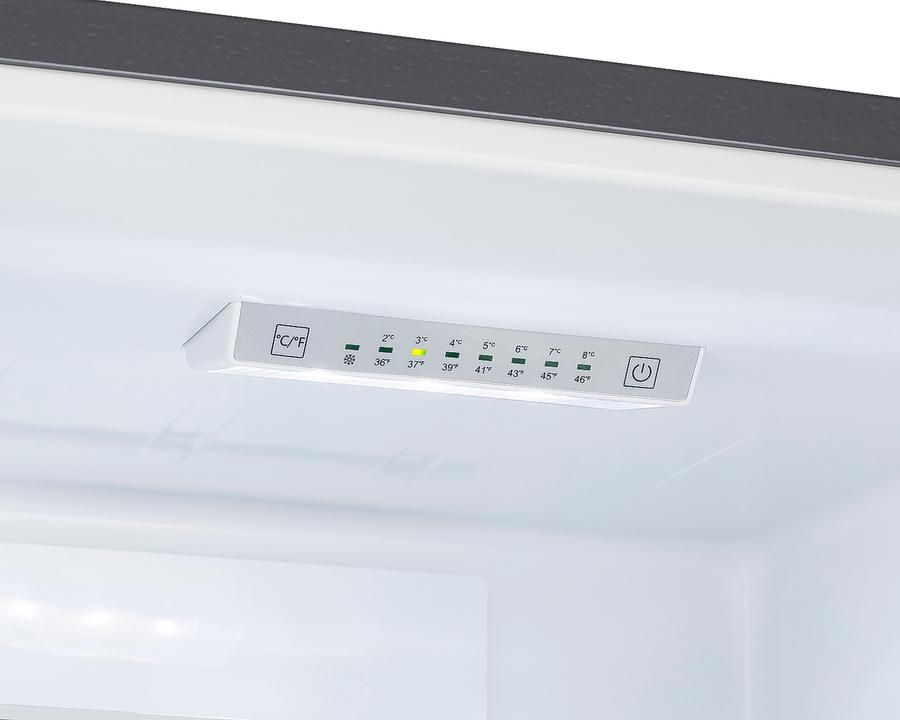

  • Innovative control panel located inside the refrigerator makes it easy to manage the refrigerator temperature at the touch of a button

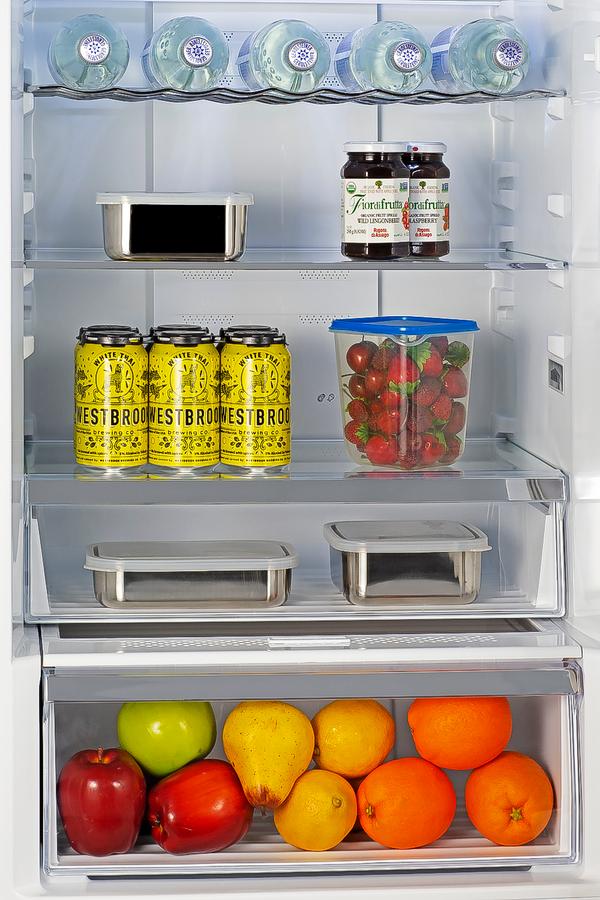

  • Large crisper drawer allows you to ensure the optimum storage of fruits and vegetables
  • Additional crisper allows you to store meats and deli items at a slightly colder temperature or convert to a second crisper using the easy slide control
  • Steel-trimmed shelves users can rearrange to accommodate all shapes and sizes or remove shelves for a simple clean-up
  • Store tall bottles and condiments right on the door for convenient access
  • The unit features one adjustable scalloped rack to store and chill your favorite beverages
  • Refrigerator section includes automatic LED lighting for an energy-efficient view
  • Runs at just 32.9 dB for a quiet performance that won't disturb anyone in your kitchen
  • Allows you to rapidly cool the freezer section, ideal for bringing newly loaded groceries to a safer storage temperature
  • Two slide-out freezer drawers include clear plastic fronts to maximize convenience and accessibility
  • Includes a convenient ice tray with a storage bin and crank system for easier ice retrieval

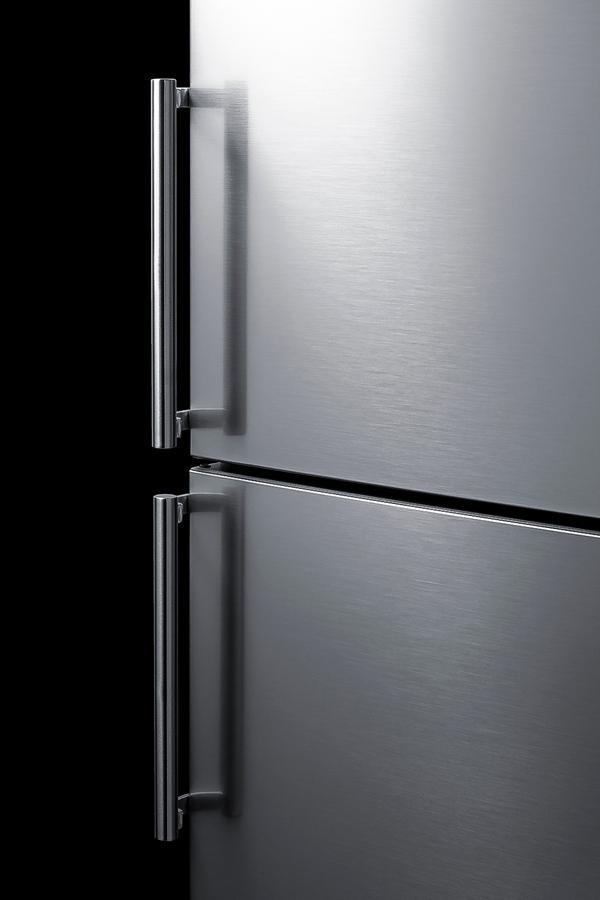

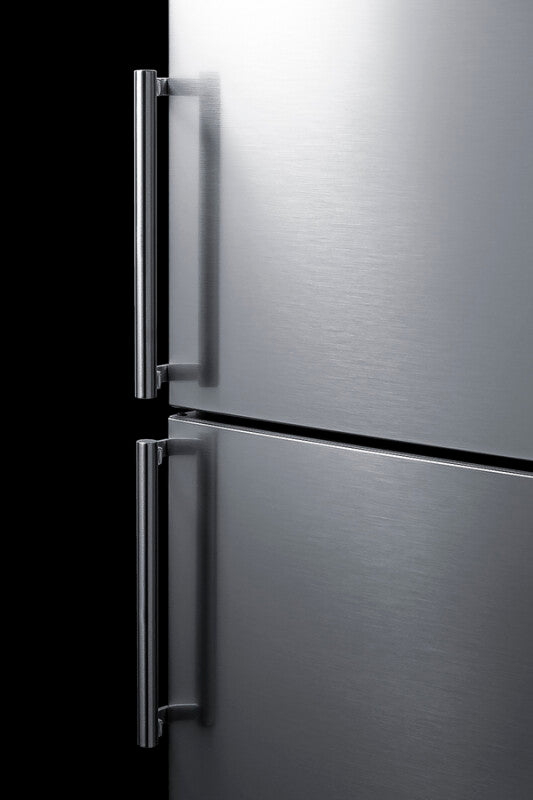

  • Brushed steel handles offer a modern look for the refrigerator
  • Textured cabinet in an attractive deep gray finish allows the unit to be used freestanding
  • Space-saving convenience with easier cleanability

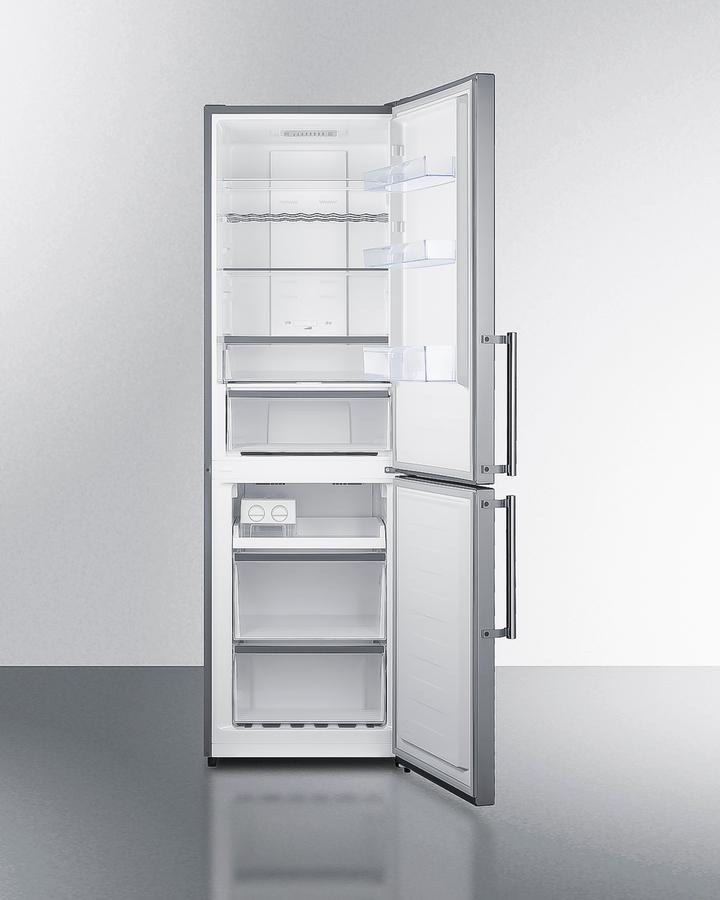

  • User-reversible door swing for added flexibility
  • The right-angle design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Environmentally friendly design without ozone-damaging chemicals
  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations



Description

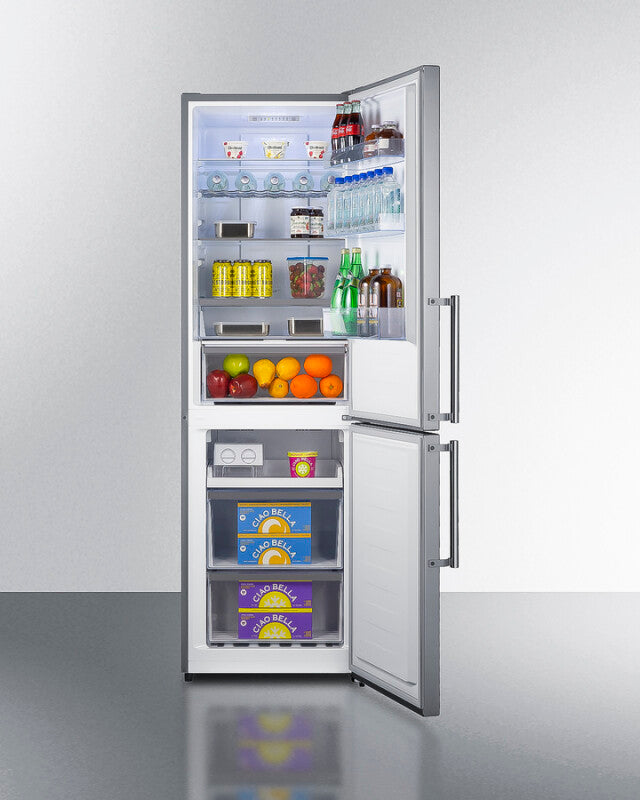

Summit's thin-line series of ENERGY STAR-certified counter-depth bottom freezer refrigerators conserves energy and space but adds quality and function with innovative features, convenient sizes, and energy-efficient operation. At 23.25" deep and 23.5" wide, the FFBF235PL offers 10.8 cu. Ft. of storage capacity, ideal for space-challenged kitchens with complete refrigeration needs. Reversible doors allow you to adjust the door swing to best suit your space. The doors and drawers come in a stainless steel look with a horizontal grain, offering a luxurious appearance with fingerprint-resistant convenience, paired with two handles in the same finish. The side cabinet features a textured gray finish. The unit features a sealed back and right-angle plug for added space savings in smaller kitchens. Inside, the FFBF235PL comes fully featured for maximum storage convenience with frost-free operation ideal for minimum maintenance. The refrigerator section includes adjustable shelves made from safety glass for durability and easy cleaning. An innovative touch control system lets you manage the refrigerator and freezer temperature with an intuitive digital thermostat. Super Freeze setting allows you to rapidly cool the freezer section, which is ideal for newly loaded groceries. The unit is laboratory-tested to ensure quiet operation at under 33 decibels. Our FFBF235PL includes a large humidity-controlled crisper drawer and a second meat drawer that can hold colder temperatures for deli items or easily convert to a regular crisper. The large freezer section features one shelf and two slide-out storage drawers with clear plastic fronts. These fronts help to protect your frozen goods from warmer ambient temperatures when the door is opened. With its elegant design, unique size, and complete storage capacity, the FFBF235PL is the perfect energy-efficient addition to any kitchen looking to bring true quality, modern style, and energy savings in a smaller footprint than standard household refrigerators. This is a bottom-mount freezer model. Alternative units are also available in different sizes, colors, and makes. Browse the full Summit product line to explore your options.
