Product Details for Summit CTR18PLIM

Technical Details

Overview refrigerator-freezer

Nominal Height 66.0" (168 cm)
Height of Cabinet 66.0" (168 cm)
Height to Hinge Cap 66.63" (169 cm)
Nominal Width 30.0" (76 cm)
Width 29.5" (75 cm)
Width with Door Open 30.25" (77 cm)
Nominal Depth 32.0" (81 cm)
Depth 31.25" (79 cm)
Depth with Handle 33.25" (84 cm)
Depth with door at 90° 58.75" (149 cm)
Capacity 18.0 cu.ft. (510 L)
Defrost Type Frost-Free
Door Stainless Look
Cabinet Gray
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 446.0kWh/year
Amps 2.1
Voltage/Frequency 115 V AC/60 Hz
Weight 172.0 lbs. (78 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101106885
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Crisper Qty 2
Crisper Finish Transparent
Crisper Cover Glass
Interior Light Yes
Refrigerator - Interior Height 40.0" (102 cm)
Refrigerator - Interior Width 25.25" (64 cm)
Refrigerator - Interior Depth 21.0" (53 cm)
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 2
Refrigerator - Full Door Shelves 2
Refrigerator - Half Door Shelves 2
Refrigerator - Temperature Range 36 to 46ºF
Freezer - Interior Height 15.75" (40 cm)
Freezer - Interior Width 22.25" (57 cm)
Freezer - Interior Depth 25.5" (65 cm)
Freezer - Shelf Type Wire
Freezer - Shelf Qty 1
Freezer - Full Door Shelves 2
Gallon Door Storage Yes
Thermostat Type Dial
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.73 oz.
High Side PSI 150.0
Low Side PSI 60.0
Freezer - Temperature Range 0 to 10ºF
Compressor Step Height 10.0" (25 cm)
Compressor Step Width 25.25" (64 cm)
Compressor Step Depth 6.0" (15 cm)

Description

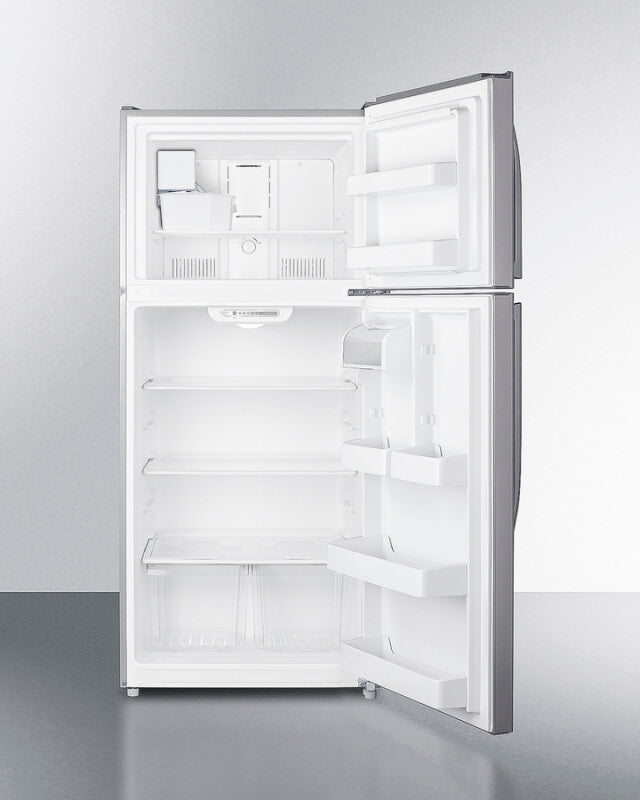

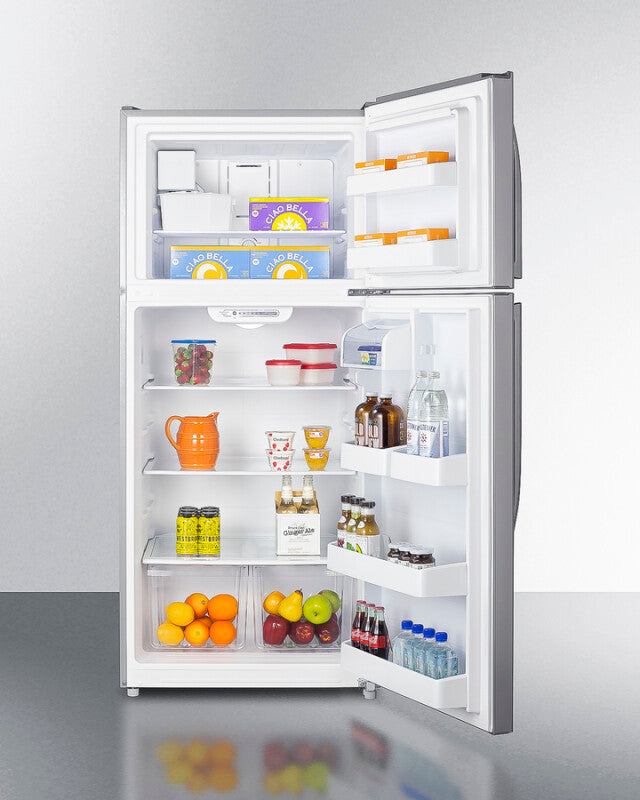

SUMMIT's selection of top freezer refrigerators offers true convenience for every kitchen, including break rooms and other general purpose facilities. The CTR18PLIM is a full-sized refrigerator-freezer. The large interior offers 18 cu.ft. of storage capacity, with frost-free operation for low maintenance use. It comes in a textured gray cabinet with user-reversible fingerprint-free doors that offer the look of stainless steel without the constant cleanup. Inside, the CTR18PLIM includes adjustable glass shelves in the refrigerator compartment and two clear crispers. The door features full-sized storage racks, including one that holds full gallon containers. Two half-sized door racks are adjustable to accommodate different sized items, with an additional fixed butter dish. The upper freezer compartment comes with a full-width wire shelf and two door bins, as well as a factory-installed icemaker. This unit includes an automatic interior LED light and easy-to-use interior thermostat.


Product Features

  • Top Mount Refrigerator-Freezer
    Full-size refrigerator-freezer ideal for break rooms and other kitchen settings
  • Frost-free operation
    No-frost convenience requires no manual defrosting
  • Factory-installed icemaker
    Freezer section is equipped with a pre-installed icemaker that keeps a steady supply of up to 8 lbs. of crescent ice
  • Adjustable shelves
    Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
  • Interior light
    Automatically illuminates when you open the door

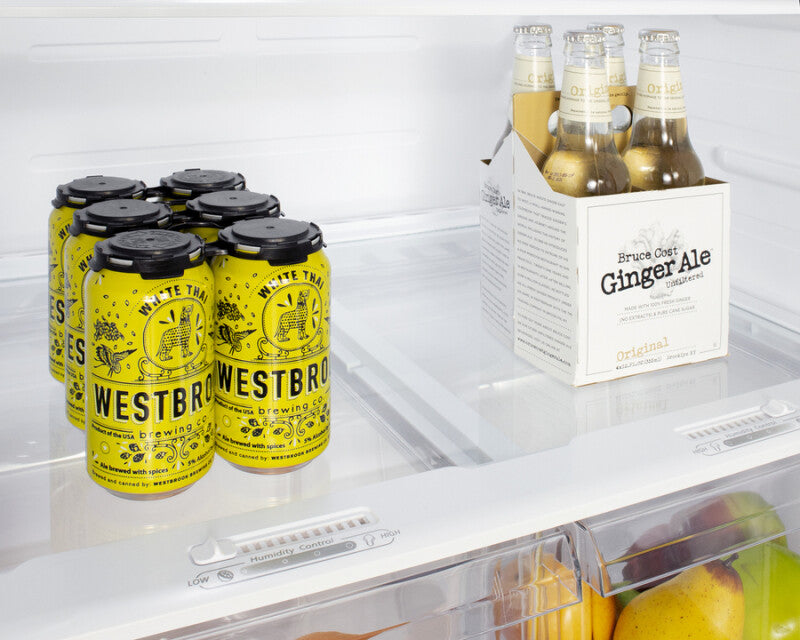

  • Crisper drawers
    Clear twin crispers with humidity control
  • Door storage
    Keep bottles and condiments in easy reach
  • Gallon door storage
    Lower refrigerator door shelf can hold gallon-sized containers

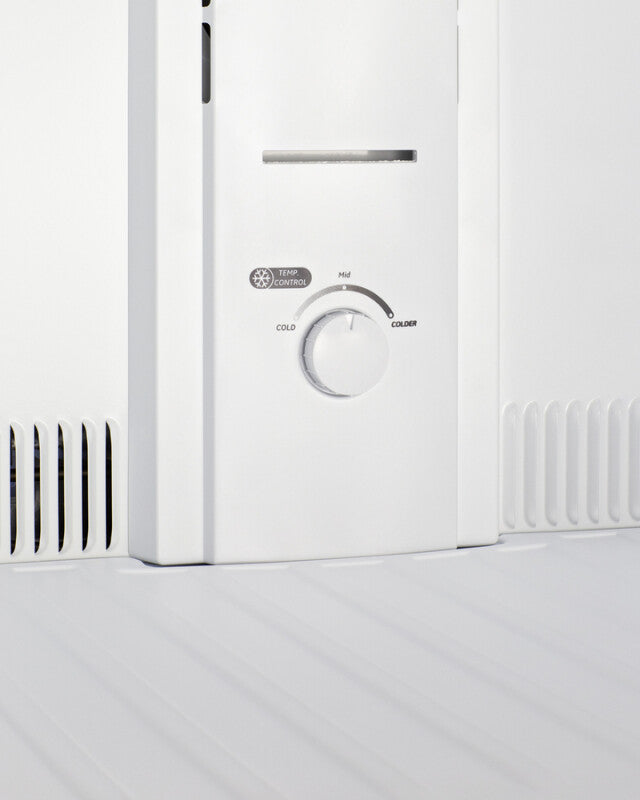

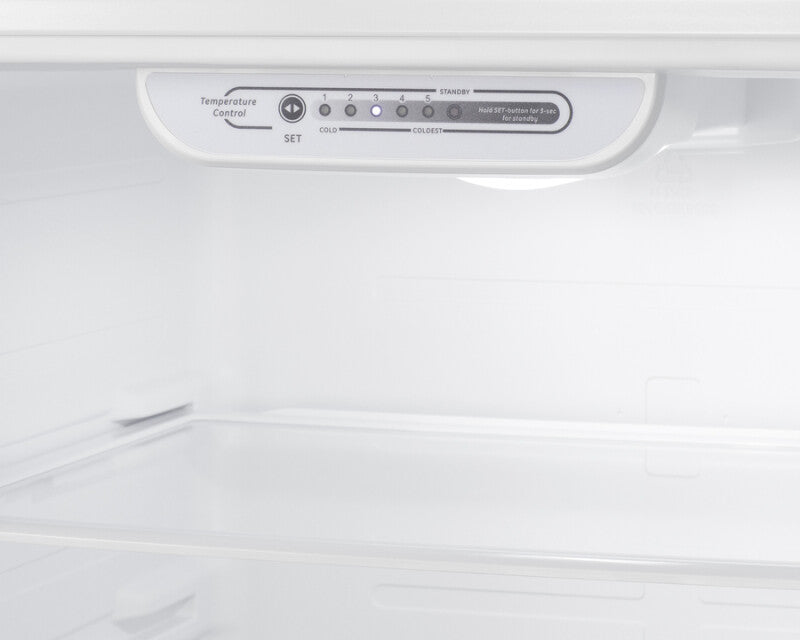

  • Adjustable thermostat
    Interior thermostat with simple control panel for easy use
  • Freezer shelf
    Removable full-width wire shelf in the freezer compartment
  • Reversible doors
    User-reversible door swing for added flexibility

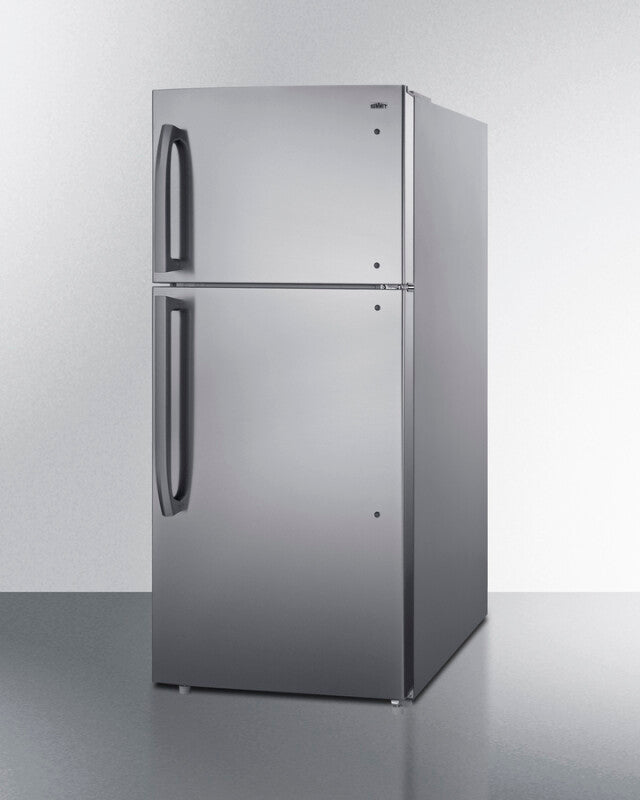

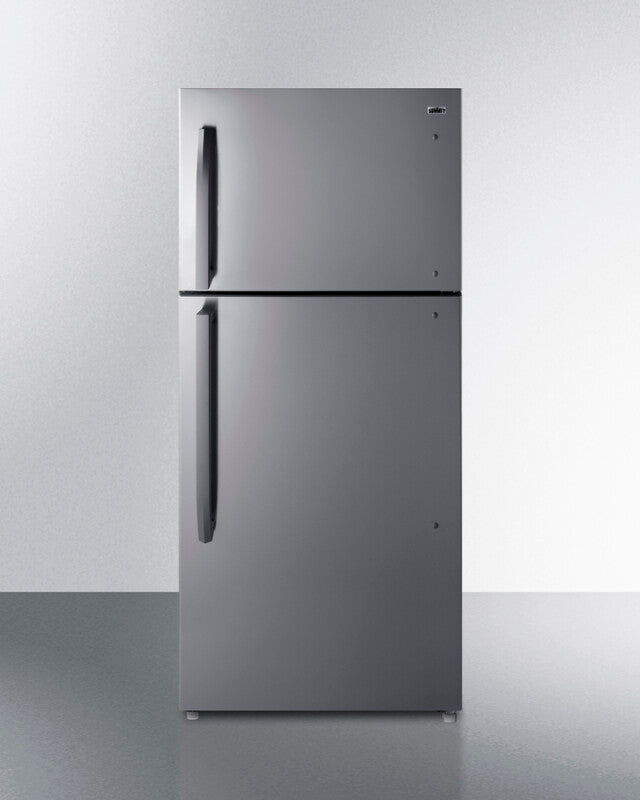

  • Stainless steel look
    Doors offer the look of stainless steel complete with a horizontal grain, but the easier cleanability of a fingerprint-resistant steel finish
  • Sealed back
    Space-saving design with no exposed coils in the rear offers easy cleanability
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
