SUMMIT CSD4B24 24" Wide 230v 4-burner Solid Disk Cooktop

SKU: CSD4B24

  • On Sale

Key Specs

  • Type: Electric cooktops
  • Width: 22.75 Inch
  • Depth: 20.38 Inch
  • Height: 4.13 Inch

More details

  • Electric
Sale price $410.53 Regular price $520.00 Save $109.47

More on the way

Check Delivery Options

Extended Protection

?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $75.99
  • $139.99
  • Product Information
  • Technical Details
  • Manuals & Guides
  • Features
  • Reviews
  • General
  • Model: CSD4B24
  • Brand: SUMMIT
  • Height: 4.13
  • Width: 22.75
  • Length: 20.38
  • Cooking Capabilities
  • Number of Burners: 0
  • Number of Elements: 4
  • Convection: No
  • Self-Cleaning: No
  • Cooking Capabilities
  • Warming Drawer: No
  • Hidden element: No
  • Proof cook mode: No
  • Continuous grate: No
  • Down draft: No
  • Storage Drawer: No
  • Induction: No
  • Features
  • Sabbath mode: No
  • Recessed turntable: No
  • Number of Shelves: 0
  • Convection: No
  • Advanced Features
  • Wi-Fi Connectivity: No
  • Smart Features: No
  • Power & Consumption
  • Microwave wattage: 0
  • CFM: 0

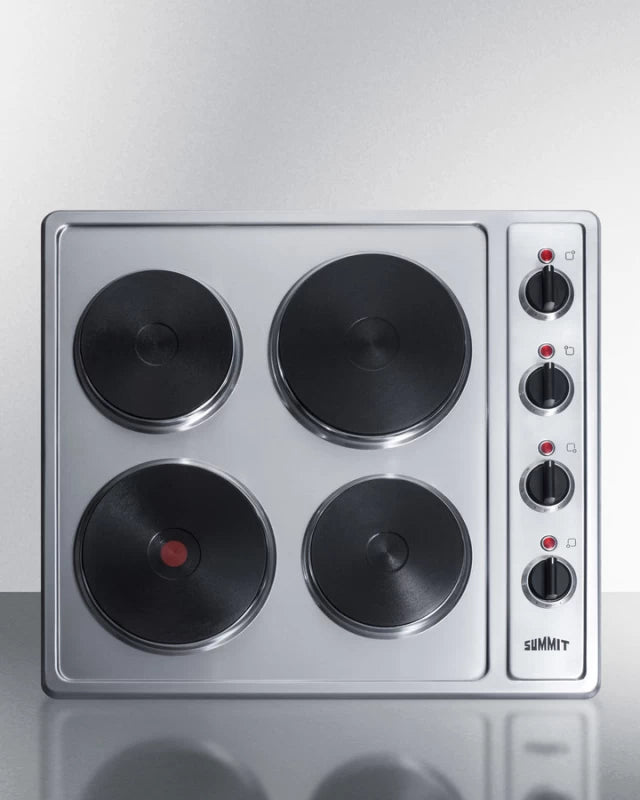

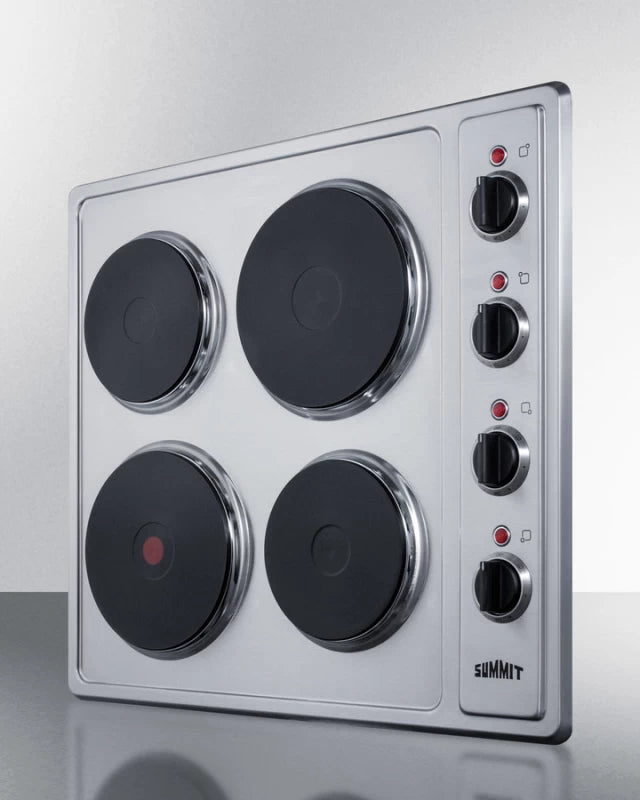

Summit's selection of electric cooktops offers the perfect fit for every application. Sized at 24" wide, the CSD4B24 is a 230V cooktop with four solid disk elements. The surface comes in brushed stainless steel for an attractive look built to last. The element located in the front left side is 8" wide, with 2000W of cooking power ideal for larger cookware. The rear 1500W 8" element also accommodates full-sized pots and pans, while two 1000W 6" heating elements meet most general heating needs. The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results. This unit includes push-to-turn knobs and an "on" indicator light for each burner for added safety. With its modern style and durable design, the CSD4B24 is a great choice for hotels, mobile homes, tiny houses, and other small kitchens with specific cooking needs. This is a 230V cooktop that requires professional installation. For a 2-burner version, see the CSD2B230.

Overview
Height of Cabinet 4.13" (10 cm)
Width 22.75" (58 cm)
Depth 20.38" (52 cm)
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 23.0
Voltage/Frequency 230 V AC/60 Hz
Weight 14.0 lbs. (6 kg)
Shipping Weight 30.0 lbs. (14 kg)
Parts & Labor Warranty 1 Year
UPC 761101056340
Electric Cooktop
Heating Type Radiant
Surface Stainless Steel
Element Type Cast Iron
Number of Elements 4
Controls Dial
Countertop Cutout Height 5.0" (13 cm)
Countertop Cutout Width 22.0" (56 cm)
Countertop Cutout Depth 19.75" (50 cm)
Power Source 230V
Element #1 Size 8.0" (20 cm)
Element #1 Wattage 2000.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1000.0
Element #3 Size 8.0" (20 cm)
Element #3 Wattage 1500.0
Element #4 Size 6.0" (15 cm)
Element #4 Wattage 1000.0
Power Cord Included No
  • Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience
  • Professional installation required
  • Surface is made from stainless steel for an attractive and easy to clean look
  • Solid metal elements hold up to heavy duty use
  • Fully sealed cast iron elements offer easier cleanup than traditional coil elements
  • 1000W elements accommodate most lighter cooking needs
  • Front left 2000W element and rear right 1500W element offer a wide diameter and higher cooking power for large pots and pans
  • Knobs require a small amount of force to help prevent accidents
  • Operating indicators light up to show which burner is in use
  • Fits counter cutout sizes that are 22" W x 19 3/4" D
