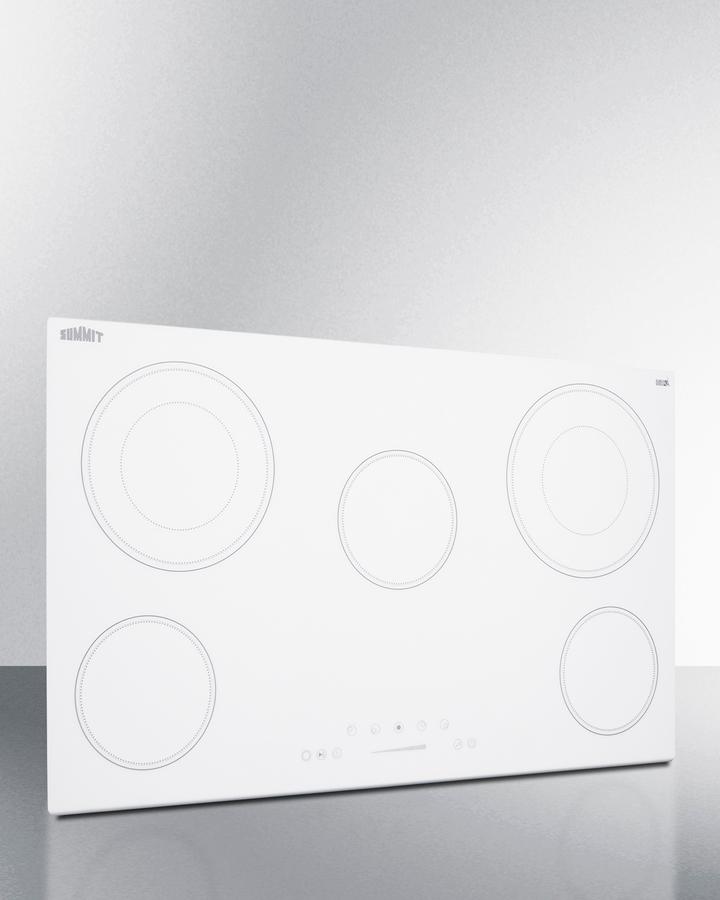

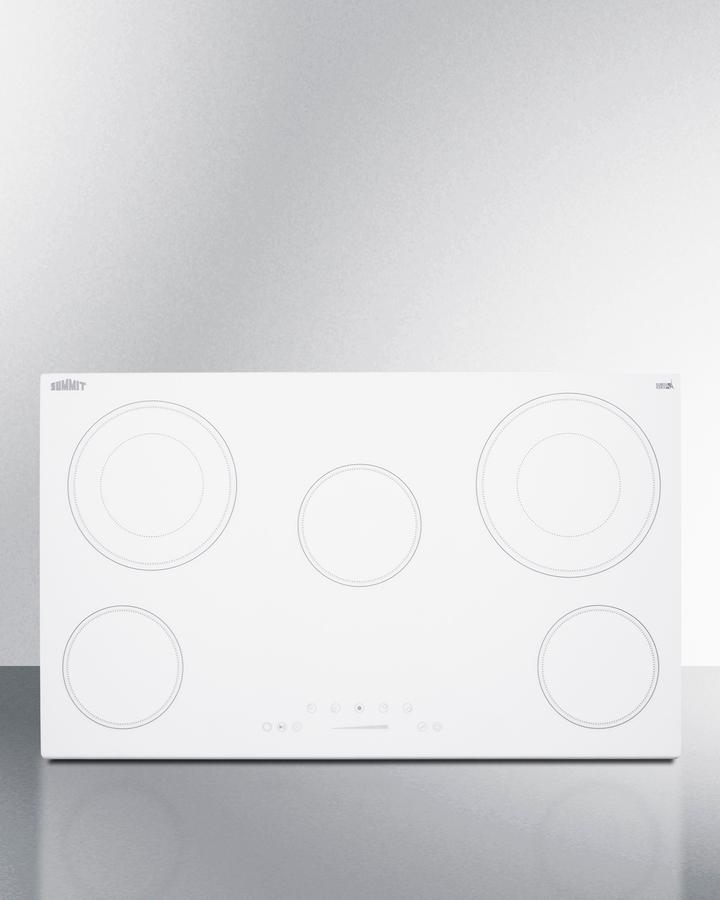

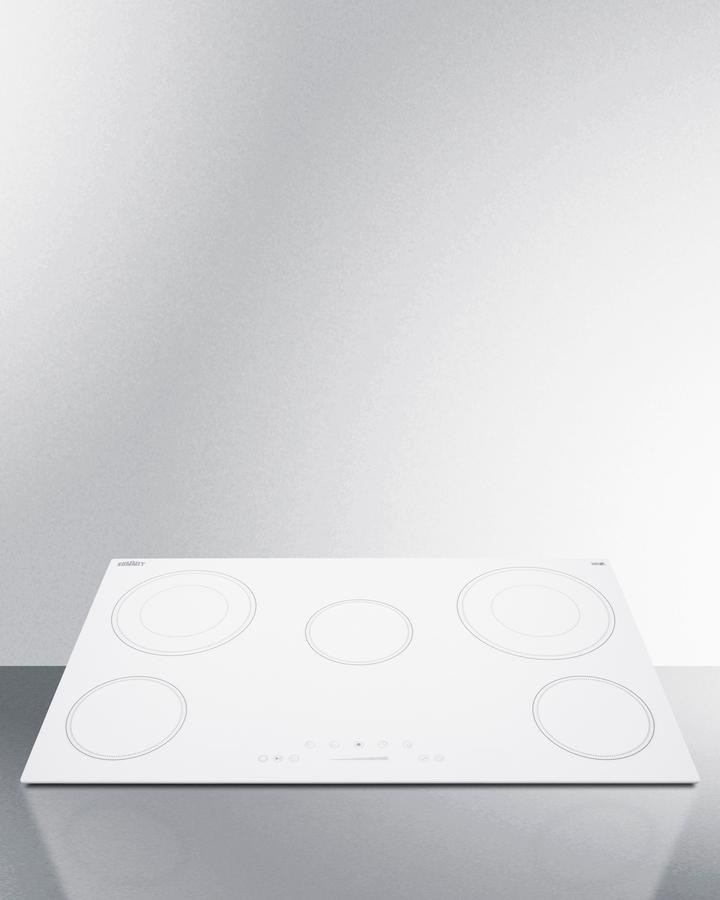

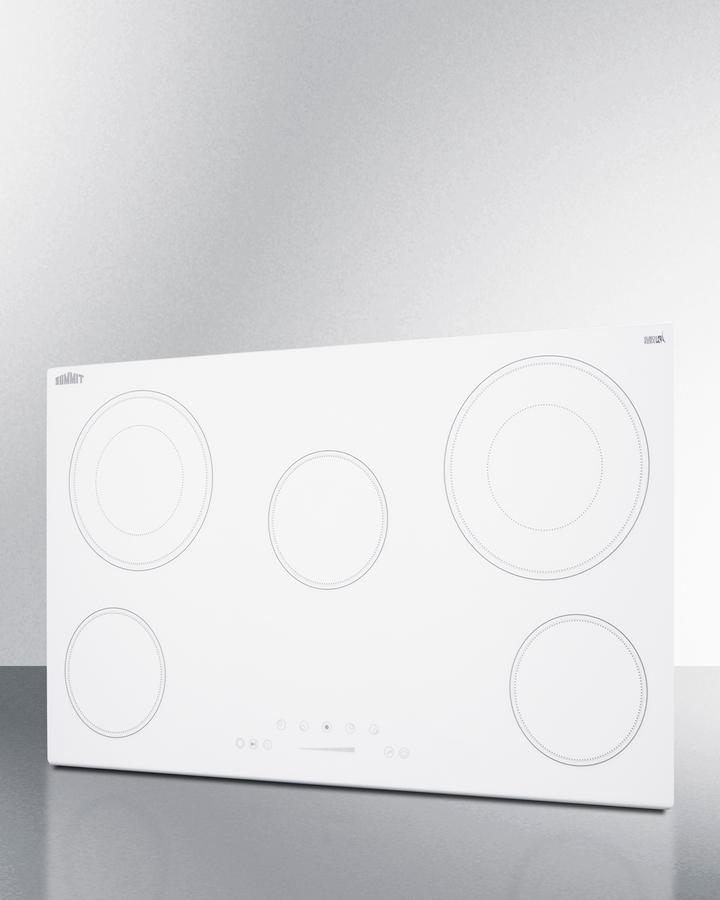

SUMMIT CR5B36TXW 36" Wide 208-240v 5-burner Radiant Cooktop

summit appliance

SKU: CR5B36TXW

  • On Sale
Key Specs
  • Type: Electric cooktops
  • Width: 35.5 Inch
  • Depth: 20.5 Inch
  • Height: 2.13 Inch

More details

Sale price $781.78 Regular price $1,010.00 Save $228.22

Check Delivery Options

More on the way

Notify Me
Extended Protection
?

Extend your appliance's warranty beyond the manufacturer's terms with our Extended Protection Plan.

Enjoy added peace of mind long after the original warranty expires.

This Protection Plan includes:

  • Full parts and labor coverage during the whole period of the extension plan.
  • Protection for the case of a power surge during both the period of the extension plan and manufacturer’s warranty
  • Food loss protection
  • 24/7 toll-free number for support

Click here for full details.

  • $115.99
  • $163.99
  • Product Information
  • Specifications
  • Manuals & Guides
  • Features
  • Reviews
  • General
  • Model: CR5B36TXW
  • Brand: Summit Appliance
  • Type: Cooktops & Rangetops
  • Height: 2.13
  • Width: 35.5
  • Length: 20.5
  • Cooking Capabilities
  • Number of Burners: 0
  • Number of Elements: 5
  • Convection: No
  • Self-Cleaning: No
  • Cooking Capabilities
  • Warming Drawer: No
  • Hidden element: No
  • Proof cook mode: No
  • Continuous grate: No
  • Down draft: No
  • Storage Drawer: No
  • Induction: No
  • Features
  • Sabbath mode: No
  • Recessed turntable: No
  • Number of Shelves: 0
  • Convection: No
  • Advanced Features
  • Wi-Fi Connectivity: No
  • Smart Features: No
  • Power & Consumption
  • Microwave wattage: 0
  • CFM: 0

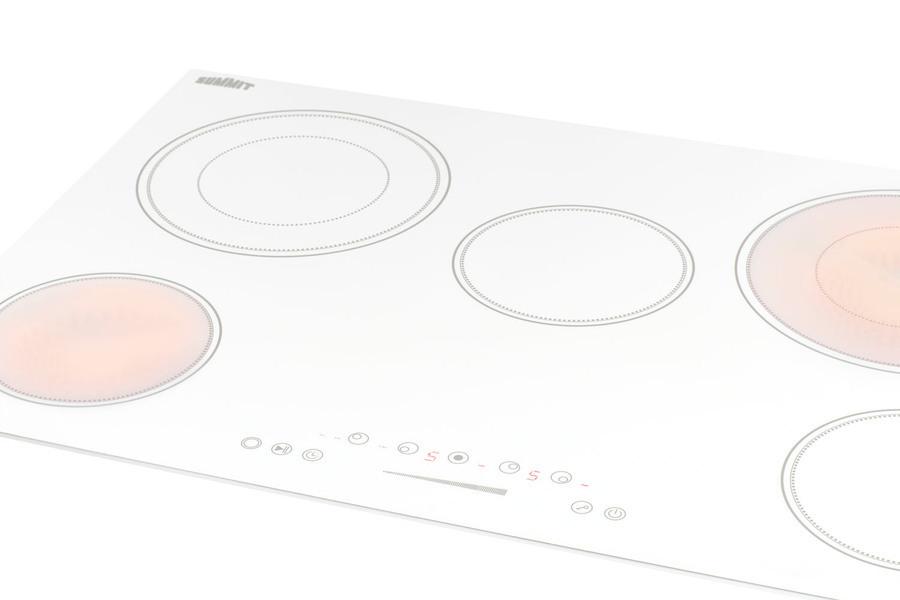

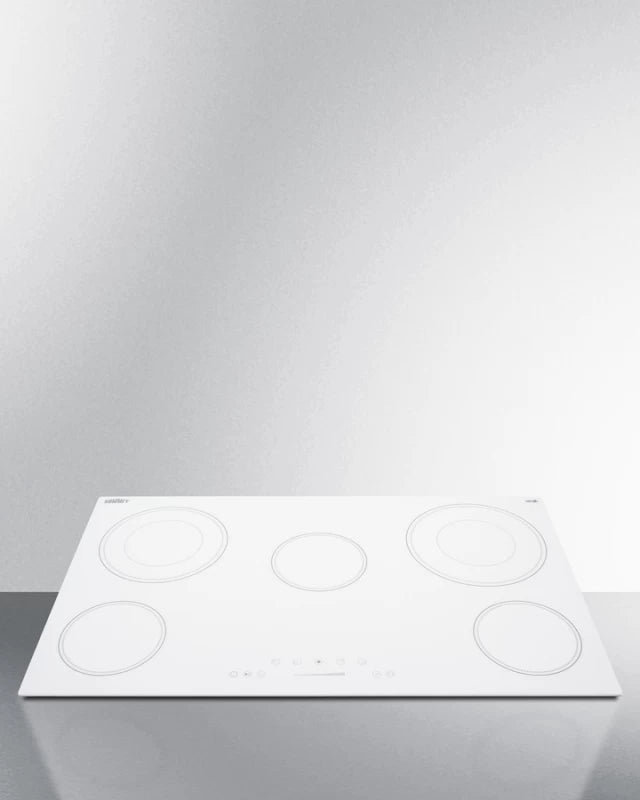

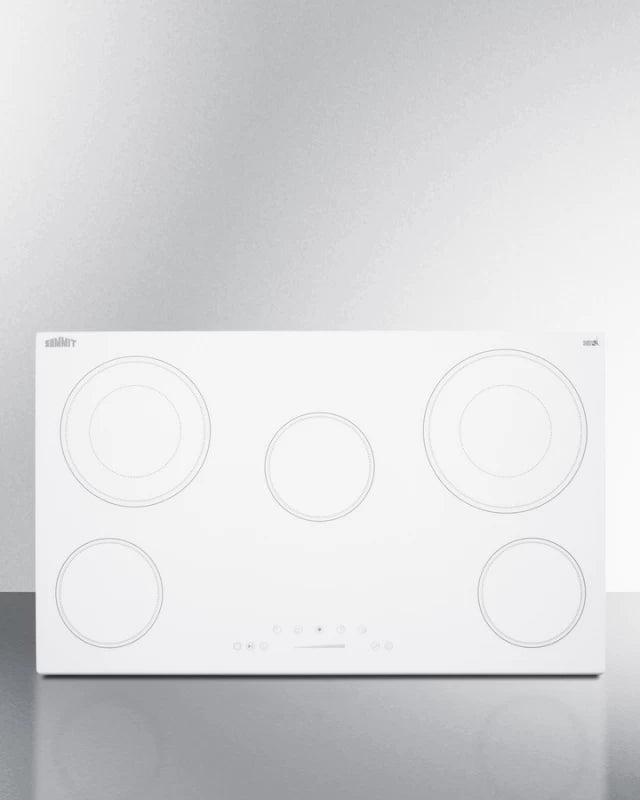

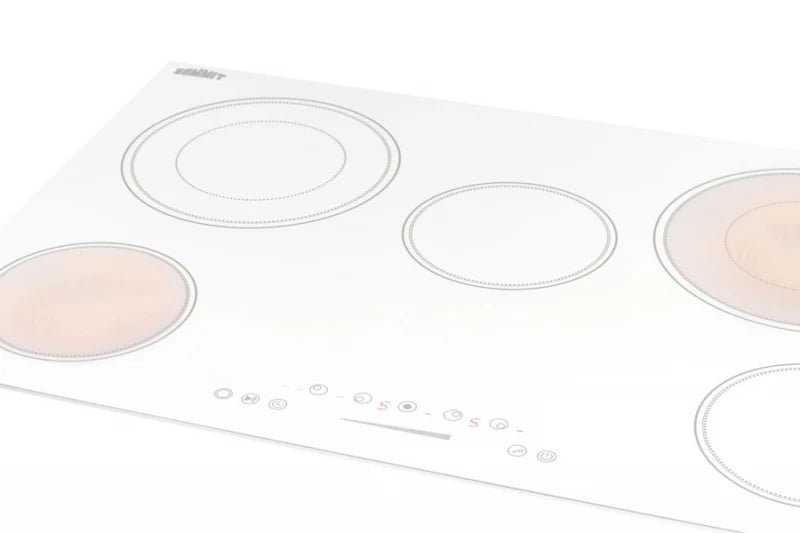

Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls. The CR5B36TXW is a 36" wide 208-240V radiant cooktop designed to fit popular 34 3/4" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a classic white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on...

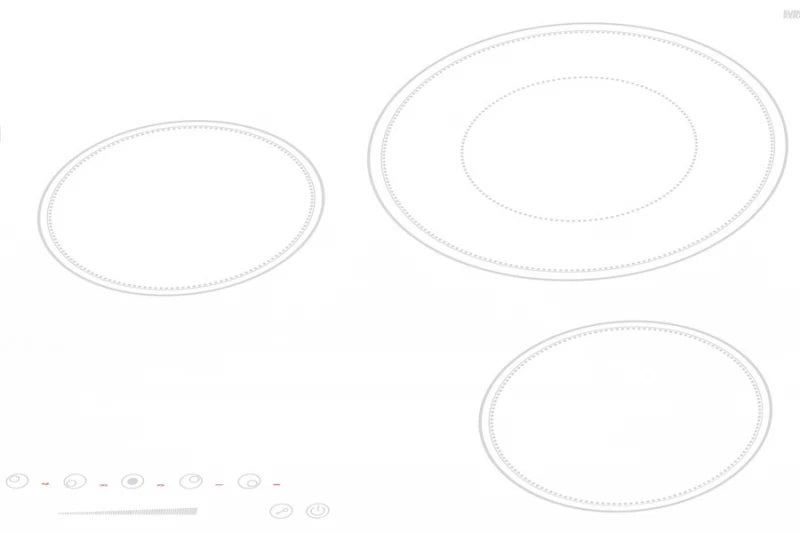

Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls. The CR5B36TXW is a 36" wide 208-240V radiant cooktop designed to fit popular 34 3/4" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a classic white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 3000W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking. The digital controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. The intuitive touch design is easy to operate and clean. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include a child lock function, automatic shutoff after two hours, and a residual heat indicator. With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR5B36TXW brings a user-friendly cooking performance with reliable safety to the kitchen. Additional choices are available in 24" and 30" wide sizes, as well as black glass finishes. Browse the full Summit lineup for more.
Overview
Height of Cabinet 2.13" (5 cm)
Width 35.5" (90 cm)
Depth 20.5" (52 cm)
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 30.0
Voltage/Frequency 240 V AC/60 Hz
Weight 36.0 lbs. (16 kg)
Shipping Weight 36.0 lbs. (16 kg)
Parts & Labor Warranty 1 Year
UPC 761101077581
Electric Cooktop
Heating Type Radiant
Surface Glass
Element Type Glasstop
Number of Elements 5
Controls Digital
Cooking Timer Yes
Countertop Cutout Height 3.2" (8 cm)
Countertop Cutout Width 34.75" (88 cm)
Countertop Cutout Depth 19.63" (50 cm)
Element #1 Size 6.5" (17 cm)
Element #1 Wattage 1200.0
Element #2 Size 9.0" (23 cm)
Element #2 Wattage 2200.0
Element #3 Size 6.5" (17 cm)
Element #3 Wattage 100.0
Element #4 Size 9.75" (25 cm)
Element #4 Wattage 3000.0
Element #5 Size 6.5" (17 cm)
Element #5 Wattage 1200.0
Power Cord Included No
  • Designed to fit common 34 3/4" x 19 5/8" counter cutouts
  • Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up
  • Easy cleanup and elegant style on a smooth ceramic glass surface in a clean white finish

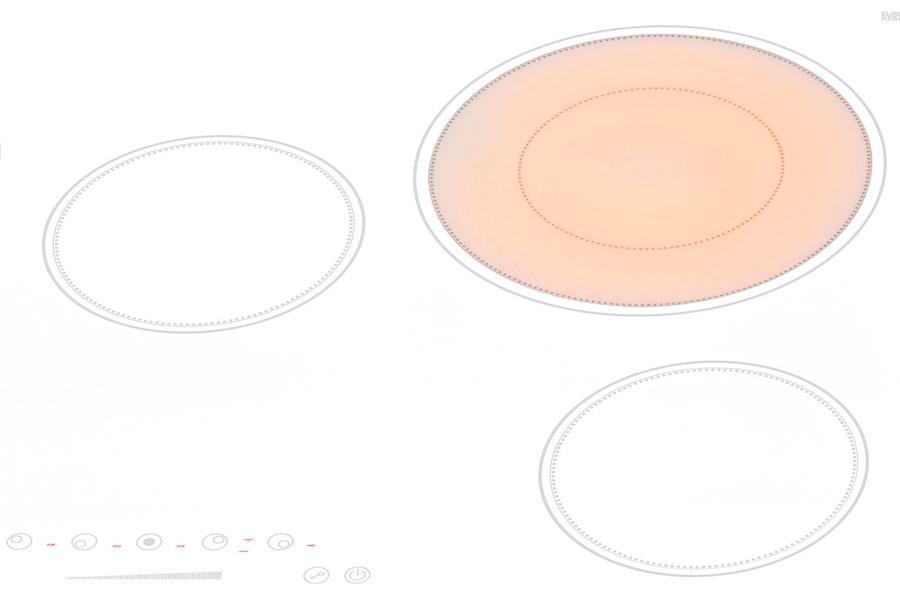

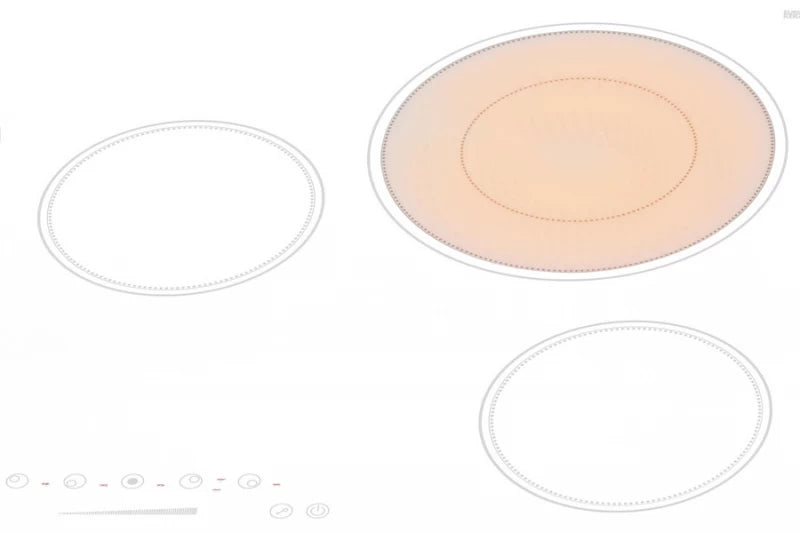

  • Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed
  • Left rear 2200W element is 9" in diameter to handle larger cooking vessels

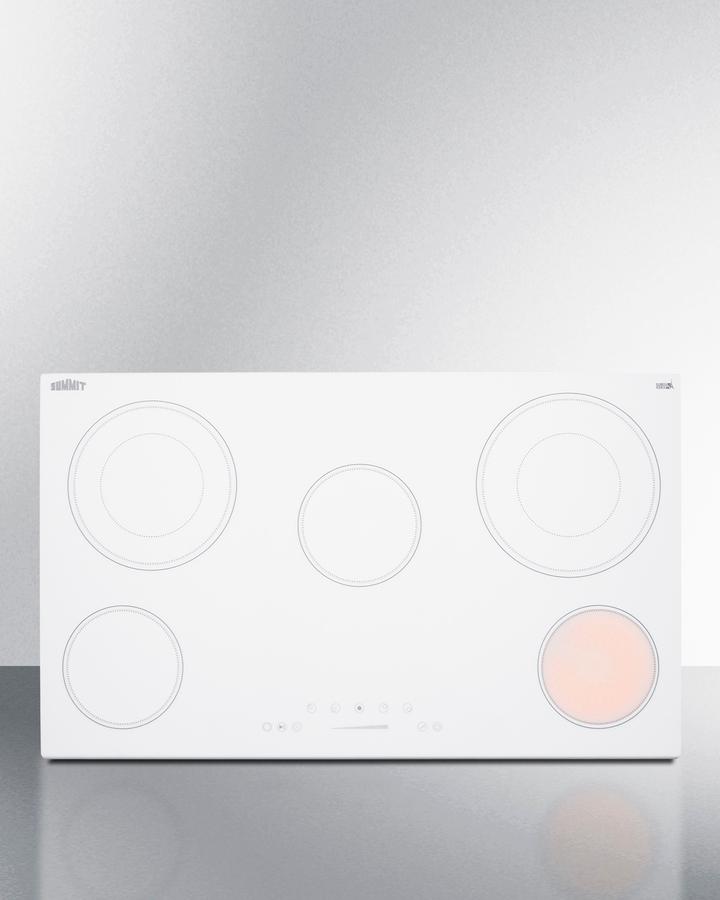

  • Front left and front right burners are 6.5" in diameter to meet most cooking needs

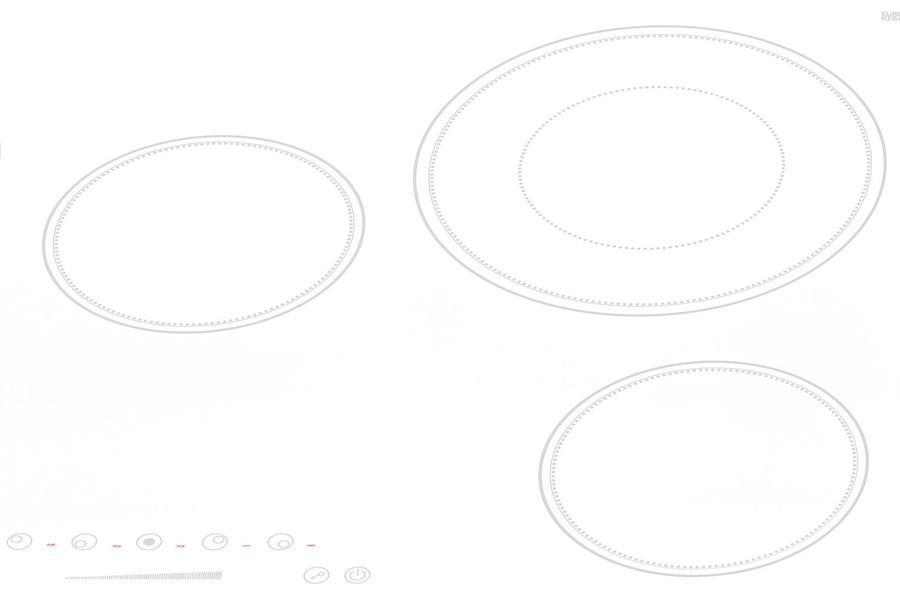

  • Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
  • Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating

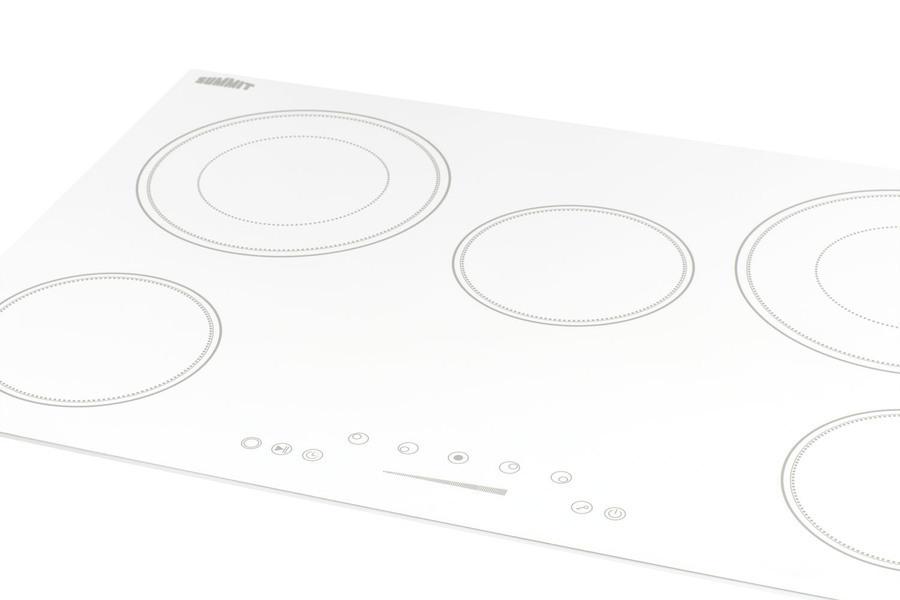

  • Easy operation with a digital control panel and digital display conveniently centered upfront
  • Select and adjust your heating levels at the touch of a button
