Summit CR5B30T8W 30" Wide 208-240V 5-Burner Radiant Cooktop White

Quick Specification More details

Width:
30.25"
Depth:
20.5"
Height:
2.13"
Type:
Electric Cooktops

About this product

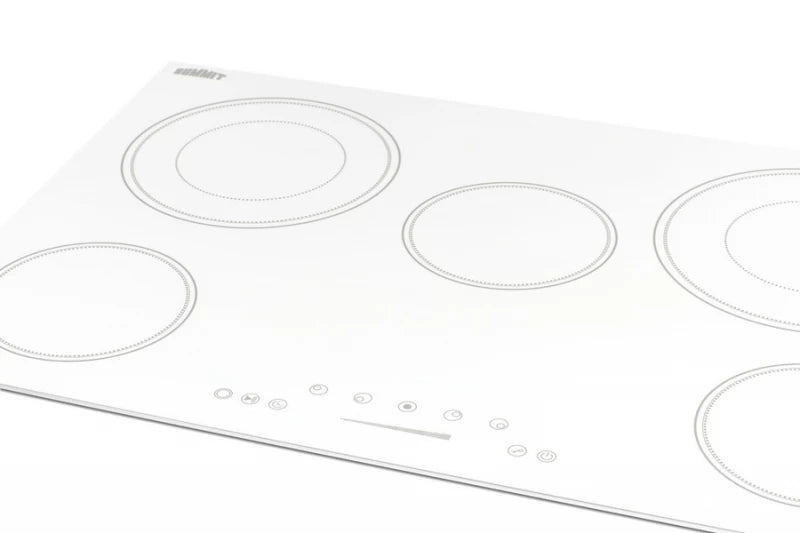

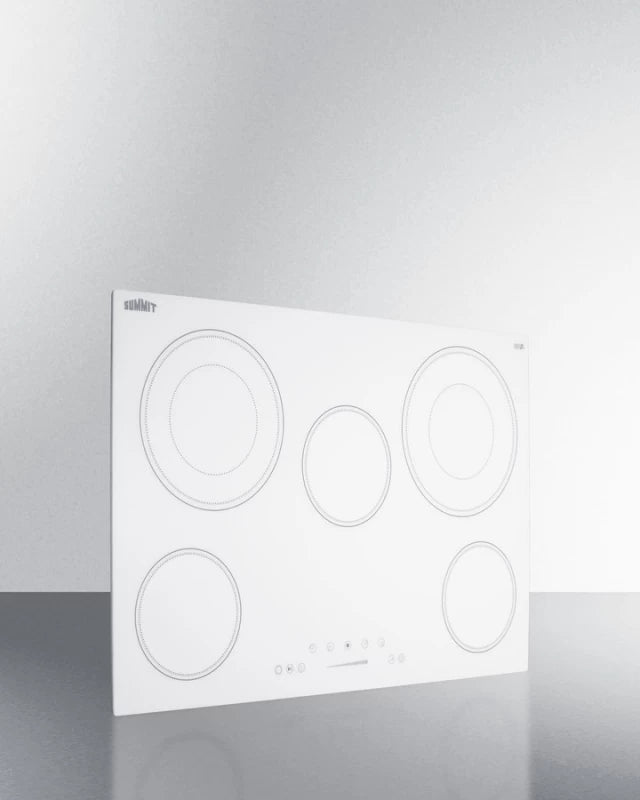

30" wide 5-burner radiant cooktop
EuroKera glass surface
Extra large 2500W burner
Large 2200W burner

Summer Sale

Clearance

SKU: CR5B30T8W | UPC: 761101077550

Summit CR5B30T8W 30" Wide 208-240V 5-Burner Radiant Cooktop White

$890.96 ~~$1,144.97~~ Save $254.01 / 22% OFF

Out of stock

Active Rebates

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
30.25"
Depth:
20.5"
Height:
2.13"
Type:
Electric Cooktops

About this product

30" wide 5-burner radiant cooktop
EuroKera glass surface
Extra large 2500W burner
Large 2200W burner

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$890.96 ~~$1,144.97~~ Save $254.01 / 22% OFF

Product Details for SUMMIT CR5B30T8W

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	30.25 in.
Height	2.13 in.
Length	20.5 in.
Weight	28 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0.76 ft³
Dimensional Weight	7.96 lbs.
Total of Cubes	0.76 ft³
Total of Dimensional Weight	7.96 lbs.

Overview electric cooktop

Nominal Height	2.13" (5 cm)
Height of Cabinet	2.13" (5 cm)
Nominal Width	31.0" (79 cm)
Width	30.25" (77 cm)
Nominal Depth	21.0" (53 cm)
Depth	20.5" (52 cm)
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	30.0
Voltage/Frequency	240 V AC/60 Hz
Weight	28.0 lbs. (13 kg)
Parts & Labor Warranty	1 Year
UPC	761101077550
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	5
Controls	Digital
Cooking Timer	Yes
Countertop Cutout Height	3.2" (8 cm)
Countertop Cutout Width	29.5" (75 cm)
Countertop Cutout Depth	19.63" (50 cm)
Element #1 Size	6.5" (17 cm)
Element #1 Wattage	1200.0
Element #2 Size	9.0" (23 cm)
Element #2 Wattage	2200.0
Element #3 Size	6.5" (17 cm)
Element #3 Wattage	100.0
Element #4 Size	9.75" (25 cm)
Element #4 Wattage	2500.0
Element #5 Size	6.5" (17 cm)
Element #5 Wattage	1200.0
Power Cord Included	No

Description

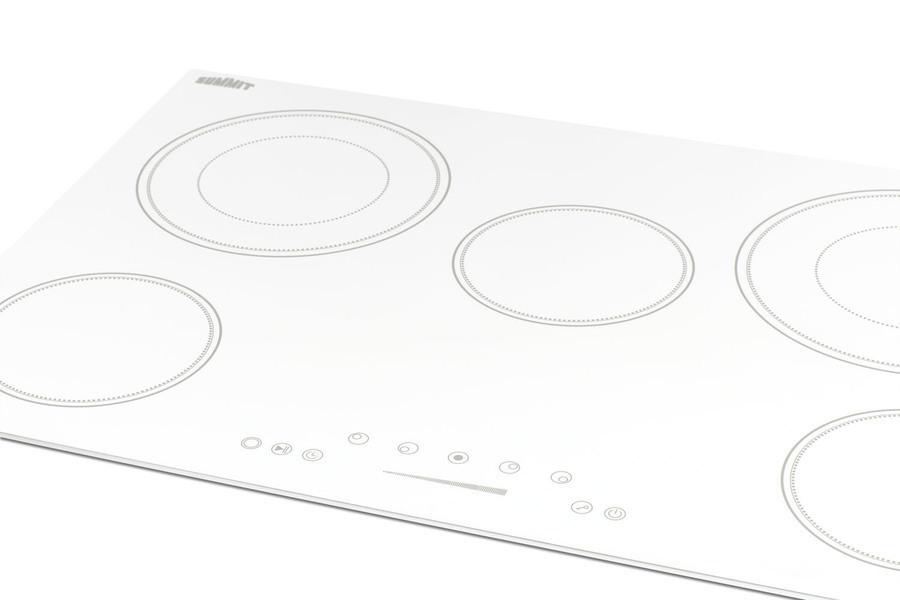

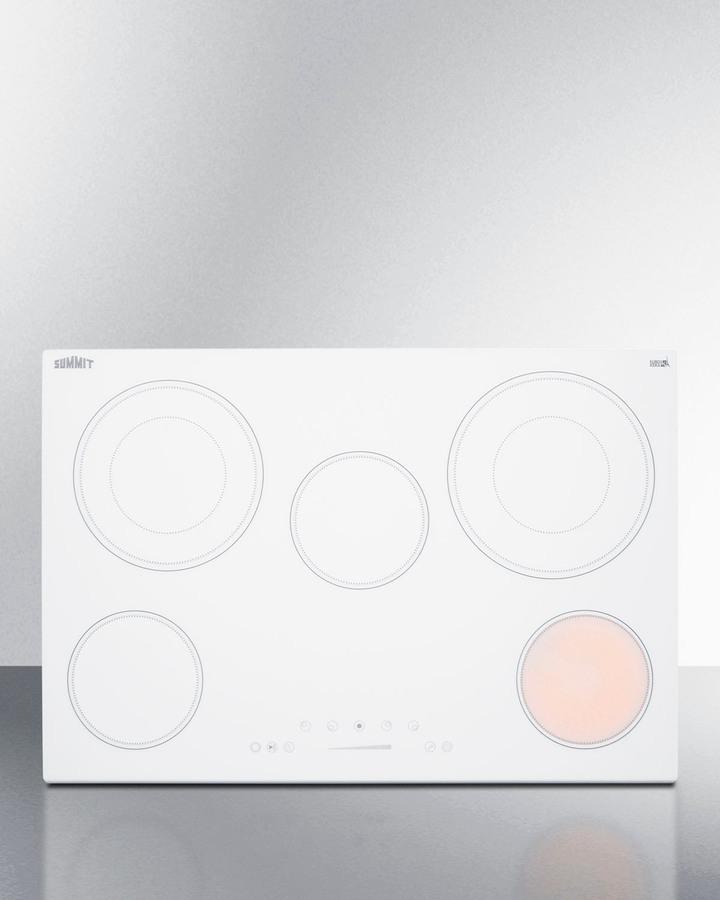

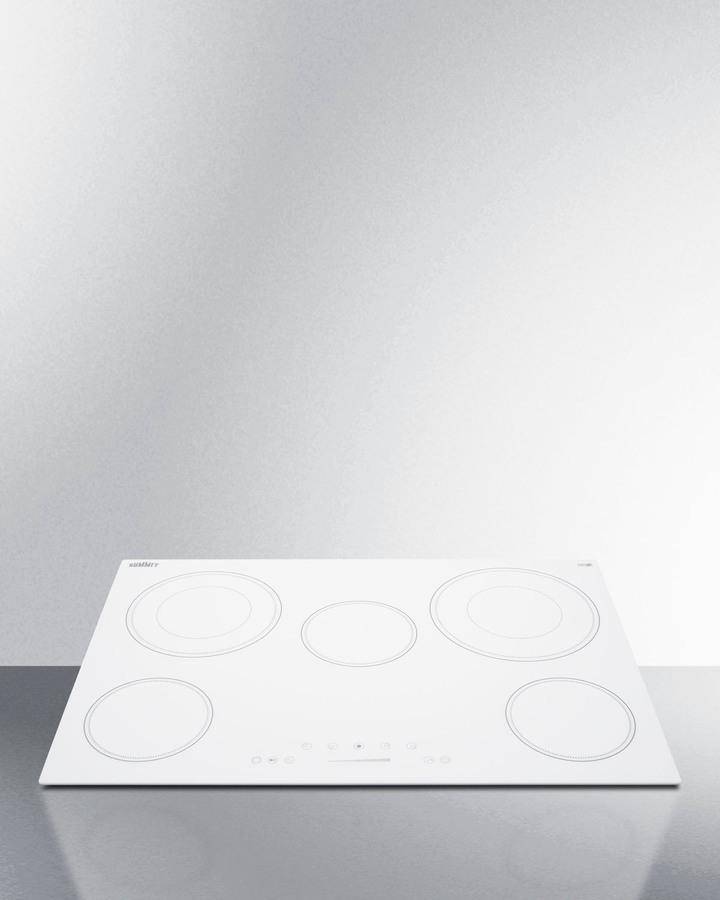

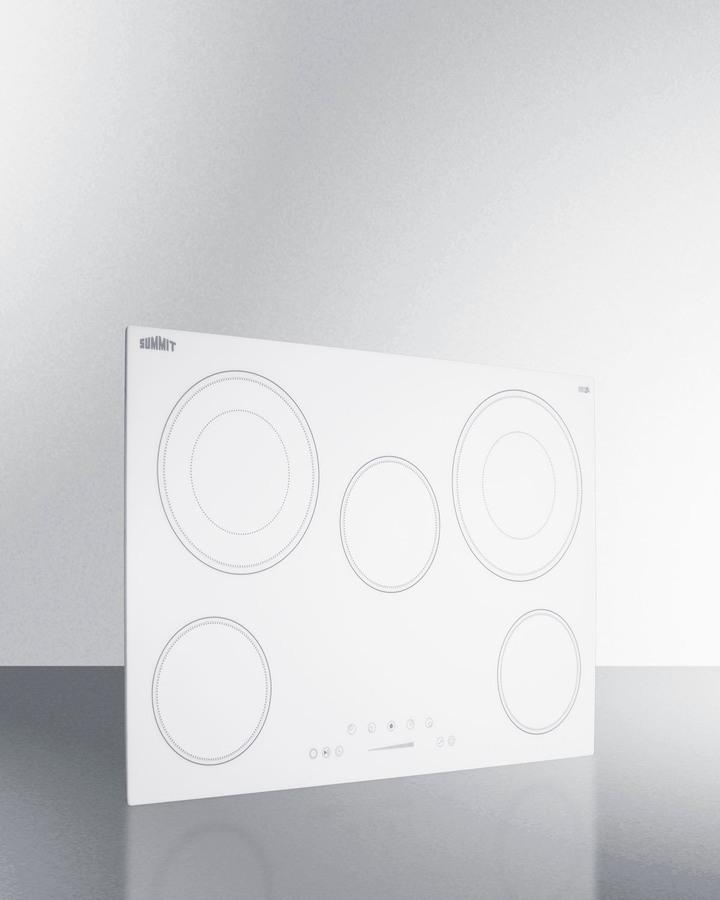

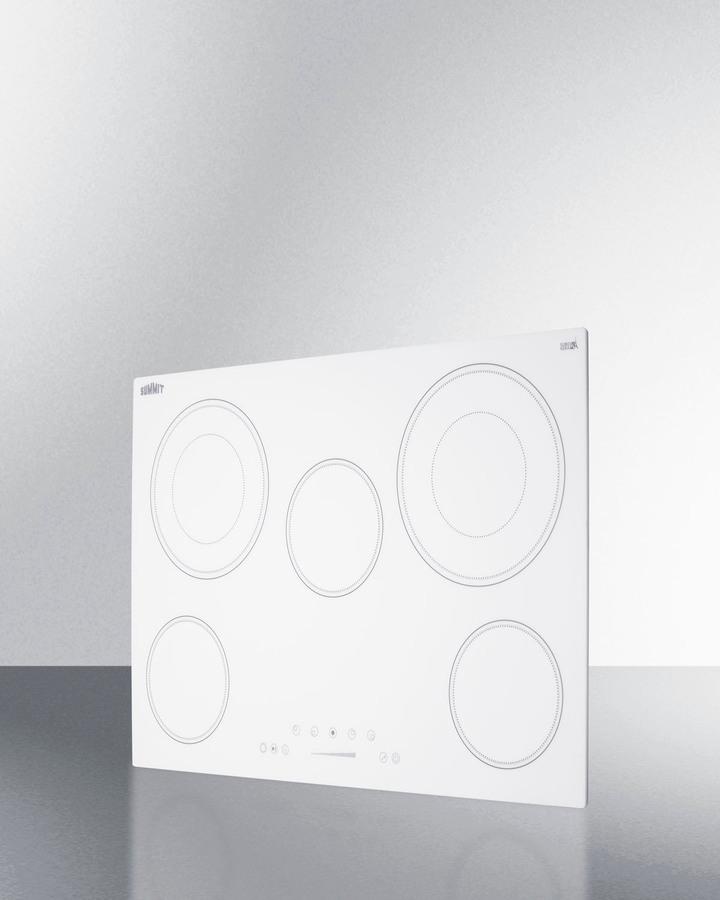

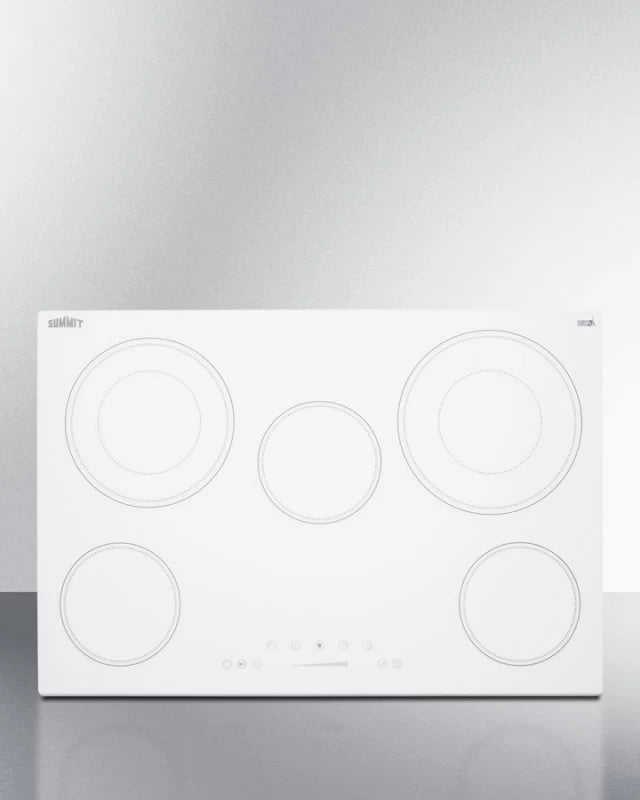

Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls. The CR5B30T8W is a 30" wide 208-240V radiant cooktop designed to fit popular 29 1/2" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a clean white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional. Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 2500W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking. The digital controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. The intuitive touch design is easy to operate and clean. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include a child lock function, automatic shutoff after two hours, and a residual heat indicator. With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR5B30T8W brings a user-friendly cooking performance with reliable safety to the kitchen. Additional choices are available in 24" and 36" wide sizes, as well as black glass finishes. Browse the full Summit lineup for more.

Product Features

30" wide 5-burner radiant cooktop
Designed to fit common 29 1/2" x 19 5/8" counter cutouts
EuroKera glass surface
Easy cleanup and elegant style on a smooth ceramic glass surface in a clean white finish

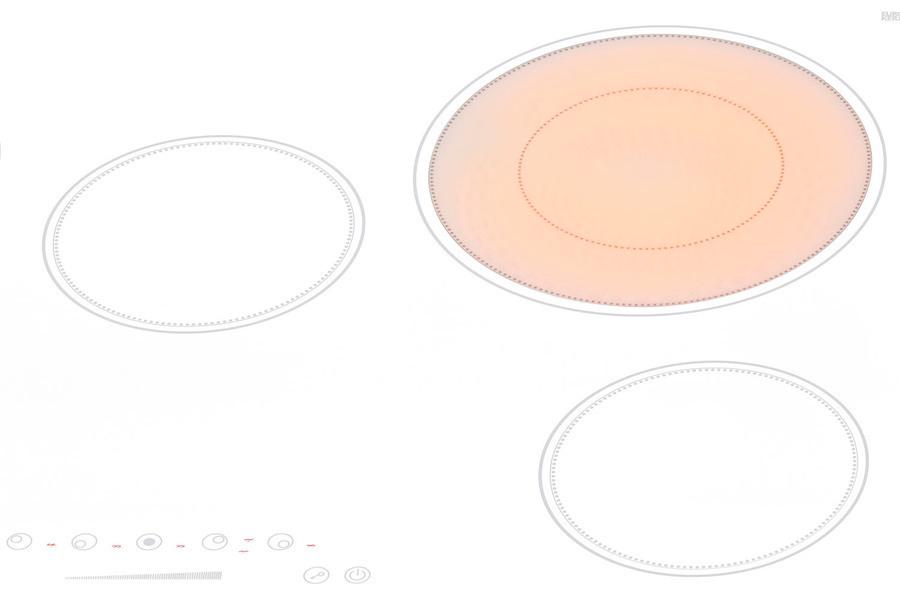

Extra large 2500W burner
Rear right burner comes with a 9 3/4" diameter and powerful 2500W cooking power to handle large pots and help boil water with more speed
Large 2200W burner
Left rear 2200W element is 9" in diameter to handle larger cooking vessels

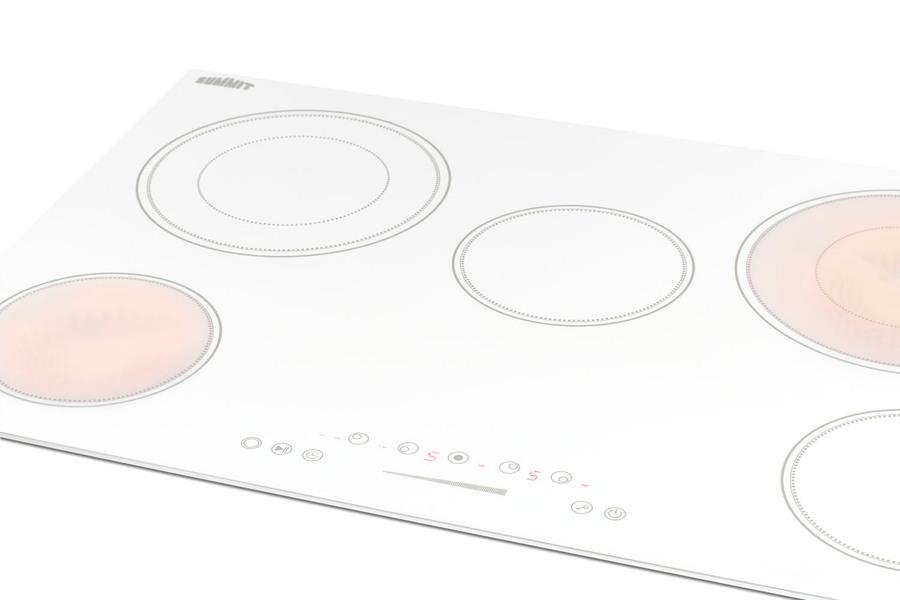

2 Standard 1200W burners
Front left and front right burners are 6.5" in diameter to meet most cooking needs

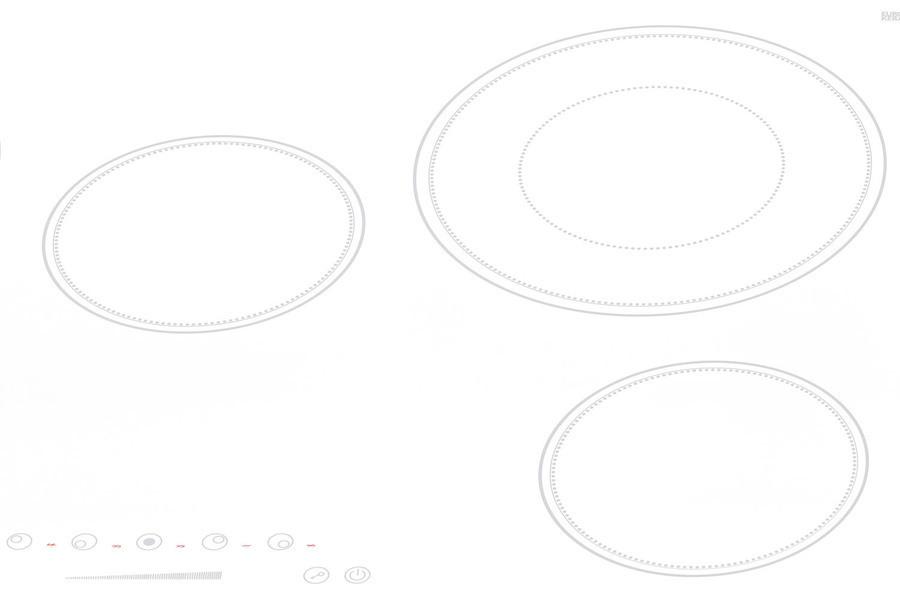

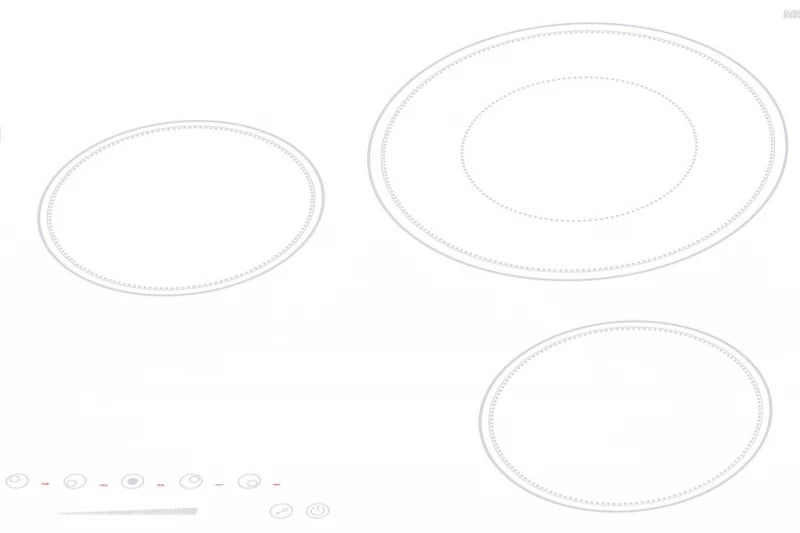

Dual cooking zones
Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
Warming zone
Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating
Digital touch controls
Easy operation with a digital control panel and digital display conveniently centered upfront
9 power levels
Select and adjust your heating levels at the touch of a button
Timer
Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up
Residual heat indicator light
Indicator shows when the surface is still hot to touch
ADA compliant design
Upfront controls meet ADA guidelines for easier accessibility
Child lock
Safety feature lets you lock the cooktop to prevent unsupervised heating
Safety cut-off function
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
Automatic shutoff
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
208-240V operation
Requires professional hardwired installation (cord not included)
