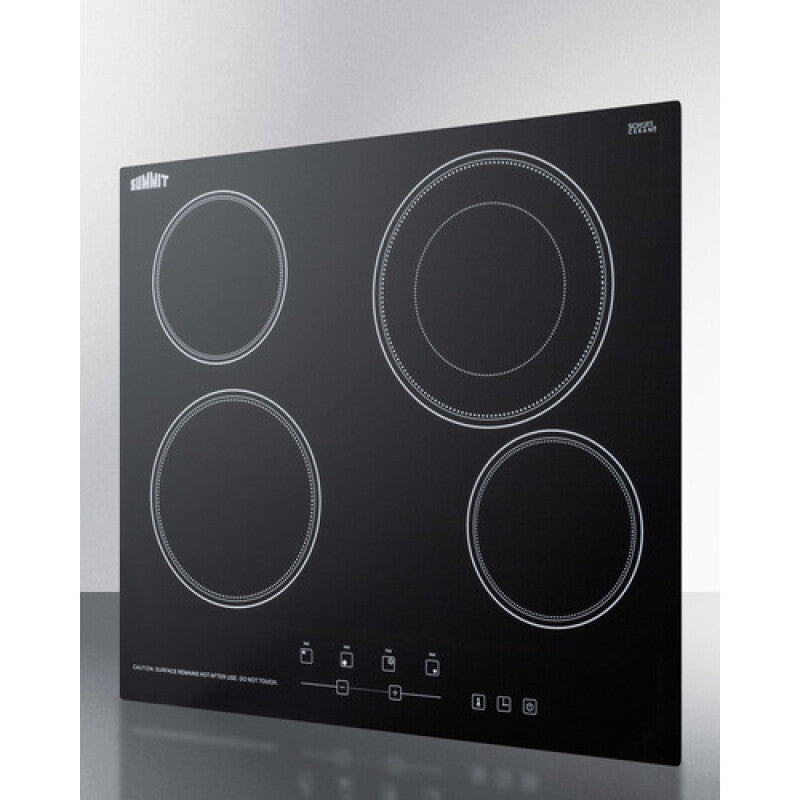

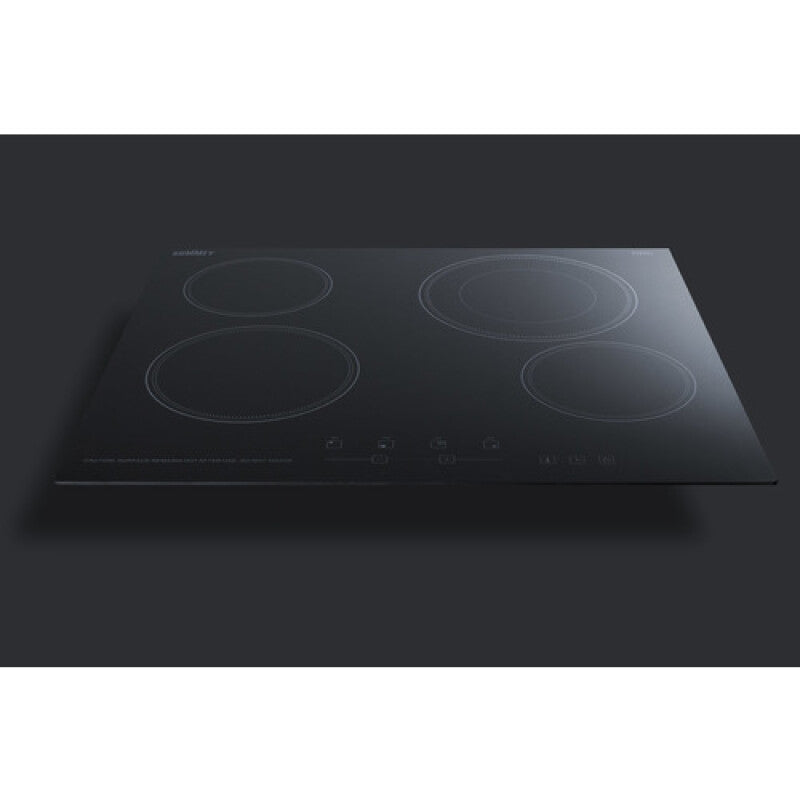

Summit CR4B23T5B 24" Wide 230V 4-Burner Radiant Cooktop Black

Quick Specification More details

Width:
23.25"
Depth:
20.5"
Height:
2"
Type:
Electric Cooktops

About this product

Digital touch controls
Extra large 2200W burner
Large 1800W burner
2 Standard 1200W burners

Quickship

On Sale

Summer Sale

Clearance

SKU: CR4B23T5B | UPC: 761101053257

Summit CR4B23T5B 24" Wide 230V 4-Burner Radiant Cooktop Black

$525.67 ~~$679.97~~ Save $154.30 / 22% OFF

Quantity:

Quickship

Active Rebates

Extended Protection

1-Year Extended Protection
$43.49
2-Year Extended Protection
$75.99
3-Year Extended Protection
$115.99
5-Year Extended Protection
$163.99
Manufacturer Warranty Only

Standard Cooktop Install - Direct Replacement, No Modifications
$180.00
Cooktop Install Kit
$40.00

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
23.25"
Depth:
20.5"
Height:
2"
Type:
Electric Cooktops

About this product

Digital touch controls
Extra large 2200W burner
Large 1800W burner
2 Standard 1200W burners

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$525.67 ~~$679.97~~ Save $154.30 / 22% OFF

Product Details for SUMMIT CR4B23T5B

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	23.25 in.
Height	2 in.
Length	20.5 in.
Weight	20 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0.55 ft³
Dimensional Weight	5.74 lbs.
Total of Cubes	0.55 ft³
Total of Dimensional Weight	5.74 lbs.

Overview electric cooktop

Nominal Height	2.0" (5 cm)
Height of Cabinet	2.0" (5 cm)
Nominal Width	24.0" (61 cm)
Width	23.25" (59 cm)
Nominal Depth	21.0" (53 cm)
Depth	20.5" (52 cm)
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	30.0
Voltage/Frequency	230 V AC/60 Hz
Weight	20.0 lbs. (9 kg)
Parts & Labor Warranty	1 Year
UPC	761101053257
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	4
Controls	Digital
Countertop Cutout Height	3.2" (8 cm)
Countertop Cutout Width	22.0" (56 cm)
Countertop Cutout Depth	19.5" (50 cm)
Element #1 Size	5.5" (14 cm)
Element #1 Wattage	1200.0
Element #2 Size	8.1" (21 cm)
Element #2 Wattage	2200.0
Element #3 Size	5.5" (14 cm)
Element #3 Wattage	1200.0
Element #4 Size	7.0" (18 cm)
Element #4 Wattage	1800.0
Power Cord Included	No

Description

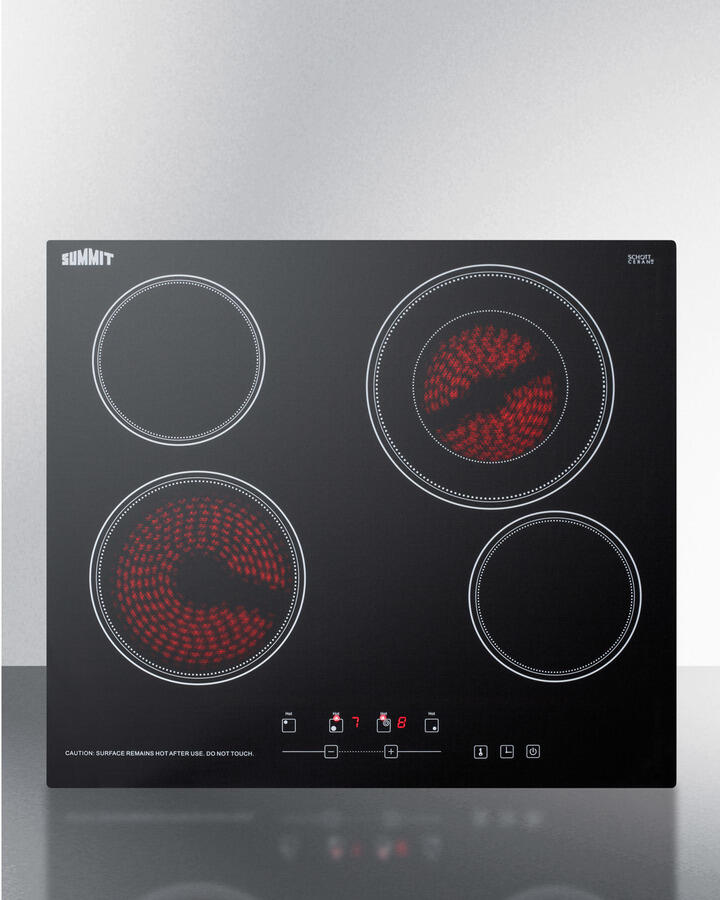

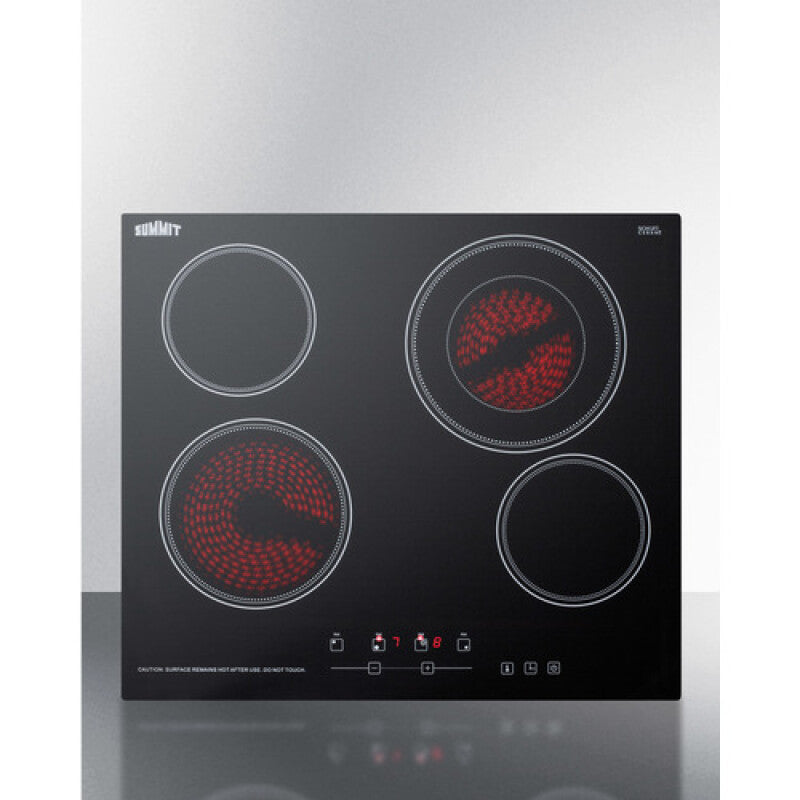

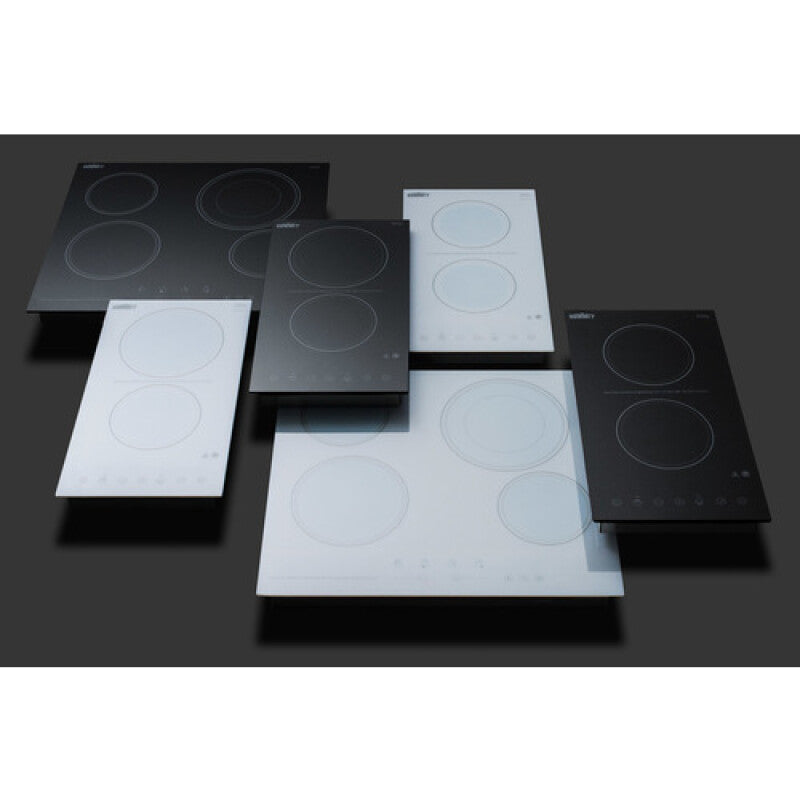

Summit's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces. The CR4B23T5B is a 24" wide 230V radiant cooktop designed to fit popular 22" W x 19 1/2" D counter cutouts. Its surface is made of jet black glass for a contemporary look that's easier to clean. This unit does not ship with a power cord and must be hard-wired by a professional. Unlike many other 24" wide cooktops, the CR4B23T5B includes an extra large 2200W 8" element to accommodate large cooking vessels and offer faster heating when boiling water. For added versatility, this dual zone element can also be used at a 5" diameter for smaller pots and pans. The front right and rear left 5 1/2" elements cook at 1200W, while the front left zone is 7" wide with an 1800W operation to handle larger meals. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners when cooking. The temperature is easy to adjust at the touch of a button, with 9 power levels for each burner. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff after two hours, and residual heat indicators for all four elements. With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR4B23T5B brings a user-friendly cooking performance with reliable safety to small kitchen spaces.

Product Features

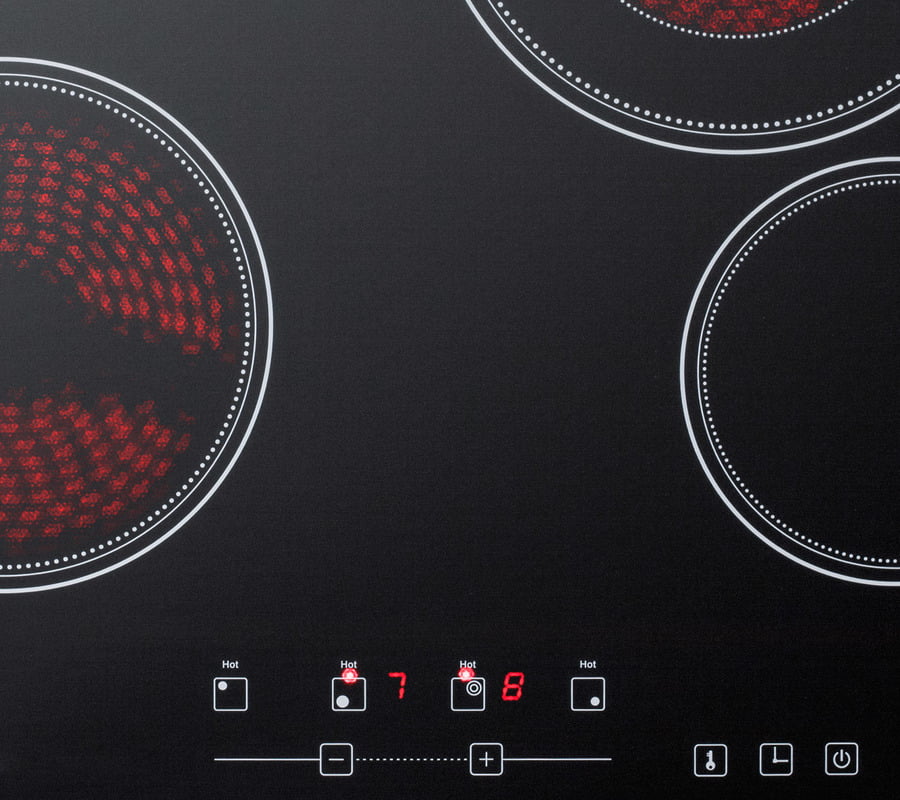

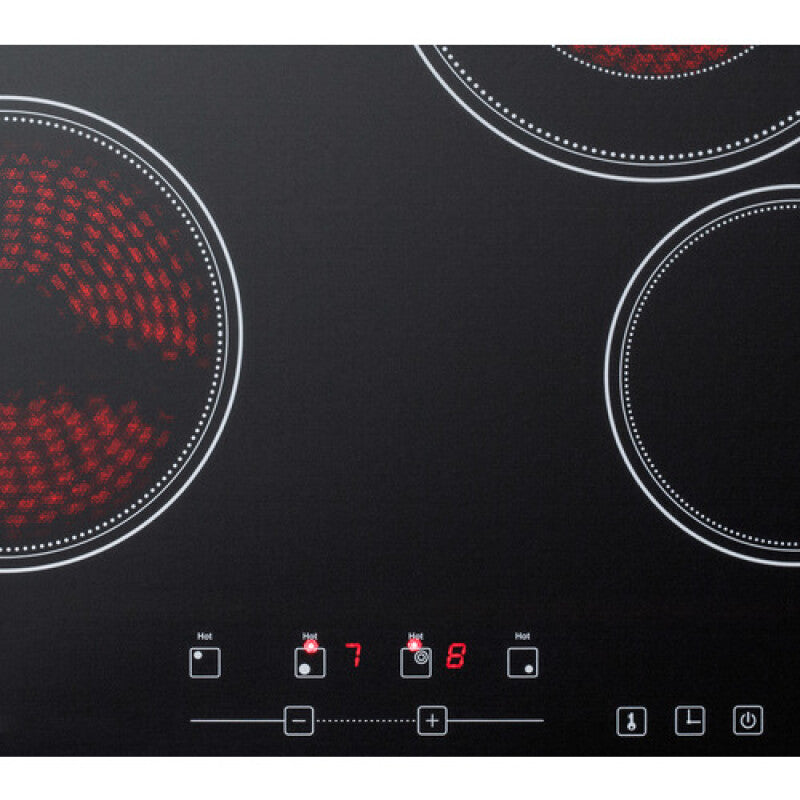

Digital touch controls
Easy operation with a digital control panel and digital display
Extra large 2200W burner
Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed
Large 1800W burner
Burner located on the front left corner is 7" in diameter to handle larger cooking vessels
2 Standard 1200W burners
Front right and rear left burners are 5.5" in diameter to meet most cooking needs
Dual cooking zone
Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware
9 power levels
Select and adjust your heating levels at the touch of a button
Timer
Allows you to program either burner to heat at a specified level for up to 99 minutes
Residual heat indicator lights
Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch

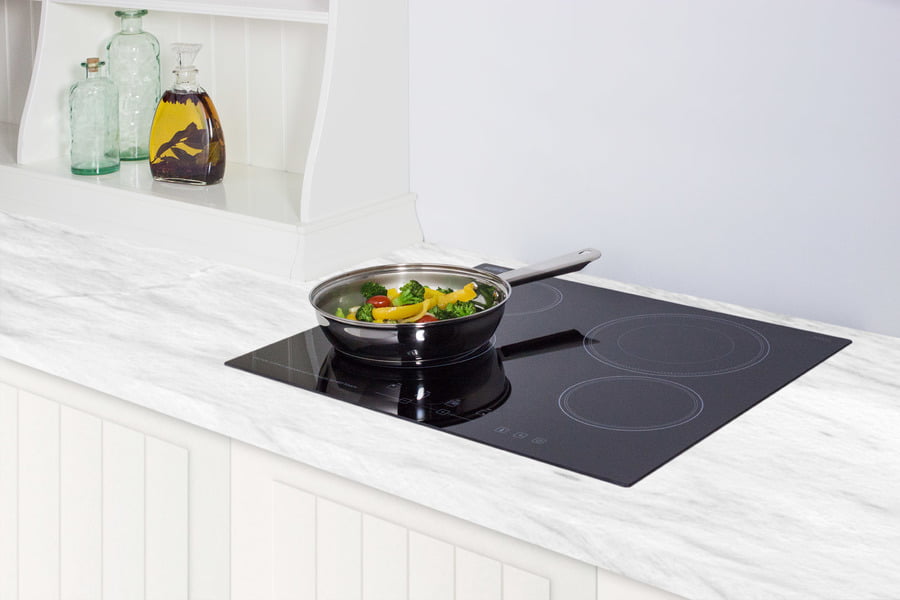

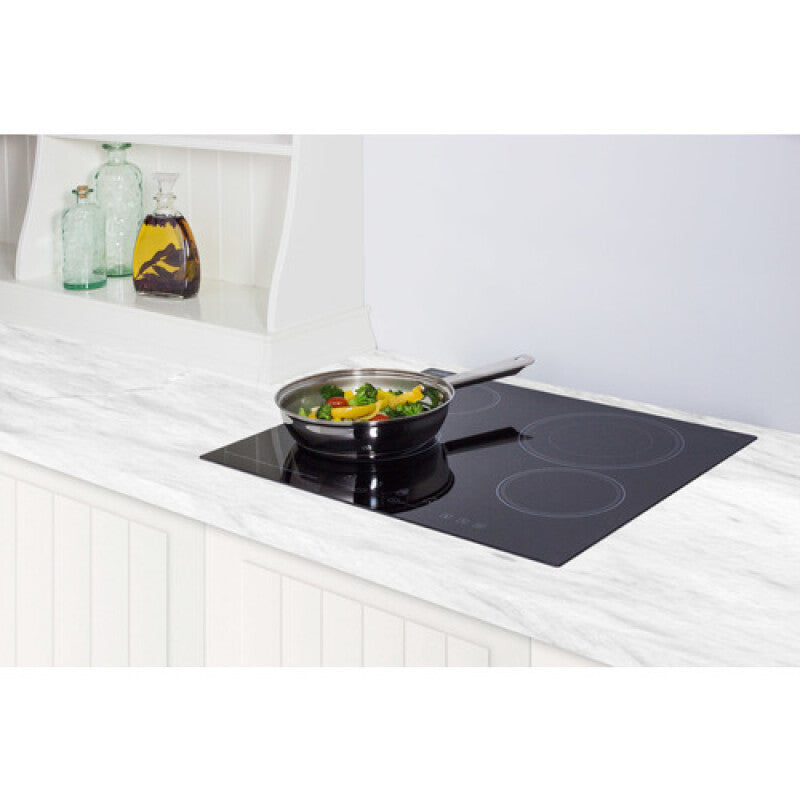

Designed for built-in installation
Fits counter cutout sizes that are 22" wide by 19.5" deep
ADA compliant design
Upfront controls meet ADA guidelines for easier accessibility
Child lock
Safety feature lets you lock the cooktop to prevent unsupervised heating
Safety cut-off function
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
Automatic shutoff
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
230V operation
Requires professional hardwired installation to 230V power supply

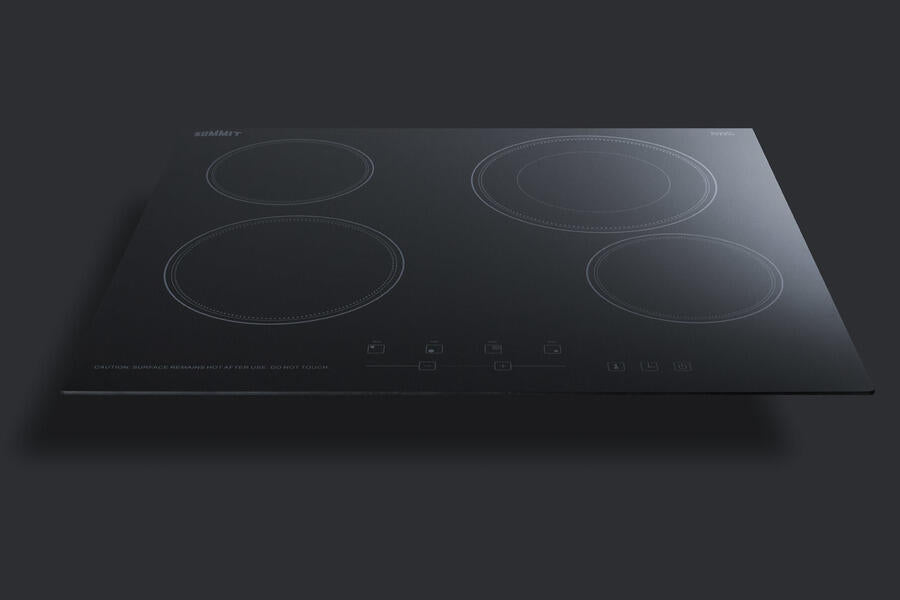

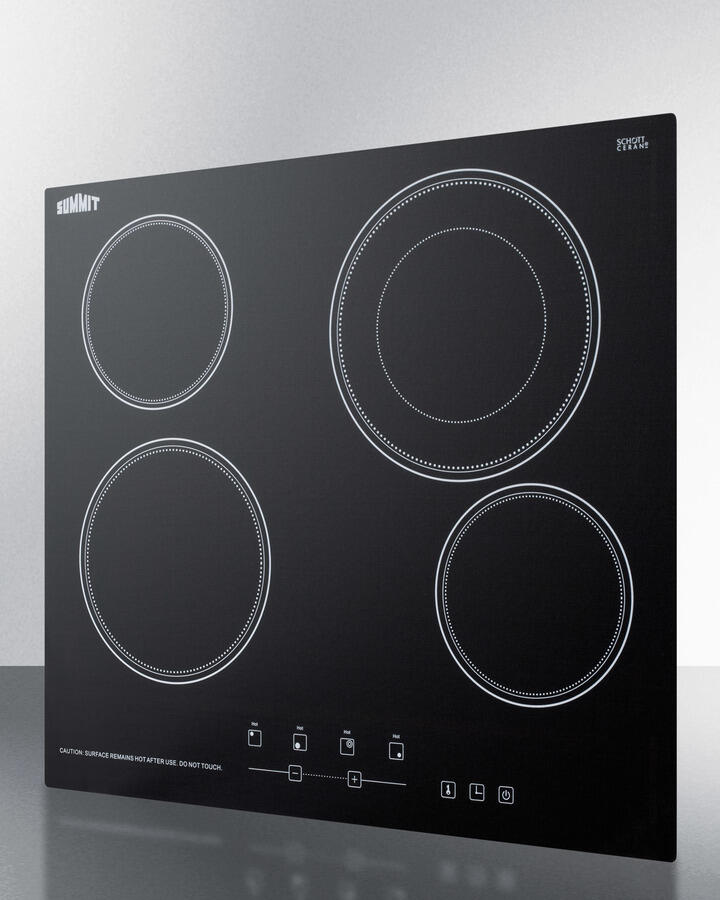

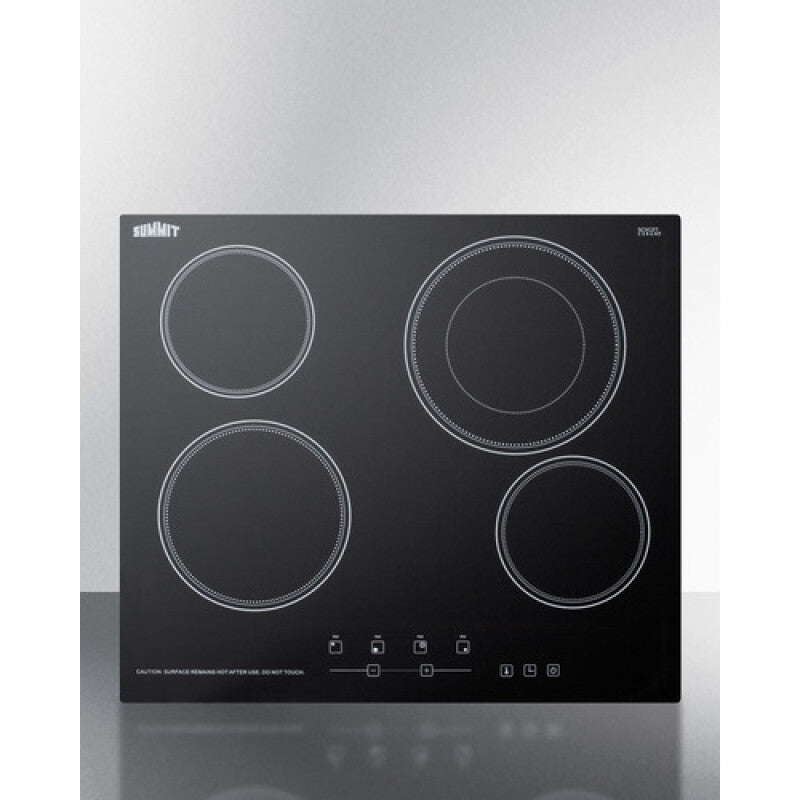

4-Burner Radiant Cooktop
24" Wide 230V cooktop with digital controls and a smooth glass surface
Jet black glass surface
Elegant style on a smooth, jet blaack glass surface for a contemporary look that is easier to clean
