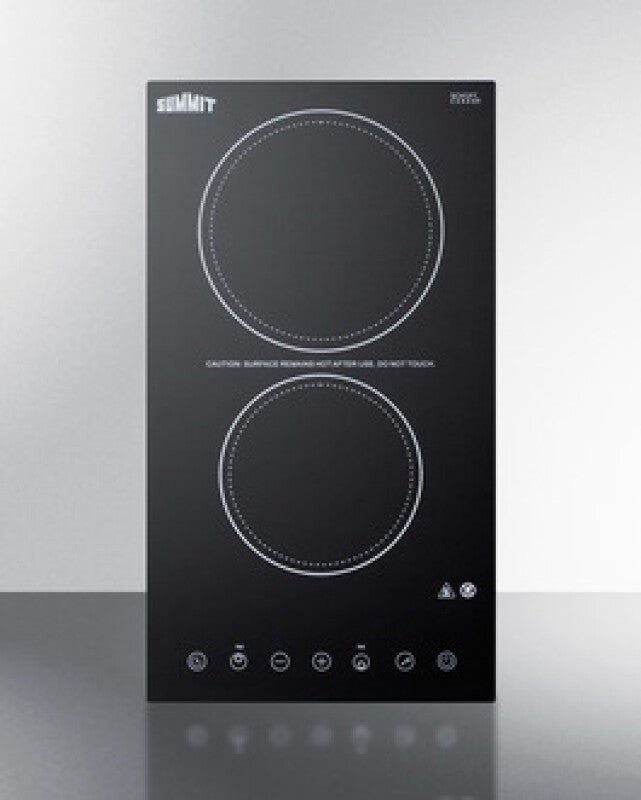

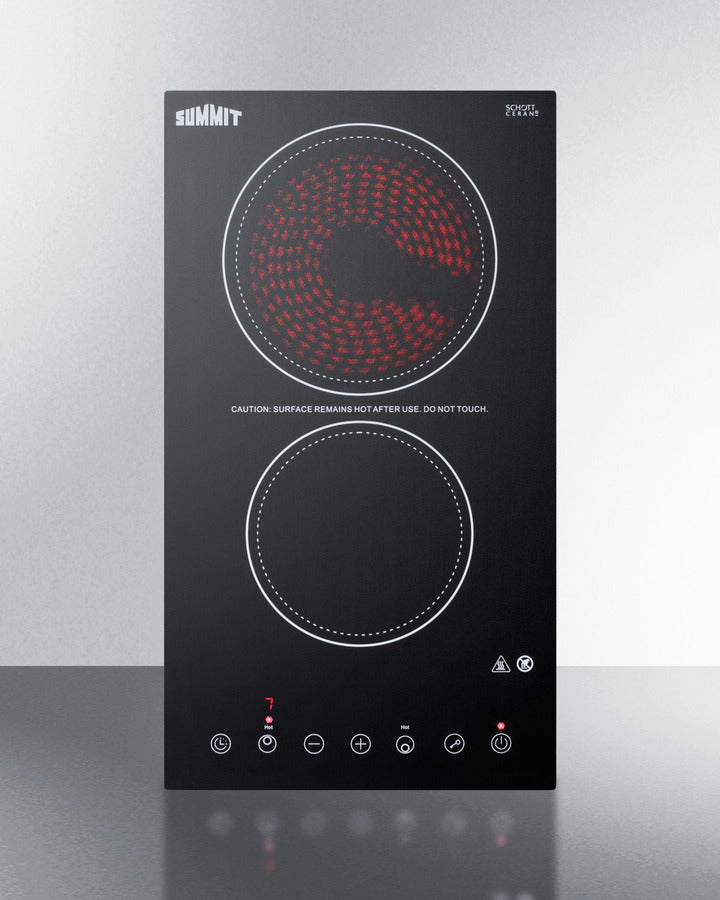

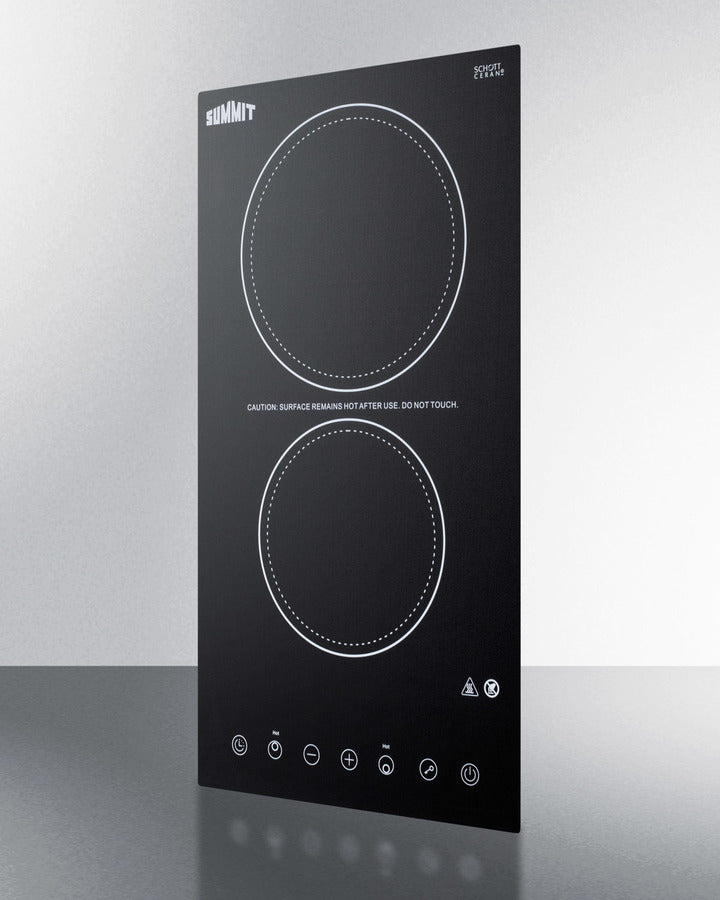

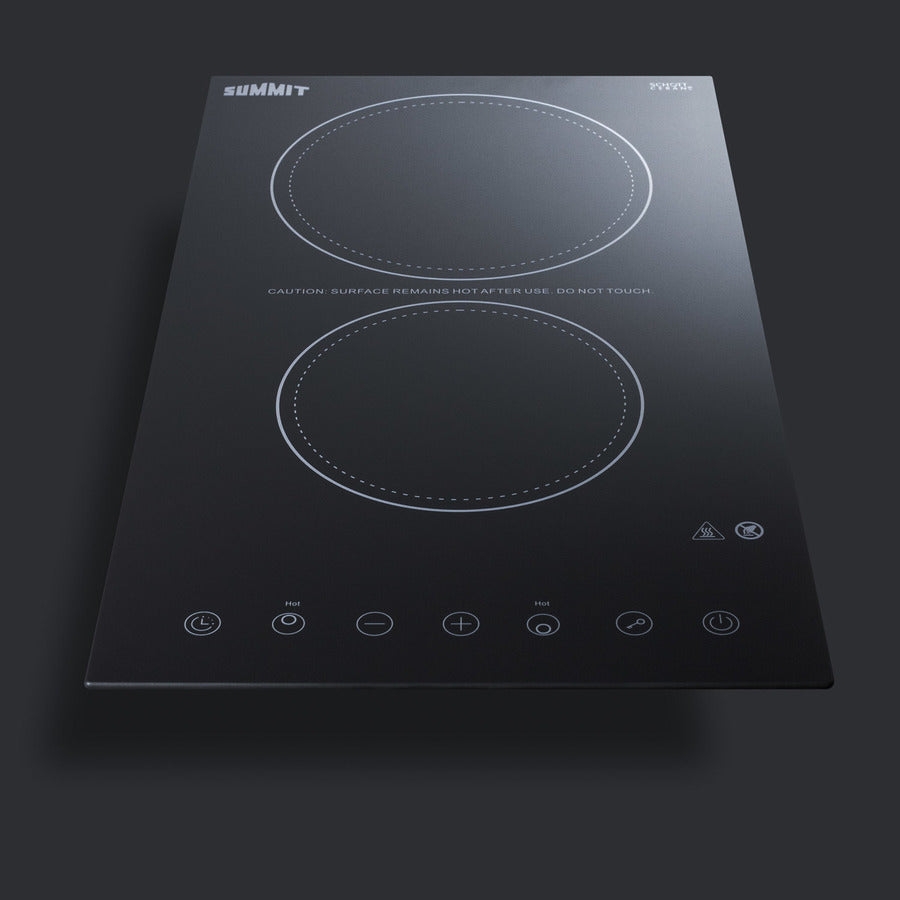

Summit CR2B23T3B 12" Wide 230V 2-Burner Radiant Cooktop Black

Quick Specification More details

Width:
11.38"
Depth:
20.5"
Height:
2"
Type:
Electric Cooktops

About this product

Large 1800W burner
Residual heat indicator lights
Standard 1200W burner
Digital touch controls

Quickship

On Sale

Summer Sale

Clearance

SKU: CR2B23T3B | UPC: 761101053295

Summit CR2B23T3B 12" Wide 230V 2-Burner Radiant Cooktop Black

$361.73 ~~$449.97~~ Save $88.24 / 19% OFF

Quantity:

Quickship

Active Rebates

Extended Protection

1-Year Extended Protection
$30.99
2-Year Extended Protection
$51.99
3-Year Extended Protection
$75.99
5-Year Extended Protection
$139.99
Manufacturer Warranty Only

Standard Cooktop Install - Direct Replacement, No Modifications
$180.00
Cooktop Install Kit
$40.00

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
11.38"
Depth:
20.5"
Height:
2"
Type:
Electric Cooktops

About this product

Large 1800W burner
Residual heat indicator lights
Standard 1200W burner
Digital touch controls

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$361.73 ~~$449.97~~ Save $88.24 / 19% OFF

Product Details for SUMMIT CR2B23T3B

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	11.38 in.
Height	2 in.
Length	20.5 in.
Weight	10 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0.27 ft³
Dimensional Weight	2.81 lbs.
Total of Cubes	0.27 ft³
Total of Dimensional Weight	2.81 lbs.

Overview electric cooktop

Nominal Height	2.0" (5 cm)
Height of Cabinet	2.0" (5 cm)
Nominal Width	12.0" (30 cm)
Width	11.38" (29 cm)
Nominal Depth	21.0" (53 cm)
Depth	20.5" (52 cm)
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	15.0
Voltage/Frequency	230 V AC/60 Hz
Weight	10.0 lbs. (5 kg)
Parts & Labor Warranty	1 Year
UPC	761101053295
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	2
Controls	Digital
Cooking Timer	Yes
Countertop Cutout Height	5.9" (15 cm)
Countertop Cutout Width	10.75" (27 cm)
Countertop Cutout Depth	19.9" (51 cm)
Power Source	230V
Element #1 Size	7.0" (18 cm)
Element #1 Wattage	1800.0
Element #2 Size	5.5" (14 cm)
Element #2 Wattage	1200.0
Power Cord Included	No
Auto Shutoff Time	2 Hours

Description

Summit's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces. The CR2B23T3B is an ENERGY STAR certified 12" wide 230V radiant cooktop designed to fit popular 10 3/4" W x 19 7/8" D counter cutouts. Its surface is made of jet black glass for a contemporary look that's easier to clean. This unit does not ship with a power cord and must be hard-wired by a professional. For true cooking versatility, the CR2B23T3B features a large 7" 1800W burner in the rear and a smaller 5 1/2" 1200W burner in front. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners to make adjustments. Nine power levels provide true cooking versatility, allowing you more precision in melting or simmering at a low wattage and the convenience of boiling water quickly at a higher setting. The digital display makes it easy to read and manage the settings at the touch of a button. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff, and residual heat indicators for both elements. With its attractive design, ideal size, and intuitive touch controls, the CR2B23T3B brings a user-friendly cooking performance with reliable safety to small kitchen spaces.

Product Features

Large 1800W burner
Rear 7" burner offers 1800W for faster heating of larger cooking vessels
Residual heat indicator lights
Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
Standard 1200W burner
Front burner is 5.5" in diameter to meet most cooking needs

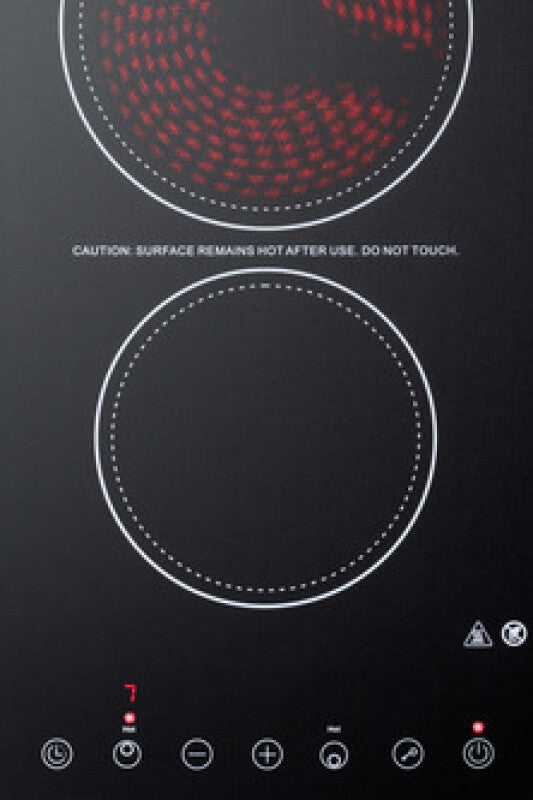

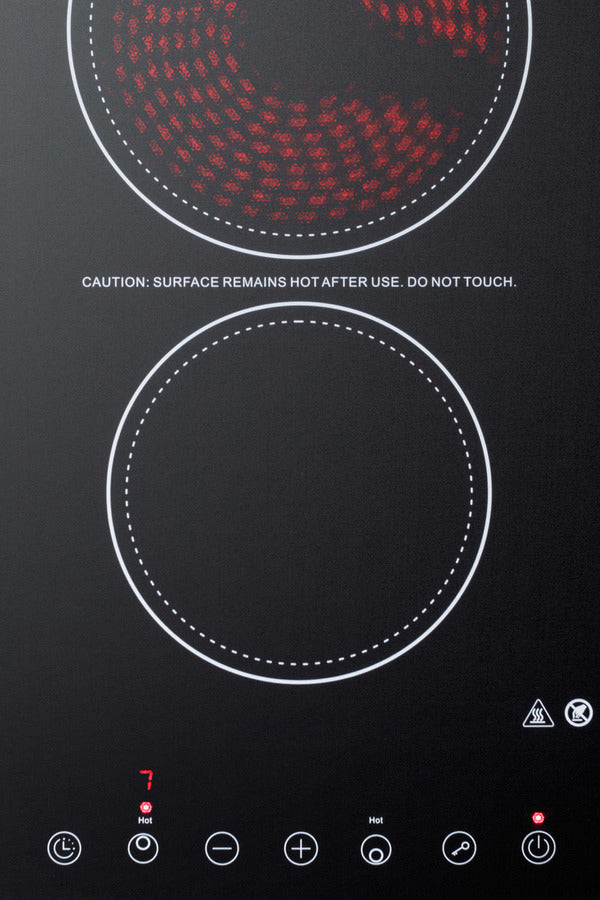

Digital touch controls
Easy operation with a digital control panel and digital display
9 power levels
Select and adjust your heating levels at the touch of a button

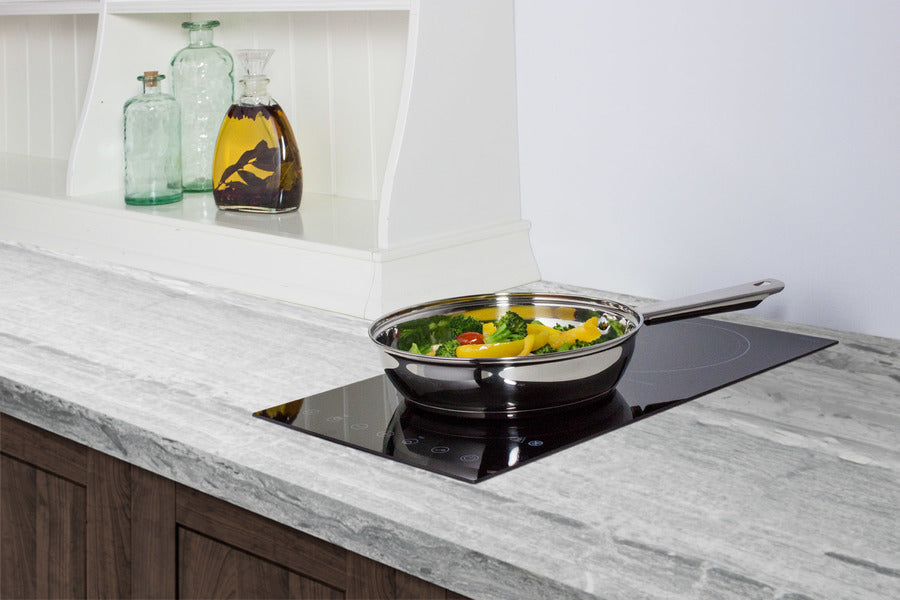

Designed for built-in installation
Fits counter cutout sizes that are 10.75" wide by 19.9" deep
ADA compliant design
Upfront controls meet ADA guidelines for easier accessibility
Timer
Allows you to program either burner to heat at a specified level for up to 99 minutes
Child lock
Safety feature lets you lock the cooktop to prevent unsupervised heating
Automatic shutoff
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating
Safety cut-off function
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off
230V operation
Requires professional hardwired installation to 230V power supply
ENERGY STAR certified
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs
2-Burner Radiant Cooktop
230V cooktop with digital controls and a smooth glass surface
Jet black glass surface
Elegant style on a smooth, jet blaack glass surface for a contemporary look that is easier to clean
