Summit CCE225WH 12" Wide 230V 2-Burner Coil Cooktop White

Quick Specification More details

Width:
12"
Depth:
19.75"
Height:
3.25"
Type:
Electric Cooktops

About this product

Porcelain surface
Made in the USA
White exterior
8" rear element

Summer Sale

Clearance

SKU: CCE225WH | UPC: 761101060804

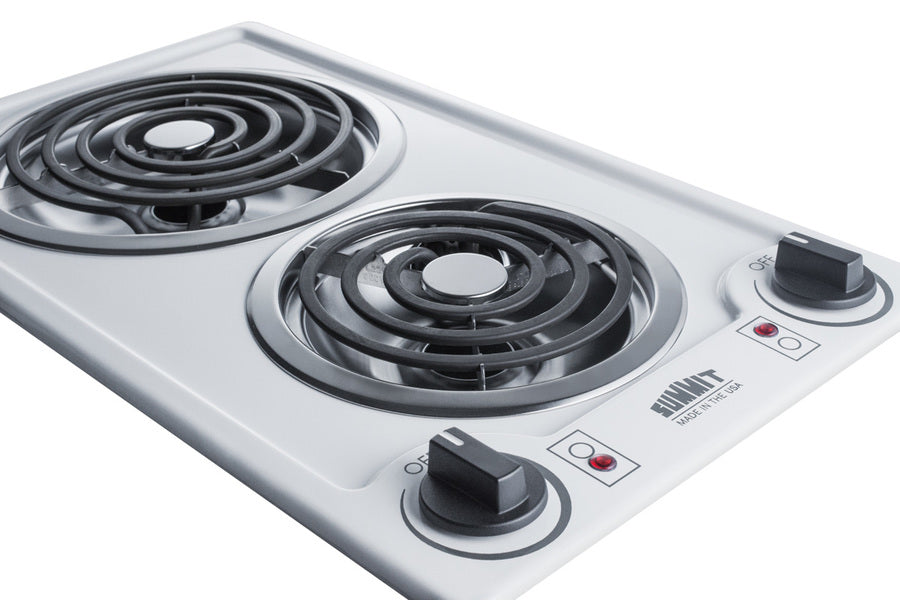

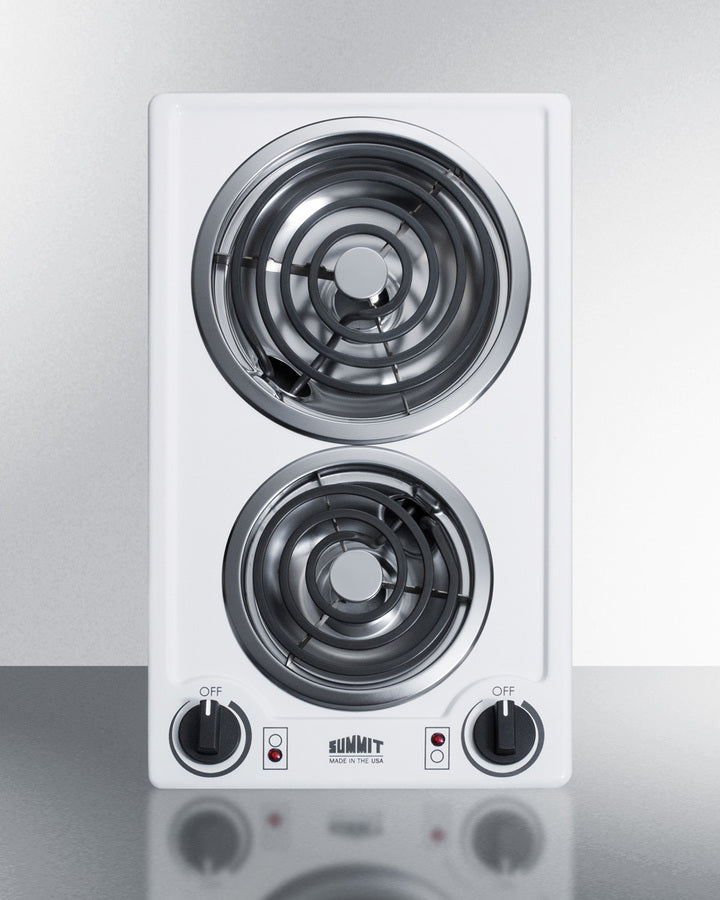

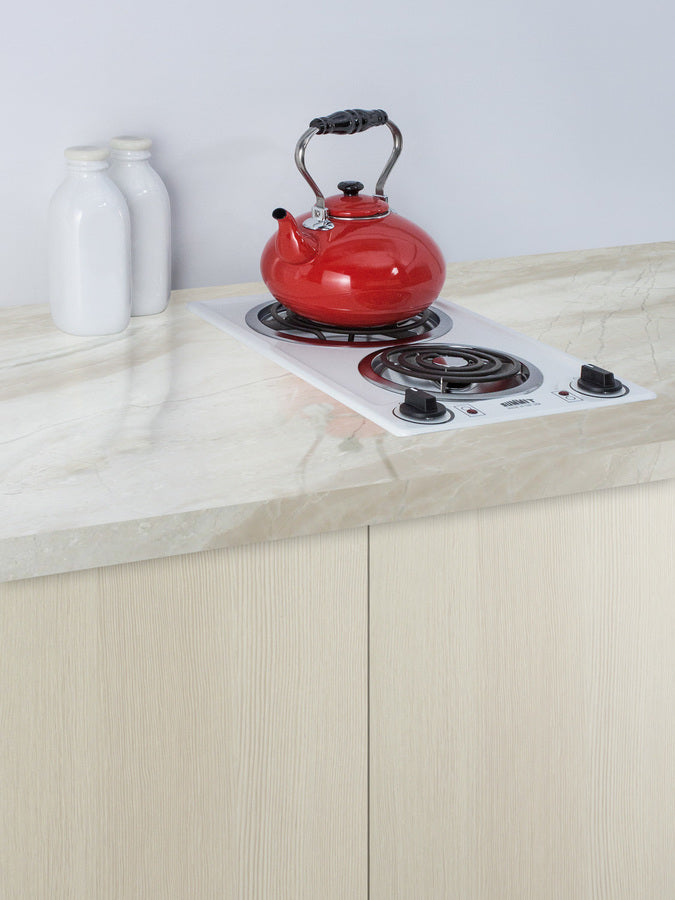

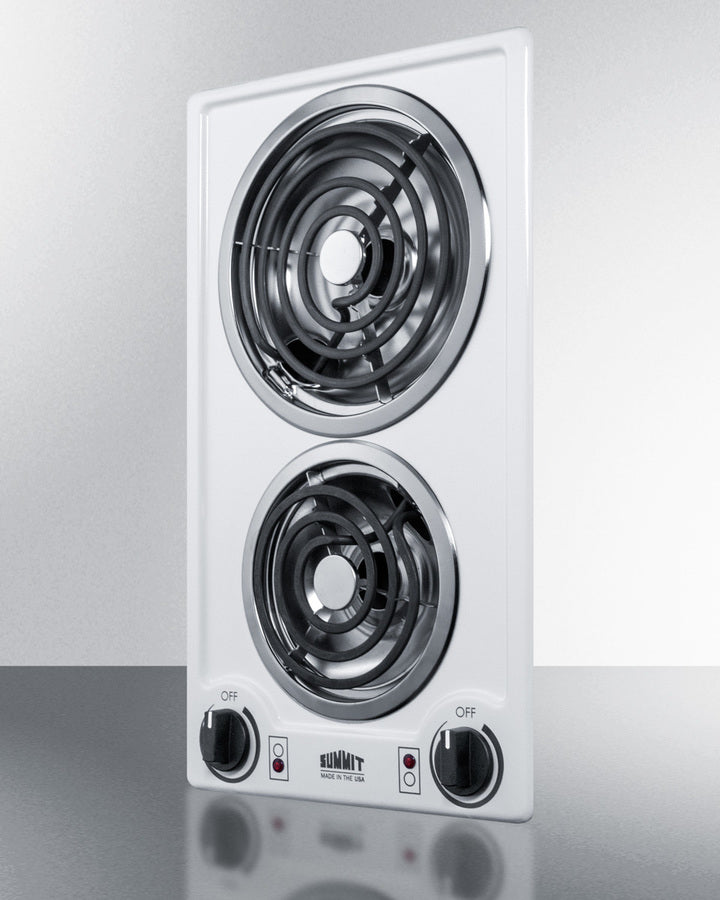

Summit CCE225WH 12" Wide 230V 2-Burner Coil Cooktop White

$290.20 ~~$374.97~~ Save $84.77 / 22% OFF

Out of stock

Active Rebates

Electrical Requirement Notice: This appliance may require a dedicated electrical circuit or special voltage (e.g., 120V or 240V). Please verify your home’s electrical setup or consult a licensed electrician before installation. If you have any questions, please contact us.

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
12"
Depth:
19.75"
Height:
3.25"
Type:
Electric Cooktops

About this product

Porcelain surface
Made in the USA
White exterior
8" rear element

Product Details
Manuals & Guides
From The Manufacturer
Reviews

$290.20 ~~$374.97~~ Save $84.77 / 22% OFF

Product Details for SUMMIT CCE225WH

Technical Details

Warranty

Parts	1 Year
Labor	1 Year

Dimensions & weight

Width	12 in.
Height	3.25 in.
Length	19.75 in.
Weight	14 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	0.45 ft³
Dimensional Weight	4.64 lbs.
Total of Cubes	0.45 ft³
Total of Dimensional Weight	4.64 lbs.

Overview electric cooktop

Nominal Height	3.25" (8 cm)
Height of Cabinet	3.25" (8 cm)
Nominal Width	12.0" (30 cm)
Width	12.0" (30 cm)
Nominal Depth	20.0" (51 cm)
Depth	19.75" (50 cm)
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	7.0
Voltage/Frequency	230 V AC/60 Hz
Weight	14.0 lbs. (6 kg)
Parts & Labor Warranty	1 Year
UPC	761101060804
Surface	Porcelain
Element Type	Coils
Number of Elements	2
Controls	Dial
Countertop Cutout Height	5.0" (13 cm)
Countertop Cutout Width	11.13" (28 cm)
Countertop Cutout Depth	19.13" (49 cm)
Power Source	230V
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	675.0
Element #2 Size	8.0" (20 cm)
Element #2 Wattage	950.0
Power Cord Included	No

Description

Summit offers an extensive selection of slim-fitting cooktops designed and manufactured in the USA. The CCE225WH is a 240V cooktop with a porcelain surface in a classic white finish. Two coil elements (6" 675W in front and 8" 950W in rear) offer durable heating that holds up to everyday use. Designed to meet the most recent UL safety standards, the elements operate at low wattage, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. Upfront push-to-turn knobs are simple and intuitive, with indicator lights that show which burner is in use for added safety. The recessed design helps to contain spills for a cleaner cooking experience. This cooktop is designed to fit common 11 1/8" W x 19 1/8" D counter cutouts. This unit does not ship with a power cord and must be hard-wired by a professional. Additional choices are available in 115V, as well as black and stainless steel. Browse our website for our complete selection of slim-fitting cooking appliances.

Product Features

Porcelain surface
Scratch-resistant design for lasting durability
Made in the USA
Designed and constructed domestically
White exterior
Classic design in a clean white finish to match any kitchen
8" rear element
Larger element is ideal for heating wider pots and pans
6" front element
Standard burner accommodates most heating needs
Recessed top
Curved design helps to contain spills on the surface
Push-to-turn controls
Knobs require a small amount of force for added safety
Indicator lights
Upfront lights illuminate to show which burners are in use
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
220-240V operation
Requires a 15 amp circuit
Professional installation required
Designed for hard-wired installation (cord not included)
Fits popular cutout size
Designed for 11 1/8" W x 19 1/8" D cutouts for an easy fit in smaller kitchens
Coil elements
Traditional design offers reliable heating and strong durability for everyday cooking
Safety elements with low wattage outputs
Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Chrome drip bowls
Removable drip pans for easier cleanup
