Product Details
From The Manufacturer
Reviews

$1,693.98 ~~$2,329.97~~ Save $635.99 / 27% OFF

Product Details for Summit BIM26H34IFLHD

Technical Details

Overview icemaker

Nominal Height	34.0" (86 cm)
Height of Cabinet	34.0" (86 cm)
Nominal Width	15.0" (38 cm)
Width	14.88" (38 cm)
Nominal Depth	21.0" (53 cm)
Depth	20.13" (51 cm)
Depth with door at 90°	34.38" (87 cm)
Defrost Type	Manual
Door	Panel-Ready
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.9
Voltage/Frequency	115 V AC/60 Hz
Weight	65.0 lbs. (29 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101108445
Door Swing	LHD
Height Adjustable	Yes
Daily Ice Production	25.0 lbs. (11 kg)
Ice Storage Capacity	22.0 lbs. (10 kg)
Ice Shape	Crescent
Size of Cube	1/2" x 3/4" x 2 3/8"
Number of Ice Cube Sizes	1
Refrigerant Type	R600a
Refrigerant Amount	1.58 oz.
High Side PSI	120.0
Low Side PSI	55.0
Interior Height	15.88" (40 cm)
Interior Width	11.88" (30 cm)
Interior Depth	12.38" (31 cm)
Level Legs	4

Description

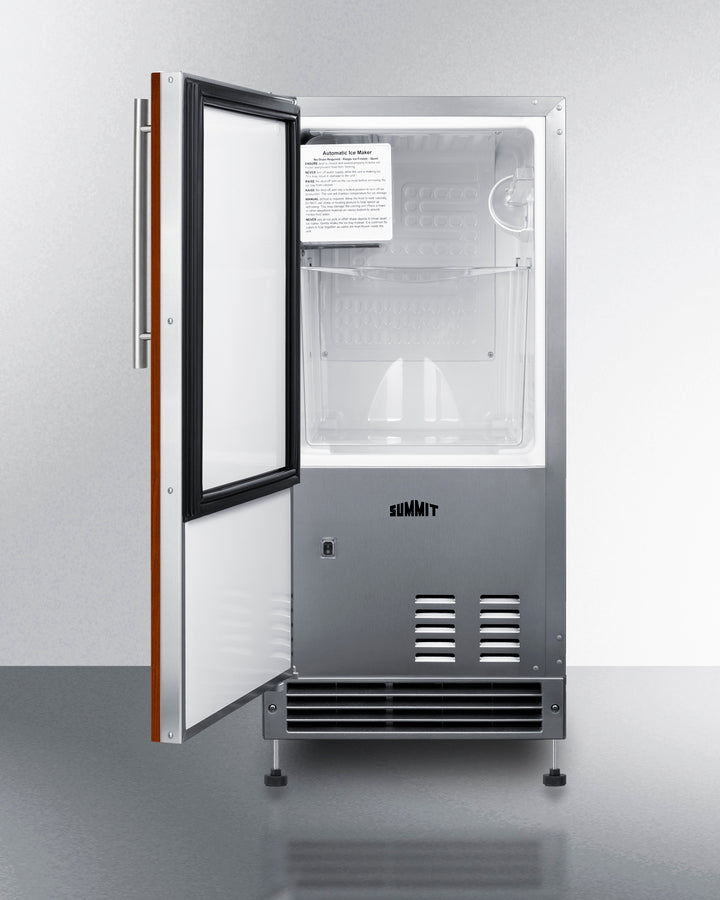

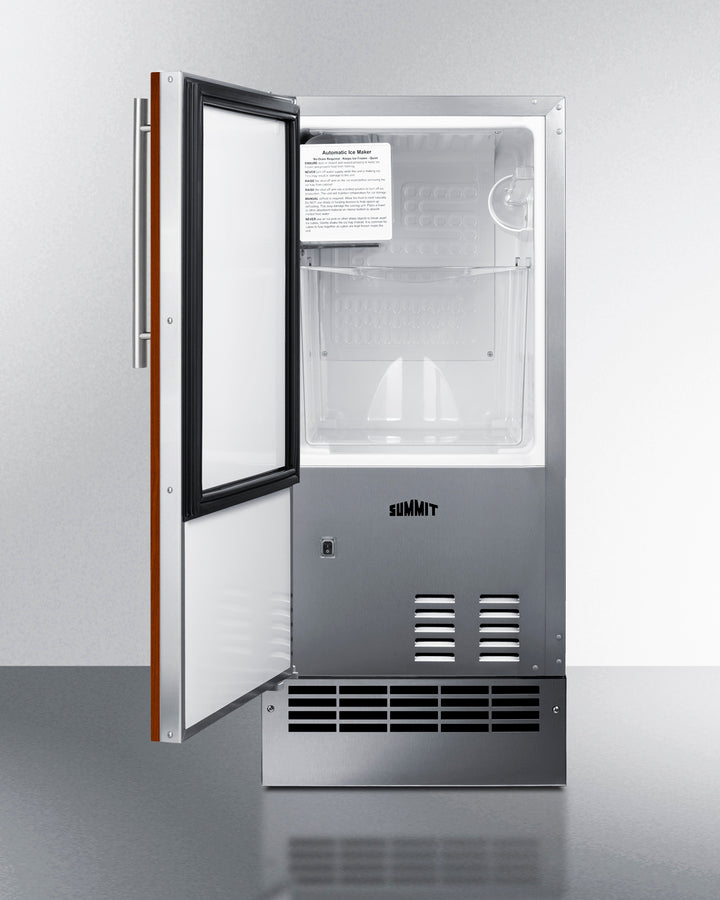

Summit combines convenience and luxury to craft the BIM26H34IF - an undercounter icemaker finished in complete 304-grade stainless steel. Sized at just under 15" wide, the BIM26H34IFLHD features a front-breathing design for built-in installation but also has a fully finished cabinet to allow freestanding use. With a height of 34", Summit designed this icemaker to be compatible with standard counters. This unit can be lowered just under 32" to fit ADA-compliant spaces. A smaller kickplate is included for a streamlined and cohesive look. This model features a panel-ready door with an integrated stainless steel frame that lets you install your own overlay panel and handle to match or complement surrounding cabinetry (recommended panel dimensions: 27 9/16" H x 14 13/16" W at 3/4" thick). The sealed back design allows more flush installation. An optional water filter is included and designed to be mounted in the rear. A look inside the BIM26H34IFLHD shows it can produce 25 lbs of crescent-shaped ice daily. The static manual defrost cooling system allows ice to stay solid longer. No drain or pump is required, offering more placement flexibility. For optimal convenience, Summit has pre-installed the connection hose. Plus, this icemaker comes with a removable ice bucket, ice scoop, and a holder for the scoop. With its customizable exterior, stainless steel cabinet, and low maintenance design, the BIM26H34IFLHD drain-free icemaker is a great way to finish any undercounter kitchen space and allows you to maintain an entire supply of ice with less waste.

Product Features

15" Wide No-Drain Icemaker
No drain is required for more flexibility in placing the icemaker indoors or outside
Adjustable Height
This unit can be lowered just under 32", with a smaller kickplate included for a seamless aesthetic

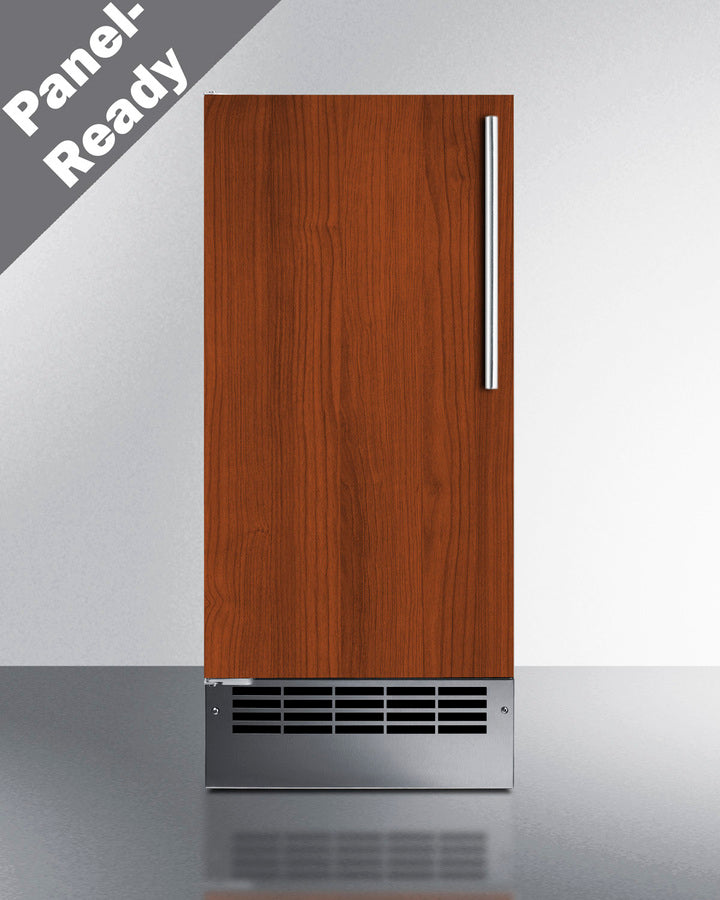

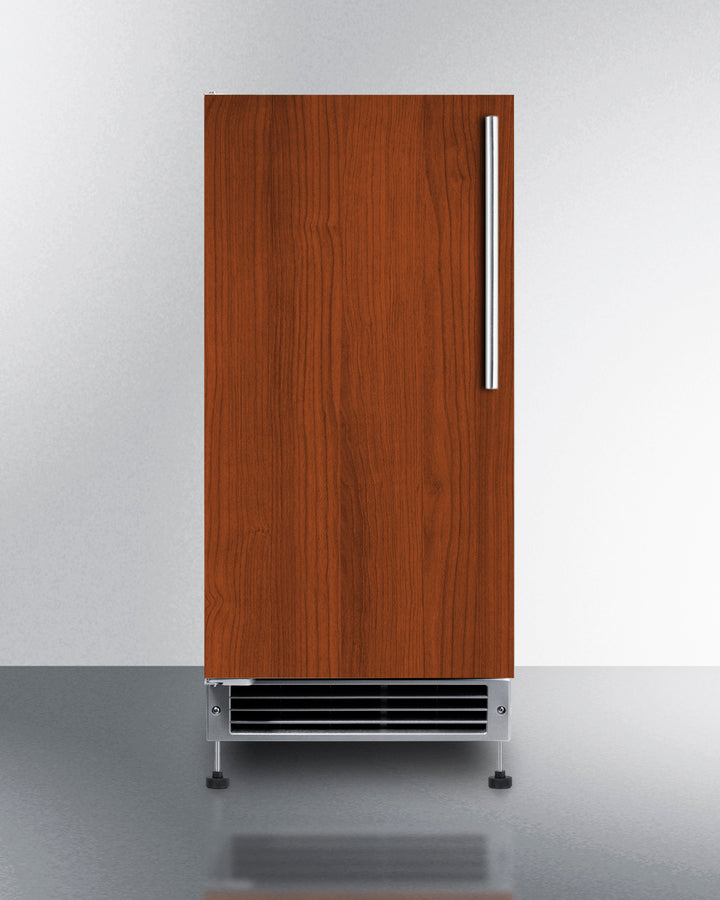

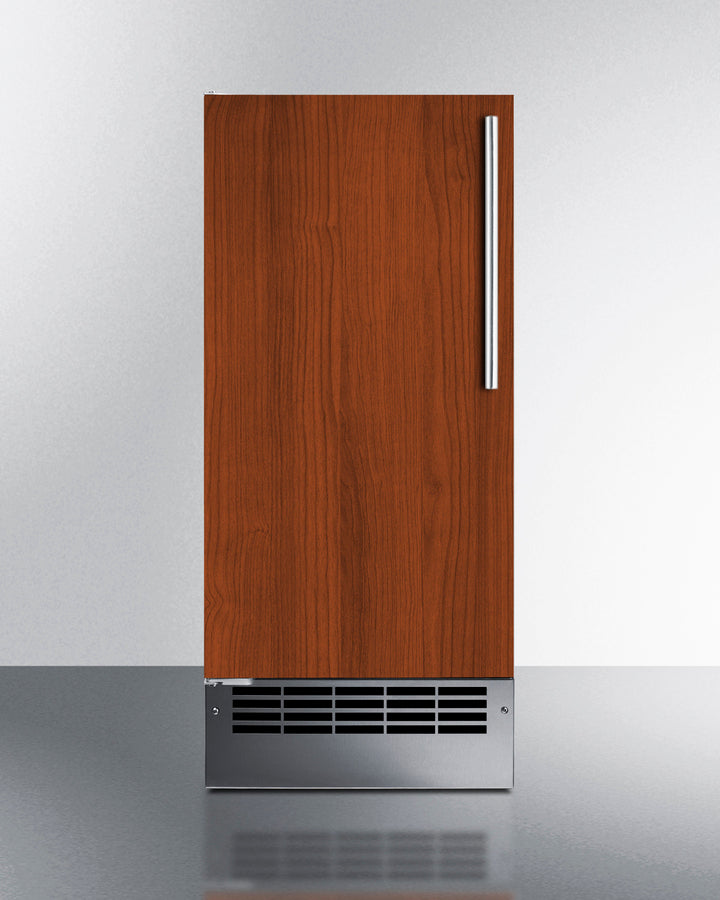

Panel-ready door
Integrated door frame allows you to install overlay panels for a custom look that blends into your cabinetry (panel size: 27 9/16" H x 14 13/16" W at 3/4" thick)
Large capacity
Produces and stores more than 20 lbs of ice per day cycle
Drain-free design
Convenient design allows more flexibility in positioning the unit
Manual defrost
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
Stainless steel exterior
304-grade stainless steel allows the icemaker to be used freestanding
Built-In capable
Make the best use of space by installing your ice maker under the counter
Sealed back
Space-saving design with easier cleanability
Standard water hookup
Operates with a standard 1/4” OD water supply line

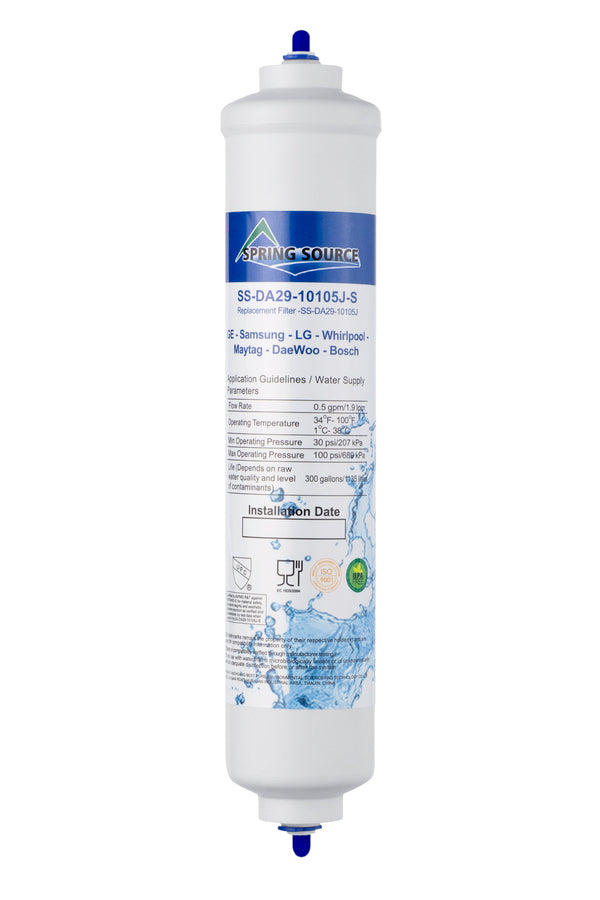

Filter included
Water filter is included for optional use
Ice scoop included
Large ice scoop and holder included for your convenience
Lasting ice cube production
Crescent-shaped ice provides a harder and longer-lasting ice
Removable bin
Users can remove the ice bucket for fast and easy cleaning
Insulated storage bin
Ice stays solid longer in this cold-protected bin
Left hand door swing
For this unit with the door opening from the other side, see model BIM26H34IF
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
Lead-free certified
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
