Sale price $2,267.97 Regular price $2,720.00 Save $452.03 / 16% OFF

Product Details for Summit BIM44GIFADA

Technical Details

Warranty

Parts 1 Year
Labor 1 Year

Dimensions & weight

Width 14.5 in.
Height 32.38 in.
Length 23.5 in.
Weight 100 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 6.39 ft³
Dimensional Weight 79.38 lbs.
Total of Cubes 6.39 ft³
Total of Dimensional Weight 79.38 lbs.

Overview icemaker

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.38" (82 cm)
Nominal Width 15.0" (38 cm)
Width 14.5" (37 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.5" (60 cm)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation NSF
Amps 4.8
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101029283
Door Swing LHD
Reversible Factory Reversible
Drain Required Yes
Daily Ice Production 50.0 lbs. (23 kg)
Ice Storage Capacity 25.0 lbs. (11 kg)
Ice Shape Cube
Size of Cube 7/8" x 7/8" x 7/8"
Number of Ice Cube Sizes 1
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 3.88 oz.
High Side PSI 350.0
Low Side PSI 130.0
Interior Height 18.5" (47 cm)
Interior Width 12.0" (30 cm)
Interior Depth 16.0" (41 cm)
Level Legs 4

Description

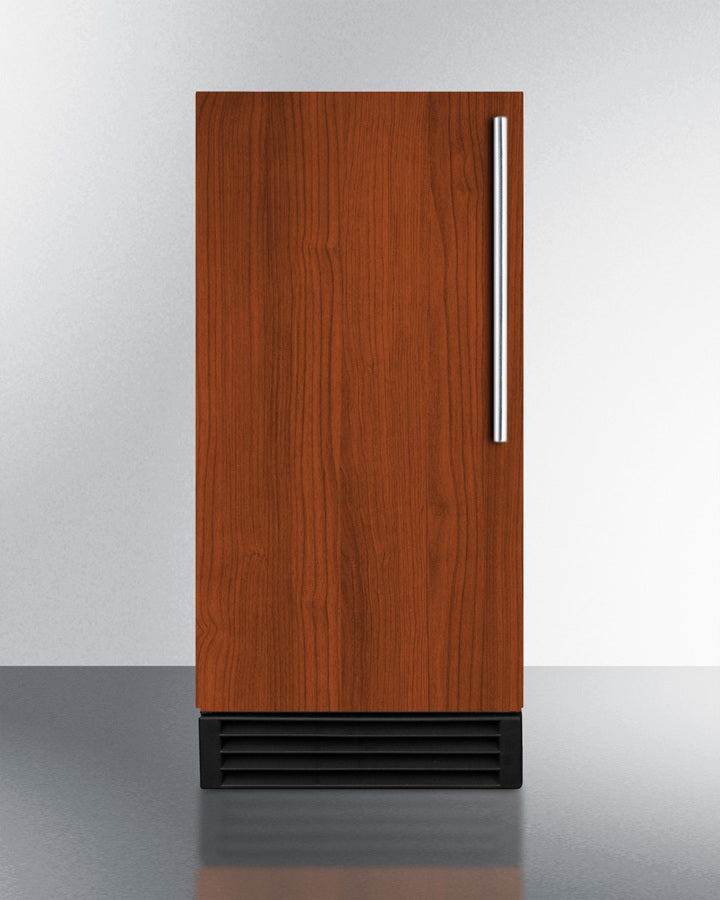

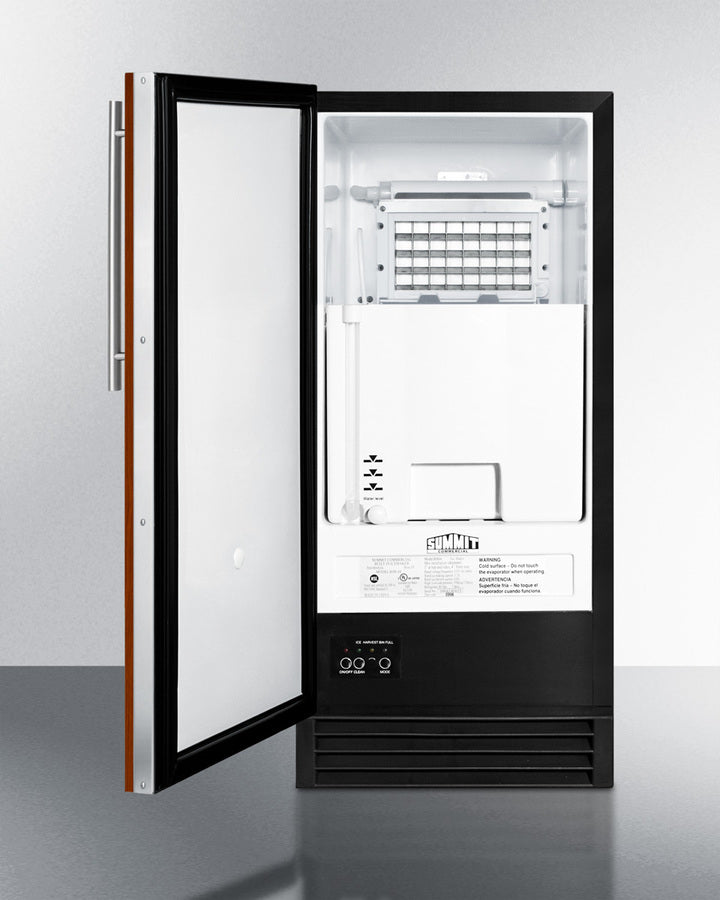

Summit's commercially approved icemakers are an attractive and durable solution to keeping a continuous supply of clear ice on hand in virtually any kitchen space. ENERGY STAR certified for commercial use, BIM44GIFADA is just 32 1/8"high, ideal for use under lower counters following ADA compliant guidelines. The front-breathing design allows built-in use under counters, while the fully finished cabinet also allows freestanding use, with a sealed back for easier cleanup. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel dimensions: 27" H x 14 1/2" W at 3/4" thick). Customers provide their own handle to complete the look. Inside, the BIM44GFADA has a touch control panel for easy operation. Indicator lights alert users to each step in the production process, as well as to when the bin is full. This unit can produce up to 45 lbs. of clear cube-shaped ice, with an adjustable bin capacity that can hold up to 25 lbs. The ice is produced in sheets and can easily be broken into cubes with the provided scoop, which can be mounted on brackets inside for easy use. An interior light in a blue hue allows for easy viewing of the interior, while automatic defrost operation makes maintenance simple and stress-free. This model comes equipped with an internal pump, while four adjustable leveling legs keep the unit level on uneven surfaces. Sized at 15" wide, BIM44GIFADA is ETL-S listed to NSF-12 for use in foodservice settings and can also be installed in any kitchen or wet bar. For this unit in a standard height, see the BIM44GIF.


Product Features

  • ENERGY STAR certified commercial performance
    Efficient performance for commercial use
  • ADA compliant
    32 3/8" height fits under lower ADA compliant counters
  • Commercially approved
    NSF listed for use in commercial establishments
  • Built-in capable

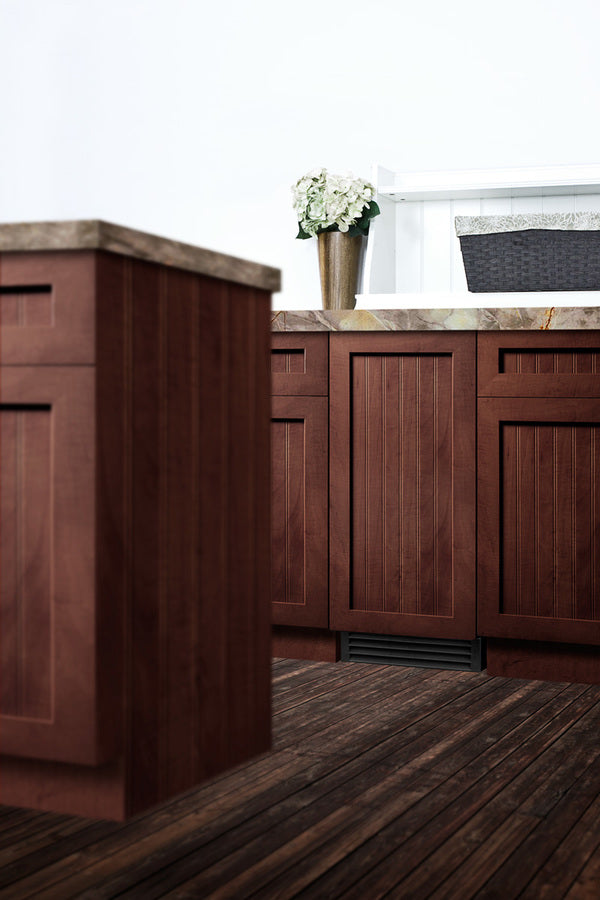

    Make the best use of space by installing your appliance under the counter
  • Panel-ready door
    Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)
  • Clear ice cube production
    Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop
  • Built-in pump
    Internal pump allows more flexibility in placing the unit
  • Automatic defrost
    Reduced maintenance with auto defrost system
  • Insulated storage bin
    Ice stays frozen longer inside this cold-protected bin
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • Lead-free certified
    Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
