Sale price $1,853.97 Regular price $2,289.97 Save $436.00 / 19% OFF

Product Details for Summit ASDW2412PNR

Technical Details

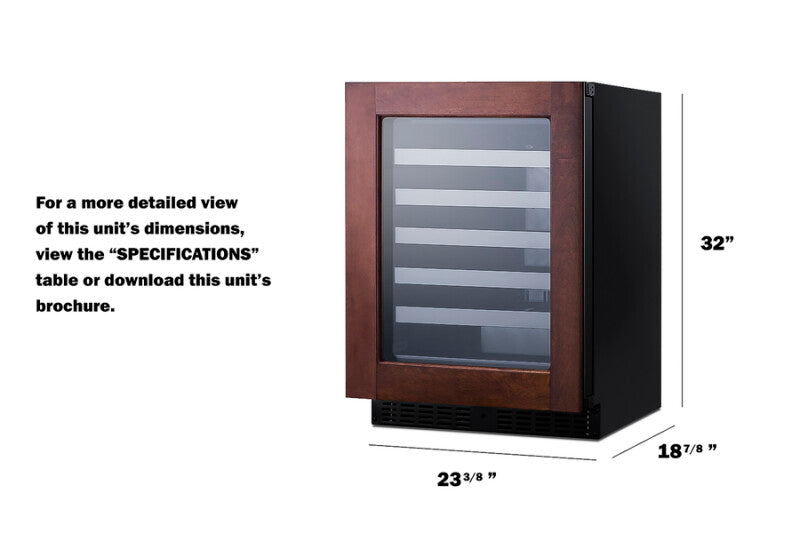

Dimensions & weight

Width 23.38 in.
Height 32 in.
Length 17.75 in.
Weight 120 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 7.69 ft³
Dimensional Weight 95.54 lbs.
Total of Cubes 7.69 ft³
Total of Dimensional Weight 95.54 lbs.

Overview wine cellar

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.38" (59 cm)
Nominal Depth 18.0" (46 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 39.88" (101 cm)
Capacity 3.25 cu.ft. (92 L)
Defrost Type Frost-Free
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101104195
Number of Zones 1
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Adjustable Shelves Yes
Shelf Type Steel
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 24.25" (62 cm)
Interior Width 1 19.5" (50 cm)
Interior Depth 1 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 4.5" (11 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Sabbath Mode Yes
Sound Level 32.6 dB

Description

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDW2412PNR is a 24" wide 33-bottle single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit features our European style fully articulating hinge, allowing for easy installation of custom door trim panels to match your cabinetry. The sealed rear and right angle cord ensure a better fit. The door is user-reversible and includes a front lock to protect your collection. Inside, the ASDW2412PNR features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41º and 64ºF to accommodate red, white, or sparkling wine. Our uniquely designed steel shelves in a jet black finish extend smoothly on ball-bearing glides, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2411PNR beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. NOTE: The interior can store up to 33 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the corks facing the rear for a better fit. Wider Burgundy bottles will also fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle design. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine. The lower shelf is designed to hold Bordeaux-style bottles horizontally. Please use care when loading and unloading this section.


Product Features

  • 24" wide wine cellar
    Single zone wine cooler for residential cold storage
  • Less than 18" deep
    Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
  • ADA compliant design
    32" height allows easy installation under lower ADA compliant counters
  • Adjustable height
    Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

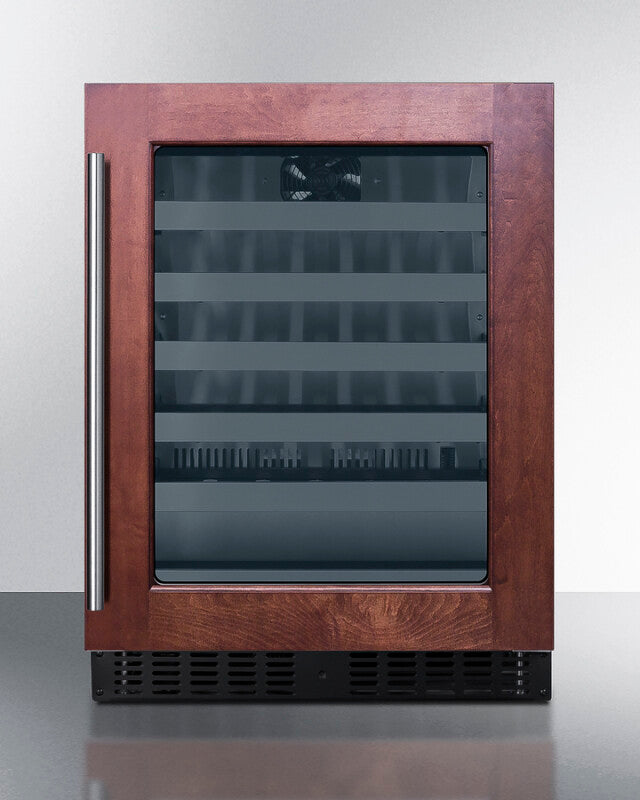

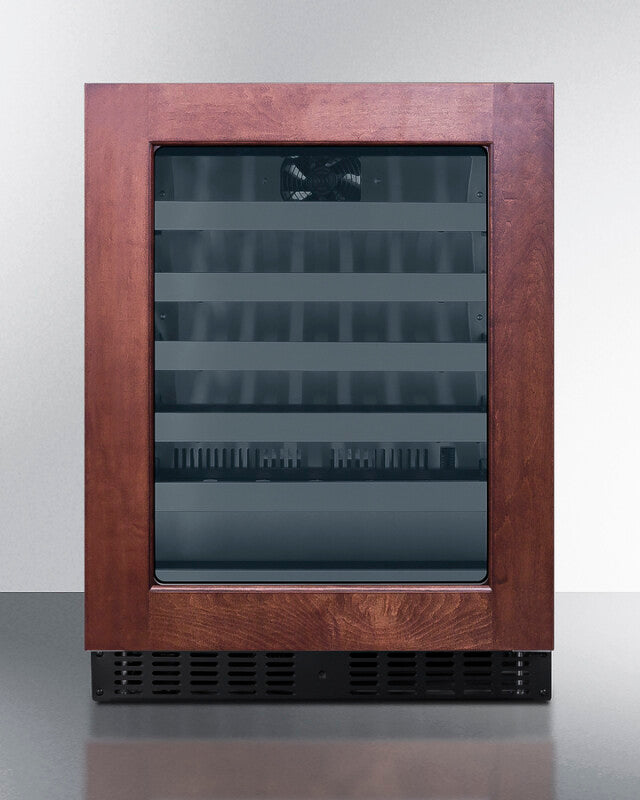

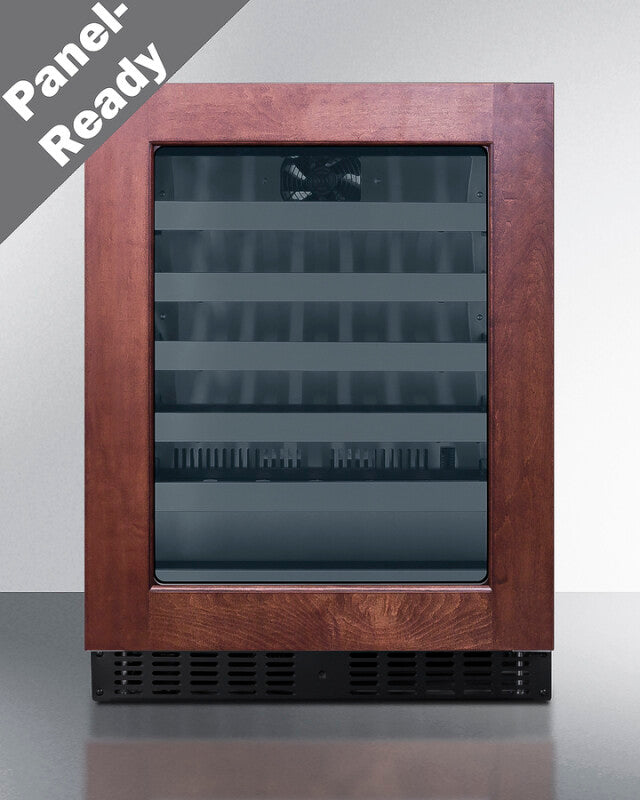

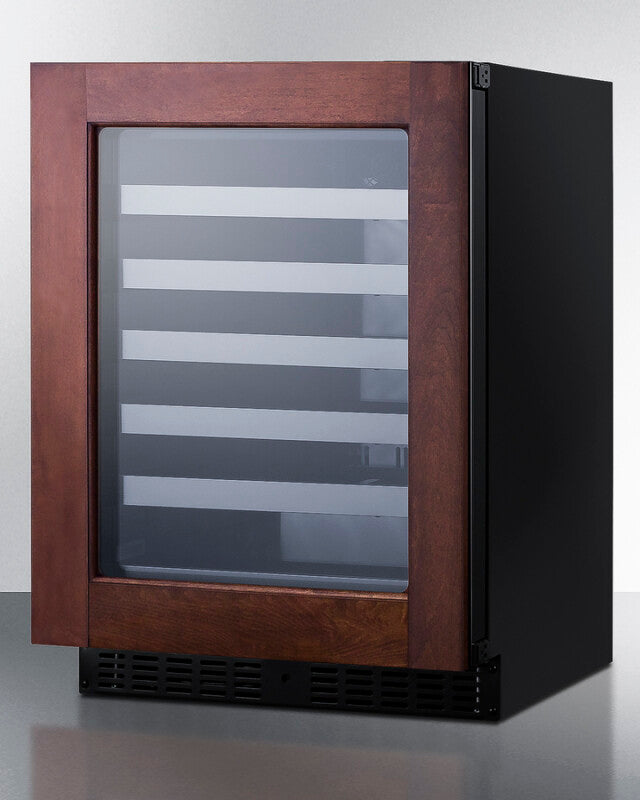

  • Panel-ready door
    European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 23 1/4" W with a 3 1/4" H x 3 1/4" W inner frame

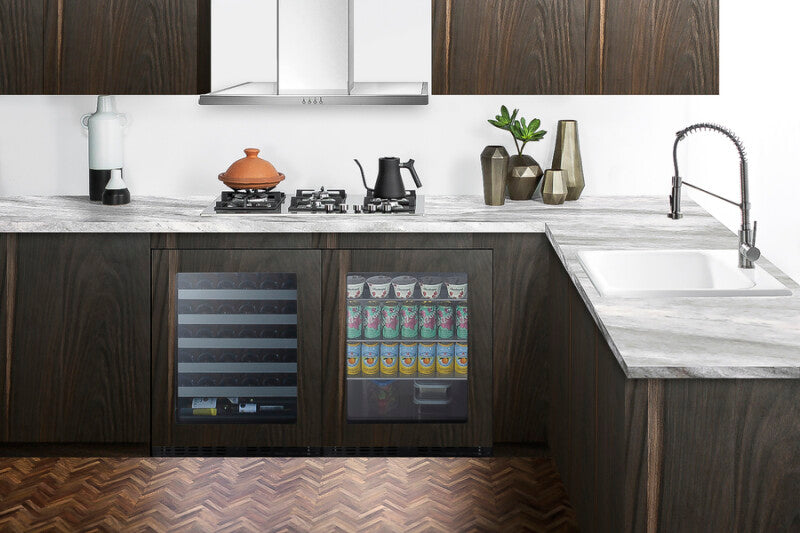

  • Built-in capable
    Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Double pane tempered glass door
    Elegant design offers a clear but protected view of your interior
  • Seamless stainless steel door trim
    Glass is framed by with a flush one-piece stainless steel trim for an elevated look

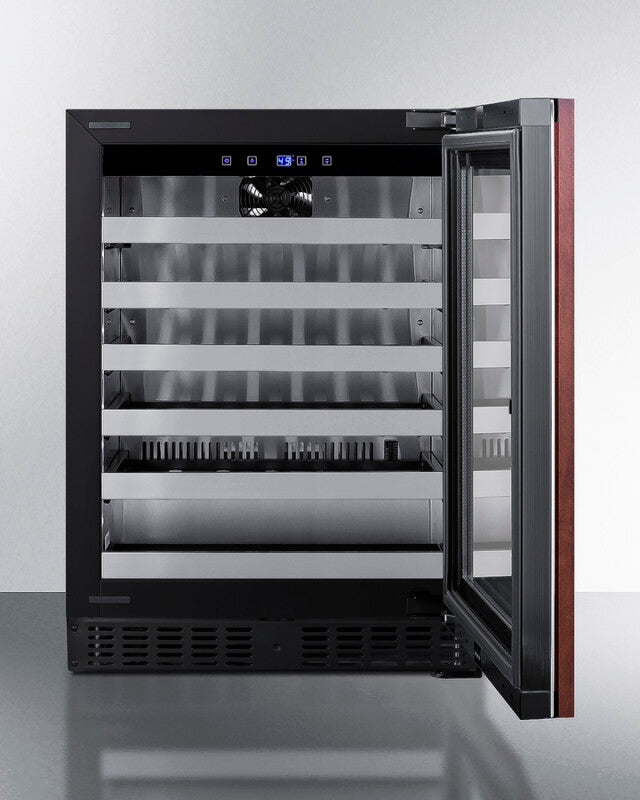

  • Stainless steel interior
    Walls and floor are constructed from stainless steel for added strength and easy cleanup
  • Factory installed lock
    Keyed lock for a secure interior (2 keys included)
  • Digital thermostat
    Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
  • Dimmable LED lighting
    Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
  • Commercial wine shelving
    Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

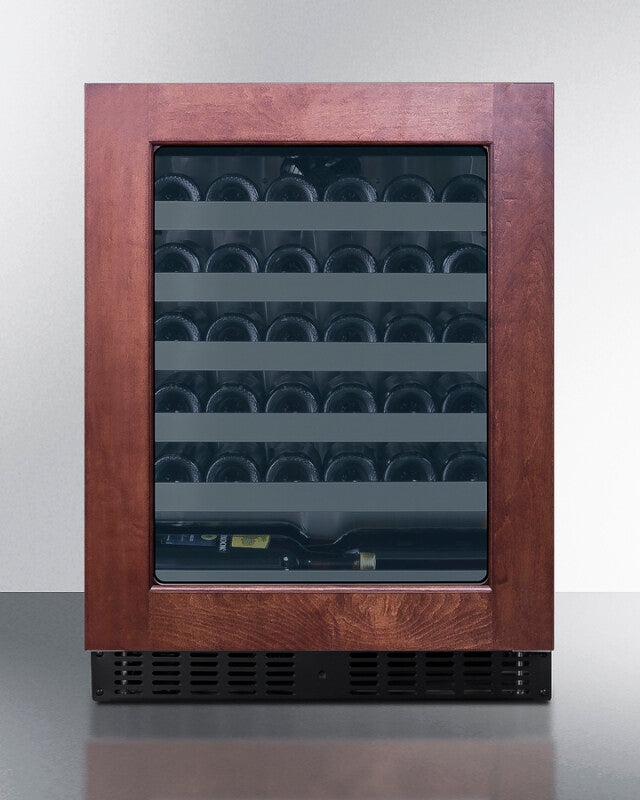

  • Large capacity
    33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)

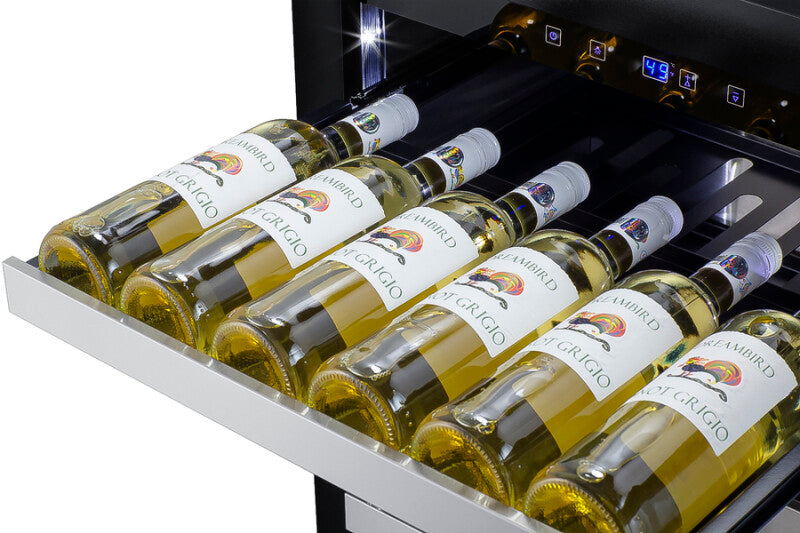

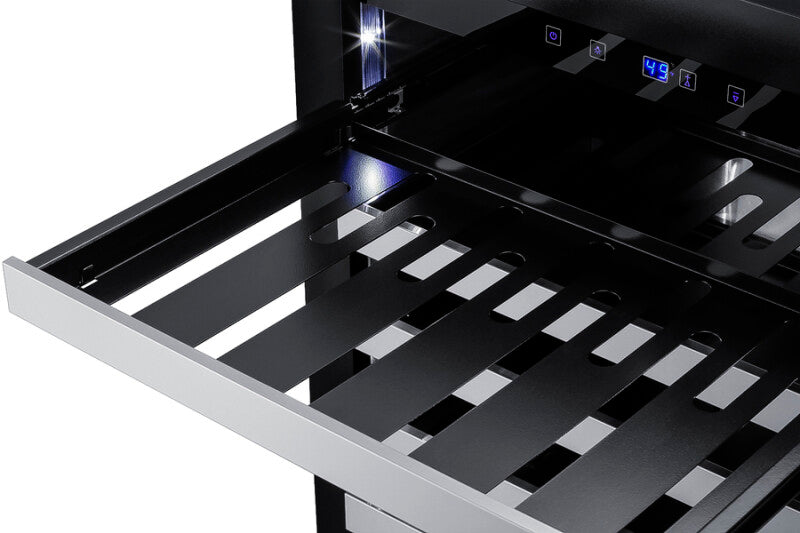

  • Smooth gliding extension
    Shelving is set on ball-bearing glides for a smoother extension, making it easy to load
  • Frost-free operation
    No-frost operation for minimum user maintenance
  • Internal fan
    Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
  • Open door alarm
    Audible alarm will sound if the door is left open longer than one minute
  • High temperature alarm
    High temperature alarm sounds if the unit's interior goes out of the recommended range
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Temperature Memory Function
    Unit will retain its last settings when power is restored in the event of power loss
  • Right angle plug
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
  • Sealed back
    Space-saving design with no exposed coils that offers easier cleanability

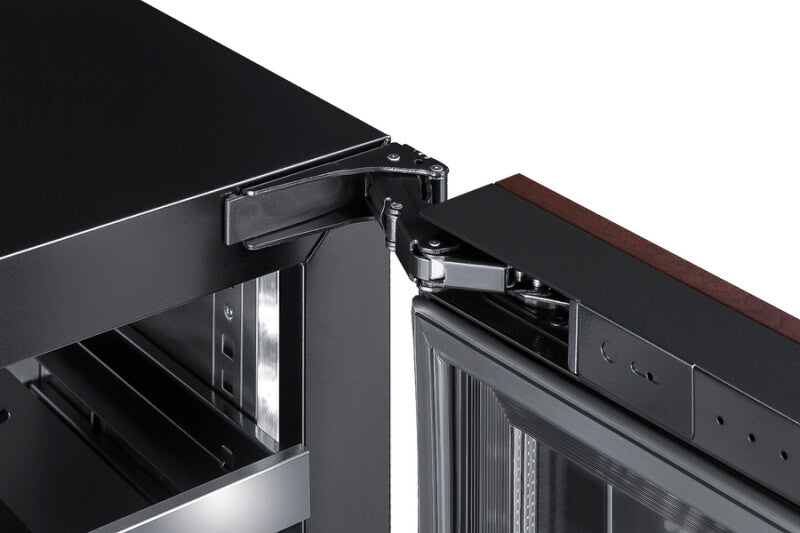

  • Fully articulating European style hinge
    Smoother opening and a better fit with an integrated European hinge
  • Reversible door
    User-reversible door swing for added flexibility
  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
