Summit ALWC532PNR 24" Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included) Black
Sale price
$1,520.97
Regular price
$1,929.97
Save
$409.00
/ 21% OFF
Out of stock
Active Rebates
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$1,520.97
Regular price
$1,929.97
Save
$409.00
/ 21% OFF
Product Details for Summit ALWC532PNR
Technical Details
Warranty
| Parts | 1 Year |
| Labor | 1 Year |
Dimensions & weight
| Width | 23.5 in. |
| Height | 31.63 in. |
| Length | 23.38 in. |
| Weight | 113 lbs. |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 10.06 ft³ |
| Dimensional Weight | 125.02 lbs. |
| Total of Cubes | 10.06 ft³ |
| Total of Dimensional Weight | 125.02 lbs. |
Overview wine cellar
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 32.0" (81 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.38" (59 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Panel | 24.25" (62 cm) |
| Depth with door at 90° | 47.38" (120 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101065533 |
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 11.63" (30 cm) |
| Interior Width 1 | 20.5" (52 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 64ºF |
| Interior Height 2 | 11.88" (30 cm) |
| Interior Width 2 | 20.5" (52 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
| Sound Level | 34 dB |
Description

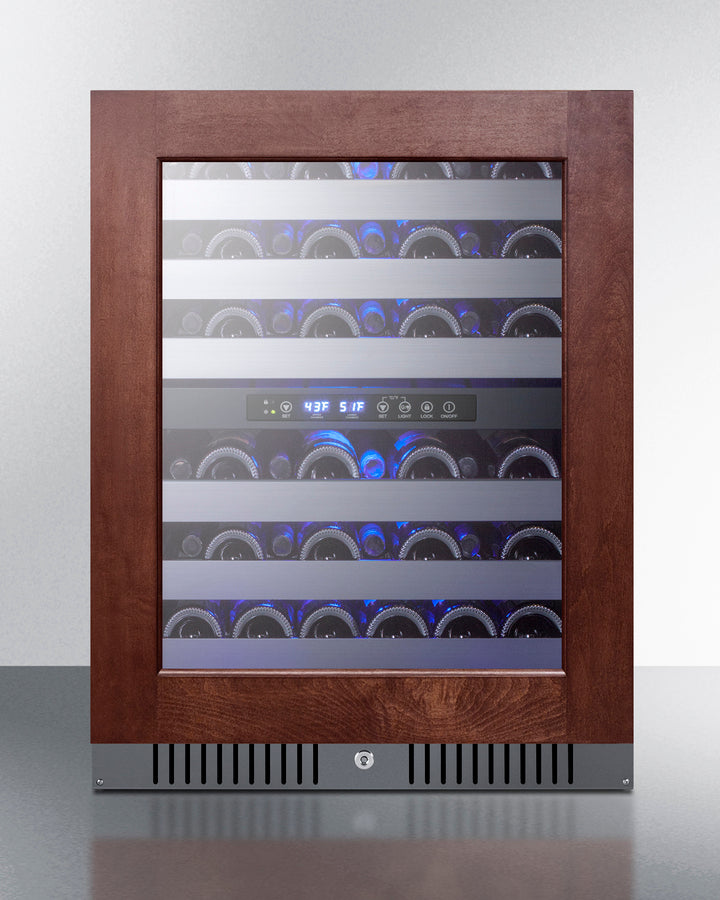

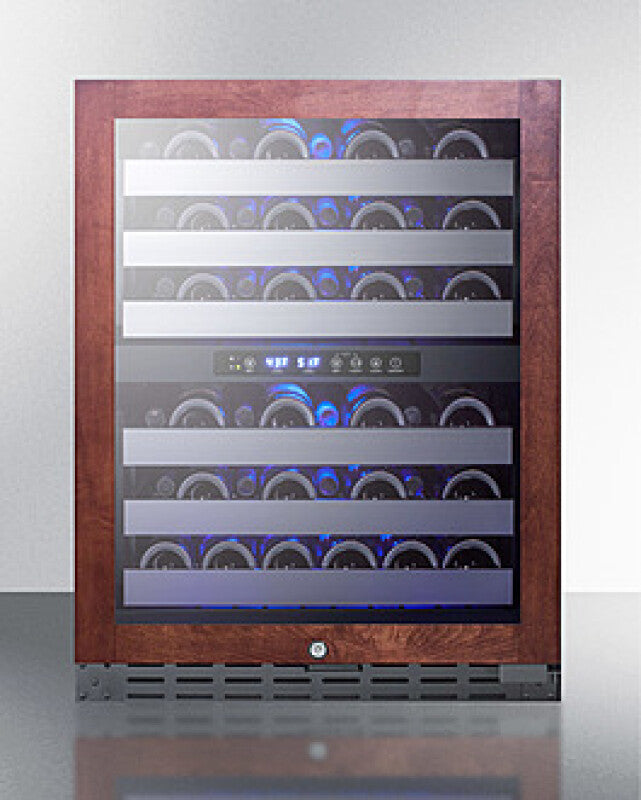

Summit's extensive selection of built-in undercounter wine cellars includes commercially approved ADA compliant choices that let you achieve a custom look ideal for any space. The ALWC532PNR is a dual zone wine cellar sized for 24 inch spaces. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The panel-ready door features our fully articulating European style hinging, with a 2-piece bracket kit included to allow easy installation of your own custom door trim to match or blend into adjacent cabinetry. A factory-installed lock offers added security and a stainless steel kickplate completes the look. Inside, the ALWC532PNR is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. This unit is ETL-S listed to NSF-7 commercial standards. With its advanced user features and versatile design, the ALWC532PNR makes a great addition to any ADA compliant setting looking to store wine in modern style. Additional panel-ready wine cellars are available in more sizes (including shallow depth). Explore the full Summit line to discover the perfect choice for your space.
Product Features
-
ADA compliant
Sized just under 32" high for an easy fit under lower ADA compliant counters -
24" Dual Zone Wine Cellar
Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones -

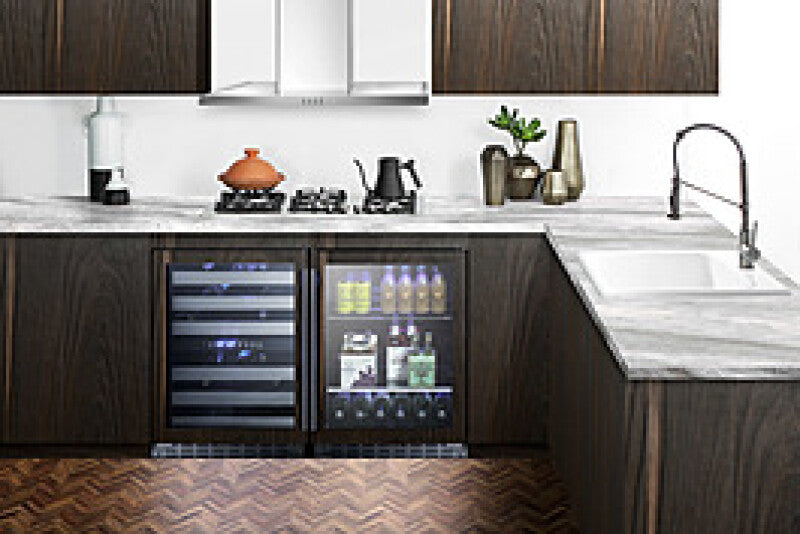

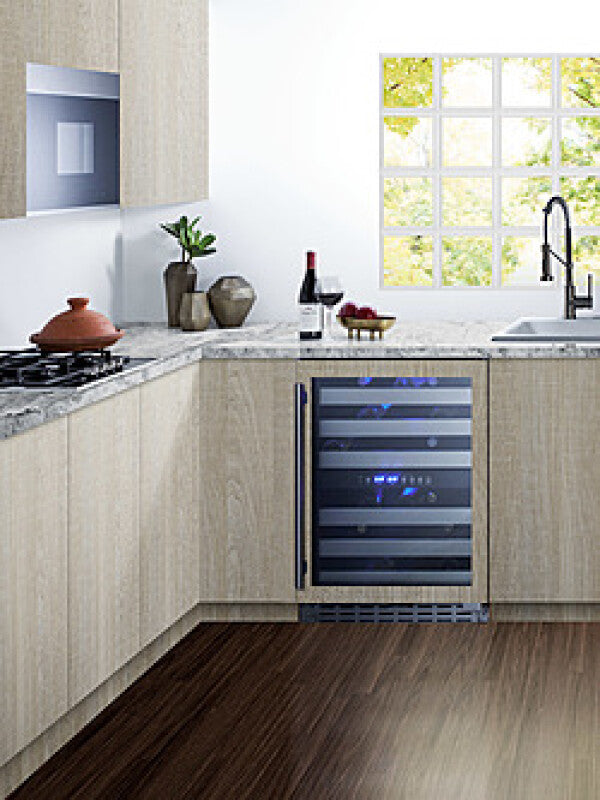

Built-in capable
Front-breathing design allows this unit to be installed under counters -

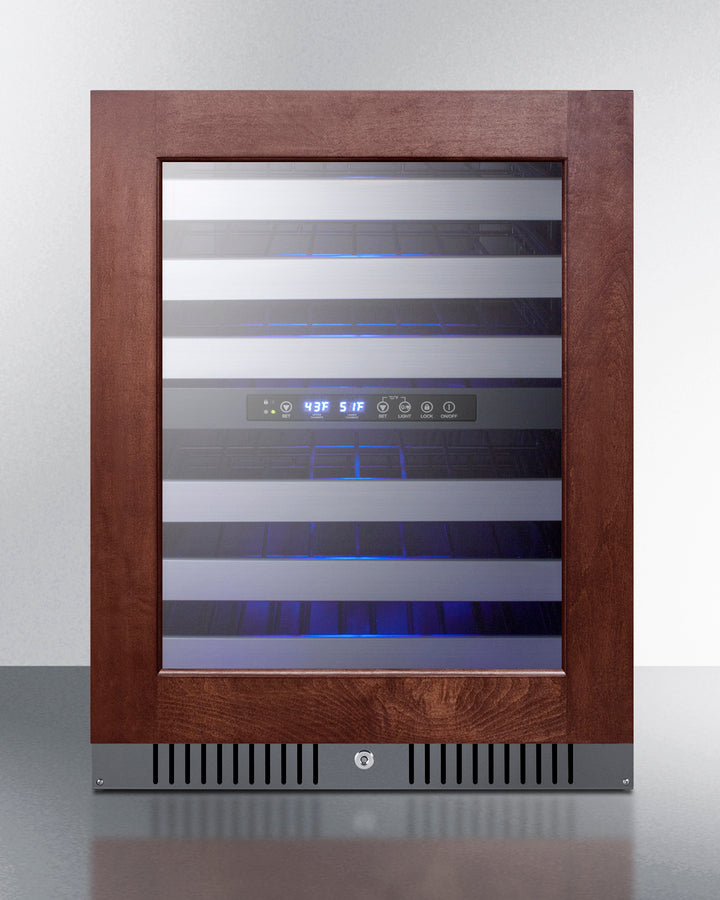

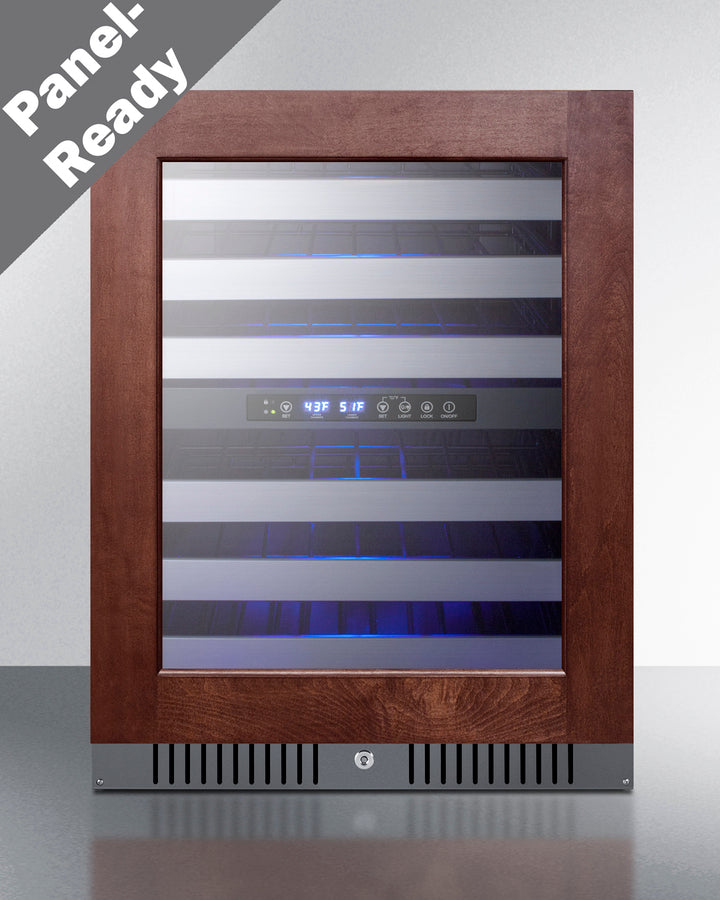

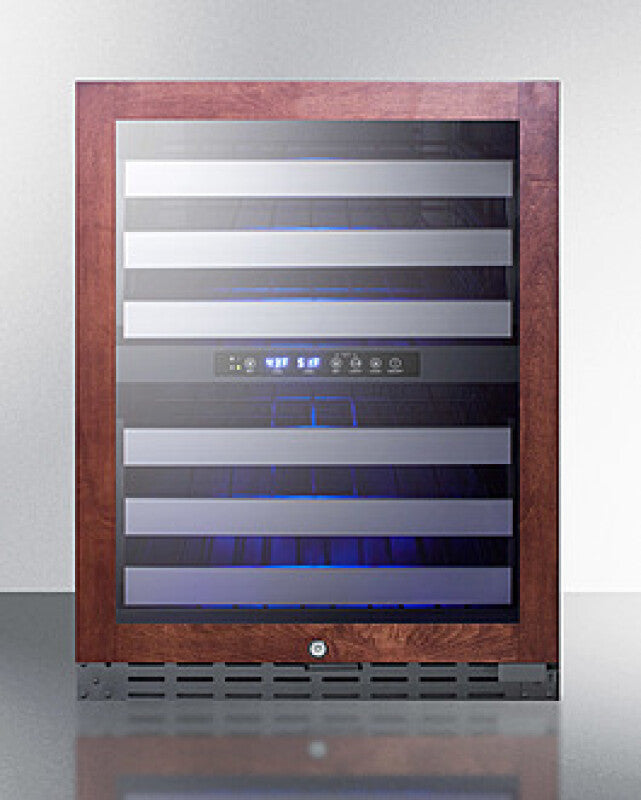

Panel-ready door trim
Innovative bracket kit allows easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 29 1/4" H x 23 1/8" W with a 22 3/8" H x 17 3/4" W viewable area -

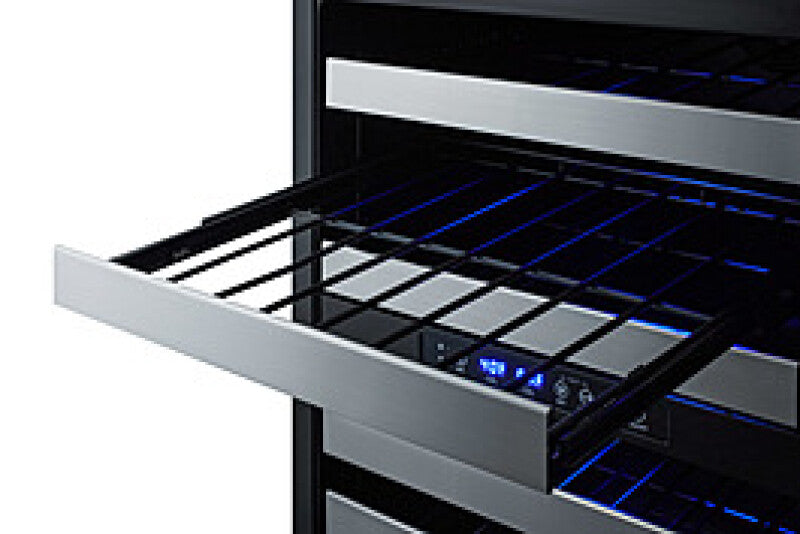

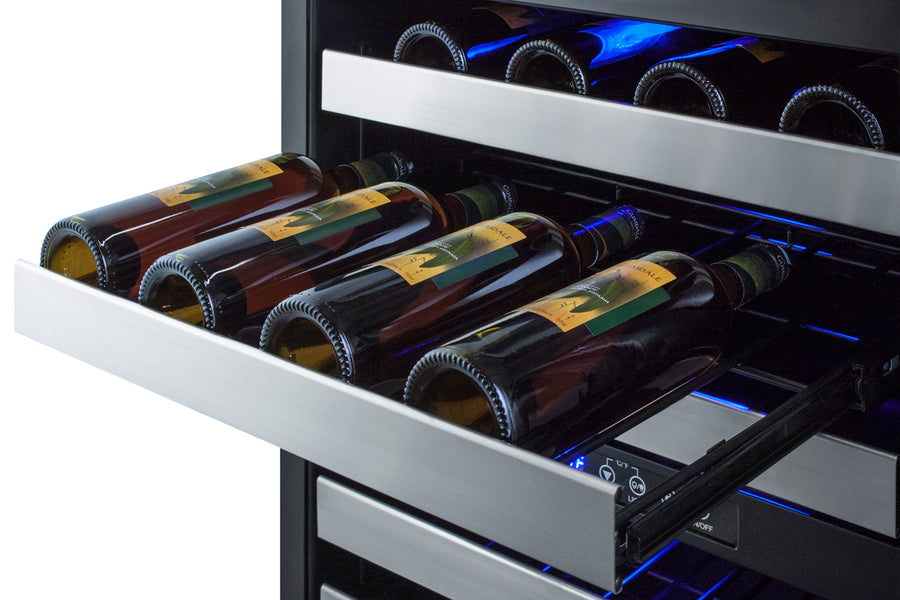

Full-extension shelving
Shelves move smoothly on ball-bearing glides for easier loading and unloading -
Two temperature zones
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F -

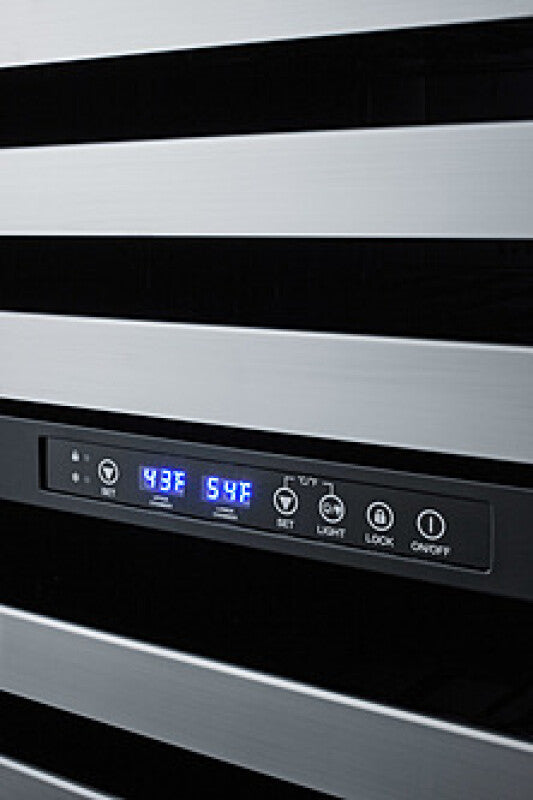

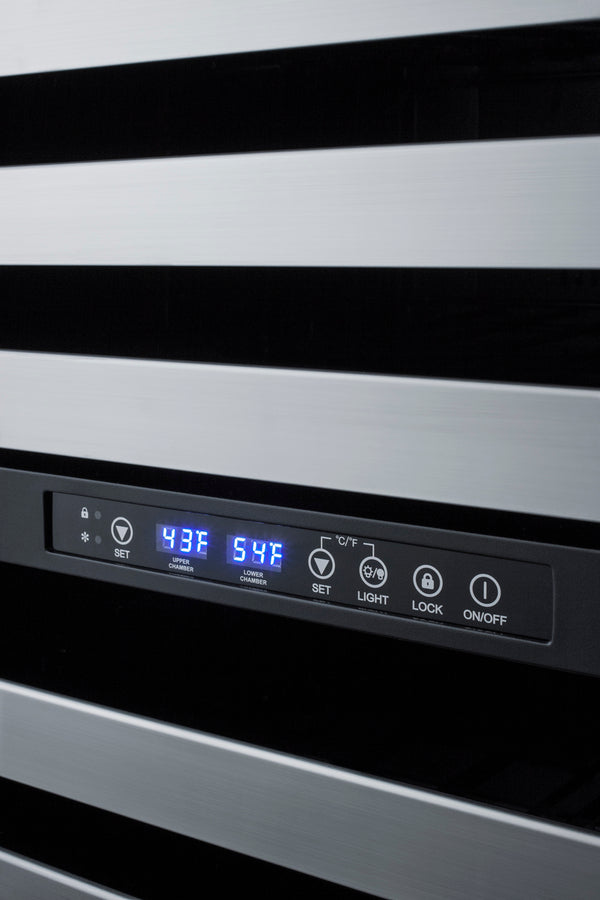

Digital control panel
Easy temperature management with electronic controls located inside -
Versatile readout
Temperature viewable in Celsius or Fahrenheit -
Automatic defrost
Reduced maintenance with auto defrost system -
Double pane tempered glass door
Provides a full display of the interior, with two levels of glass for added protection -
Interior lighting
Recessed LED lighting in both compartments brings striking blue illumination to your collection -
Factory installed lock
Keyed lock for secure interior, with two keys included -

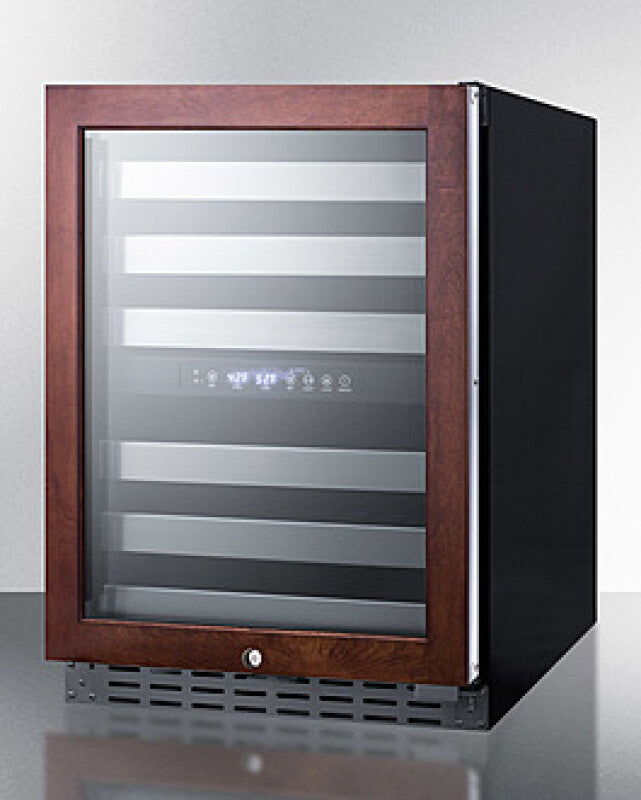

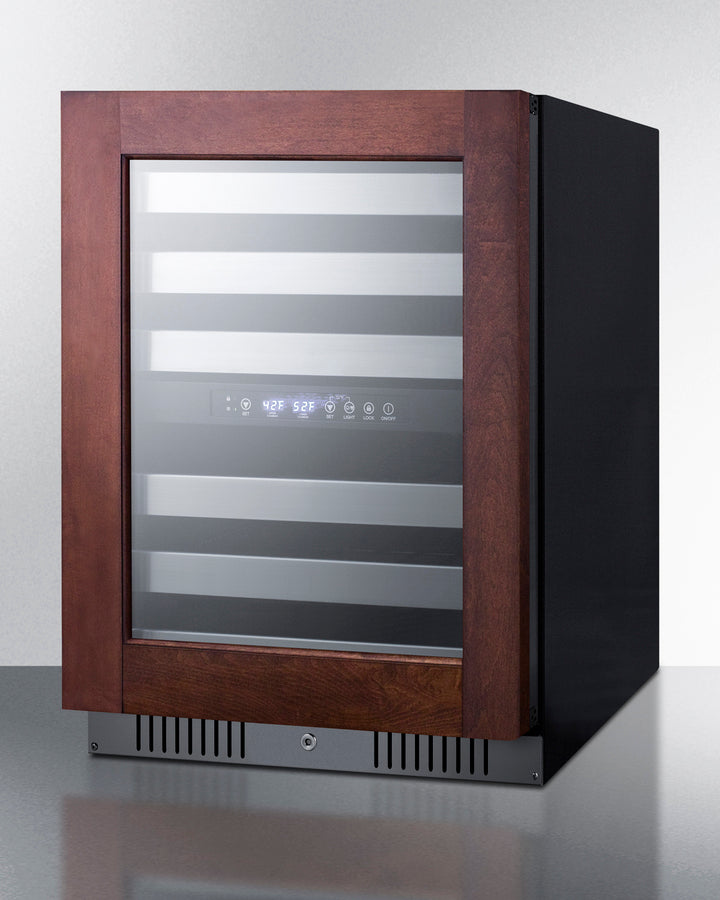

Fully finished black cabinet
Allows the unit to be used freestanding -
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals -
CARB Compliant
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations -
Commercially listed
ETL-S listed to NSF-7 Standards for use in commercial establishments -

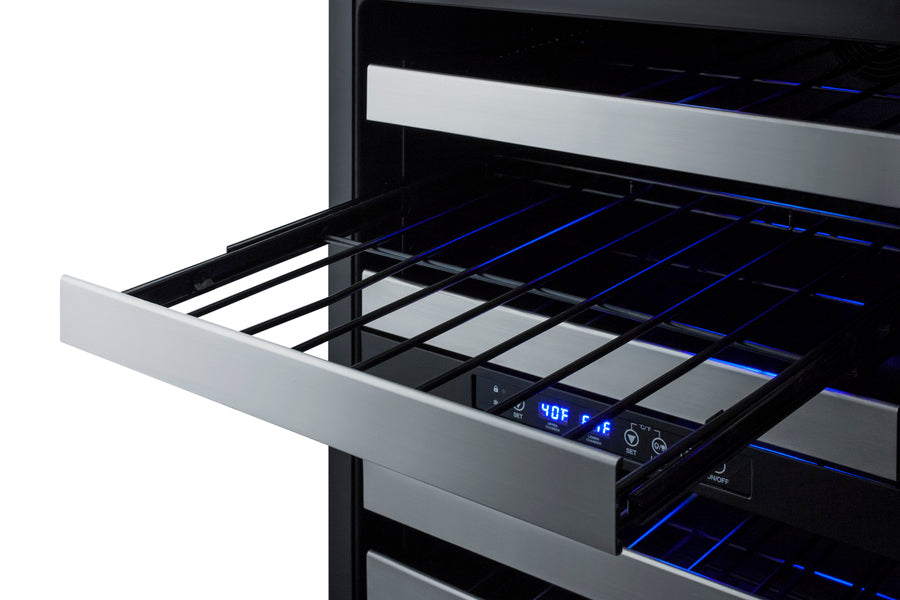

Flexible commercial grade shelving
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving and offers a more versatile fit for a variety of bottles -

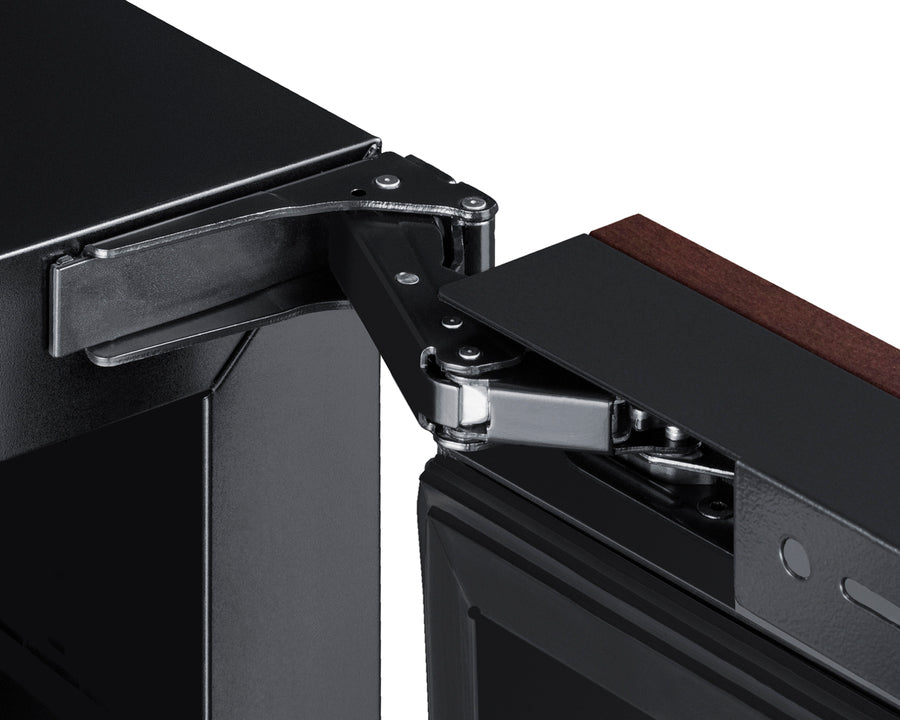

Fully articulating hinge
Smoother opening and a better fit with an integrated European style door hinge
