SUMMIT ALWC532 24" Wide Built-in Wine Cellar, ADA Compliant

Summit

SKU: ALWC532

  • On Sale

Key Specs

  • Type: Wine coolers
  • Width: 23.5 Inch
  • Depth: 25.38 Inch
  • Height: 31.63 Inch

More details

Sale price $1,266.30 Regular price $1,650.00 Save $383.70

Check Delivery Options

More on the way

Notify Me
  • Product Information
  • Specifications
  • Manuals & Guides
  • Features
  • Reviews
  • General
  • Model: ALWC532
  • Brand: Summit Appliance
  • Type: Wine Fridges
  • Height: 31.63
  • Width: 23.5
  • Length: 25.38
  • Capacity & Storage
  • Number of Shelves: 6
  • Counter depth: No
  • Features
  • Ice Maker: No
  • Water Dispenser: No
  • Sabbath mode: No
  • Advanced Features
  • Wi-Fi Connectivity: No


Perfectly sized to fit under lower ADA compliant counters
(BULL)Commercial grade design meets NSF-7 standards
(BULL)Flexible design allows built-in or freestanding use in any 24" space
(BULL)Chill white and sparkling wine while preserving red in two distinct temperature zones

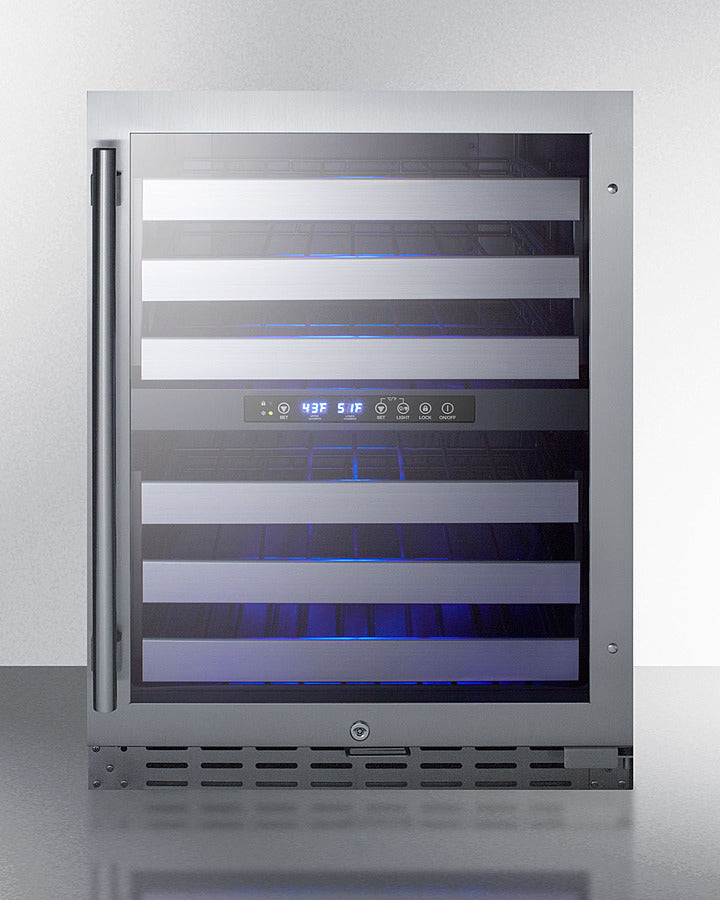

(BULL)Seamless stainless steel trimmed glass door provides an elegant view of your collection
(BULL)Easy temperature management with digital controls

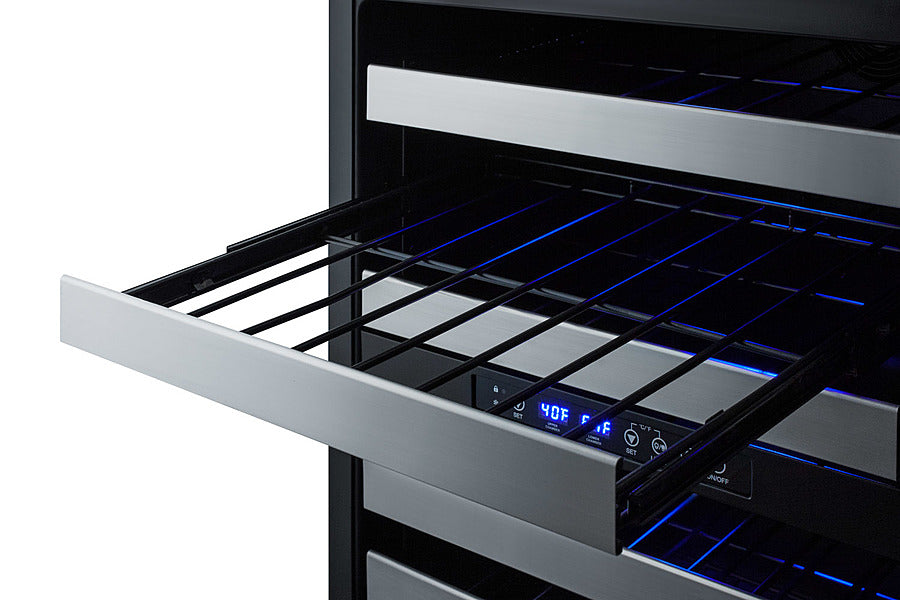

(BULL)Full-extension shelving on ball-bearing glides ensures easier bottle access


Summit's extensive selection of built-in undercounter wine cellars includes ADA compliant choices with versatile designs for residential or commercial use. The ALWC532 is a dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The front-breathing...


Perfectly sized to fit under lower ADA compliant counters
(BULL)Commercial grade design meets NSF-7 standards
(BULL)Flexible design allows built-in or freestanding use in any 24" space
(BULL)Chill white and sparkling wine while preserving red in two distinct temperature zones
(BULL)Seamless stainless steel trimmed glass door provides an elegant view of your collection
(BULL)Easy temperature management with digital controls
(BULL)Full-extension shelving on ball-bearing glides ensures easier bottle access

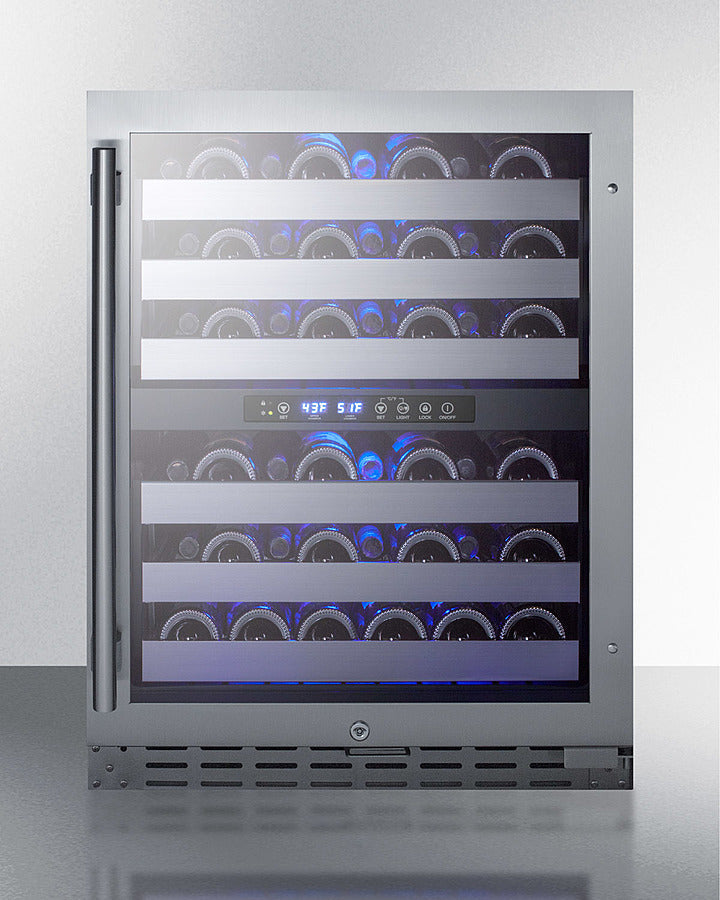

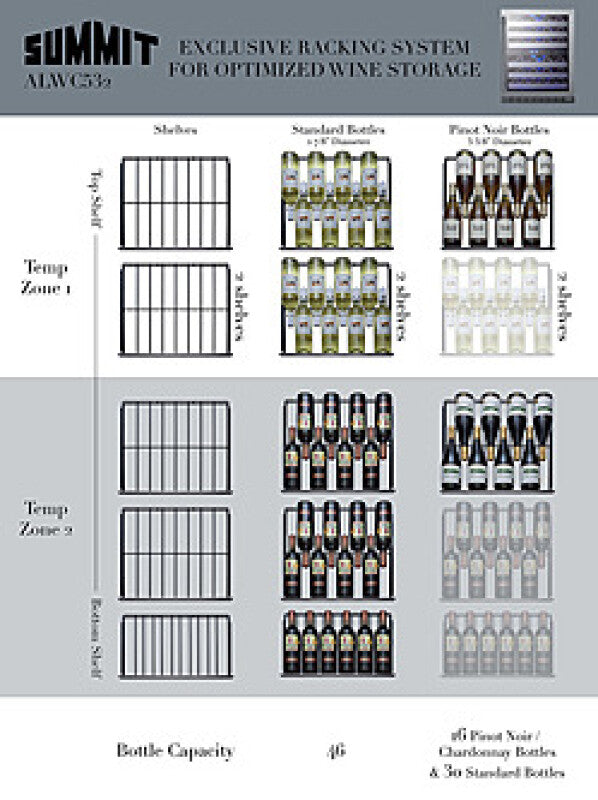

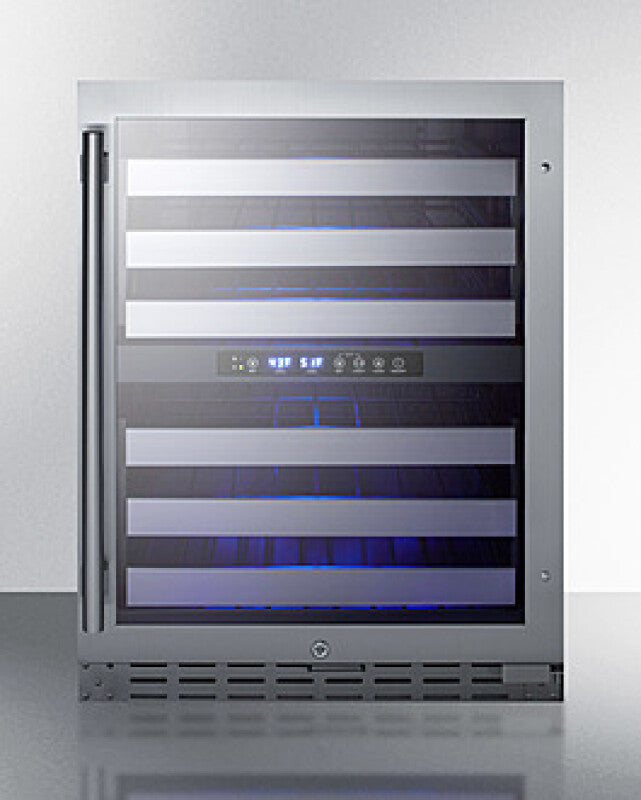

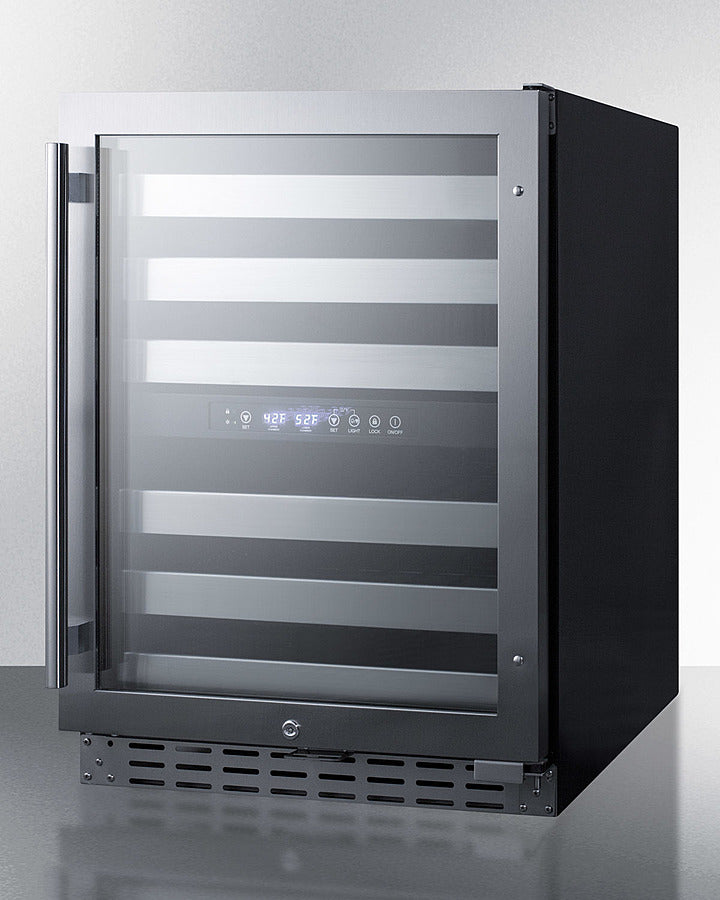

Summit's extensive selection of built-in undercounter wine cellars includes ADA compliant choices with versatile designs for residential or commercial use. The ALWC532 is a dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The user-reversible double pane tempered glass door features a seamless stainless steel door trim and pro style handle in stainless steel. A factory-installed lock offers added security and a stainless steel kickplate completes the look. Inside, the ALWC532 is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50 F for white wine, while the lower zone is designed to store red wine between 50 and 64 F. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation. With its advanced user features and versatile design, the ALWC532 makes a great addition to any ADA compliant setting looking to store wine in modern style. This unit can also be ordered with a panel-ready door trim, or with a stainless steel wrapped exterior cabinet. For more options, browse our website.

Overview
Height of Cabinet 31.63" (80 cm)
Width 23.5" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.75" (116 cm)
Bottles 46 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 113.0 lbs. (51 kg)
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101063287
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 11.63" (30 cm)
Interior Width 1 20.5" (52 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs 2
Temperature Range 41 to 64 F
Interior Height 2 11.88" (30 cm)
Interior Width 2 20.5" (52 cm)
Interior Depth 2 18.0" (46 cm)
Sound Level 34 dB
Exterior
LHD - Left hand door swing Extra key
Door
T1 Door Tint T1S Door Tint
T2 Door Tint T3 Door Tint
T4 Door Tint -
Overview
Height of Cabinet 31.63" (80 cm)
Width 23.5" (60 cm)
Depth 23.38" (59 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 45.75" (116 cm)
Bottles 46 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.25
Voltage/Frequency 115 V AC/60 Hz
Weight 113.0 lbs. (51 kg)
Shipping Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101063287
Wine Cellar
Number of Zones 2
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.23 oz.
High Side PSI 150.0
Low Side PSI 50.0
Interior Height 1 11.63" (30 cm)
Interior Width 1 20.5" (52 cm)
Interior Depth 1 18.0" (46 cm)
Compressor Step Depth 6.0" (15 cm)
Level Legs 2
Temperature Range 41 to 64 F
Interior Height 2 11.88" (30 cm)
Interior Width 2 20.5" (52 cm)
Interior Depth 2 18.0" (46 cm)
Sound Level 34 dB
Exterior
LHD - Left hand door swing Extra key
Door
T1 Door Tint T1S Door Tint
T2 Door Tint T3 Door Tint
T4 Door Tint -
  • ADA compliant : Sized just under 32" high for an easy fit under lower ADA compliant counters

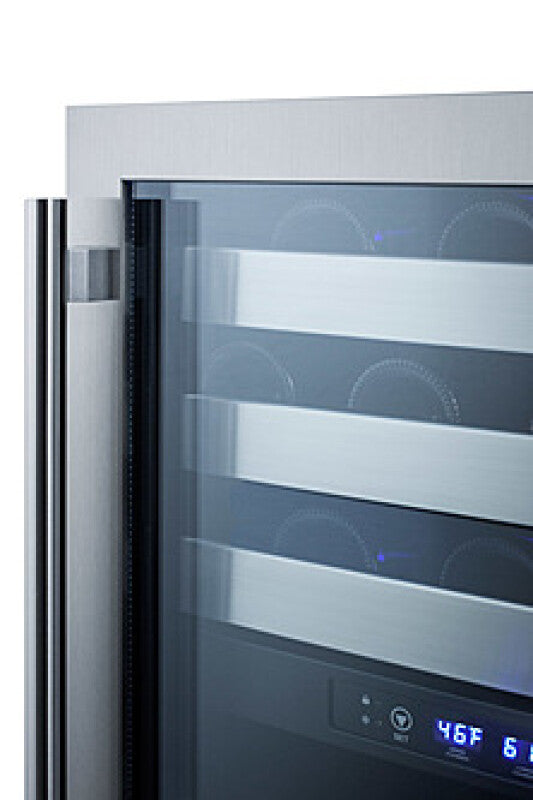

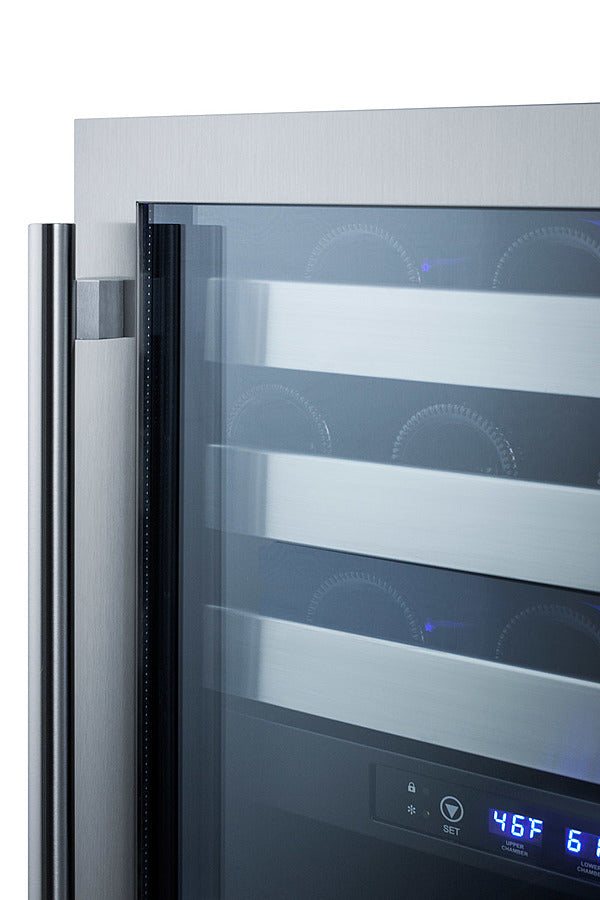

  • Stainless steel door frame : Single-piece door trim offers a more deluxe look
  • Commercially approved : ETL-S listed to NSF-7 standards for use in commercial applications

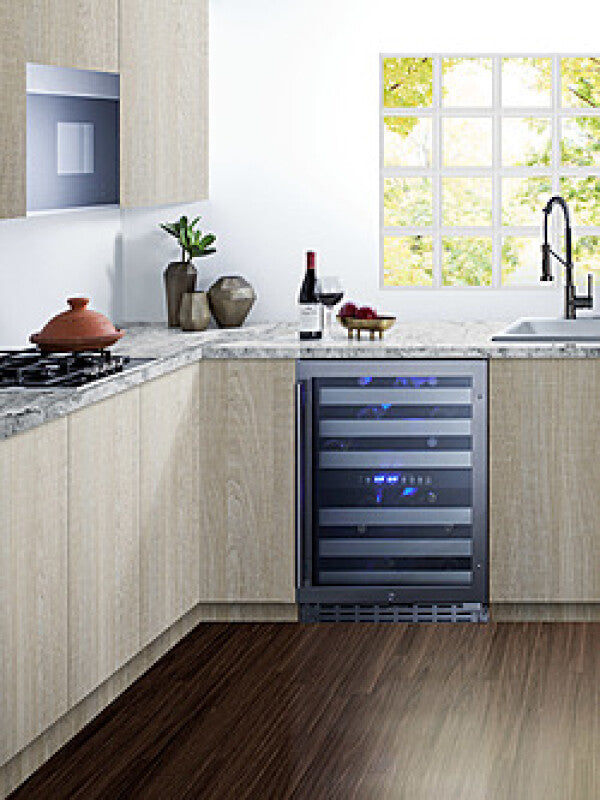

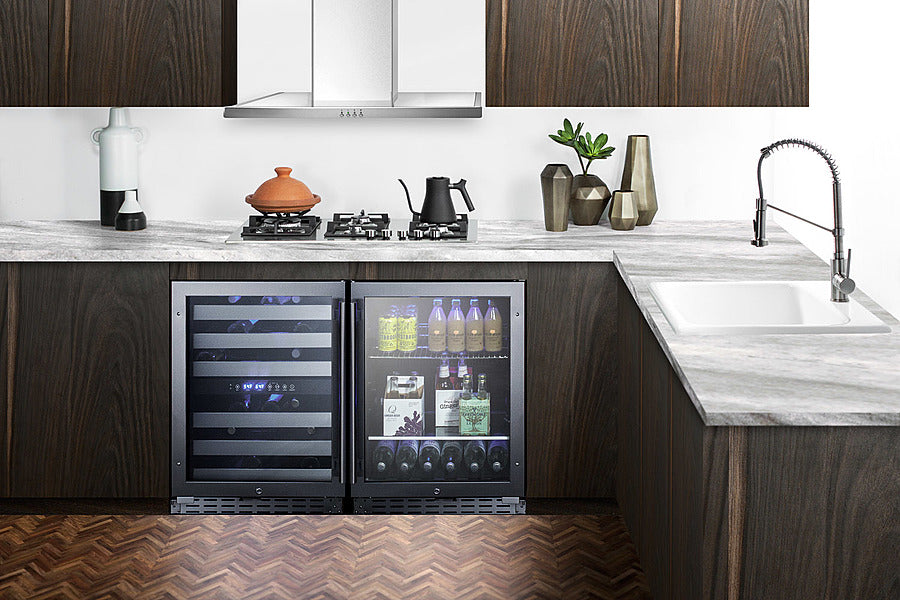

  • Built-in capable : Front-breathing design allows this unit to be installed under counters
  • Commercial shelving design : Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

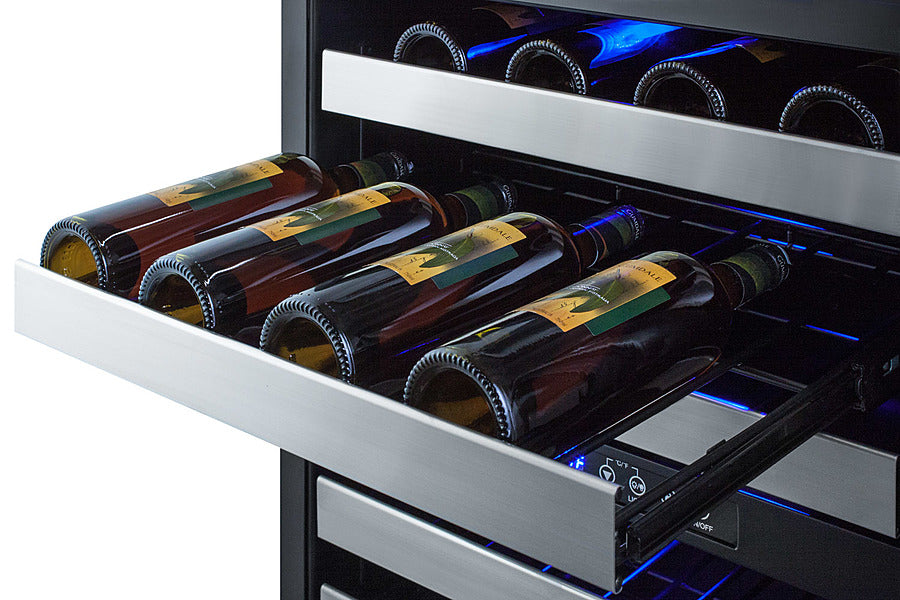

  • Full-extension shelving : Shelves move smoothly on ball-bearing glides for easier loading and unloading
  • Two temperature zones : Lower zone for reds has a temperature range of 50 F to 64 F; Upper zone stores whites and sparkling wine between 41 F and 50 F

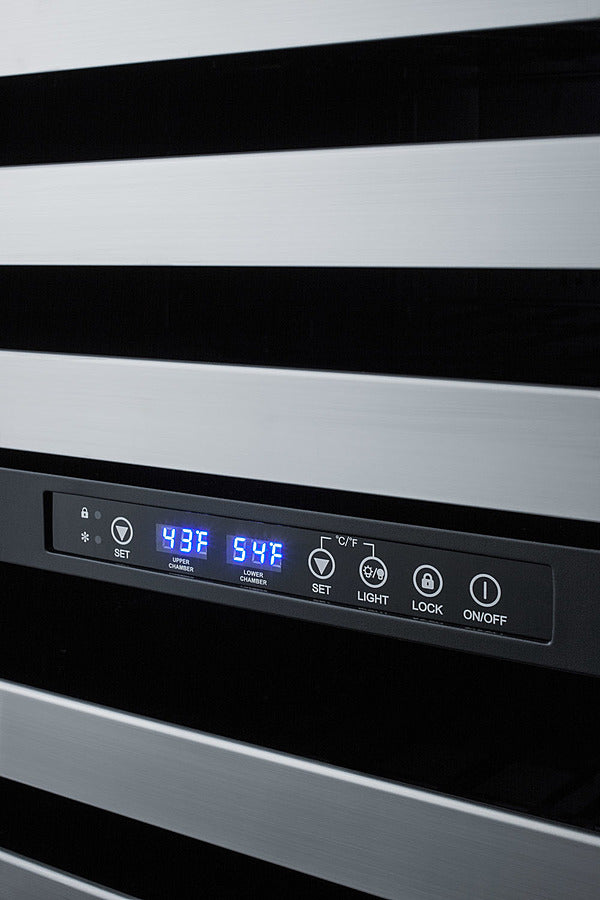

  • Digital control panel : Easy temperature management with electronic controls located inside
  • Versatile readout : Temperature viewable in Celsius or Fahrenheit
  • Automatic defrost : Reduced maintenance with auto defrost system
