Sale price $1,246.50 Regular price $1,474.97 Save $228.47 / 15% OFF

Product Details for Summit ALWC15PNR

Technical Details

Dimensions & weight

Width 14.75 in.
Height 32 in.
Length 23.63 in.
Weight 65 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 6.45 ft³
Dimensional Weight 80.24 lbs.
Total of Cubes 6.45 ft³
Total of Dimensional Weight 80.24 lbs.

Overview wine cellar

Nominal Height 32.0" (81 cm)
Height of Cabinet 32.0" (81 cm)
Nominal Width 15.0" (38 cm)
Width 14.75" (37 cm)
Nominal Depth 24.0" (61 cm)
Depth 23.63" (60 cm)
Depth with door at 90° 38.25" (97 cm)
Capacity 2.2 cu.ft. (62 L)
Bottles 23 bottles
Defrost Type Automatic
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101082882
Number of Zones 1
Door Swing RHD
Reversible Yes
Adjustable Shelves Yes
Shelf Type Wood
Shelf Qty 5
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 0.78 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 21.25" (54 cm)
Interior Width 1 10.5" (27 cm)
Interior Depth 1 17.25" (44 cm)
Compressor Step Height 3.5" (9 cm)
Compressor Step Width 10.5" (27 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Sabbath Mode Yes
Sound Level 32.9 dB

Description

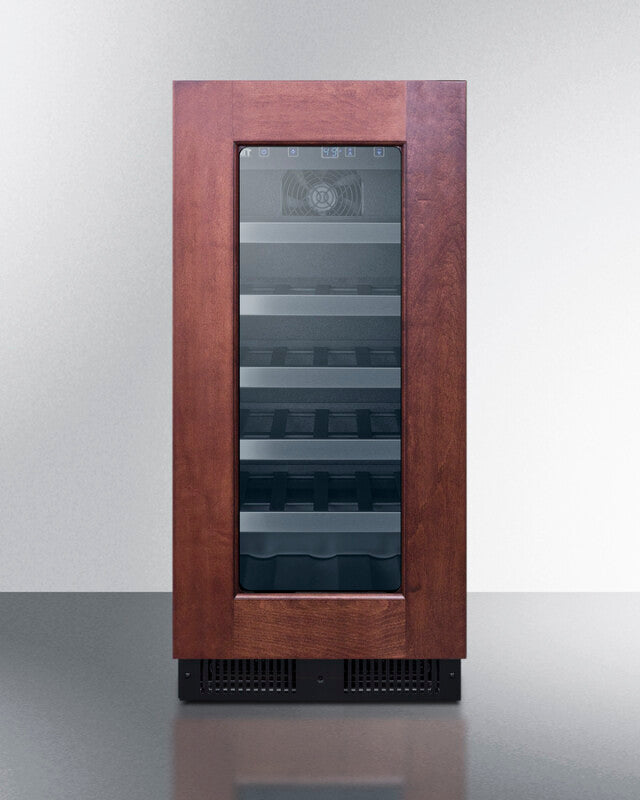

Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces. The ALWC15PNR is a wine cellar sized just under 15" wide and 32" high to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also makes it safe for freestanding use. This unit includes a fully articulating European-style hinge and 2-piece bracket kit that lets you easily install overlay panels over the door trim to create a custom look. The double pane tempered glass door provides a full view of stored contents and a front lock offers convenient security. For added space savings, the ALWC15PNR is designed with a sealed back and right angle cord. Five wooden shelves let you store up to 23 bottles of your favorite wine. The shelves are specially designed to store either standard Bordeaux style or wider Burgundy style bottles. Recessed LED lighting offers an attractive and energy efficient presentation for your collection. This model utilizes automatic defrost for easy maintenance and includes an internal fan to ensure more even temperature distribution. An audible alarm sounds if the door has been left open for over one minute, or if the temperature has risen out of the recommended storage range. This unit is also equipped with Sabbath mode to allow users the option of disabling certain electrical functions during periods of religious observance. With its unique size and user-friendly features, the ALWC15PNR is the perfect choice for bringing quality wine storage to ADA compliant settings. Additional ADA compliant choices are available in 6", 18", 24", and 36" wide sizes.


Product Features

  • 15" Wide Undercounter Wine Cellar
    32" high single zone glass door wine cellar with panel-ready door trim
  • ADA Compliant
    Sized at 32" high for use under lower ADA compliant counters

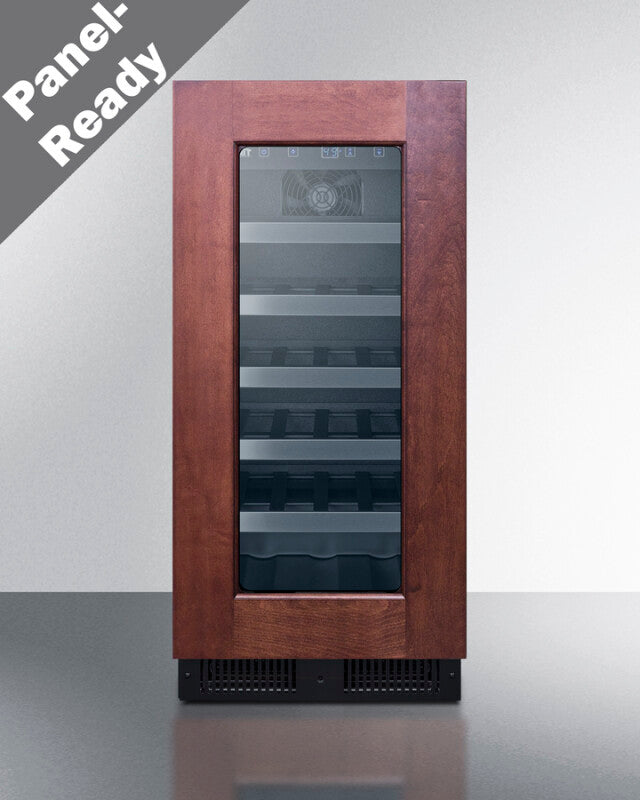

  • Panel-ready door trim
    European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; Panel dimensions: 3/4" thickness at 28 3/8" H x 14 5/8" W with a 3 1/4" inner frame
  • Built-in capable
    Make the best use of space by installing your appliance under the counter
  • Seamless stainless steel trimmed glass door
    Provides a full display of your stored collection with a heat-safe double tempered design
  • Factory installed lock
    Keyed lock for a secure interior, with two keys included
  • Digital thermostat
    Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines
  • Digital display
    Temperature readout can be shown in Celsius or Fahrenheit
  • Recessed LED lighting
    Gentle illumination with an on/off switch

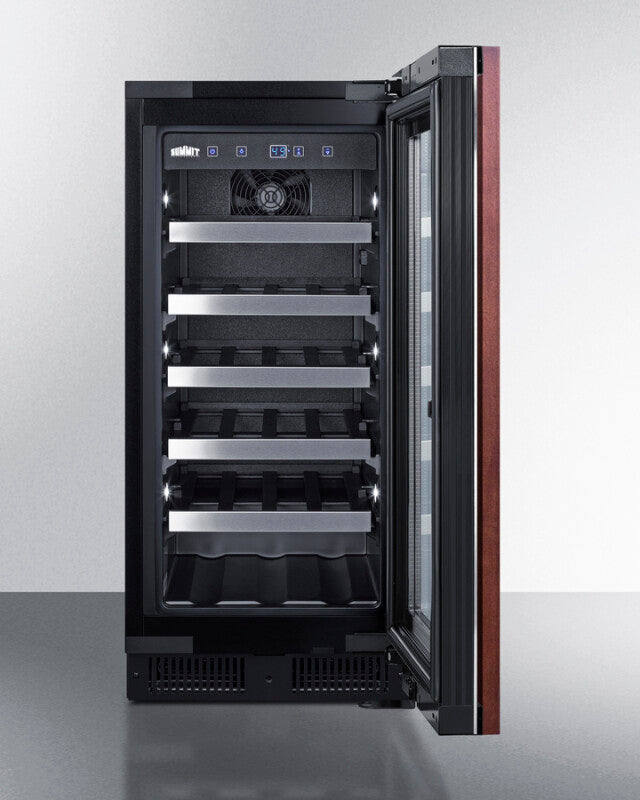

  • Wooden shelves

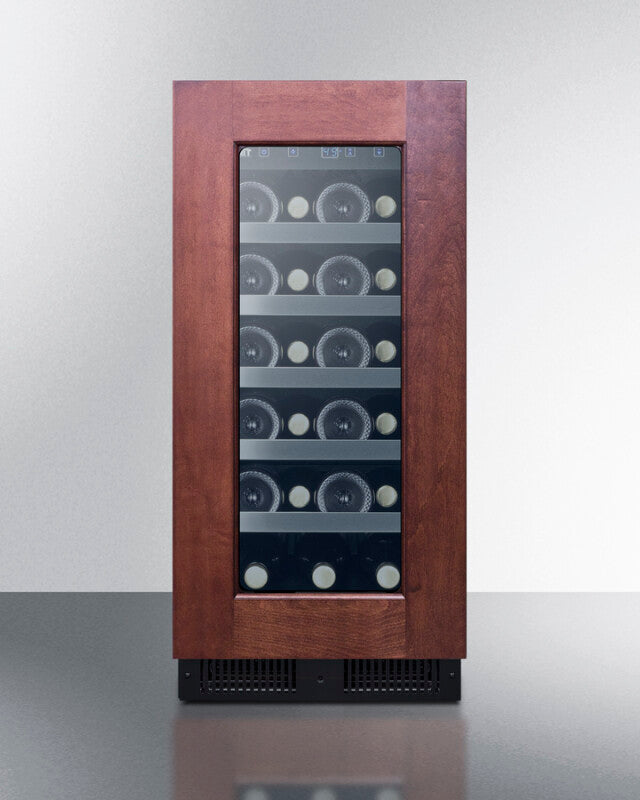

    Classic look holds up to 23 Bordeaux or Burgundy style bottles
  • Slotted floor
    Floor includes slots to hold bottles in place, and can store up to three champagne bottles
  • Automatic defrost
    Reduced maintenance and steady temperature performance
  • Professional handle
    Stainless steel handle completes the professional look
  • Reversible door
    User-reversible door swing on the refrigerator for added flexibility
  • Sabbath mode setting
    Optional setting lets you disable the lighting and alarm for up to 48 hours
  • Open door alarm
    Alarm sounds if the door is left open for more than 60 seconds
  • High temperature alarm
    Audible alarm sounds if the interior temperature rises out of set range
  • Temperature memory function
    In the event of power loss, unit will return to its last settings when power is restored
  • Right angle cord
    Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

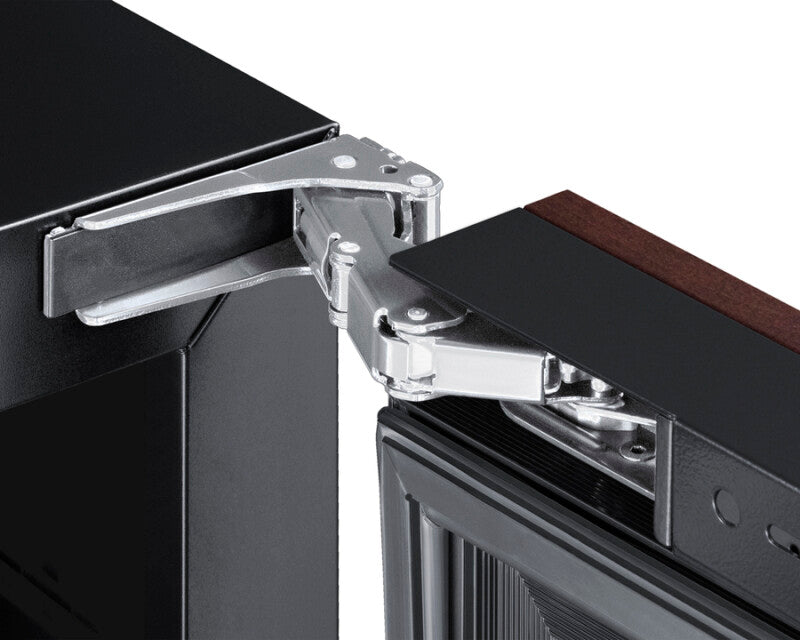

  • Fully articulating European style hinge
    Smoother opening and a better fit with an integrated European hinge
  • Flush back
    Space saving design makes it easier to install flush against the wall
  • Matching beverage center available
    Pair with the ALBV15PNR for a perfectly matched ADA compliant set

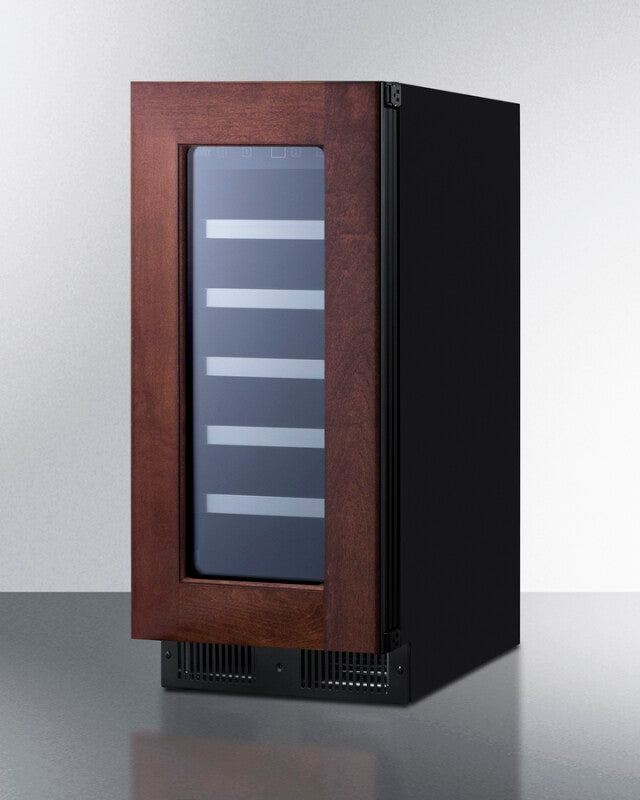

  • Fully finished black cabinet
    Allows the unit to be used freestanding
  • 100% CFC Free
    Environmentally friendly design with no ozone-damaging chemicals
  • CARB Compliant
    Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
