SKU: CPF48UGMR | UPC: 8017709260781

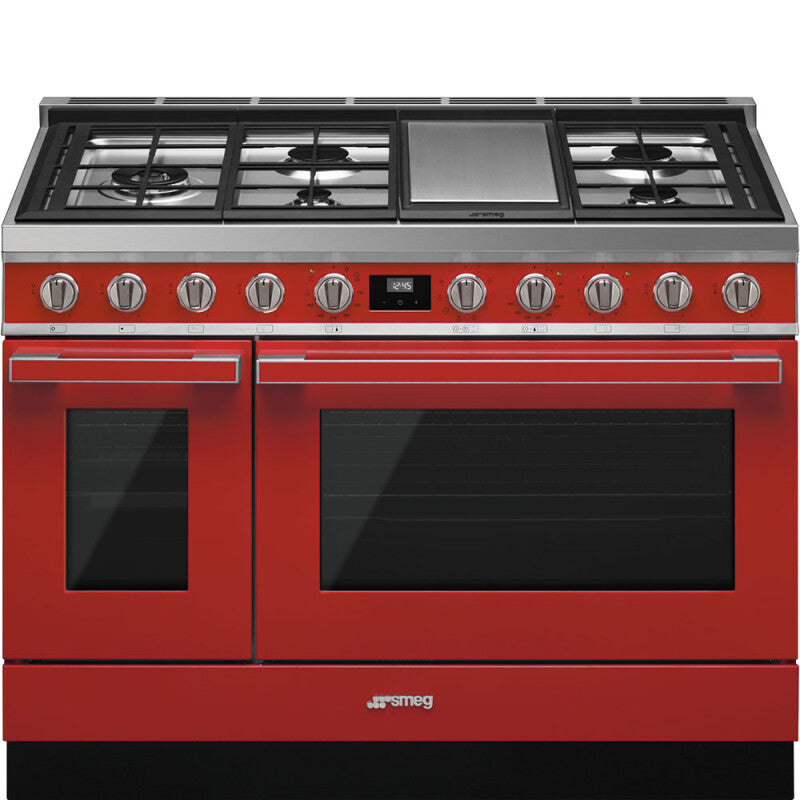

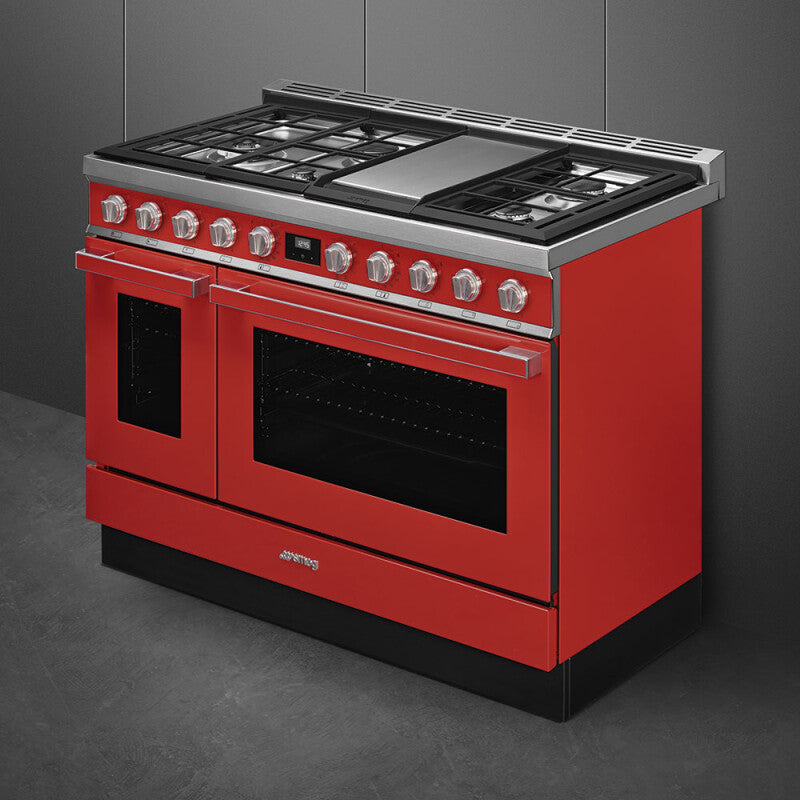

Smeg CPF48UGMR Range Portofino Red

Quick Specification More details

Width:
48"
Depth:
23.63"
Height:
35.44"
Type:
Freestanding Ranges

Summer Sale

Clearance

SKU: CPF48UGMR | UPC: 8017709260781

Smeg CPF48UGMR Range Portofino Red

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
48"
Depth:
23.63"
Height:
35.44"
Type:
Freestanding Ranges

Product Details
Manuals & Guides
From The Manufacturer
Reviews

Contact us for Pricing

Product Details for Smeg CPF48UGMR

Technical Details

Aesthetic

Color	Red
Design	Flush mounted
Aesthetics	Portofino
Material	Painted metal
Cooktop color	Stainless steel
Grates	Cast Iron
Control setting type	Control knobs
No. of controls	10
Display	Touch
Handle	Portofino
Storage compartment	Storage drawer
Plinth	Black

Type

Product family	Range
Range size	48"
Cooker configuration	Dual fuel
Range fuel	Mixed
N. of ovens	2
Main oven	Thermo-ventilated
Secondary oven	Static
EAN code	8017709260781
Installation positioning of the appliance	Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1

Main oven options

Timer	Yes
End-of-cooking alarm	Yes
Minimum Temperature	120 °F
Maximum temperature	500 °F

Secondary oven functions

Minimum Temperature	120 °F
Maximum temperature	450 °F

Cooktop technical features

Cooking zones	6
Zone 1 - Power	18000 BTU
Zone 2 - Power	12000 BTU
Zone 3 - Power	4500 BTU
Zone 4 - Power	12000 BTU
Zone 5 - Power	8000 BTU
Zone 6 - Power	6500 BTU
Zone 7 - Power	5500 (BBQ) BTU
Burner caps	Enameled matte black
Gas safety valves	Yes

Main oven technical features

Volume	0.16 cu. ft.
Cavity material	EverClean enamel
No. of shelves	5
Shelves type	Metal racks
No. of lights	2
Light type	Halogen
Light Power	40 W
Fan number	3
Time setting	Start and end
Light on when door is open	Yes
Removable door	Yes
Total no. of door glasses	3
Safety thermostat	Yes
Cooling system	Tangential
Grill type	Electric
Grill power	1700 W
Large grill - Power	2900 W
Bottom heating element - Power	1700 W
Upper heating element - Power	1200 W
Circular heating element - Power	1500 W
Soft Close system	Yes

Secondary oven - technical specifications

Cavity material	EverClean enamel
No. of shelves	5
Shelves type	Metal racks
No. of lights	2
Lighting	Halogen
Light Power	40 W
Fan number	1
Light on when oven door is open	Yes
Removable door	Yes
No. total door glasses	3
Security Thermostat	Yes
Cooling system	Tangential
Large grill - Power	2050 W
Lower heating element - power	750 W

Electrical connection

Electrical connection rating	8000 W
Current	50 A
Circuit breaker	50 A
Voltage	240/208 V
Frequency	60 Hz
Power cord length	47 1/4 "
Type of electric cable installed	Yes, Double phase

Gas connection

Gas Type

G20 Natural gas

Dimensions & weight

Width	47.25 in.
Height	35.44 in.
Length	23.63 in.
Weight	339 lbs.
Gross weight	412 lbs
Net weight	339 lbs
Packaged width	50 3/8 "
Packaged depth	28 15/16 "
Packaged height	41 3/4 "

Number of boxes, shipping dimensions, & shipping weight

Shipping Width	50.38 in.
Shipping Height	41.75 in.
Shipping Length	28.94 in.
Source	Calculation

Other

Packaged dimensions	1060X1280X735 mm
Maximum stackability	2
Packaging	Cardboard box
Packaging composition - Paper	13 lbs
Packaging composition - Polystyrene	5 lbs
Packaging composition - Wood	54 lbs
Packaging composition - Plastics	1 lbs

Description

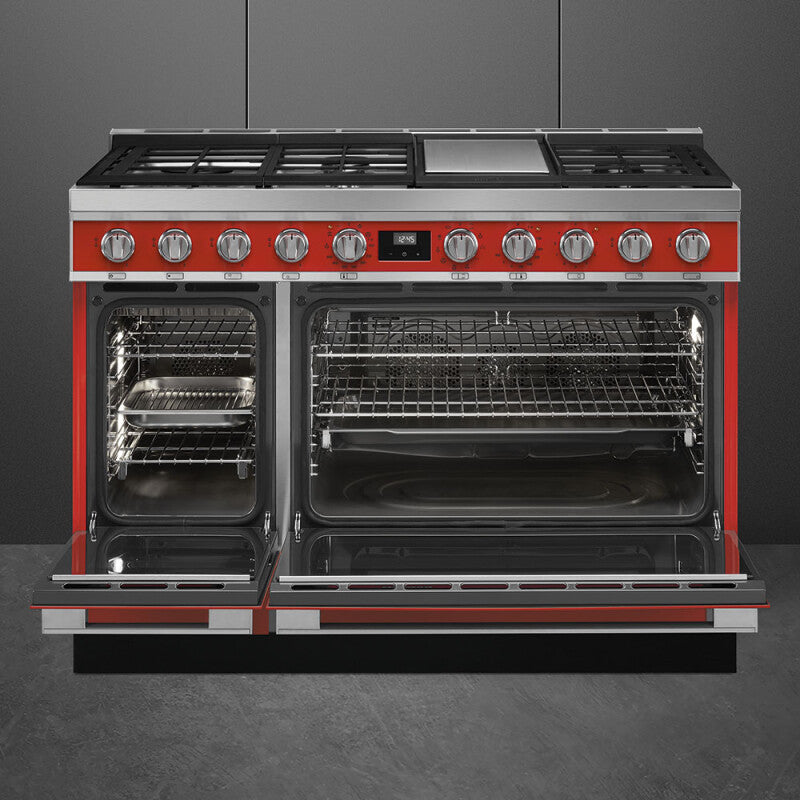

The brand Smeg CPF48UGMR showcases elegant performance with this 48-inch dual fuel range in a vibrant matte red finish. It features seven gas burners including a multifunction ultra-rapid burner, and double electric ovens for unmatched versatility. The left oven includes European convection, while the right provides additional capacity and baking options. This range blends Italian style with precision engineering, featuring soft-close doors, ergonomic knobs, and triple-glazed glass windows for energy efficiency.
