SKU: NSG6DB830012 | UPC: 887276817330

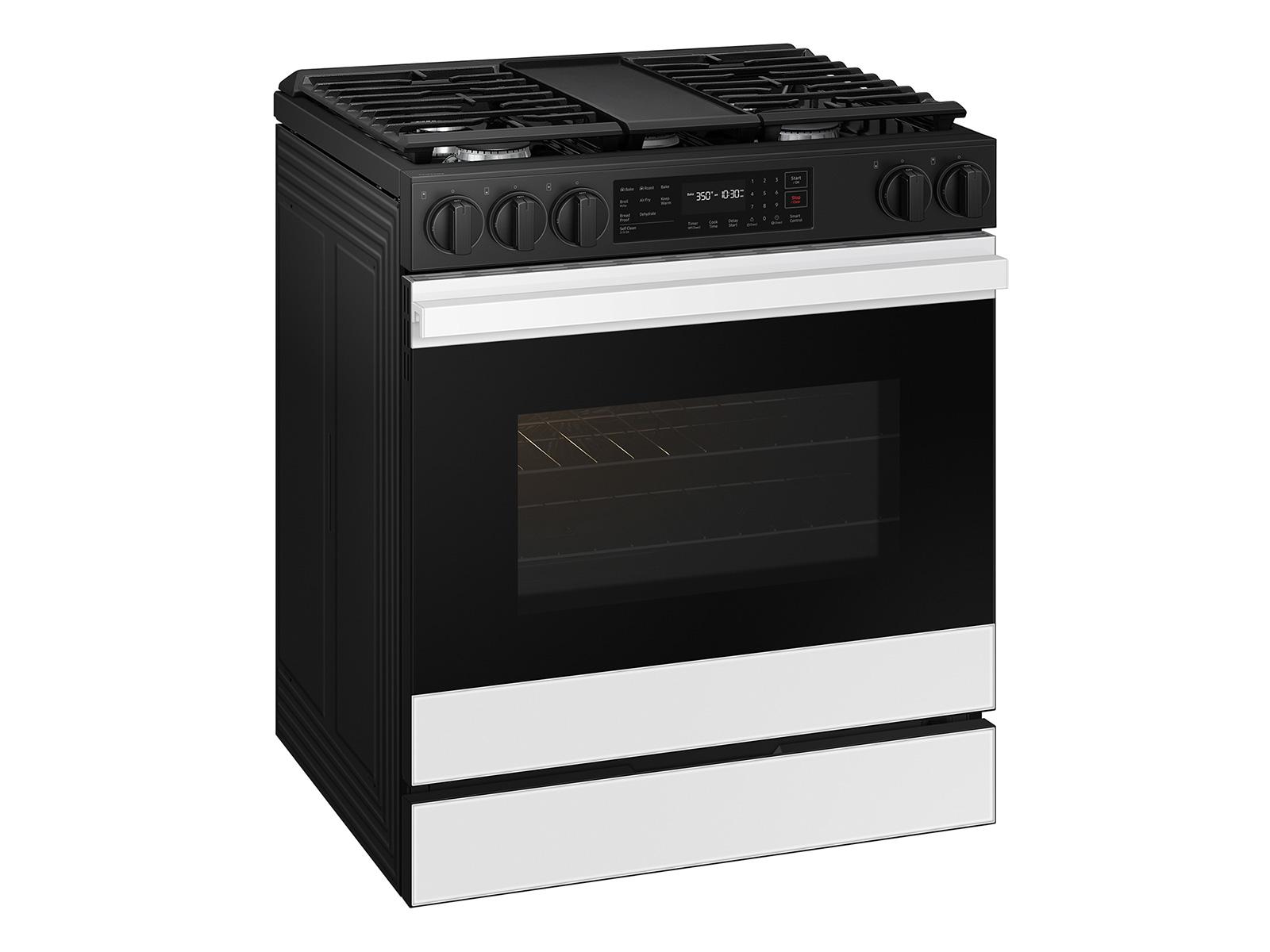

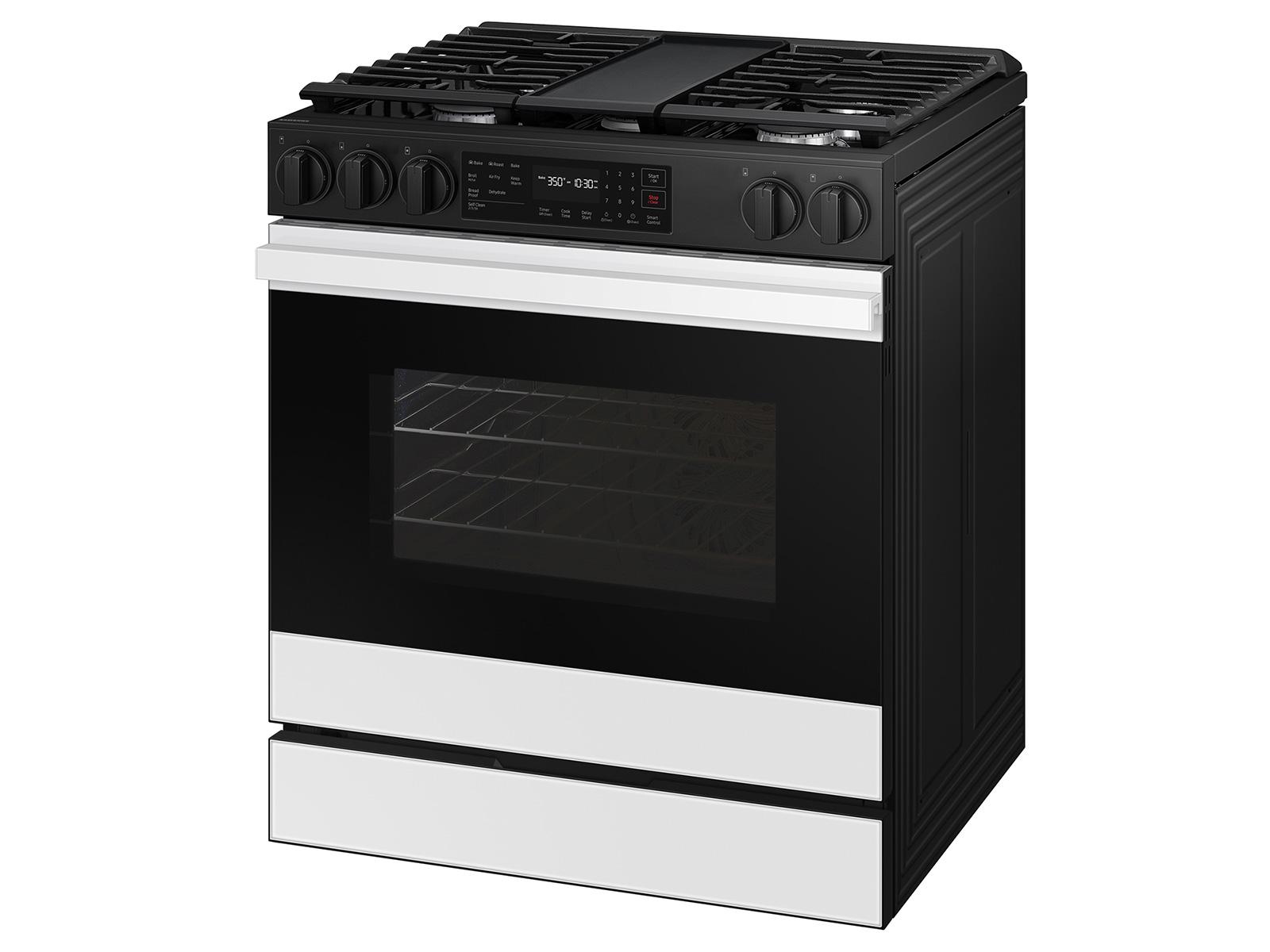

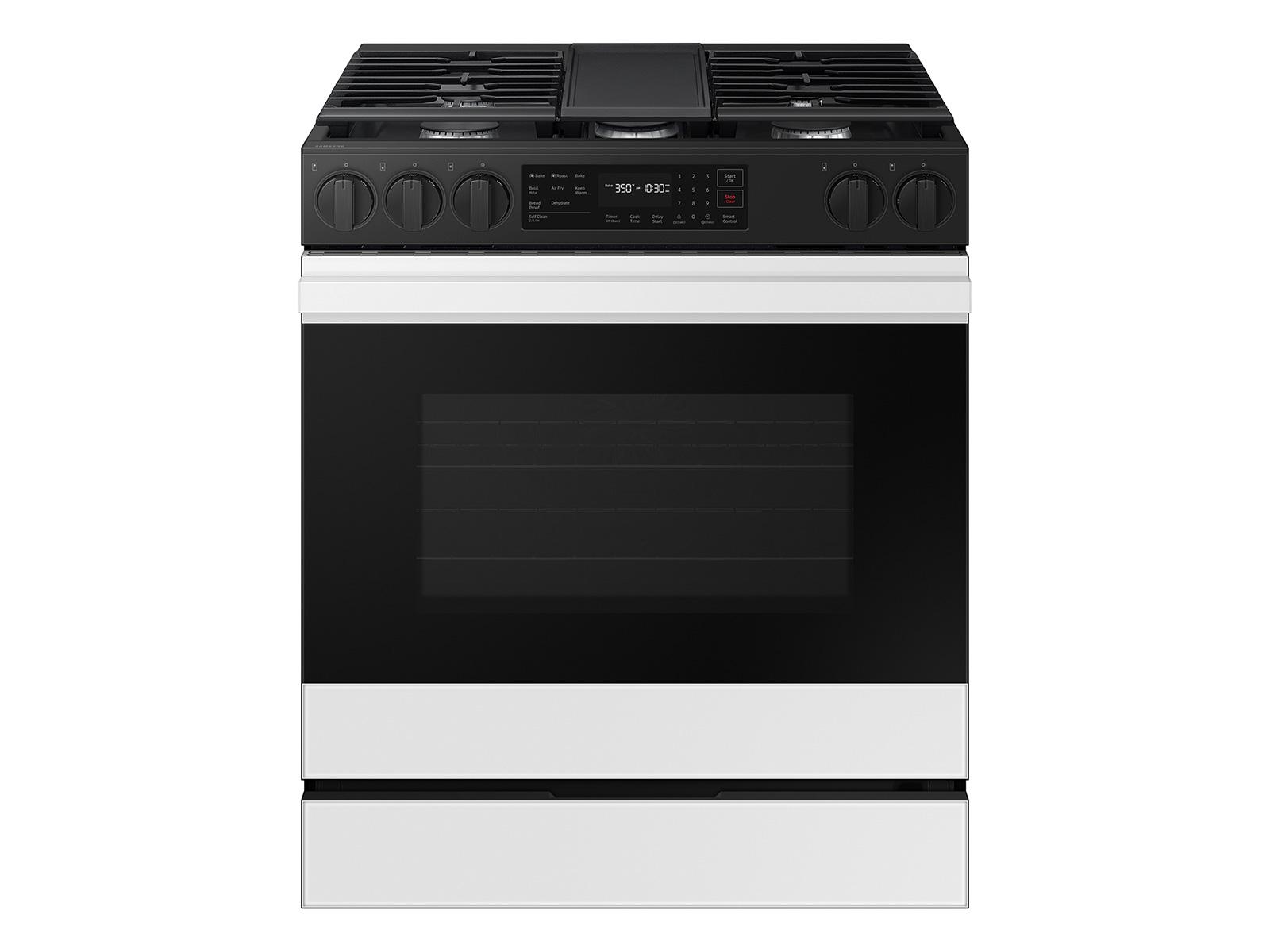

Samsung NSG6DB830012 Precision Knobs | Wi-Fi | 6.0 cu.ft. White Glass

Name: Samsung NSG6DB830012 Precision Knobs | Wi-Fi | 6.0 cu.ft. White Glass
Brand: Samsung
SKU: NSG6DB830012
Availability: OutOfStock

Quick Specification More details

Width:
29.94"
Depth:
26.44"
Height:
45"
Type:
Slide-In Ranges

About this product

Seamless, stylish design
Knob locks, built-in
Preheat and plan meals on the go
Ready2Fit™ Guarantee

Summer Sale

SKU: NSG6DB830012 | UPC: 887276817330

Samsung NSG6DB830012 Precision Knobs | Wi-Fi | 6.0 cu.ft. White Glass

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Related Accessories

Samsung NX-AB5400RS Stainless Steel Silver

Samsung NX-AB5900RB Black

Quickship

On Sale

Samsung NX-AB5900RS Stainless Steel Silver

Samsung NX-AF5000RS Stainless Steel Silver

Quickship

On Sale

Quick Specification More details

Width:
29.94"
Depth:
26.44"
Height:
45"
Type:
Slide-In Ranges

About this product

Seamless, stylish design
Knob locks, built-in
Preheat and plan meals on the go
Ready2Fit™ Guarantee

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

Product Details for Samsung NSG6DB830012

Technical Details

Key features

Wi-Fi Connectivity	Yes
Self Clean	Yes
Large Oven Capacity	6.0 cu. ft.
Cooking System	Convection
Control Type	Touch + Precision Knobs
ADA Compliant	Yes
SmartThings	Yes
Steam Clean	No

Design

Color	White Glass
Configuration	Slide-In
Fuel Type	Gas
Controls for Oven	Touch
Controls for Cooktop	Precision Knobs
Display Color	White
BESPOKE	Yes

Weights & dimensions

Oven Dimensions	24 13/16" x 21 5/8" x 19 5/8"
Product Weight	182.5 lbs

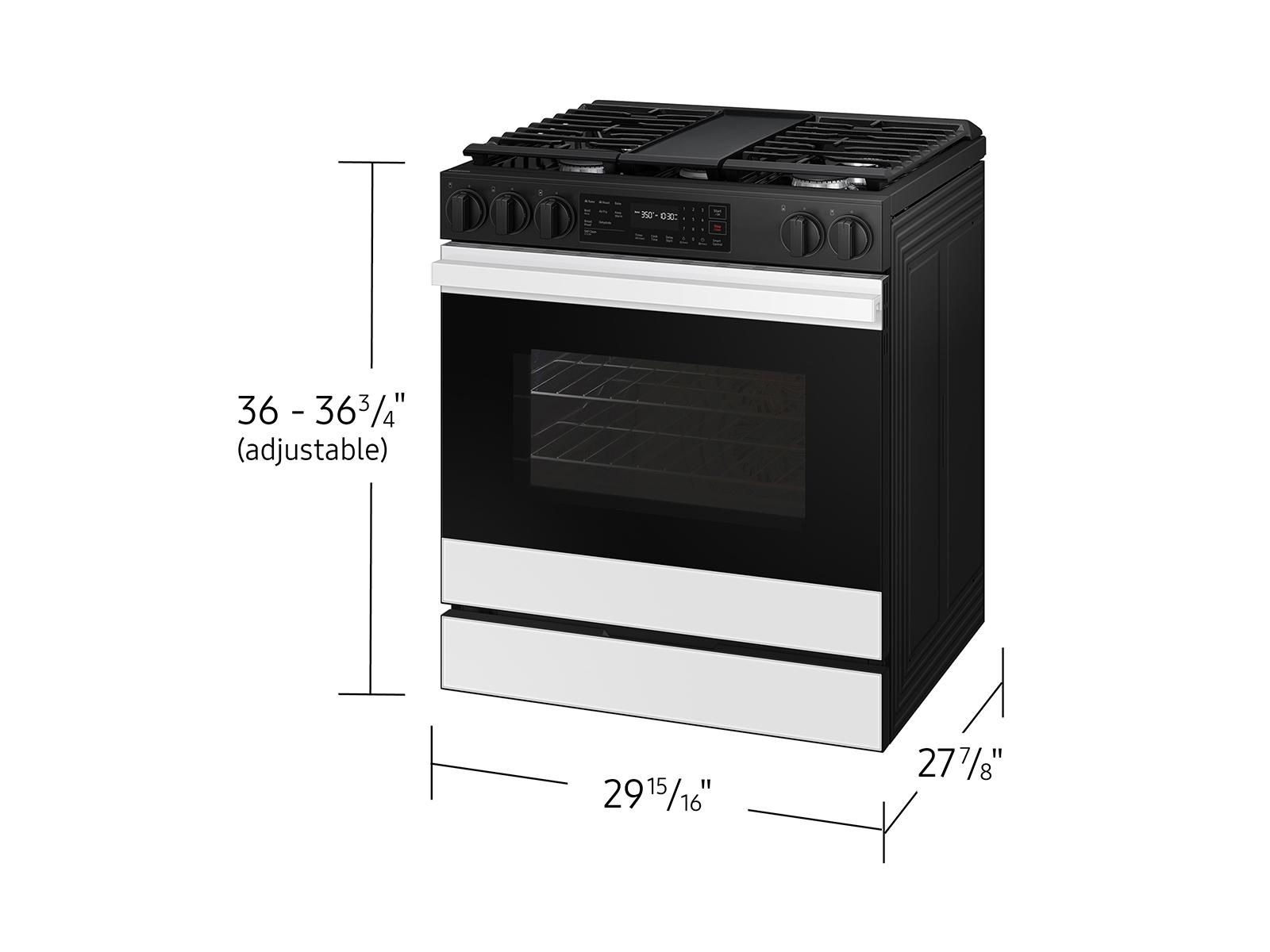

Product Dimensions (W x H x D)	29 15/16" W x 36" - 36 3/4" (Adj.) H x 26 7/16" D
Height (decimal)	36 - 36.75
Width (decimal)	29.9375
Depth (decimal)	27.875

Capacity

Oven Capacity

6.0 cu. ft.

Cooktop

Total Number of Burners	5
Burner - Left Front	16K BTU
Burner - Left Rear	9.5K BTU
Burner - Right Front	17K BTU
Element - Left Front	5K BTU
Burner - Center	10K BTU
Cooktop Type	Gas

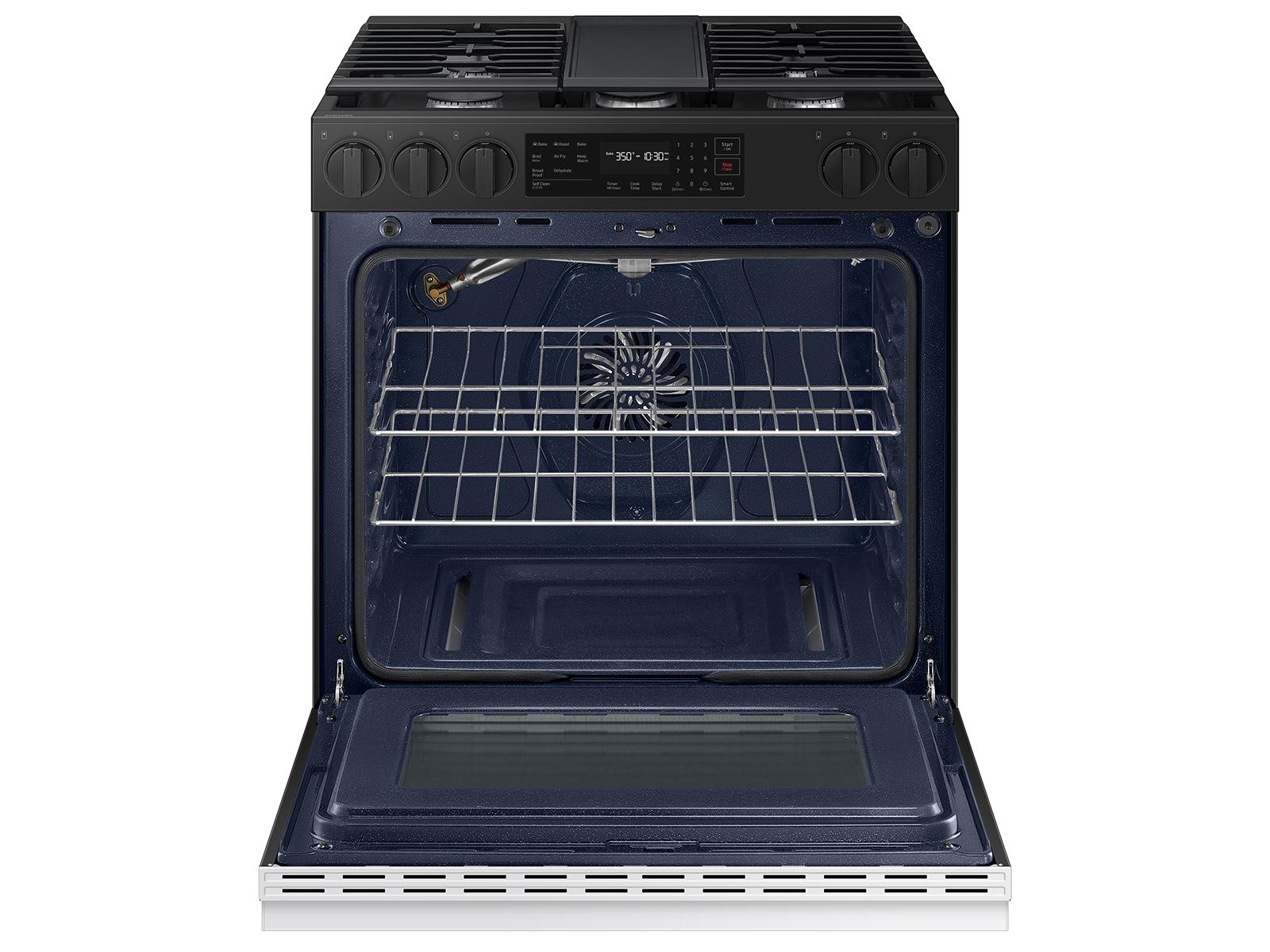

Oven

Convection	Convection
Convection Bake	Yes
Convection Roast	Yes
Bake	Yes
Variable Broil	Yes
Proofing	Yes
Total Number of Racks	2

Standard features

Drawer Type	Storage
Kitchen Timer	Yes
Child Safety Lock	Yes

Other

Oven Dimensions

24 13/16" x 21 5/8" x 19 5/8"

Dimensions & weight

Width	29.94 in.
Height	45 in.
Length	26.44 in.
Weight	182.5 lbs.
Oven Dimensions	24 13/16" x 21 5/8" x 19 5/8"

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	34.94 in.
Shipping Height	50 in.
Shipping Length	31.44 in.
Shipping Weight	222.5 lbs.
Total of Shipping Weight	222.5 lbs.
Source	Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	20.61 ft³
Dimensional Weight	256.23 lbs.
Total of Cubes	20.61 ft³
Total of Dimensional Weight	256.23 lbs.

Accessories

Number of Rack Positions	7
Air Fry Tray	Yes
Anti-Tip Bracket	Yes
Filler Kit (For Slide In Range)	Yes
Griddle	Embedded Cast Iron Griddle
LP Conversion Kit	Yes

Drawer

Cavity Type	Single
1 Year Parts and Labor	Yes

Features

Sabbath Mode	Yes
Auto Oven Light	Yes
Delay Start	Yes
Interior Lights (qty)	Incandescent 40W (1)
Hidden Bake Element	Yes
Keep Warm	Yes
Dehydrate	Yes
Power/Ratings	120V/60Hz/20A
Powerful, Flexible Cooktop	17K BTU Power BurnerEdge-to-Edge Grates
Oven Cleaning Type	Self Clean
Air Fry	Yes
Voice-Enabled	Yes
Storage Drawer	Yes
Self Clean	Yes

Description

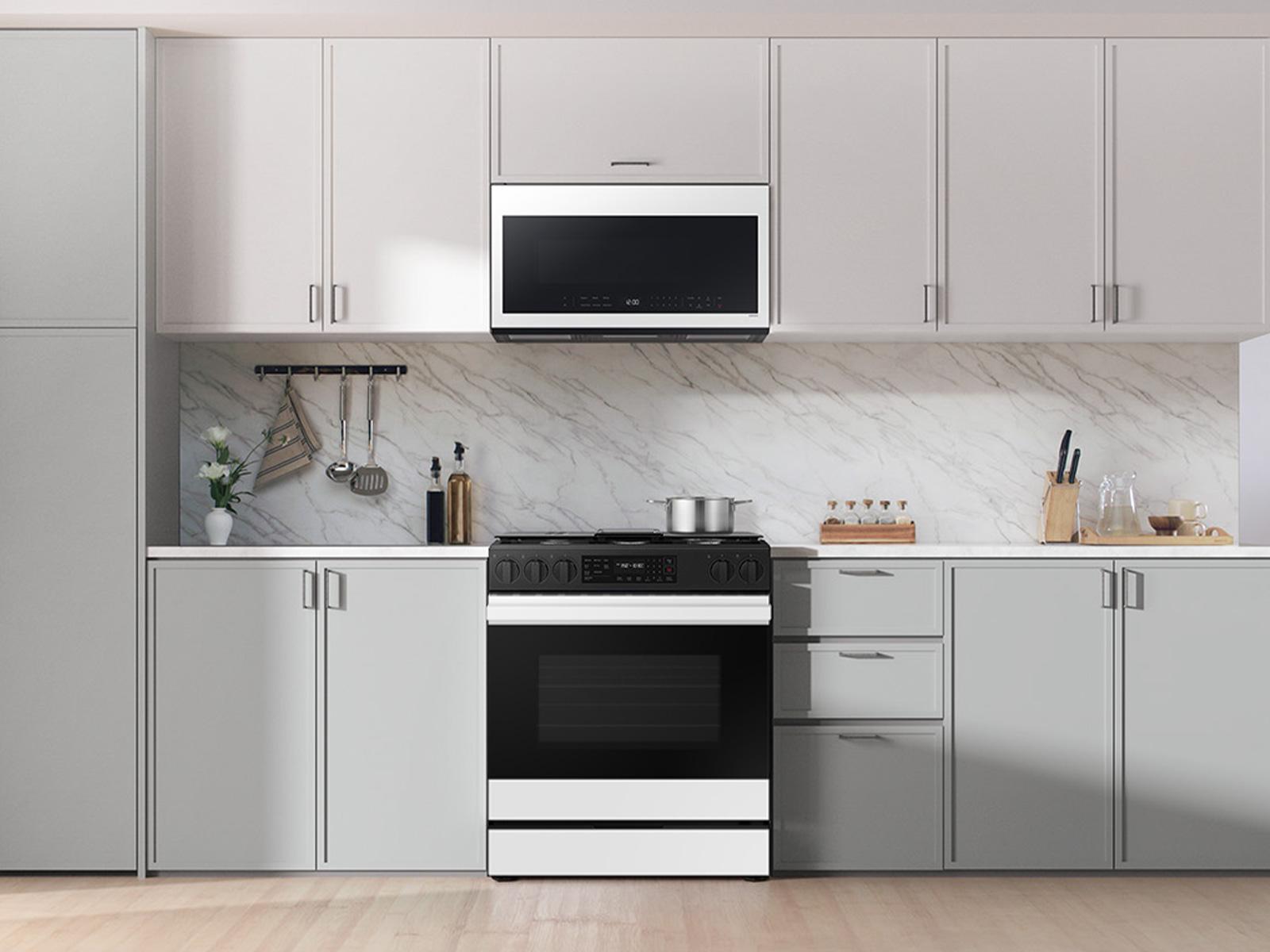

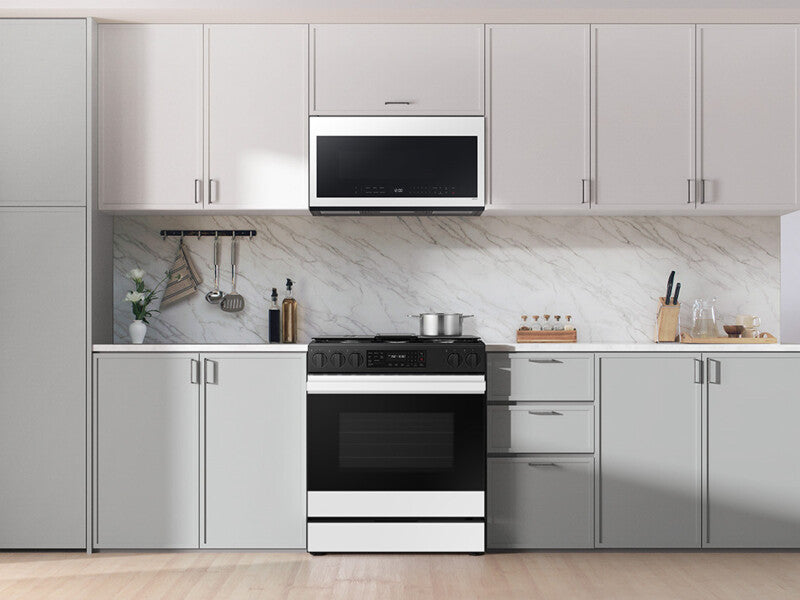

Seamless, stylish design

Give your kitchen a premium look with a stylish and contemporary Bespoke design that will enhance the look of your kitchen or add an elegant color accent. The range's recessed handle design seamlessly blends into your kitchen for a minimalist look.

Knob locks, built-in

Knobs stay locked when cooktop is not in use. Integrated knob buttons must be pinched in before the knobs can be turned.

Elevate your kitchen with powerful heat cooktop and extra large oven

Bring home a powerful burner, the flexibility of more capacity inside your oven and the benefit of fingerprint resistant finish.

Preheat and plan meals on the go

Search recipes, plan meals and pre-heat your oven from your phone with the SmartThings App or your favorite voice assistant. SmartThings Food learns your preferences to recommend personalized recipes and create weekly meal plans.SmartThings Energy lets you monitor and manage your range's power usage.

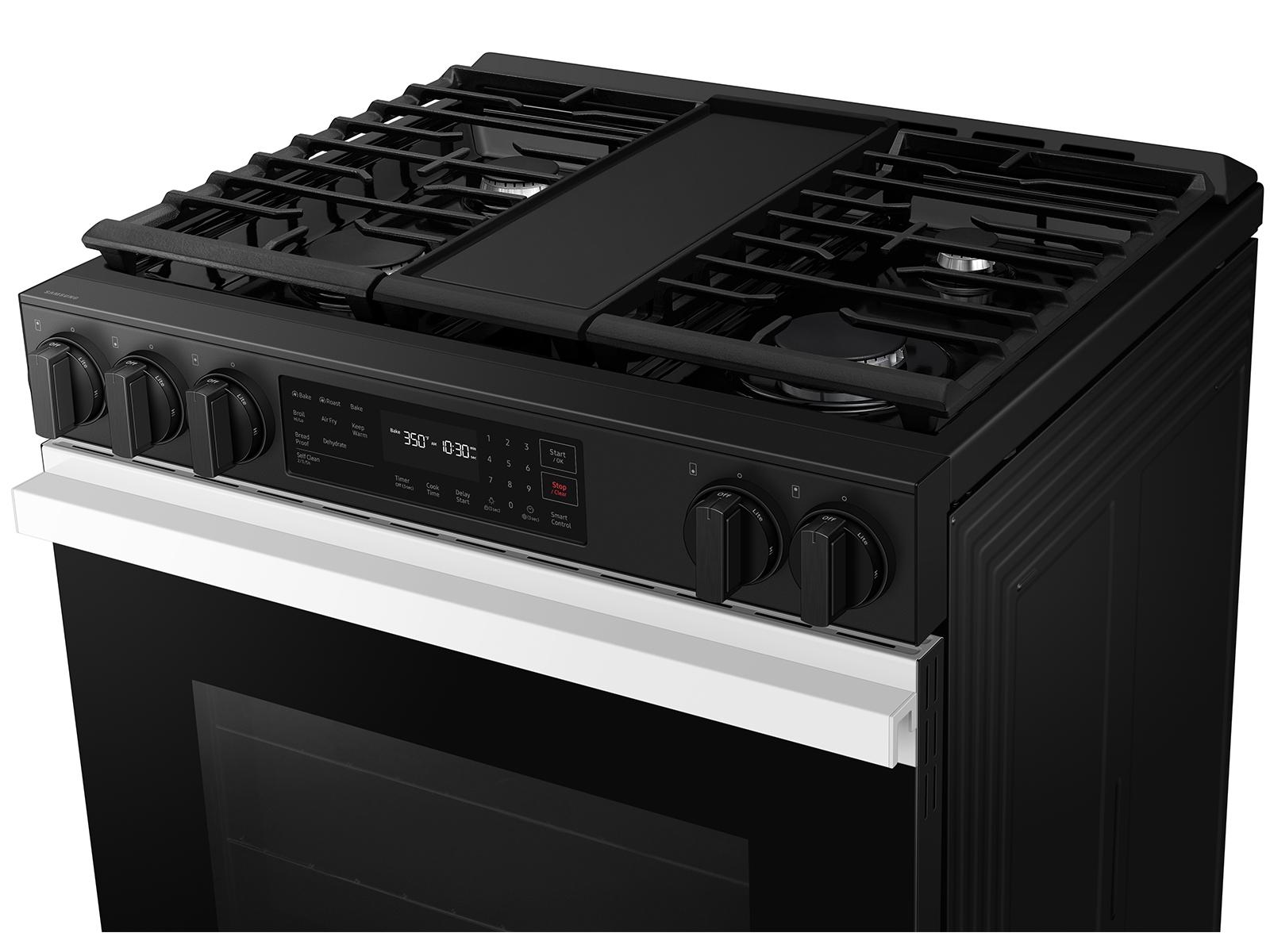

Flexible and Beautifully Designed

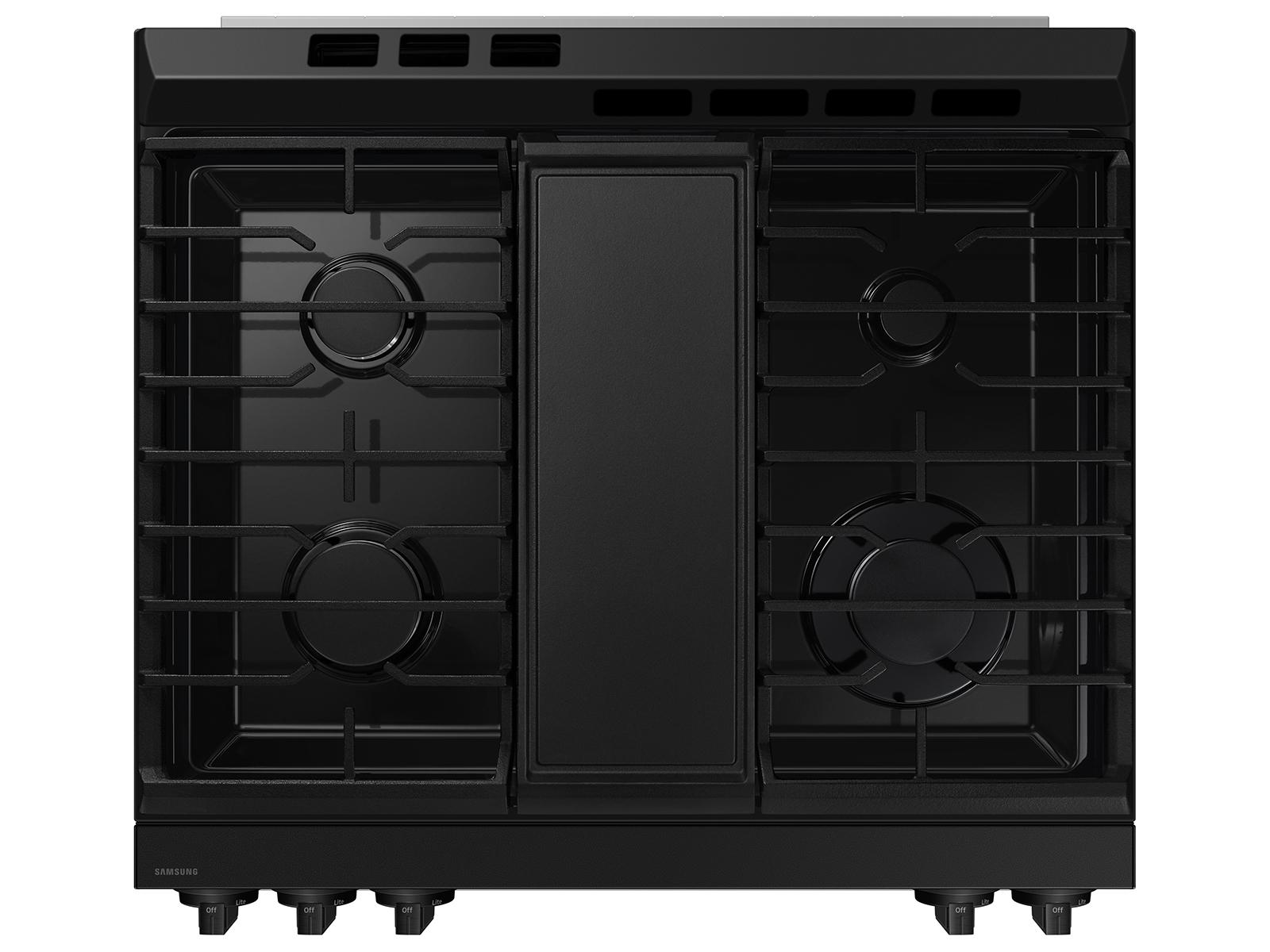

Edge-to-edge cast iron grates create a larger cooking surface capable of accommodating a greater range of differently sized cookware.

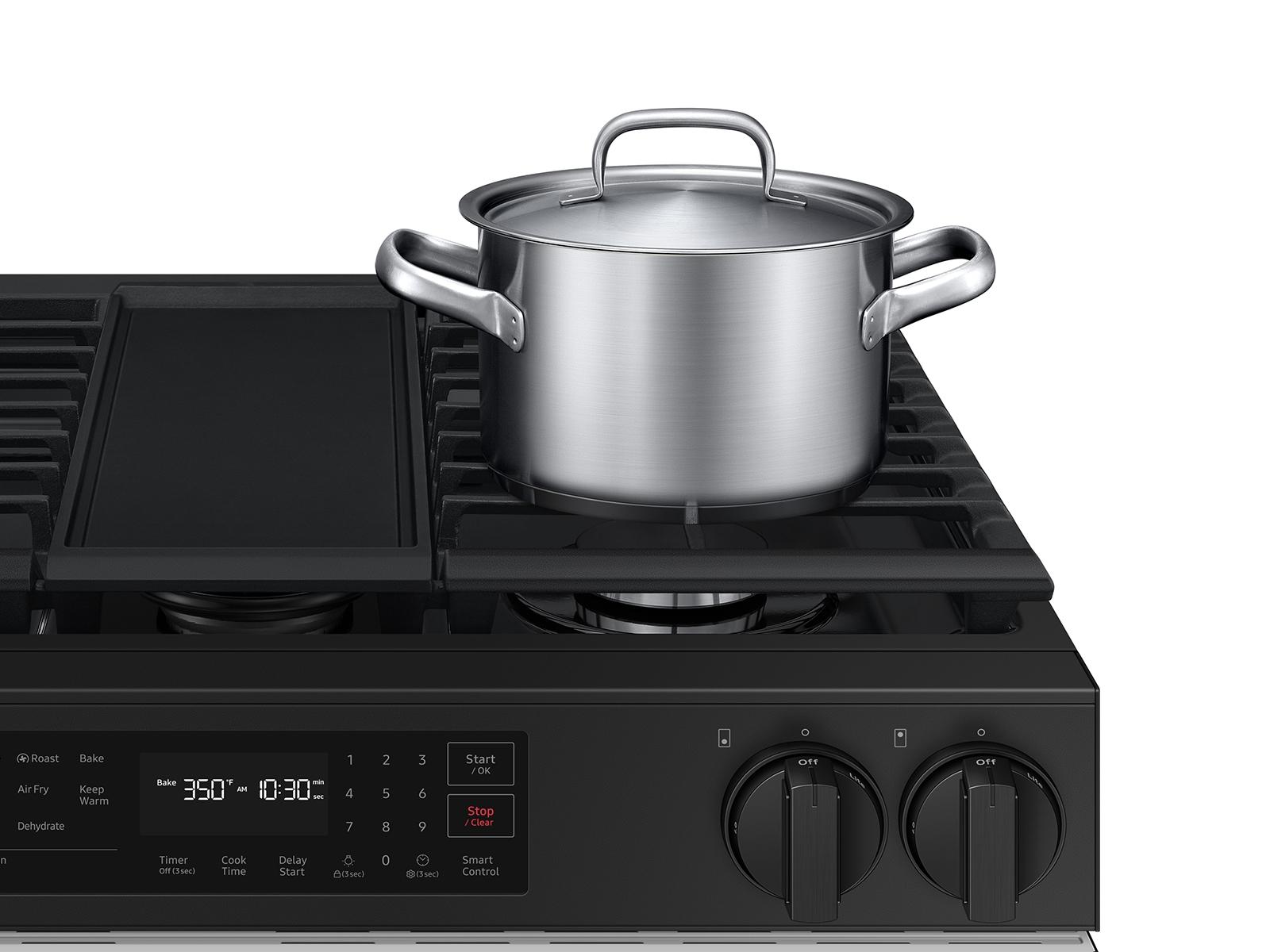

Grill breakfast, lunch and dinner

Cook food quickly and evenly with a cast-iron Embedded Griddle. It features a wide and flat surface that maintains constant heat for longer and lets you prepare multiple foods at once, ideal for sizzling, searing and stir-frying.

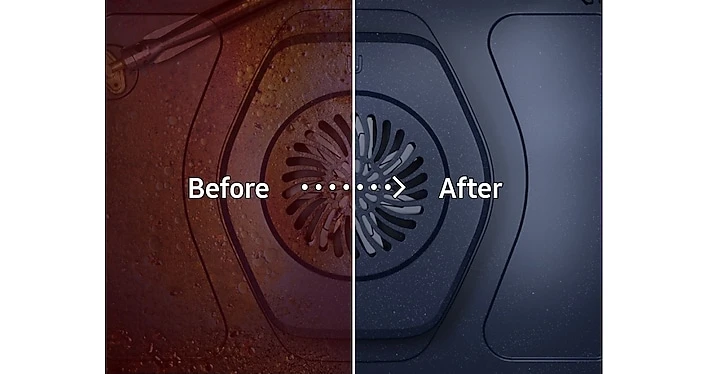

Does the hard work for you

Get help from your oven with Self Clean. The self cleaning system deeply cleans your oven with high heat that breaks down grease and food residue.

Manuals & Guides

Key Features

Seamless, stylish design

Knob locks, built-in

Knobs stay locked when cooktop is not in use.ⓘ Integrated knob buttons must be pinched in before the knobs can be turned.

Preheat and plan meals on the go

Search recipes, plan meals and pre-heat your oven from your phone with the SmartThings App or your favorite voice assistant.³ SmartThings Food learns your preferences to recommend personalized recipes⁴ and create weekly meal plans. SmartThings Energy lets you monitor and manage your range's power usage.

Ready2Fit™ Guarantee

If your Samsung Slide-In Range doesn't fit your 30" Freestanding Range cutout, enjoy $100* on us to cover any countertop modification costs. Valid Purchase Dates: 1/1/25 - 12/31/25

Healthier cooking¹ with a crunch

Enjoy healthier¹ fried foods without relying on other small appliances with Air Fry built right into your oven. Air Fry tray included.

Fast, even baking

Cook food faster and more evenly than a conventional oven with Convection that circulates air inside your oven.

Cook for your family, and more.

This extra large 6.3 cu. ft. oven easily accommodates large dishes or roasting pans.

Powerful heat and flexible

Cook fast and evenly using the powerful heat of the 3.0 kW Electric Cooktop for convenient meals that taste delicious. Ideal for sautéing and searing meat, or boiling water rapidly, this 5-burner cooktop includes 2 dual ring burners so you can cook with multiple sized pots and pans.

Does the hard work for you

Get help from your oven with Self Clean. The self cleaning system deeply cleans your oven with high heat that breaks down grease and food residue. Use Steam Clean for a lighter cleaning job that's done in 20 minutes.

Ranked #1 in Overall Customer Satisfaction & Service Experience††

Samsung leads in appliances with top scores for Overall Customer Satisfaction, Features and Performance, and was additionally recognized with top rankings for Service Experience — excelling in the key areas of Ease, Assistance, Timeliness, and Repair.
