| Overall Depth | 24.6875 in |
| Overall Width | 29.75 in |
| Overall Height | 51.1875 in |
| Cabinet Width | 30 in |
| Oven Interior Dimensions (upper) | 25 x 17-3/8 x 20 1/4 |
| Cutout Dimensions (w x h x d) (in.) | 28-5/8 x 50-1/4 x 23-1/2 |
| Oven Interior Dimensions (lower) | 25 x 17-3/8 x 20 1/4 |
| Approximate Shipping Weight | 390 |
| Net Weight | 364 |
| Design Style | Minimalist Collection |
| Frameless Oven Door(s) | Stainless Steel Finish/Appearance |
| Color Appearance | Stainless Steel |
| Installation | Flush Appearance,Side-by-Side,Over Warming Drawer |
| Oven Door Features | Drop-Down,Push/Voice-to-Open,Oven Window |
| WiFi Connect | Built-In |
| Fuel Type | Electric |
| Product Type | Double Oven |
| Cooking Technology | Convection |
| Cleaning Time | Variable with Delay Clean Option |
| Configuration | Double Oven |
| Oven Rack Positions (Single or Upper/Lower) | 6 / 6 |
| Collection | Minimalist |
| Self-Clean Oven Door Lock | Automatic |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
| Connected Capabilities | Amazon Alexa,The Google Assistant,IFTTT,Fresco,Innit,Sonos,Google Home |
| Control Type | 7 Full-Color Touch LCD Screen |
| Cooking System | Twin Fan, True European Convection with Direct Air (Both Ovens),Variable Speed, Reverse Air Convection (Both Ovens) |
| Oven Control Features | 12-Hour Shut-Off Capability,Audible Preheat Signal,Auto Recipe Conversion,C° or F° Programmable,Sabbath Mode,Control Lock Capability,Cook Time,Delay Time,Electronic Clock & Kitchen Timer,Mis- |
| Oven Cooking Modes | Convection Bake Multi-Rack,Convection Broil Hi/Lo,Convection Roast,No-Preheat Air Frying,Precision Cooking Modes,Thermal Bake,Thermal Broil Hi/Lo,Keep Warm,Proof,Dehydrate |
| Oven Features | 10-Pass Bake Element,10-Pass Dual Broil Element,Closed Door Broiling |
| Oven Interior | 2 LED Light Columns (Both Ovens),Black Gloss Finish,True Hidden Bake Element (Both Ovens) |
| Oven Rack Features | 2 Self-Clean Heavy-Duty, Full Extension Oven Racks (Both Ovens),1 Self-Clean Heavy-Duty Rack (Both Ovens),Ladder-Rack Positions (Both Ovens) |

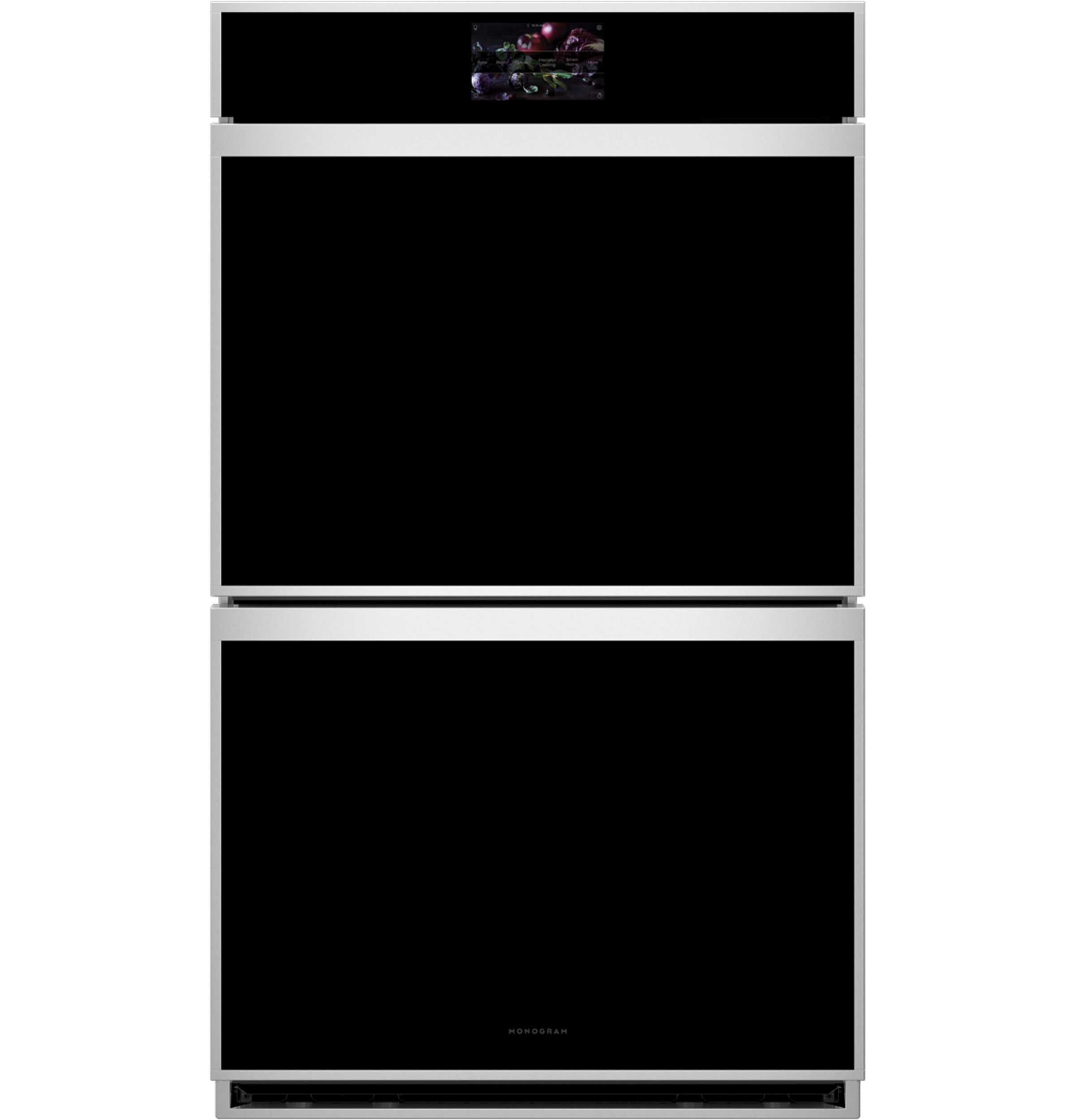

| Short Description | 30 Convection Double Wall Oven |
| Bake Wattage | 2850W |
| Convection Wattage | 1300W |
| Electrical Requirements | 240V/208V; 60Hz; 40A |
| KW Rating at 240V | 9 |
| Amp Rating at 208V | 40 |
| Broiler Wattage | 4300W; Dual Element |
| Amp Rating at 240V | 40 |
| KW Rating at 208V | 6.8 |
| Hertz | 60 |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| Optional Accessories | ZX30VT2 Flush Vent Trim Accessory |
| Capacity (Cu. Ft.) | 5.0 Upper / 5.0 Lower |
| Total Capacity (cubic feet) | 10.00 cu ft |
| Oven Interior Dimensions (upper) | 25 x 17-3/8 x 20 1/4 |
| Cutout Dimensions (w x h x d) (in.) | 28-5/8 x 50-1/4 x 23-1/2 |
| Width | 29.75 in. |
| Height | 51.19 in. |
| Length | 24.69 in. |
| Weight | 364 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 34.75 in. |
| Shipping Height | 56.19 in. |
| Shipping Length | 29.69 in. |
| Shipping Weight | 404 lbs. |
| Total of Shipping Weight | 404 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 21.76 ft³ |
| Dimensional Weight | 270.47 lbs. |
| Total of Cubes | 21.76 ft³ |
| Total of Dimensional Weight | 270.47 lbs. |

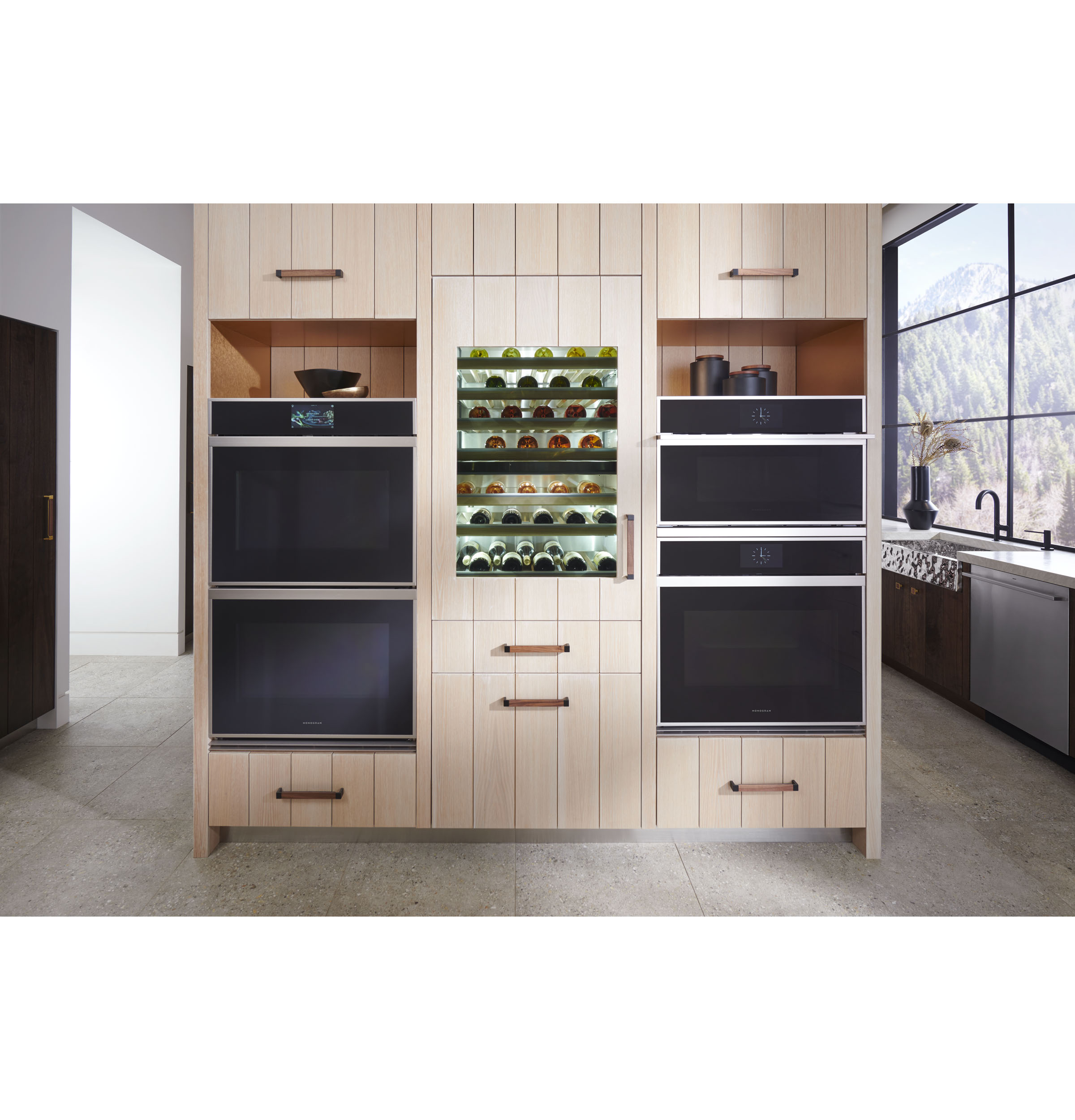

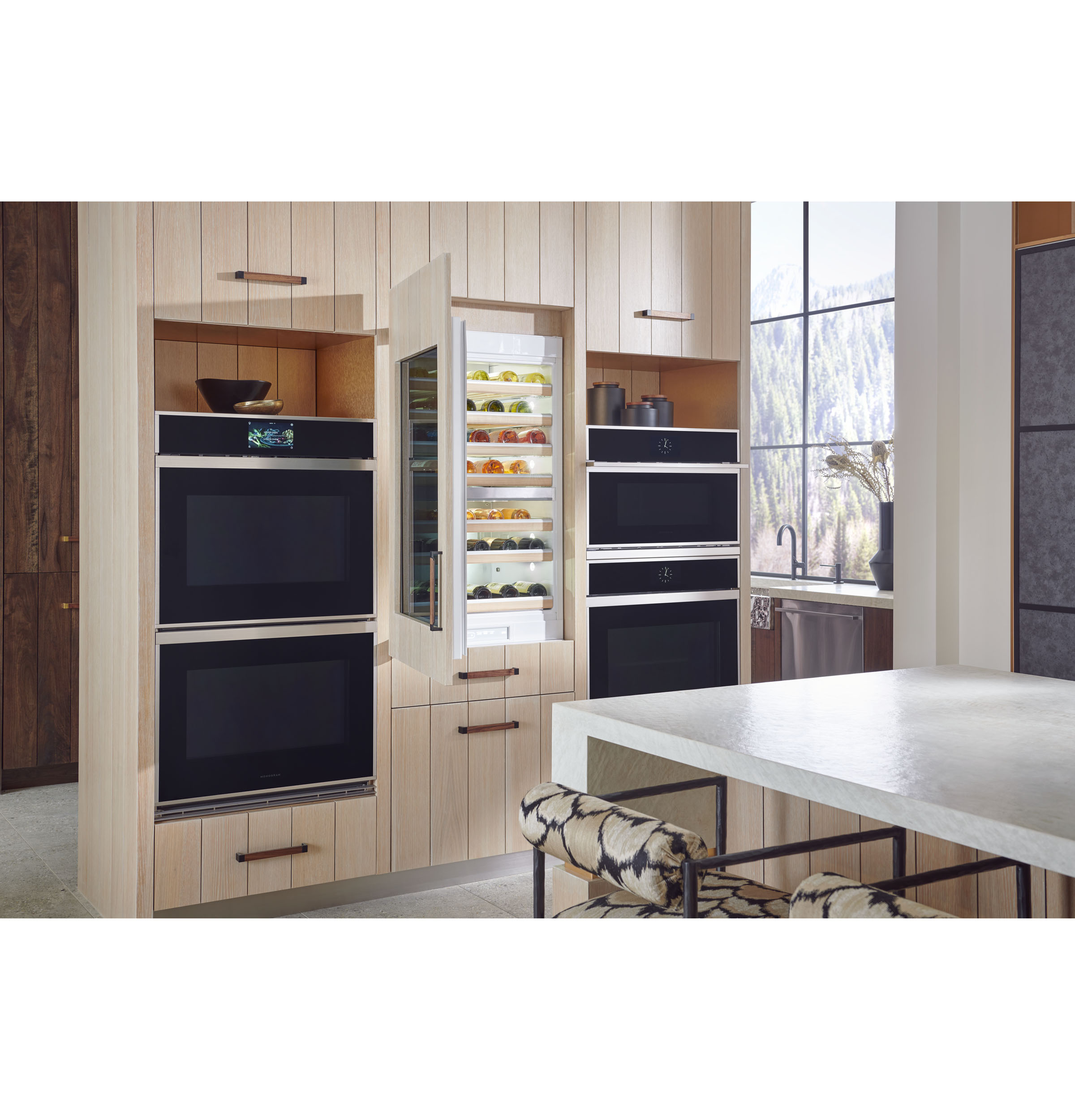

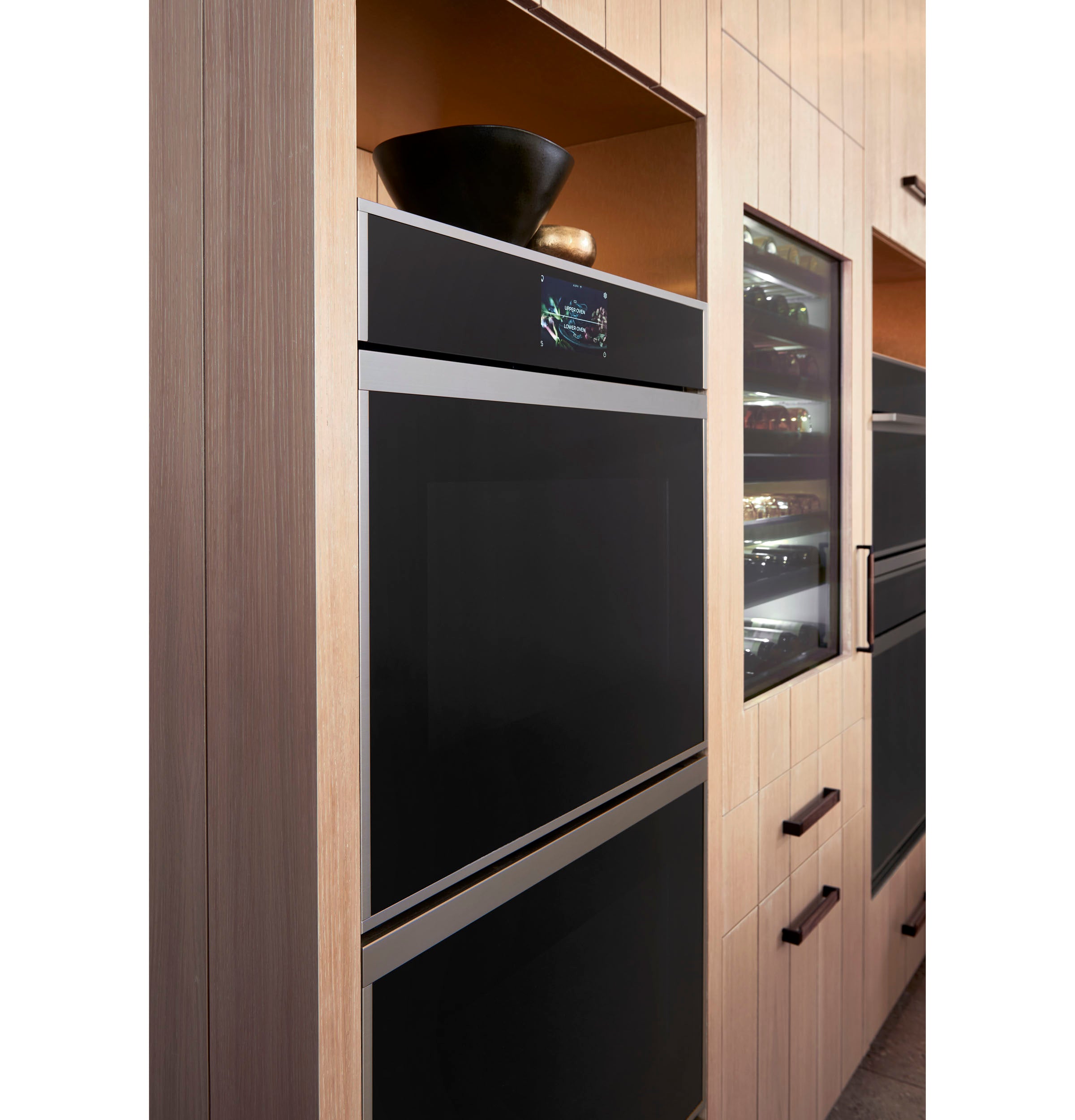

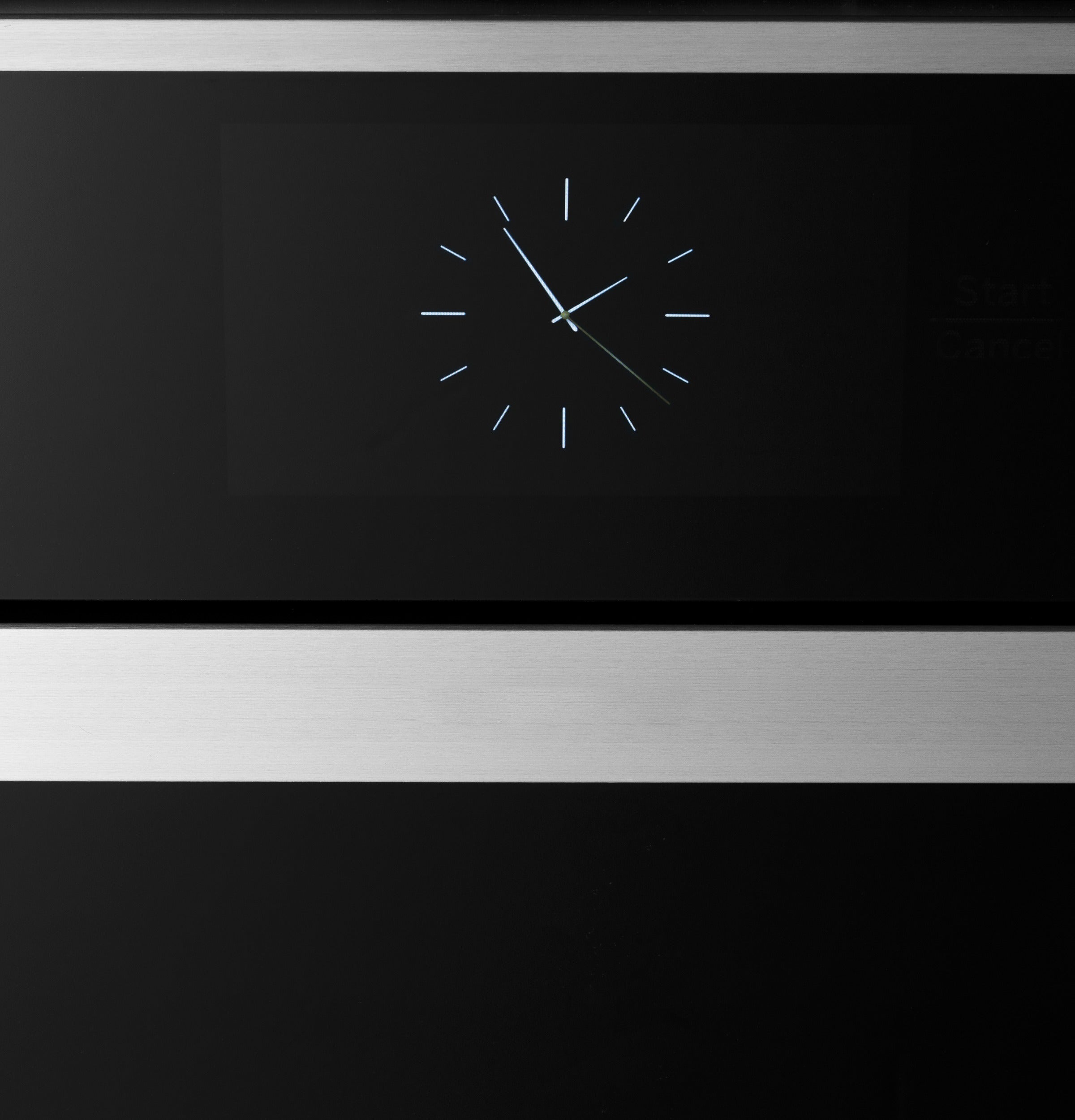

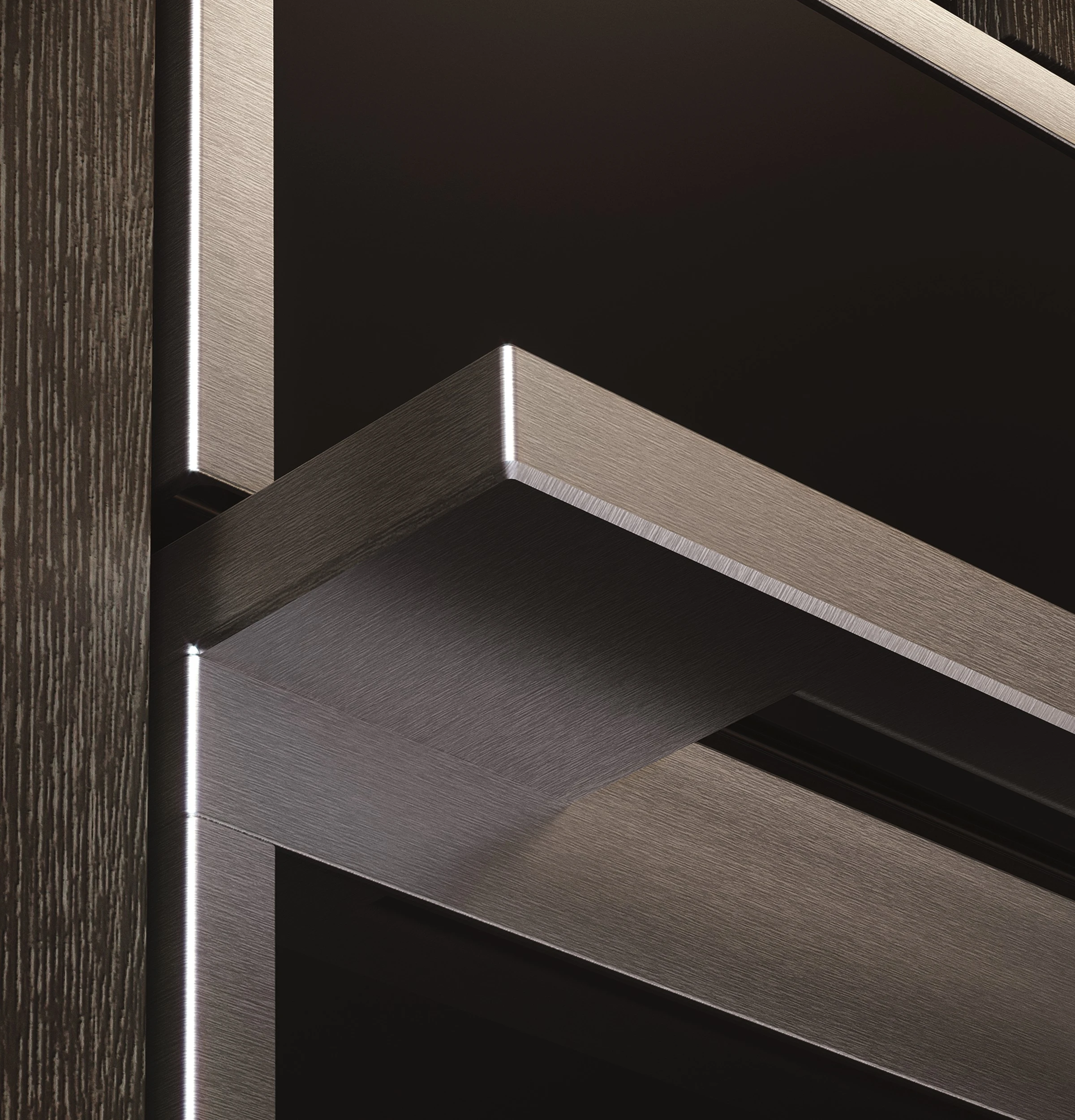

Streamlined design and precisely machined metals create a contemporary yet functional aesthetic

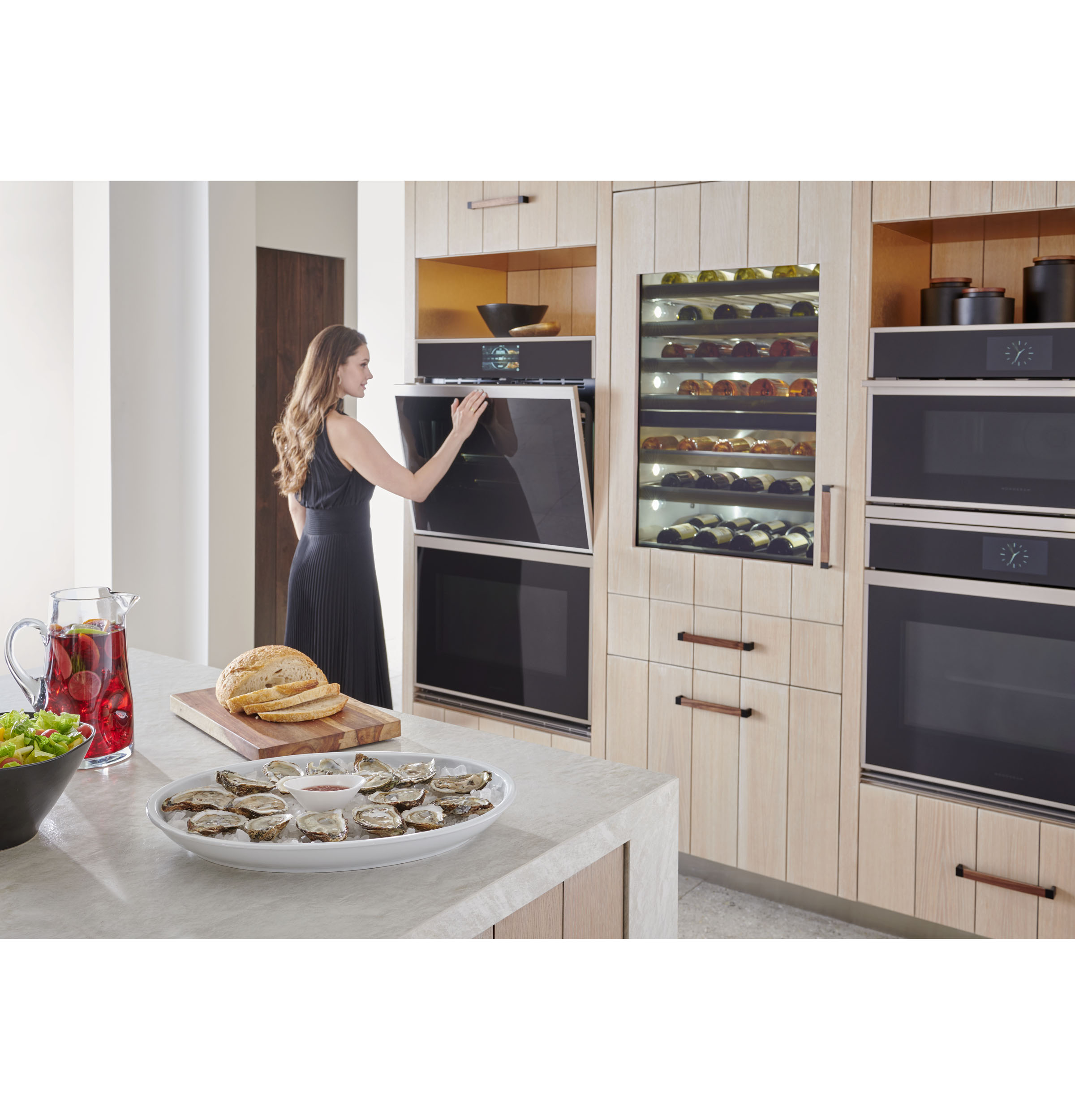

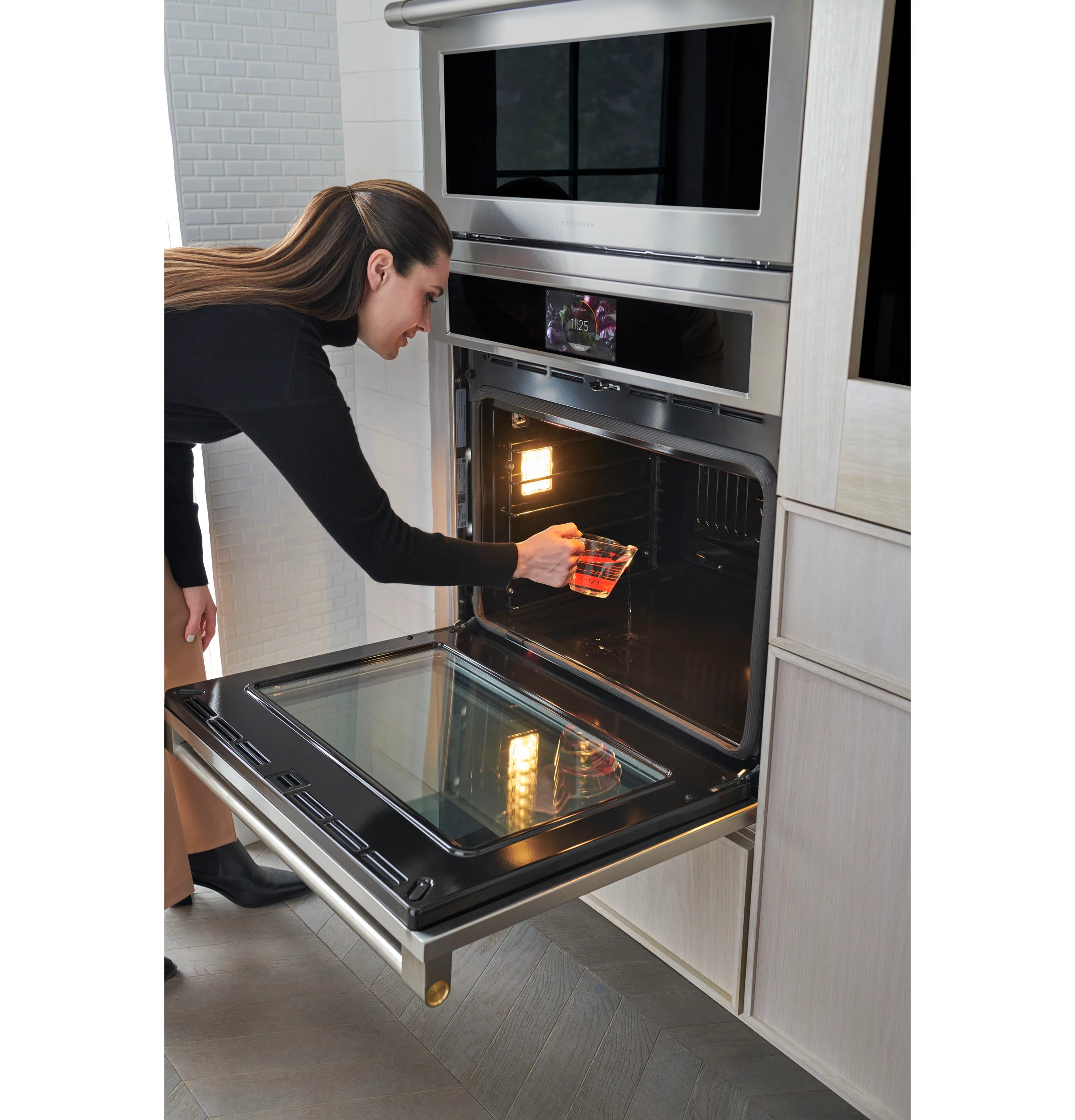

Sleek handle-less design now benefits from the convenience of voice control. Once programmed, you can use your voice to open the oven door, preheat the oven and more, all without raising a finger

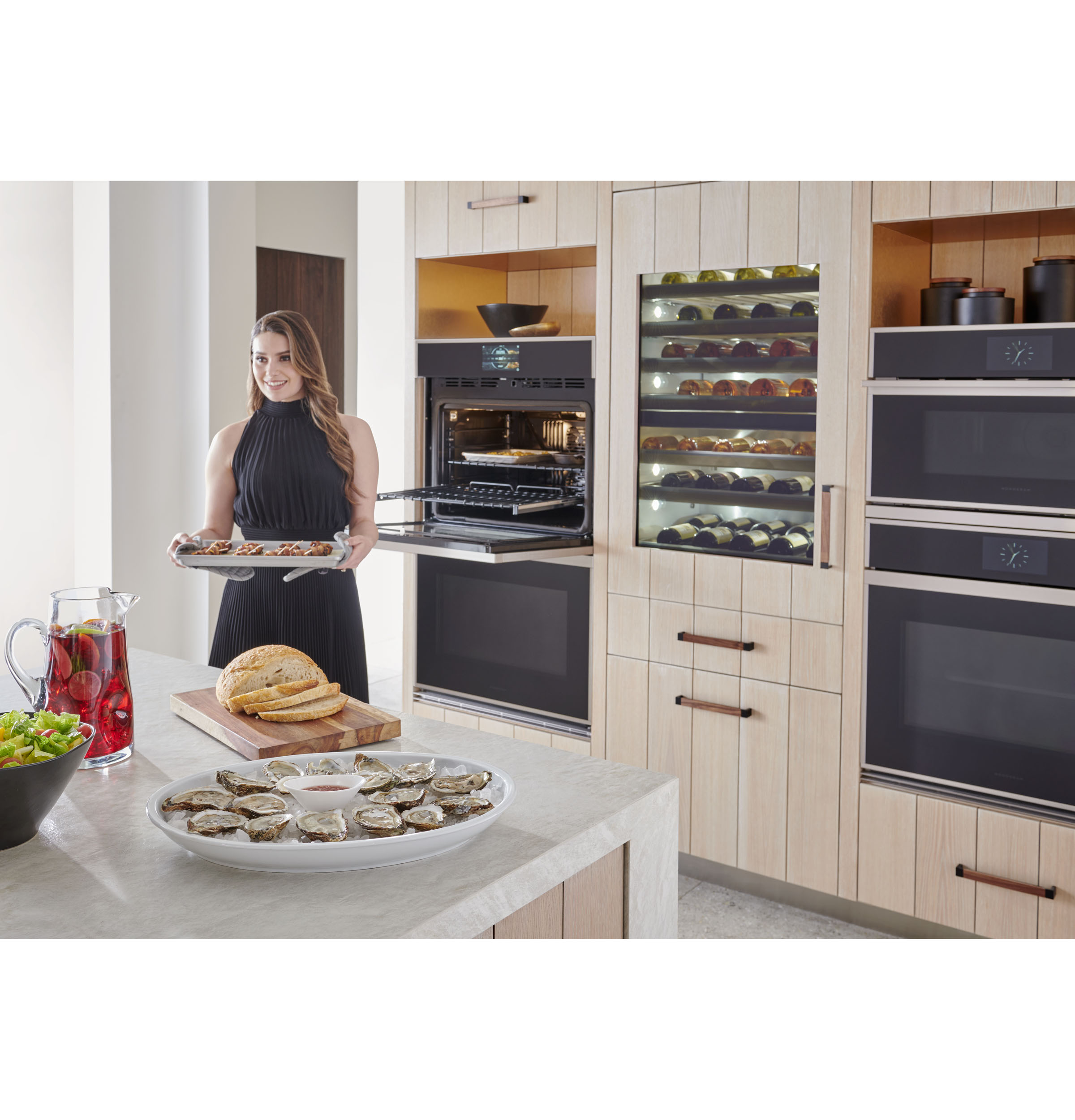

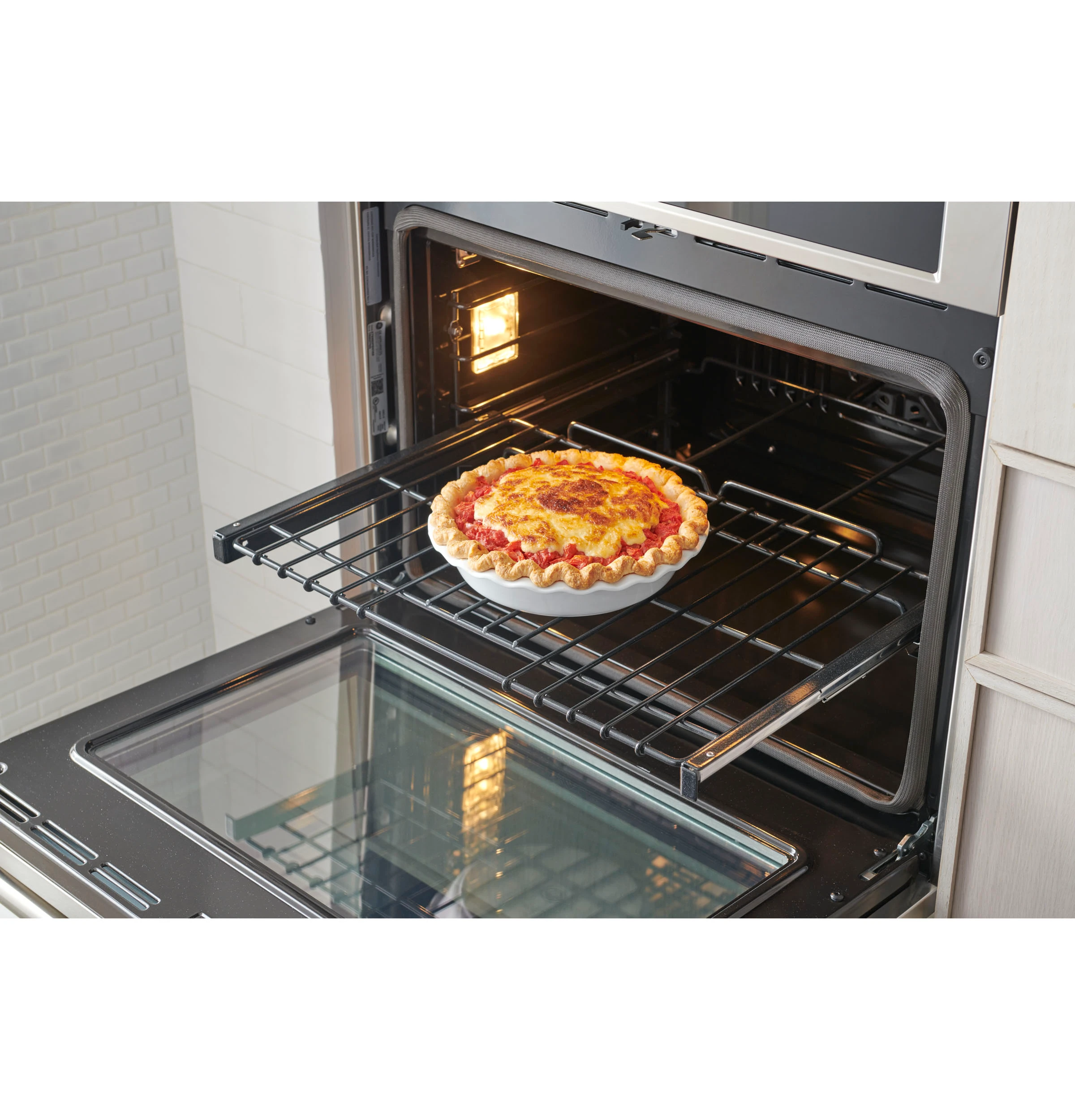

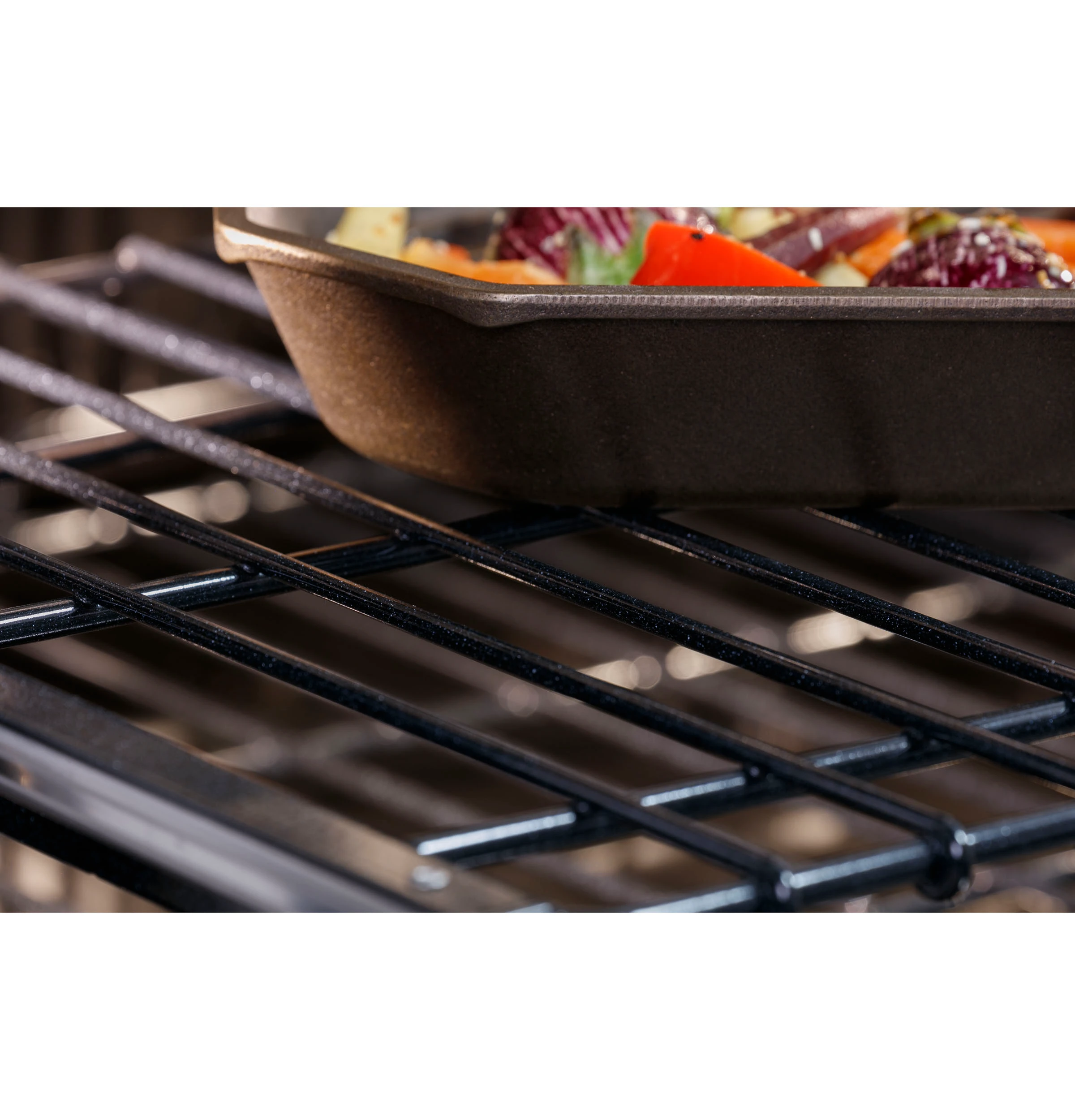

Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle
Covers more surface area for more even baking results

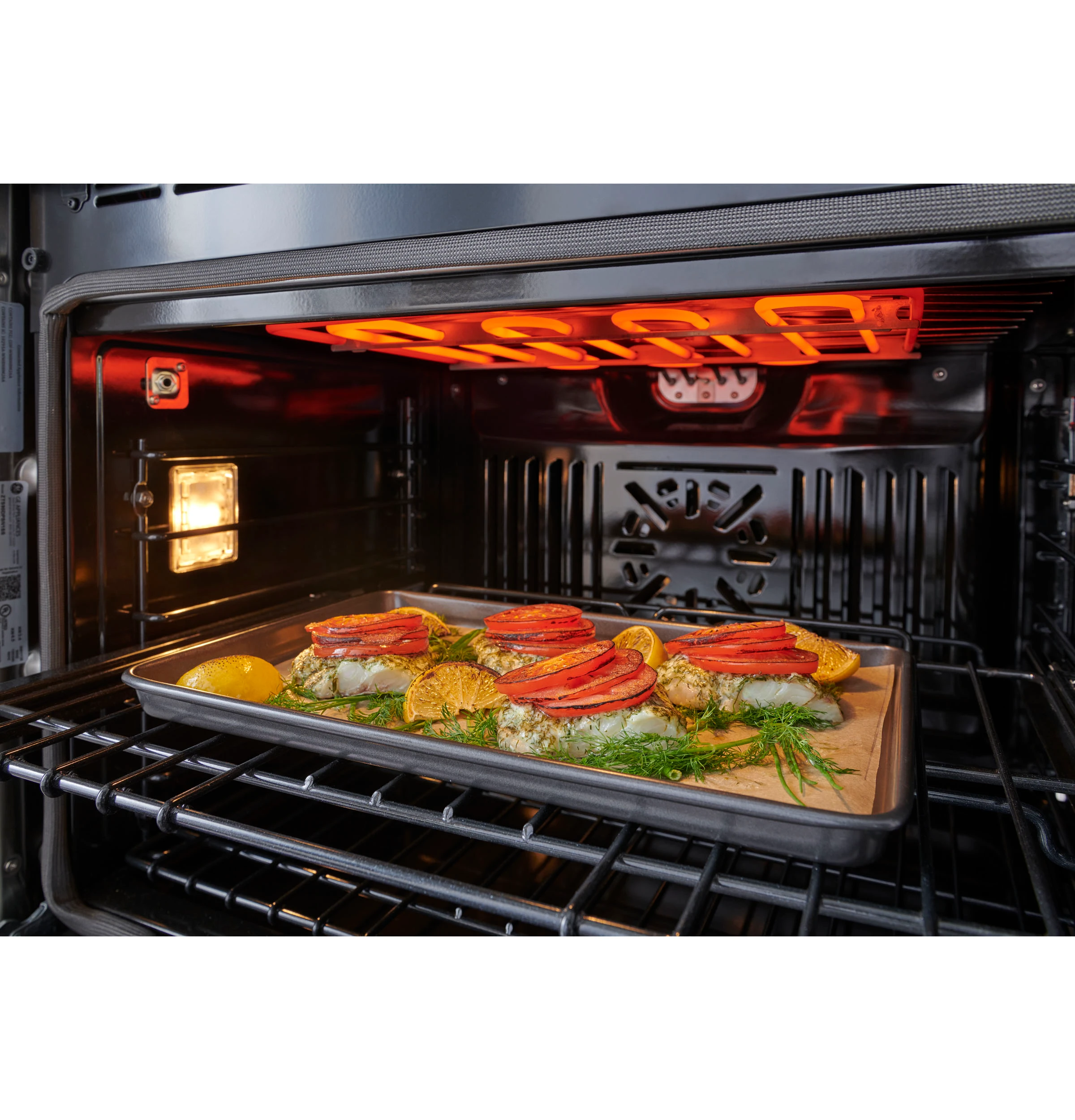

Evenly browns dishes of all types and sizes
Gives you flexible options for thorough oven cleaning

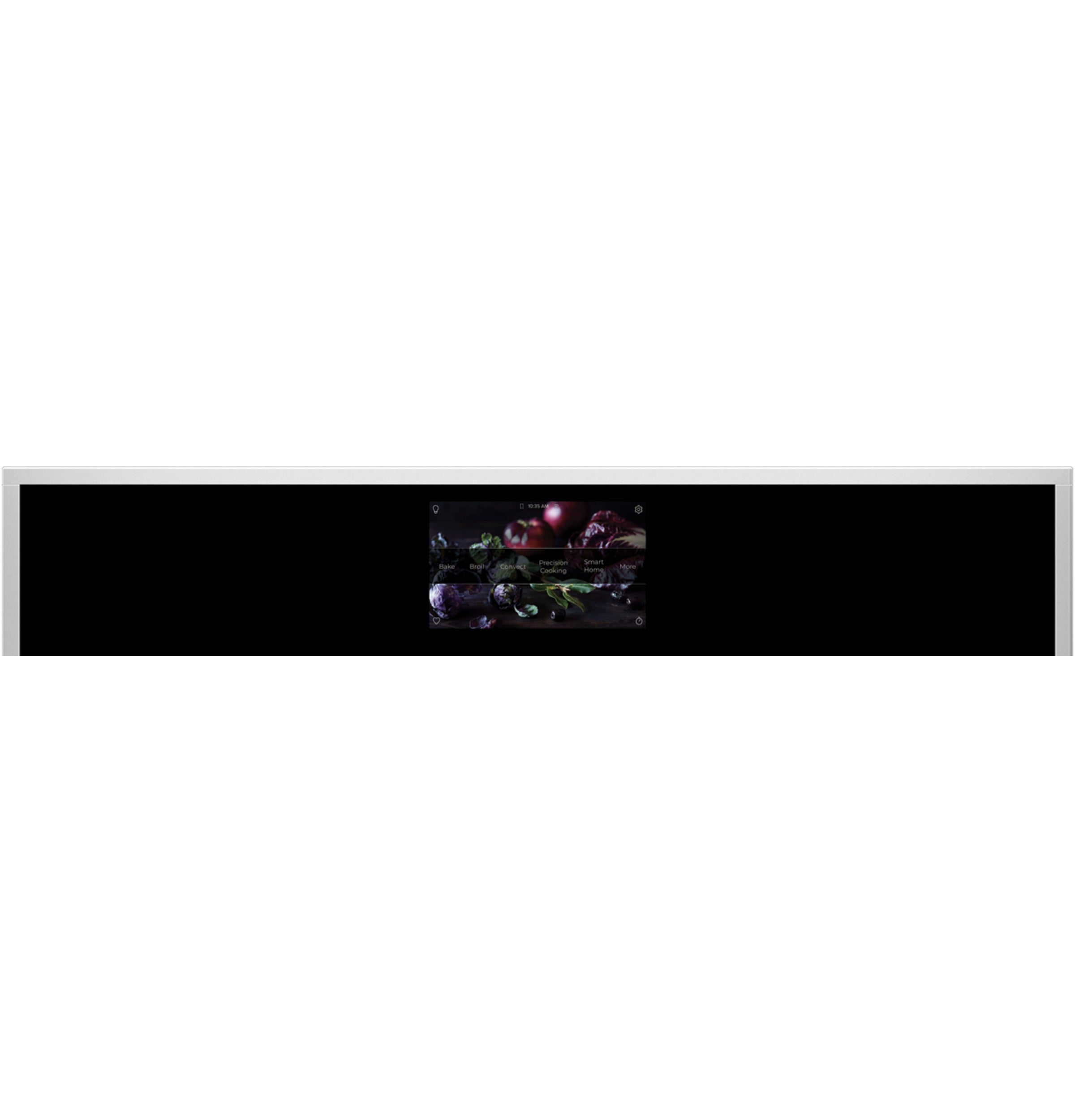

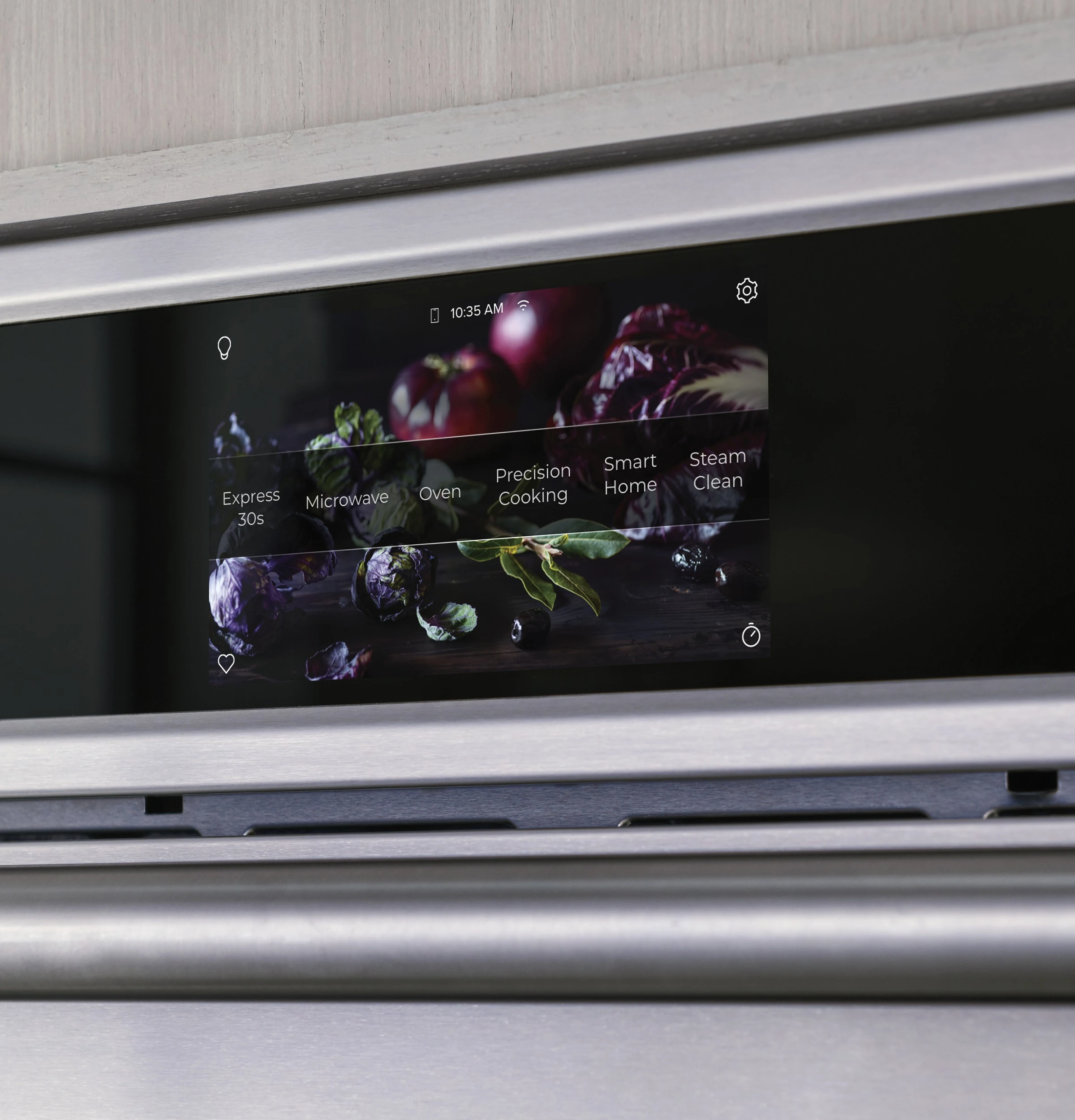

Adjust oven settings with little effort with a Brilliant 7" LCD display that allows you to customize backgrounds and receive weather updates

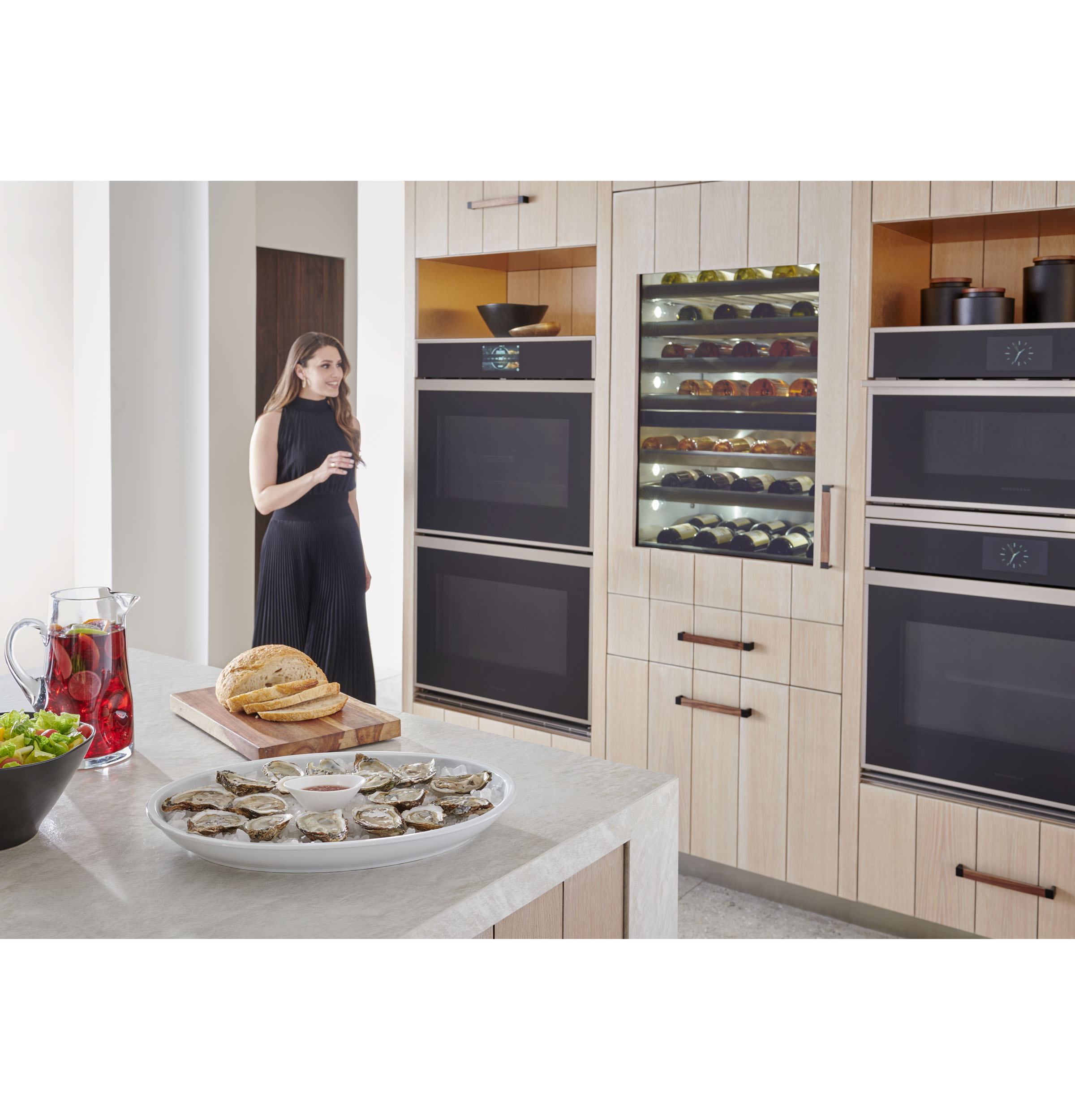

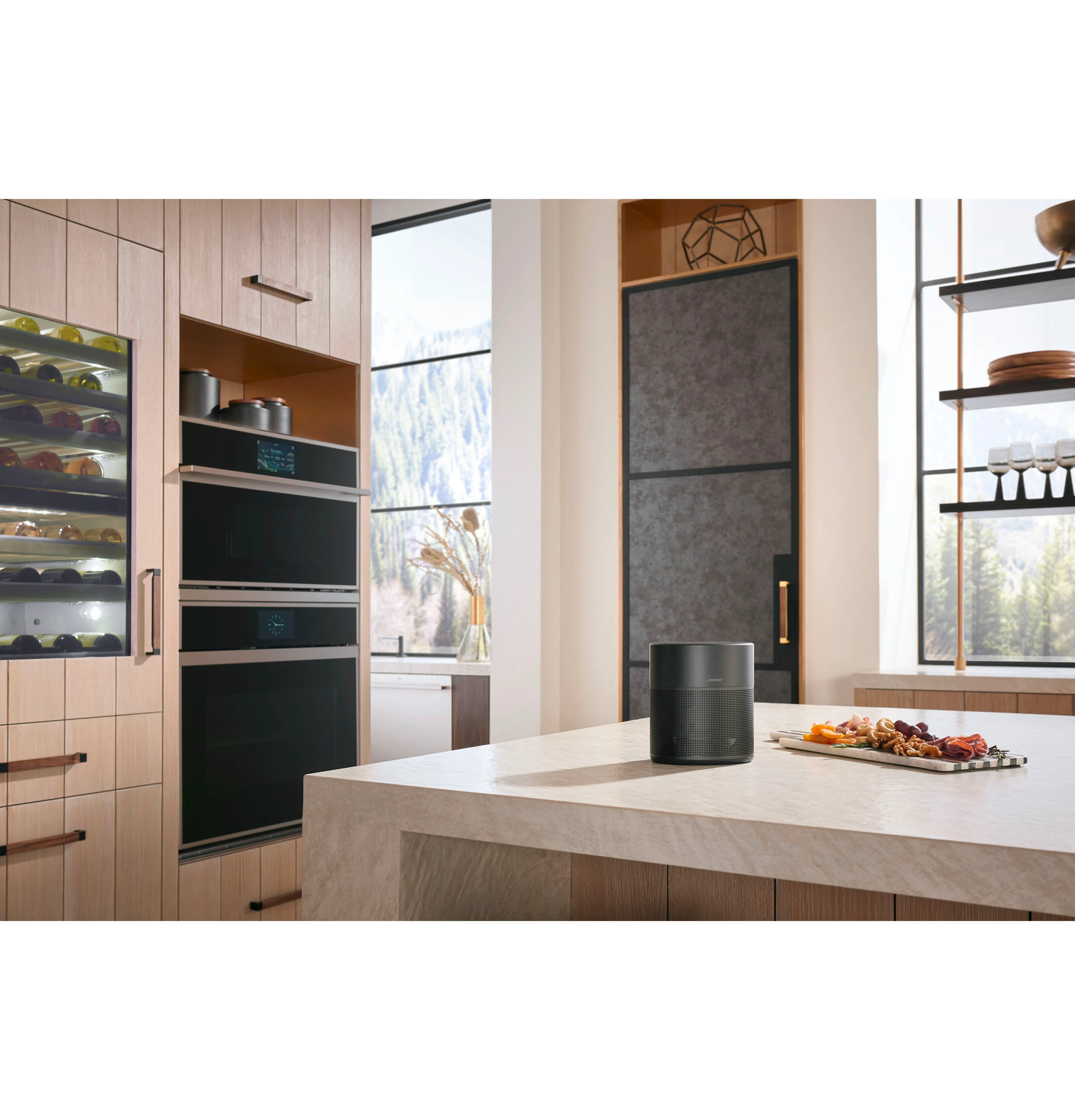

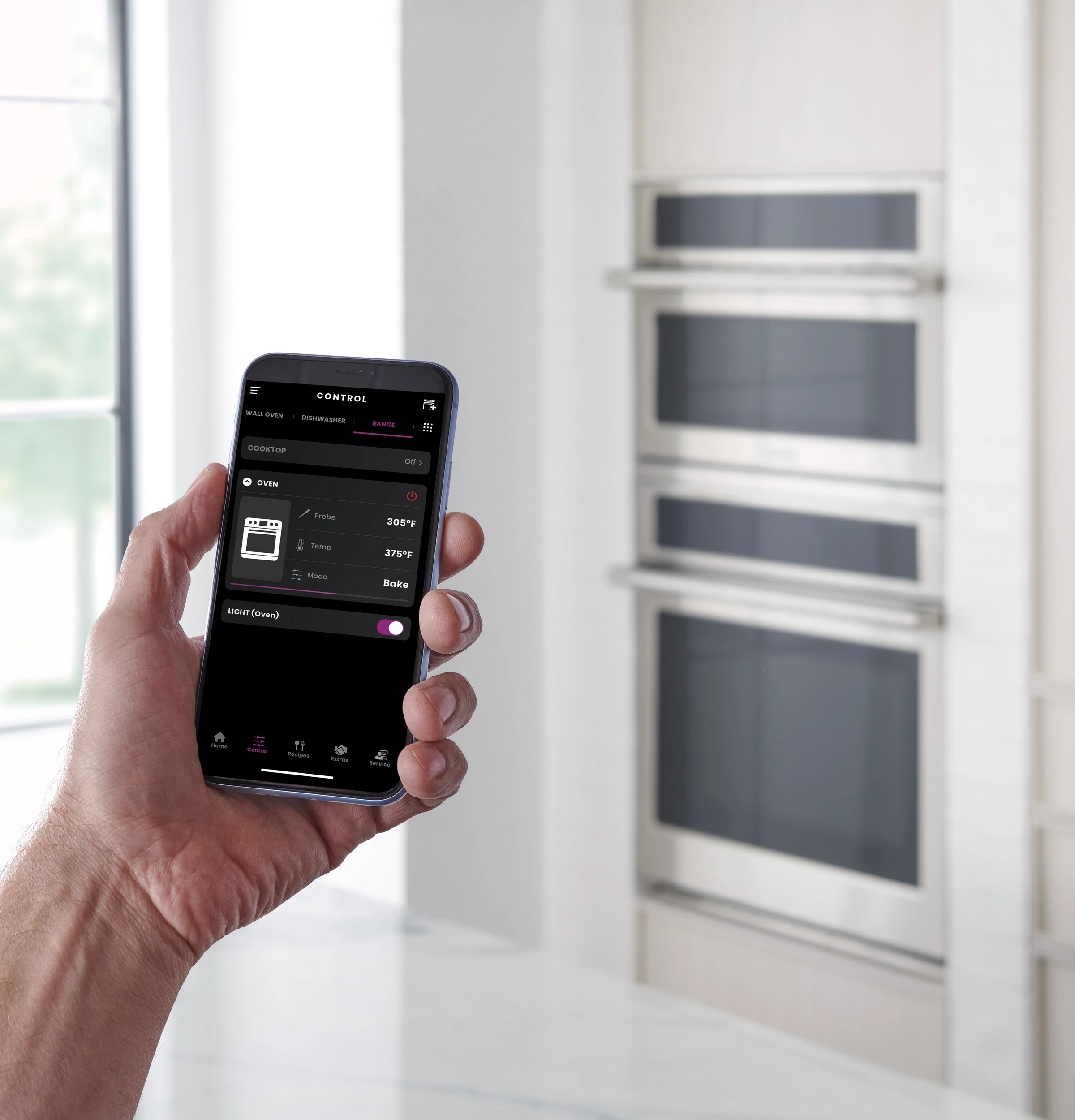

Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home
Master new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook times
Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home
