Sale price $7,500.00 Regular price $10,408.97 Save $2,908.97 / 27% OFF

Product Details for Monogram ZTDX1DPSNSS

Technical Details

Filter

App Filter - WiFi Connect Built-In
App Filter - Cabinet Width Cooking 30 in. (Standard)

Weights & dimensions

Overall Depth 27.3125 in
Net Weight 364 lb
Overall Width 29.75 in
Overall Height 51.1875 in
Cabinet Width 30 in
Oven Interior Dimensions (upper) 25 x 17-3/8 x 20 1/4
Cutout Dimensions (w x h x d) (in.) 28-5/8 x 50-1/4 x 23-1/2
Oven Interior Dimensions (lower) 25 x 17-3/8 x 20 1/4
Approximate Shipping Weight 390 lb

Appearance

Design Style Statement Collection
Frameless Oven Door(s) Stainless Steel
Handle Color Stainless Steel
Color Appearance Stainless Steel
Handle Statement Collection
Oven Door Features Oven Window
Installation Over Warming Drawer

Features

WiFi Connect Built-In
Fuel Type Electric
Product Type Double Oven
Cooking Technology Convection
Cleaning Time Variable with Delay Clean Option
Configuration Double Oven
Oven Rack Positions (Single or Upper/Lower) 6 / 6
Collection Statement

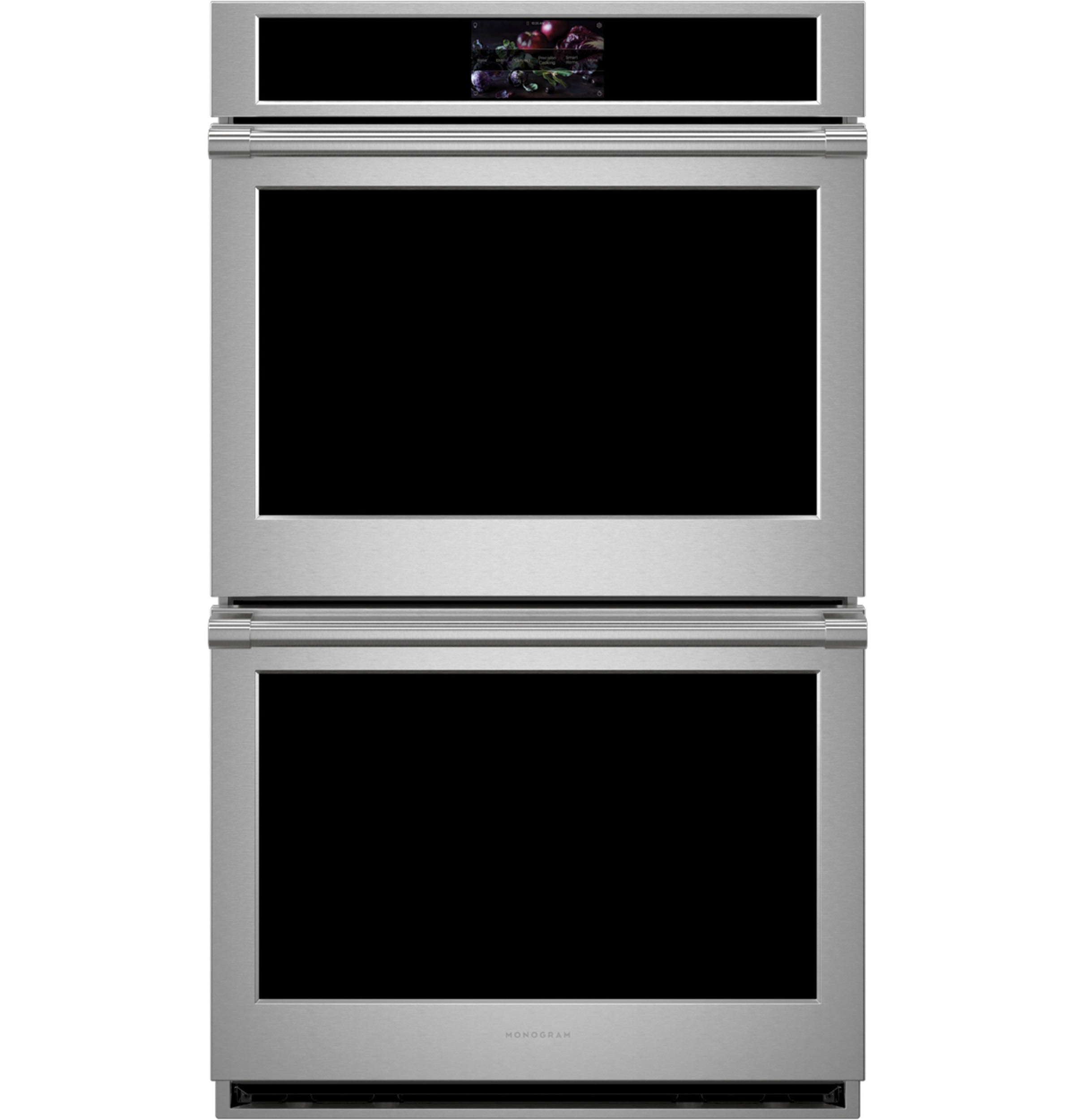

Short Description 30" Convection Double Wall Oven
Self-Clean Oven Door Lock Automatic
Cooking System Variable Speed, Reverse Air Convection (Both Ovens)
Control Type 7" Full-Color Touch LCD Screen
Oven Cleaning Type Self-Clean with Steam Clean Option
Oven Cooking Modes Convection Broil Hi/Lo
Oven Interior Black Gloss Finish
Oven Features 10-Pass Dual Broil Element
Oven Control Features Audible Preheat Signal
Oven Rack Features 2 Self-Clean Heavy-Duty, Full Extension Oven Racks (Both Ovens)
Connected Capabilities Fresco

Power / ratings

Bake Wattage 2850W
Convection Wattage 1300W
Electrical Requirements 240V/208V; 60Hz; 40A
KW Rating at 240V 9
Amp Rating at 208V 40
Broiler Wattage 4300W; Dual Element
Amp Rating at 240V 40
KW Rating at 208V 6.8
Hertz 60

Warranty

Labor Warranty Limited 2-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 2-year entire appliance

Capacity

Total Capacity (cubic feet) 10 cu ft
Capacity (Cu. Ft.) 5.0 Upper / 5.0 Lower

Accessories

Optional Accessories ZX30VT2 Flush Vent Trim Accessory

Other

Oven Interior Dimensions (upper) 25 x 17-3/8 x 20 1/4
Cutout Dimensions (w x h x d) (in.) 28-5/8 x 50-1/4 x 23-1/2

Dimensions & weight

Width 29.75 in.
Height 51.19 in.
Length 27.31 in.
Weight 364 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 56.19 in.
Shipping Length 32.31 in.
Shipping Weight 404 lbs.
Total of Shipping Weight 404 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 24.07 ft³
Dimensional Weight 299.22 lbs.
Total of Cubes 24.07 ft³
Total of Dimensional Weight 299.22 lbs.

Description

As a skilled cook, you understand the importance of having the right tools in the kitchen. That's why the Monogram 30" Electric Convection Double Wall Oven Statement Collection is a must-have for anyone who loves to cook. With its 10.0 cubic foot oven capacity (5.0 each oven) and stainless steel design, this oven is perfect for cooking multiple dishes at once. The LCD controls make it easy to navigate and customize your cooking settings. You can also take advantage of the Twin Convection with Direct Air and Soft-Close Door for even and consistent cooking results every time. The ten-pass bake element and ten-pass dual broil element ensure your food is cooked to perfection, no matter what you're making. What sets the Monogram 30" Electric Convection Double Wall Oven Statement Collection apart is its WiFi powered by SmartHQ™ and Voice Control capabilities. You can control your oven from anywhere using your smartphone or voice commands. This allows you to preheat the oven, set timers, and adjust the temperature without even being in the kitchen. The precision cooking modes and No-Preheat Air Fry feature of the Monogram 30" Electric Convection Double Wall Oven Statement Collection showcase its versatility and make cooking a breeze. With precision cooking modes, you can easily cook anything from pizza to poultry with the touch of a button. These modes ensure that your food is cooked to perfection, with even and consistent results every time. Additionally, the No-Preheat Air Fry feature allows you to enjoy your favorite fried foods without the added calories and fat. With this feature, you can easily achieve crispy and delicious results, all without the hassle of preheating your oven. This feature is perfect for anyone who loves fried food but wants to make healthier choices in their diet. Enhance your kitchen with the Monogram 30" Electric Convection Double Wall Oven Statement Collection. Its double wall oven design and Monogram branding make it a stylish and modern addition to any home. Don't settle for anything less than the best in your kitchen.


Product Features

  • Voice Control
    Once programmed, you can use your voice to preheat the oven and more, all without raising a finger
  • No-Preheat Air Fry
    A must-have for health-conscious cooks, the No-Preheat Air Fry mode crisps food to crunchy perfection, without using oils or butter
  • 10.0 cubic foot oven capacity (5.0 each oven)
    Easily accommodates even the largest meals
  • Personalization, Intelligent, Intuitive features
  • Enhanced speakers
  • OU Shabbos keeper capable

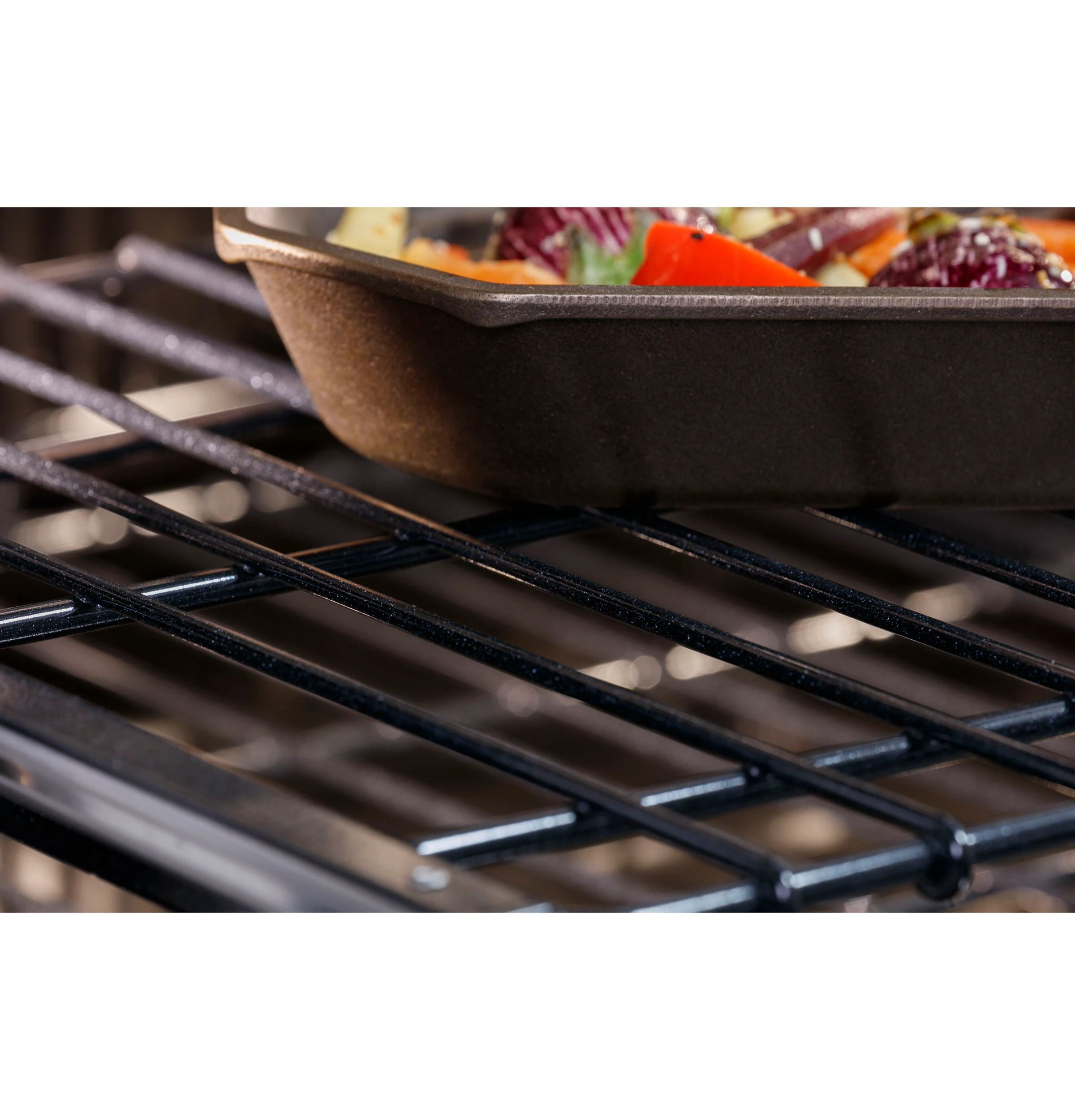

  • Nickel ladder racks (enamel avail as accessory)
  • Slow Roast
  • Prime Rib Mode
  • Camera
  • Halogen lights

Key Features

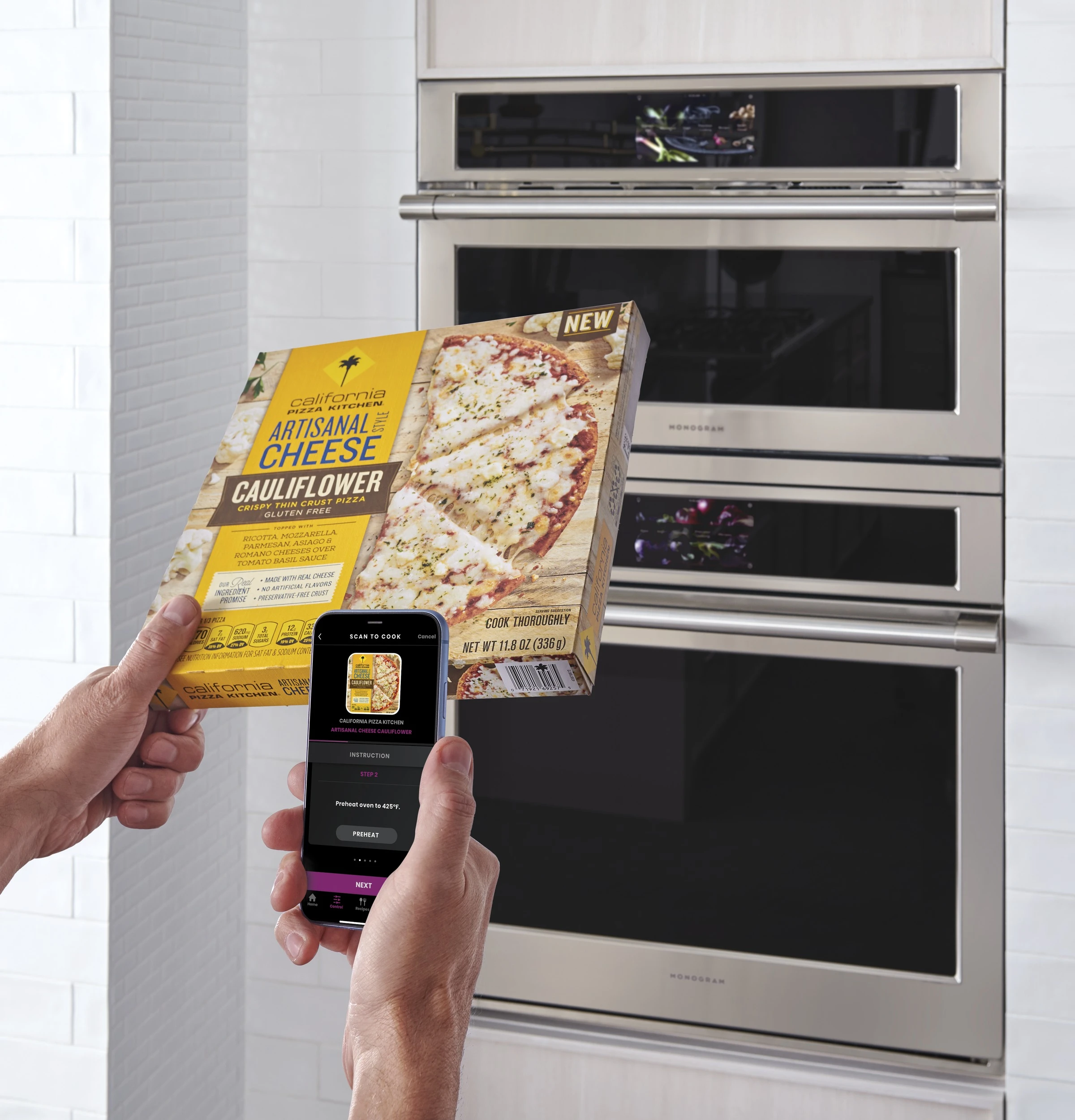

Scan to cook

Innovative and time saving, scan-to-cook technology ensures that packaged foods are always prepared correctly. A simple scan of the barcode with a smartphone delivers consistently, delicious results

Twin Convection with Direct Air

Achieve beautifully cooked and delicious meals every time with this expertly designed, third heating element and fan combination

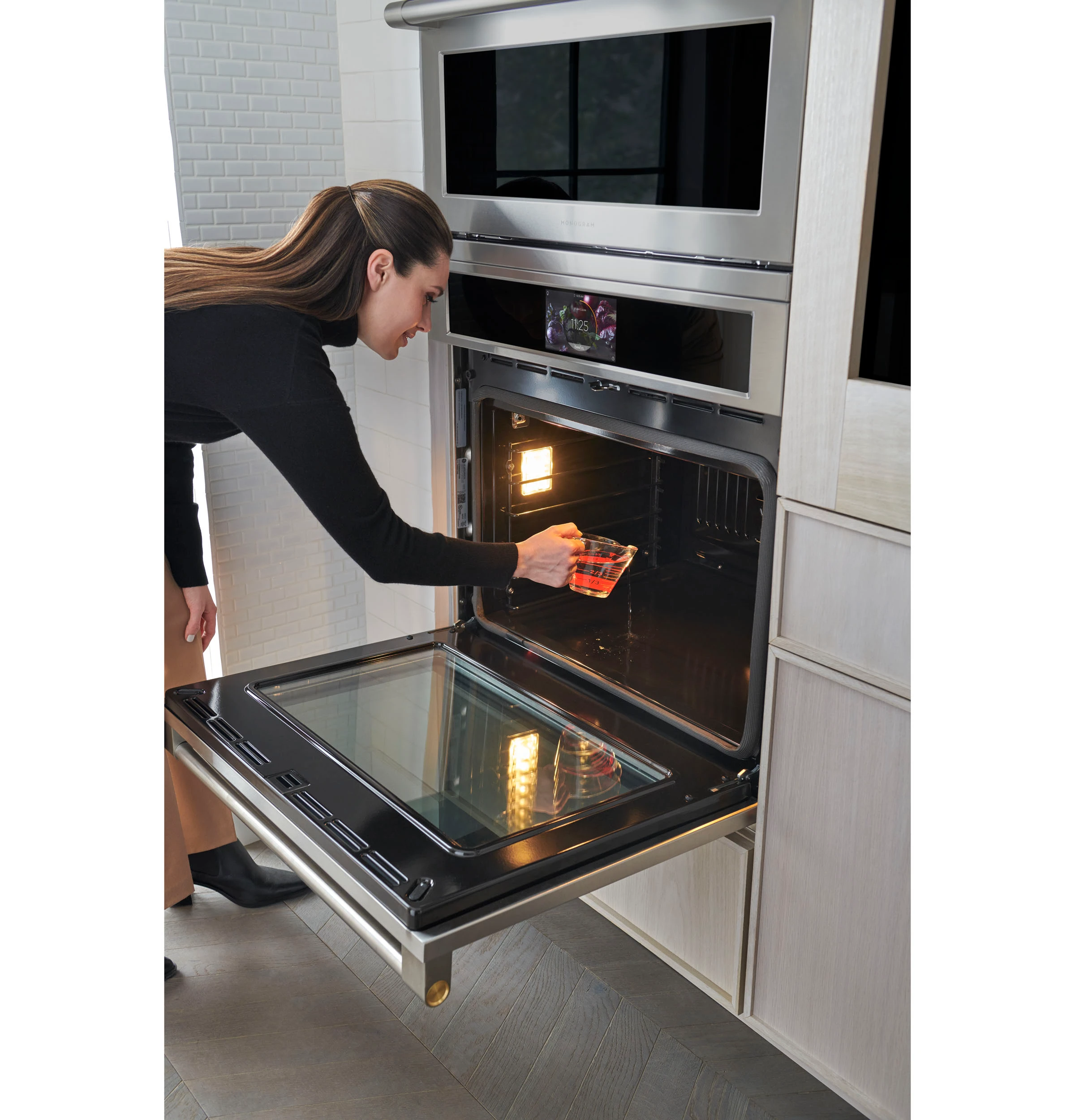

Soft-Close Door

An expertly engineered hinge ensures that the oven door closes quietly and smoothly, every time

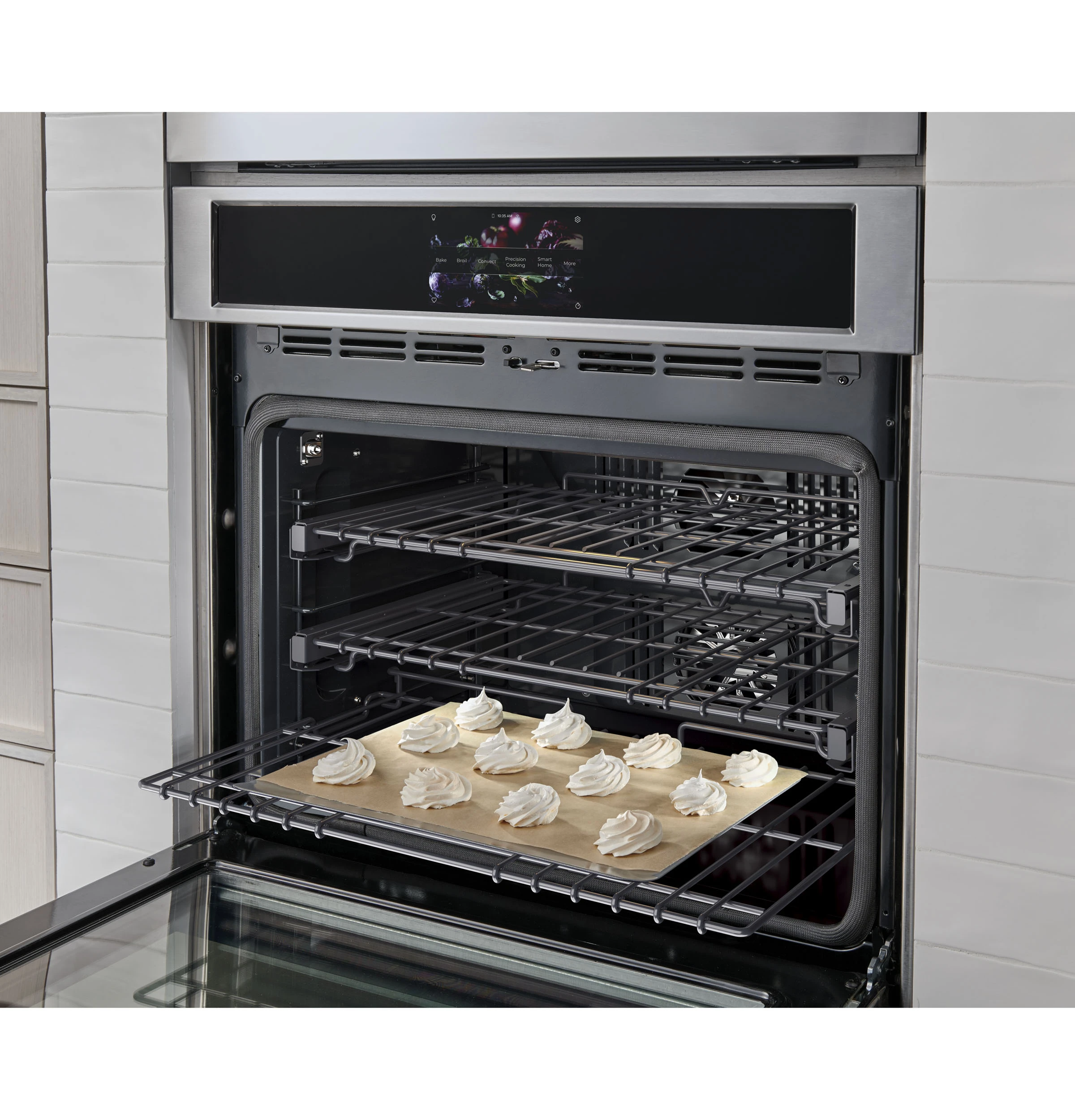

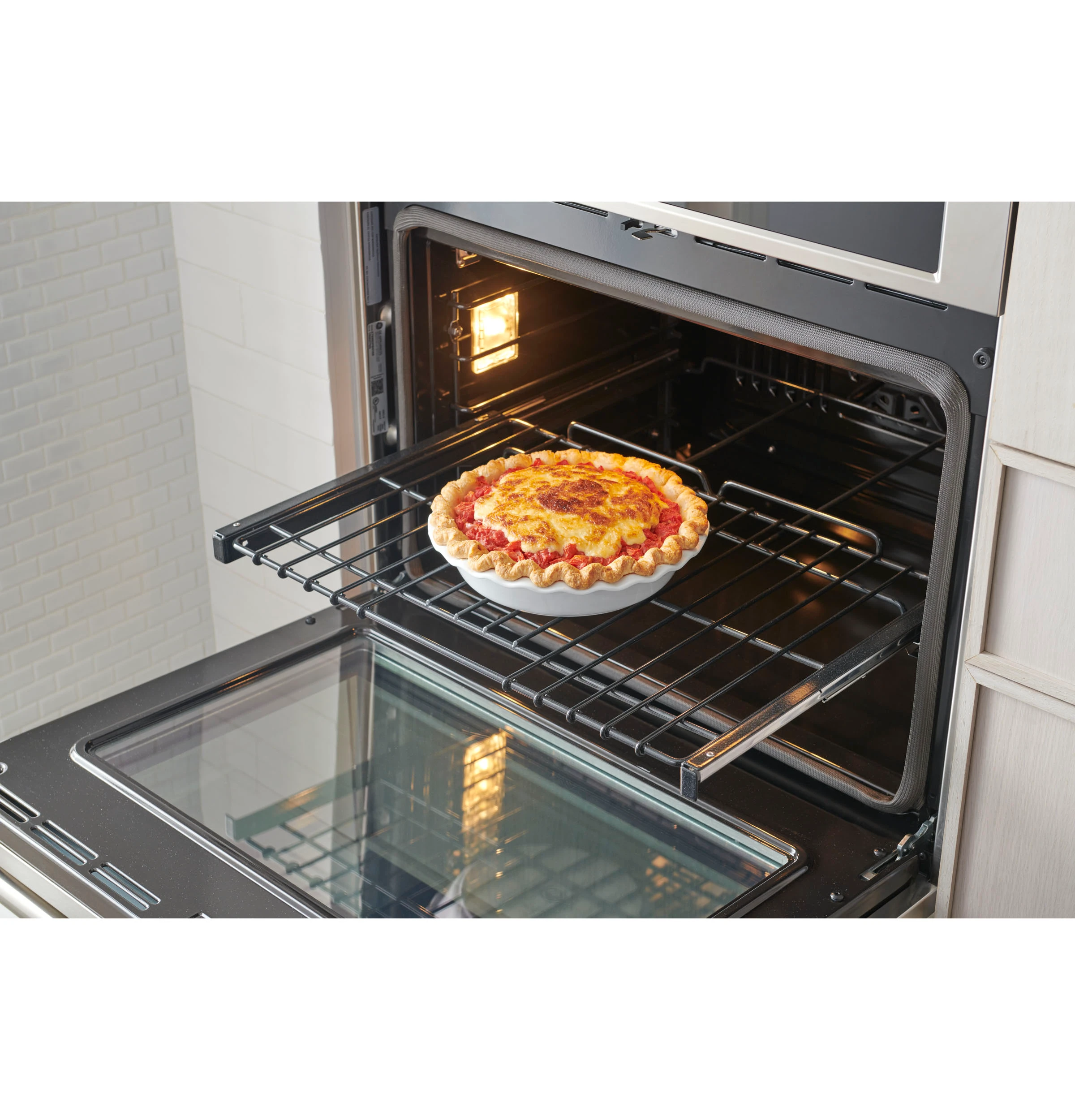

Exclusive self-clean, (4 full-extension, 2 regular) oven racks

Glide in and out smoothly on stainless steel ball bearings, and are designed to be left in the oven during the self-clean cycle

Ten-pass bake element

Covers more surface area for more even baking results

Self-clean with Steam Clean option

Gives you flexible options for thorough oven cleaning

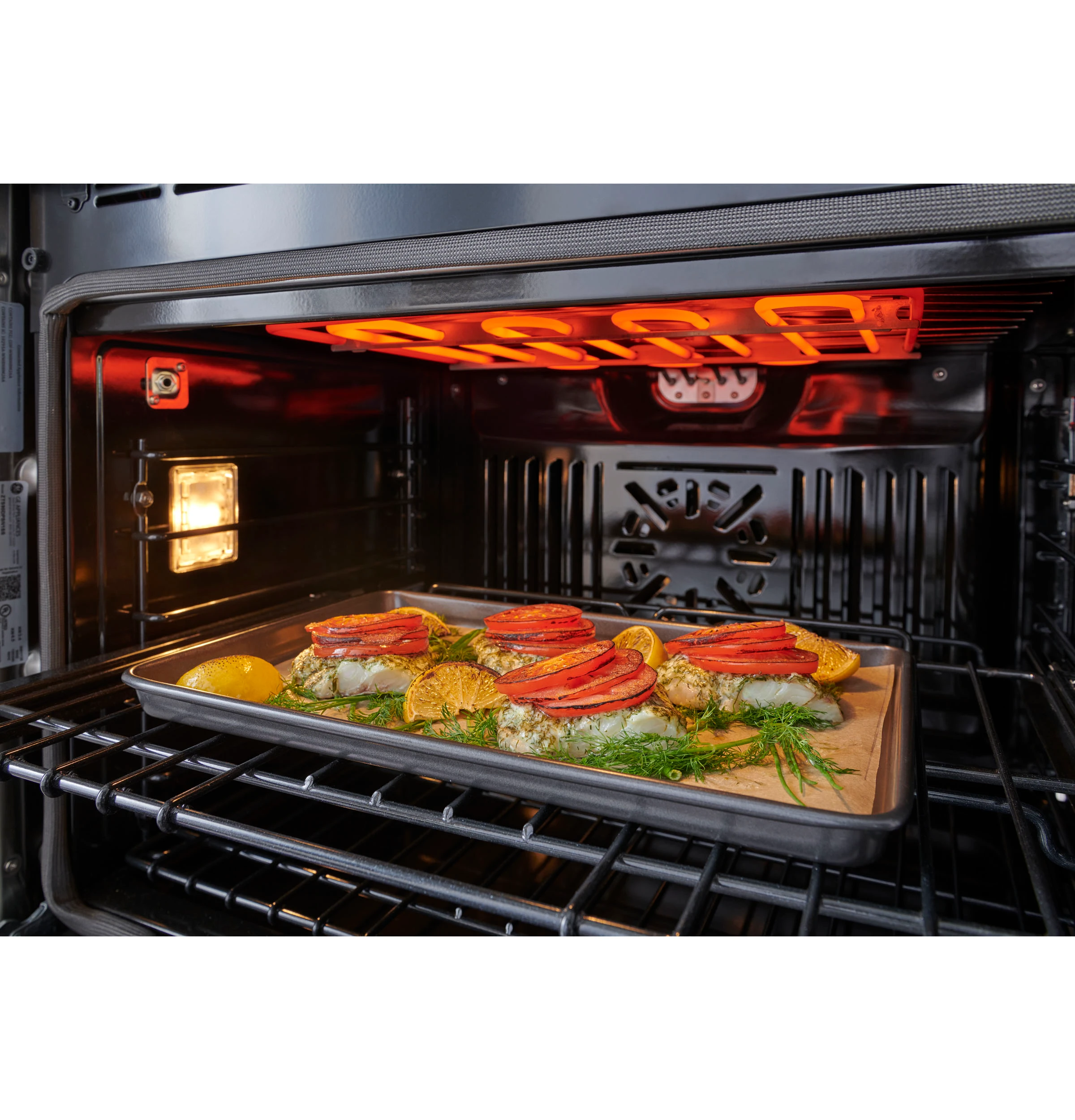

Ten-pass dual broil element

Evenly browns dishes of all types and sizes

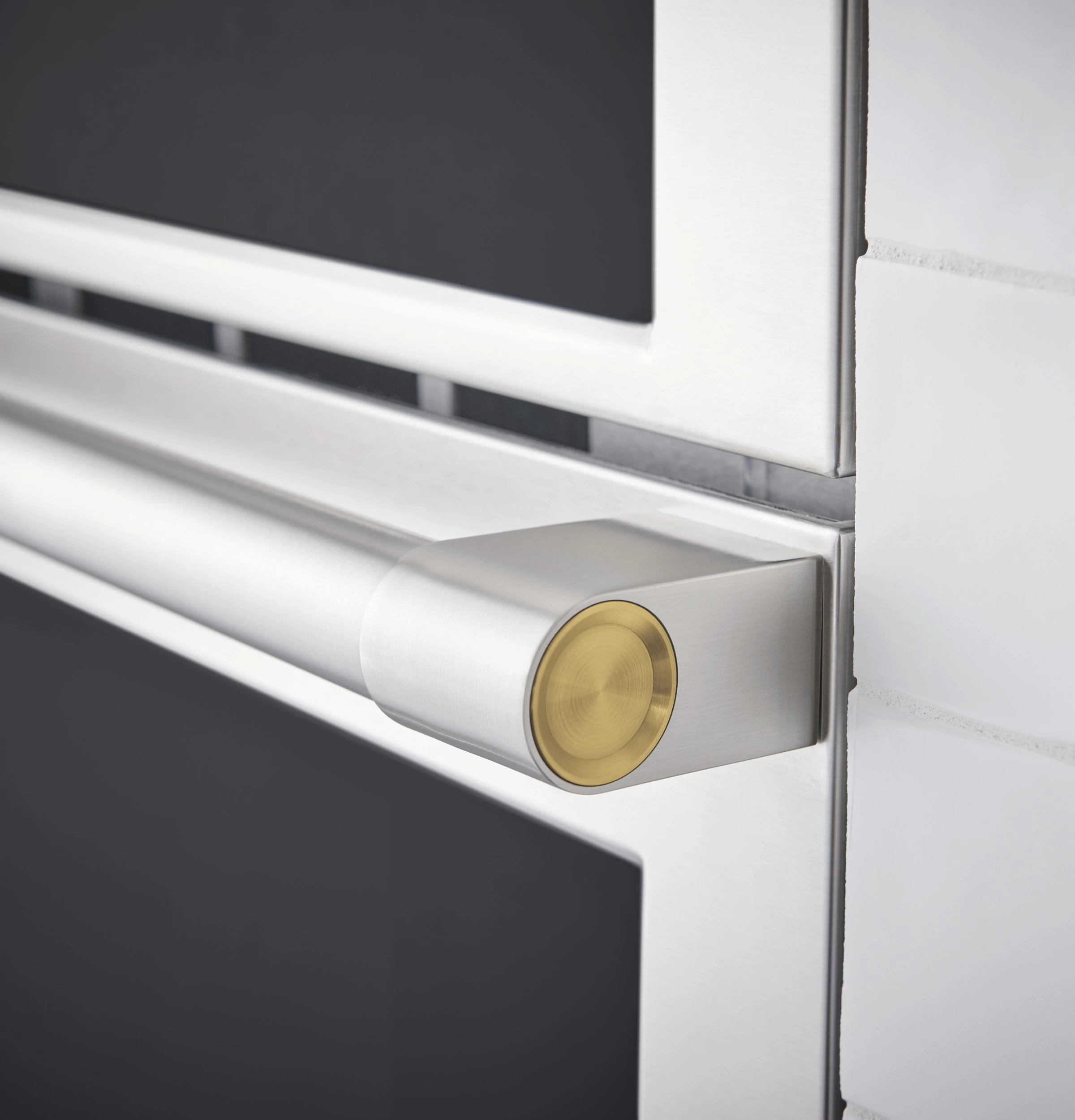

The Monogram Statement Collection

Edge-to-edge handles, polished stainless steel, and hand-finished edges convey a sense of solidity and beauty

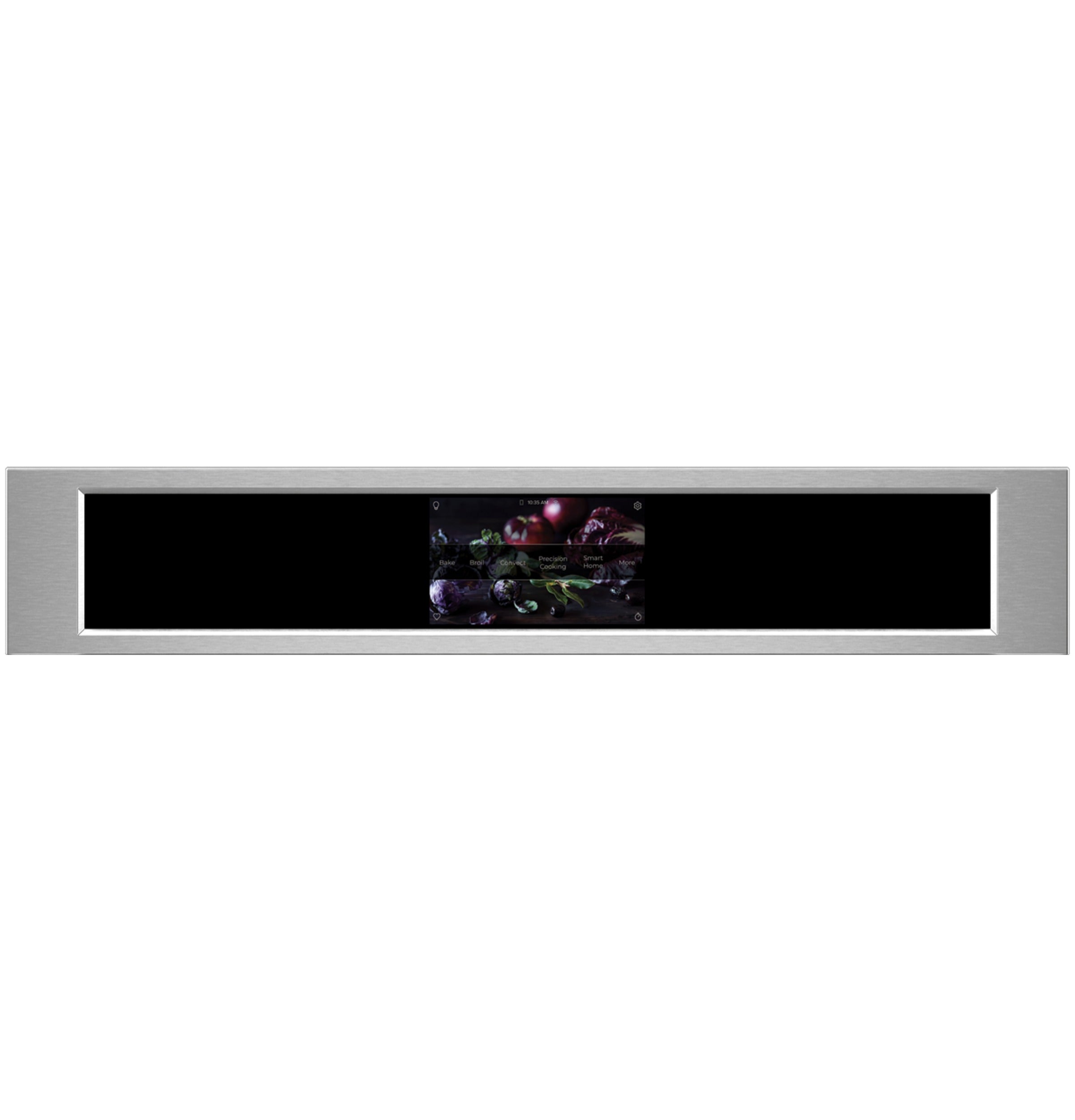

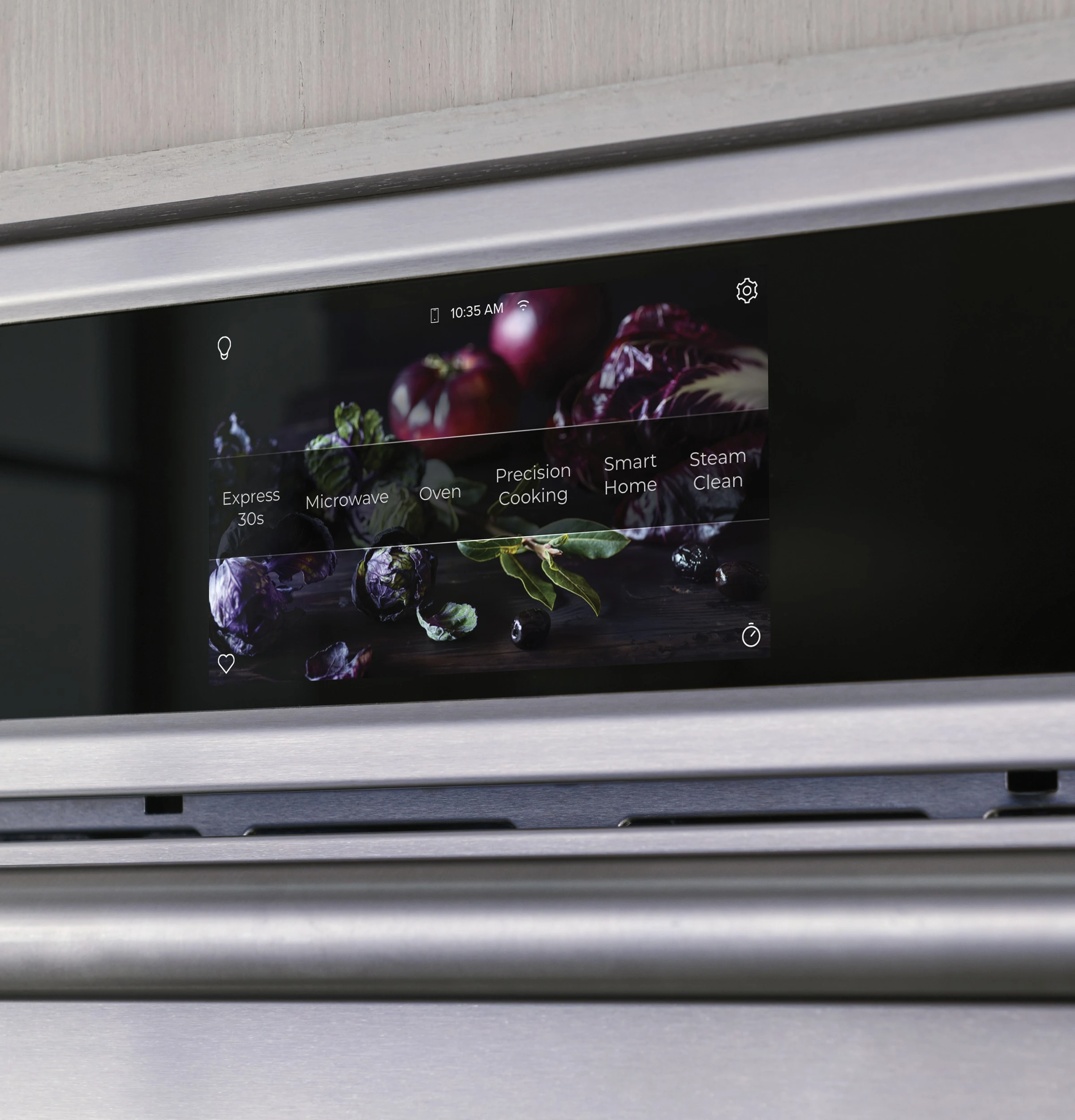

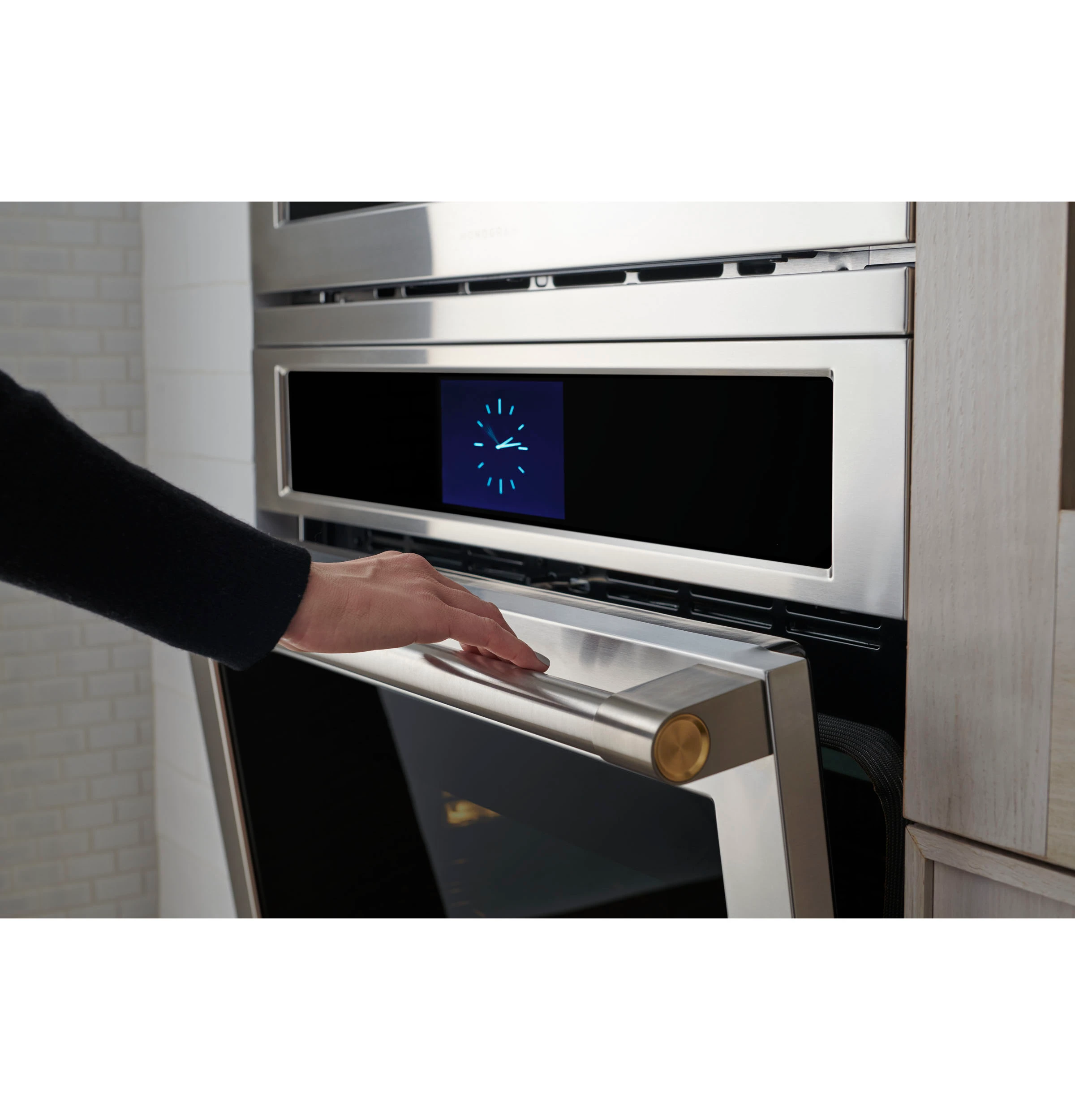

LCD controls

Adjust oven settings with little effort with a Brilliant 7" LCD display that allows you to customize backgrounds and receive weather updates

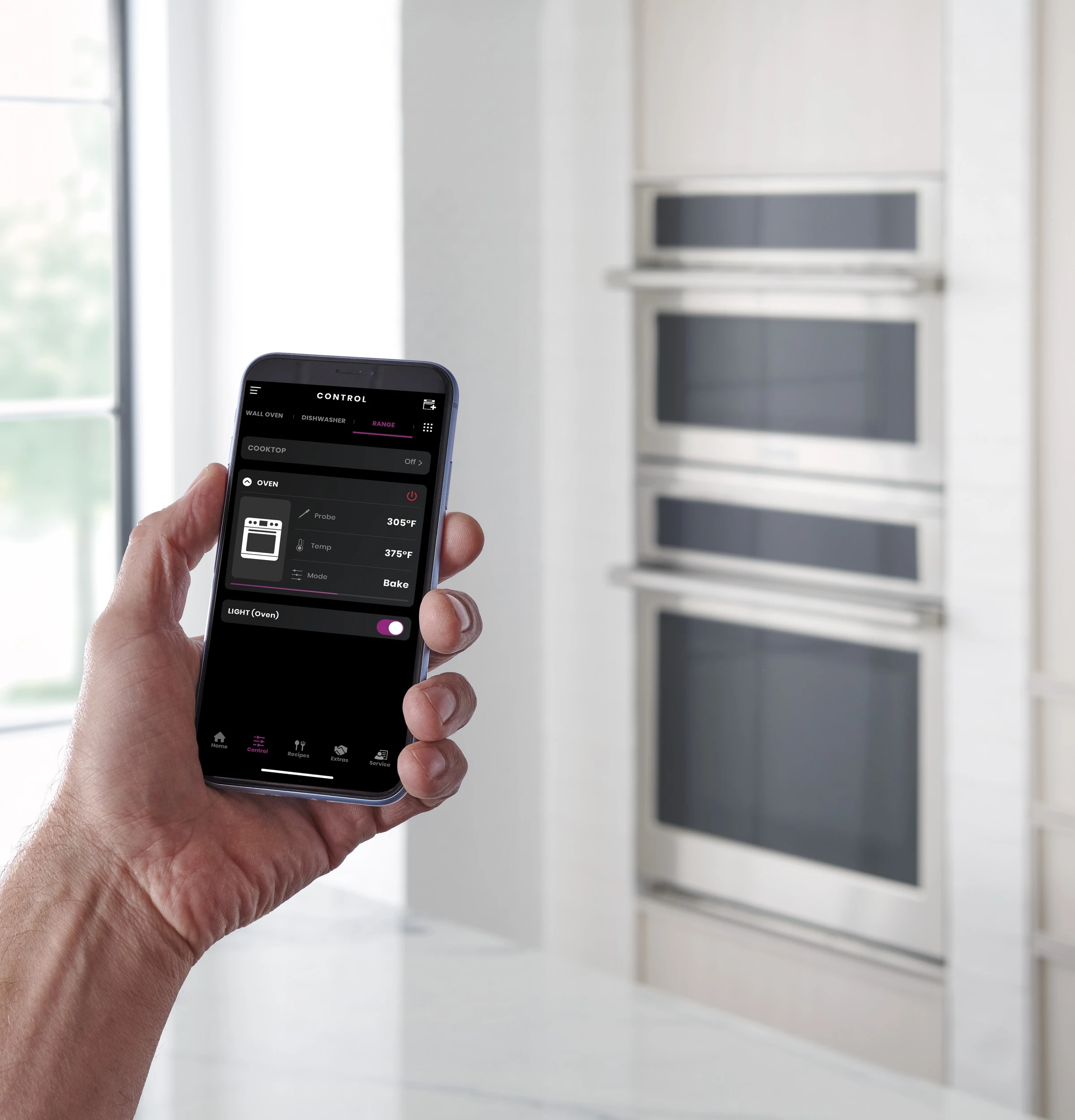

WiFi powered by SmartHQ

Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home

Precision cooking modes

Master new recipes and perfectly execute favorite dishes using this ultra-smart system that automatically tracks cooking progress, modifies temperatures and adjusts cook times

WiFi powered by SmartHQ™

Perfectly in sync with a busy lifestyle, Alexa or Google Home can be used to control an array of oven functions from both inside and outside the home
