Sale price $10,700.00 Regular price $13,427.97 Save $2,727.97 / 20% OFF

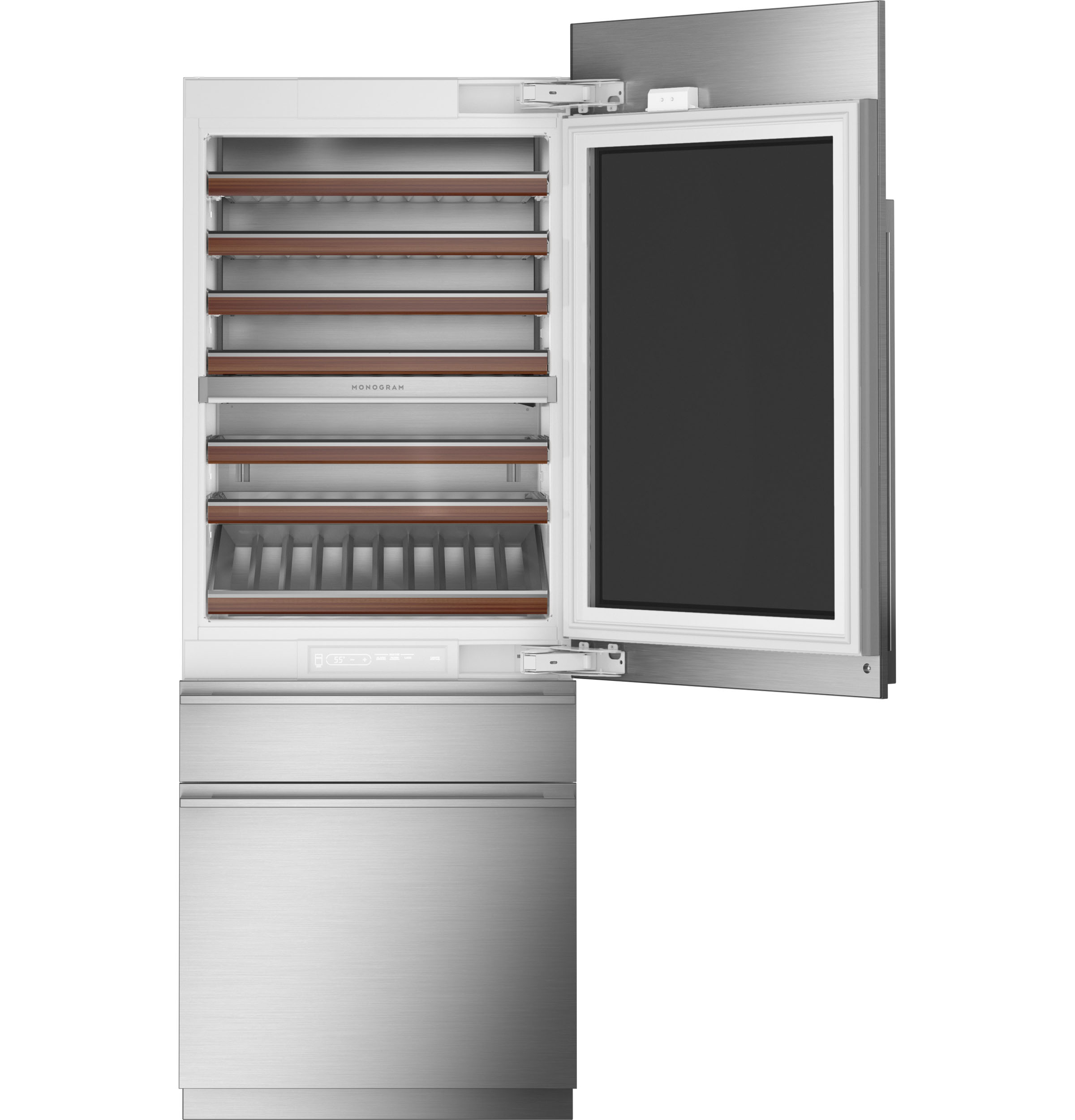

Product Details for Monogram ZIW303NPPII

Technical Details

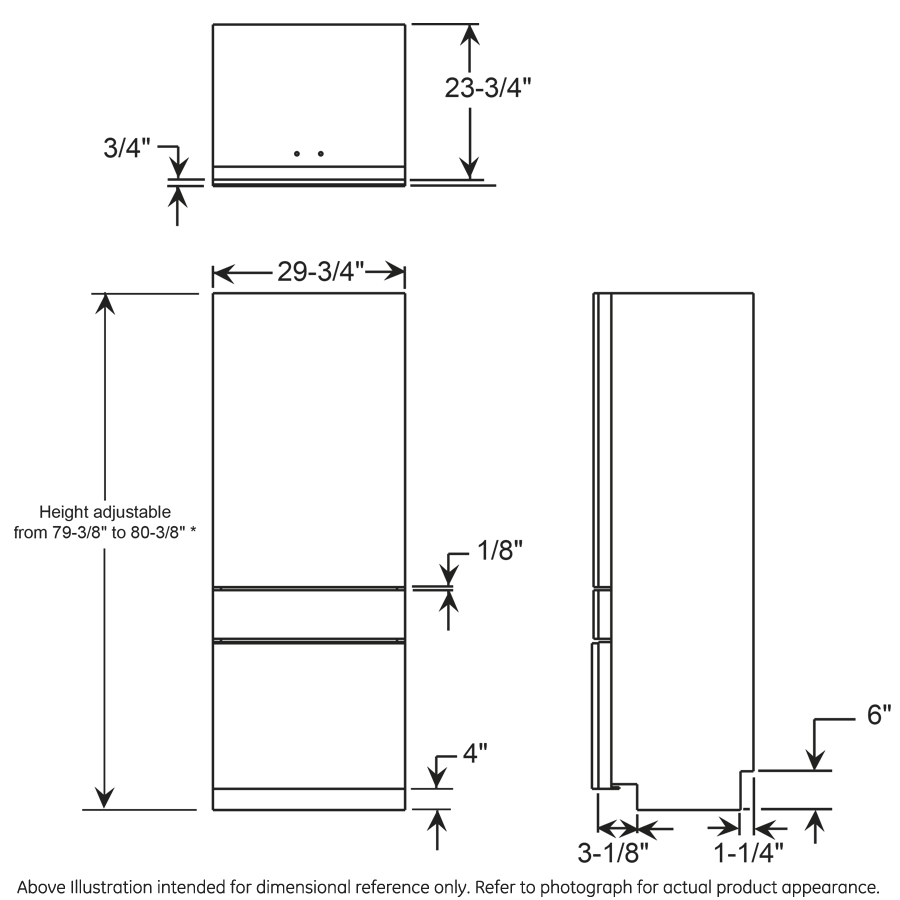

Weights & dimensions

Overall Width 29.75 in
Overall Depth 23.75 in
Overall Height 80.375 in
Height to Top of Case 79.875 in
Approximate Shipping Weight 515
Net Weight 486

Features

Temperature Management Features Dual Evaporator
Wine Racks 7 Total (6 Full-Extension, 1 Adjustable)
Control Type Capacitance Touch Controls
Configuration Full Door and Double Drawer
Refrigerant Type R-600A - HFC-Free Refrigerant
Icemaker Factory-Installed
Sabbath Mode Optional
Filter Location Below the customizable drawer on the lower-right side of the appliance
Freezer Cabinet Drawers 2 Total
Defrost Type Adaptive
Leveling System All Corners
OU Certified OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Lighting Interior Lighting - LED
Number of Cooling Zones 2
Collection Statement,Minimalist
Freezer Cabinet Drawer Features 1 Freezer Drawer,1 Convertible - Refrigeration or Freezer or Wine,Drawer Divider and Pan
Performance Features Dual Compressor,Easily Removable Door Gaskets,Sabbath Mode Capable,Child Lock Capable,Door Alarm,Toe Kick

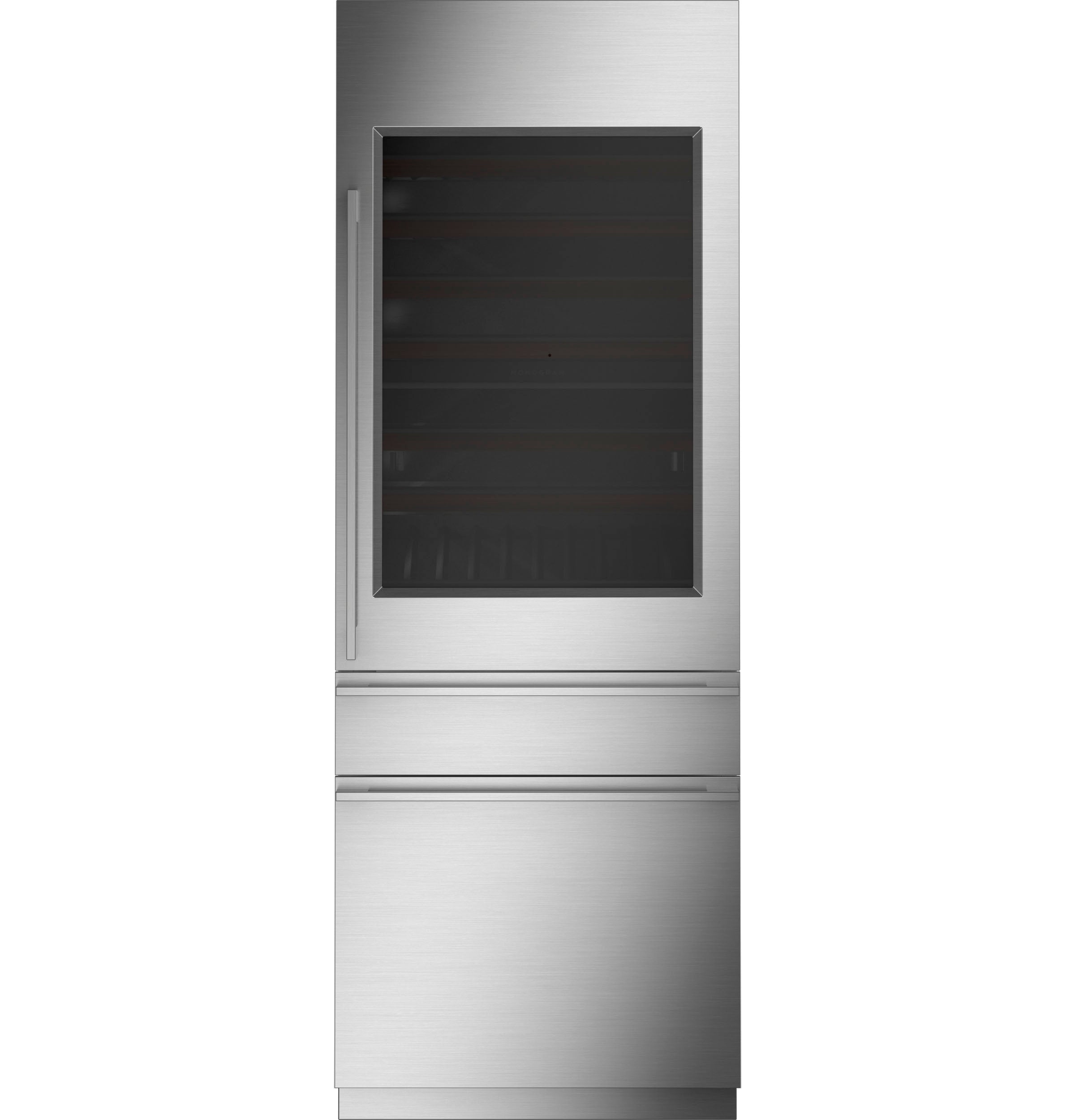

Short Description 30 Fully Integrated Wine Sommelier
Temperature Management System Dual Sealed System,Two-Temperature-Zone Upper Compartment,Dual Evaporator
Water Filtration GE Water Filtration,Water Filter Indicator Light,XWF or XWFE

Capacity

Convertible Drawer Capacity 2.77 cu ft
Freezer Drawer Capacity 1.21 cu ft
Unit Capacity 106 wine bottles
Dual Zone Wine Capacity 10.00 cu ft
Total Capacity (cubic feet) 14.00 cu ft
Wine Bottle Capacity Glass door section - Up to 78 bottles / Convertible drawer - Up to 28 bottles,Total - Up to 106 bottles

Appearance

Door Style Glass Door
Exterior Design Framed Glass Door
Door Swing Reversible Door
Color Appearance Custom Panels Required
Design Style Custom Panel

Power / ratings

Electrical Requirements 120v; 60Hz; 15A
Hertz 60

Dimensions & weight

Width 29.75 in.
Height 80.38 in.
Length 23.75 in.
Weight 486 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 34.75 in.
Shipping Height 85.38 in.
Shipping Length 28.75 in.
Shipping Weight 526 lbs.
Total of Shipping Weight 526 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 32.86 ft³
Dimensional Weight 408.56 lbs.
Total of Cubes 32.86 ft³
Total of Dimensional Weight 408.56 lbs.

Warranty

Labor Warranty Limited 2-year entire appliance
Parts Warranty Limited 2-year entire appliance
Warranty Notes Limited 5-Year Sealed System,Extended 12-Year Sealed System Parts Only,See written warranty for full Details

Description

Two-zone Upper Compartment
Whether it's keeping red and white wines at the ideal serving temperature or letting bottles age, this meticulously-engineered refrigerator allows for the creation of two temperature-controlled zones for the perfect pour, every time

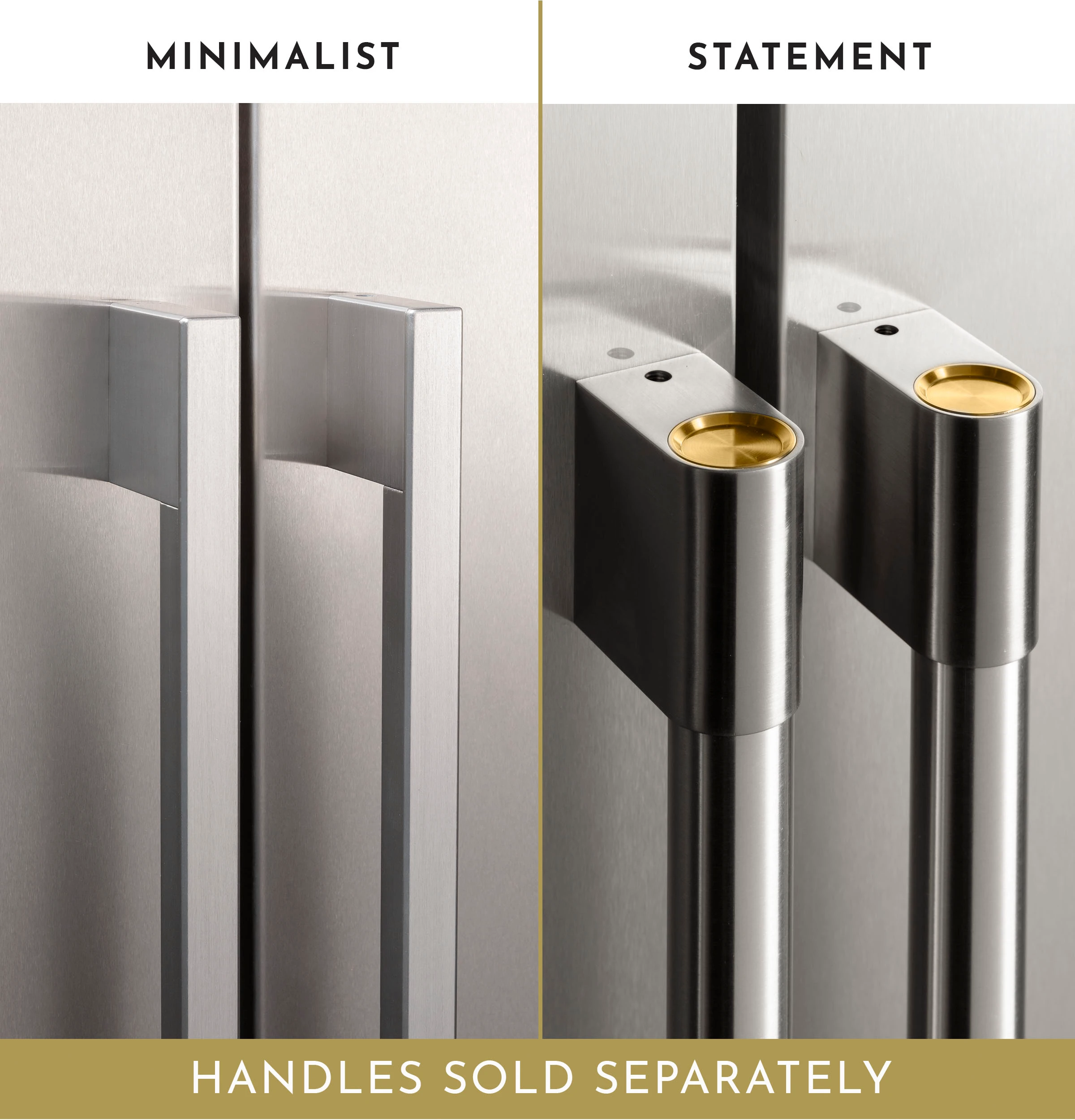

Statement and Minimalist Collection Refrigerator Handles (sold separately)
Designed to enhance choice and customization, Statement and Minimalist Collection refrigerators do not come with handles. Handles must be chosen separately and ordered through a Monogram representative

Monogram unveils first HFC-free refrigerator in the U.S
To use an environmentally friendly refrigerant, R600A, which has a lower global warming impact than hydrofluorocarbon (HFC) refrigerants previously used in household refrigerators

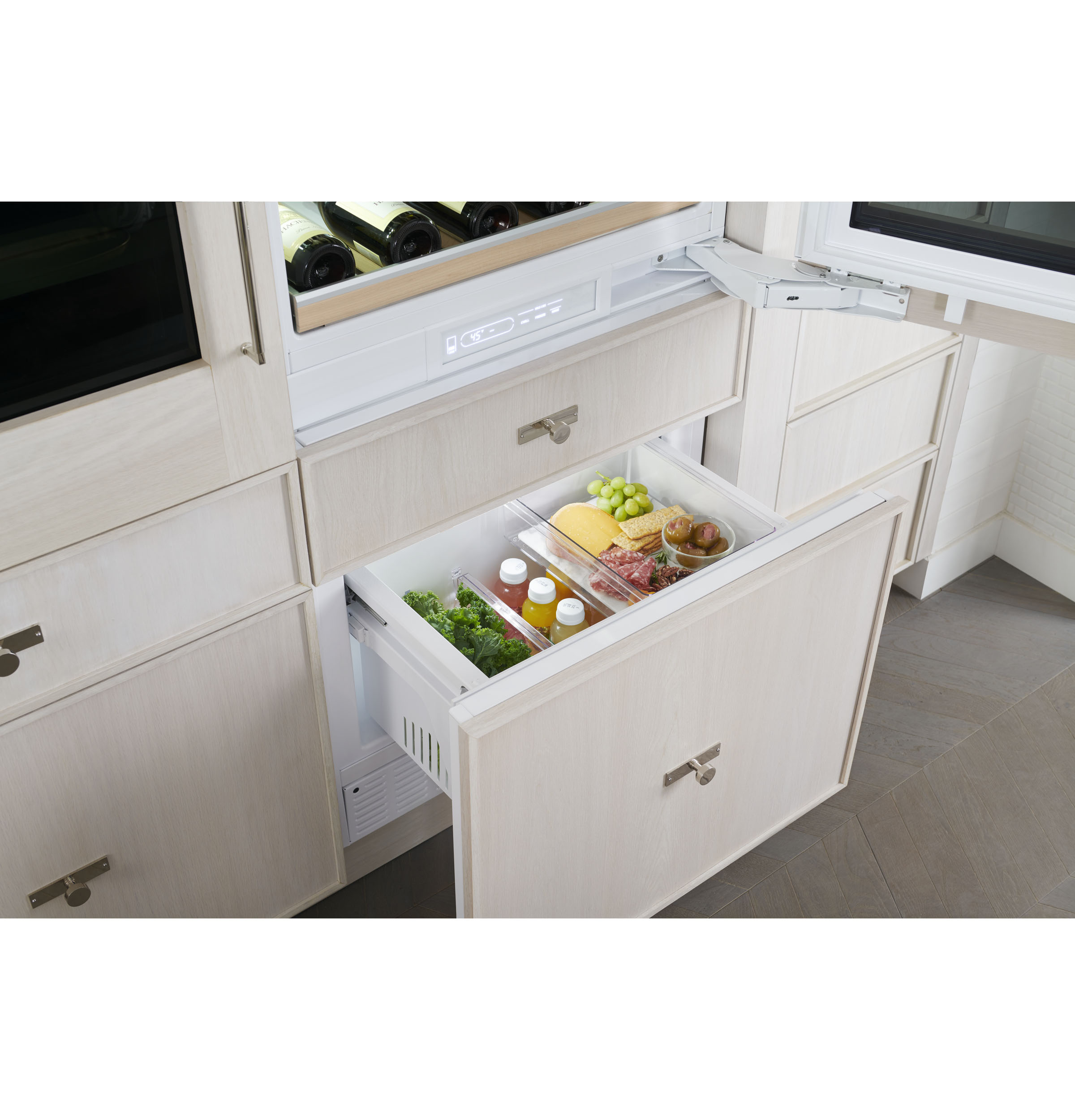

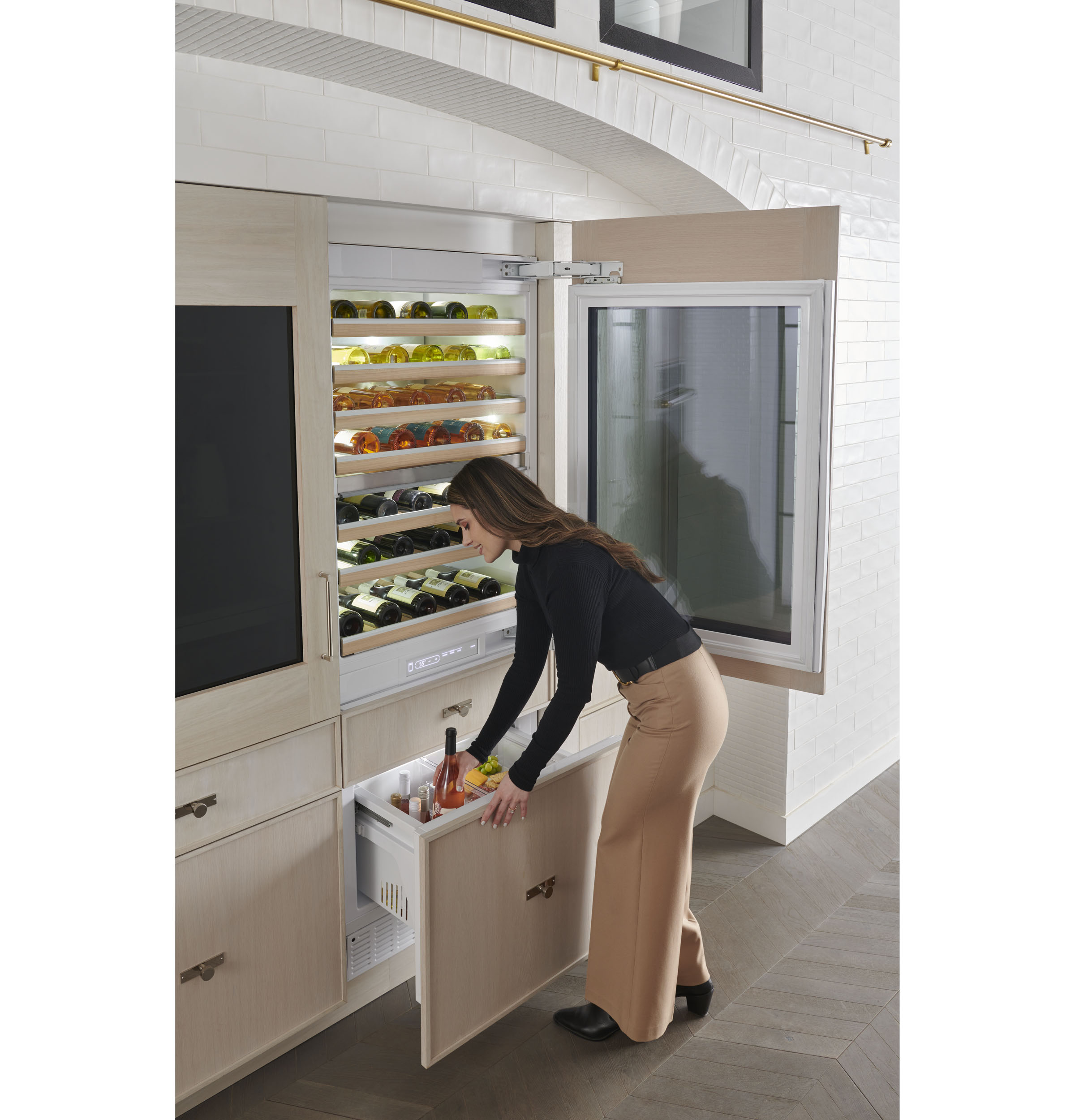

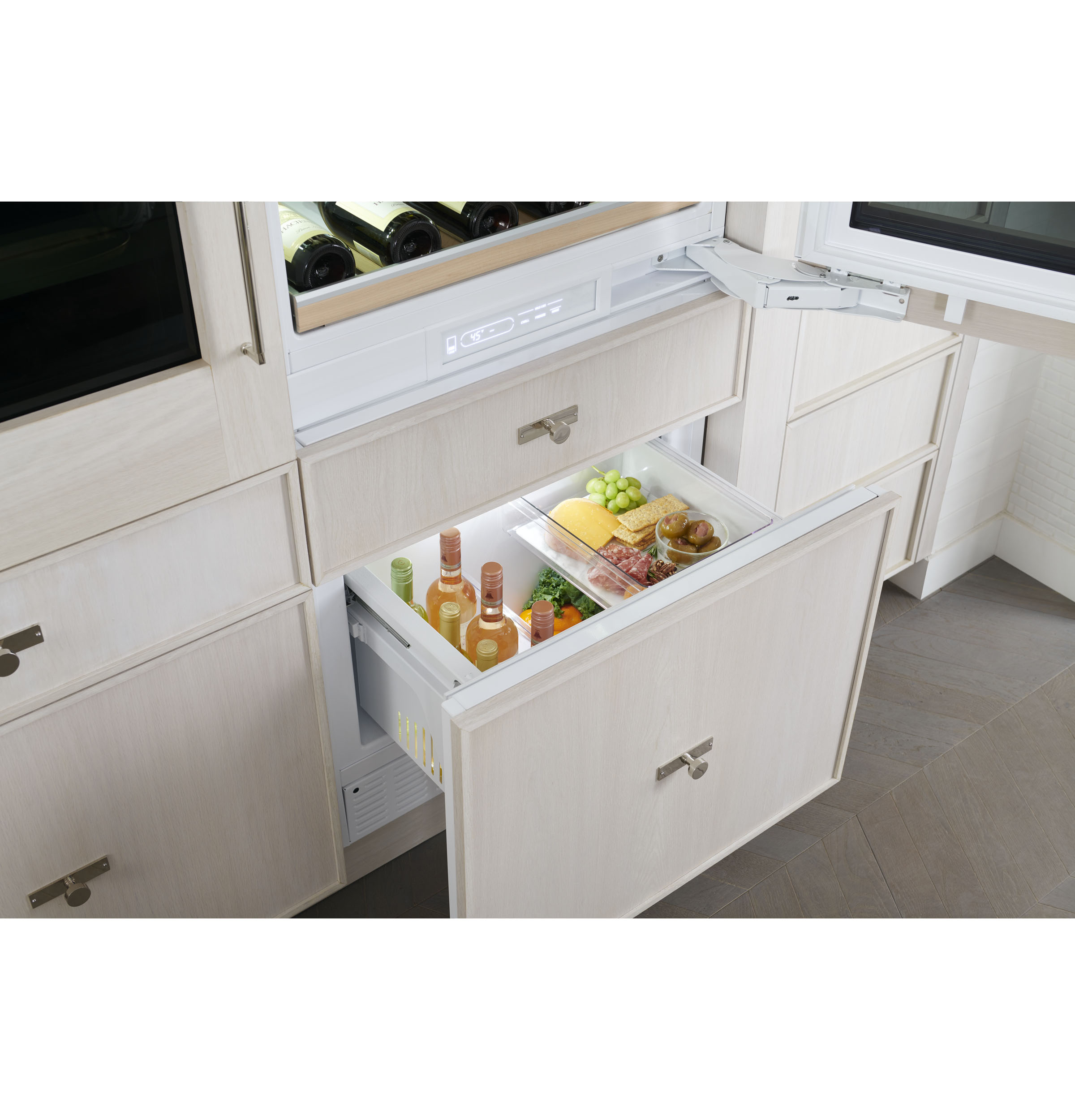

Convertible Lower Drawer
Choose whether the lower drawer is a freezer, a fresh food or a wine/beverage refrigerator, with independent temperature controls that enhance storage choice and flexibility

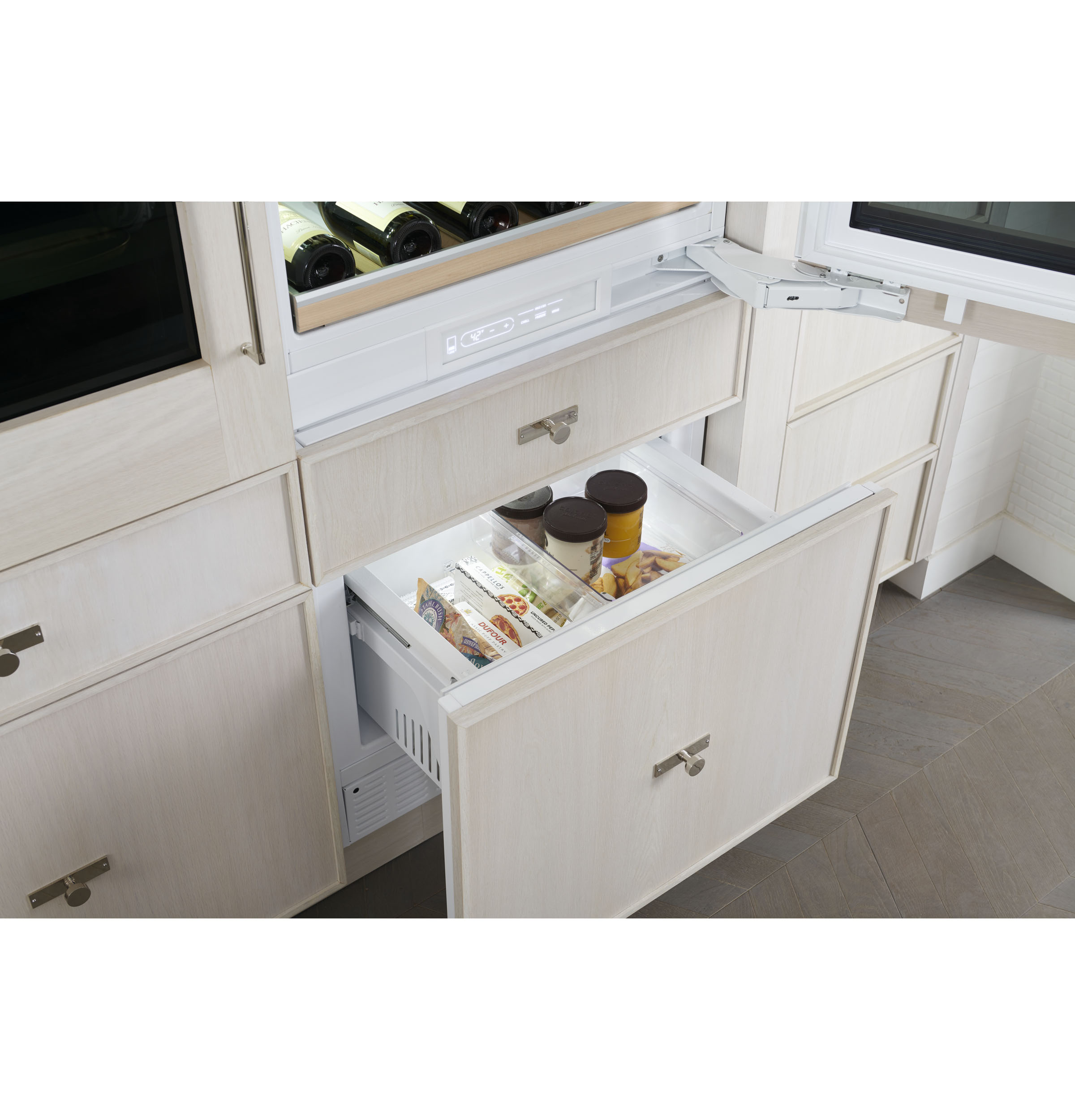

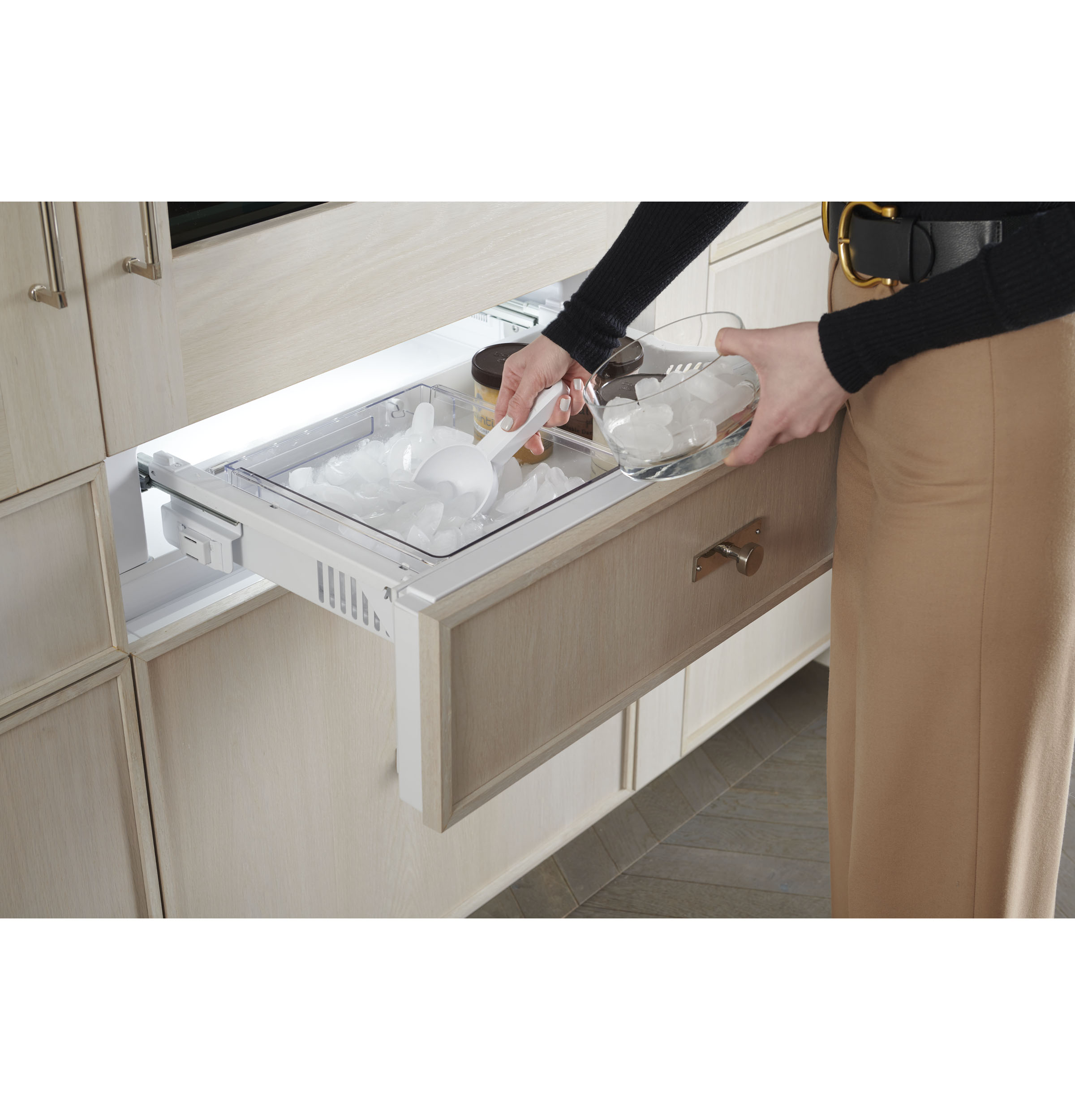

Freezer Drawer with Electronic Icemaker
Designed with exceptional attention to detail, the freezer drawer includes a removable ice bin and scoop and can also accommodate freezer favorites, like a pint of creamy gelato

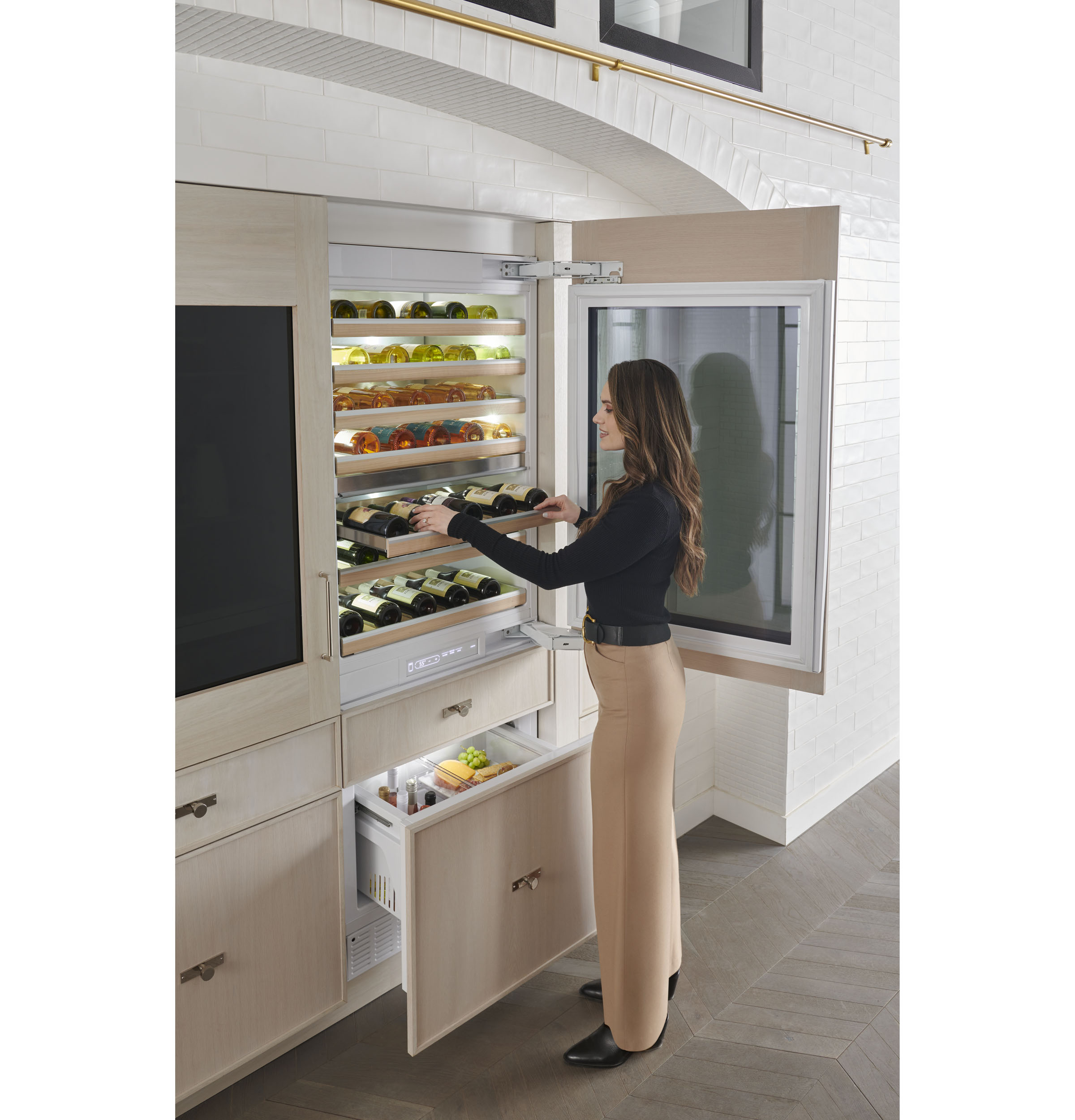

Expansive Wine Storage Capabilities
Perfect for wine aficionados, this flexible refrigerator can store up to 106 wine bottles when the lower convertible drawer is utilized

LED Interior Lighting
Delivering exceptional illumination, clean white LED lighting gradually brightens and dims when the refrigerator door or drawer is opened and closed, with side and top lighting further enhancing visibility

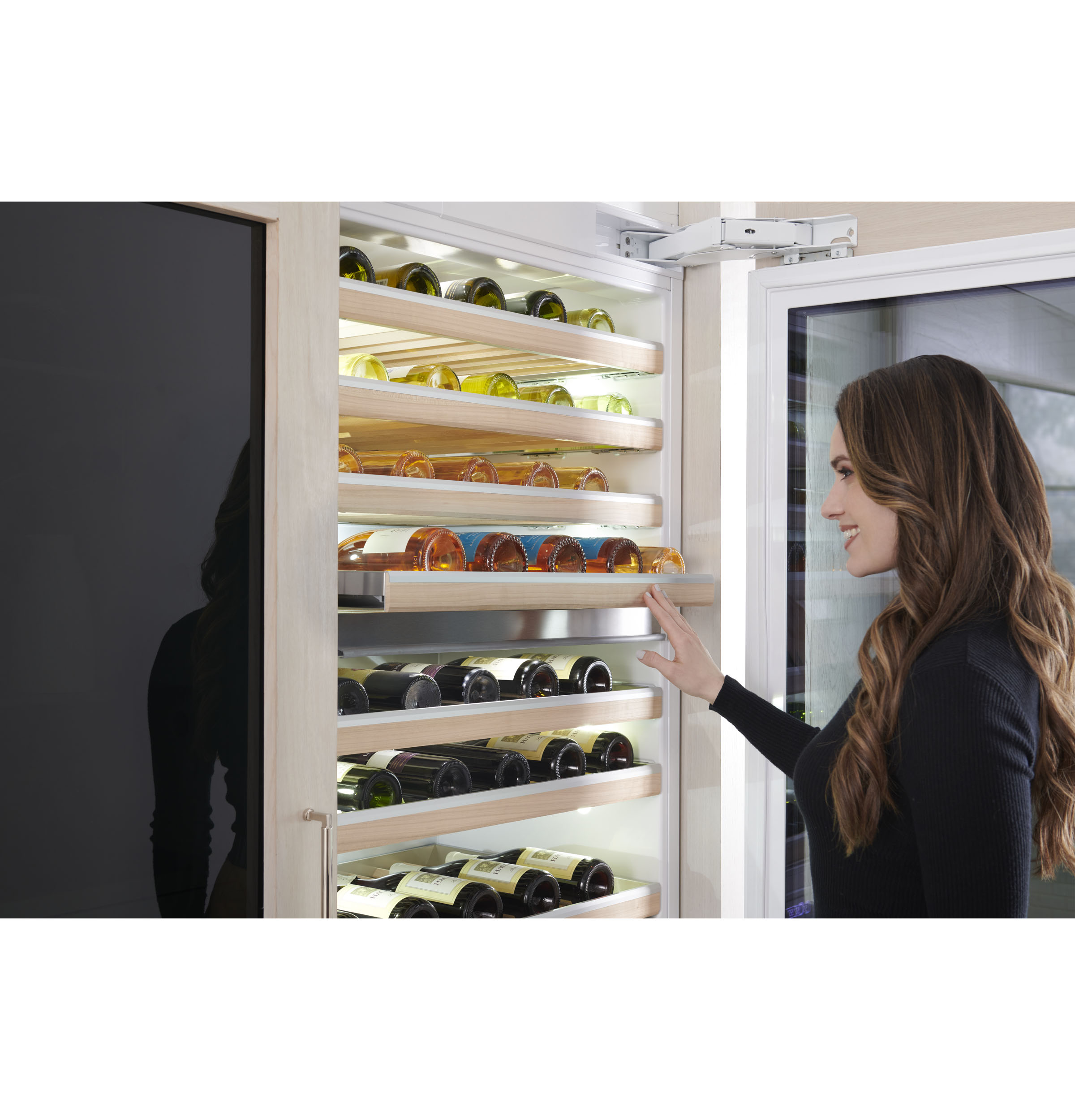

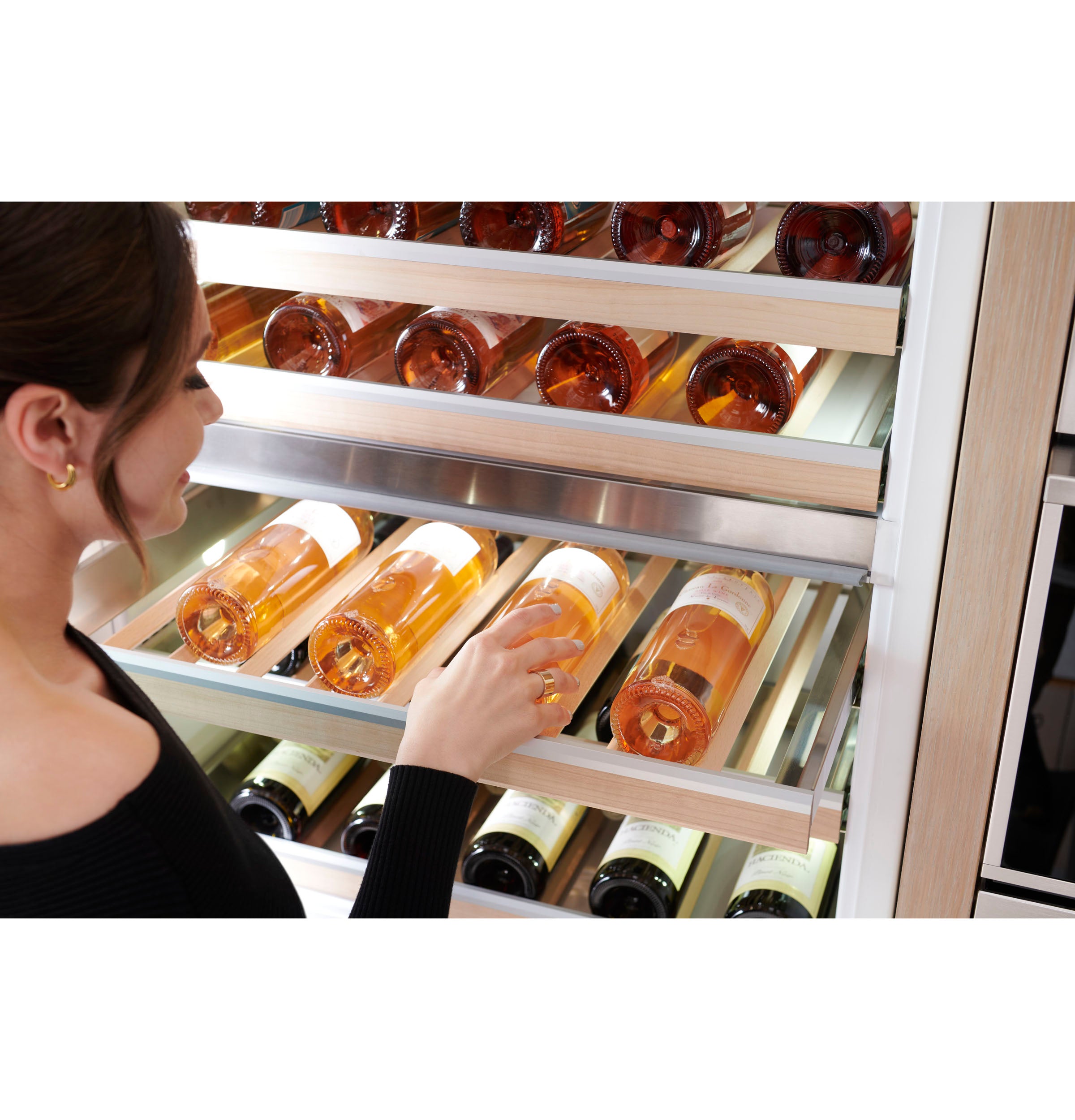

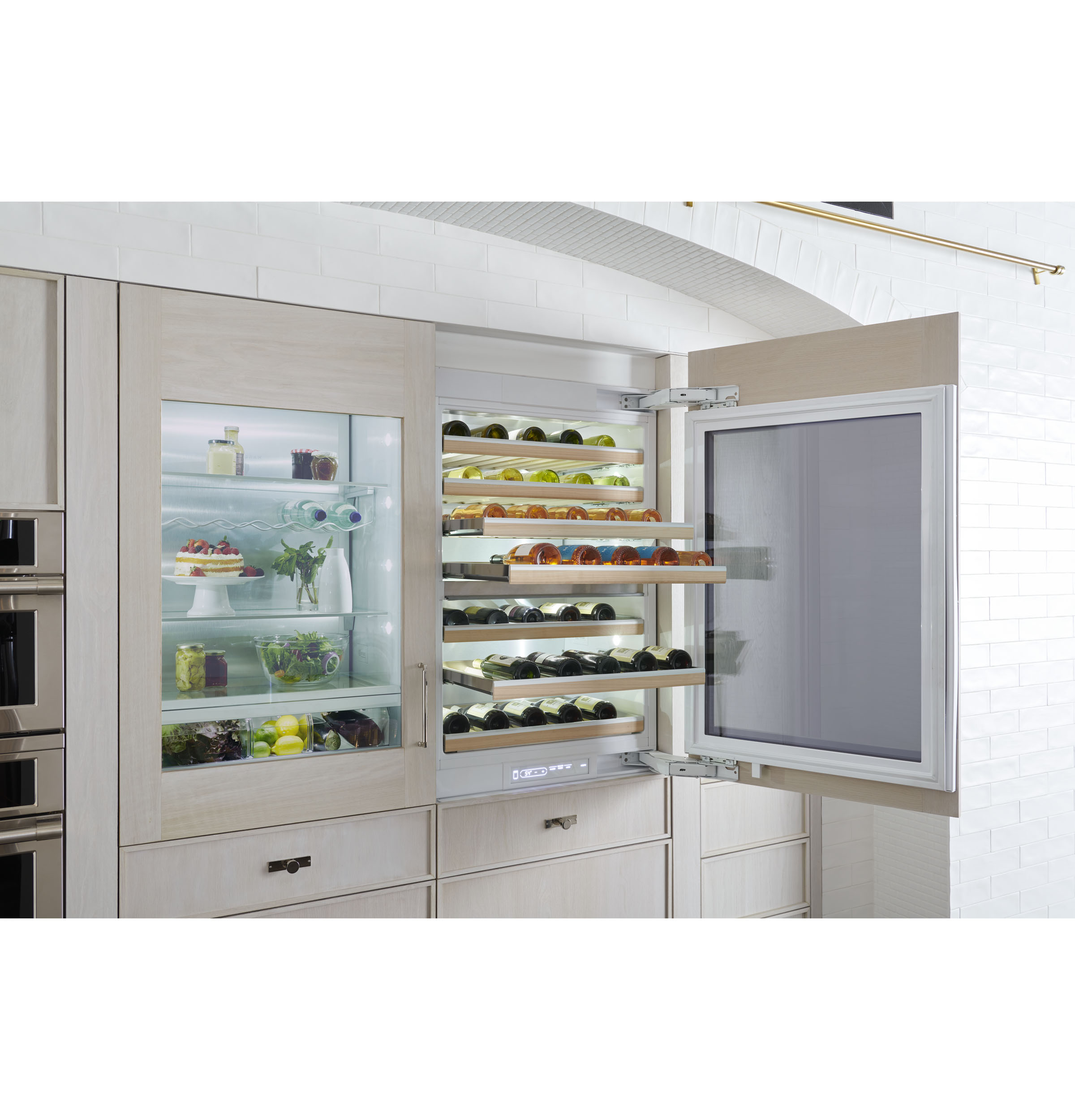

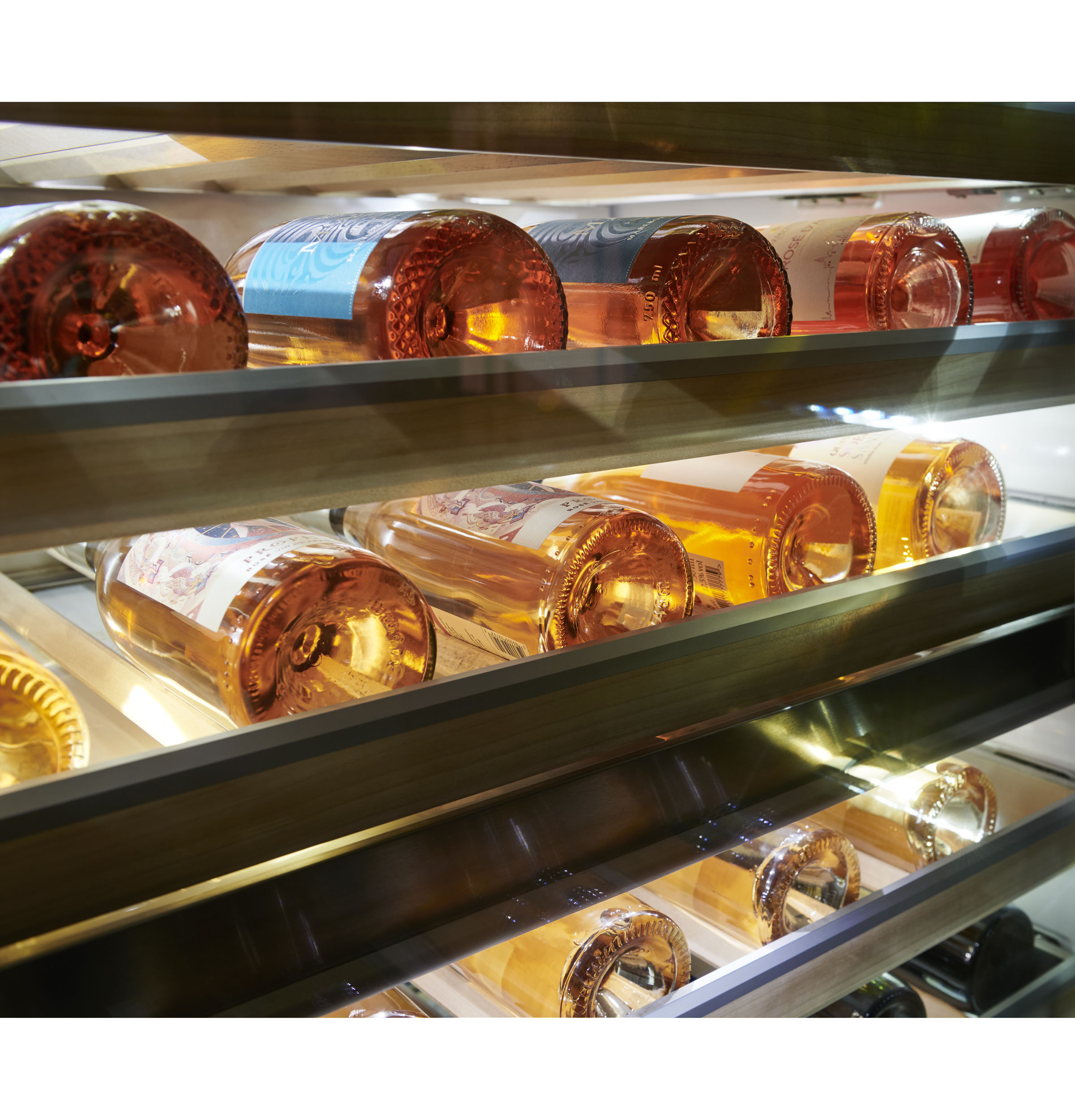

Soft-close, Full-extension Wine Racks
Precision engineered, full-extension wine racks provide smooth and easy access to every perfectly-chilled bottle

Premium Water Filtration System
Providing unparalleled performance, this superior water filtration system provides clean, fresh-tasting ice cubes for refreshingly healthy beverages

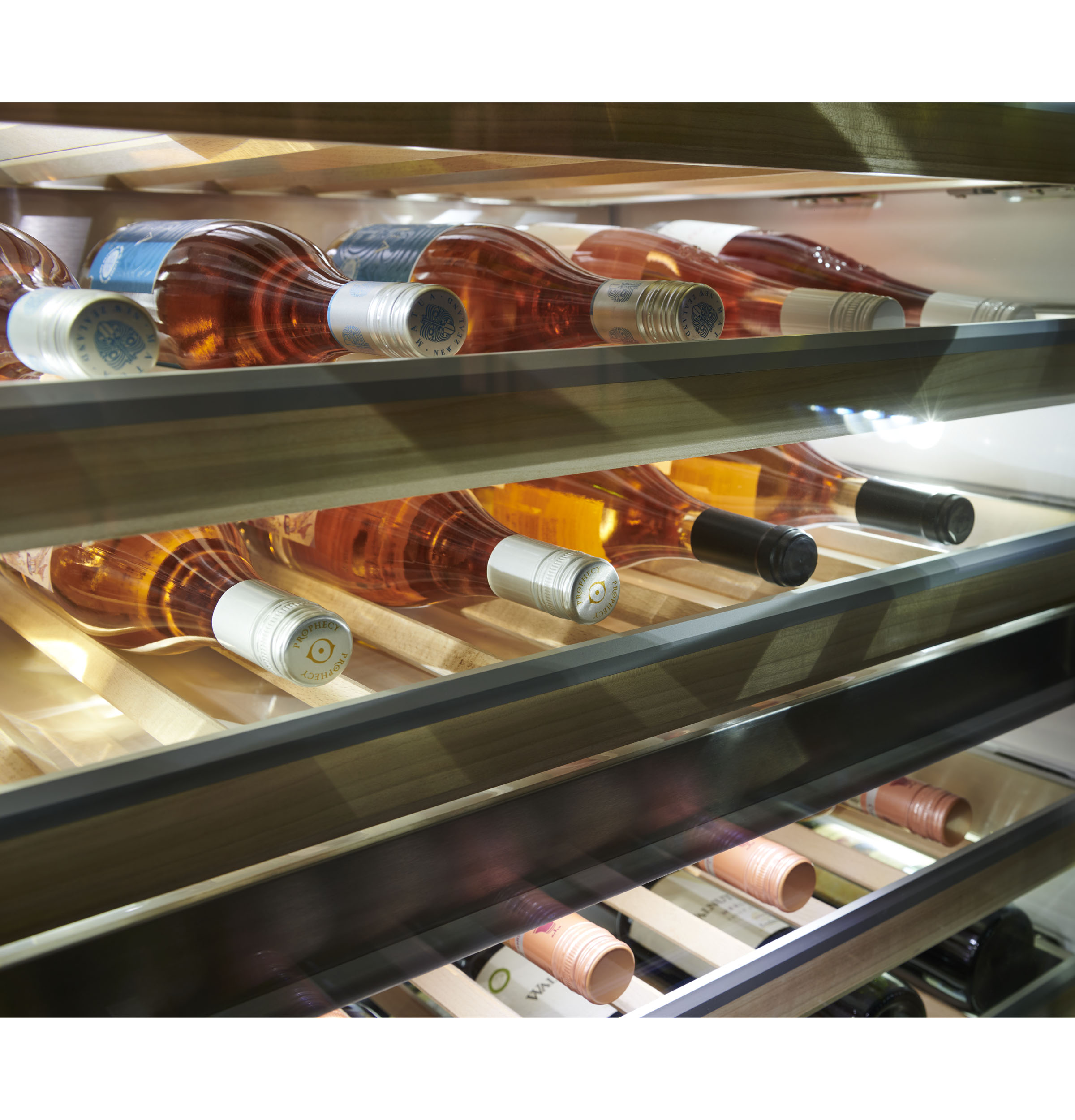

Impressively Stylish Wine Racks
Designed to elevate the look of every wine collection, each of the seven wine racks is expertly crafted from stainless steel and FSC-certified beechwood

Soft-close Freezer and Convertible Drawers
Taking luxury to the next level, beautifully-built freezer drawers slide smoothly and quietly into the shut position with just a touch

Customizable Toe Kick
Unifying the kitchen's stylish ambiance, a customizable panel can be fitted to the bottom of the refrigerator, complementing the rest of the cabinetry

Four-point Leveling System
Providing style, symmetry and functionality, the four-point leveling system ensures the refrigerator is properly aligned with surrounding cabinetry

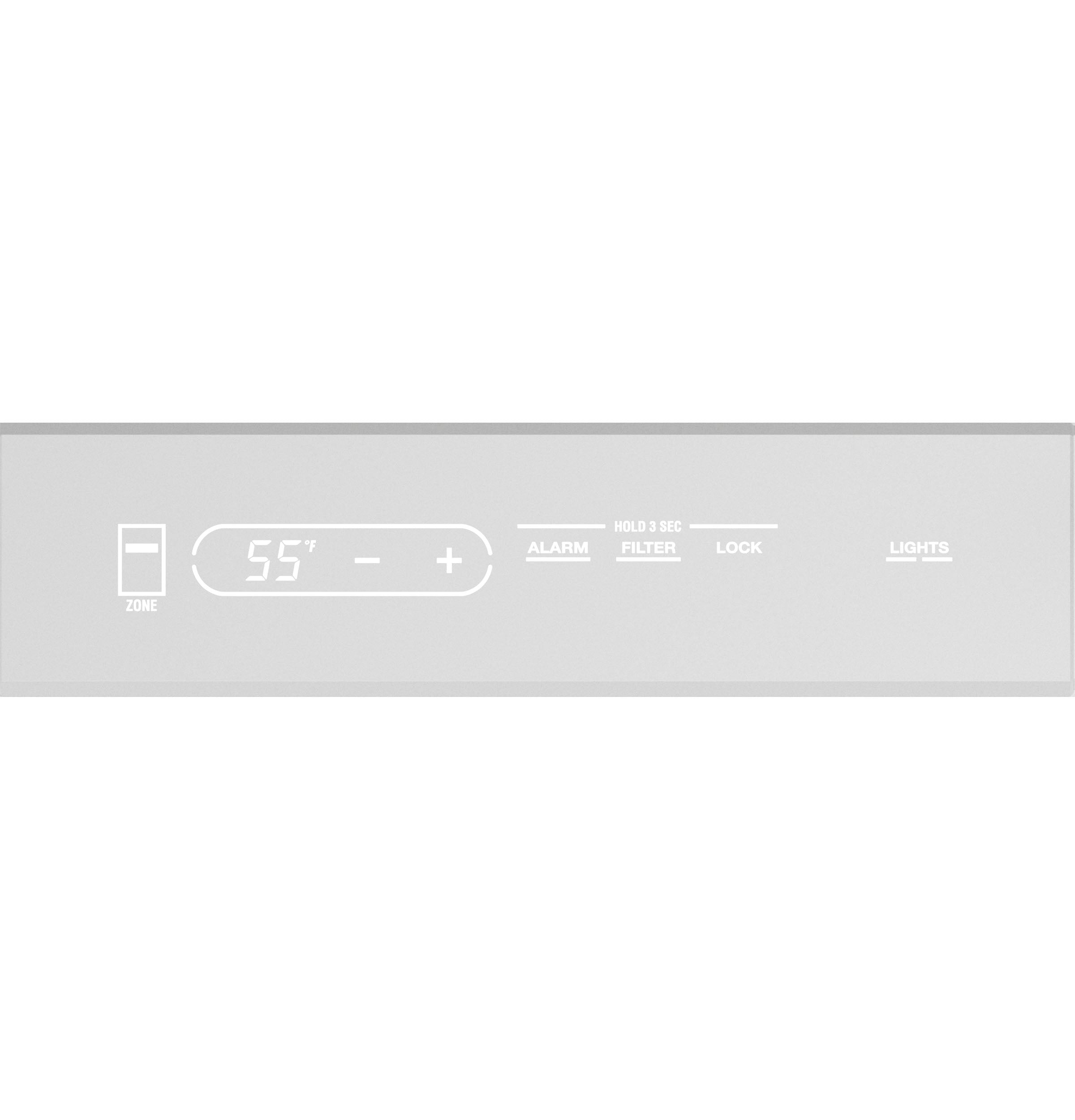

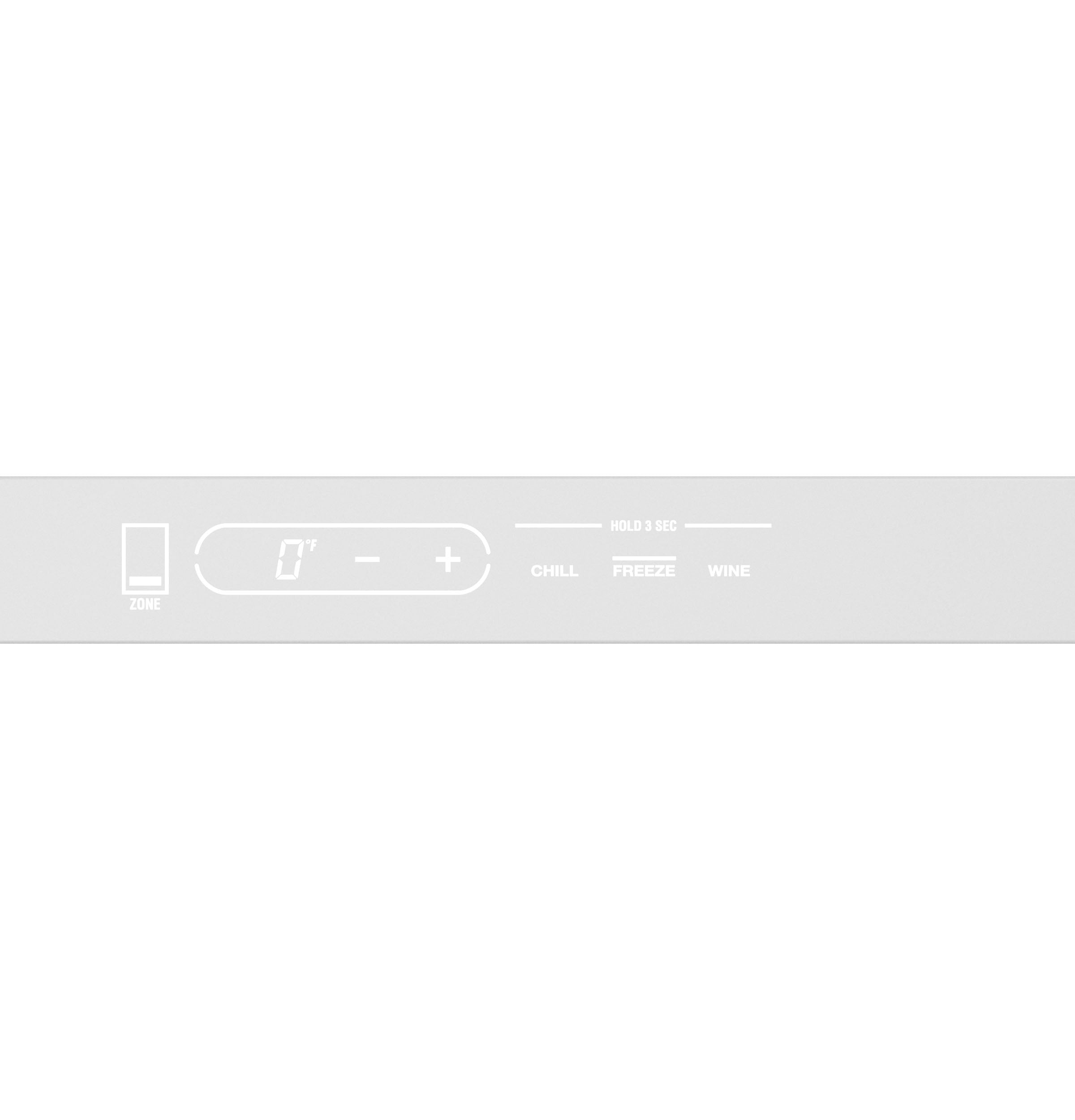

Illuminated, Electronic Glass-touch Controls
Stylish and functional, illuminated touch-sensitive controls make it easy to adjust interior lighting, temperature, control lock, and all three climate zone settings

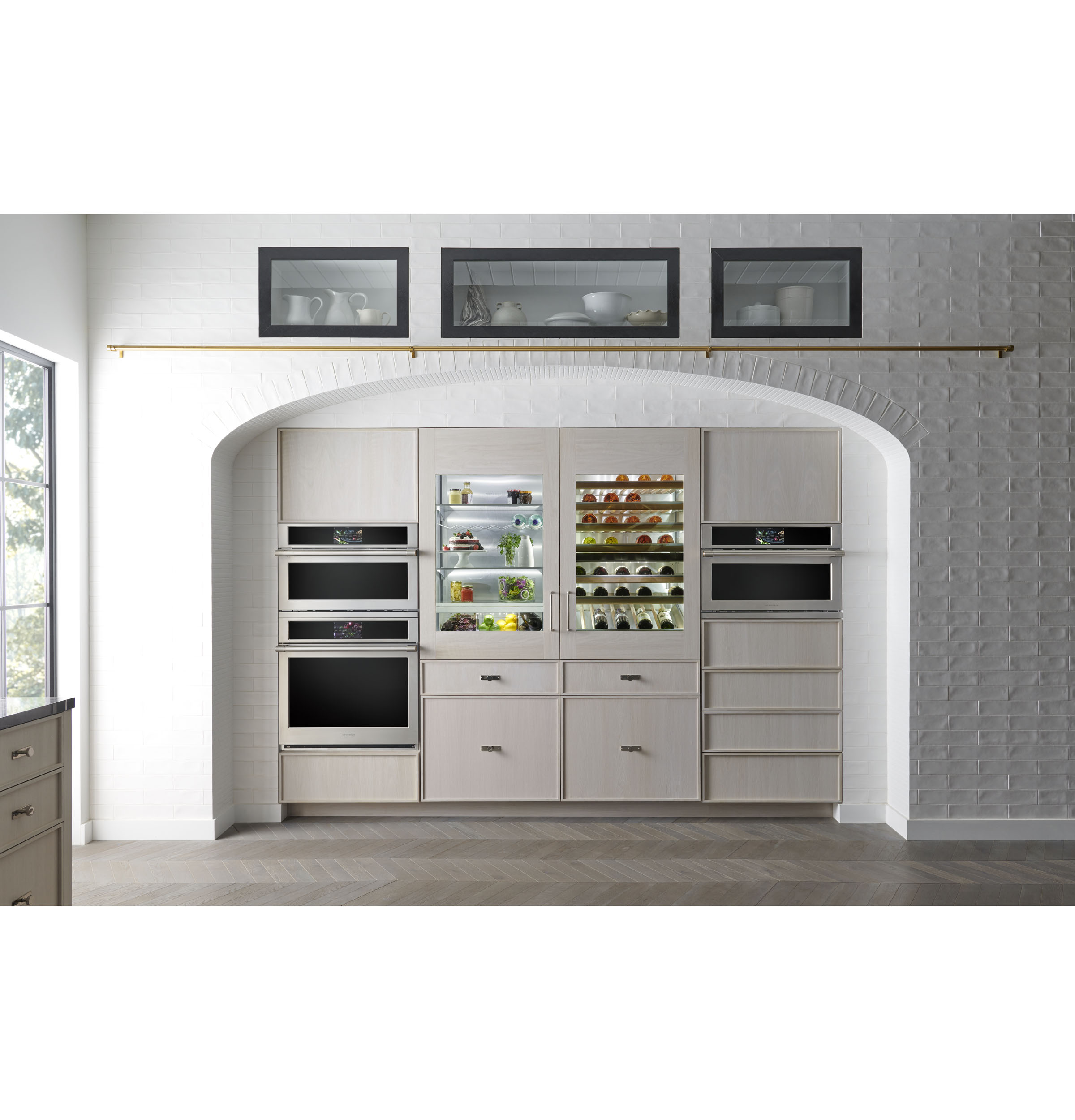

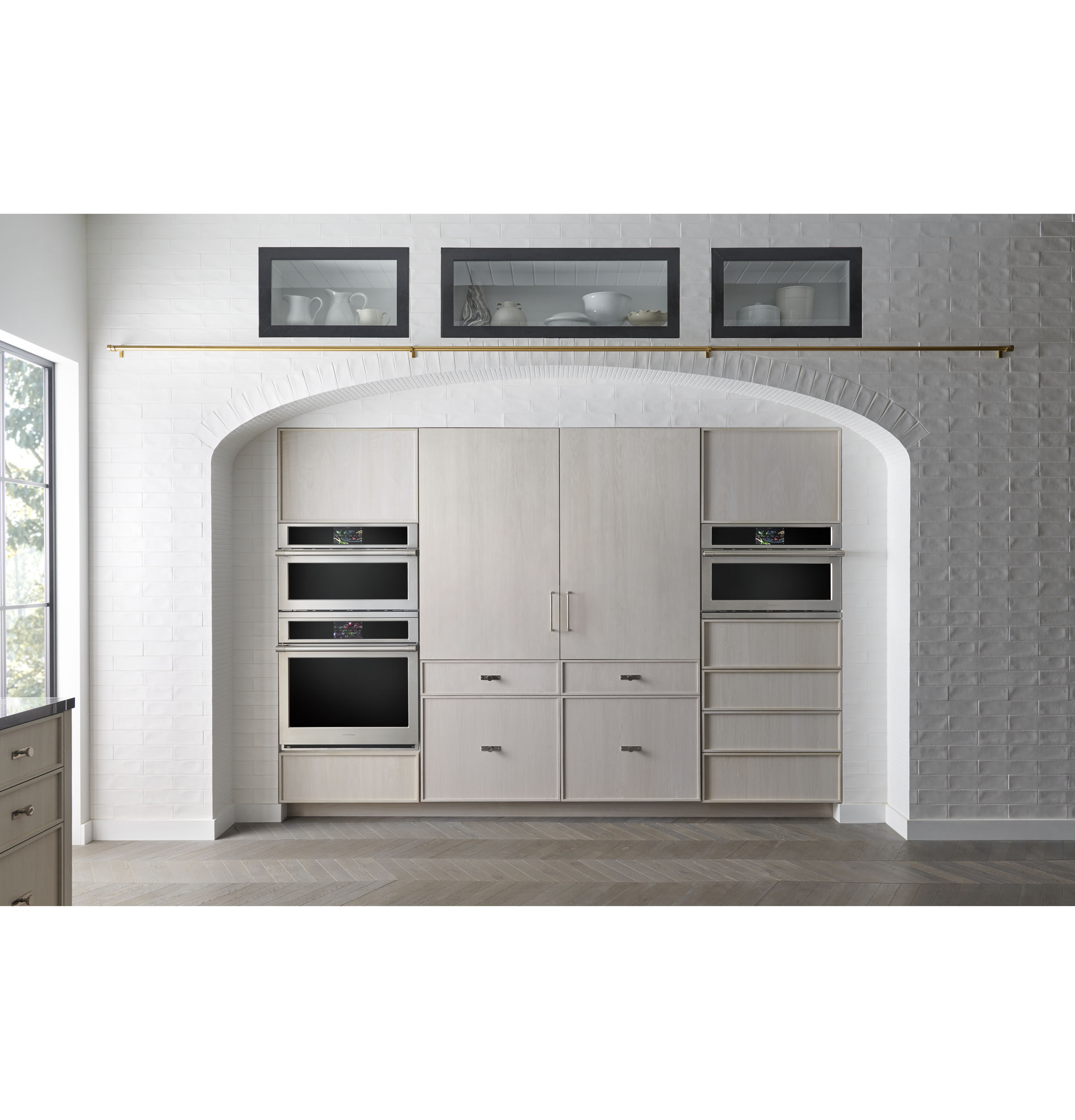

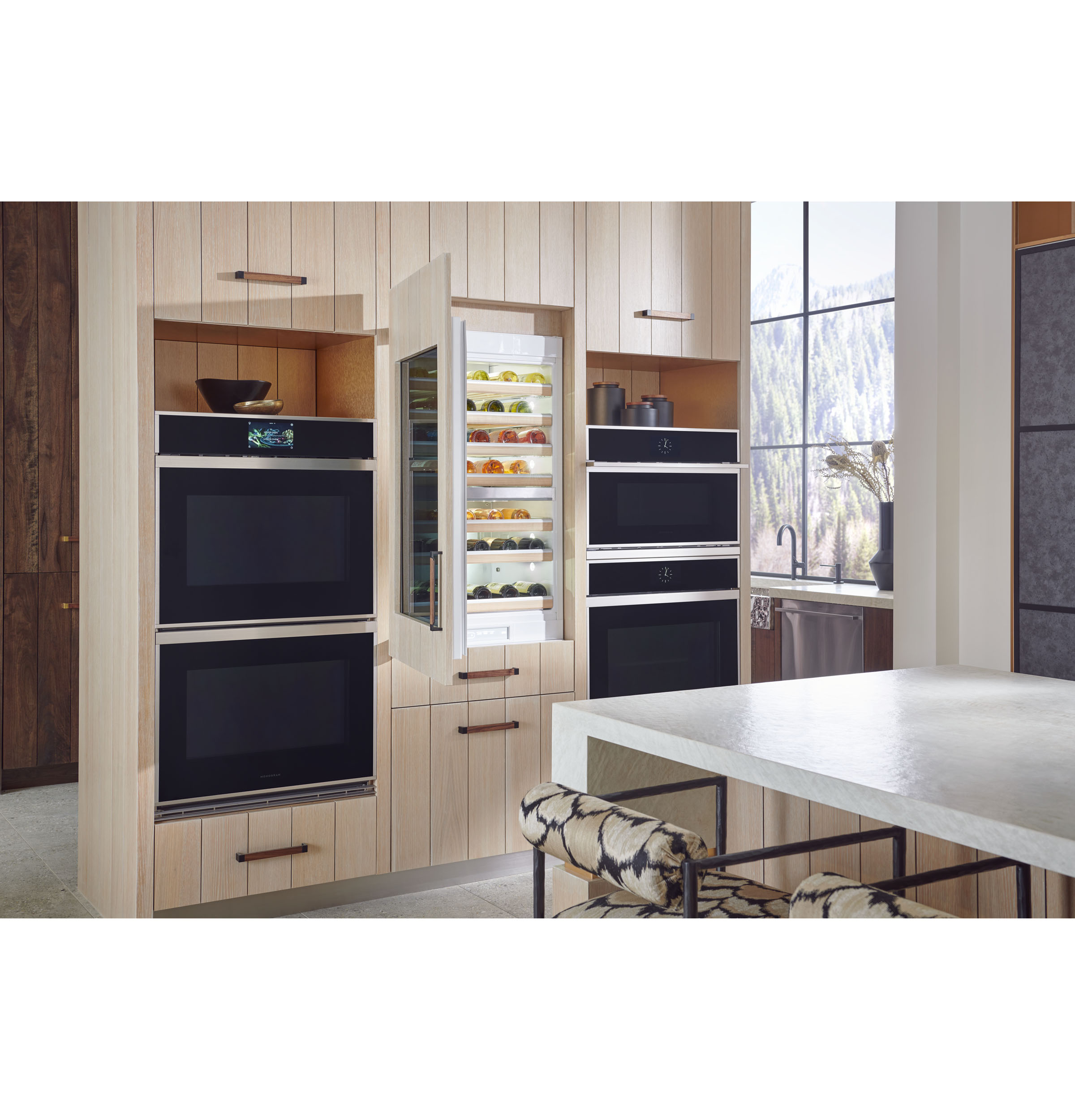

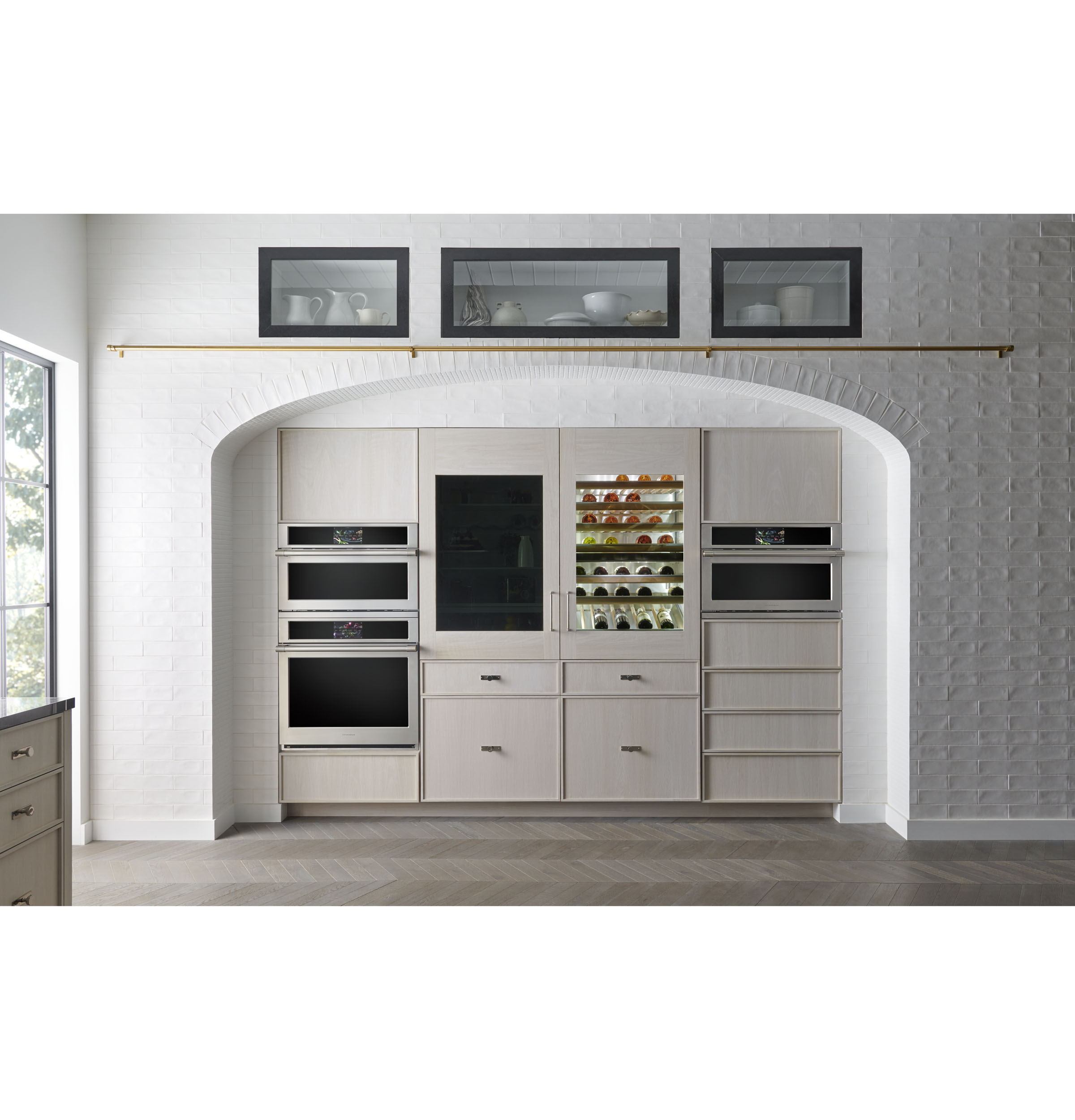

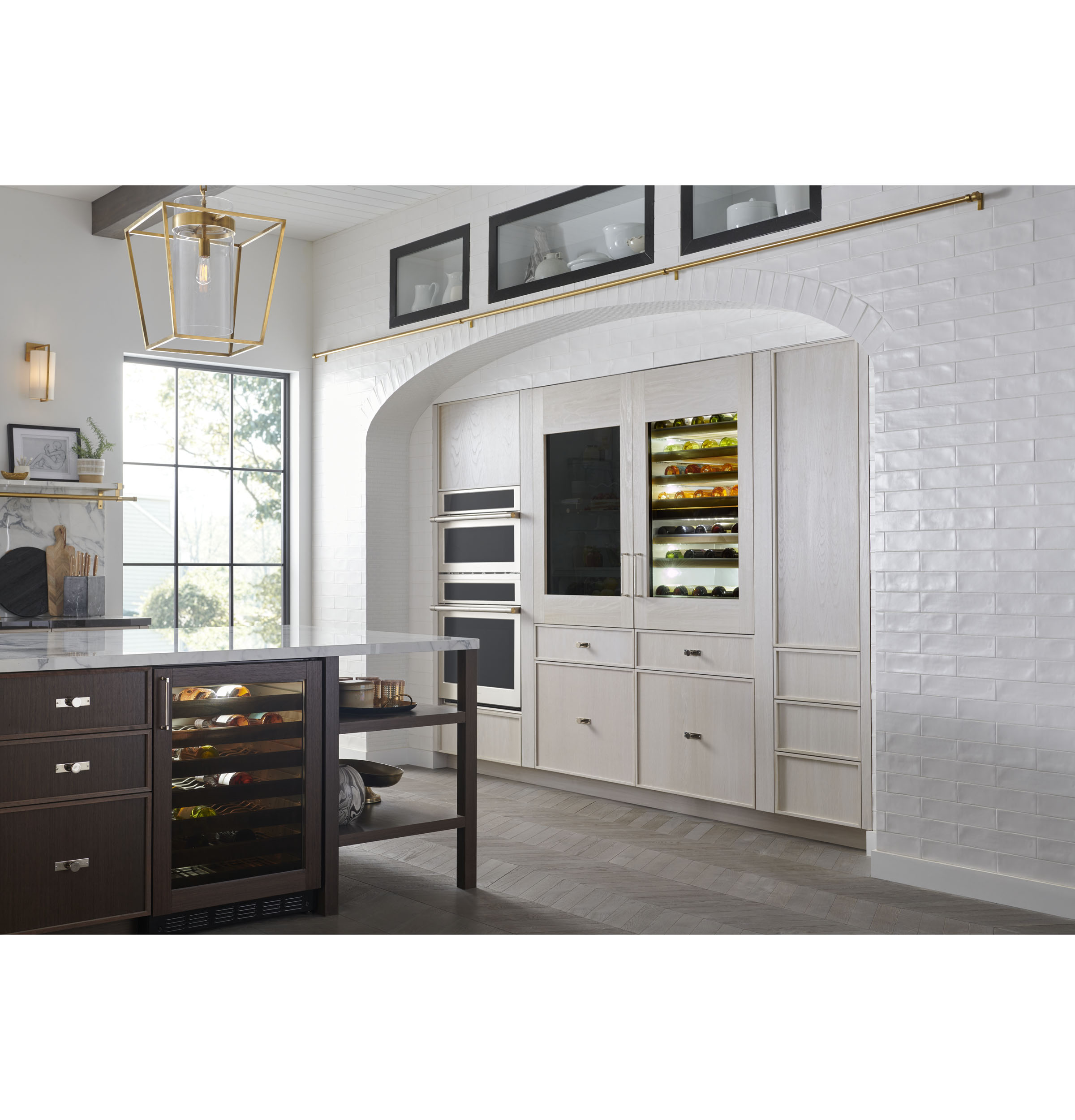

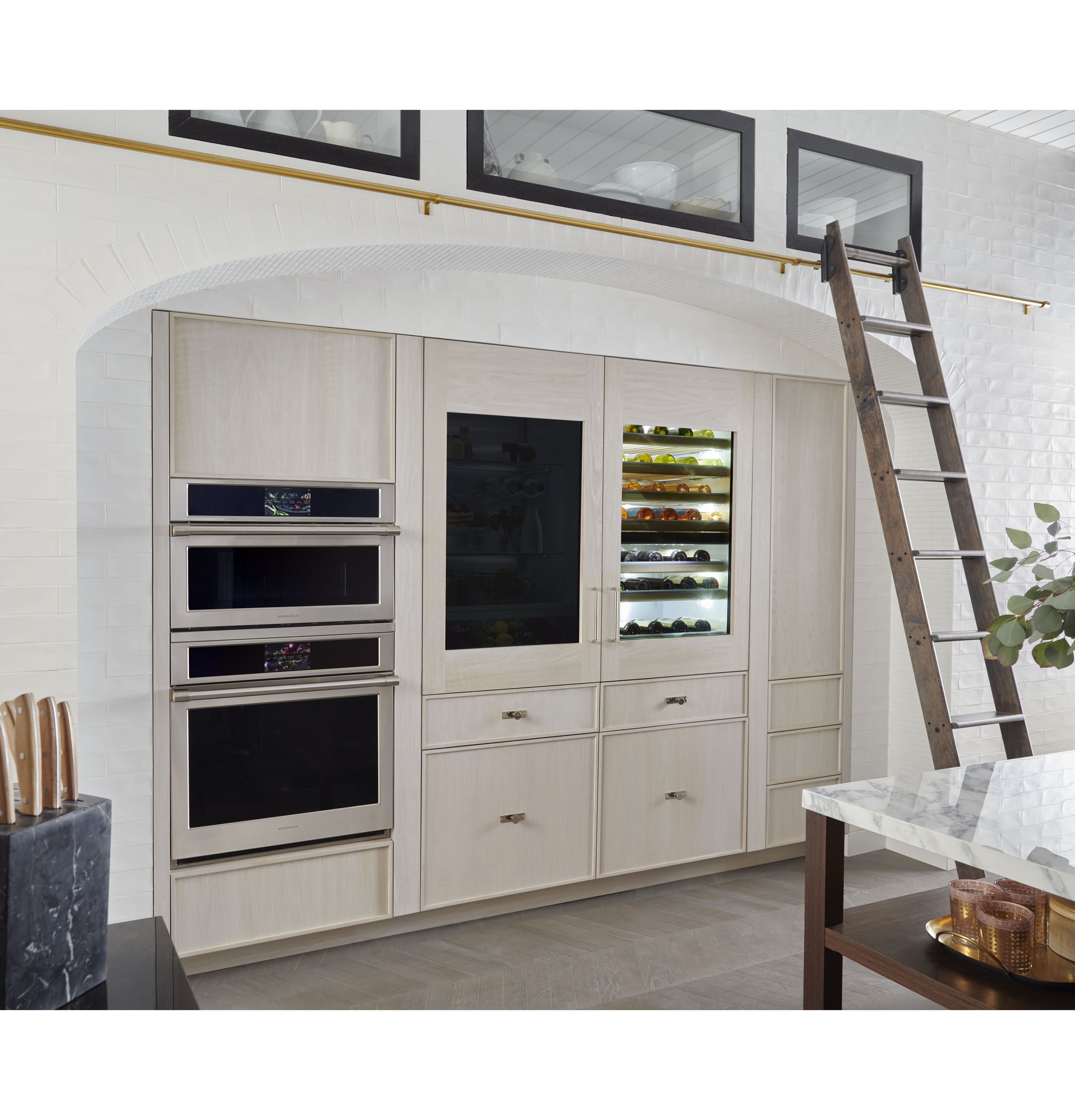

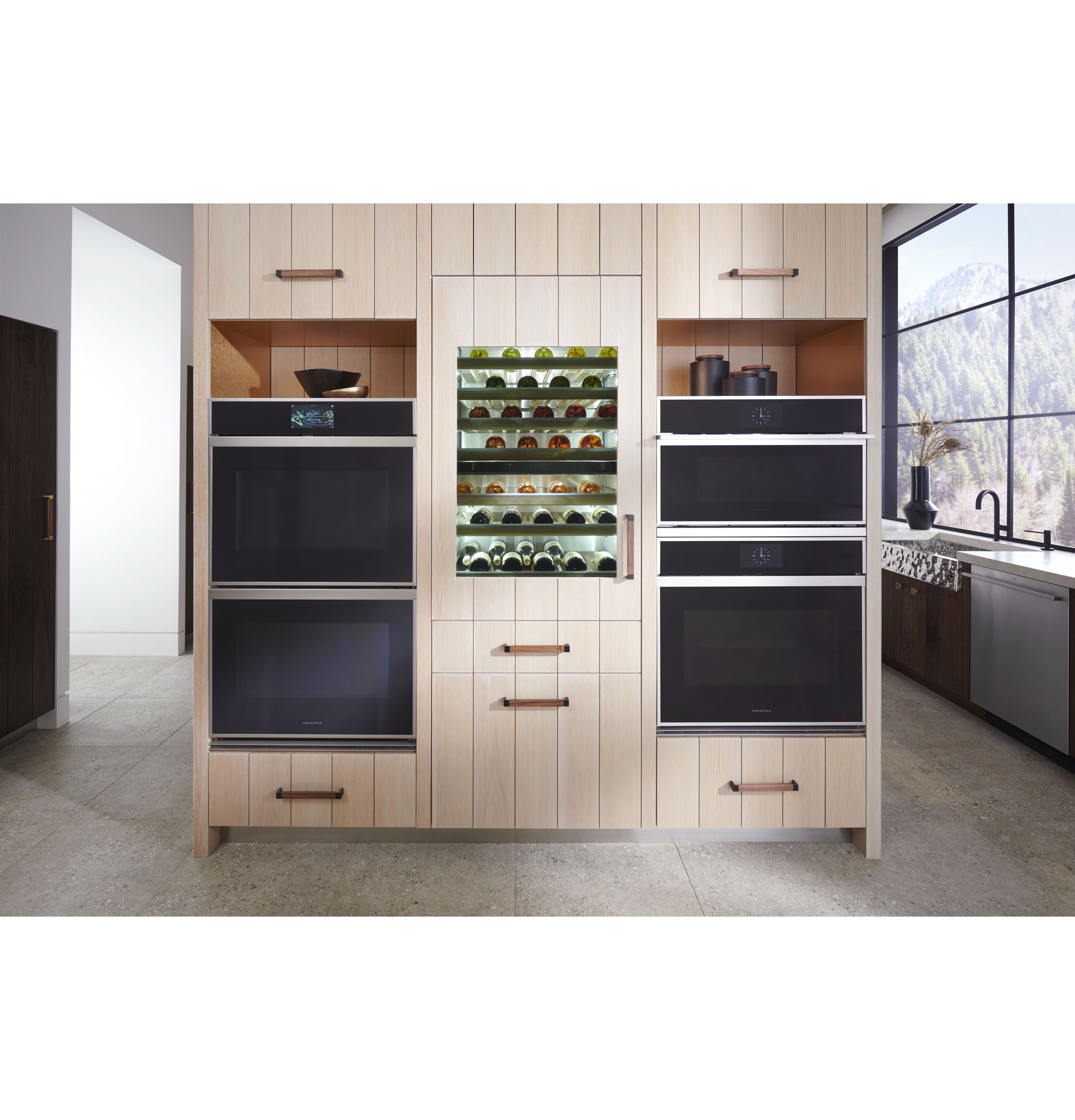

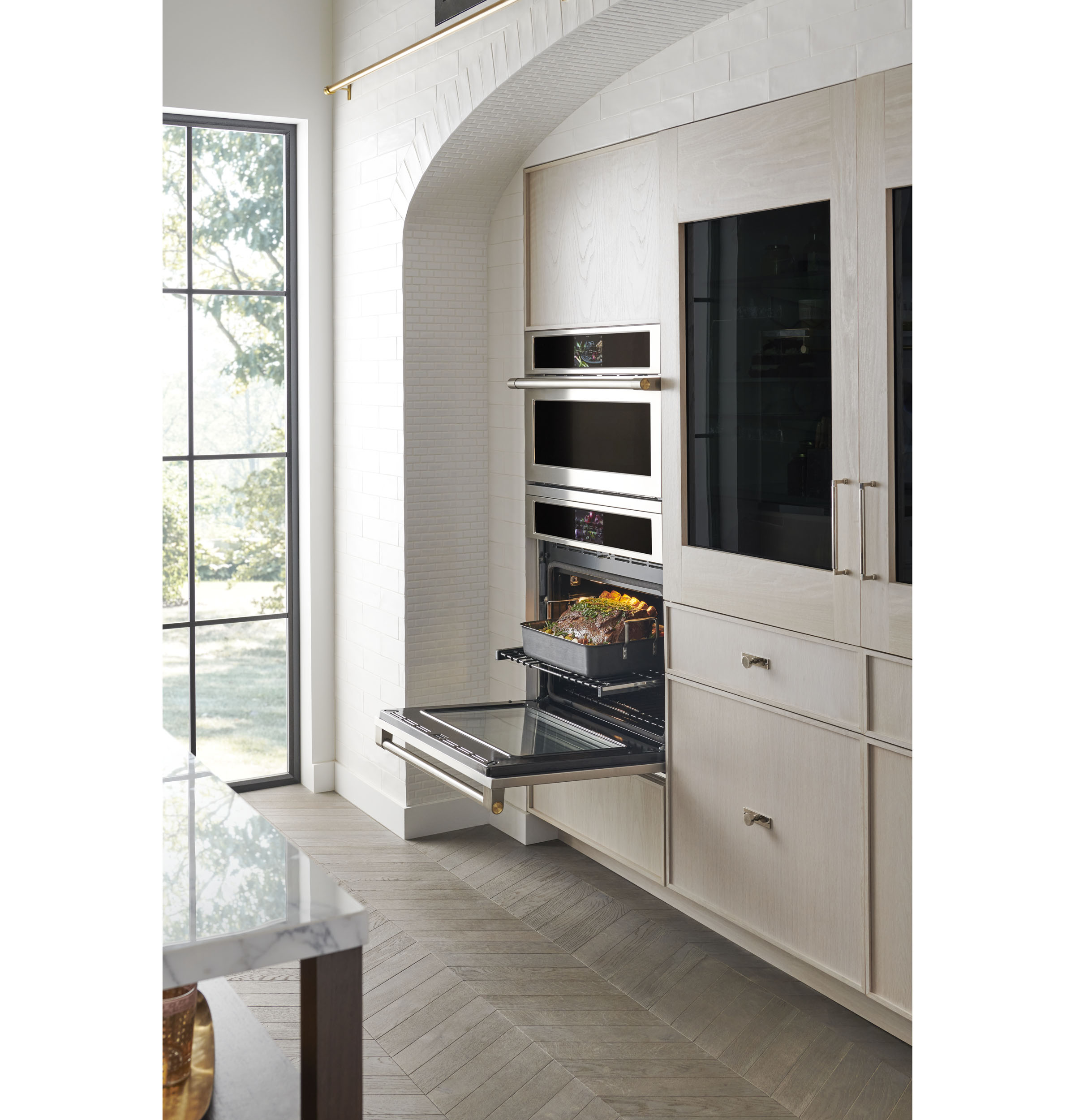

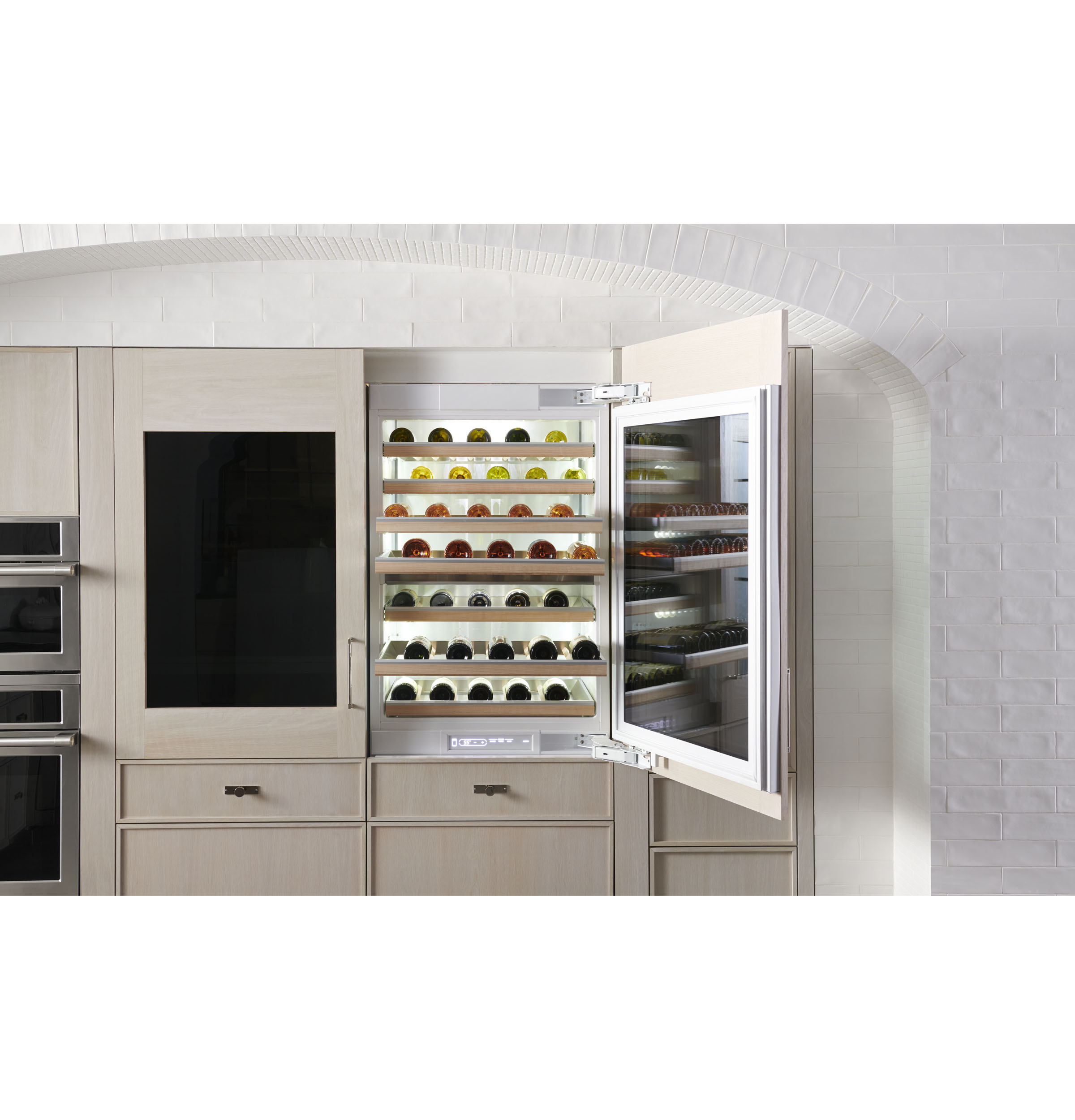

Integrated, Panel-ready Design
Defined by its details, the panel-ready design blends in seamlessly with surrounding cabinetry and accepts Minimalist or Statement Collection panels in 80- or 84-inch heights. Order separately from Monogram



Product Features

  • Two-zone Upper Compartment
    Whether it's keeping red and white wines at the ideal serving temperature or letting bottles age, this meticulously-engineered refrigerator allows for the creation of two temperature-controlled zones for the perfect pour, every time
  • Convertible Lower Drawer
    Choose whether the lower drawer is a freezer, a fresh food or a wine/beverage refrigerator, with independent temperature controls that enhance storage choice and flexibility
  • Freezer Drawer with Electronic Icemaker
    Designed with exceptional attention to detail, the freezer drawer includes a removable ice bin and scoop and can also accommodate freezer favorites, like a pint of creamy gelato
  • Expansive Wine Storage Capabilities
    Perfect for wine aficionados, this flexible refrigerator can store up to 106 wine bottles when the lower convertible drawer is utilized
  • LED Interior Lighting
    Delivering exceptional illumination, clean white LED lighting gradually brightens and dims when the refrigerator door or drawer is opened and closed, with side and top lighting further enhancing visibility
  • Soft-close, Full-extension Wine Racks
    Precision engineered, full-extension wine racks provide smooth and easy access to every perfectly-chilled bottle
  • Premium Water Filtration System
    Providing unparalleled performance, this superior water filtration system provides clean, fresh-tasting ice cubes for refreshingly healthy beverages
  • Impressively Stylish Wine Racks
    Designed to elevate the look of every wine collection, each of the seven wine racks is expertly crafted from stainless steel and FSC-certified beechwood
  • Soft-close Freezer and Convertible Drawers
    Taking luxury to the next level, beautifully-built freezer drawers slide smoothly and quietly into the shut position with just a touch
  • Customizable Toe Kick
    Unifying the kitchen's stylish ambiance, a customizable panel can be fitted to the bottom of the refrigerator, complementing the rest of the cabinetry
  • Four-point Leveling System
    Providing style, symmetry and functionality, the four-point leveling system ensures the refrigerator is properly aligned with surrounding cabinetry
  • Integrated, Panel-ready Design
    Defined by its details, the panel-ready design blends in seamlessly with surrounding cabinetry and accepts Minimalist or Statement Collection panels in 80- or 84-inch heights. Order separately from Monogram
  • Illuminated, Electronic Glass-touch Controls
    Stylish and functional, illuminated touch-sensitive controls make it easy to adjust interior lighting, temperature, control lock, and all three climate zone settings

Key Features

Statement and Minimalist Collection Refrigerator Handles (sold separately)

Designed to enhance choice and customization, Statement and Minimalist Collection refrigerators do not come with handles. Handles must be chosen separately and ordered through a Monogram representative

Monogram unveils first HFC-free refrigerator in the U.S

To use an environmentally friendly refrigerant, R600A, which has a lower global warming impact than hydrofluorocarbon (HFC) refrigerants previously used in household refrigerators
