Sale price $11,500.00 Regular price $15,136.97 Save $3,636.97 / 24% OFF

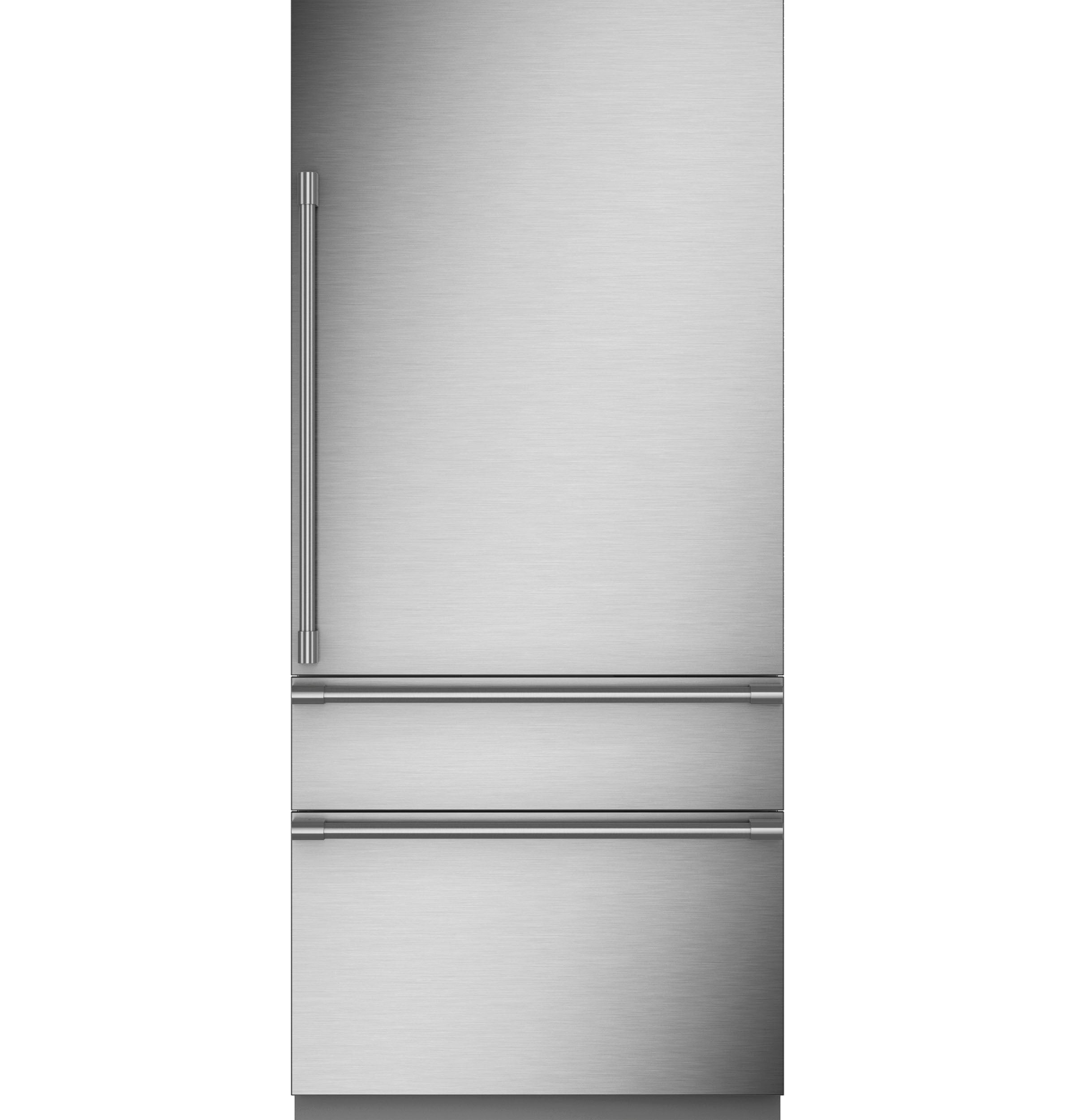

Product Details for MONOGRAM ZIC363IPVRH

Technical Details

Warranty

Parts 2 Year
Labor 2 Year

Appearance

Panel Capability SS Door Panel Kit ZK3SN369VLH, ZK3SN364VRH
Adjustable Rollers 2
Door Style Solid Door
Door Stops 90 Degree and 115 Degree
Design Style Custom Panel & Handles
Handle Purchased Separately Requires Statement Handle Kit (ZKSB3H3PVSS) or Minimalist Handle Kit (ZKSB3H3CVSS)
Installation Fully Integrated Installation
Door Swing Hinges on Right

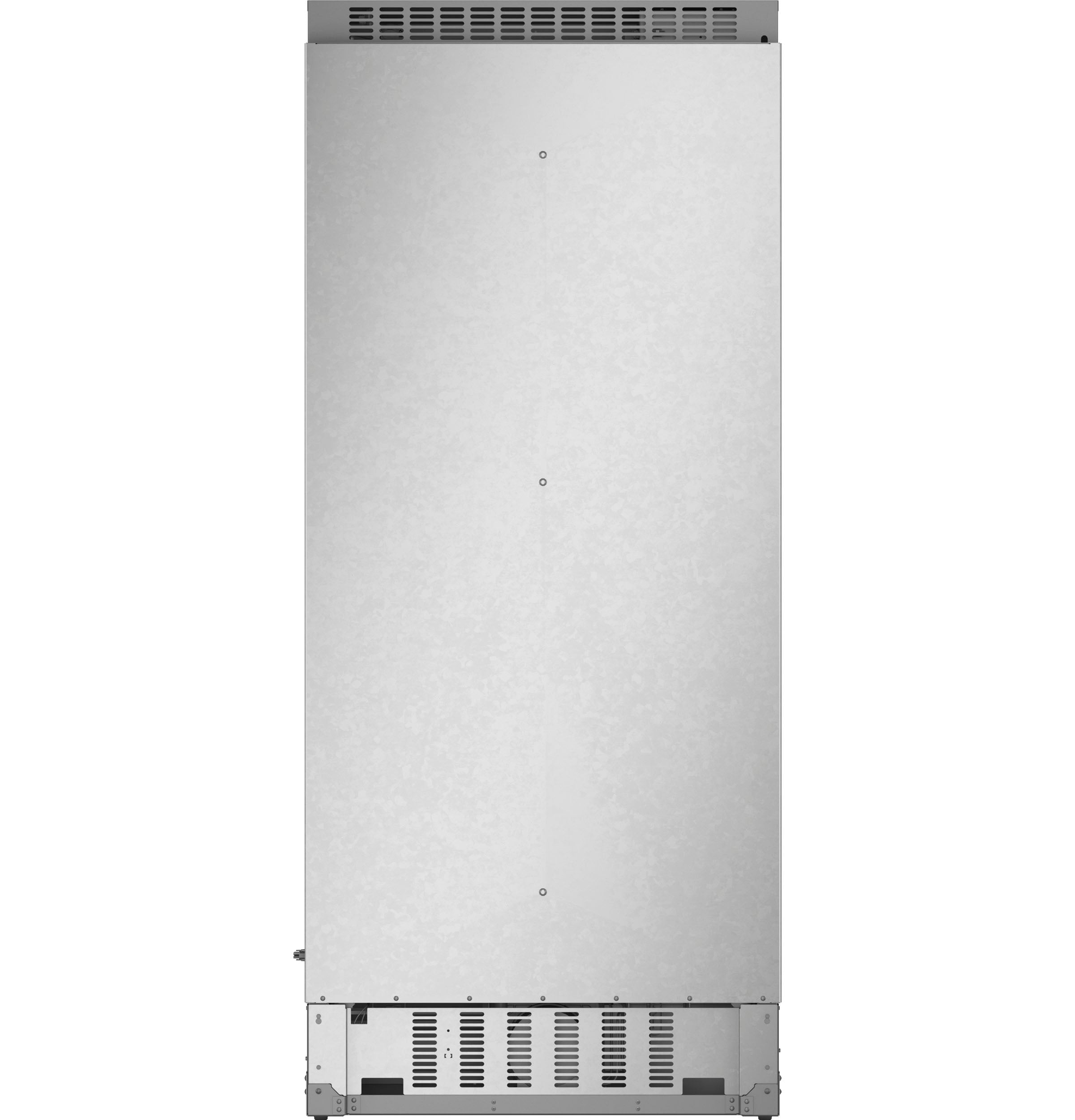

Coil-Free Back Yes
Hidden Door Hinge(s) Yes
Panel Capability SS Door Panel Kit , ZK3SN364WRH
Color Appearance Panel Ready

Capacity

Fresh Food Capacity 13.71 cu ft
Total Capacity (cubic feet) 20.1 cu ft
Convertible Drawer Capacity 2.91 cu ft
Freezer Capacity 3.45 cu ft

Accessories

Handle Stud Kit ZKPN
SxS Install Heater/Unification Kit ZKMV
Side by Side Install Toe-Kick Kit 54 ZKK54P,60 ZKK60P,66 ZKK66R,72 ZKK72R
Trim Kit 36 Trim Kit for 24 deep cabinets ZKW36V,72 Trim Kit for 24 deep cabinets ZKW72V

Features

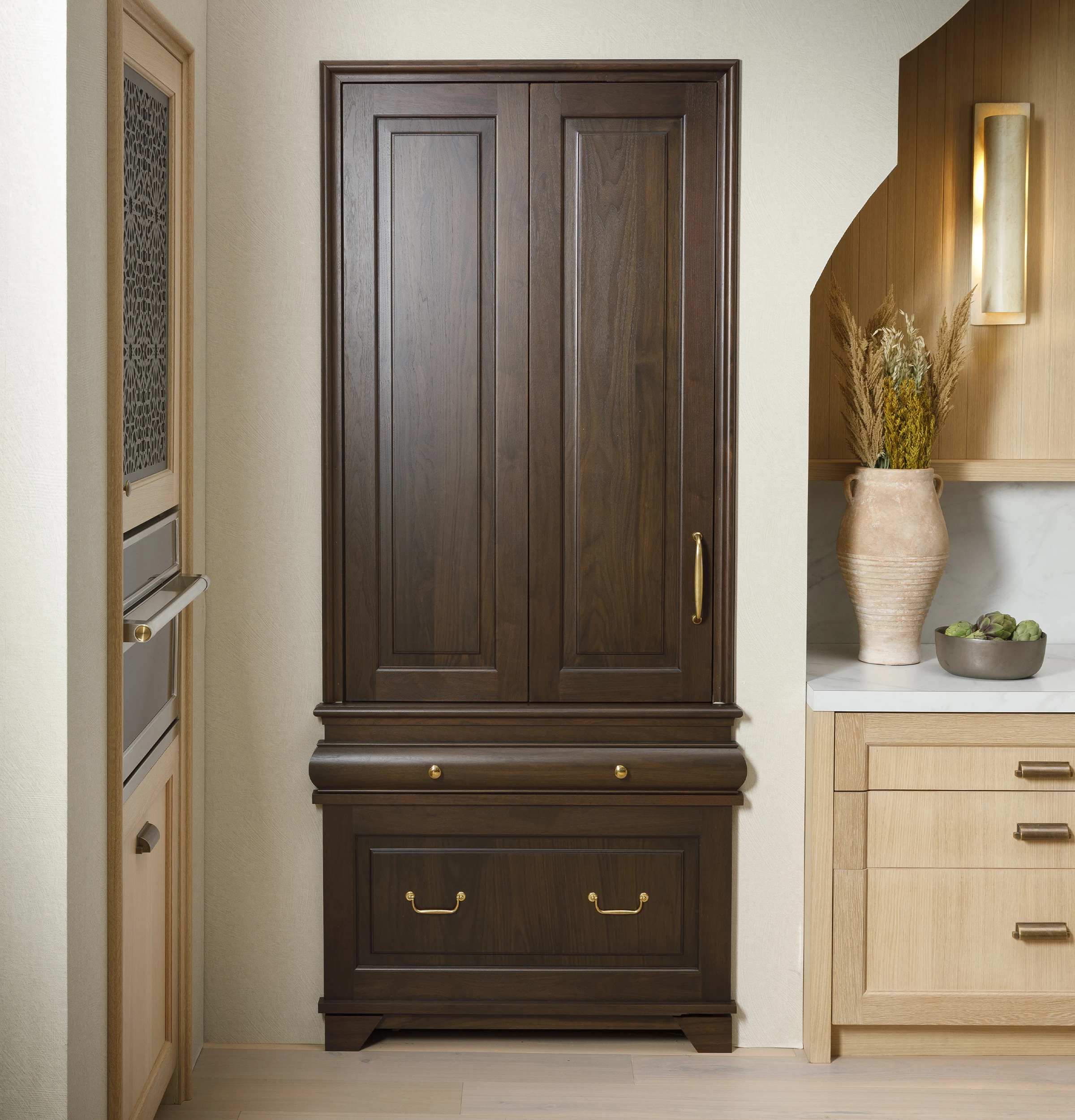

Custom Panel Ready Integrated Panels
Icemaker Factory-Installed
WiFi Connect Built-In
Filter Change Indicator Display water filter status @ 90% usage
Sabbath Mode Yes
Door Alarm Yes
Interior Lighting LED
Defrost Type Automatic Defrost
Leveling System 4 Point (2 adjustable back rollers, 2 adjustable front legs)
Fresh Food Door Bins 3 Full-Width

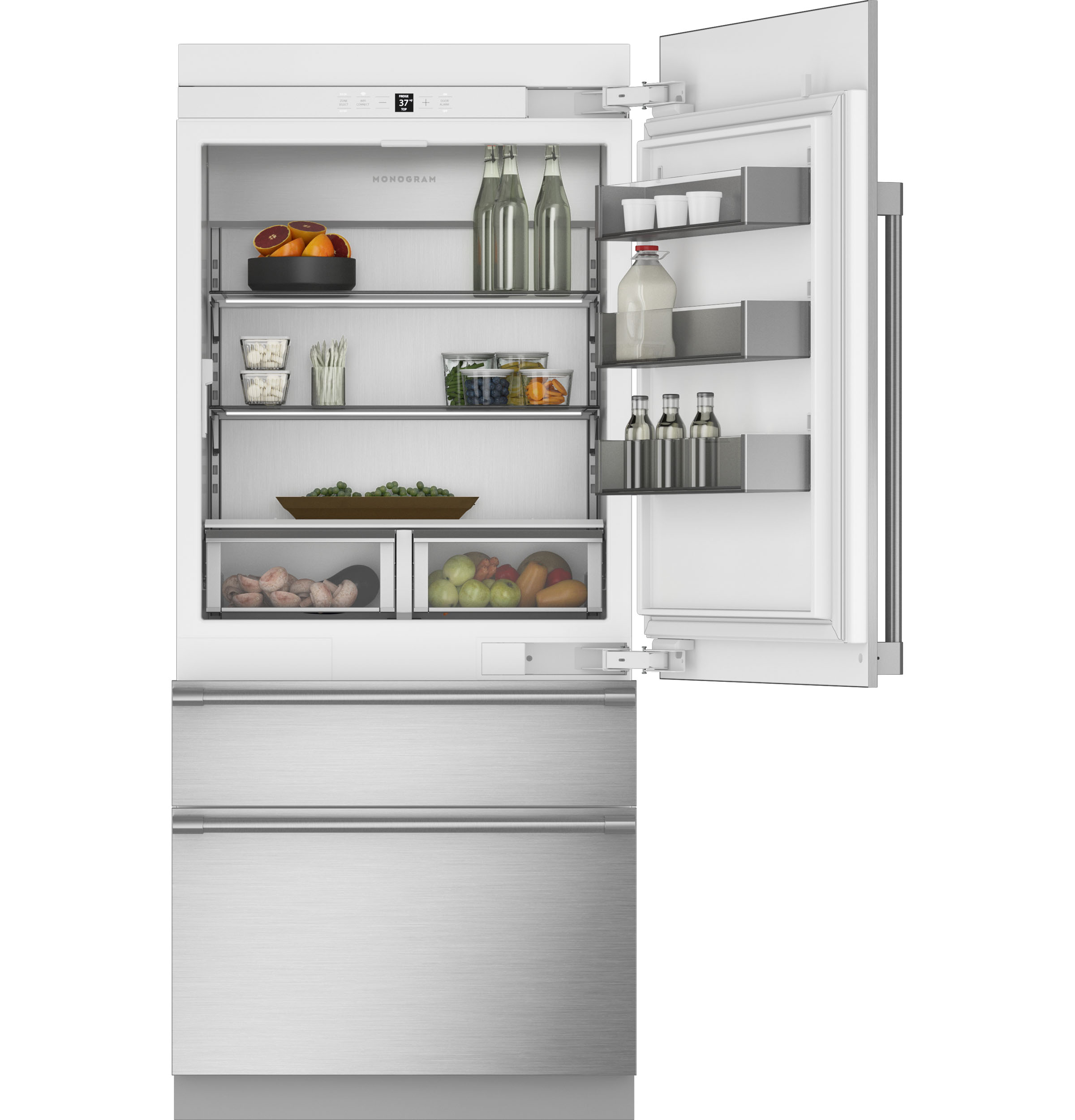

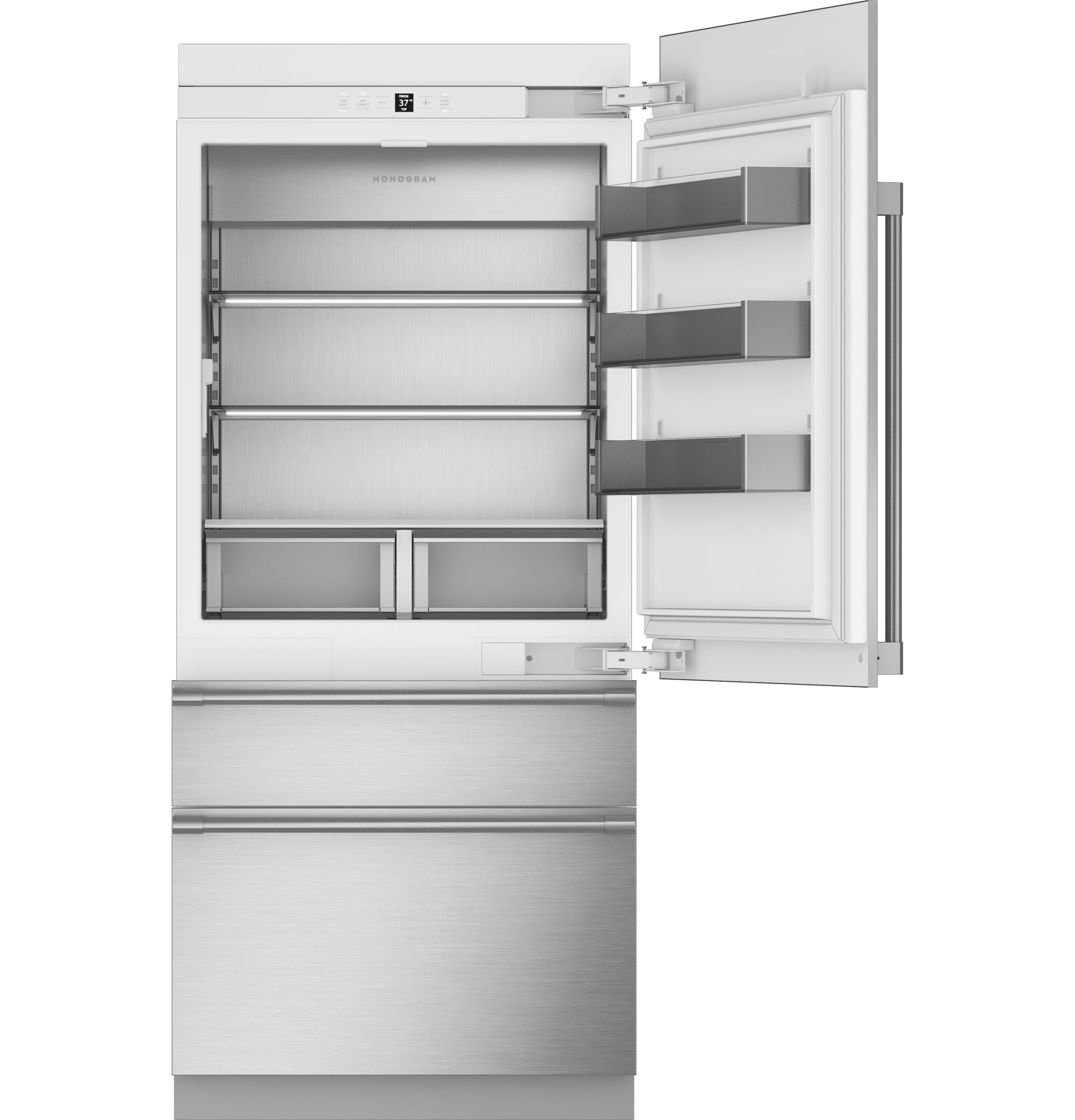

Configuration Full Door and Double Drawer
Refrigerant Type R600a
Dispenser Internal Water
Fresh Food Cabinet Shelf Features Lighted Glass Shelves

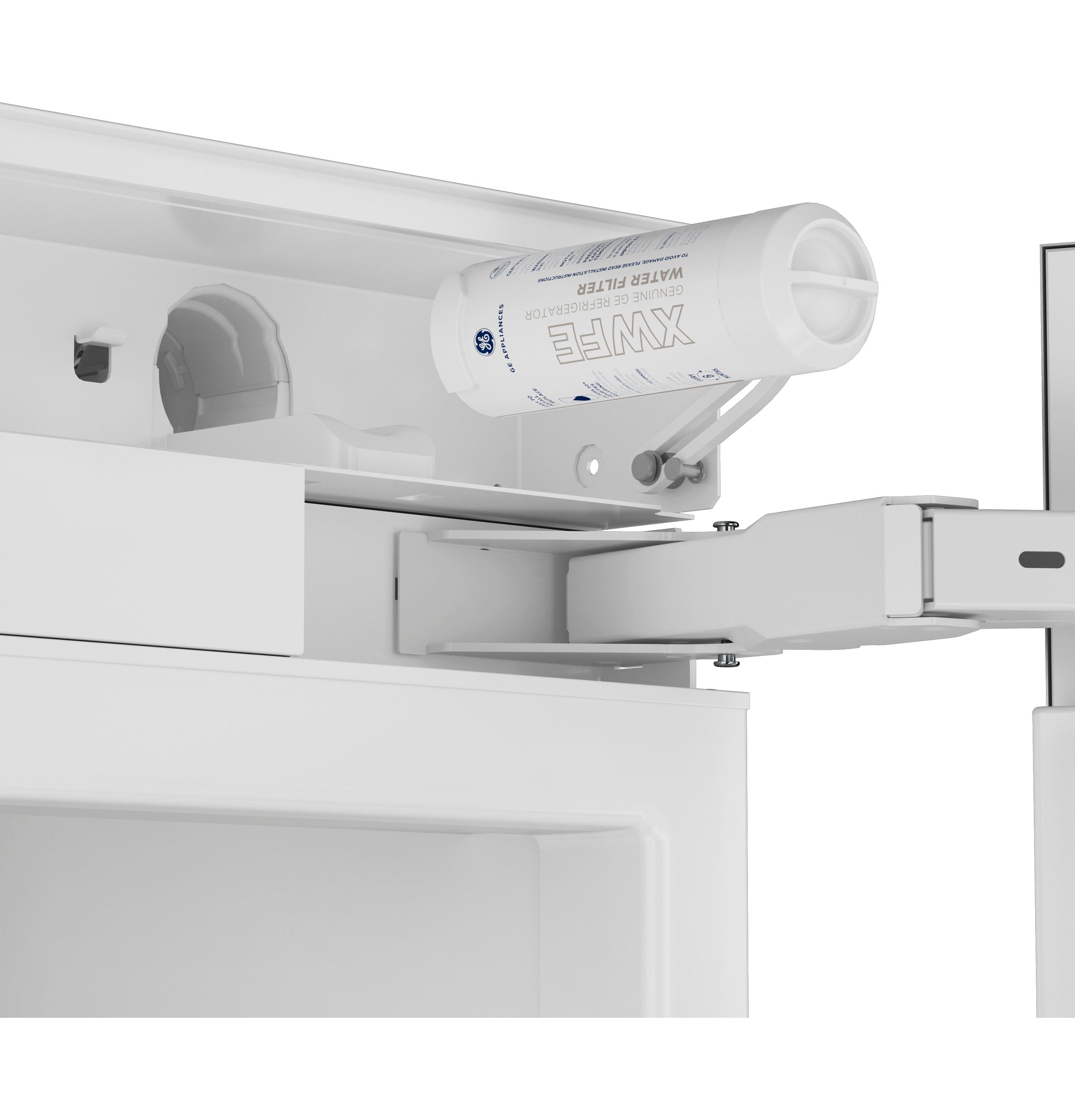

Water Filtration GE Water Filtration (XWFE Filter)
OU Certified OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Fresh Food Cabinet Shelves 2 Full Width, LED Shelves
Bottom Drawer Yes, Freezer w/IM,Metal Interior with Mat,One Adjustable Divider
Collection Statement,Minimalist
Connected Capabilities Amazon Alexa,Google Home

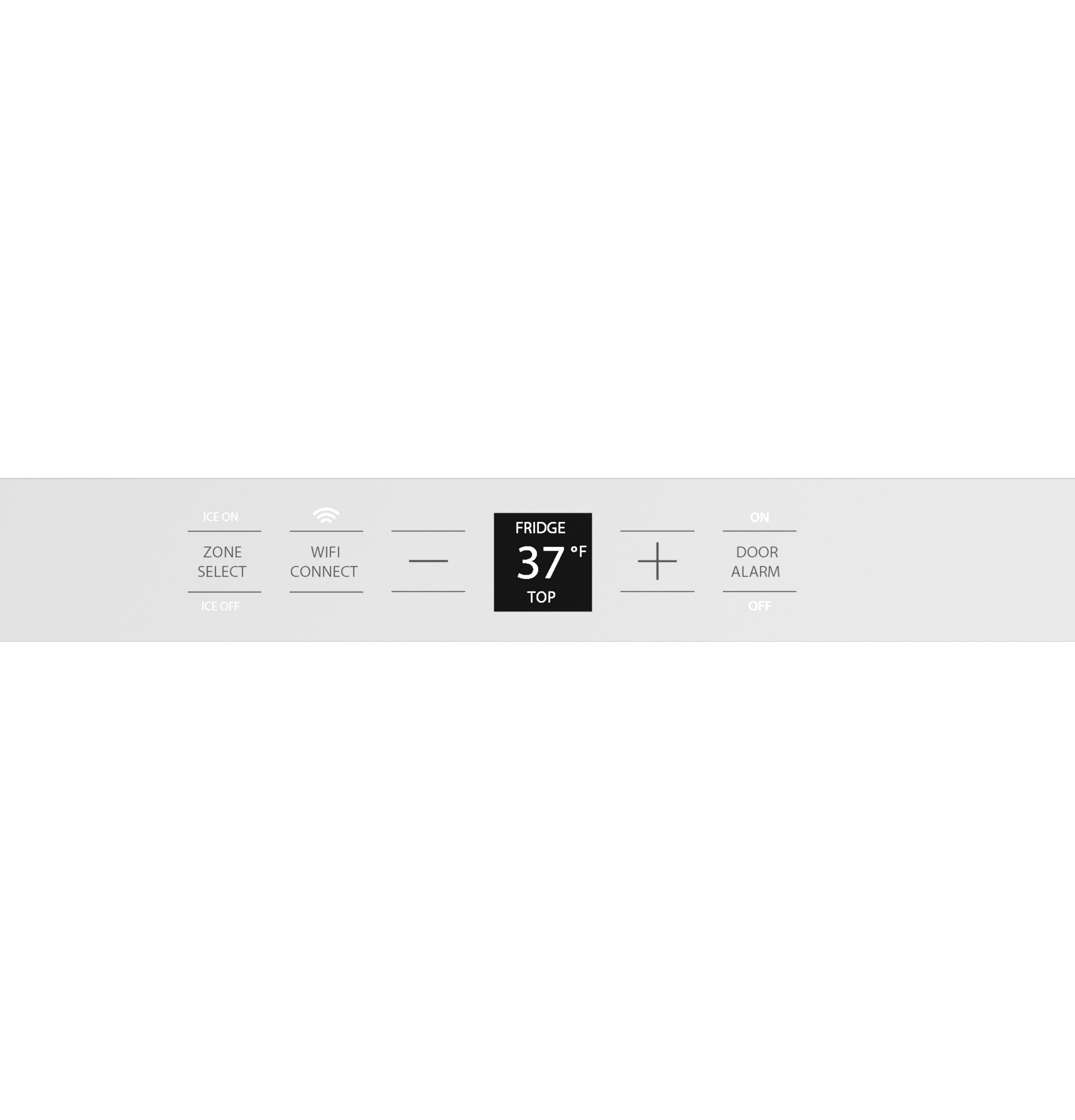

Control Type Integrated,Upfront Capacitance Touch Controls
Exterior Style Built-In,Standard Depth
Freezer Features Freezer Drawer with Full Extension Slides,Soft-Close
Fresh Food Cabinet Drawers 2 Half-Width Adjustable Humidity Drawers,Full-Extension Soft-Close Slides
Fresh Food Door Features 3 Adjustable Bins,Full-Width
Fresh Food Features Display Temp Setpoint,Door Alarm,Filter-Change Indicator,Interior Lighting - Ramp Up LED 4,Sabbath Mode Status
Middle Drawer Yes, Convertible; Metal Interior with Mat,6 Settings (Hard Freeze [sync w/freezer], Soft Freeze/Gelato, Meats, Cold Beverages, FF/Snack, Produce
Product Type Bottom Freezer Refrigerator,Built-In Refrigerator
Temperature Management Features Multi-Shelf Air Management Tower,Independent Temperature Controls,Dual Evaporator

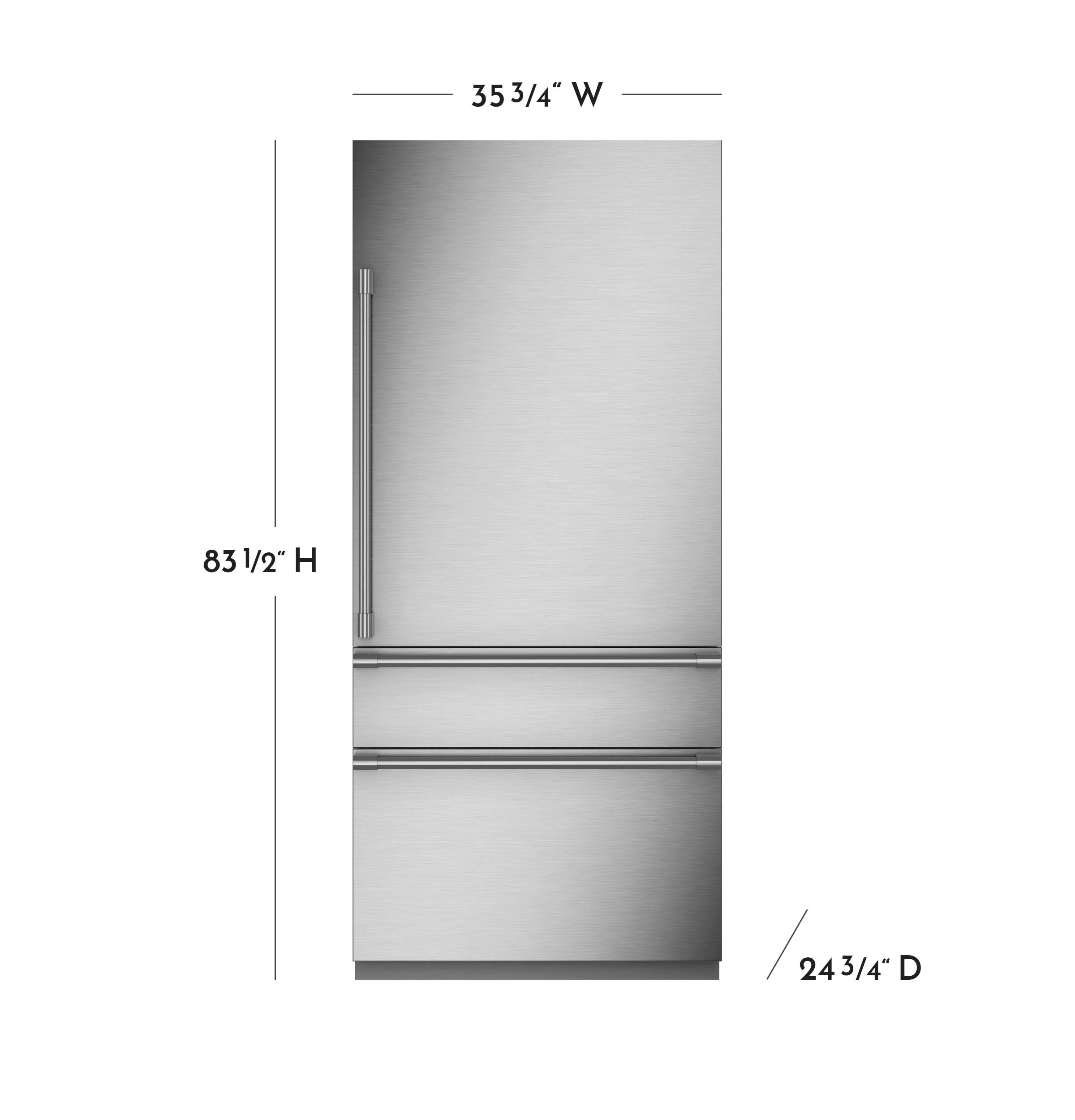

Weights & dimensions

Overall Depth 24.75 in
Height to Top of Hinge 83.5 in
Overall Width 35.75 in
Overall Height 83.875 in
Approximate Shipping Weight 621
Net Weight 548

Power / ratings

Electrical Requirements 115V; 60Hz; 20A
Hertz 60
Energy Consumption (kWh/year) 654

Economical / quiet

Quiet Package 36 dBA

Warranty

Parts Warranty Limited 2-year entire appliance
Labor Warranty Limited 2-year entire appliance
Warranty Notes Limited 5-Year Sealed System,Extended 12-Year Sealed System Parts Only,See written warranty for full Details

Dimensions & weight

Width 35.75 in.
Height 83.5 in.
Length 24.75 in.
Weight 548 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.75 in.
Shipping Height 88.5 in.
Shipping Length 29.75 in.
Shipping Weight 588 lbs.
Total of Shipping Weight 588 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 42.76 ft³
Dimensional Weight 531.52 lbs.
Total of Cubes 42.76 ft³
Total of Dimensional Weight 531.52 lbs.

Description

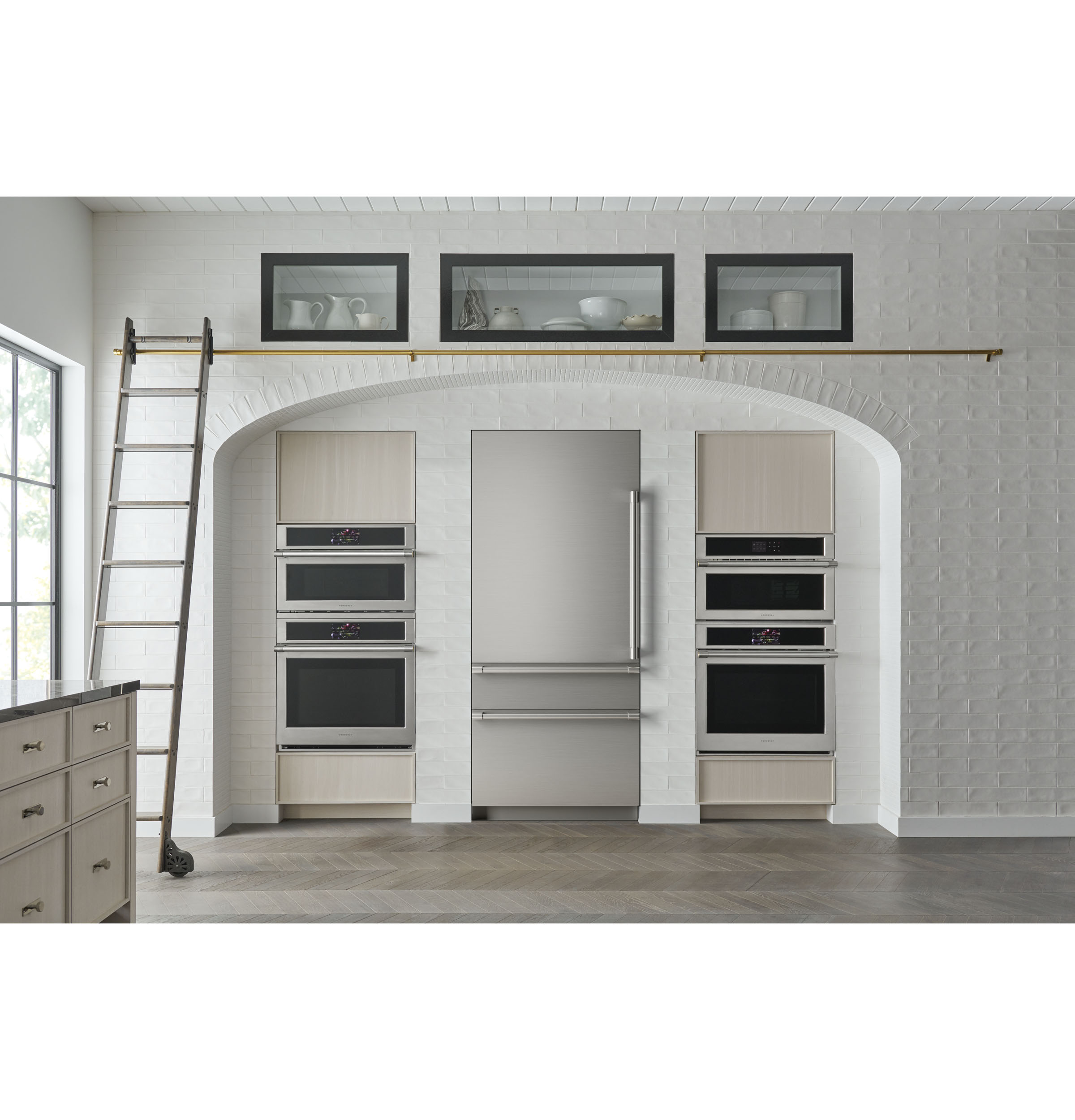

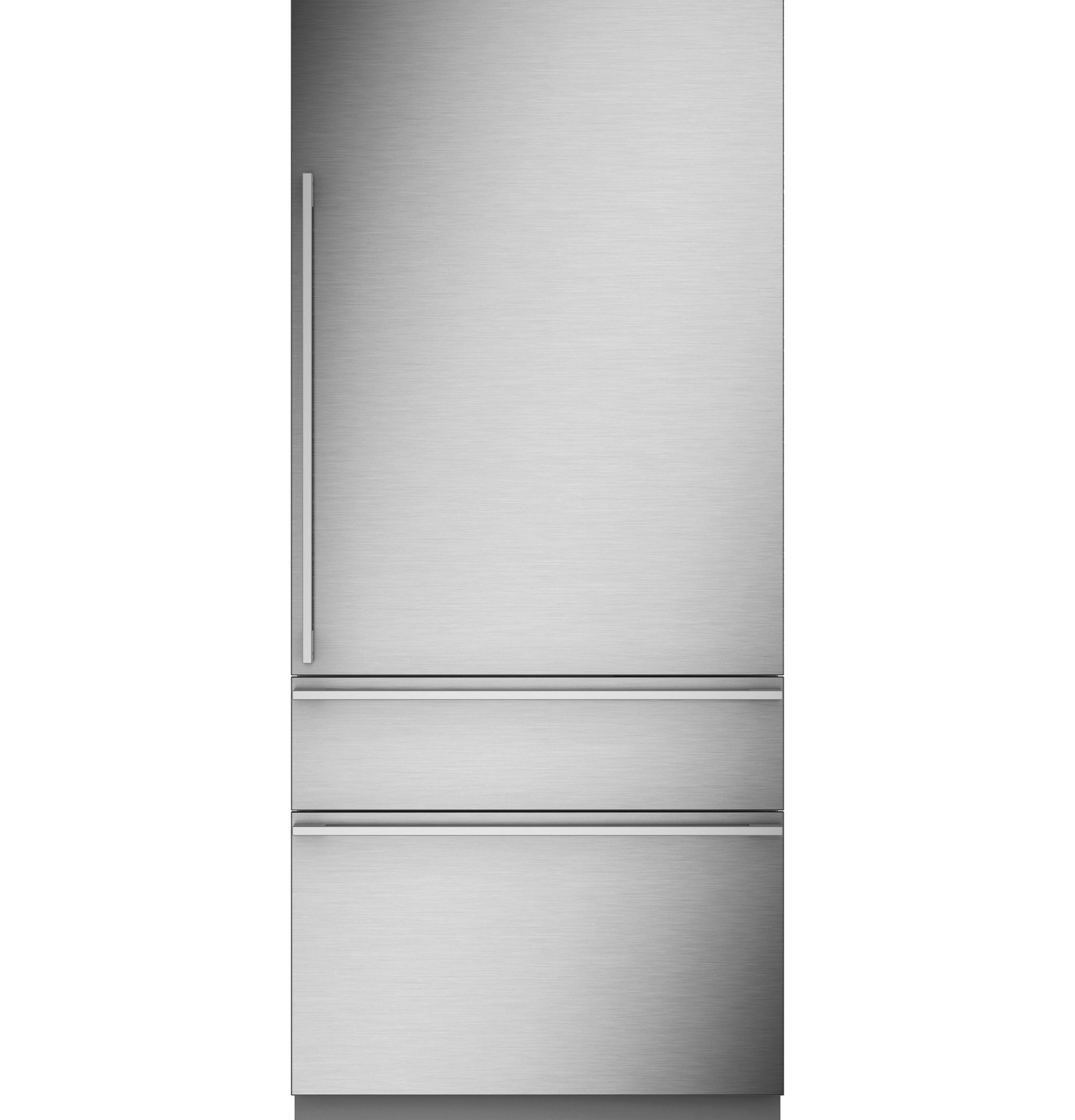

Bottom Freezer with Flush Inset Installation
Sleek design allows the refrigerator to be installed flush with adjacent cabinetry

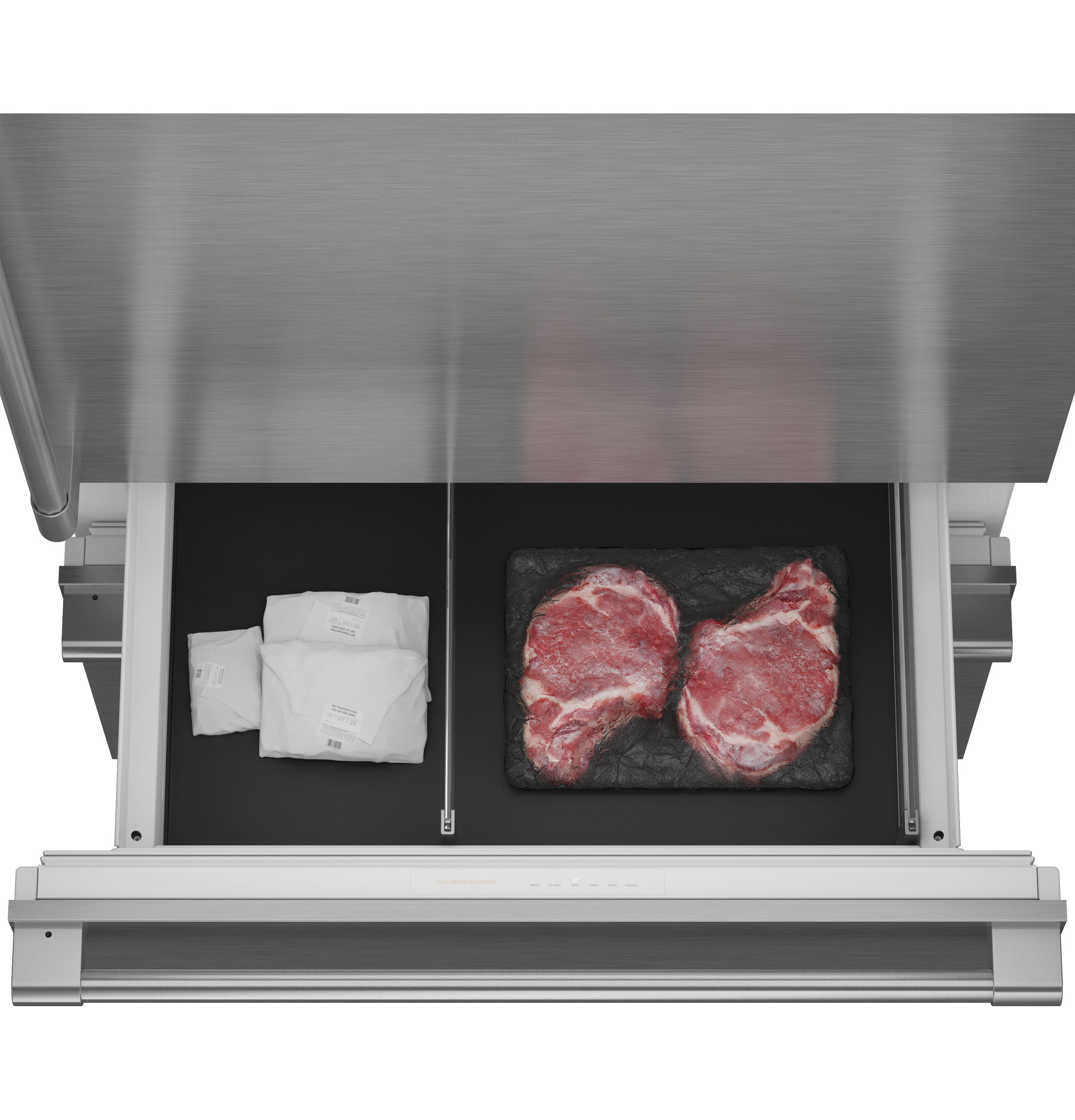

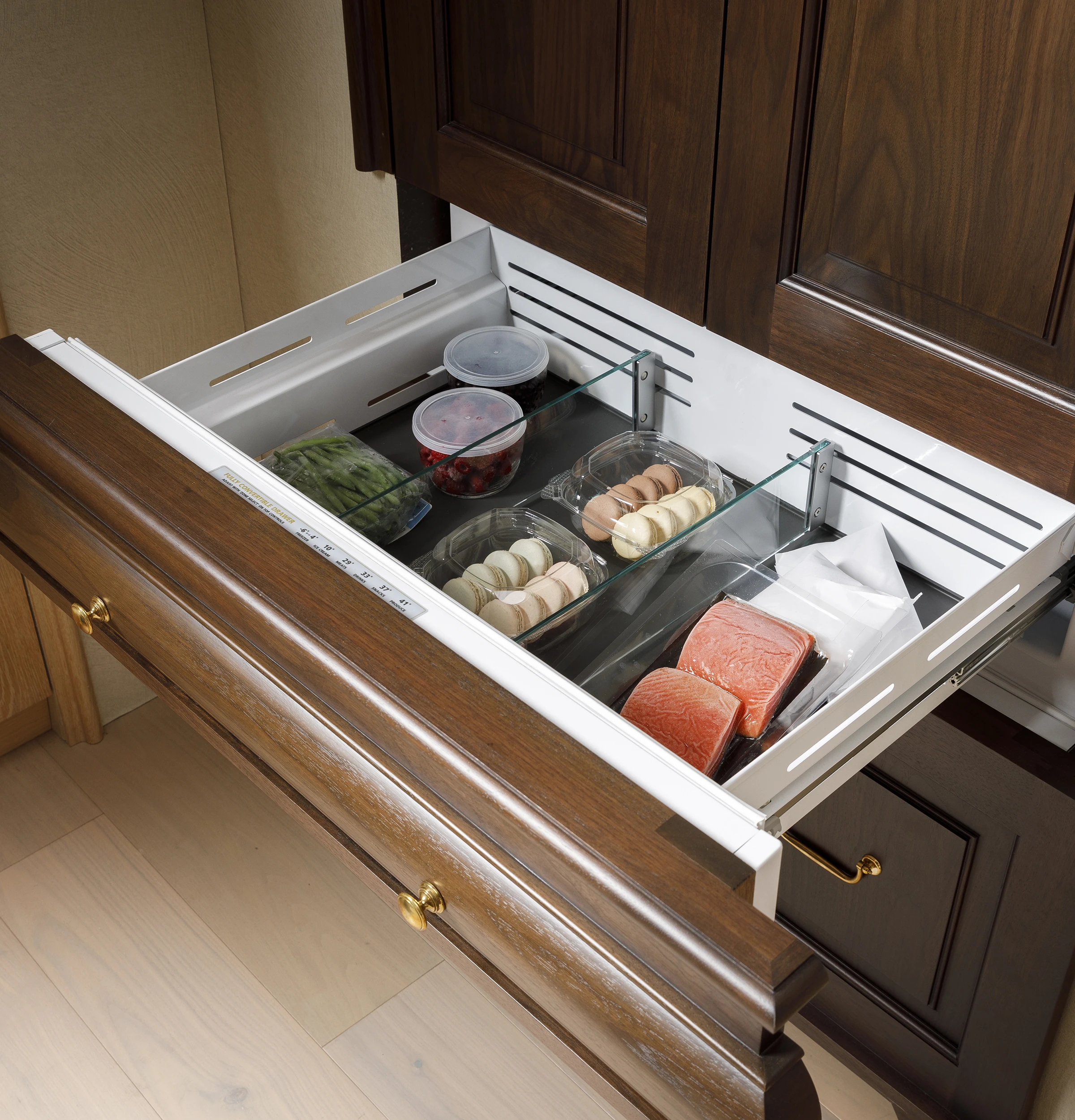

6-Temperature Setting Convertible Drawer
The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items

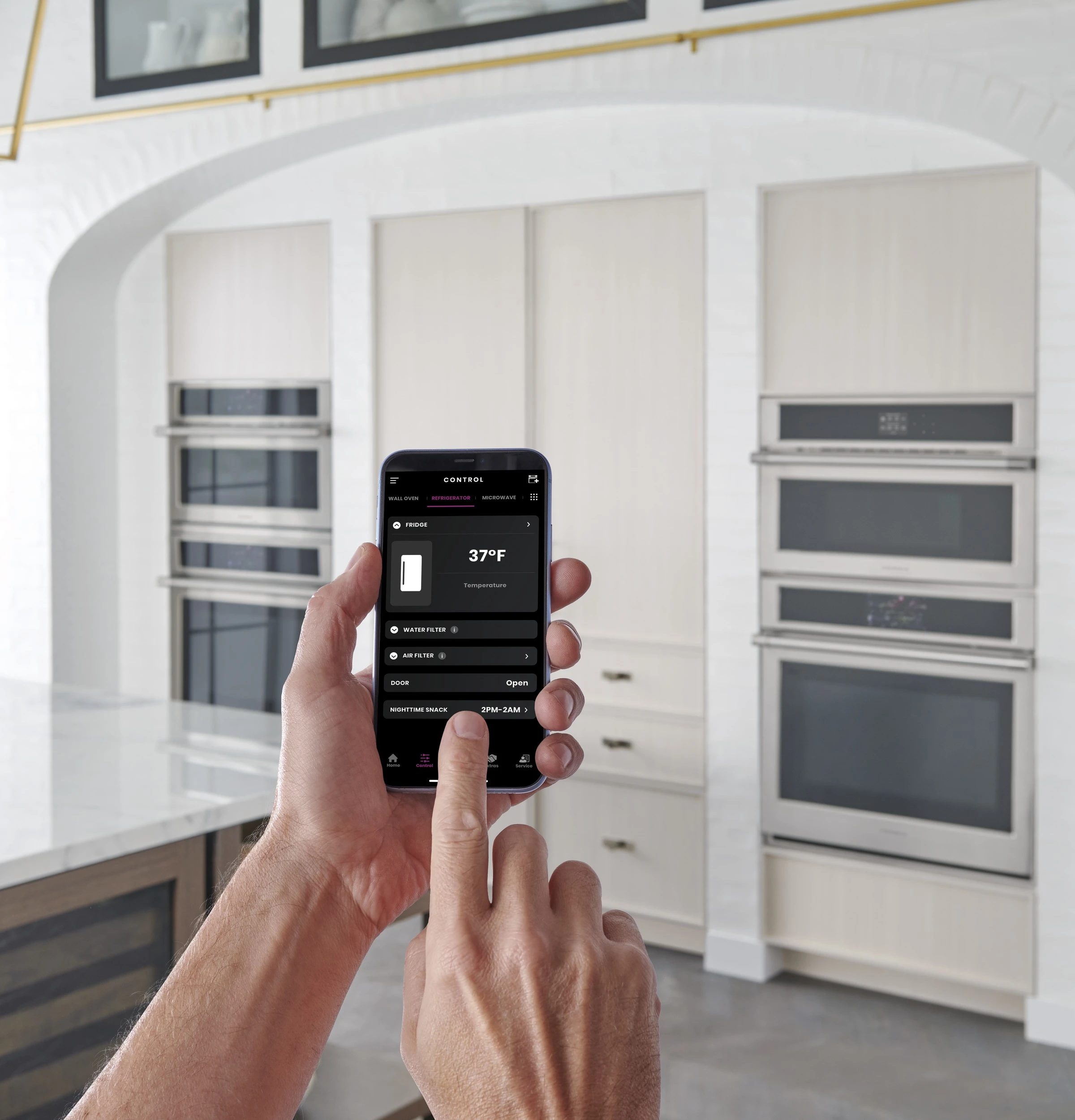

WiFi Connected Refrigerator
The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app

2 Humidity-Controlled Vegetable Drawers
Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness

Glass Front Refrigerator Door Bins
The clear design makes it easy to see and access quick-grab items from refrigerator bins

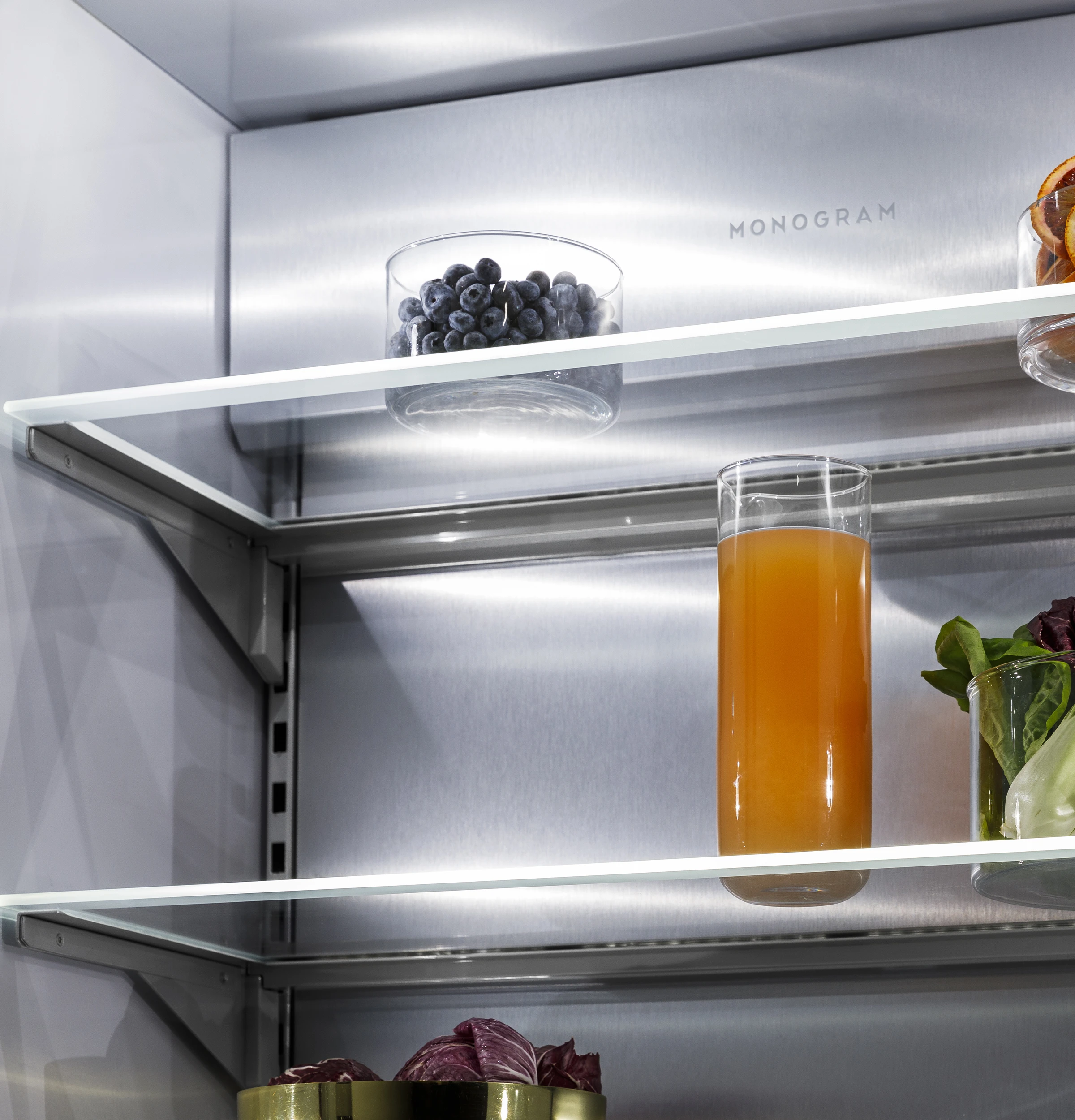

Refrigerator with Ramp-Up LED Interior Shelves
Exceptional illumination throughout the refrigerator compartment accentuates the sophisticated interior and allows easy viewing of contents

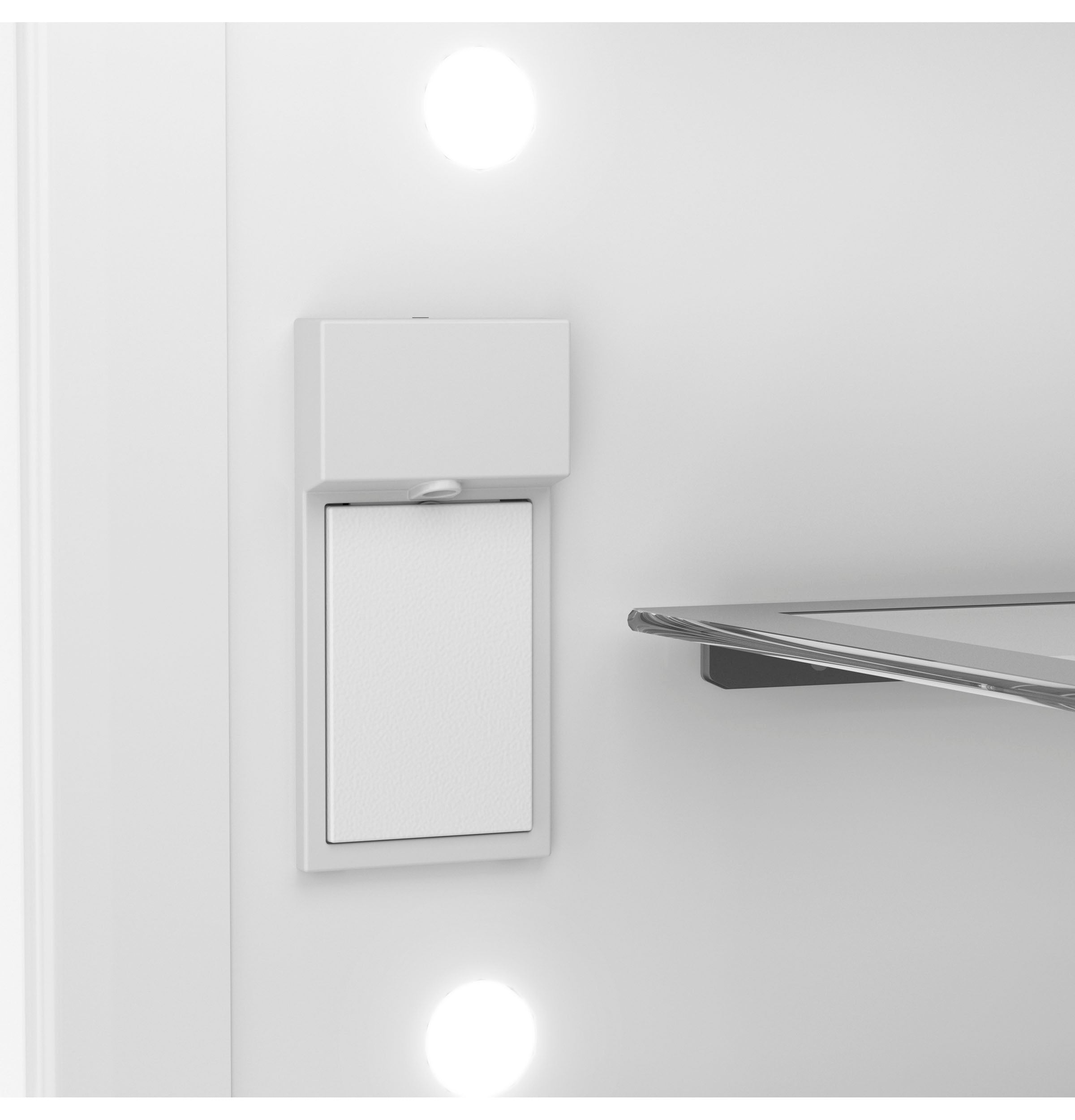

Refrigerator Air Filtration Odor Reducing System
The refrigerator deodorizer air filtration system helps keep your refrigerator fresh by scrubbing the air of food odors and gases

Refrigerator with Internal Water Dispenser
The water dispenser on the inside of the refrigerator leaves the outside looking clean and uncluttered

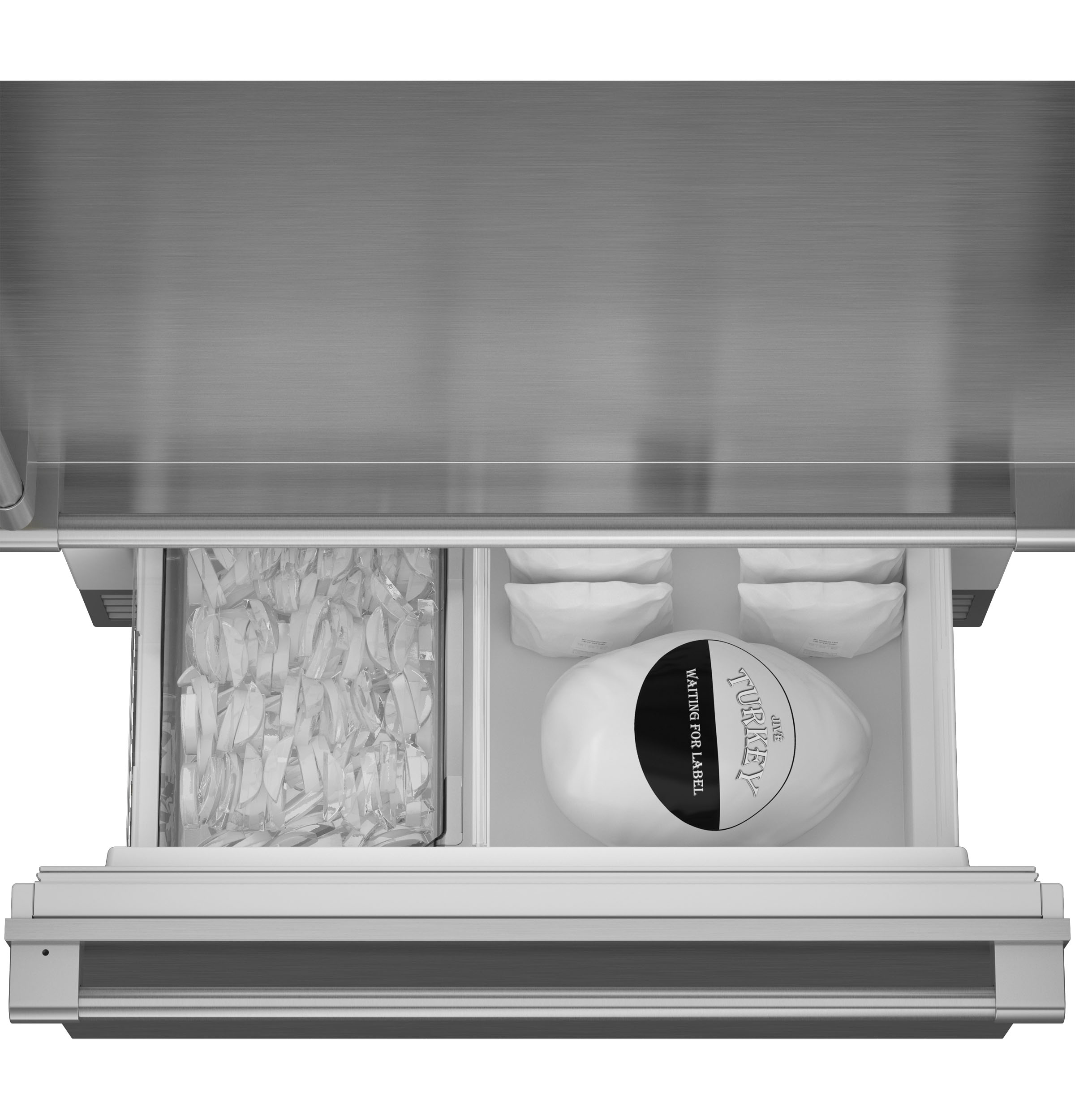

Factory Installed Ice Maker
Create all the ice you want, anytime you like, with this refrigerator with ice maker

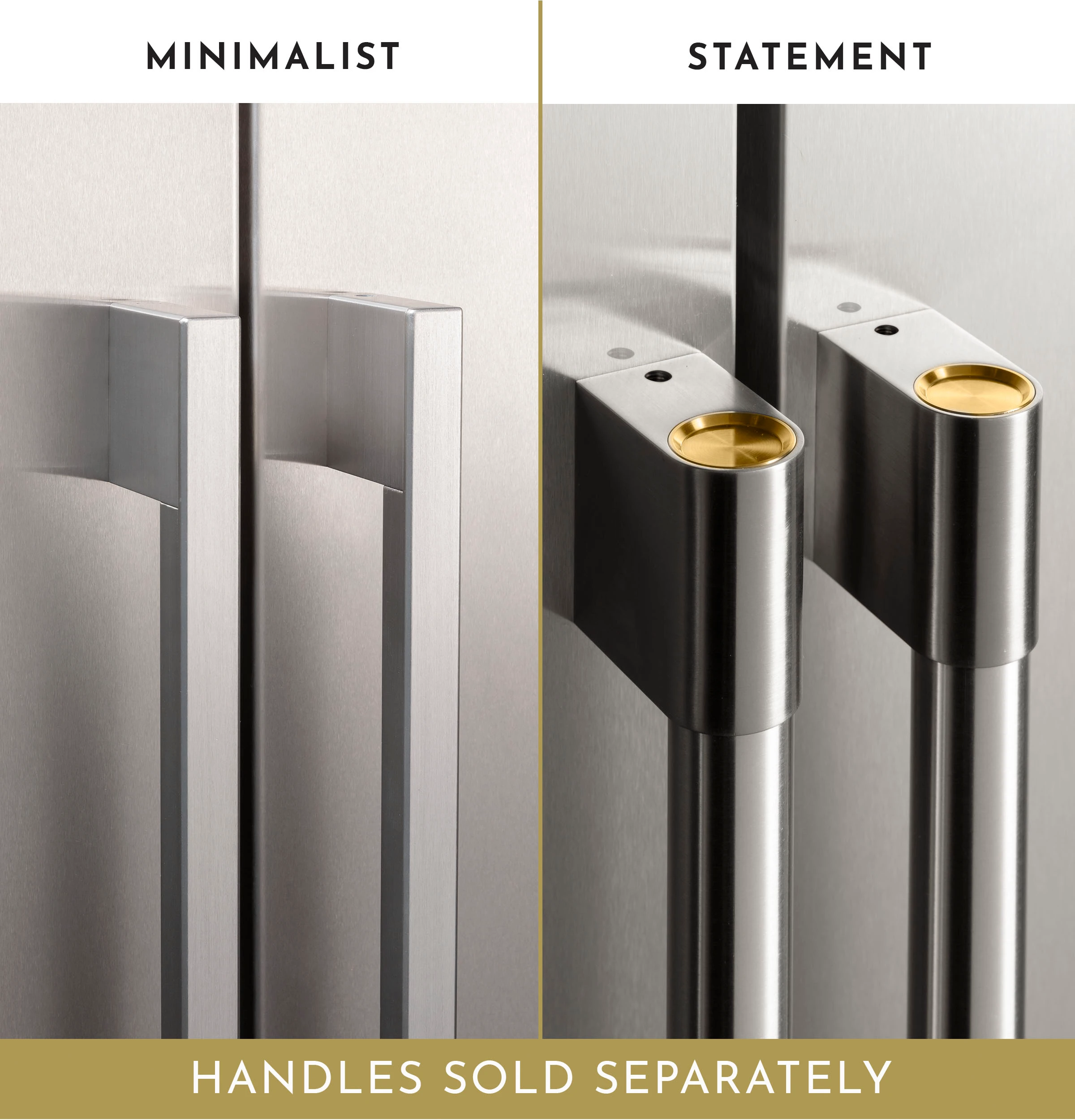

Statement and Minimalist Collection Refrigerator Handles (sold separately)
Designed to enhance choice and customization with Statement and Minimalist Collection handle options. HANDLES AND STAINLESS PANELS SOLD SEPARATELY.



Product Features

  • 2 Humidity-Controlled Vegetable Drawers
    Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness
  • Glass Front Refrigerator Door Bins
    The clear design makes it easy to see and access quick-grab items from refrigerator bins
  • Refrigerator Air Filtration Odor Reducing System
    The refrigerator deodorizer air filtration system helps keep your refrigerator fresh by scrubbing the air of food odors and gases
  • Refrigerator with Internal Water Dispenser
    The water dispenser on the inside of the refrigerator leaves the outside looking clean and uncluttered
  • Factory Installed Ice Maker
    Create all the ice you want, anytime you like, with this refrigerator with ice maker

Key Features

Bottom Freezer with Flush Inset Installation

Sleek design allows the refrigerator to be installed flush with adjacent cabinetry

6-Temperature Setting Convertible Drawer

The convertible middle drawer with 6 temperature settings allows you to choose temperatures best suited for storing cold drinks, meat, snacks, ice cream, produce or frozen items

WiFi Connected Refrigerator

The WiFi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app

Refrigerator with Ramp-Up LED Interior Shelves

Exceptional illumination throughout the refrigerator compartment accentuates the sophisticated interior and allows easy viewing of contents

Statement and Minimalist Collection Refrigerator Handles (sold separately)

Designed to enhance choice and customization with Statement and Minimalist Collection handle options. HANDLES AND STAINLESS PANELS SOLD SEPARATELY.
