| Overall Height | 8.5 in |
| Overall Width | 47.875 in |
| Overall Depth | 27.5 in |
| Cabinet Width | 48 in |
| Approximate Shipping Weight | 227 |
| Net Weight | 171 |
| Optional Grill Accessory (Cast Iron) | UXPRRGG |
| High Altitude Kit | WB28K10553 |
| Conversion Kit | Included - Nat. Gas to LP |
| Factory-installed island backguard | Yes |
| 48 Monogram Knob Kit | ZXPR48KKTSS (SS, qty. 11) |
| Optional Backguard | 12 stainless steel backsplash (UX12BS48PSS),30-36 adjustable stainless steel backsplash with warming shelf (UXADJB48PSS) |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 21.0; (2) 15.0; (2) 10.0 |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 23.0; (2) 18.0; (2) 15.0 |
| Electrical Requirements | 120v; 60Hz; 15A |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Hertz | 60 |
| Design Style | Statement Collection |
| Color Appearance | Stainless Steel |
| Installation | Side-by-Side |
| Control Knobs | Diecast Metallic (Included),Stainless Steel with Brass Accents |
| Stainless Steel Grill / Griddle Covers | 1 |
| Removable Drip Tray Liners | (1) Beneath Griddle |
| Control Location | Upfront |
| Ignition System | Electronic |
| Lighting | LED Bullnose Task Lighting |
| Burner Indicator Light | Yes |
| Extra Low Simmer | All Burners - Adjustable |
| Automatic Re-Ignition | Yes |
| Cooktop Burner Grate Features | Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Collection | Statement |
| 140 Deg. Simmer Burner | All Burners - Adjustable |

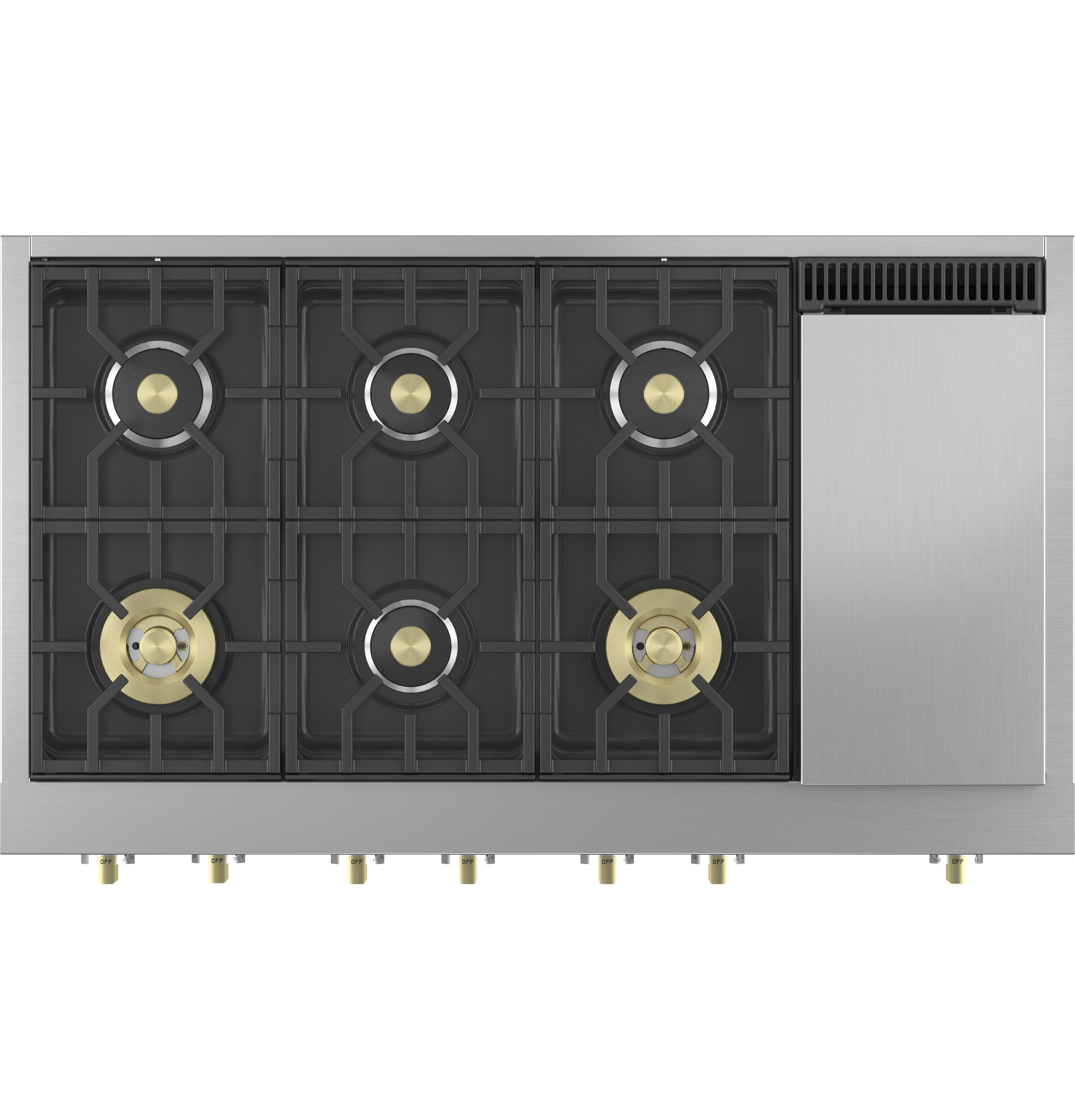

| Configuration | 6 Burners; Griddle |
| Product Type | Rangetop |
| Fuel Type | All-Gas (Natural Gas) |
| Cooktop Burner Type | 2 Sealed, Dual Ring,4 Sealed, Dual Flame Stacked (Removable Brass Accents) |
| Cooktop Type | 6 Burners,Griddle |
| Griddle | 18,000-BTU,Thermostatically Controlled,Stainless Steel and Aluminum Clad |

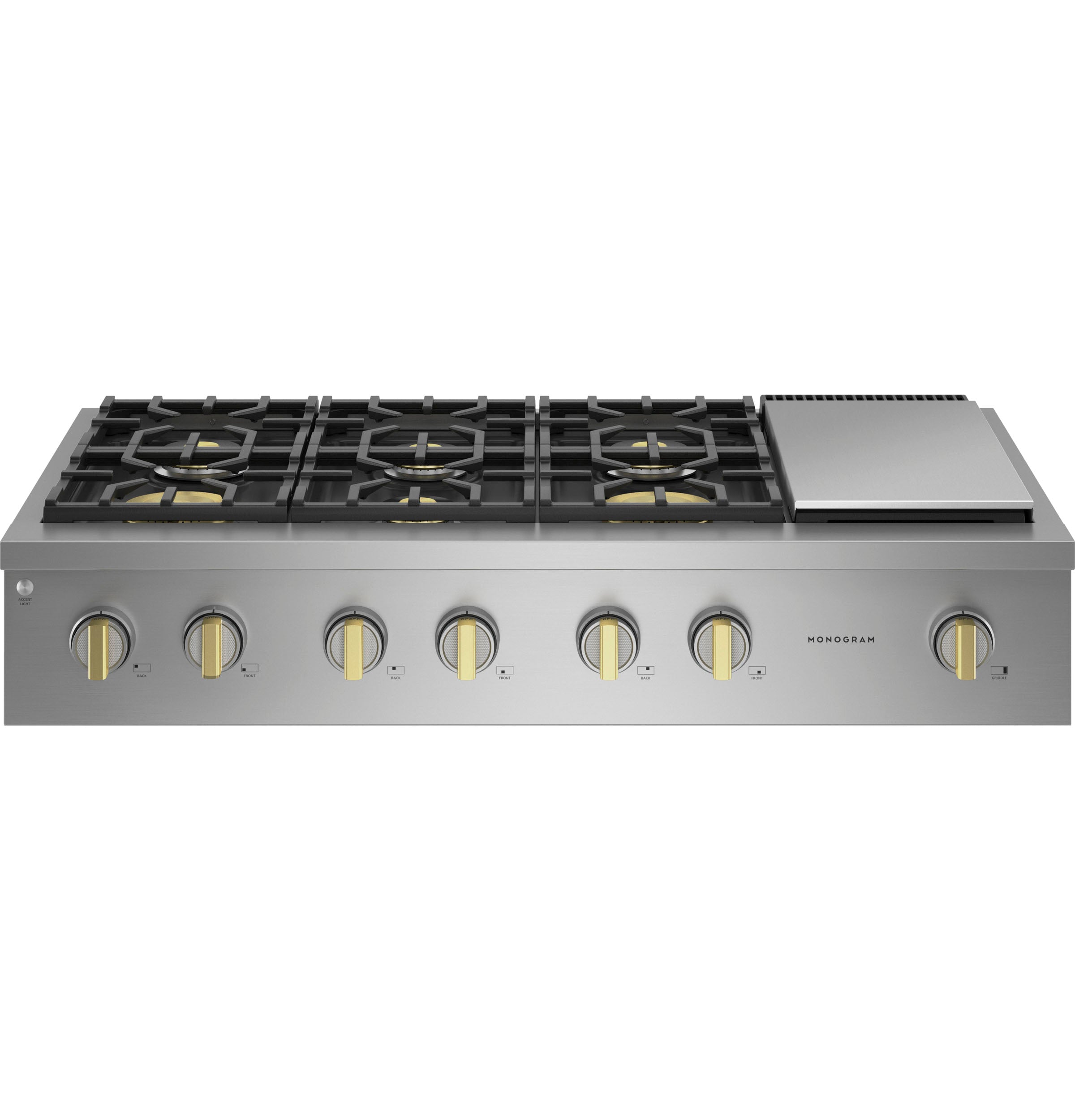

| Short Description | 48 Pro Rangetop with Griddle |
| Warranty Notes | See written warranty for full details |
| Labor Warranty | Limited 2-year entire appliance |
| Parts Warranty | Limited 2-year entire appliance,Limited 5-year gas surface burners |
| Width | 47.88 in. |
| Height | 8.5 in. |
| Length | 27.5 in. |
| Weight | 171 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 52.88 in. |
| Shipping Height | 13.5 in. |
| Shipping Length | 32.5 in. |
| Shipping Weight | 211 lbs. |
| Total of Shipping Weight | 211 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 6.48 ft³ |
| Dimensional Weight | 80.51 lbs. |
| Total of Cubes | 6.48 ft³ |
| Total of Dimensional Weight | 80.51 lbs. |

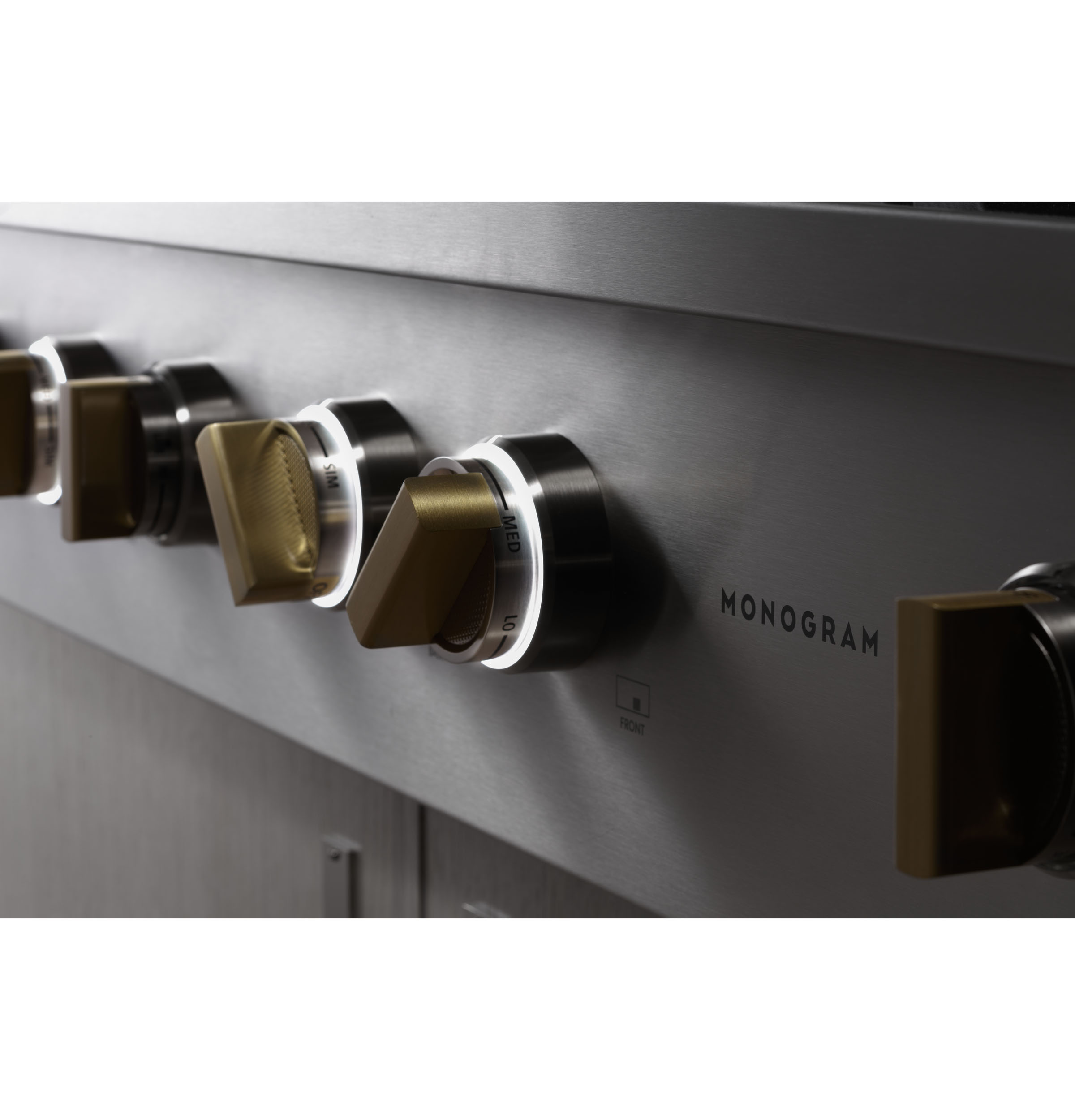

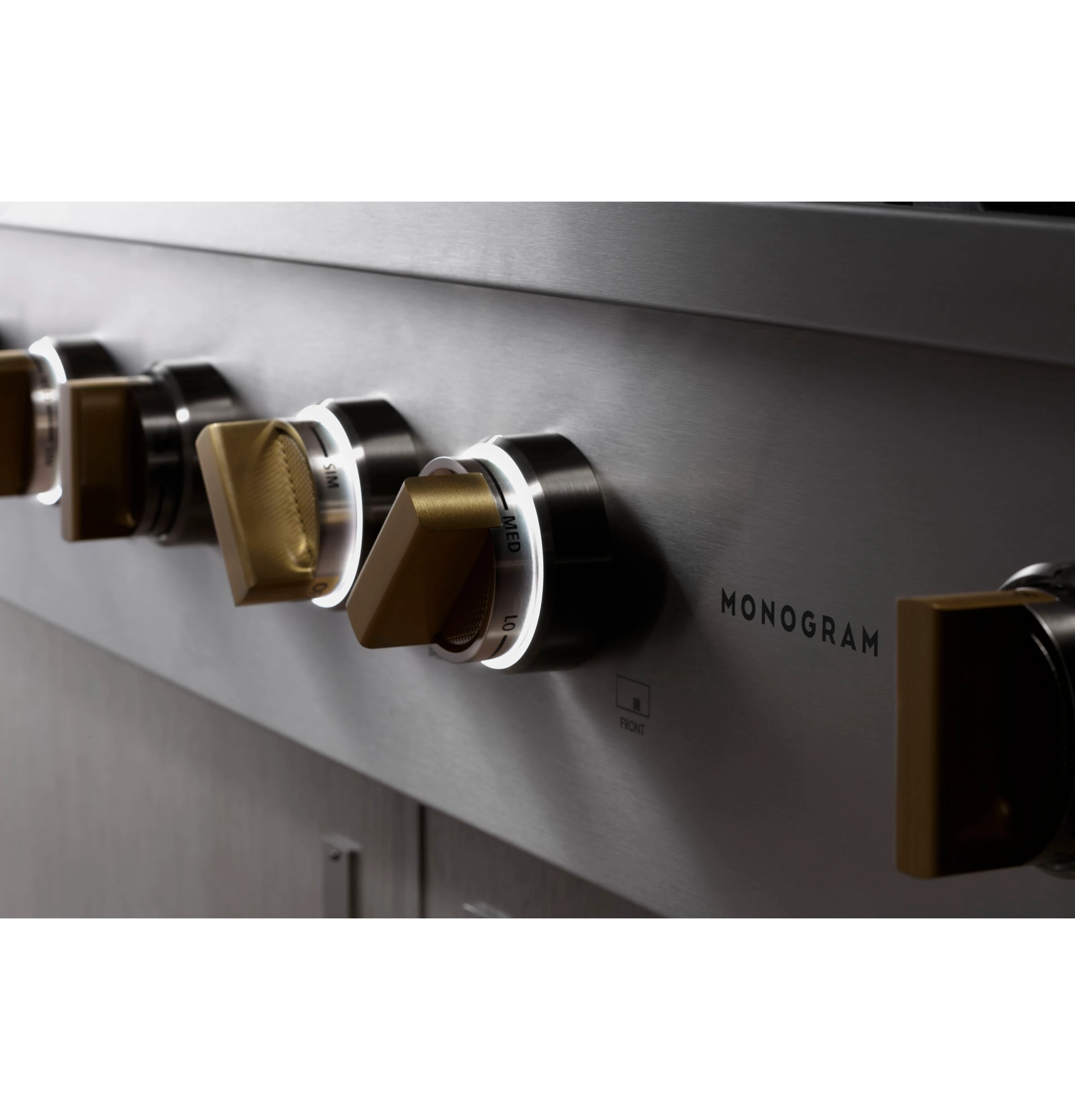

Delivering a modern approach to accent lighting, the rings illuminate to indicate when a burner is in use

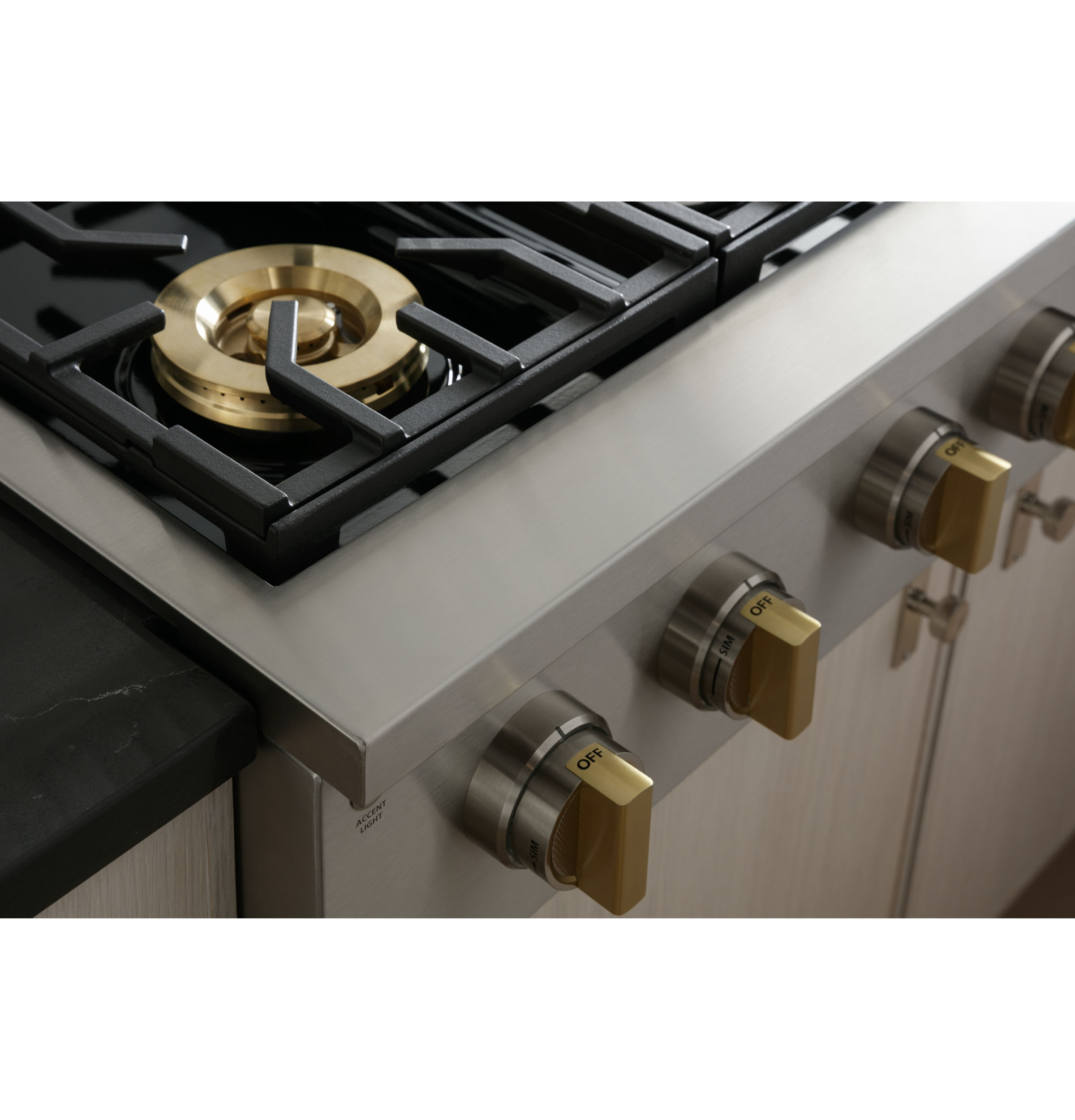

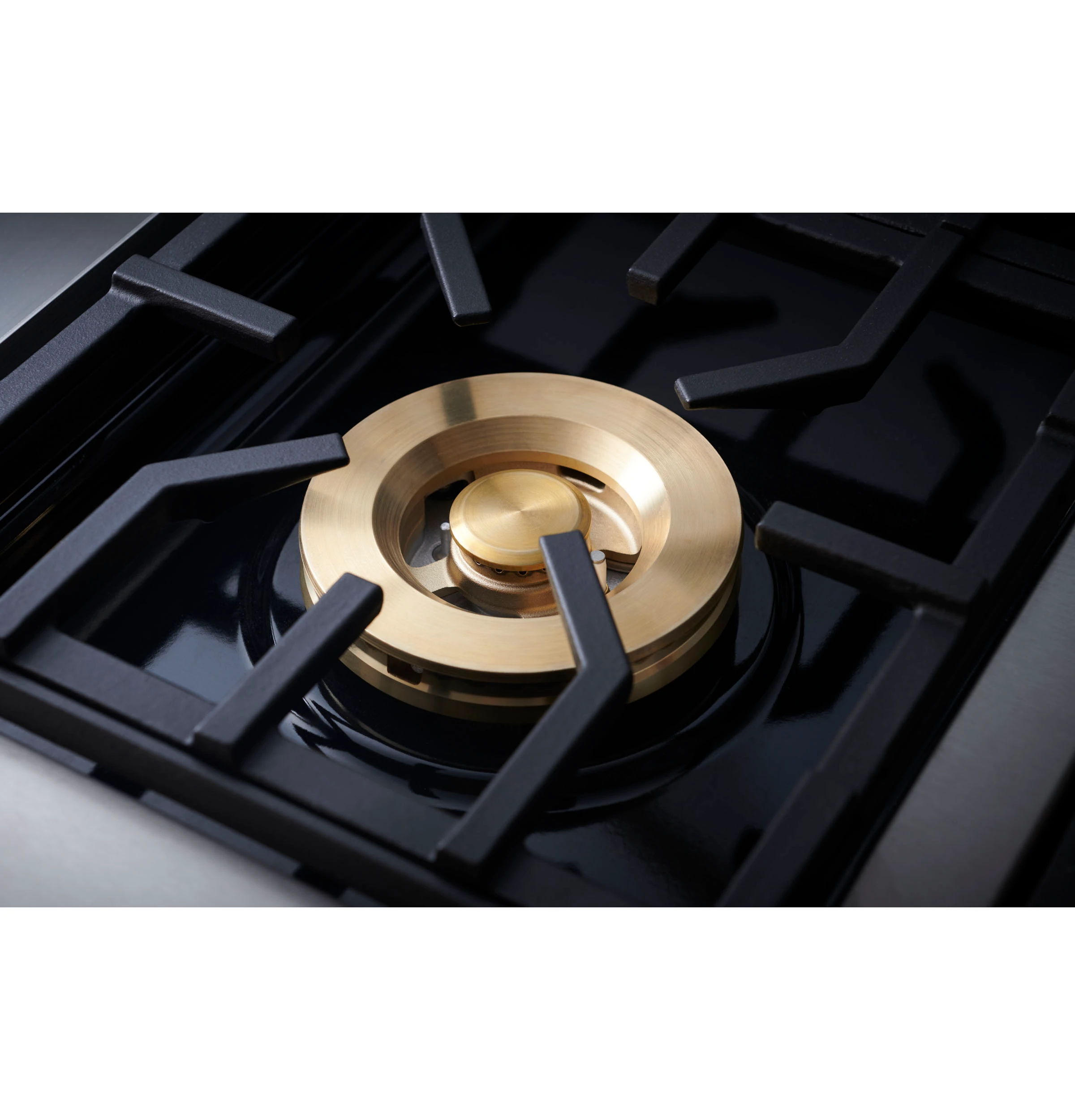

Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

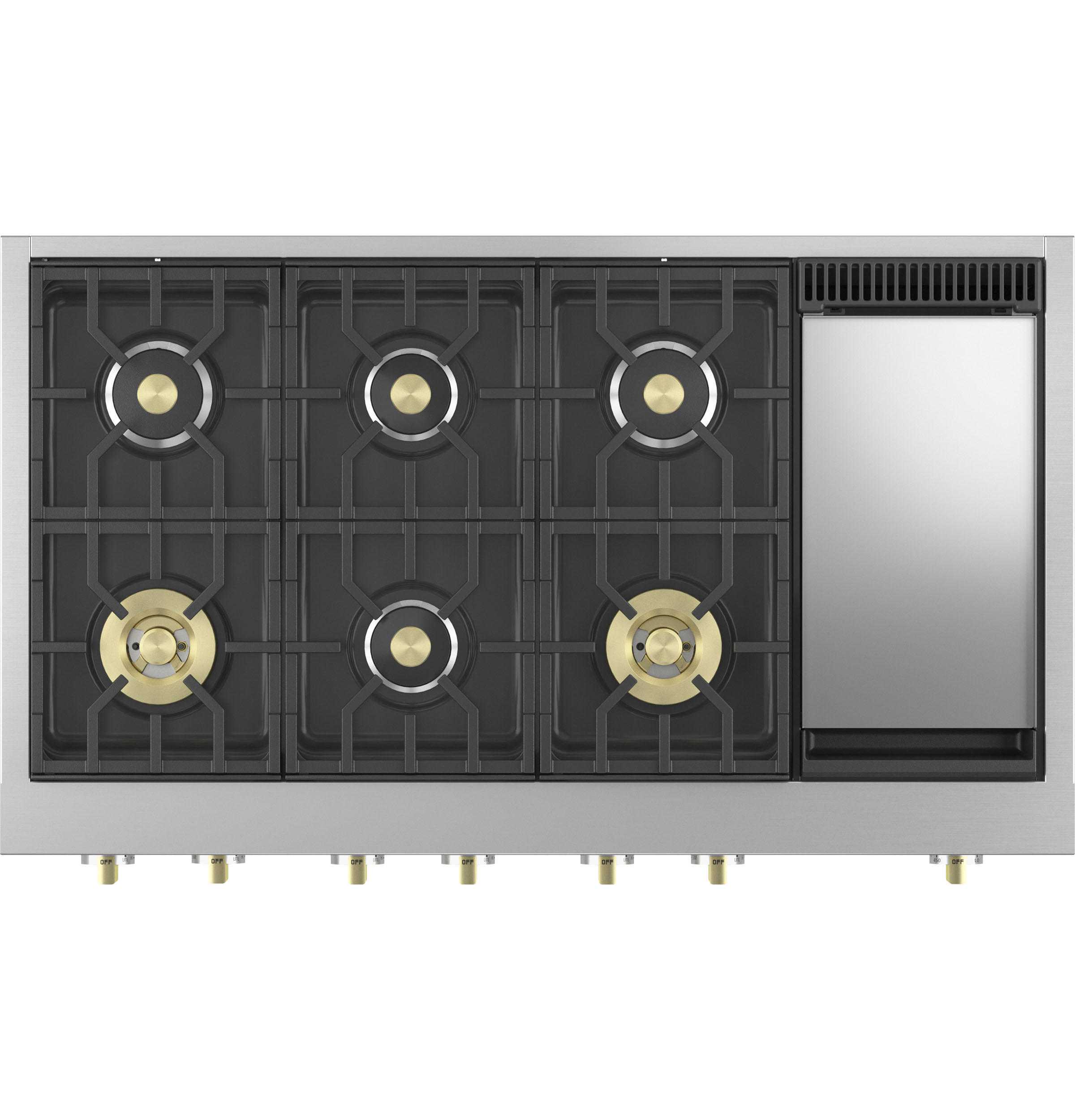

Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

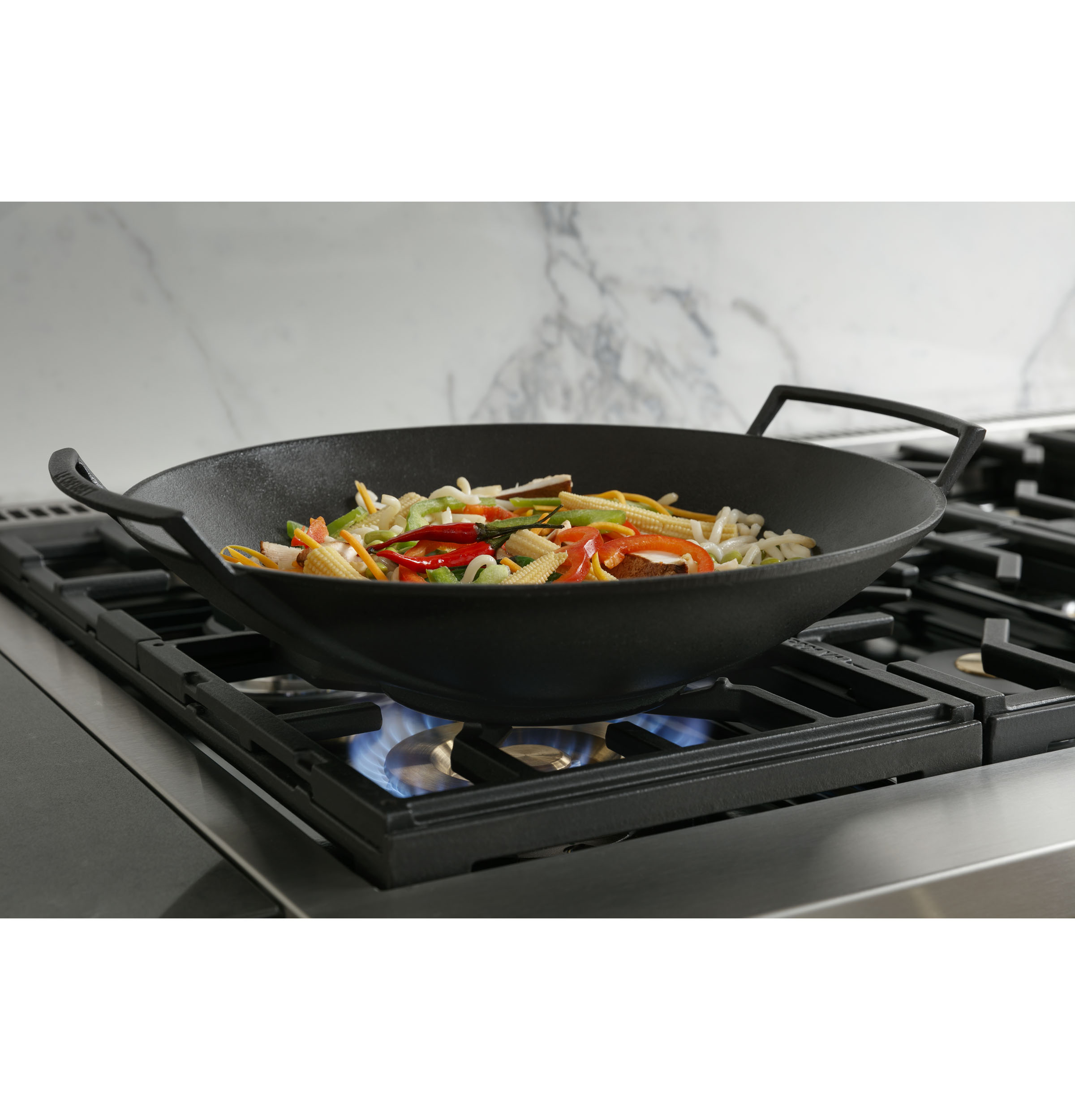

Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

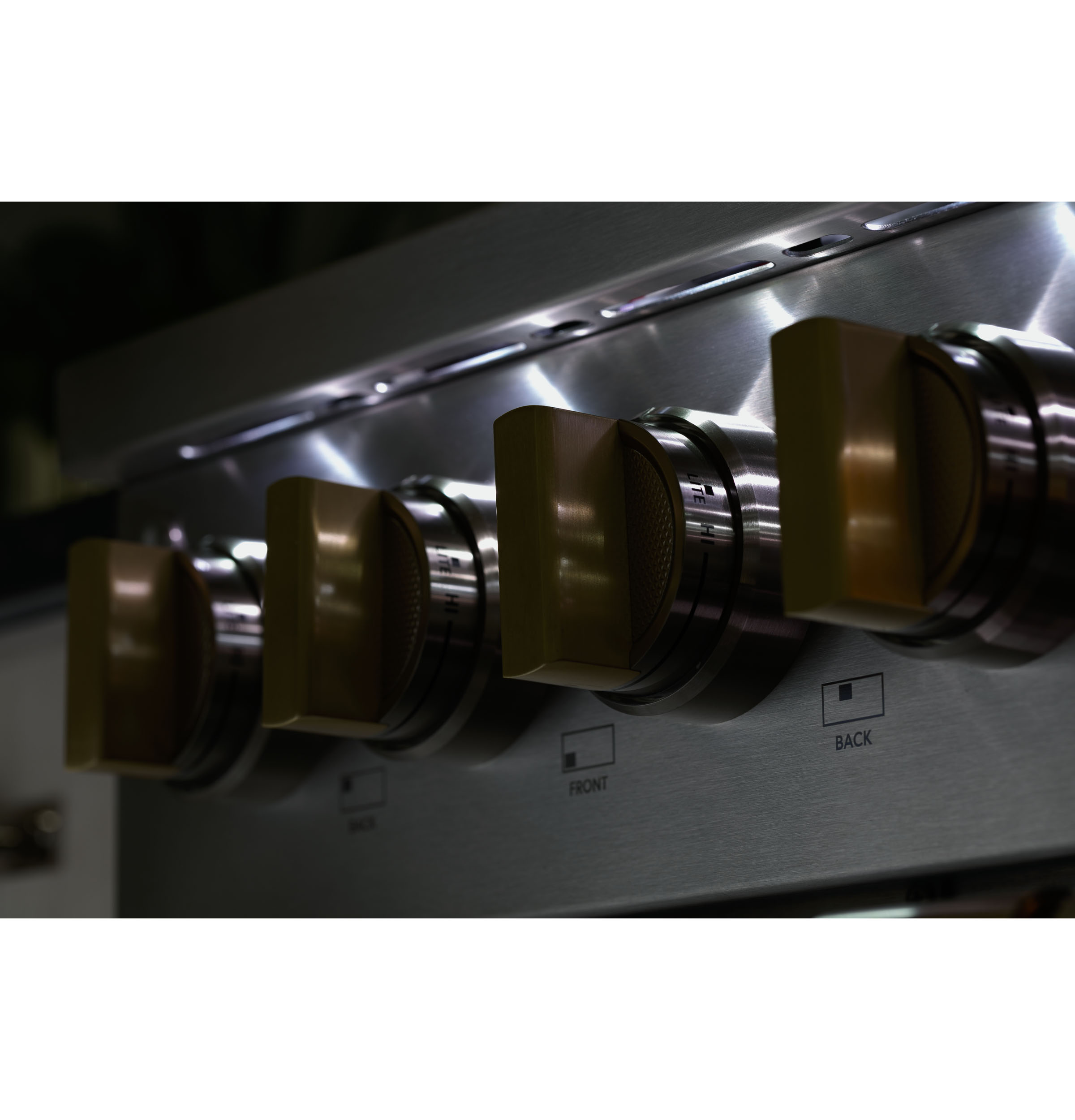

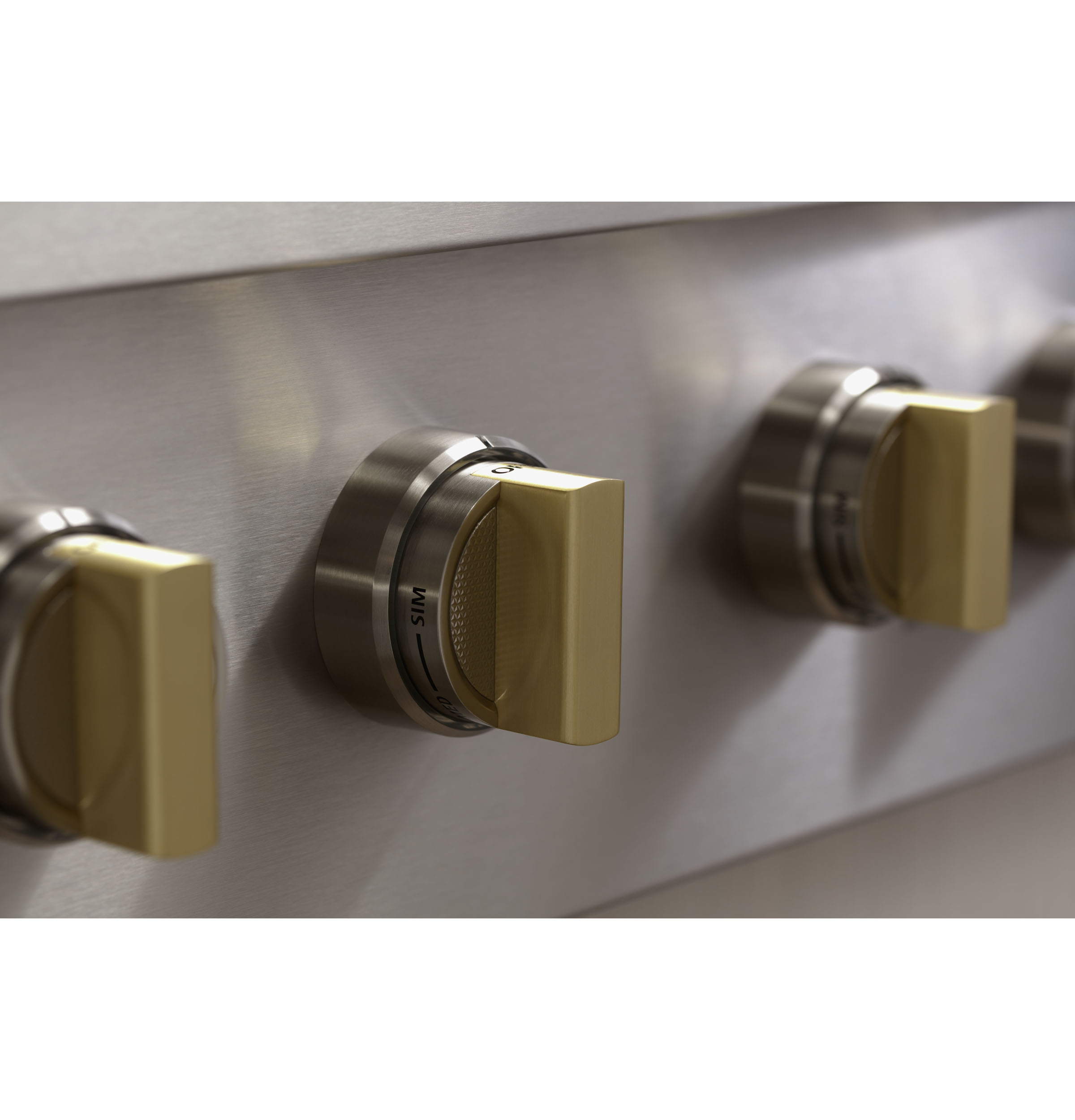

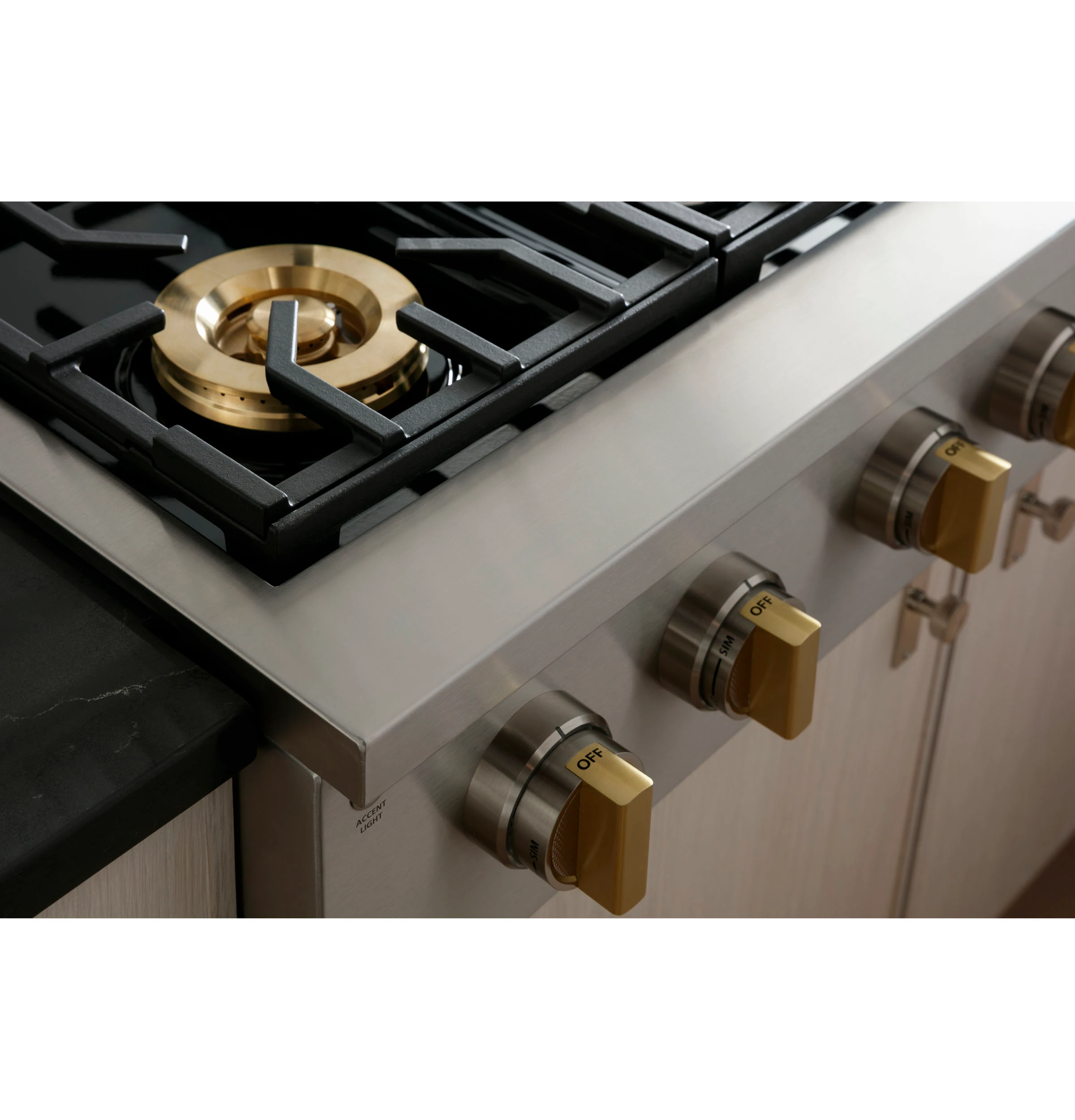

With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

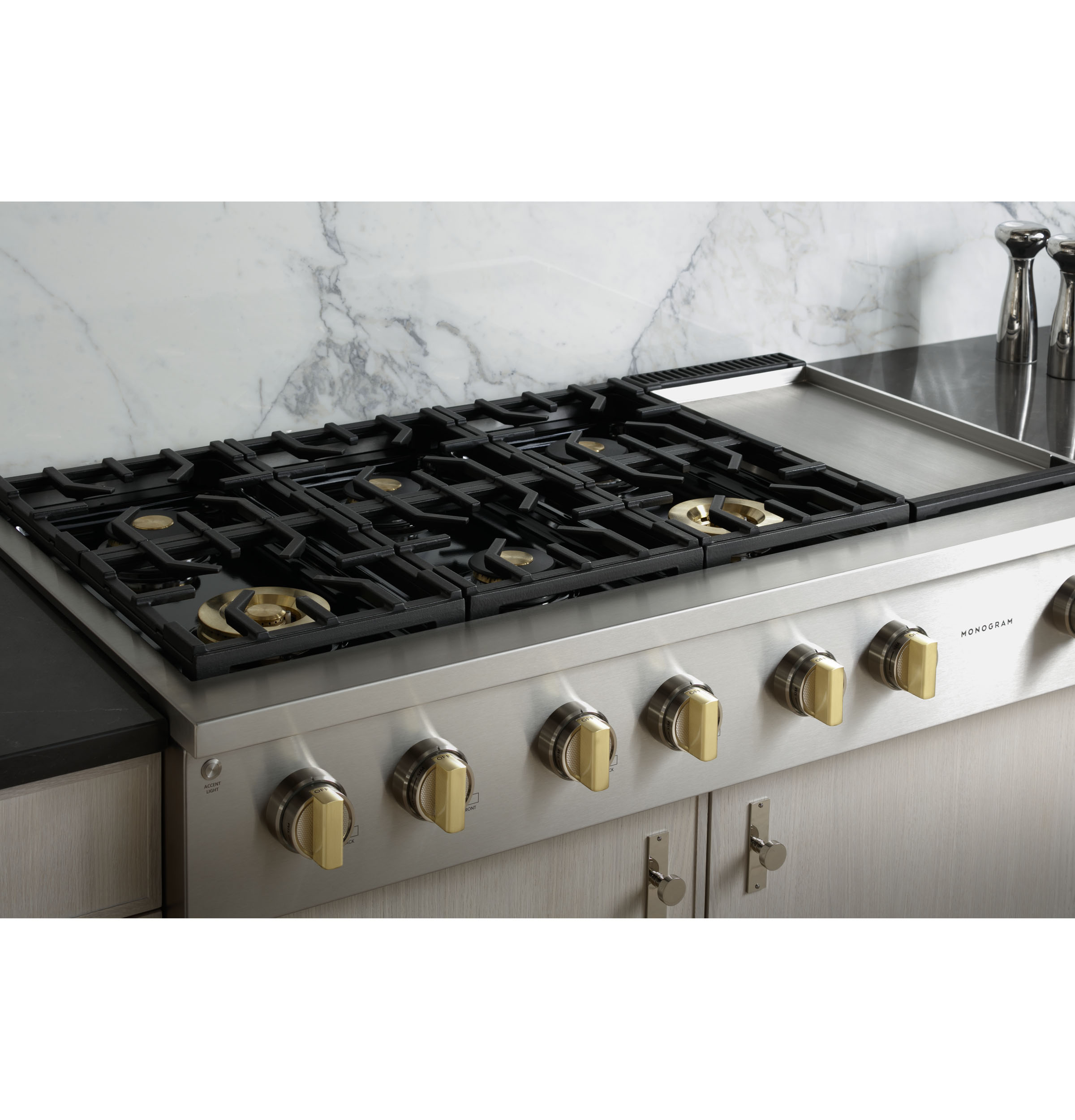

Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

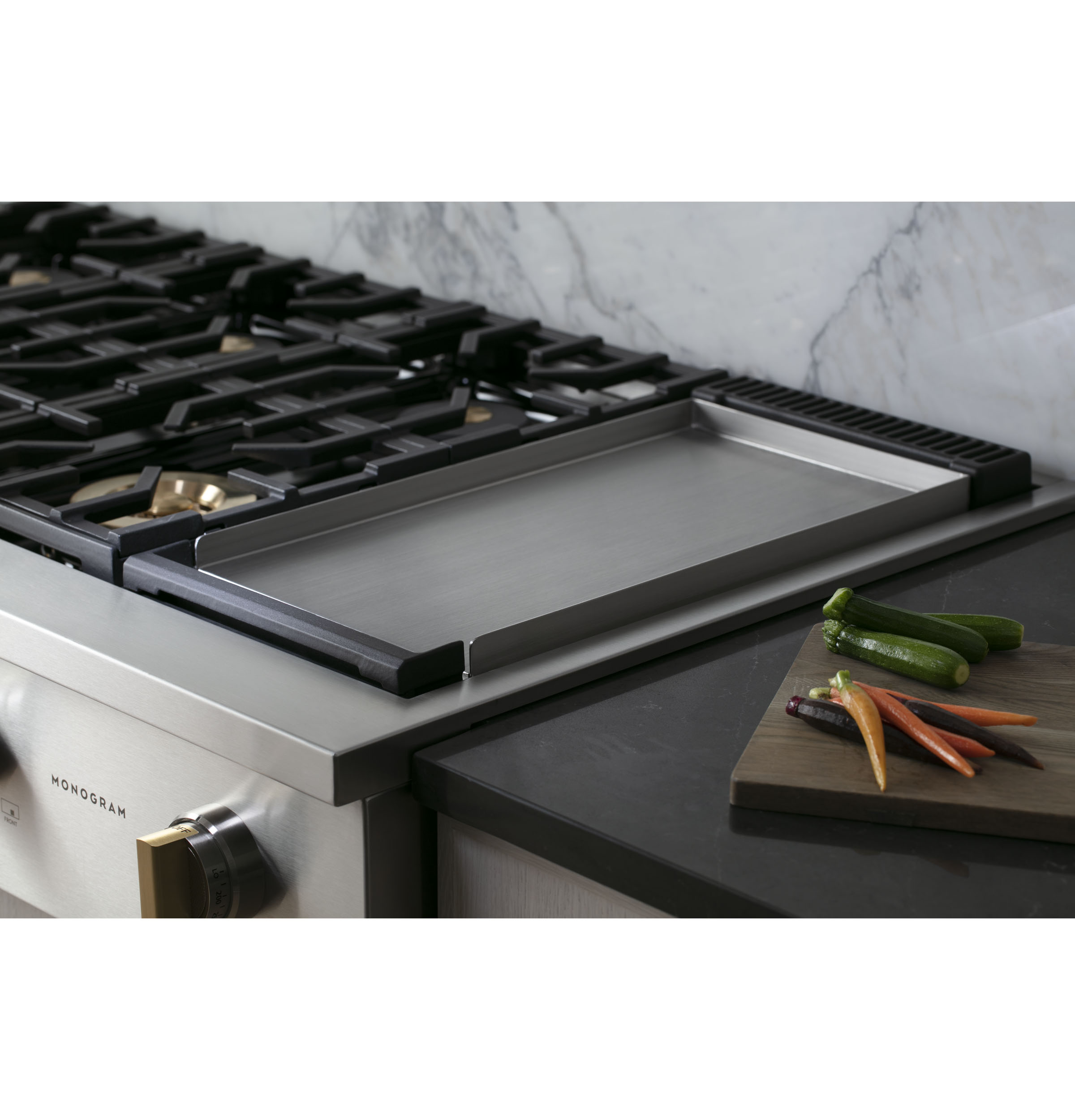

This versatile griddle delivers 18,000 BTUs of cooking power, allowing fast and consistent heating across the entire cooking surface
