| Parts | 2 Year |
| Labor | 2 Year |
| Alternative Gas Type (Nozzle Set Included) | Liquid gas 27,5 mbar (USA) |
| Plug Type | 120V-3 prong |
| Volts | 120 V |
| Amps | 15 A |
| Product Packaging Dimensions (HxWxD) | 20 1/2" x 53 1/4" x 40 1/2" |
| Overall Appliance Dimensions (HxWxD) (in) | 24" x 47 15/16'' x 25 13/16'' |

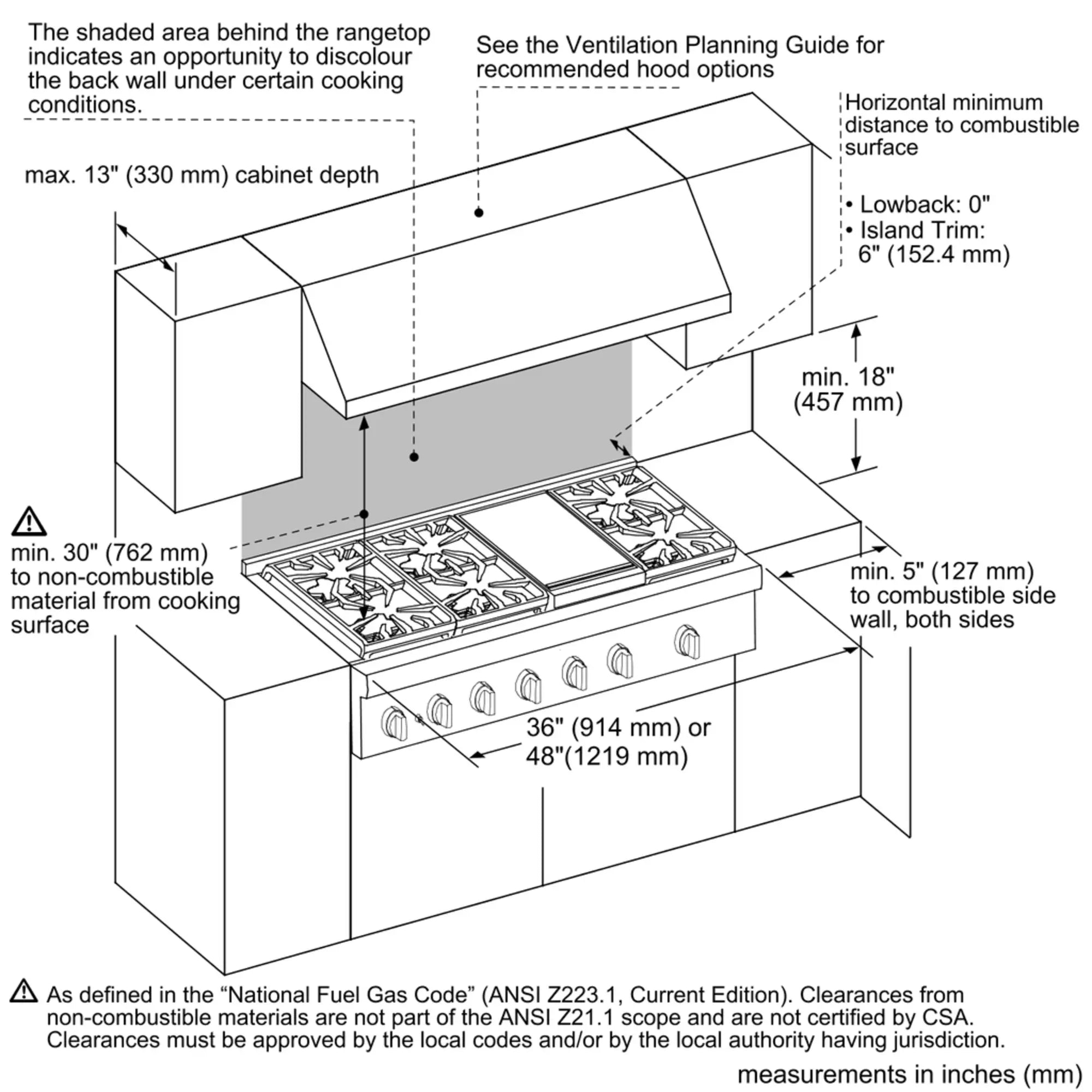

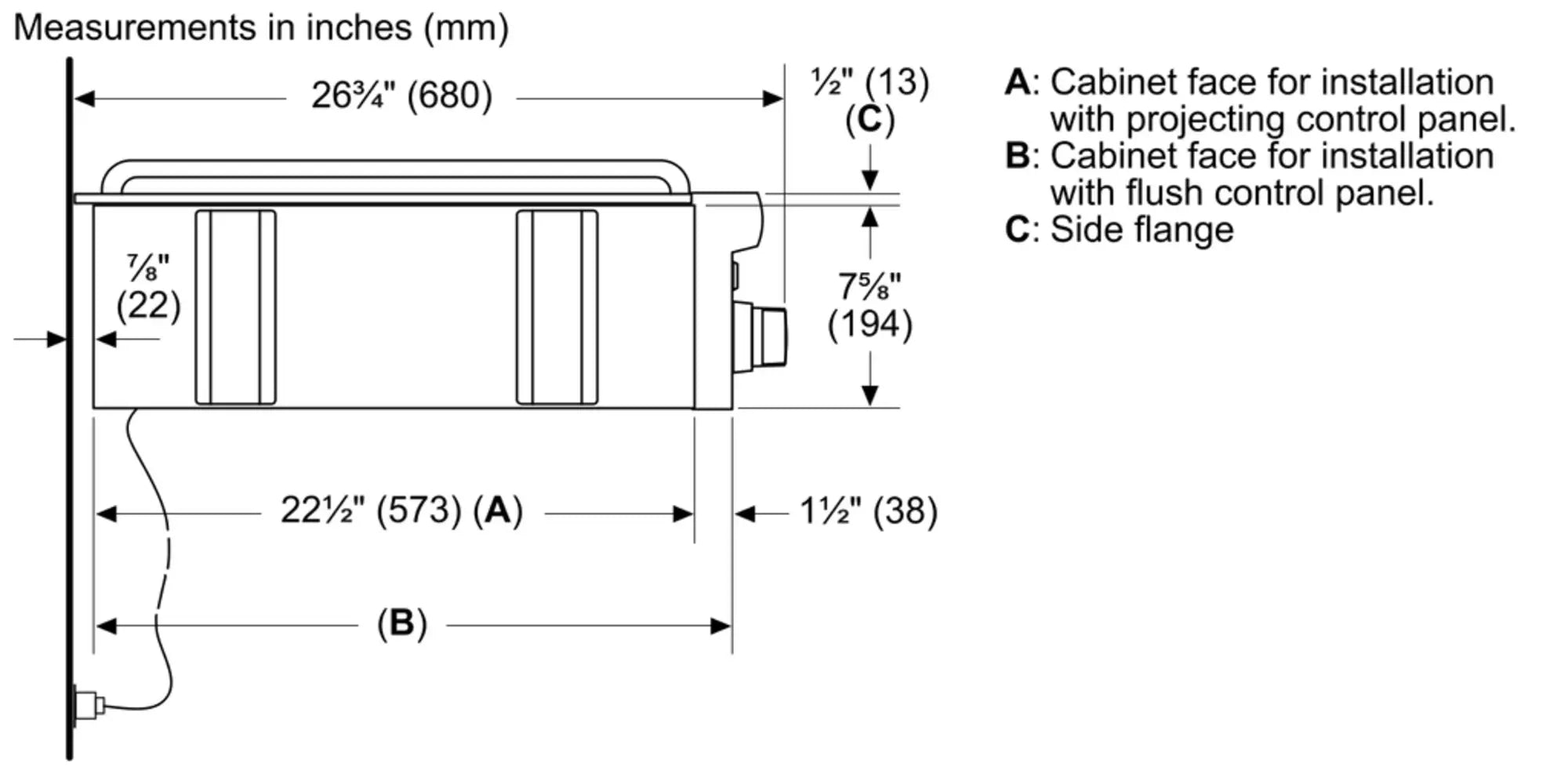

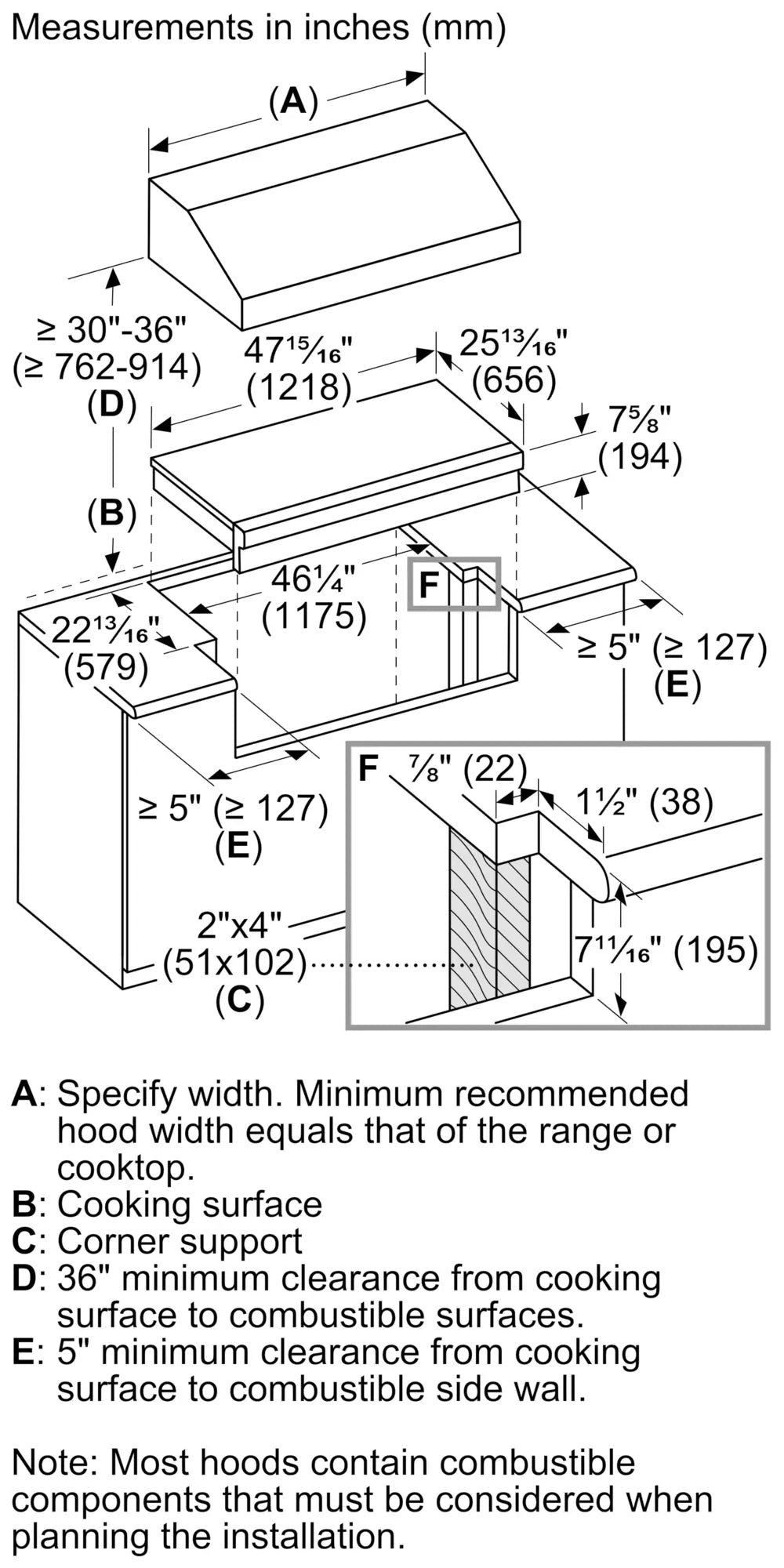

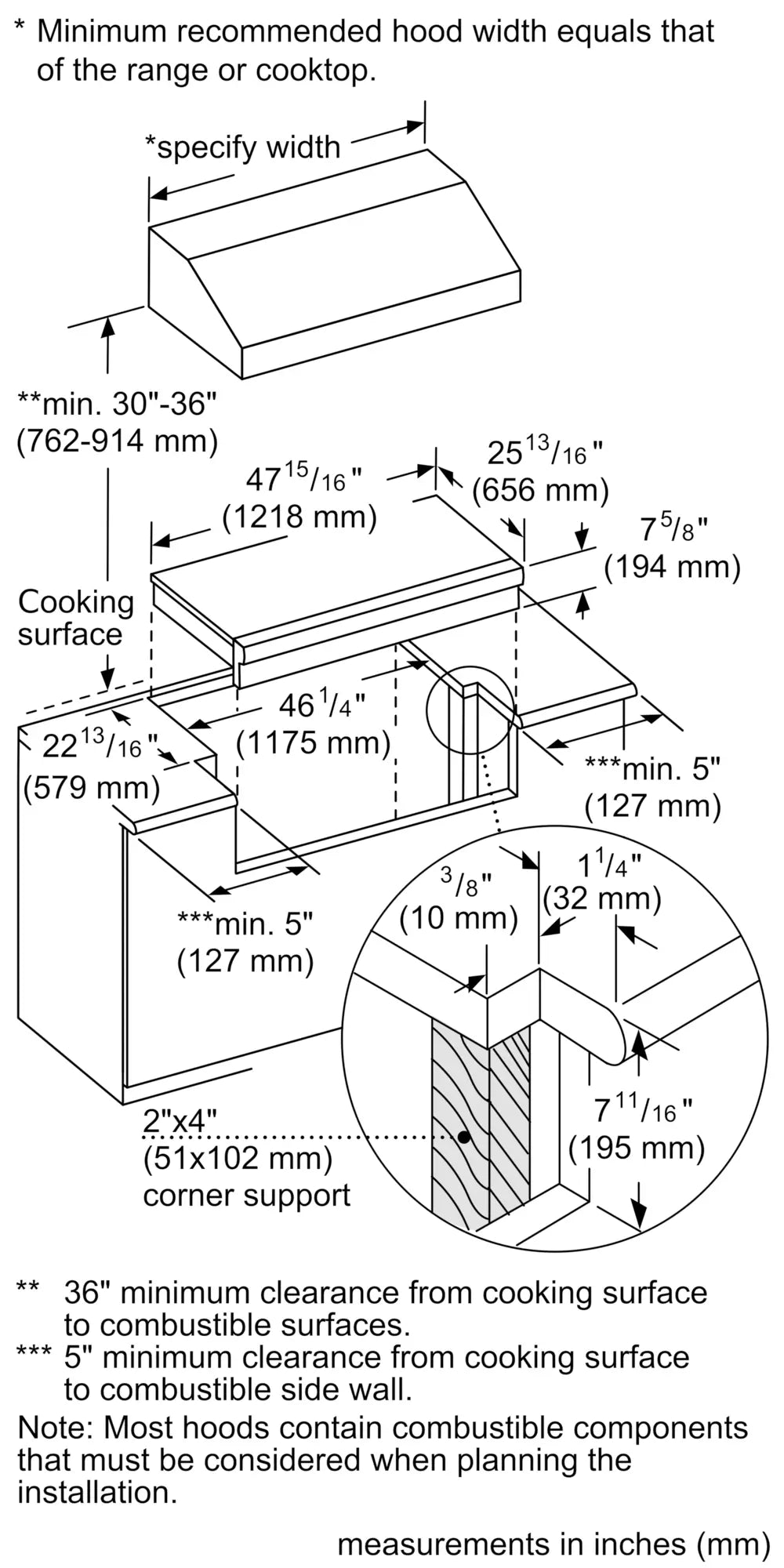

| Required Cutout Size (HxWxD) (in) | 24" x 46 1/4'' x 7 11/16" |
| Gas type preset | Natural gas 15 mbar (USA) |
| Power Cord Length | 96'' |
| Home Connect® WiFi-enabled | no |
| Included Accessories | 3 x cast iron pan support, 1 x griddle, 1 x island trim |
| Total NG BTUs | 108000 Btu |
| Total LP BTUs | 90000 Btu |
| ExtraLow® Burners | yes |
| Surface Materials | Porcelain, Steel |
| Grate Materials | Cast Iron with Rubber Feet |
| Location of Control Panel | Front |
| Number of Gas Burners | 6 |
| Pedestal Star® Burners | no |
| Sealed Burners | yes |
| Special Features | Reignition |
| ExtraLow® Burners | yes |
| Griddle | yes |
| ADA Compliant (When Installed to ADA requirements) | no |
| Width | 47.94 in. |
| Height | 10.56 in. |
| Length | 25.81 in. |
| Type of appliance width | 122 cm |
| Power cord length | 96'' |
| Product Packaging Dimensions (HxWxD) | 20 1/2" x 53 1/4" x 40 1/2" |
| Number of Boxes | 1 |
| Shipping Width | 52.94 in. |
| Shipping Height | 15.56 in. |
| Shipping Length | 30.81 in. |
| Source | Calculation |
| Cubic Feet Measurement | 7.56 ft³ |
| Dimensional Weight | 94.03 lbs. |
| Total of Cubes | 7.56 ft³ |
| Total of Dimensional Weight | 94.03 lbs. |
| Safety | Flame failure safety device for each burner, |

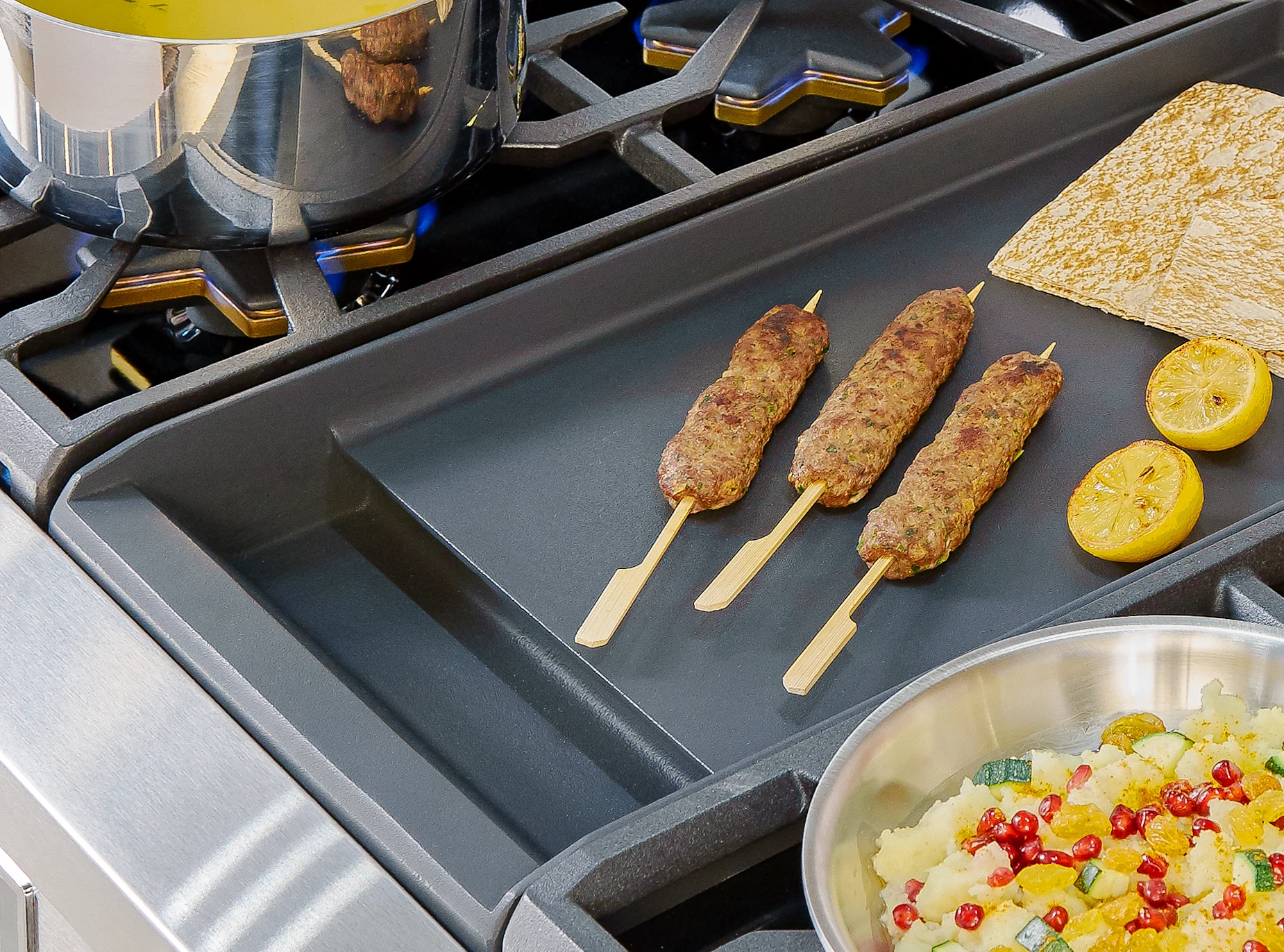

Non-Stick Griddle Deliver consistent even heating across a flat large surface with easy removal for cleaning.

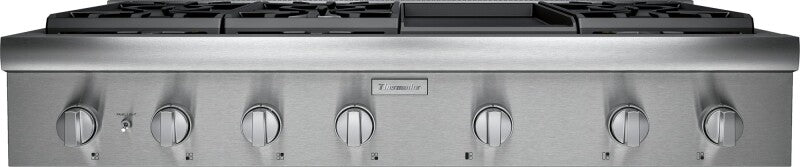

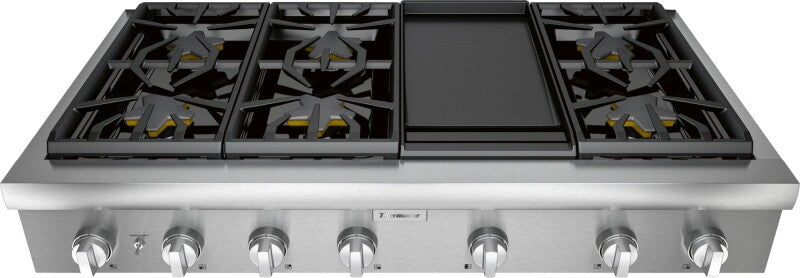

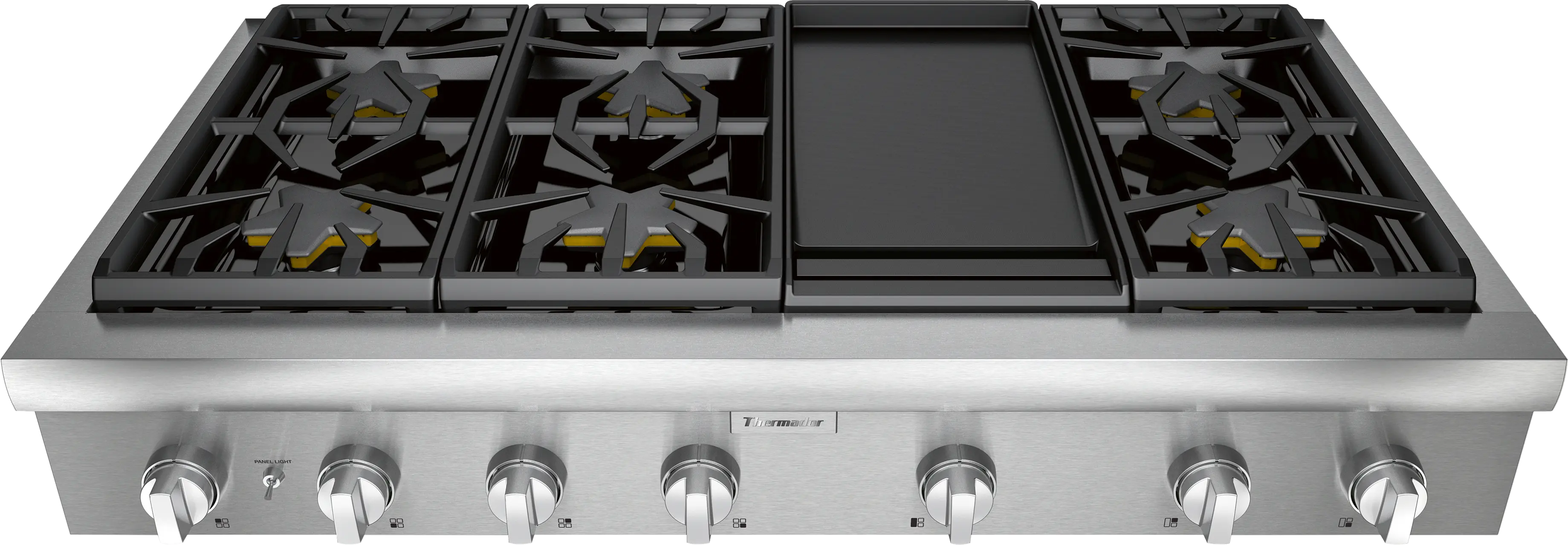

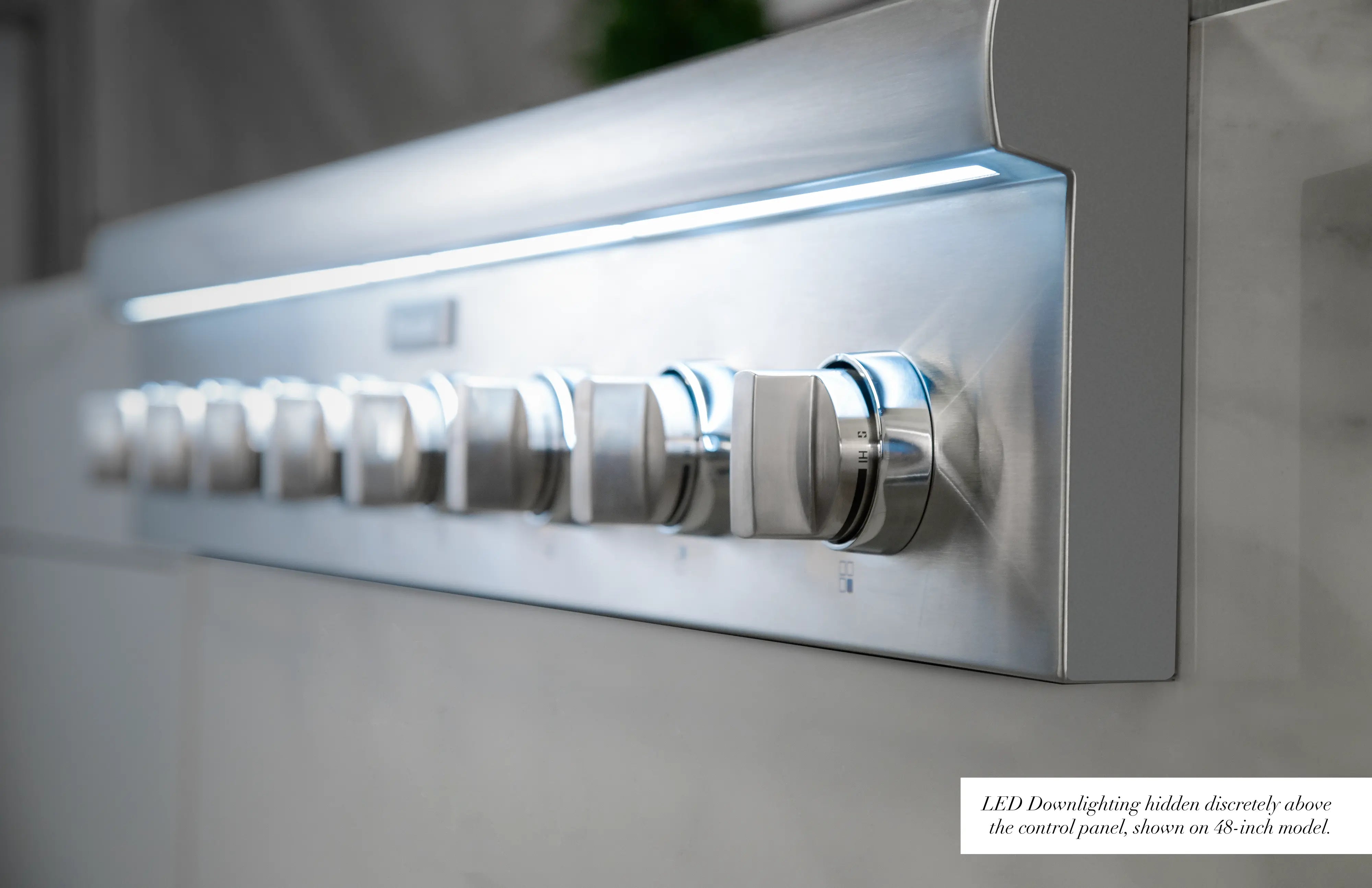

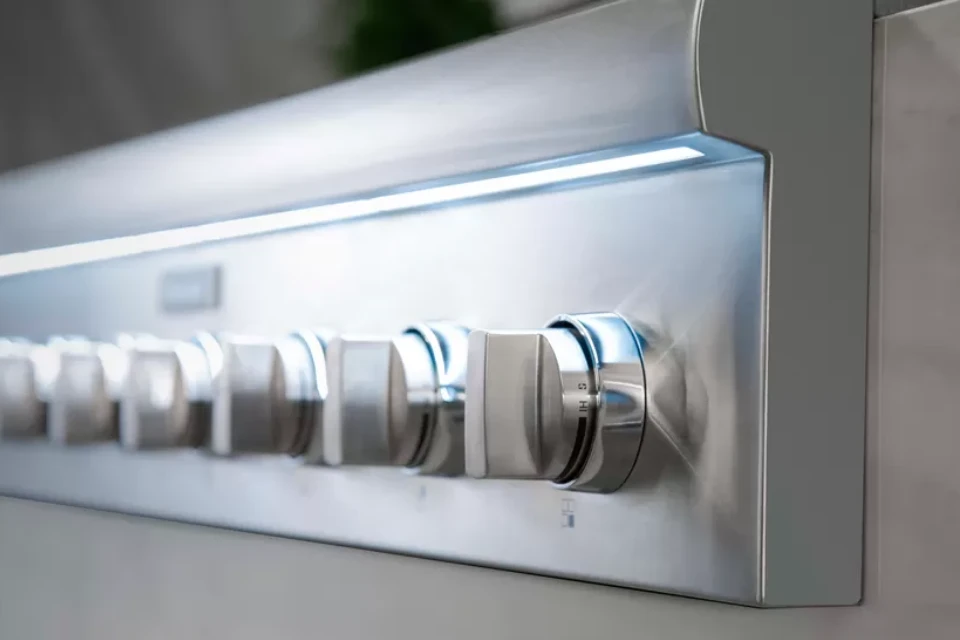

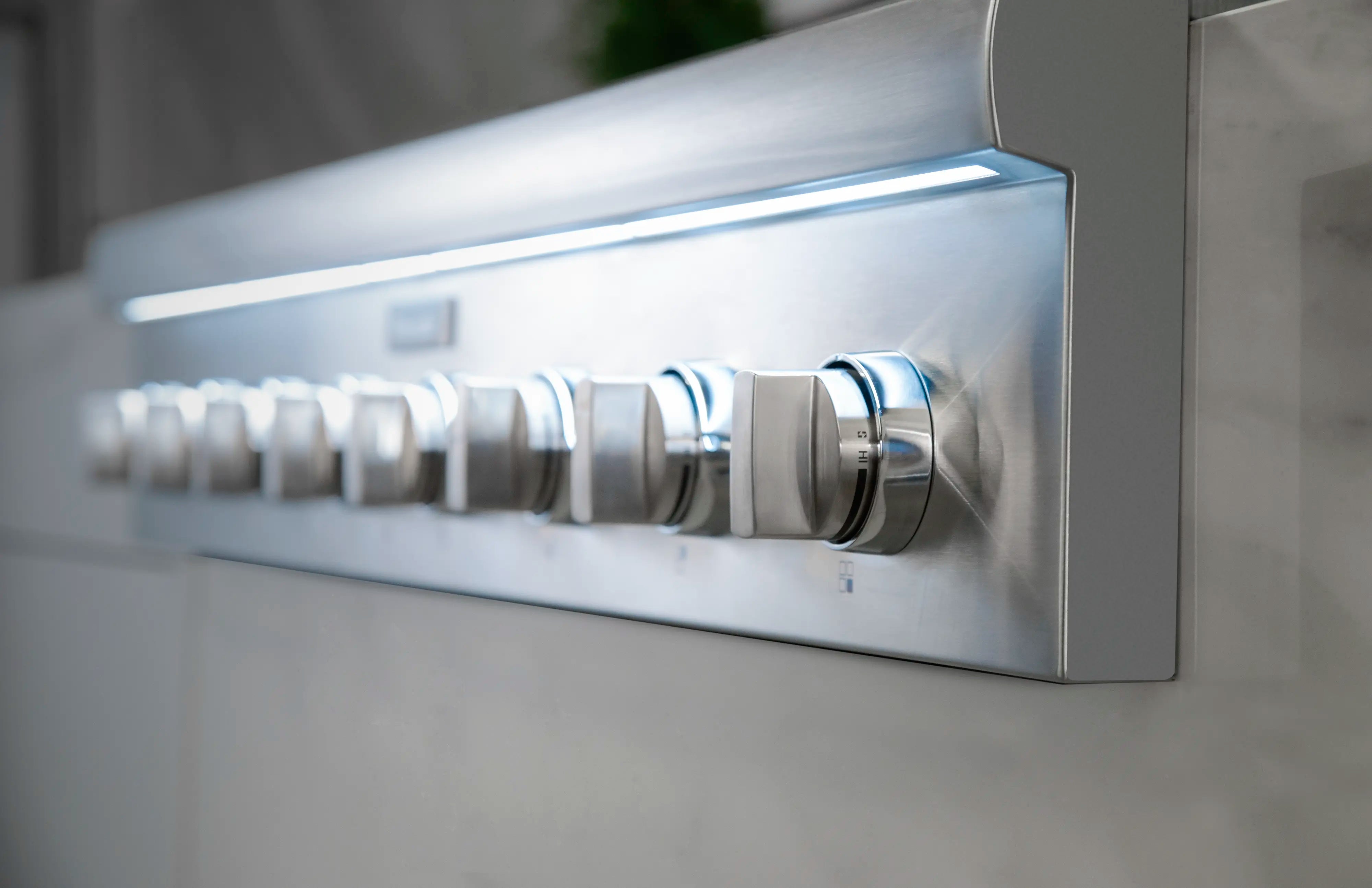

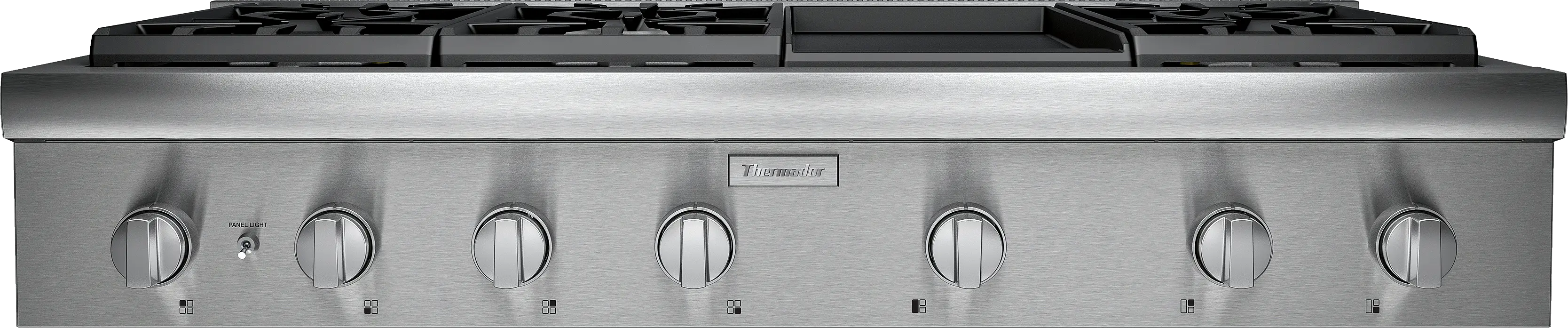

Thoughtfully designed rangetop offers LED lighting to illuminate the control panel. Model show in photo is PCG486WD.
This cooktop is Star-K certified and may be used as Sabbath Compliant appliances, making it possible to use it on the Sabbath or the holidays.

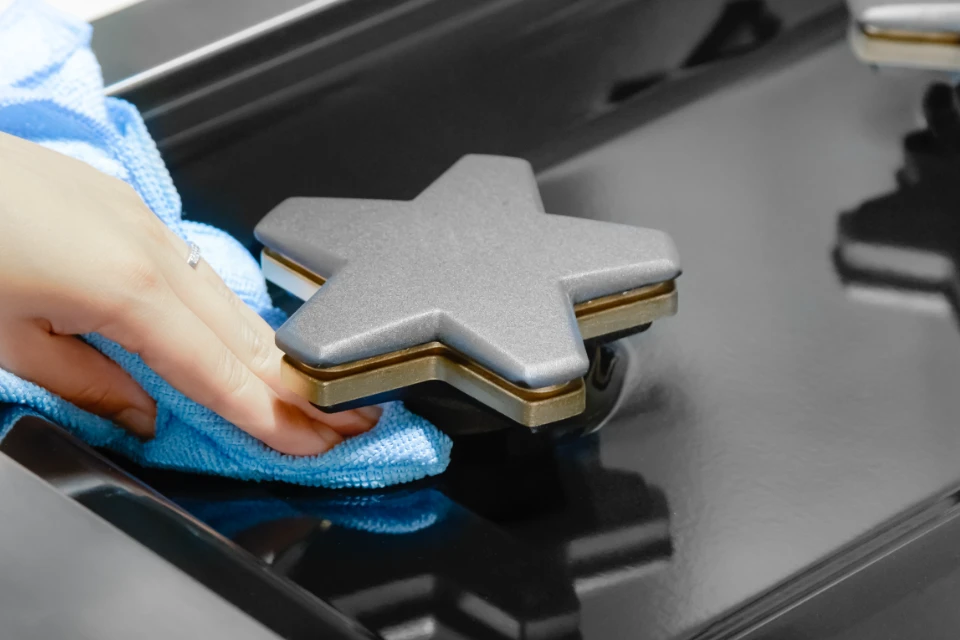

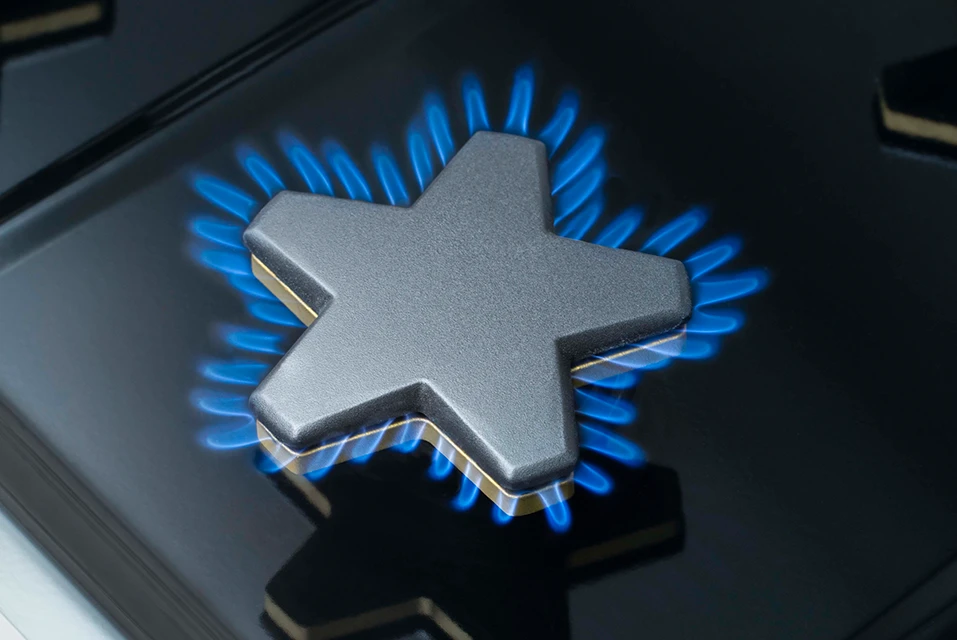

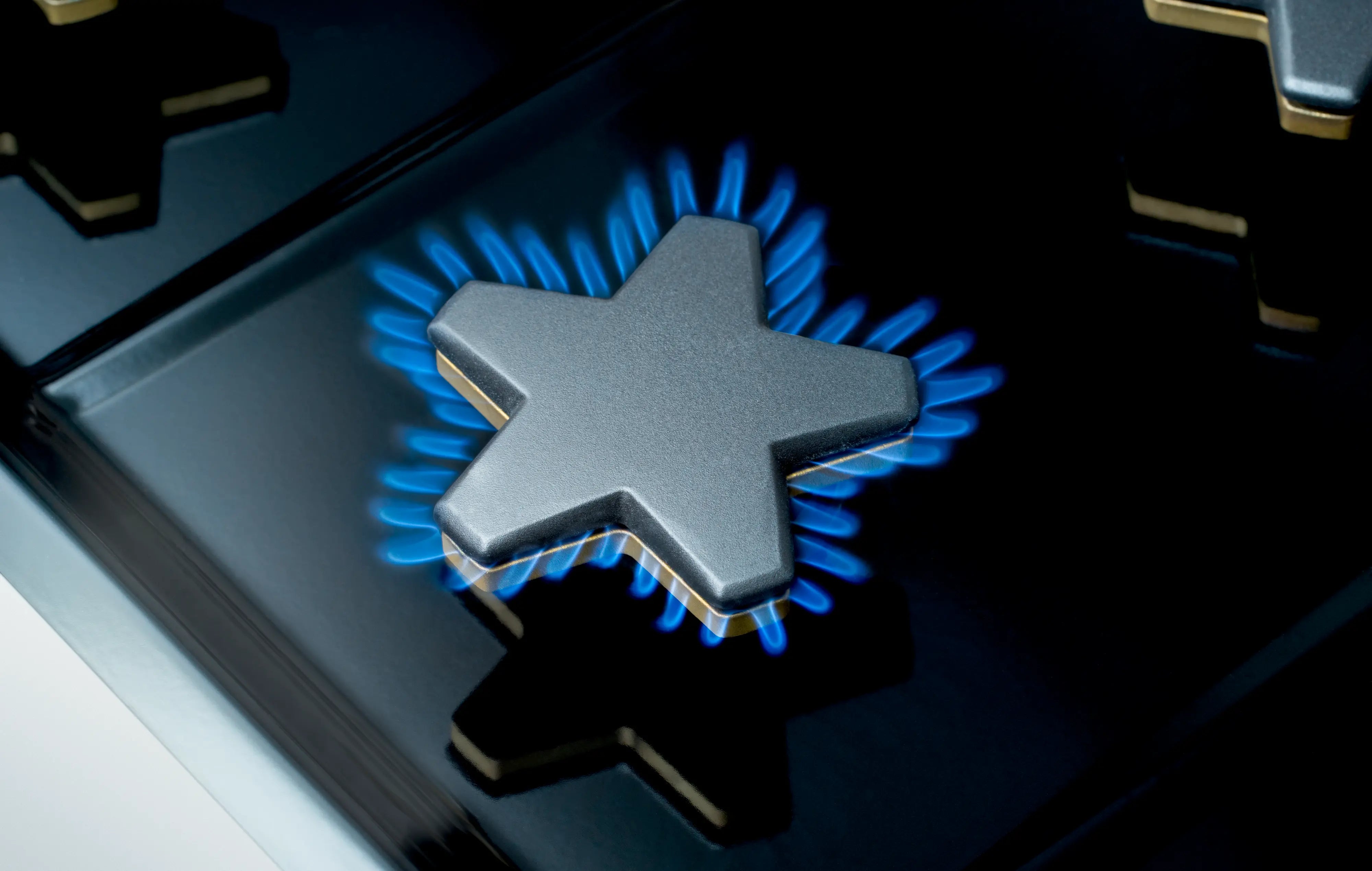

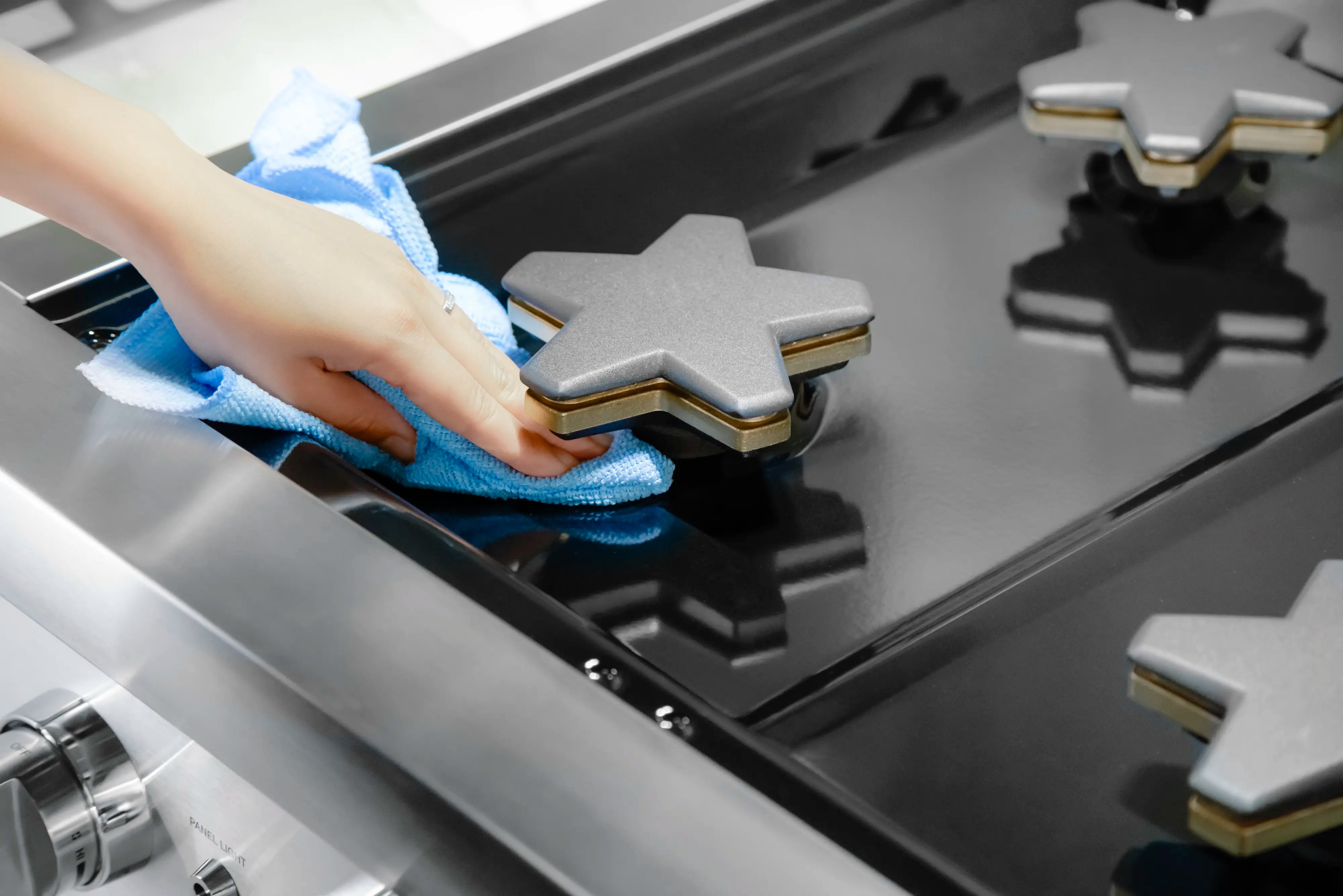

The raised, patented Pedestal Star® Burner and porcelain maintop have been crafted for perfect integration and easy cleanup.
These extra high heat burners across the front are optimal for rapid boiling and high heat searing.
