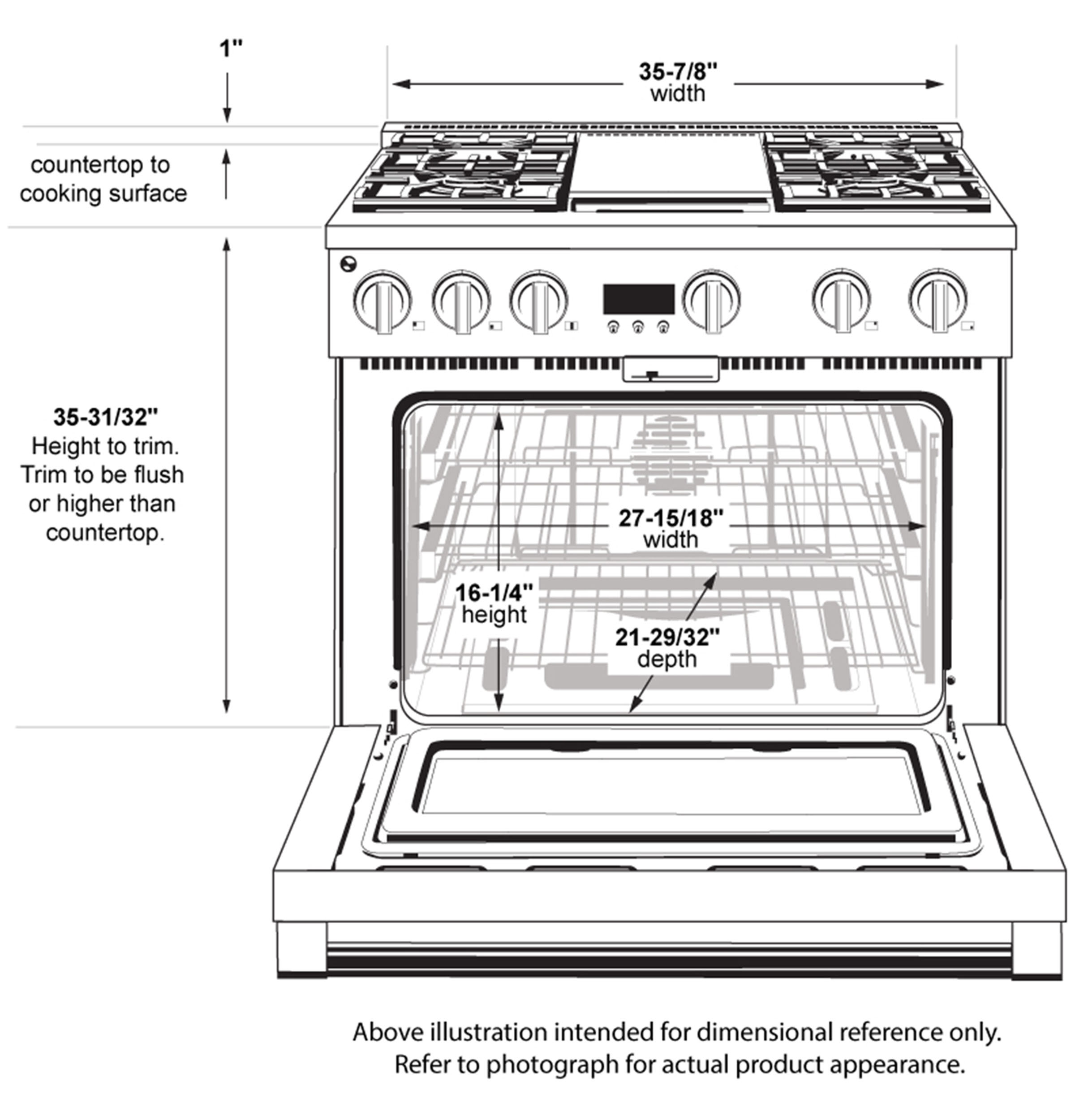

| Overall Width | 35.875 in |
| Overall Height | 35.25 in |
| Overall Depth | 28.5 in |
| Cabinet Width | 36 in |
| Interior Dimensions - Main Oven (WxHxD) (in.) | 28-1/4 x 17-9/10 x 21 3/4 |
| Height w/Legs Extended - Maximum Height | 36.75 in |
| Height to Cooking Surface (in.) | 35.25 - 36.75 |
| Height w/ Legs Retracted - Minimum Height | 35.25 in |
| Approximate Shipping Weight | 462 |
| Net Weight | 417 |
| Cooking System | Reverse Air Convection |
| Ignition System | Electronic w/Auto Reignition |
| Convection Roasting Rack | Yes |
| Broiler Pan and Grid | Yes |
| Oven Cleaning Type | Steam Clean |
| Removable Drip Tray Liners | (1) Beneath Griddle |
| Product Type | Professional Range |
| 140 Deg. Simmer Burner | All Burners - Adjustable |
| Interior Oven Light | 6 Halogen Lamps (Caterer Oven) |
| WiFi Connect | Built-In |
| Extra Low Simmer | All Burners - Adjustable |
| Control Type | Digital Temperature LCD Display with Timer Display |
| Lighting | Customizable LED Bullnose and Knob Accent Lighting |
| Removable Grease Trough | (1) Front of Griddle |
| Cooktop Surface | Porcelain-Enamel |
| Stainless Steel Grill / Griddle Covers | 1 |
| Oven Rack Positions (Single or Upper/Lower) | 5 |
| Fuel Type | All-Gas (Natural Gas) |
| Collection | Designer,Statement |
| Connected Capabilities | Bluetooth,Amazon Alexa,Fresco,IFTTT,Innit,The Google Assistant,Sonos,Google Home |
| Cooking Technology | Convection,All-Gas (Natural gas) |
| Cooktop Burner Grate Features | Continuous Grates,Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates |
| Cooktop Burner Type | 2 Sealed, Dual Flame Stacked,2 Sealed, Dual Ring Brass Accents (Removable) |
| Cooktop Type | 4 Burners,Griddle |
| Griddle | 18,000-BTU,Thermostatically Controlled,Stainless Steel and Aluminum Clad |
| Indicator Lights | Burner On |
| Oven Control Features | Delay Clean Option,Proof Mode,WiFi Connect,Chef Connect,Audible Preheat Signal,Timer,Steam Clean,Probe Mode,Remote Enabled,12-Hour Shut-Off Capability,C° or F° Programmable,Auto Recipe Conver |
| Oven Cooking Modes | Convection Bake Multi-Rack,Convection Roast,Warming,Proof,Precision Cooking Modes |

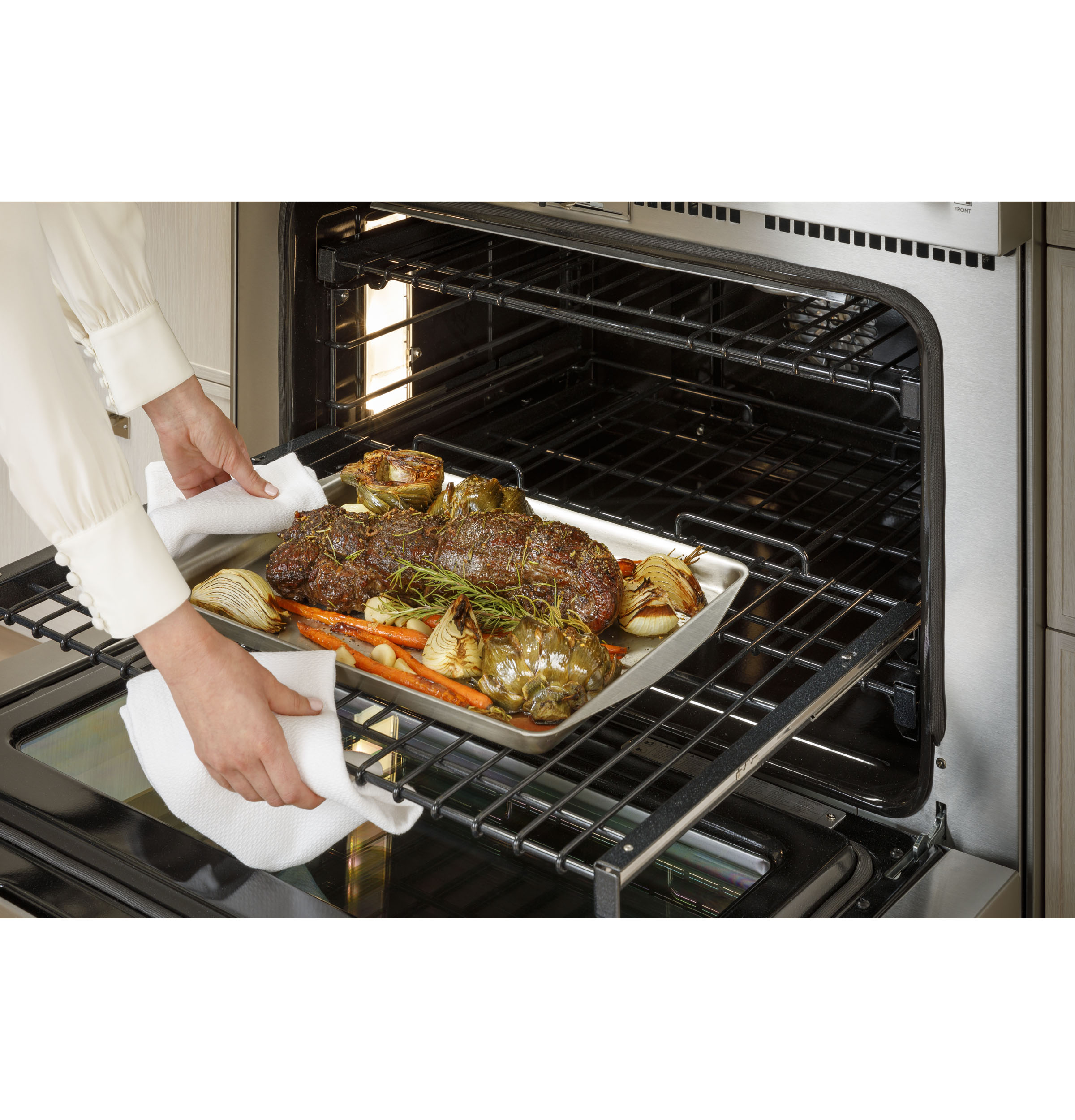

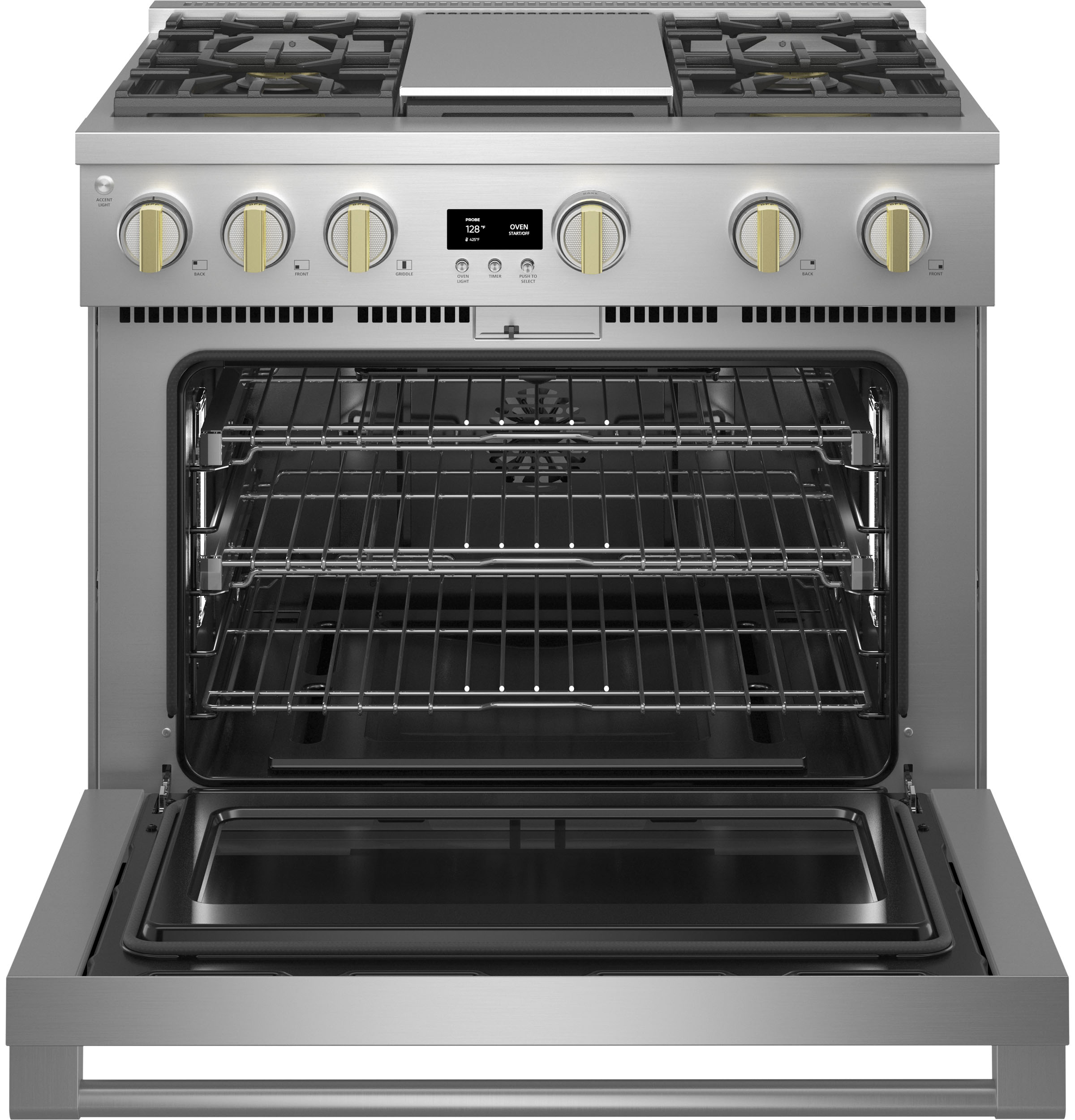

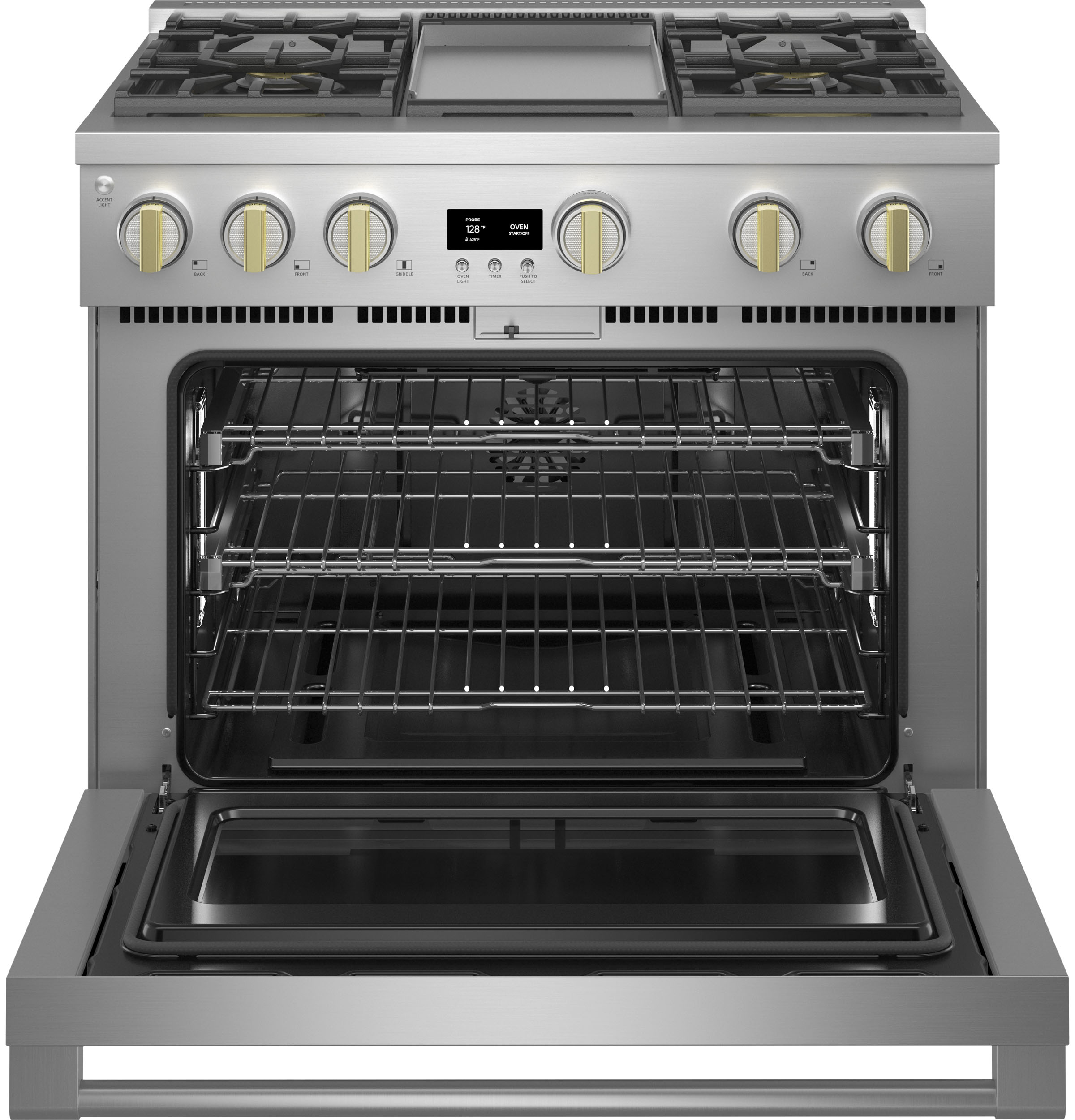

| Oven Rack Features | 3 Oven Racks,2 Full Extension Racks |

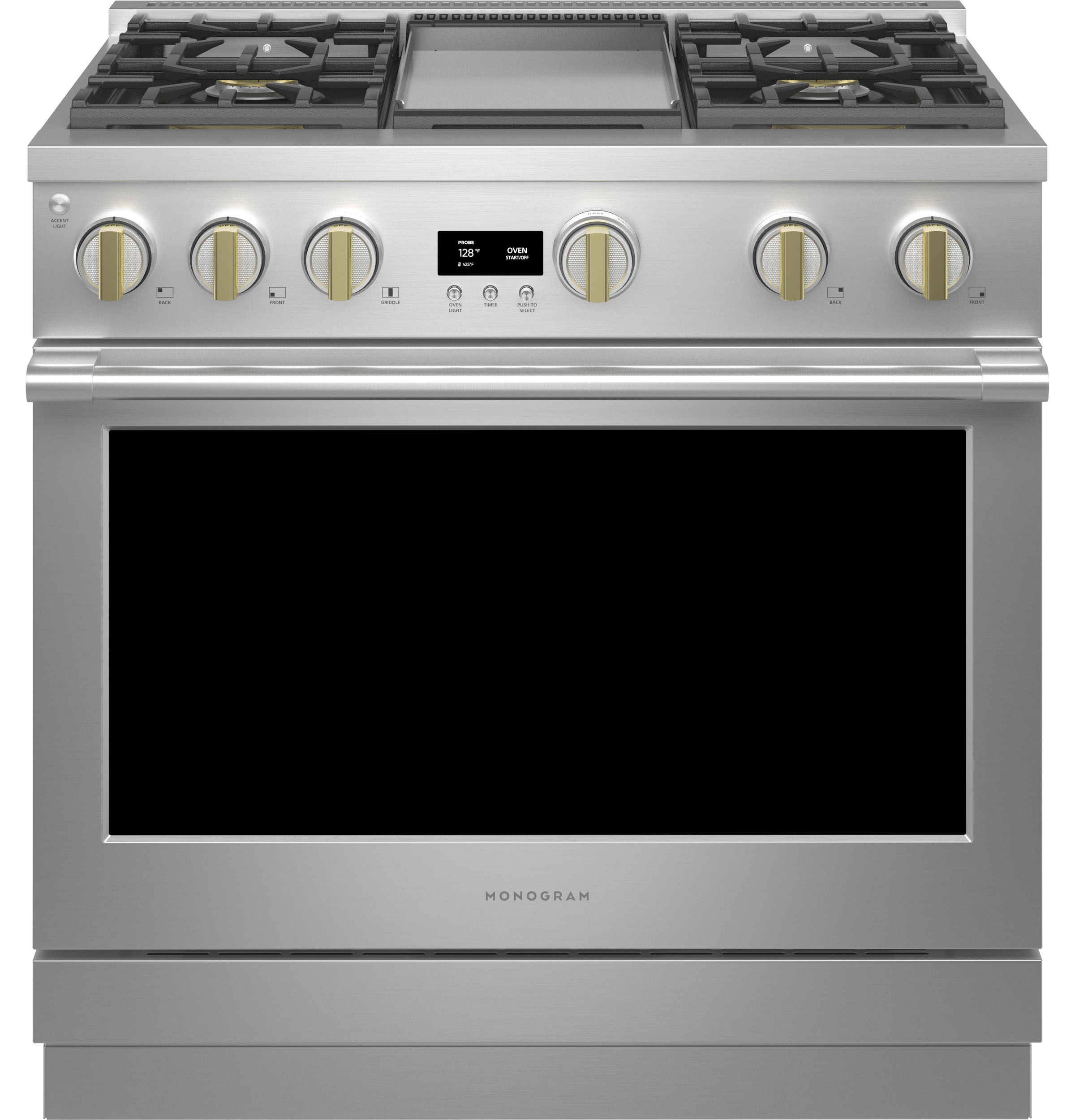

| Short Description | 36 Pro Range - All Gas with 4 Burners and Griddle |
| Air Fry Basket | Optional- JXAFTRAY1VSS |
| Optional Grill Accessory (Cast Iron) | UXPRRGG |
| Multi Ring Burner Caps (Brass) | Included |
| LP Conversion Kit | Included |
| Multi Ring Burner Caps (Black) | Included |
| 30/36 Monogram Knob Kit | ZXPR36KKTSS (SS, qty. 9) |
| Optional Backguard | 12 stainless steel backsplash (UX12B36PSS),30-36 adjustable stainless steel backsplash with warming shelf (UXADJB36PSS) |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (2) 23.0; (2) 15.0 |
| Electrical Requirements | 120VAC;15A |
| Top Burner BTU Rating - LP (000's BTU's) | (2) 21.0; (2) 12.0 |
| Broiler Wattage | 1050W |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 23.0 Bake / 18.0 Broil |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 21.5 Bake / 18.0 Broil |
| Griddle BTU Rating (000's/BTU) - LP Gas | 16.0 |
| Griddle BTU Rating (000's/BTU) - Natural Gas | 18.0 |
| Hertz | 60 |
| Toe kick | Included |
| Installation | Flush Installation Capable |
| Oven Door Features | Soft Close Door |
| Design Style | Statement Collection |
| Color Appearance | Stainless Steel |
| Control Knobs | Diecast Metallic (Included),Stainless Steel with Brass Accents |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance,Limited 5-year gas surface burners,Limited lifetime of oven racks |
| Interior Dimensions - Main Oven (WxHxD) (in.) | 28-1/4 x 17-9/10 x 21 3/4 |
| Width | 35.88 in. |
| Height | 35.25 in. |
| Length | 28.5 in. |
| Weight | 417 lbs. |
| Number of Boxes | 1 |
| Shipping Width | 40.88 in. |
| Shipping Height | 40.25 in. |
| Shipping Length | 33.5 in. |
| Shipping Weight | 457 lbs. |
| Total of Shipping Weight | 457 lbs. |
| Source | Calculation |
| Cubic Feet Measurement | 20.86 ft³ |
| Dimensional Weight | 259.29 lbs. |
| Total of Cubes | 20.86 ft³ |
| Total of Dimensional Weight | 259.29 lbs. |
| Total Capacity (cubic feet) | 6.20 cu ft |

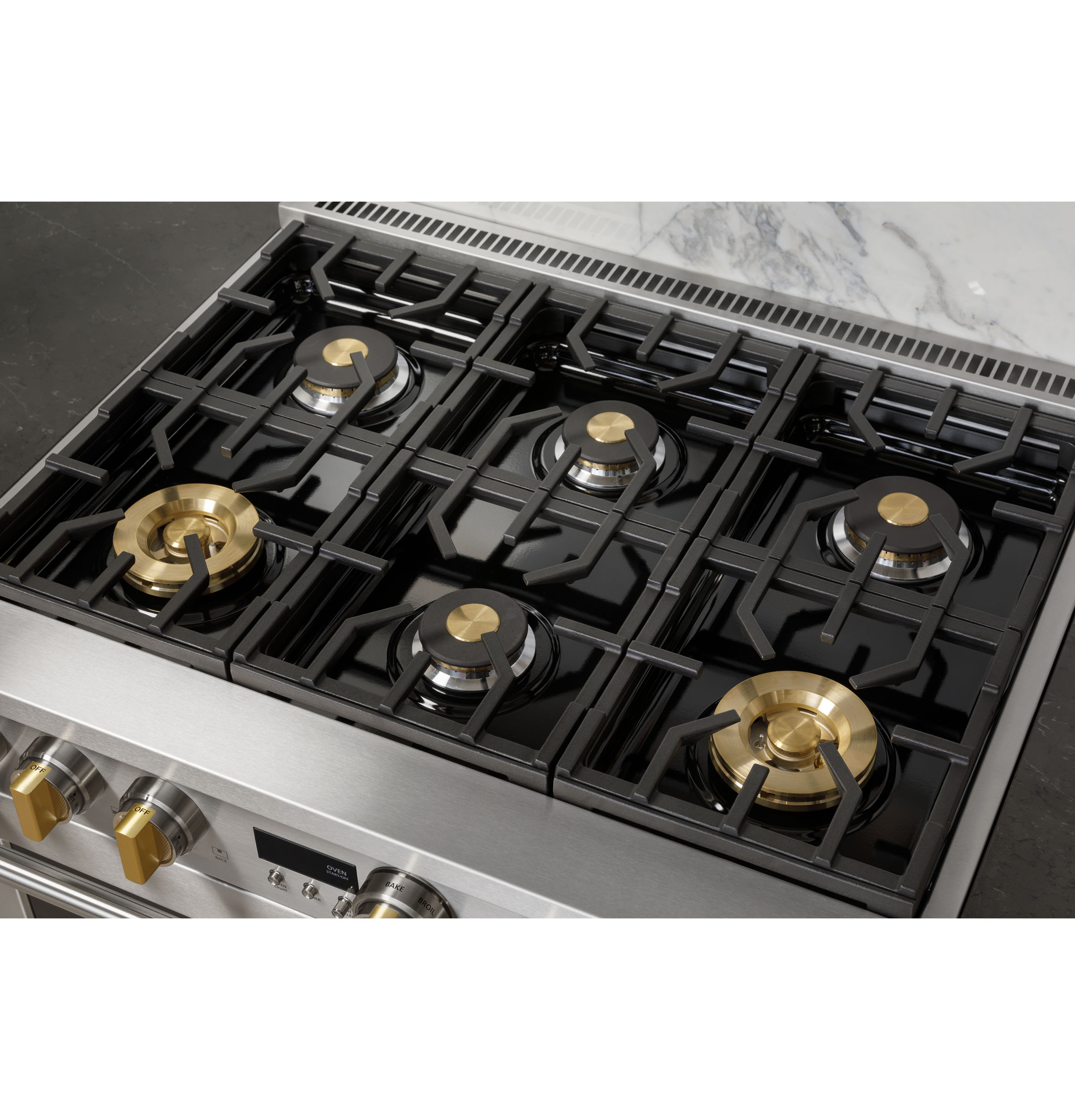

Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

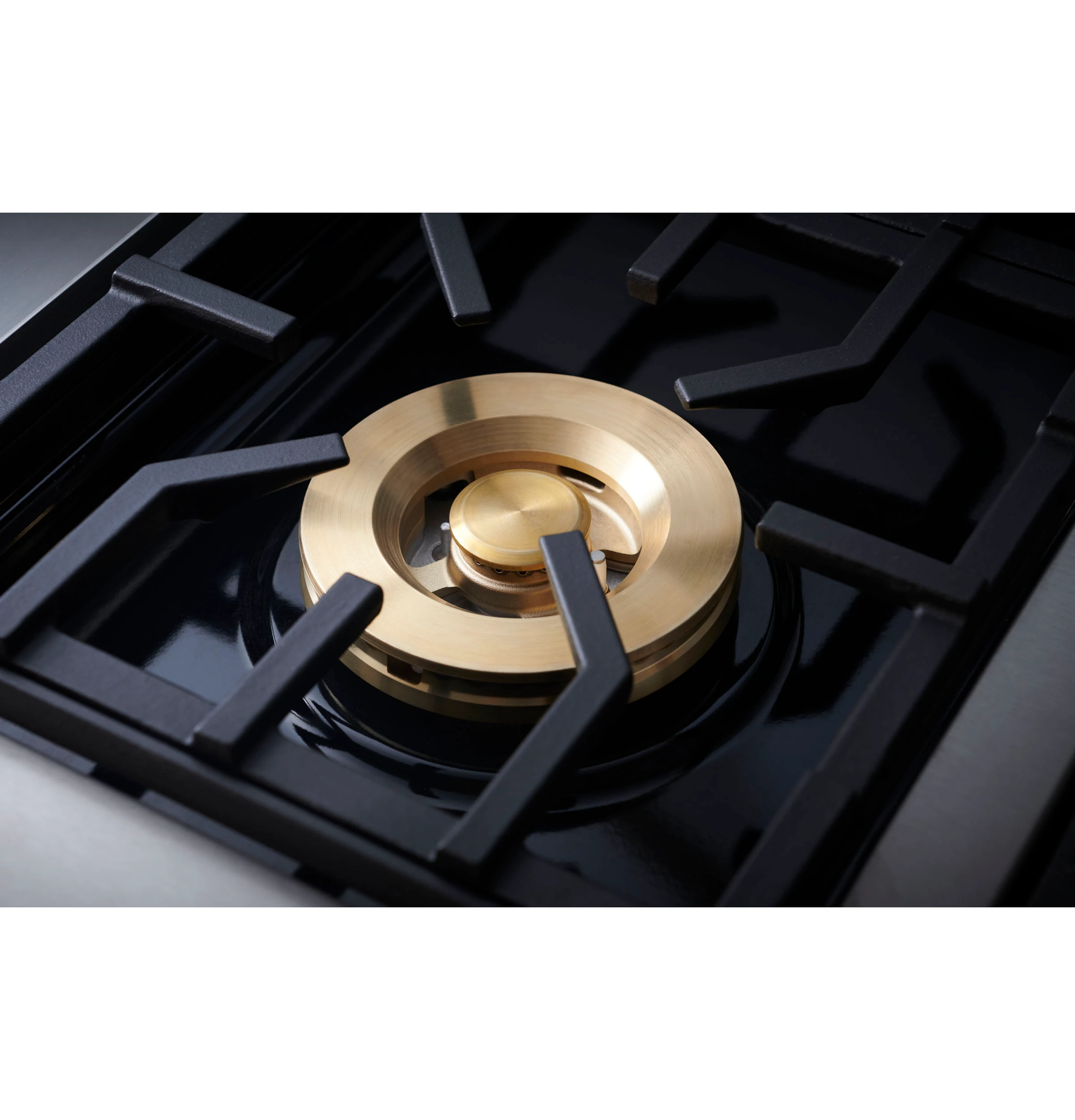

Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on
For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance
Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

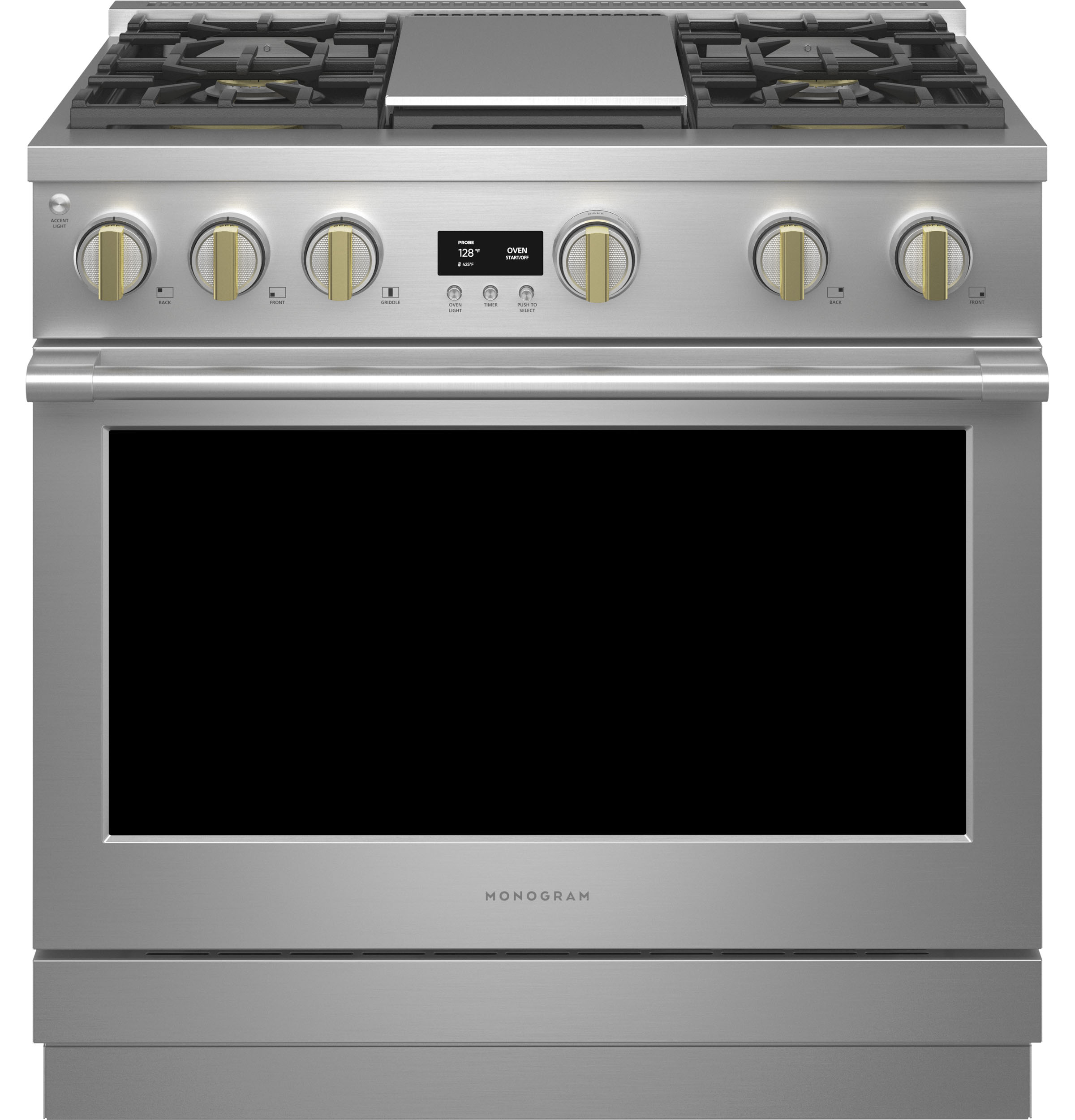

Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

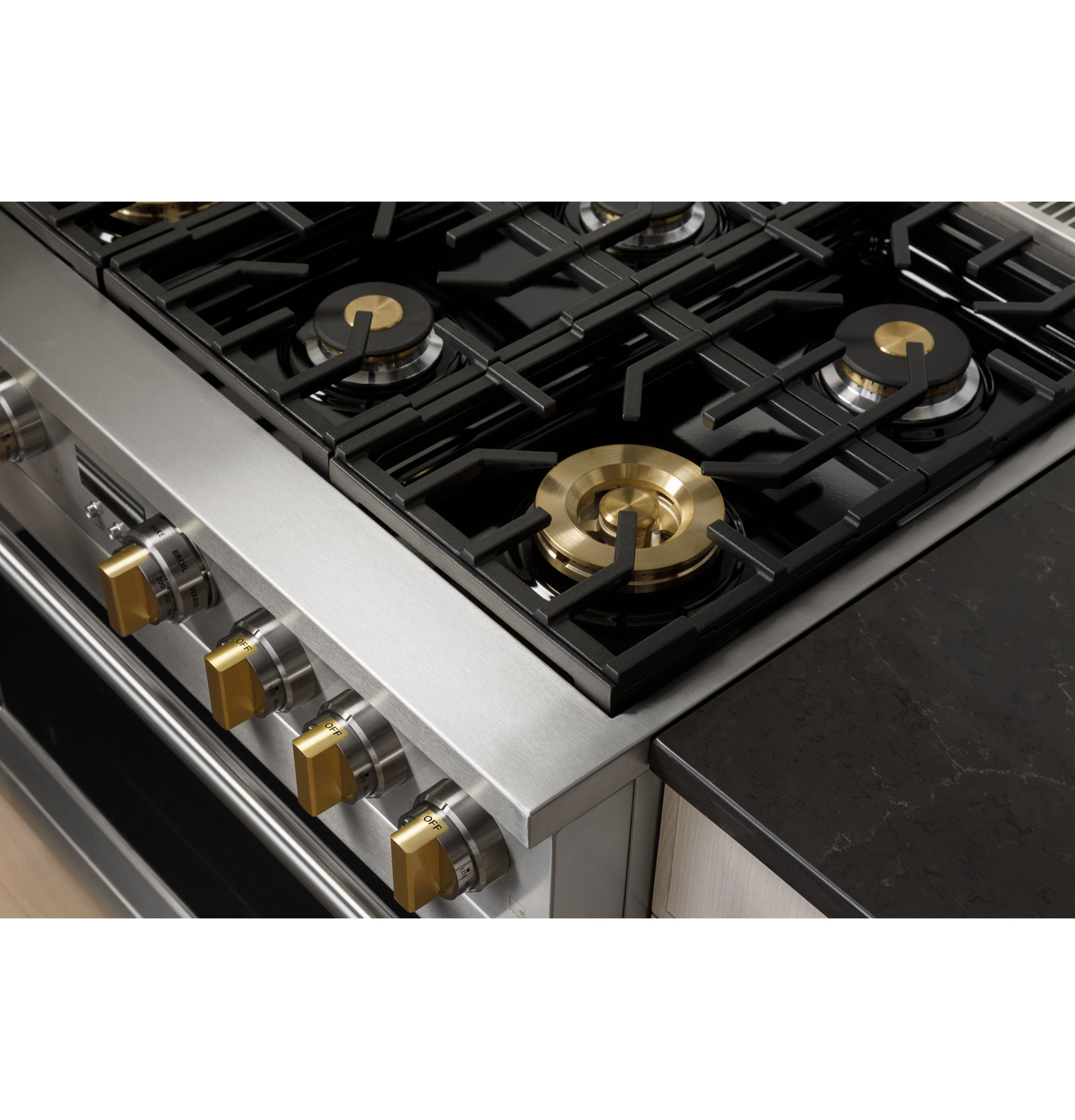

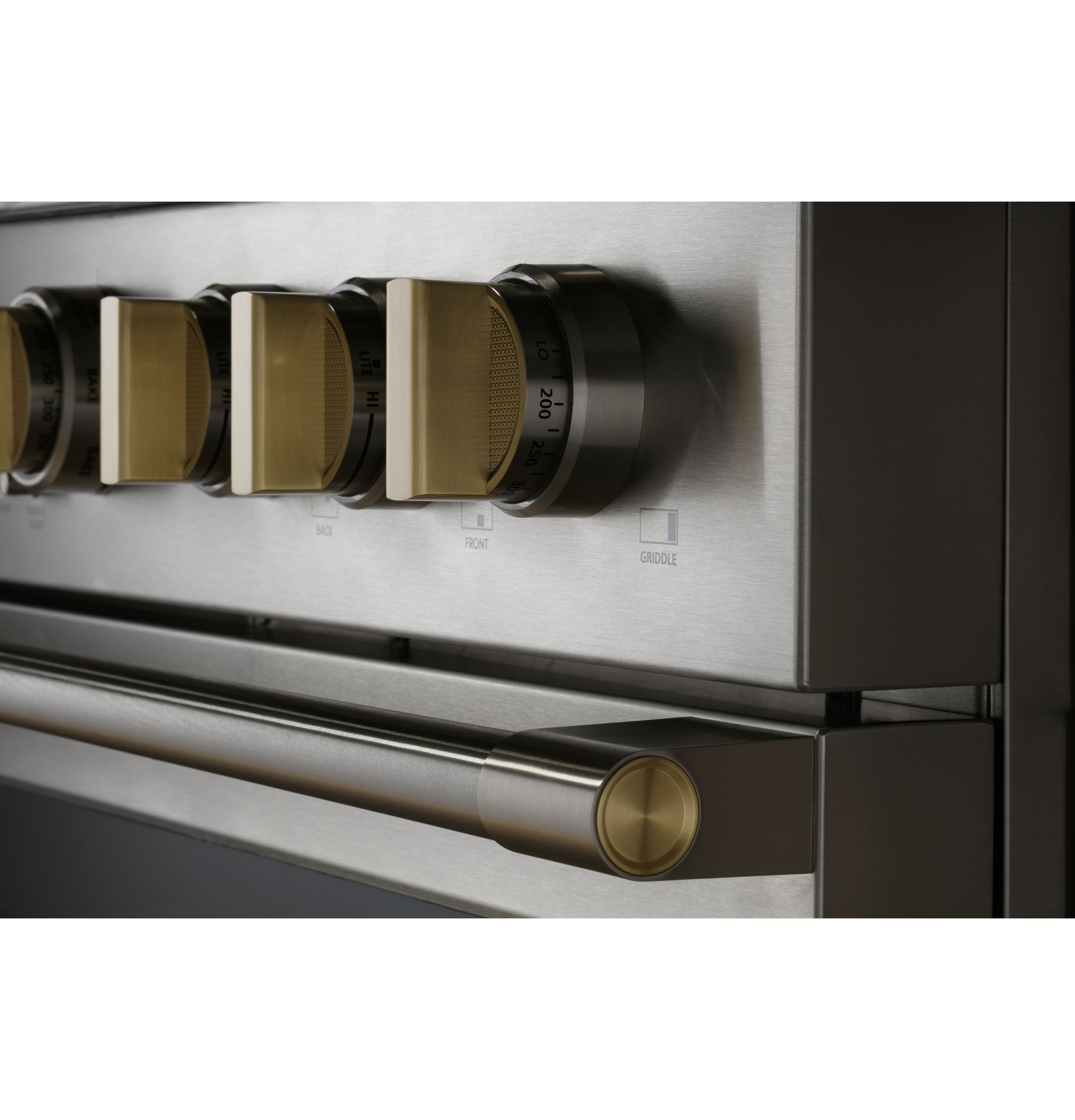

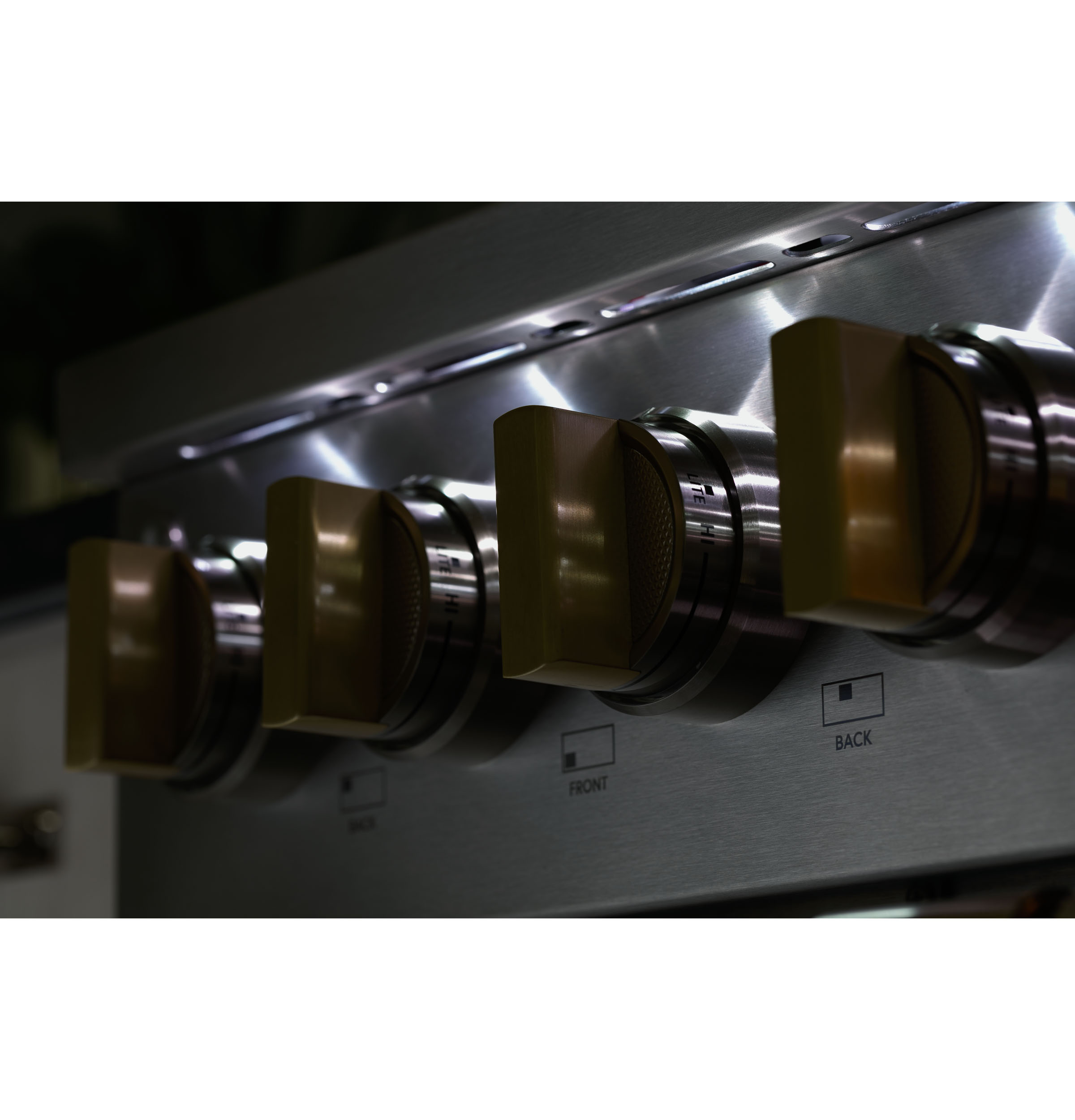

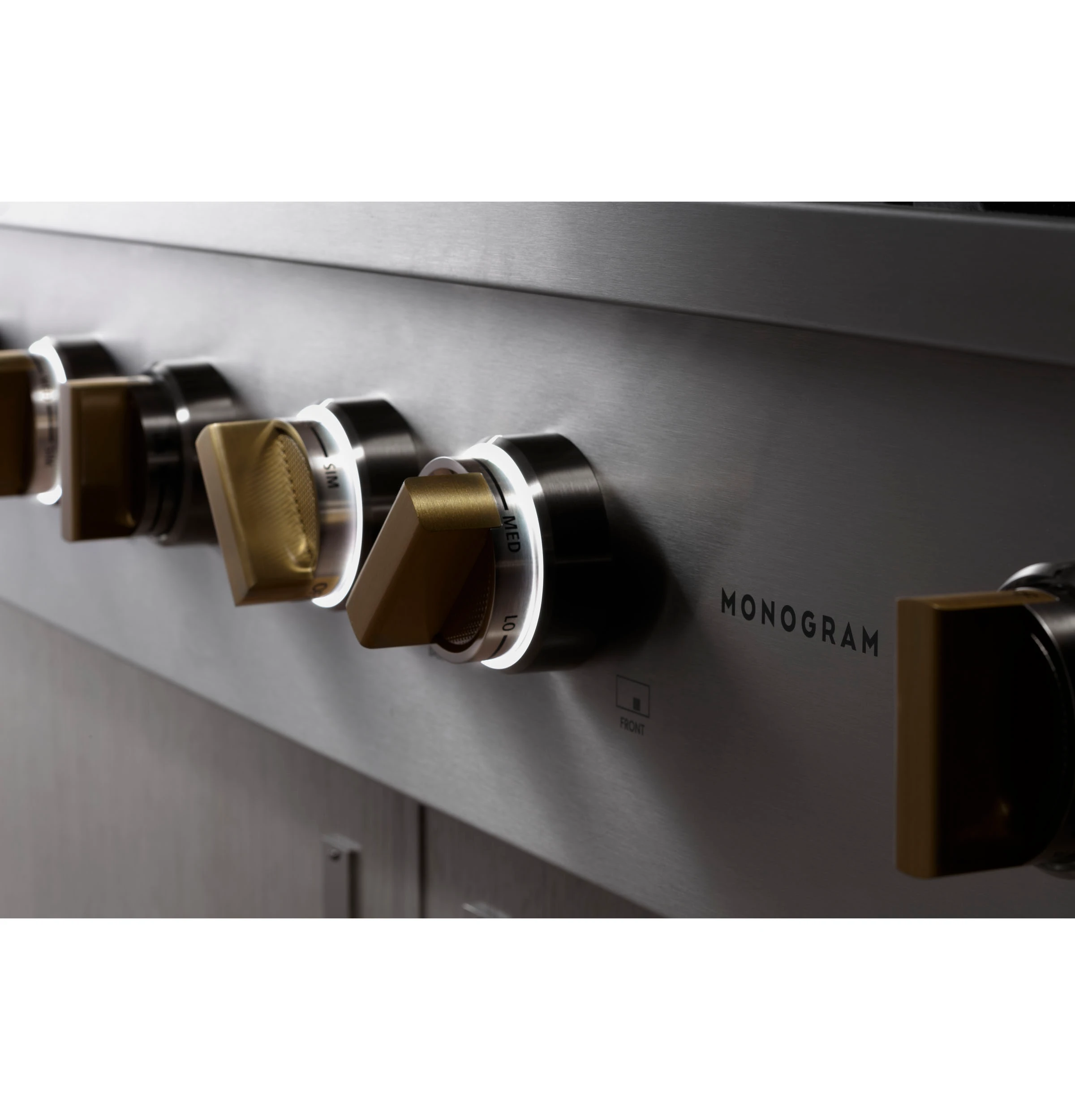

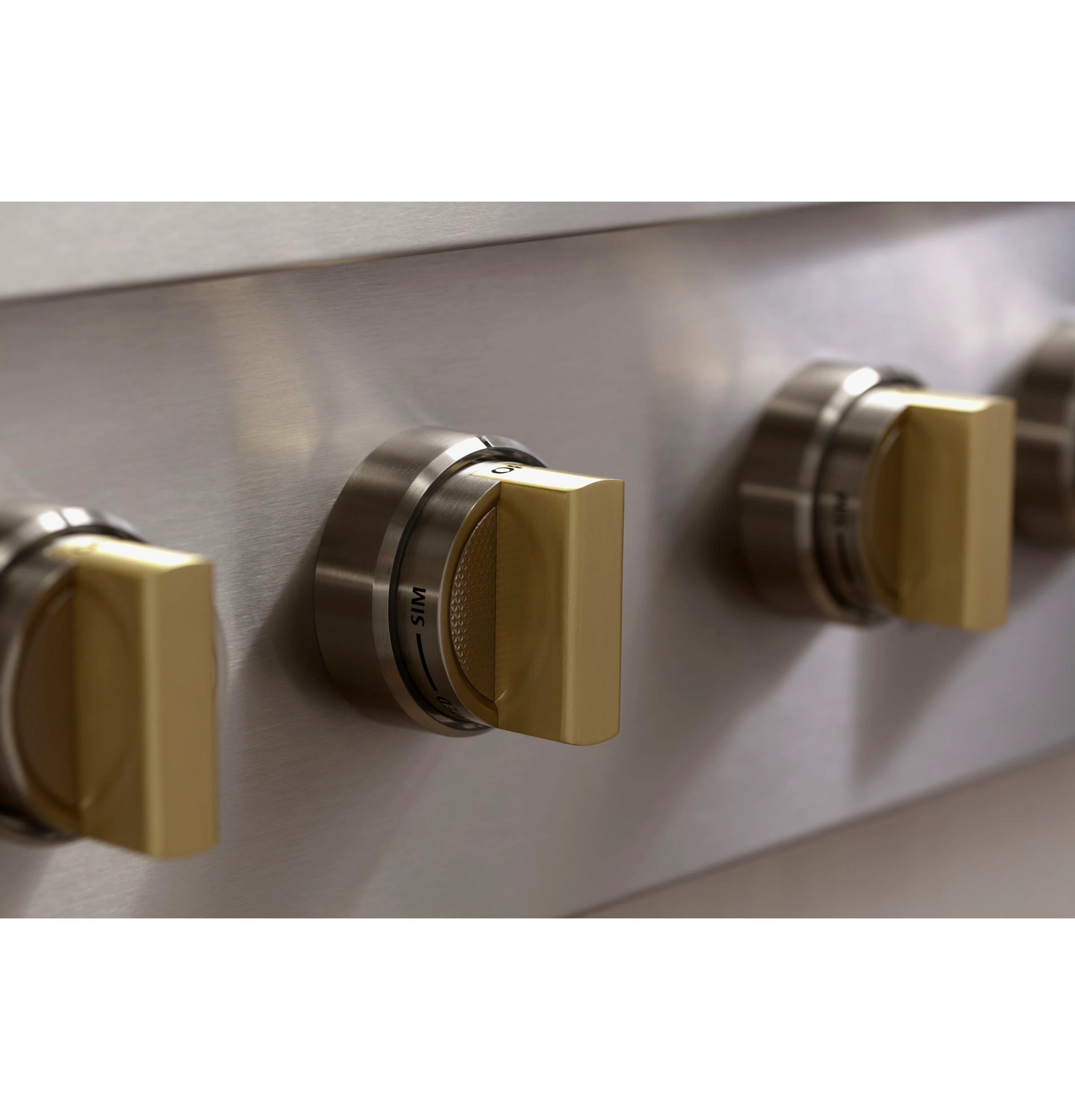

With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

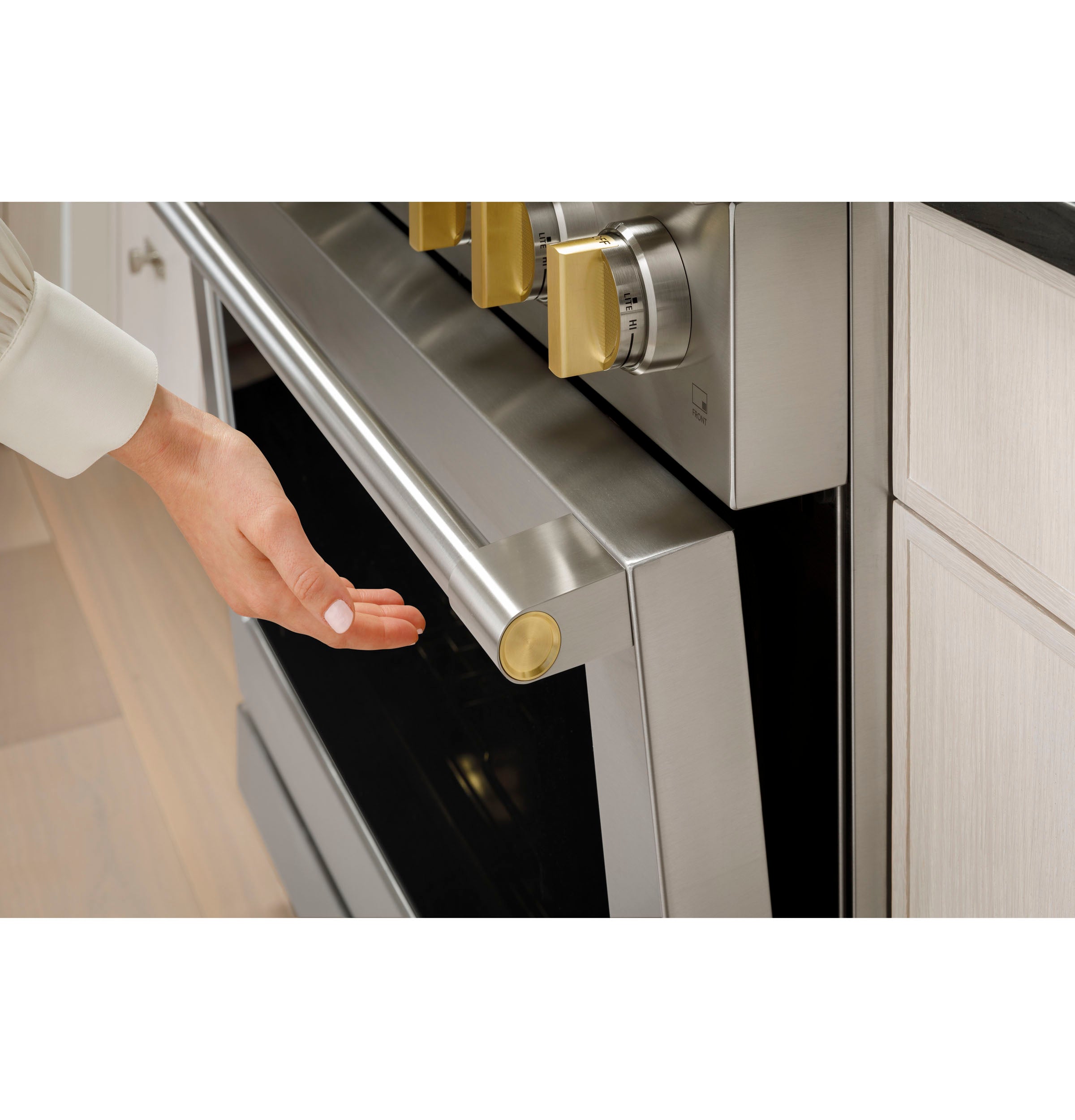

Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

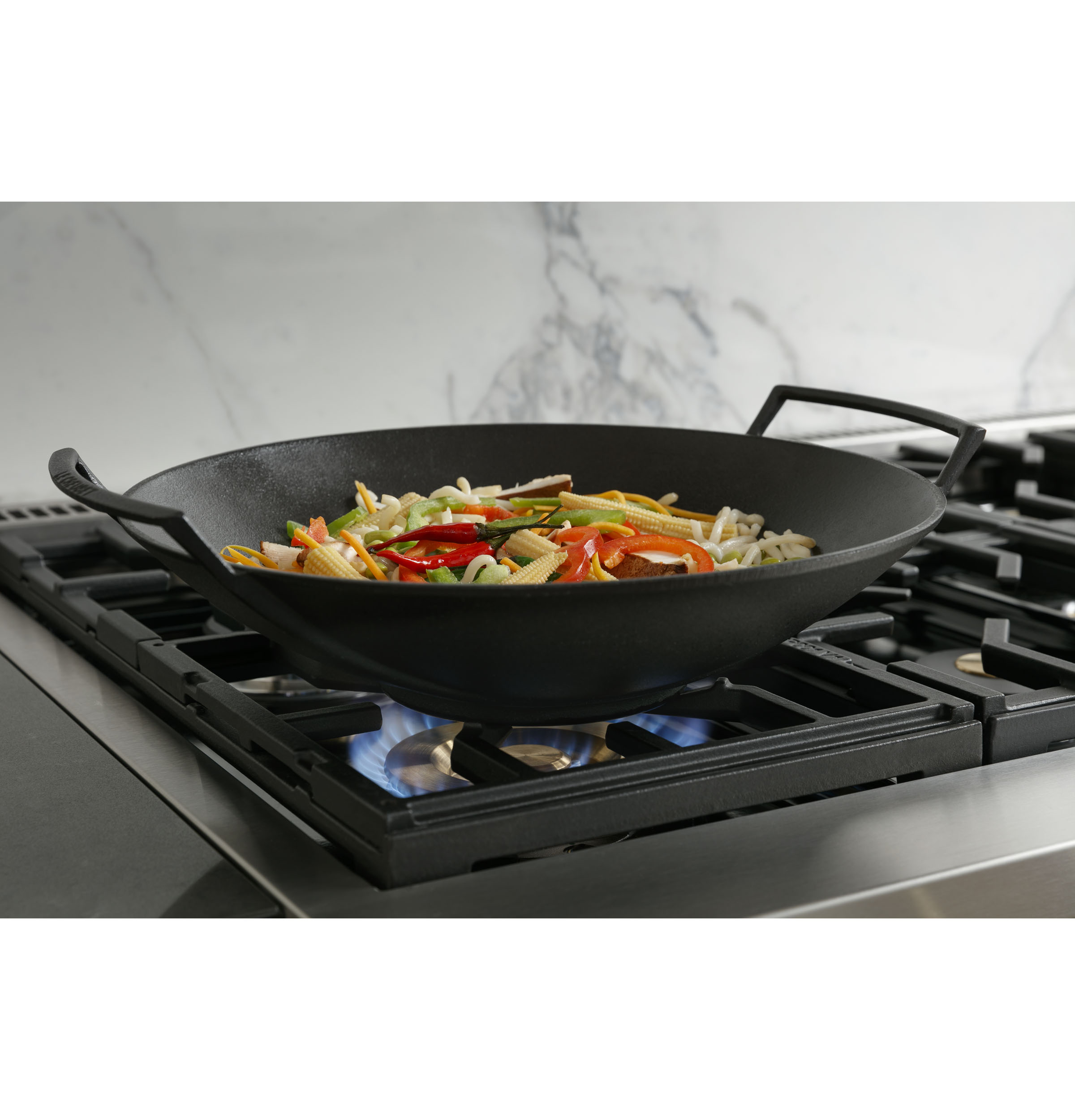

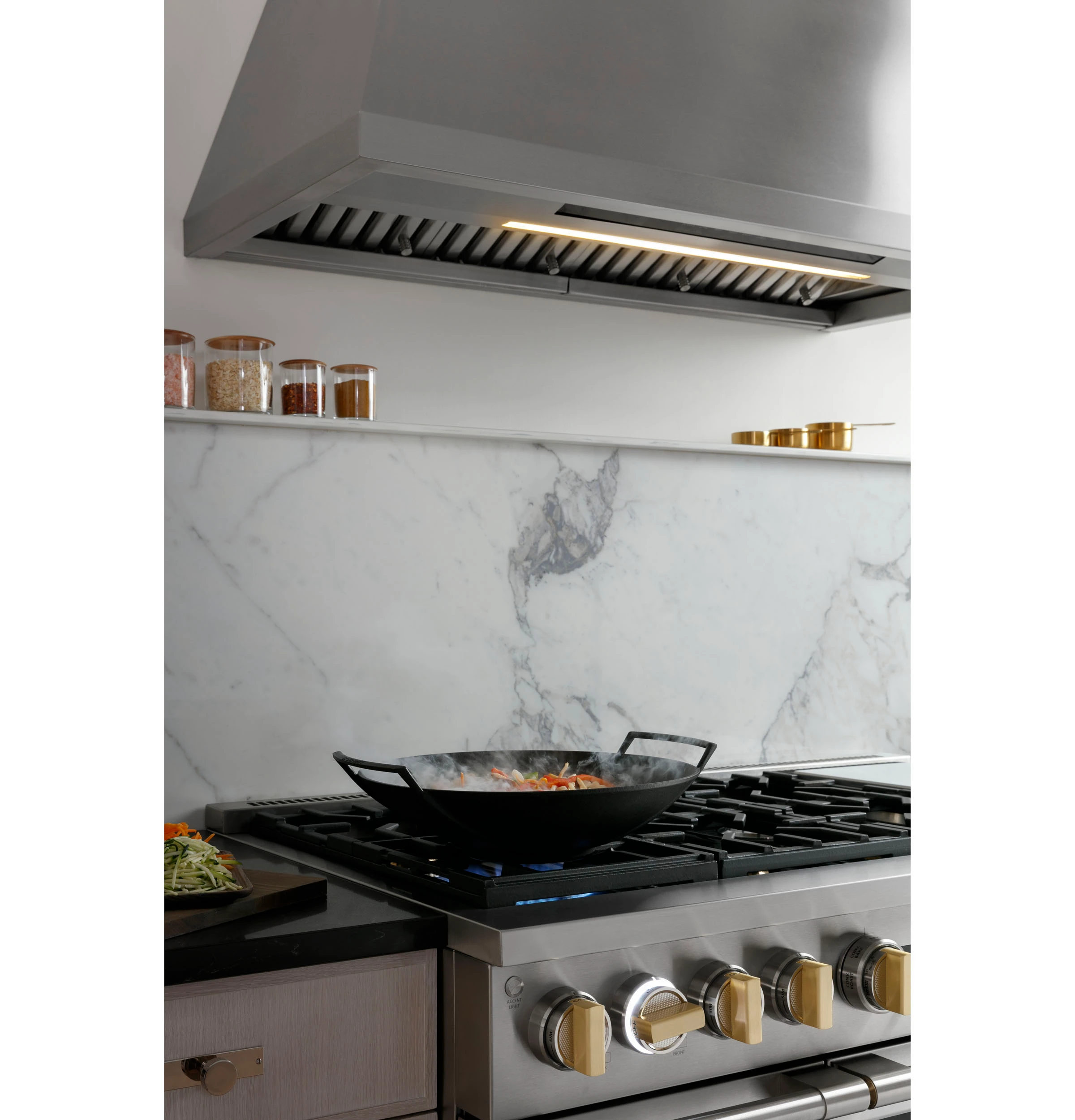

Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

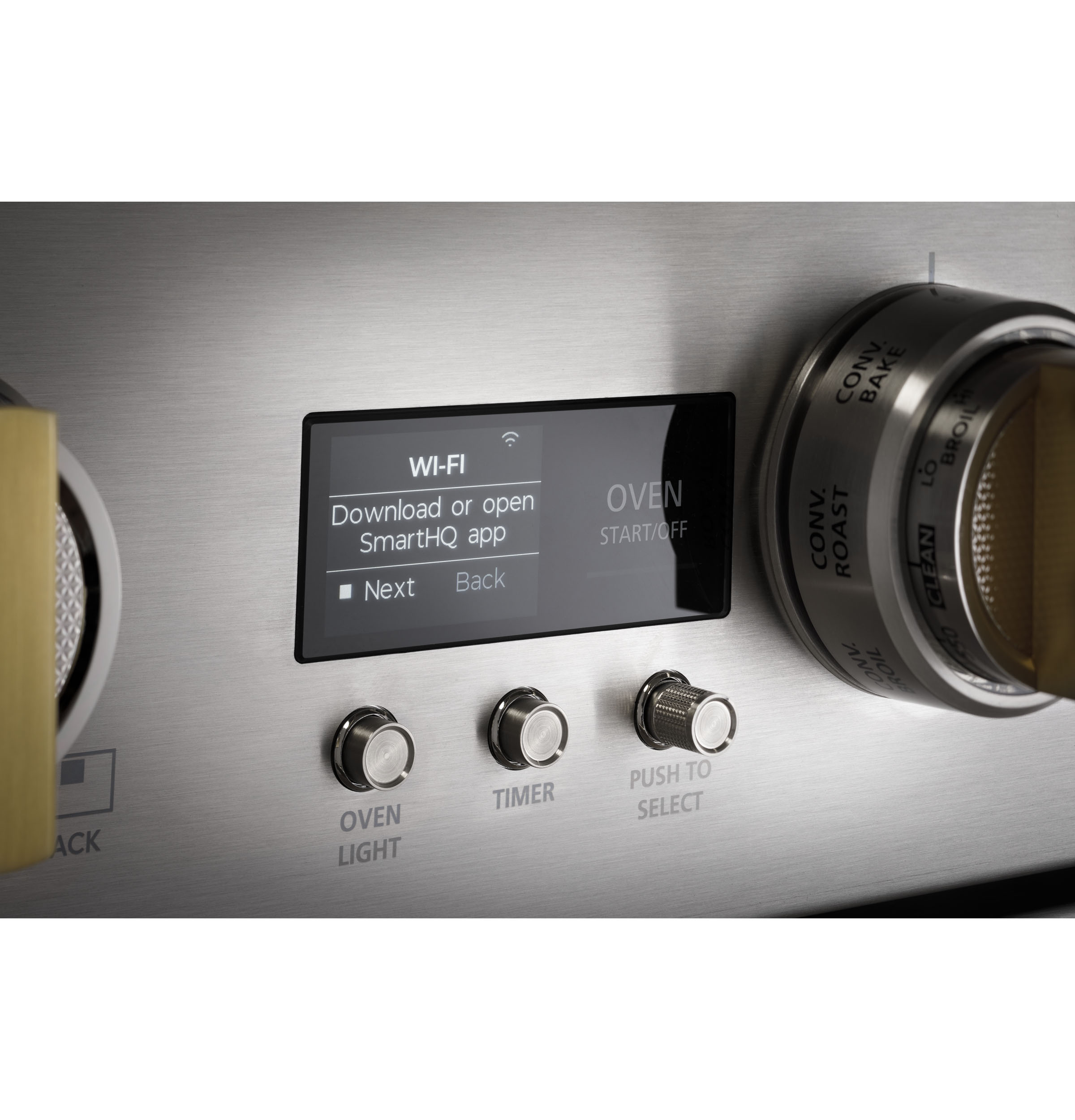

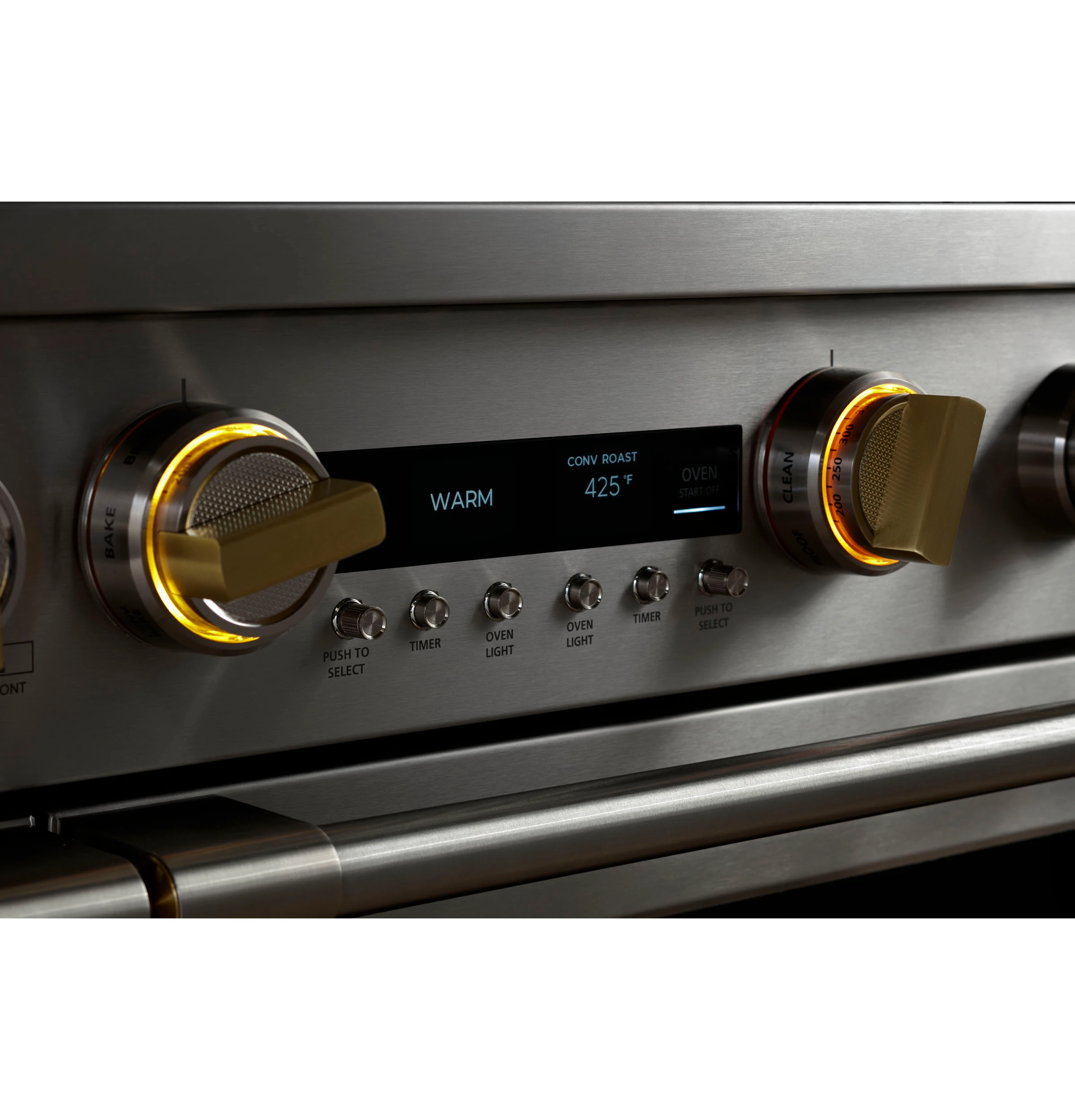

Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
