Sale price $10,700.00 Regular price $12,804.97 Save $2,104.97 / 16% OFF

Product Details for MONOGRAM ZDP366NTSS

Technical Details

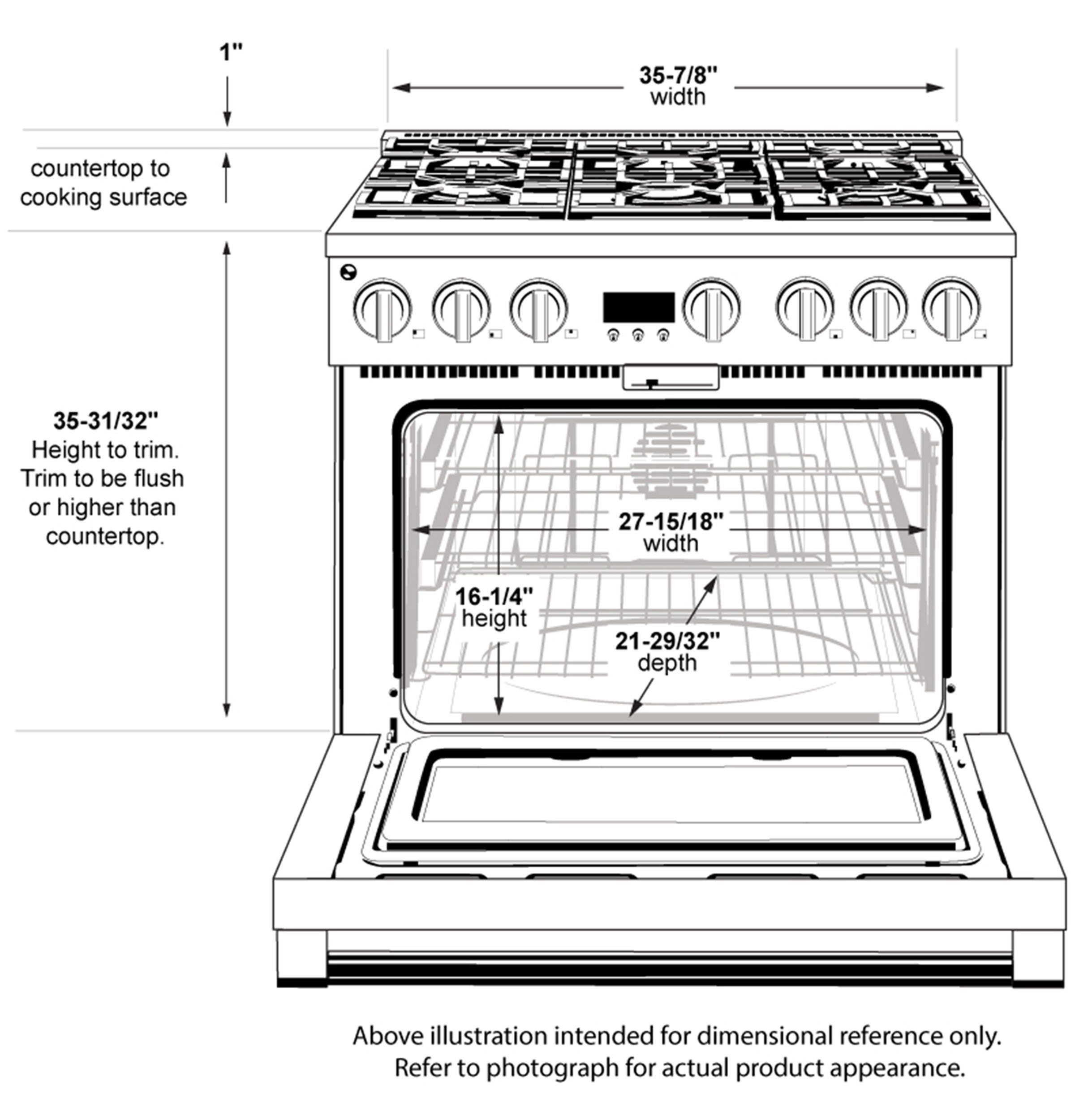

Weights & dimensions

Overall Width 35.875 in
Overall Height 35.25 in
Overall Depth 28.5 in
Cabinet Width 36 in
Height w/Legs Extended - Maximum Height 36.75 in
Height to Cooking Surface (in.) 35.25 - 36.75
Height w/ Legs Retracted - Minimum Height 35.25 in
Approximate Shipping Weight 462
Net Weight 417

Features

Cleaning Time 3-5 Hours
Ignition System Electronic w/Auto Reignition
Convection Roasting Rack Yes
Broiler Pan and Grid Yes
Product Type Professional Range
140 Deg. Simmer Burner All Burners - Adjustable
Cooktop Type 6 Burners
Interior Oven Light 6 Halogen Lamps (Caterer Oven)
WiFi Connect Built-In
Extra Low Simmer All Burners - Adjustable
Control Type Digital Temperature LCD Display with Timer Display
Lighting Customizable LED Bullnose and Knob Accent Lighting
Collection Statement
Cooktop Surface Porcelain-Enamel
Oven Rack Positions (Single or Upper/Lower) 5
Self-Clean Oven Door Lock Automatic
Fuel Type Dual Fuel (with Natural Gas)
Connected Capabilities Bluetooth,Amazon Alexa,Fresco,IFTTT,Innit,The Google Assistant,Sonos,Google Home
Cooking System True European Convection,Reverse Air Convection
Cooking Technology Convection,Dual Fuel (with natural gas)
Cooktop Burner Grate Features Continuous Grates,Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Cooktop Burner Type 4 Sealed, Dual Flame Stacked,2 Sealed, Dual Flame Stacked (Removable Brass Accents)
Indicator Lights Burner On
Oven Cleaning Type Self-Clean,Steam Clean
Oven Control Features Delay Clean Option,Proof Mode,WiFi Connect,Chef Connect,Audible Preheat Signal,Timer,Self & Steam Clean Modes,Probe Mode,Remote Enabled,12-Hour Shut-Off Capability,C° or F° Programmable,Cook
Oven Cooking Modes Convection Bake Multi-Rack,Convection Broil Hi/Lo,Convection Roast,Warming,Proof,No-Preheat Air Frying,Precision Cooking Modes
Oven Features Hidden Bake,8-Pass Bake Element,8-Pass Broil Element
Oven Rack Features 3 Self-Clean Oven Racks,Full-Extension
Short Description 36 Pro Range - Dual Fuel with 6 Burners

Power / ratings

Top Burner BTU Rating - Nat. Gas (000's BTU's) (2) 23.0; (2) 18.0; (2) 15.0
Electrical Requirements 240VAC; 30A
Top Burner BTU Rating - LP (000's BTU's) (2) 21.0; (2) 15.0; (2) 10.0
Broiler Wattage 4000W
Convection Wattage 2500W
Bake Wattage 2700W
Hertz 60

Appearance

Toe kick Included
Oven Door Features Soft Close Door
Design Style Statement Collection
Color Appearance Stainless Steel
Control Knobs Diecast Metallic (Included),Stainless Steel with Brass Accents

Capacity

Total Capacity (cubic feet) 5.75 cu ft

Accessories

High Altitude Kit Natural Gas: WB28X39726; LP: WB28X39727
Reversible Griddle/Grill Accessory UXPRRGG
Multi Ring Burner Caps (Brass) Included
LP Conversion Kit Included
Multi Ring Burner Caps (Black) Included
30/36 Monogram Knob Kit ZXPR36KKTSS (SS, qty. 9)
Optional Backguard 12 stainless steel backsplash (UX12B36PSS),30-36 adjustable stainless steel backsplash with warming shelf (UXADJB36PSS)

Warranty

Labor Warranty Limited 2-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 2-year entire appliance,Limited 5-year gas surface burners,Limited lifetime of oven racks

Dimensions & weight

Width 35.88 in.
Height 35.25 in.
Length 28.5 in.
Weight 417 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.88 in.
Shipping Height 40.25 in.
Shipping Length 33.5 in.
Shipping Weight 457 lbs.
Total of Shipping Weight 457 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 20.86 ft³
Dimensional Weight 259.29 lbs.
Total of Cubes 20.86 ft³
Total of Dimensional Weight 259.29 lbs.

Description

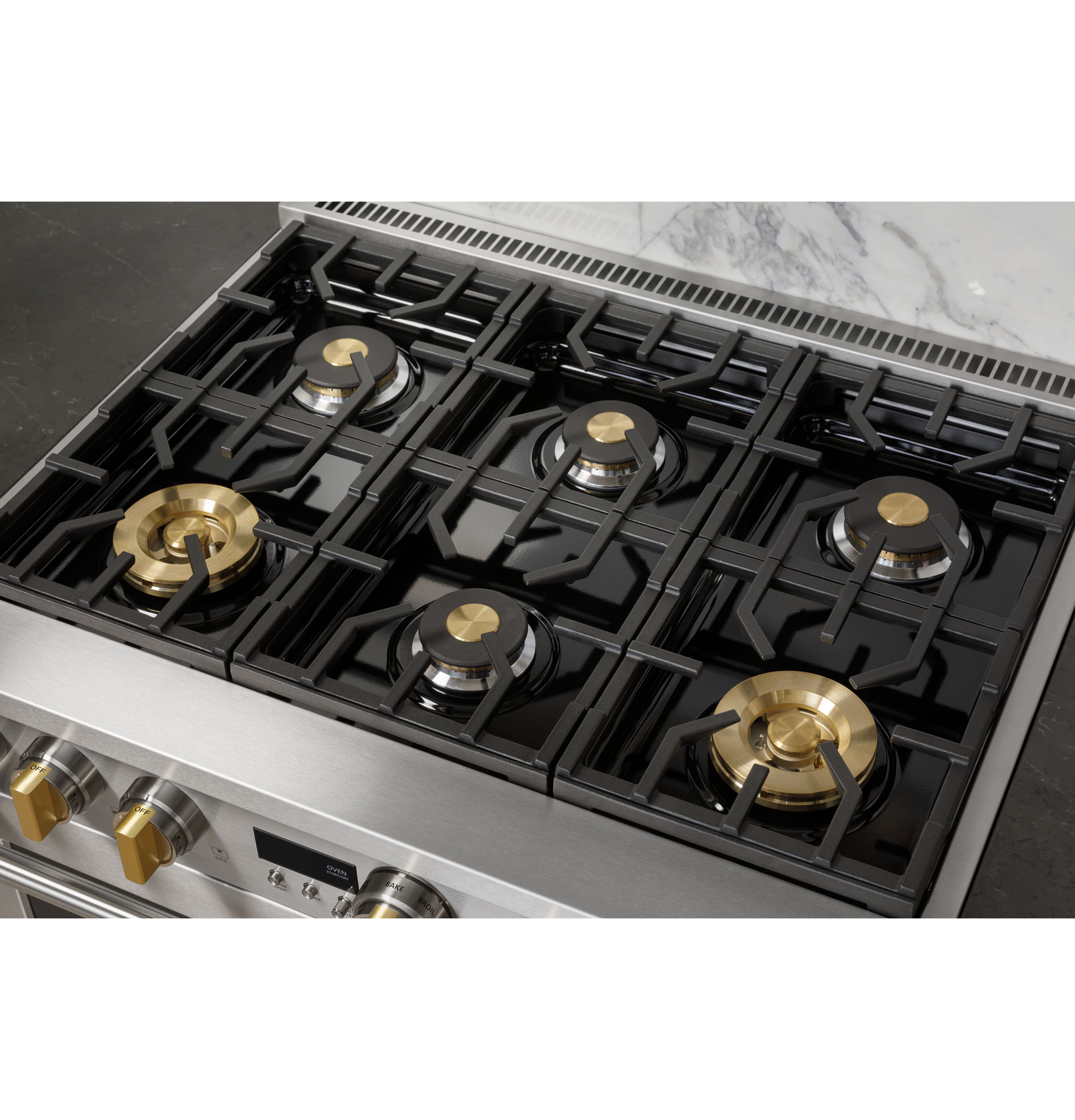

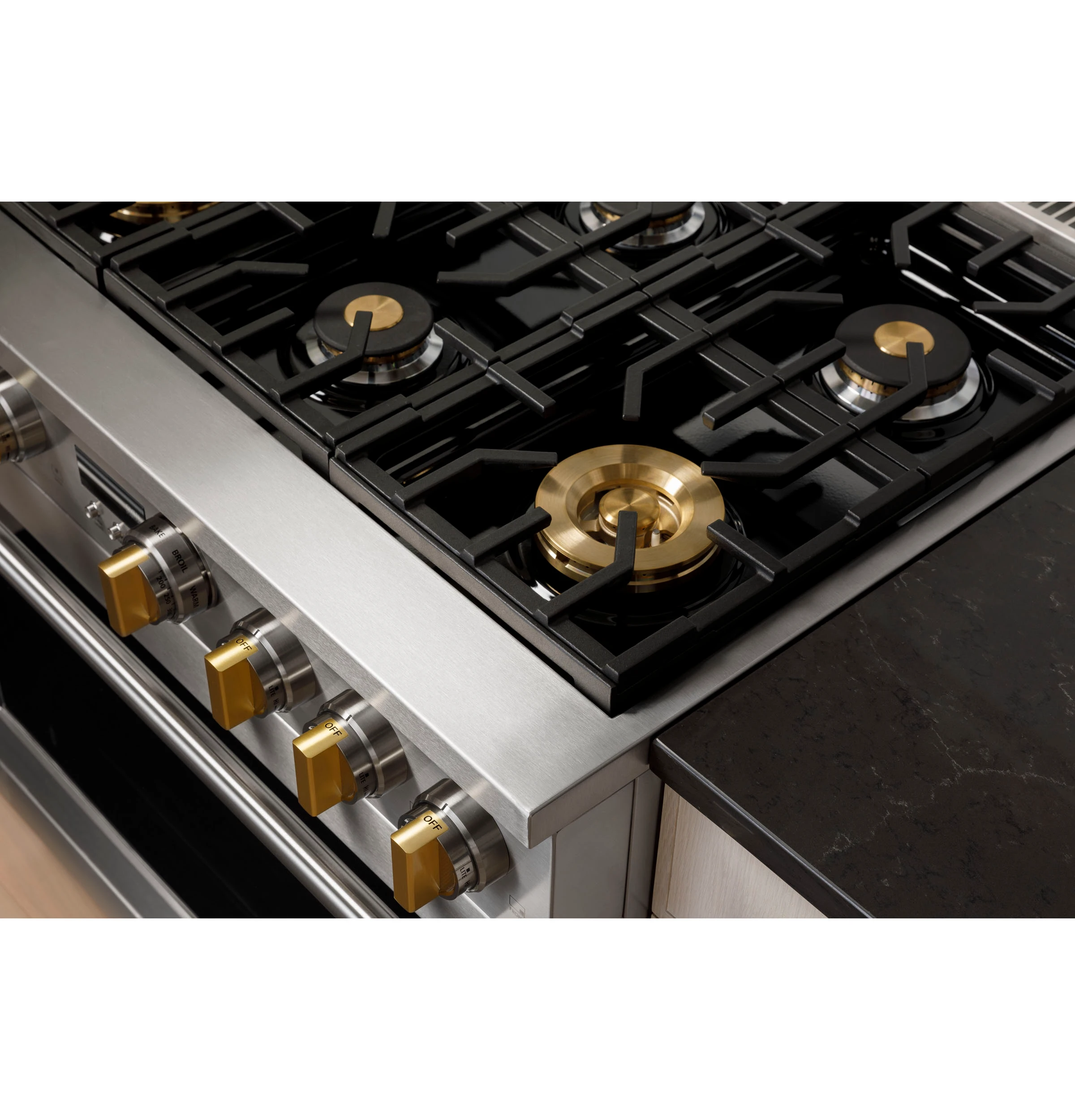

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

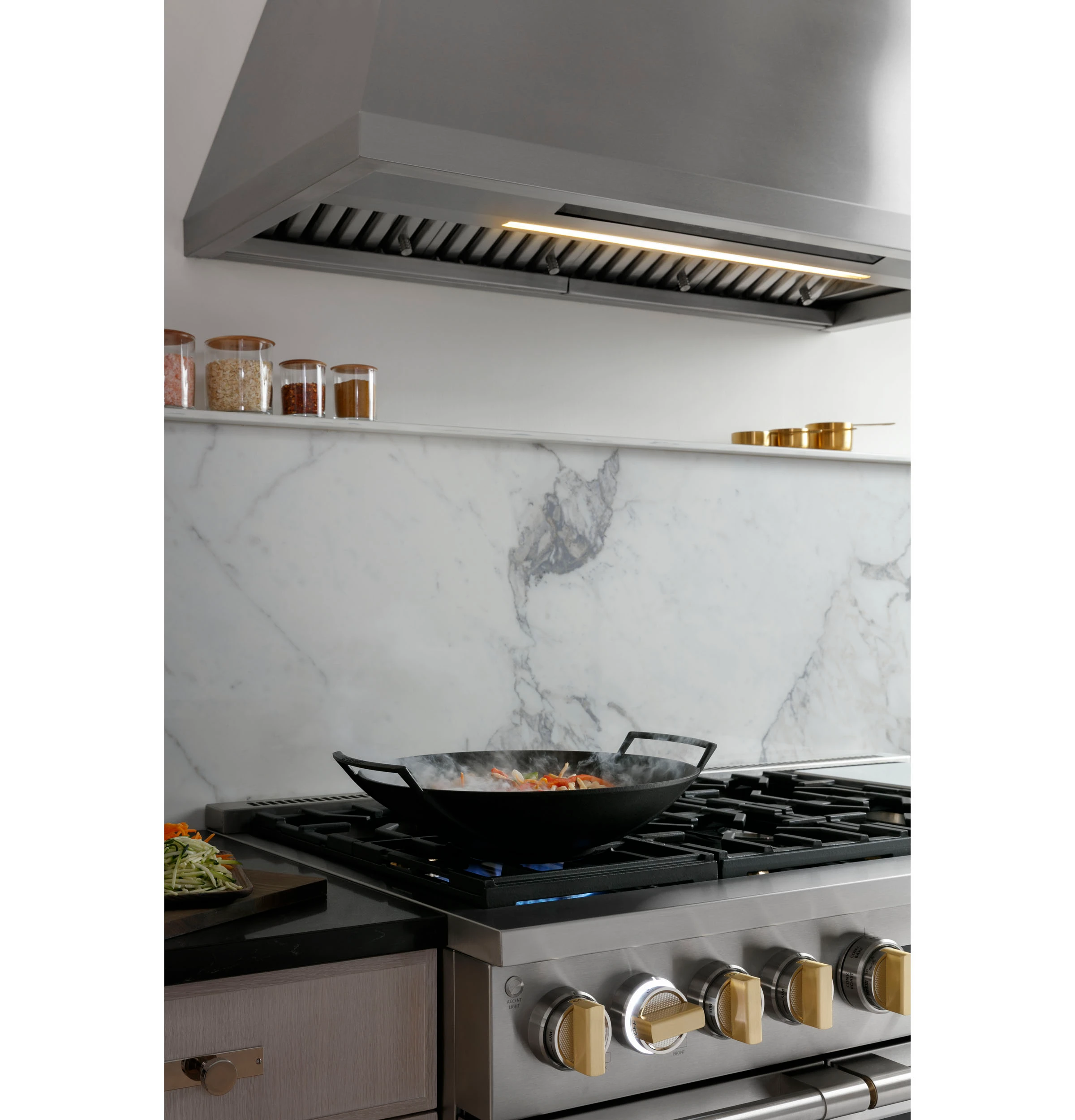

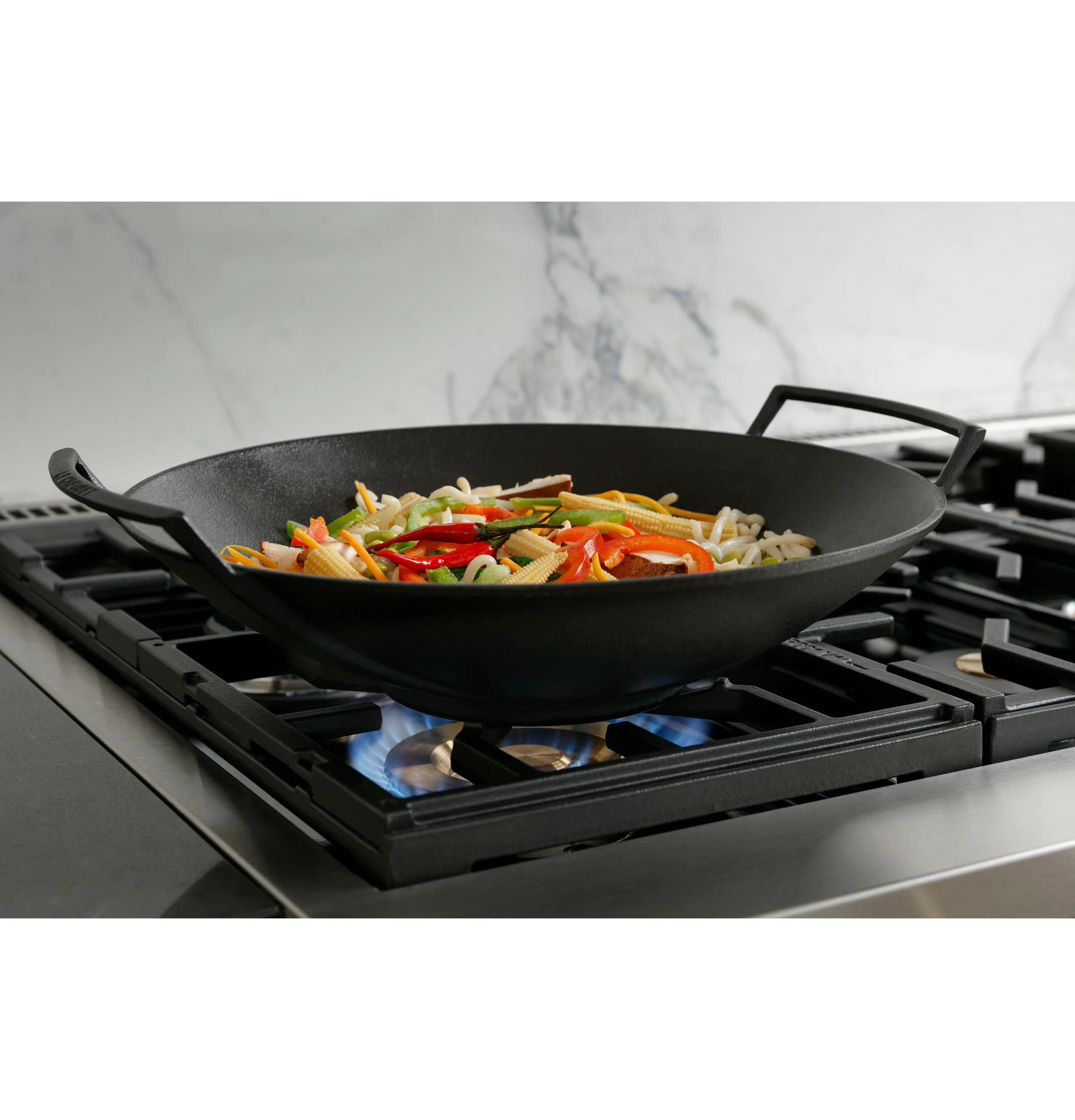

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

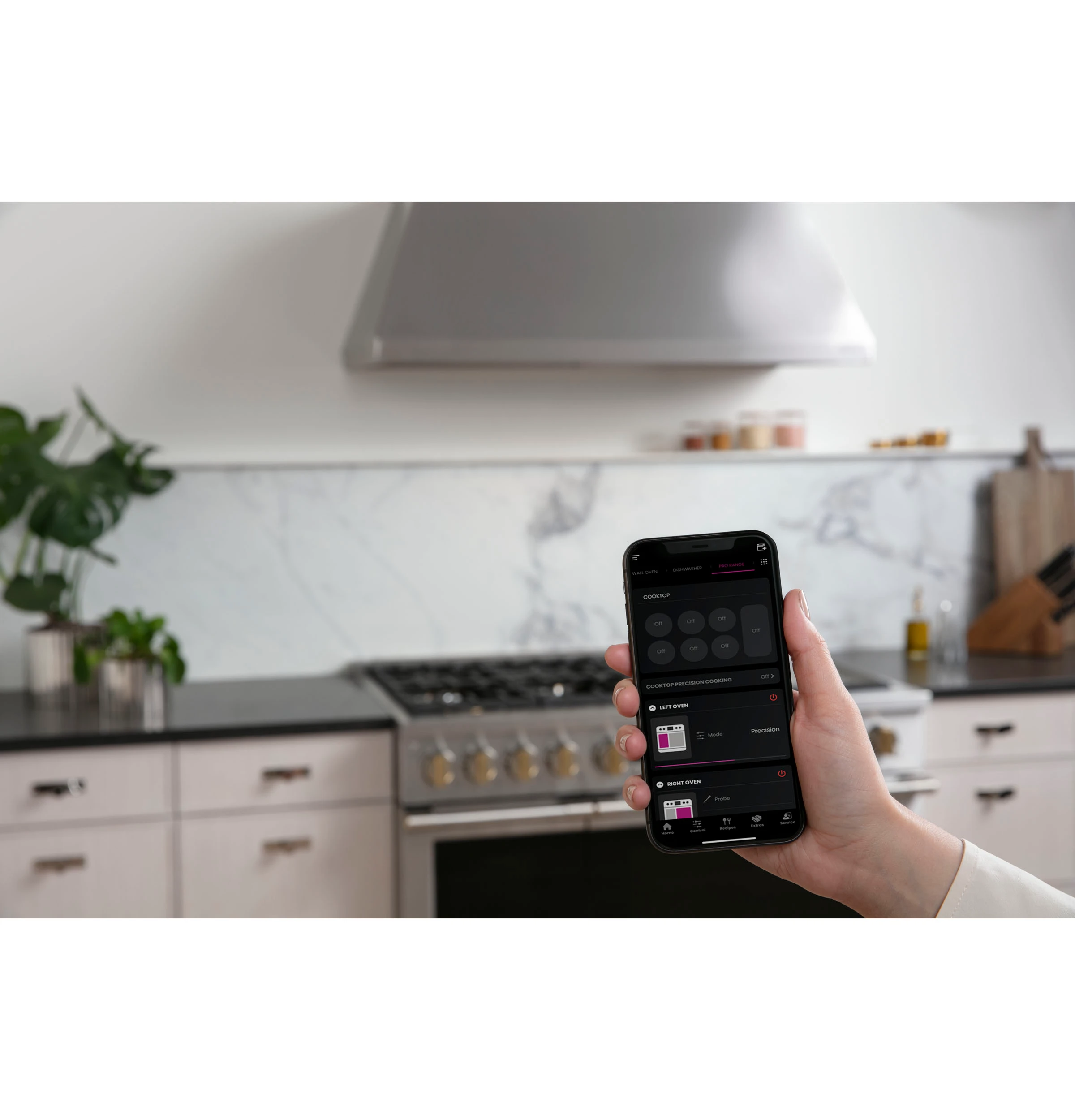

WiFi Monitoring and Remote Control with the SmartHQ(TM) app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

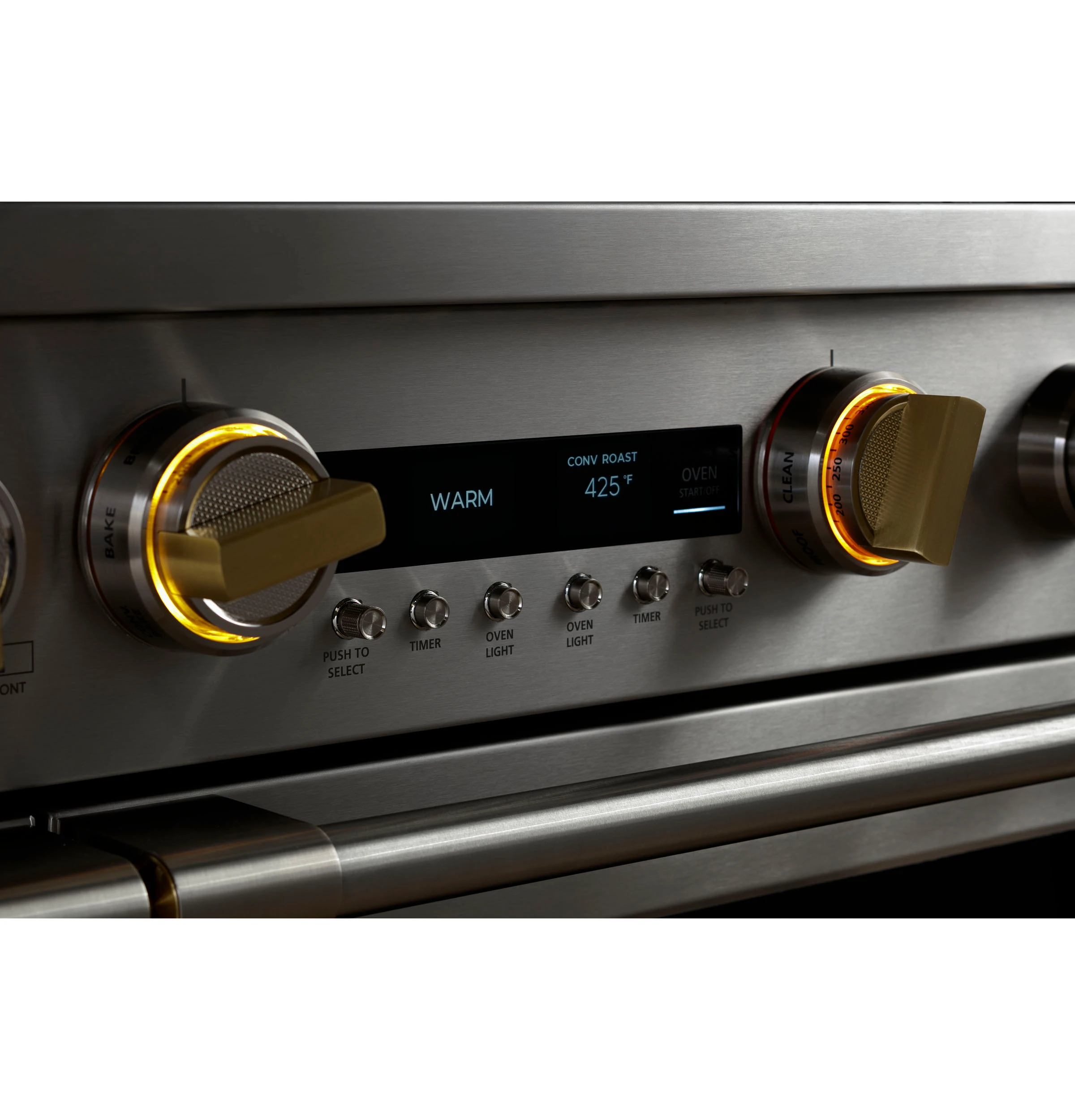

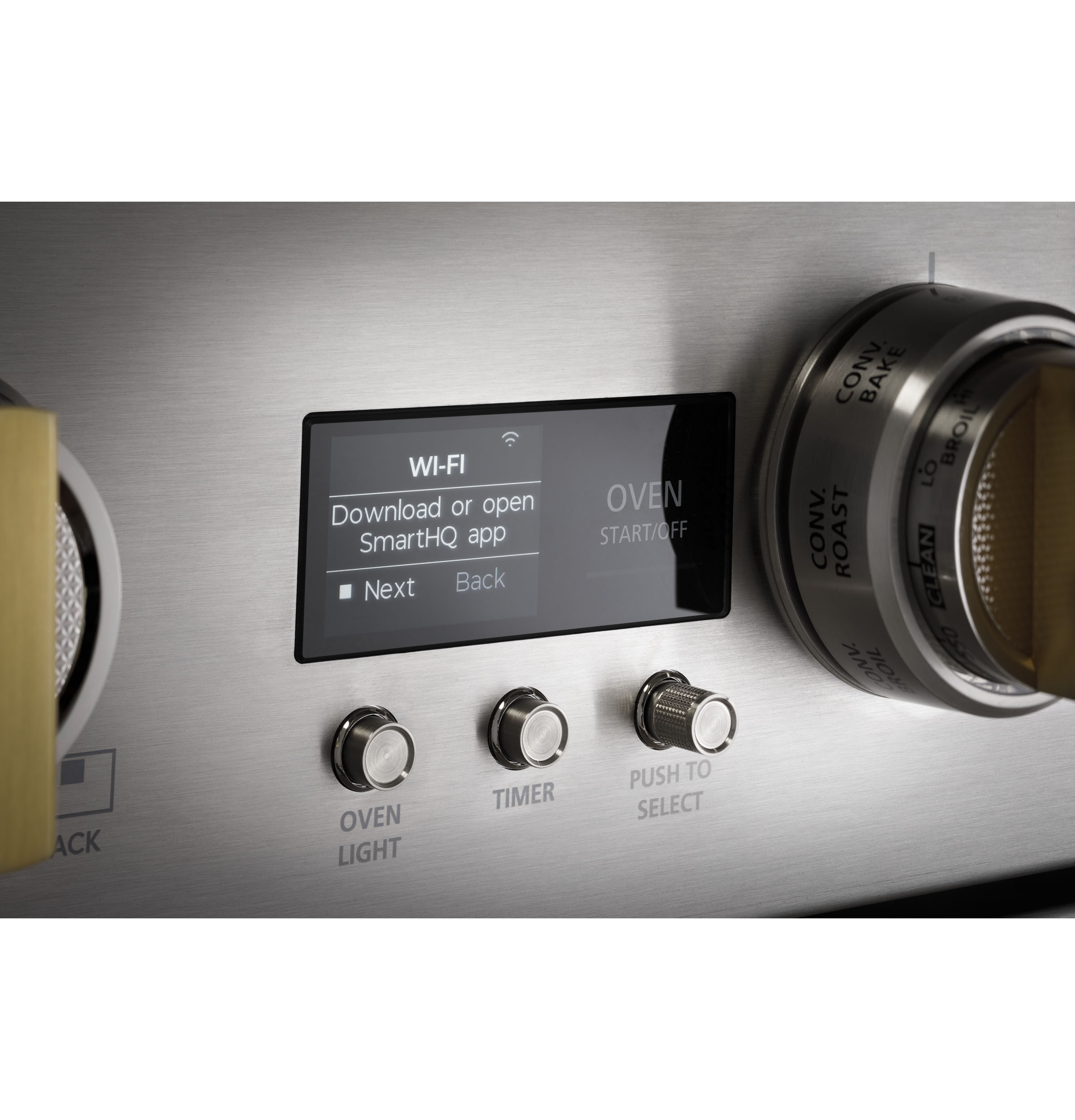

Dynamic Oven LCD
Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp

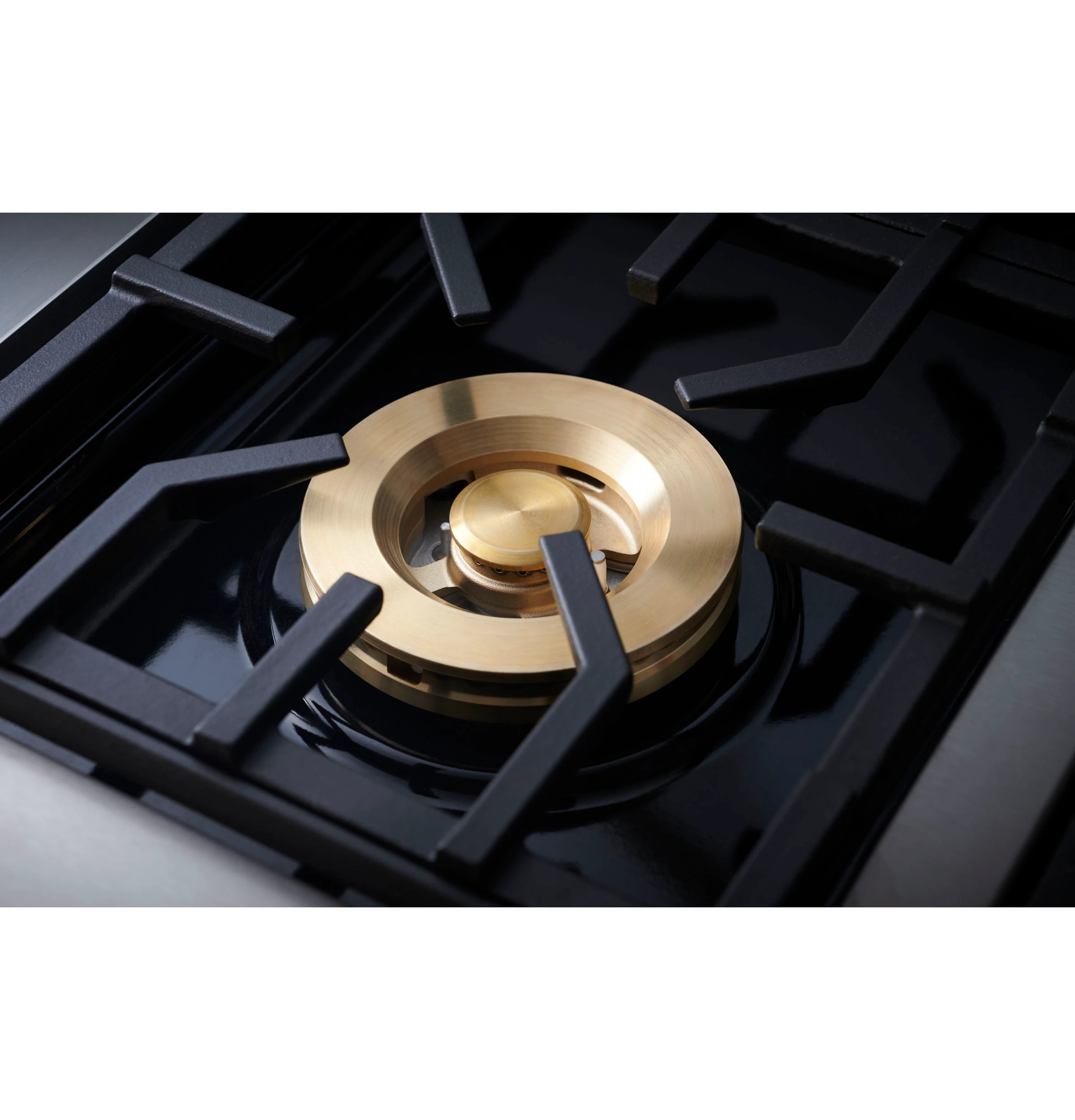

Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

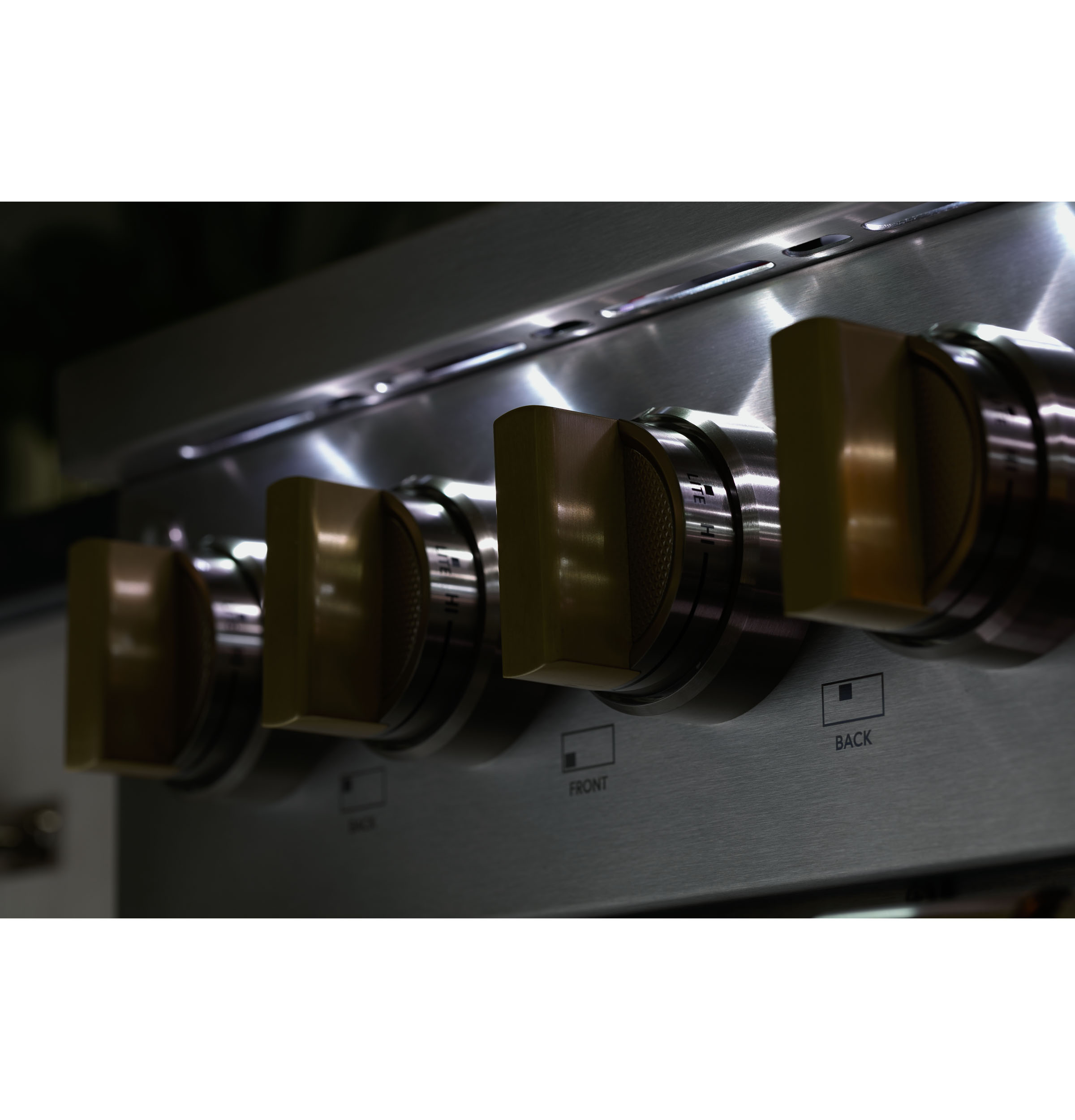

Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ(TM) app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance

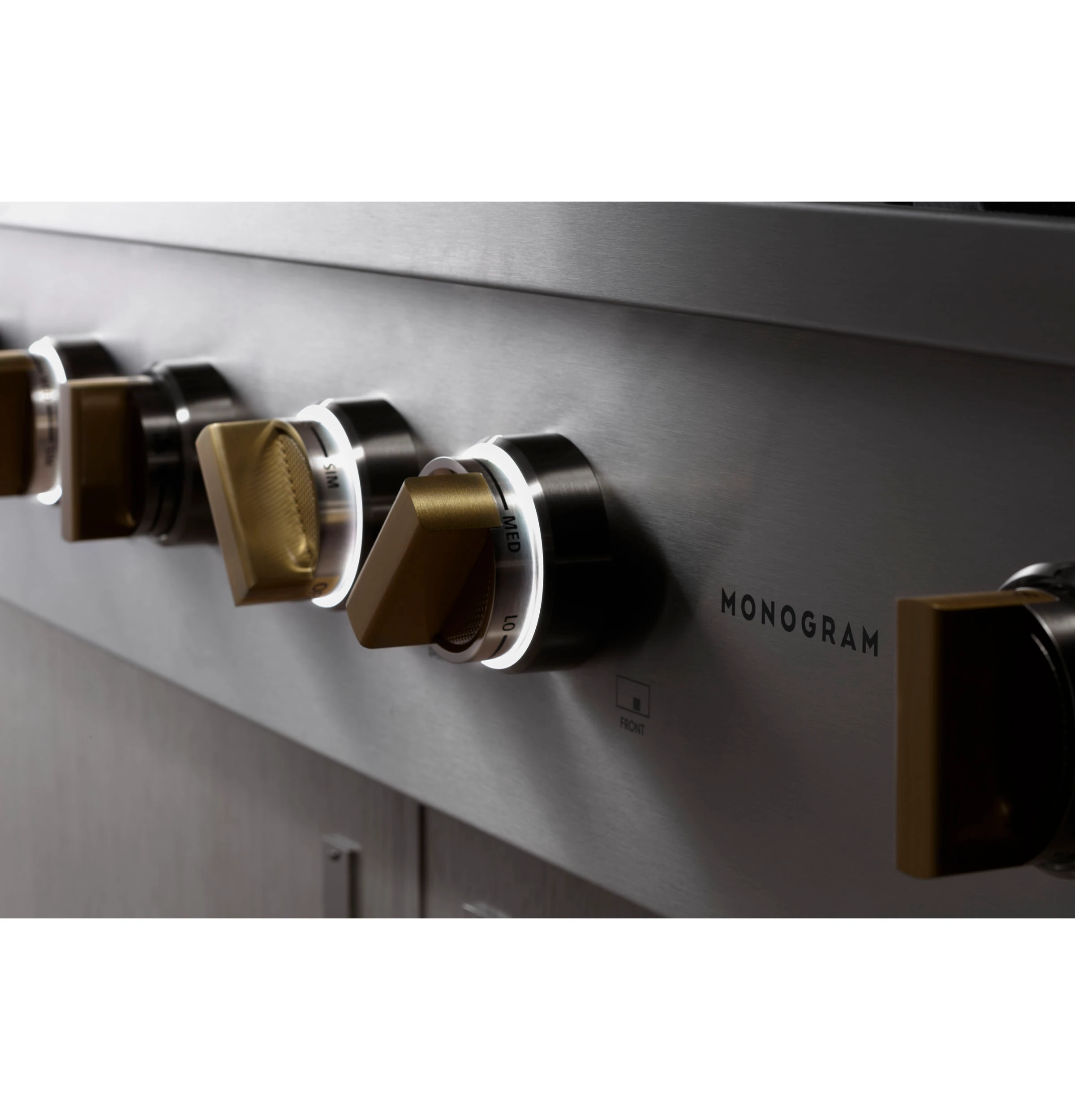

Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ(TM) app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

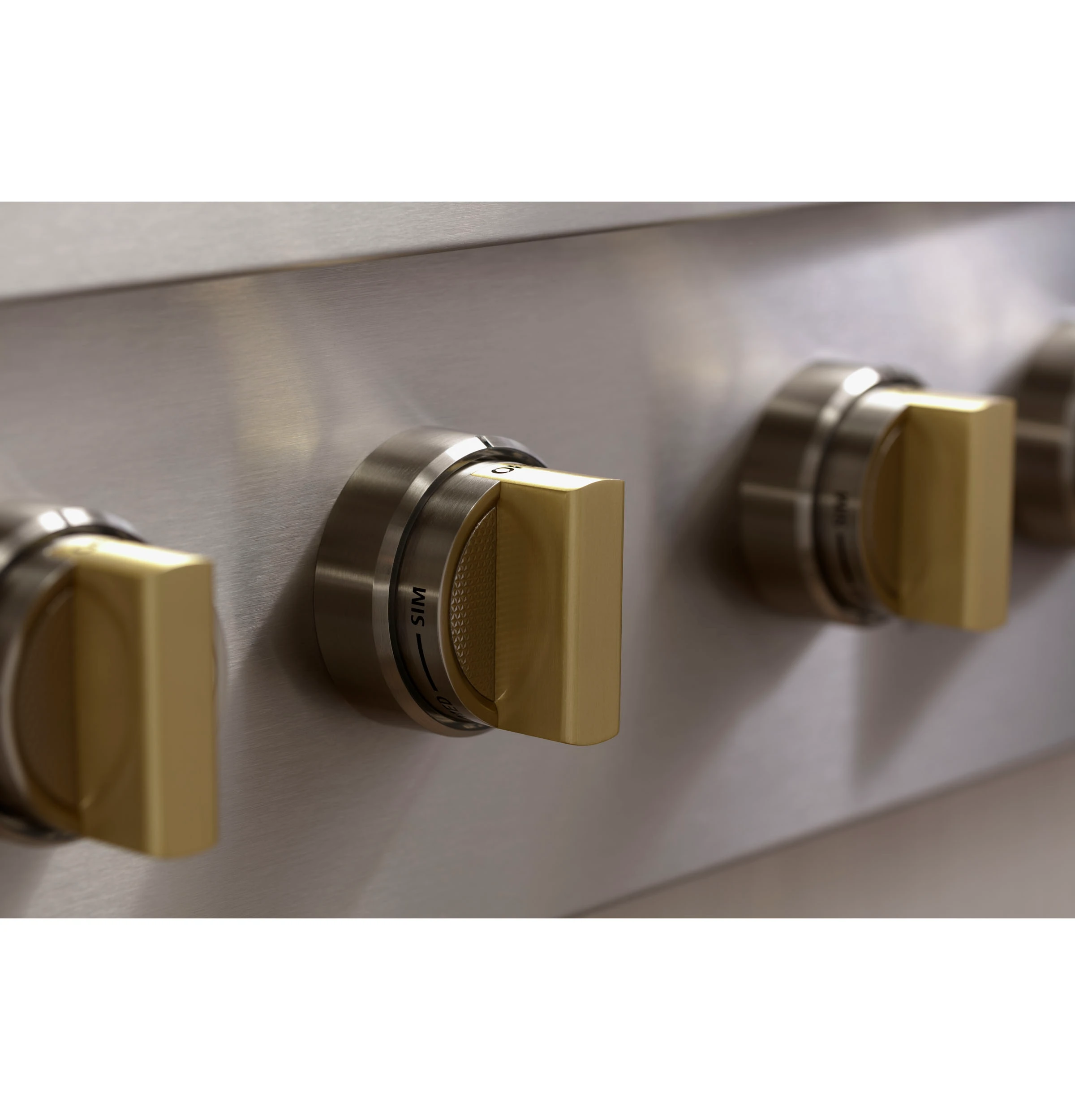

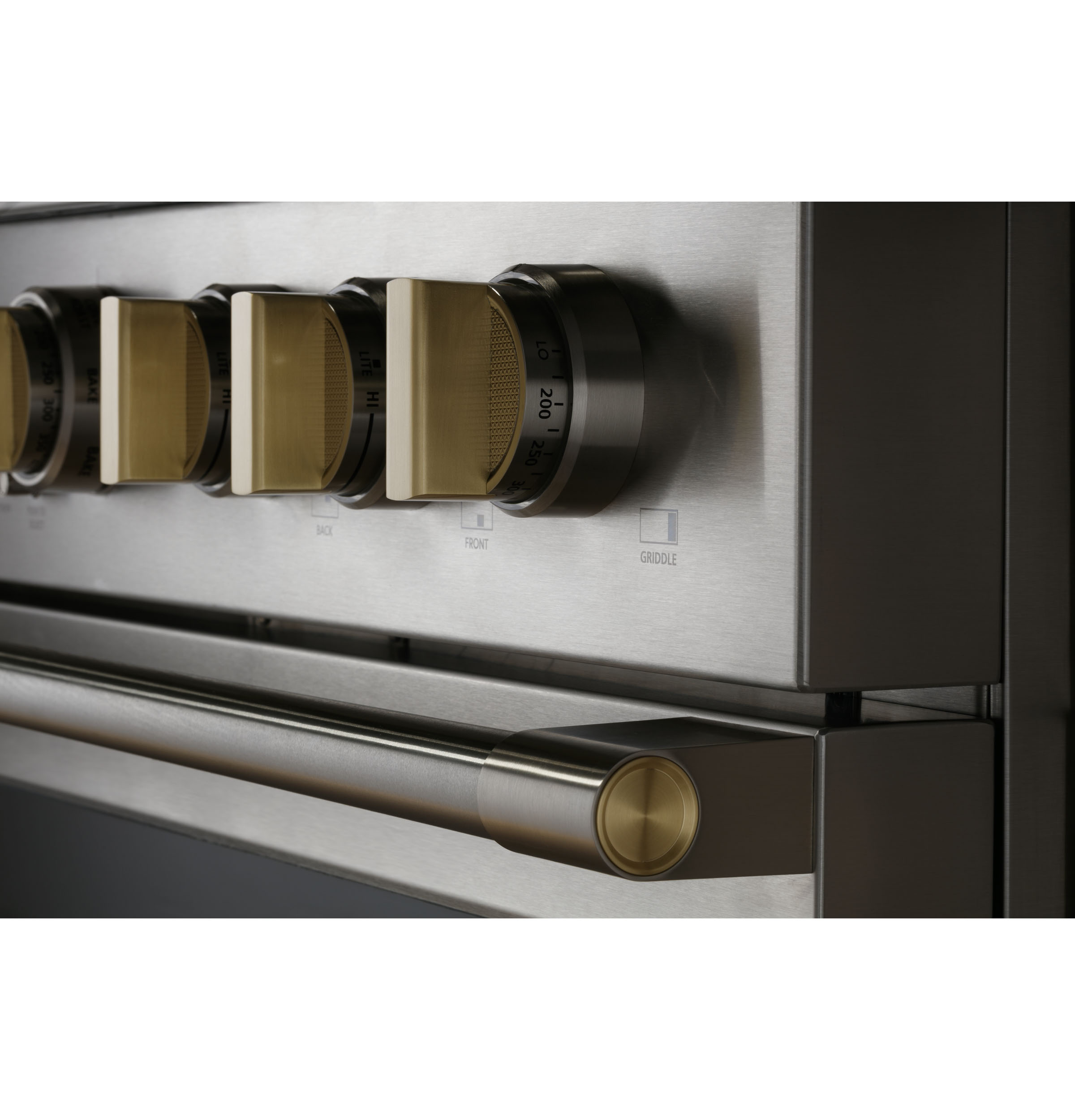

Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

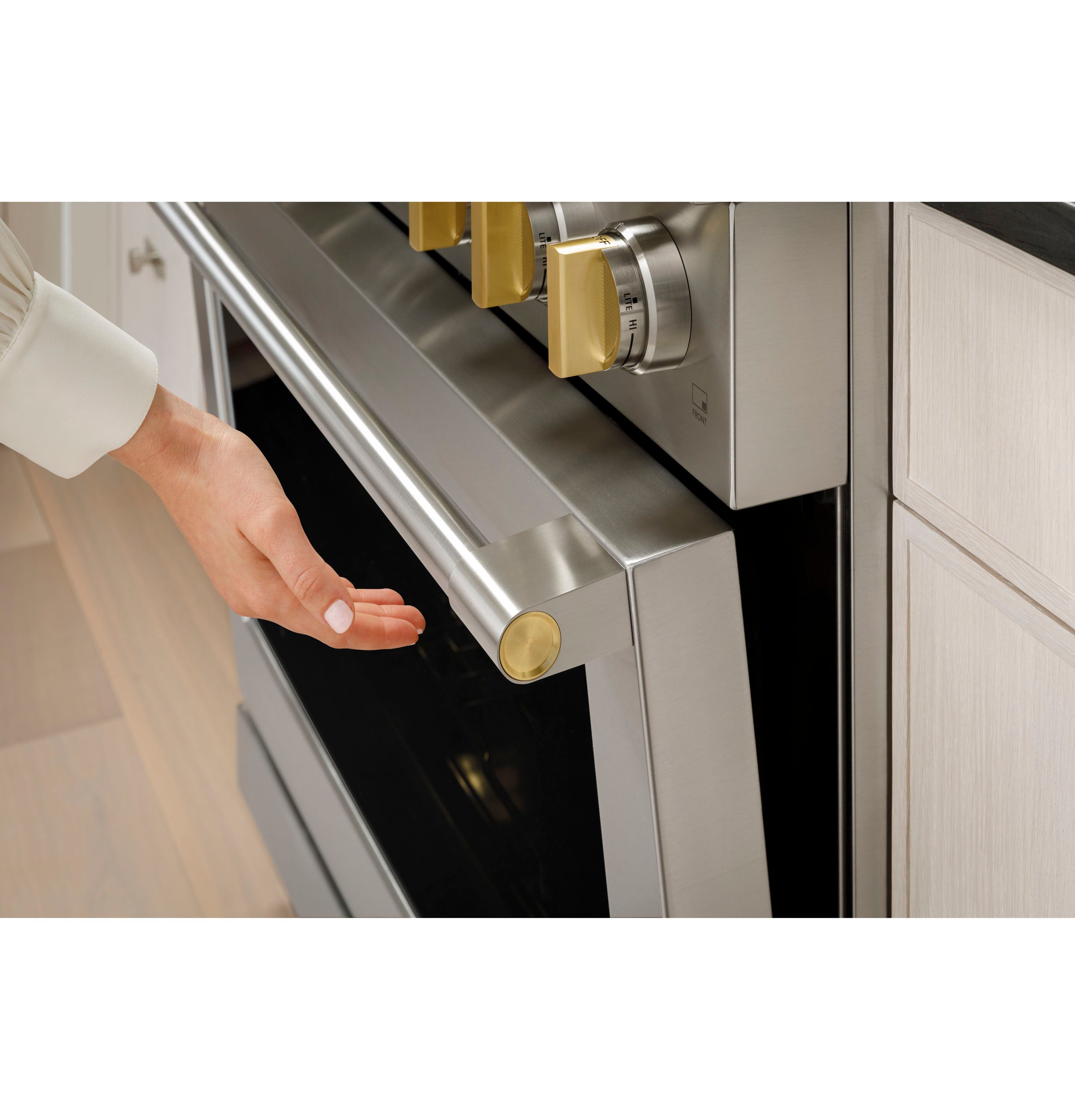

Soft-Close Hinges
Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

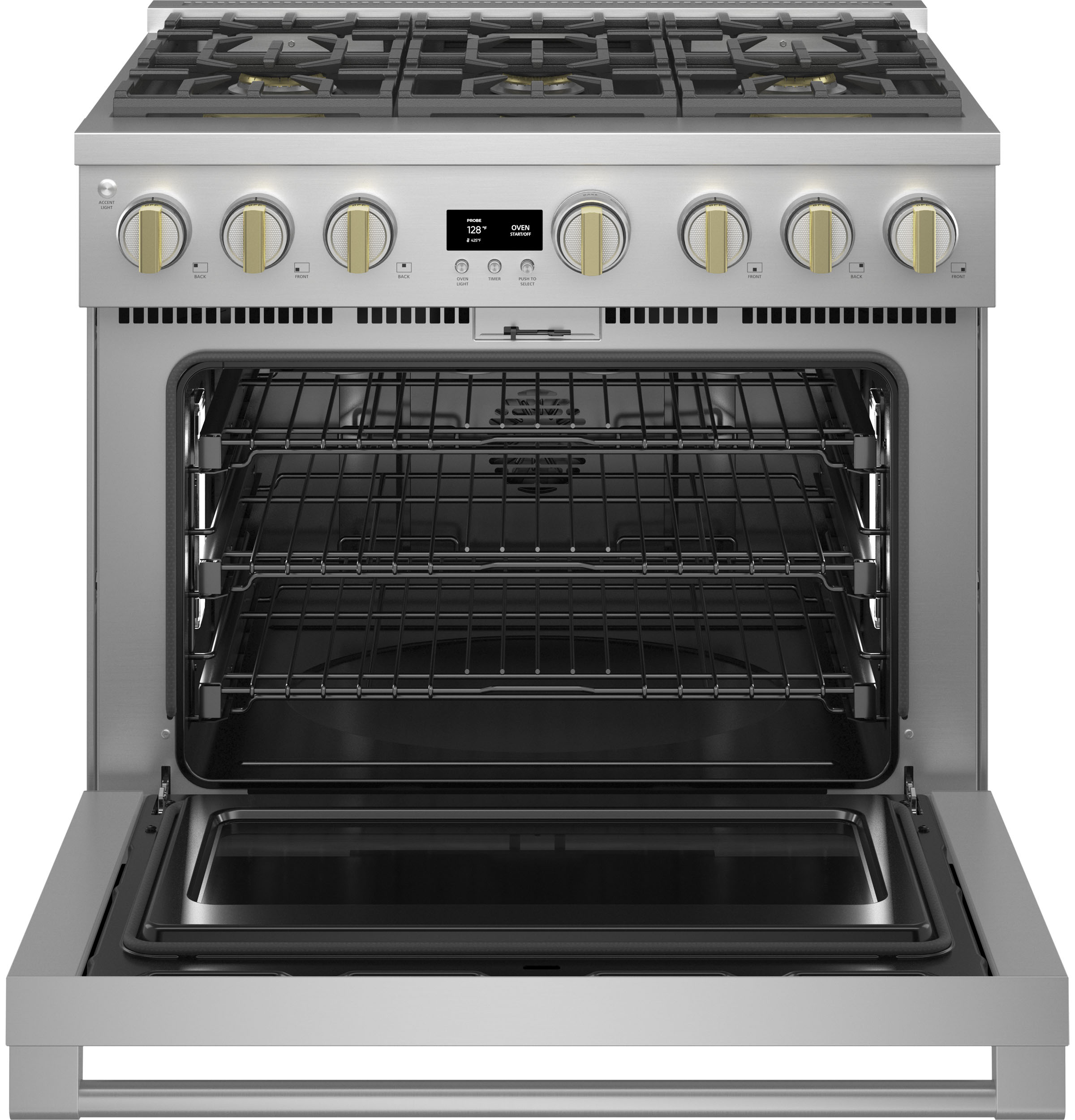

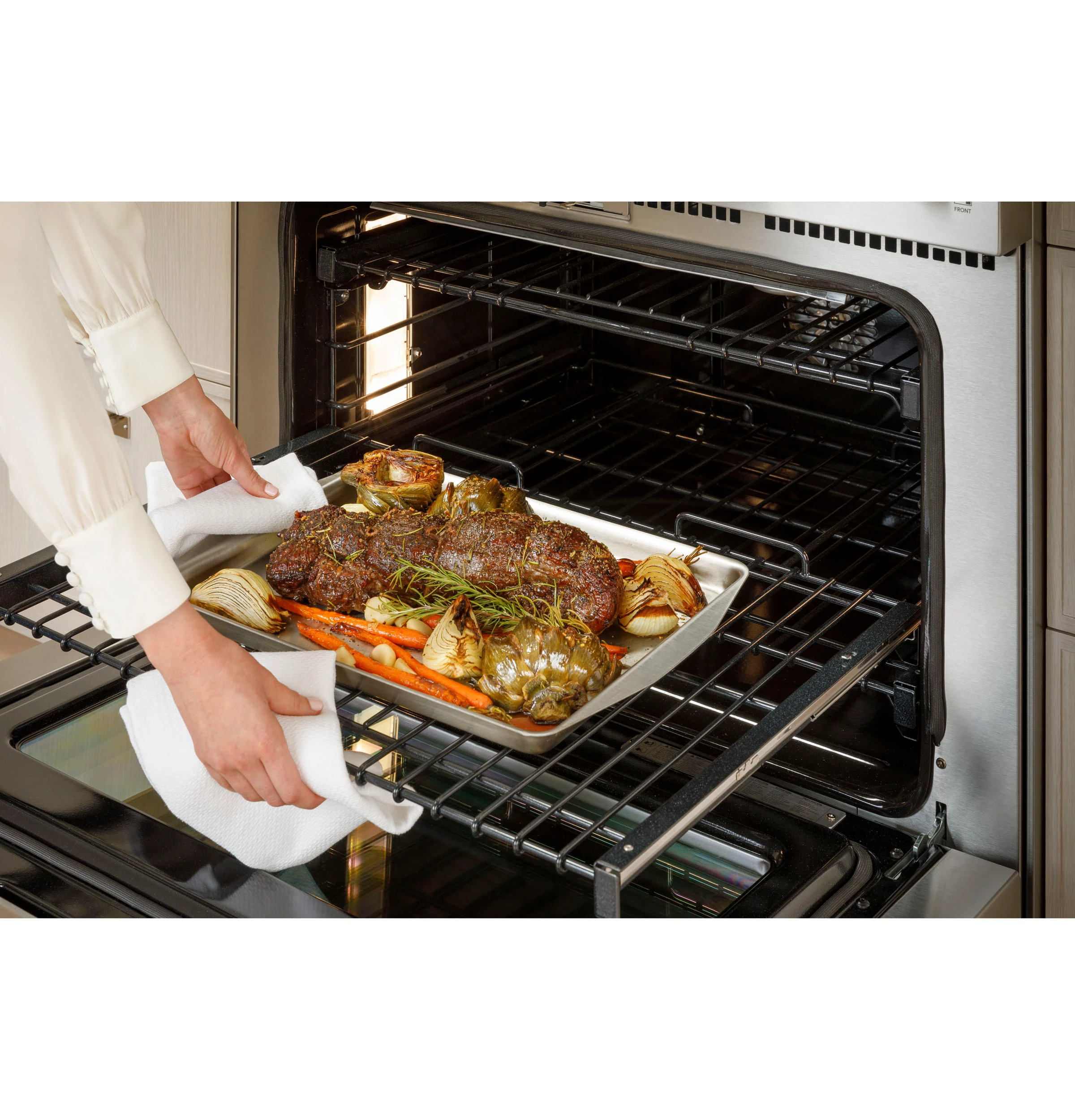

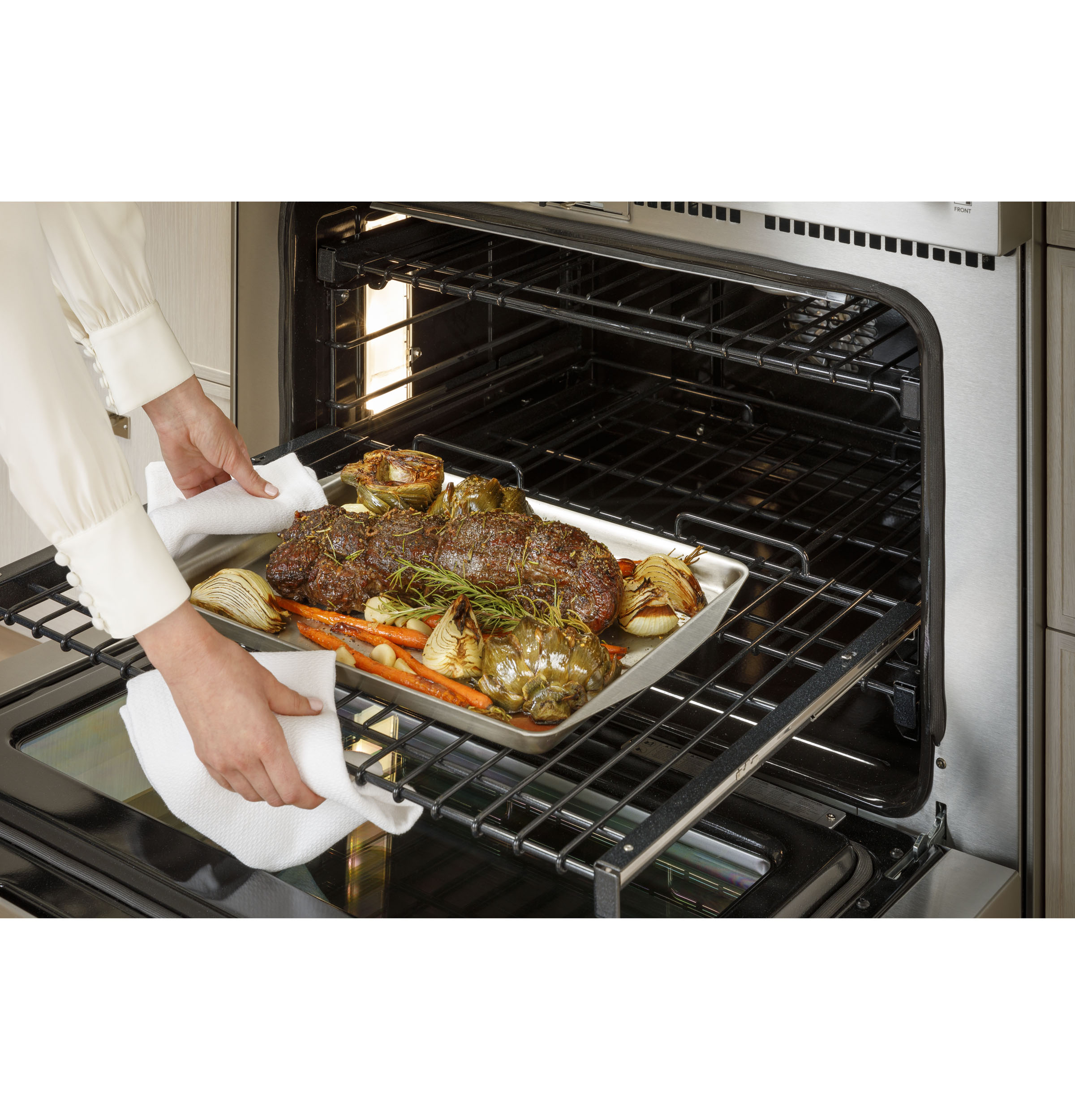

3 Full-Extension, Smooth-Glide, Self-Clean Oven Racks
Self-clean oven racks glide smoothly in and out on stainless steel ball bearings for easy access and are designed to remain in the oven during the self-clean cycle

Precision Oven Modes with SmartHQ(TM) app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments



Product Features

  • 3 Full-Extension, Smooth-Glide, Self-Clean Oven Racks
    Self-clean oven racks glide smoothly in and out on stainless steel ball bearings for easy access and are designed to remain in the oven during the self-clean cycle

Key Features

Versatile Gas Burner Configuration

Delivering exceptional cooking flexibility, the two 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

3-Piece Grates with Reversible Wok Feature

Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

WiFi Monitoring and Remote Control with the SmartHQ app

Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

Dynamic Oven LCD

Functional and stylish, the LCD shows which oven mode is currently in use and other helpful information, like oven temperature, timer and probe temp

Solid Brass Burners

Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

Industry Exclusive—Custom Color LED Accent Lighting

For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance

Chef Connect

Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

Ring-Lit Knobs

Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

Soft-Close Hinges

Specially designed, soft-close hinges ensure that the oven door always closes smoothly and quietly for a new level of kitchen refinement

Solid Brass Blades on Precision Machined Knobs

With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

Seamless Stainless Top Frame

Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

Precision Oven Modes with SmartHQ app

Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

WiFi Monitoring and Remote Control with the SmartHQ™ app

Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

Precision Oven Modes with SmartHQ™ app

Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments
