Sale price $11,700.00 Regular price $14,435.97 Save $2,735.97 / 18% OFF

Product Details for MONOGRAM ZDP364NDTSS

Technical Details

Weights & dimensions

Overall Width 35.875 in
Overall Height 35.25 in
Overall Depth 28.5 in
Cabinet Width 36 in
Height w/Legs Extended - Maximum Height 36.75 in
Approximate Shipping Weight 462
Net Weight 417
Height to Cooking Surface (in.) 35.25 - 36.75
Height w/ Legs Retracted - Minimum Height 35.25 in

Features

Cooking System True European Convection
Cleaning Time 3-5 Hours
Ignition System Electronic w/Auto Reignition
Oven Control Features WiFi Connect

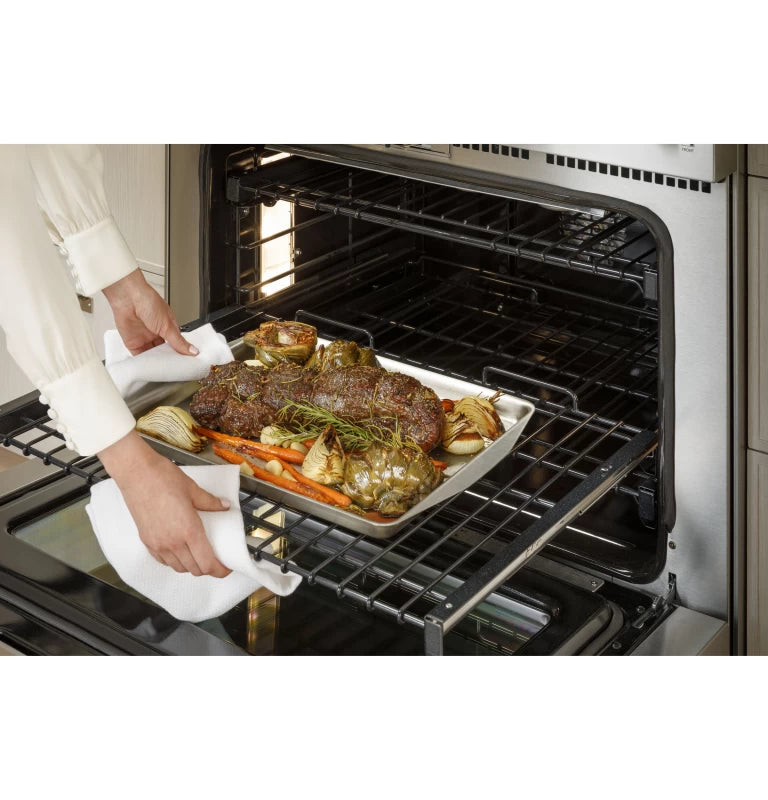

Oven Rack Features Full-Extension
Convection Roasting Rack Yes
Broiler Pan and Grid Yes
Oven Cleaning Type Steam Clean
Griddle Thermostatically Controlled
Connected Capabilities The Google Assistant
Product Type Professional Range
140 Deg. Simmer Burner All Burners - Adjustable
Cooktop Type Griddle
Indicator Lights Burner "On"
Fuel Type Dual Fuel (with natural gas)

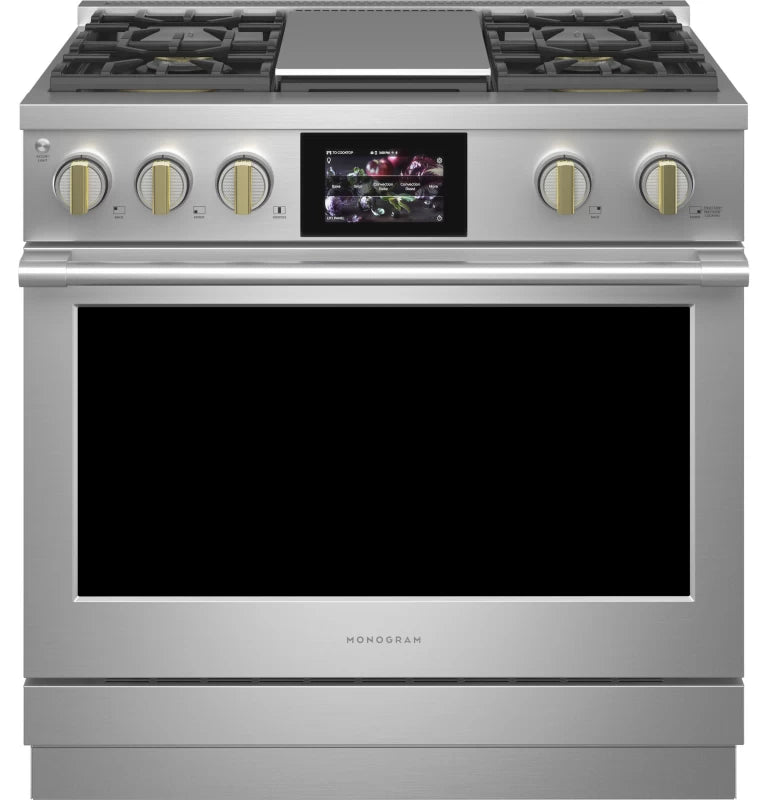

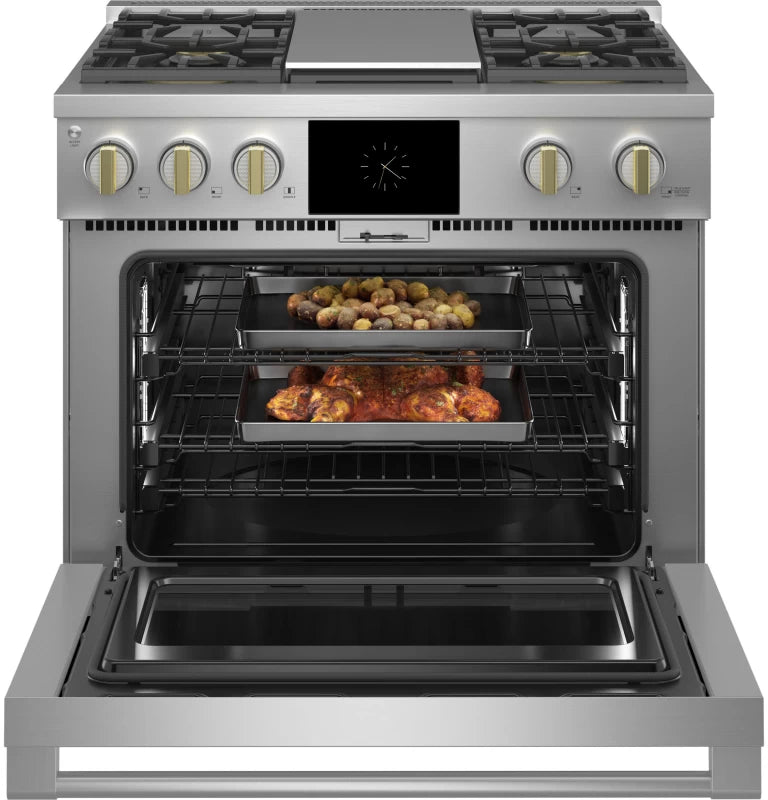

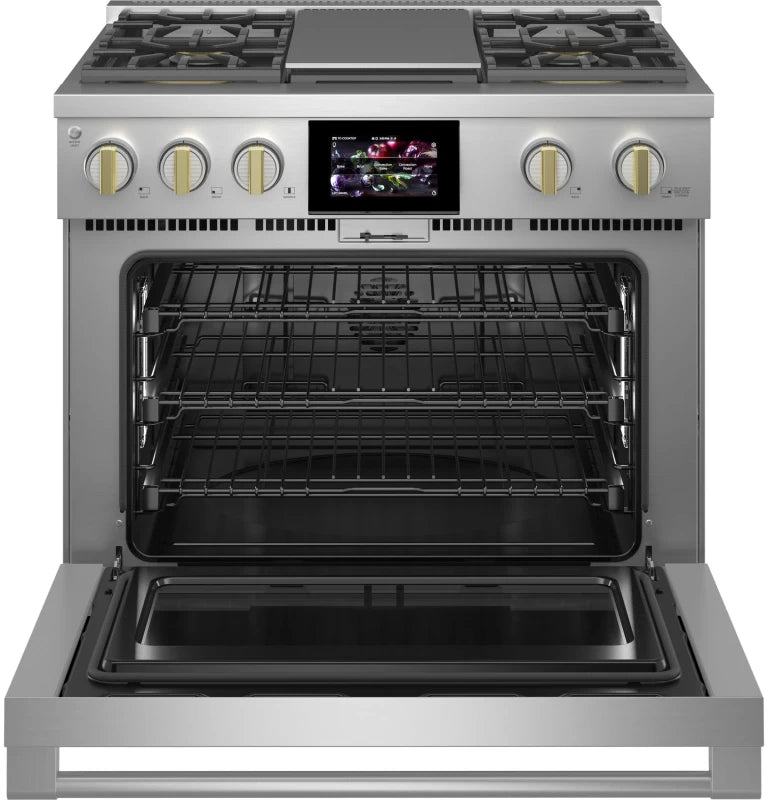

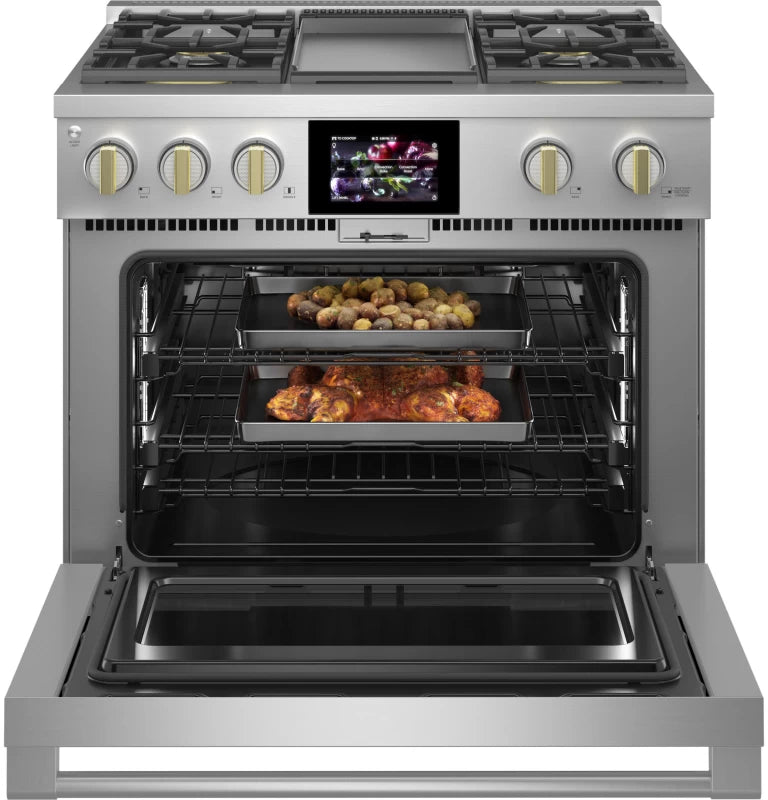

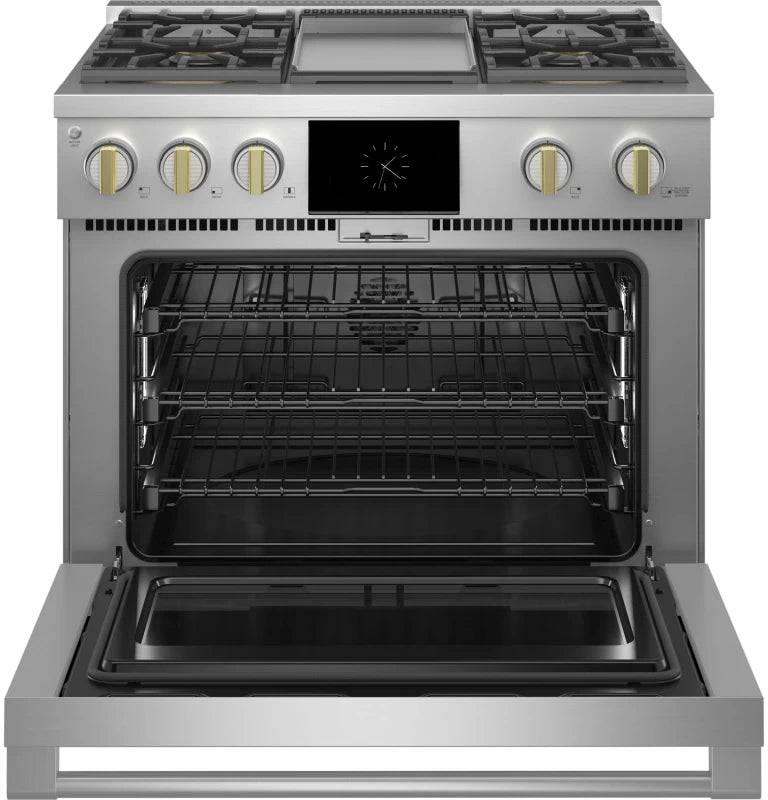

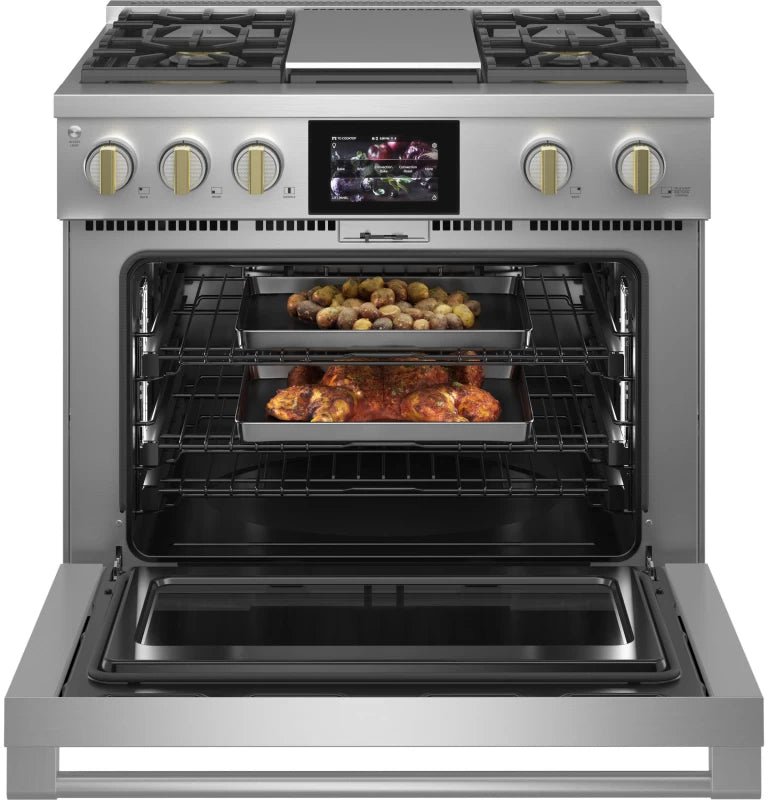

Short Description 36" Pro Range - Dual Fuel with 4 Burners and Griddle
Interior Oven Light 6 Halogen Lamps (Caterer Oven)
WiFi Connect Built-In
Extra Low Simmer All Burners - Adjustable
Cooktop Burner Grate Features Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Control Type with Timer Display
Lighting Customizable LED Bullnose and Knob Accent Lighting
Collection Statement
Cooking Technology Convection
Oven Features Hidden Bake
Oven Cooking Modes Warming
Cooktop Burner Type Front Right TrueTemp™ Burner
Removable Grease Trough (1) Beneath Griddle
Cooktop Surface Porcelain-Enamel
Stainless Steel Grill / Griddle Covers 1
Oven Rack Positions (Single or Upper/Lower) 5
Self-Clean Oven Door Lock Automatic
Collection Designer,Statement
Connected Capabilities Hestan Cue,Bluetooth,Amazon Alexa,Fresco,IFTTT,Innit,The Google Assistant,Sonos,Google Home
Control Type 7 Full-Color Touch LCD Screen,Digital Temperature Display,with Timer Display
Cooking System True European Convection,Reverse Air Convection
Cooking Technology Convection,Dual Fuel (with natural gas)
Cooktop Burner Grate Features Continuous Grates,Porcelainized Cast Iron 3-Piece Reversible (Flat/Wok) Grates
Cooktop Burner Type 2 Sealed, Dual Flame Stacked,2 Sealed, Dual Flame Stacked (Removable Brass Accents),Front Right TrueTemp™ Burner
Cooktop Type 4 Burners,Griddle
Fuel Type Dual Fuel (with Natural Gas)
Griddle 18,000-BTU,Thermostatically Controlled,Stainless Steel and Aluminum Clad
Indicator Lights Burner On
Oven Cleaning Type Self-Clean,Steam Clean
Oven Control Features Sabbath Mode,Delay Clean Option,Proof Mode,WiFi Connect,Chef Connect,Audible Preheat Signal,Timer,Self & Steam Clean Modes,Probe Mode,Remote Enabled,12-Hour Shut-Off Capability,C° or F° Progr
Oven Cooking Modes Convection Bake Multi-Rack,Convection Broil Hi/Lo,Convection Roast,Warming,Proof,No-Preheat Air Frying,Precision Cooking Modes
Oven Features Hidden Bake,8-Pass Bake Element,8-Pass Broil Element
Oven Rack Features 3 Self-Clean Oven Racks,Full-Extension
Short Description 36 Pro Range - Dual Fuel with 4 Burners and Griddle

Accessories

Air Fry Basket Optional- JXAFTRAY1VSS
30/36" Monogram Knob Kit ZXPR36KKTSS (SS, qty. 9)
Optional Backguard 30"-36" adjustable stainless steel backsplash with warming shelf (UXADJB36PSS)
High Altitude Kit Natural Gas: WB28X39726; LP: WB28X39727
Multi Ring Burner Caps (Brass) Included
LP Conversion Kit Included
Multi Ring Burner Caps (Black) Included
30/36 Monogram Knob Kit ZXPR36KKTSS (SS, qty. 9)
Optional Backguard 12 stainless steel backsplash (UX12B36PSS),30-36 adjustable stainless steel backsplash with warming shelf (UXADJB36PSS)

Power / ratings

Top Burner BTU Rating - Nat. Gas (000's BTU's) (1) 23.0; (1) 21.0; (2) 15.0
Electrical Requirements 240VAC; 30A
Top Burner BTU Rating - LP (000's BTU's) (2) 21.0; (2) 12.0
Broiler Wattage 4000W
Convection Wattage 2500W
Griddle BTU Rating (000's/BTU) - LP Gas 16.0
Bake Wattage 2700W
Griddle BTU Rating (000's/BTU) - Natural Gas 18.0
Hertz 60

Appearance

Toe kick Included

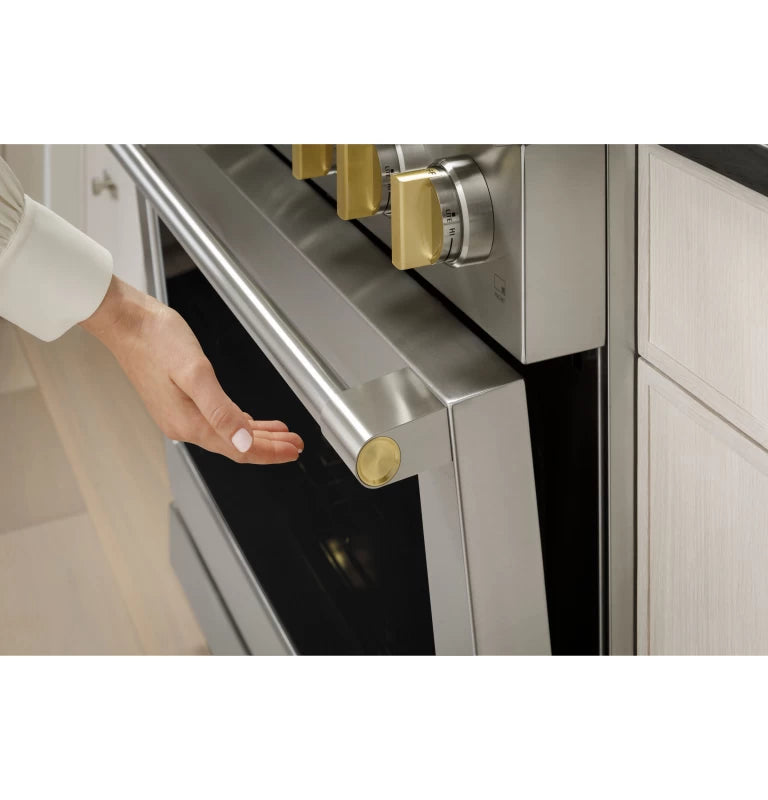

Oven Door Features Soft Close Door
Design Style Statement Collection
Control Knobs Stainless Steel with Brass Accents
Color Appearance Stainless Steel
Control Knobs Diecast Metallic (Included),Stainless Steel with Brass Accents

Capacity

Total Capacity (cubic feet) 5.75 cu ft

Warranty

Parts Warranty Limited lifetime of oven racks
Labor Warranty Limited 2-year entire appliance
Warranty Notes See written warranty for full details
Parts Warranty Limited 2-year entire appliance,Limited 5-year gas surface burners,Limited lifetime of oven racks

Dimensions & weight

Width 35.88 in.
Height 35.25 in.
Length 28.5 in.
Weight 417 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes 1
Shipping Width 40.88 in.
Shipping Height 40.25 in.
Shipping Length 33.5 in.
Shipping Weight 457 lbs.
Total of Shipping Weight 457 lbs.
Source Calculation

Cubic feet measurement & dimensional weight

Cubic Feet Measurement 20.86 ft³
Dimensional Weight 259.29 lbs.
Total of Cubes 20.86 ft³
Total of Dimensional Weight 259.29 lbs.

Description

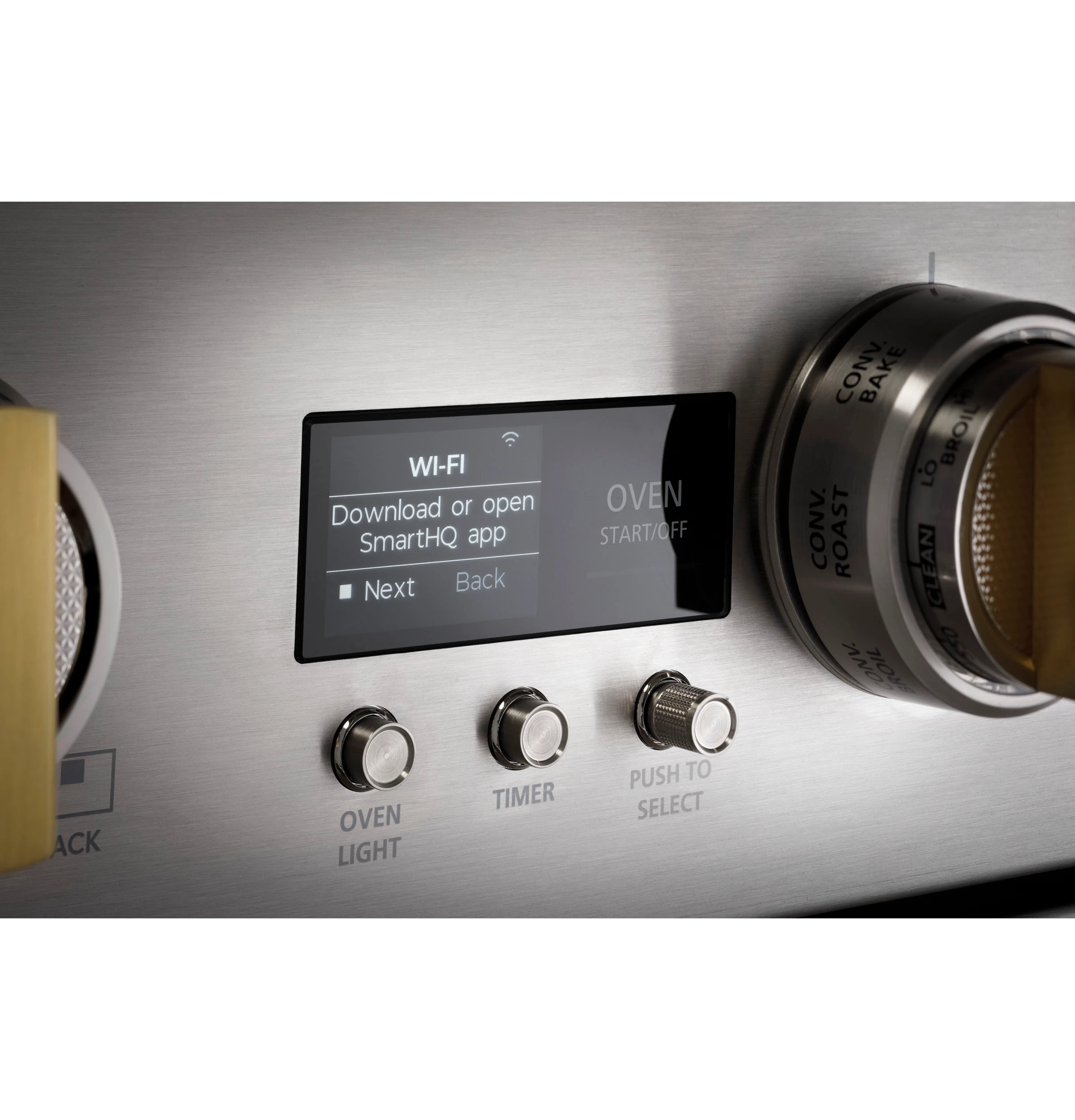

Built-In WiFi, Powered by SmartHQ(TM) app
Perfectly in sync with your busy lifestyle, connect, control, and manage your oven from anywhere with your smartphone or tablet

Better When Connected
Downloadable upgrades ensure your oven is always enhanced with the latest features, like Air Fry and Precision Cooking Modes

Industry Exclusive-TrueTemp(TM) Burner
This powerful 21,000 BTU gas burner offers a precision temperature-management system that works with Hestan Cue(TM) cookware for a consistently delicious cooking experience.Hestan Cue cookware comes free if you register and connect your appliance through the SmartHQ app

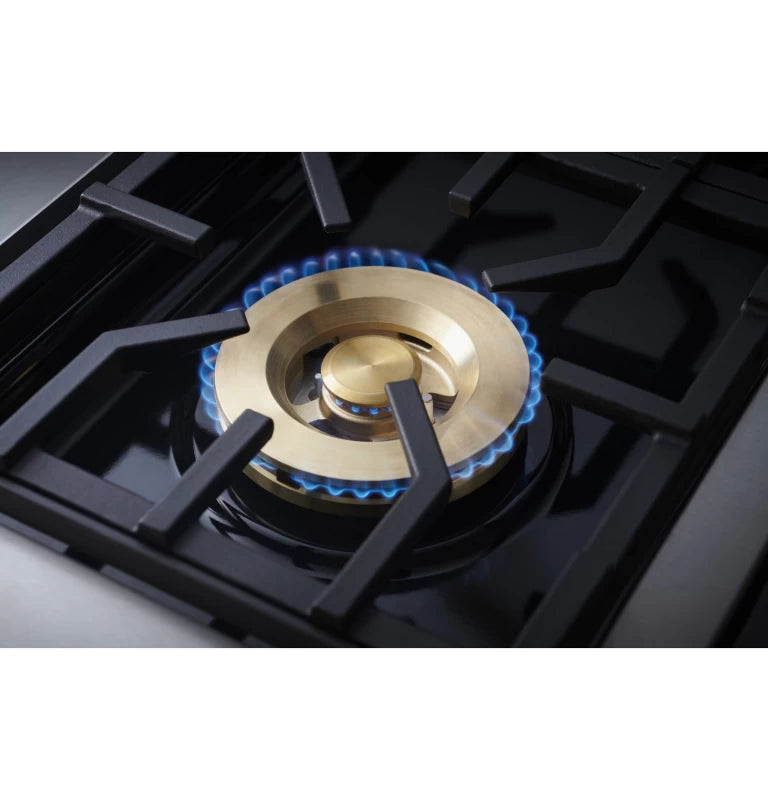

Versatile Gas Burner Configuration
Delivering exceptional cooking flexibility, the 21,000 and 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

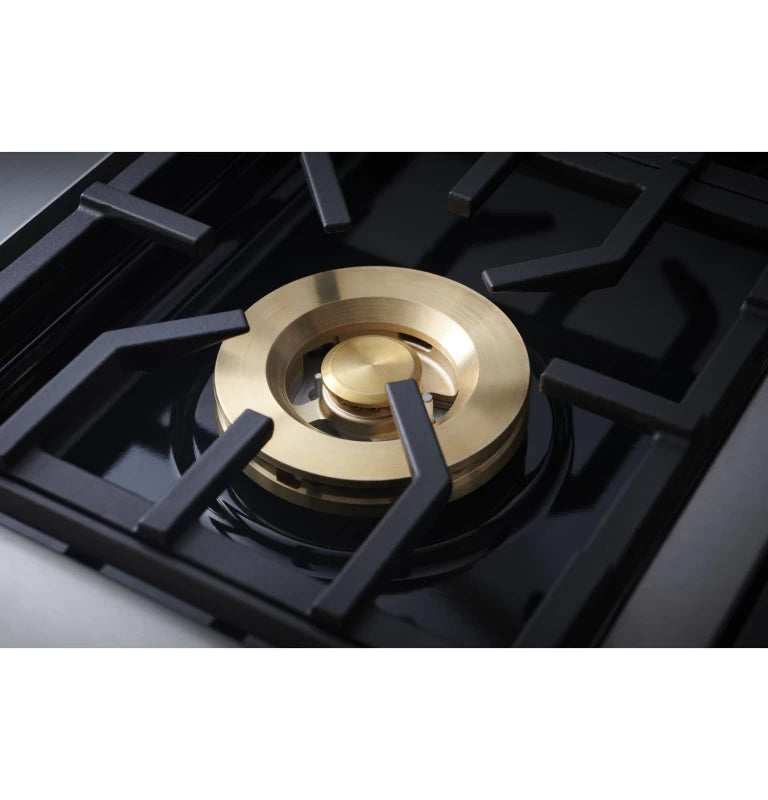

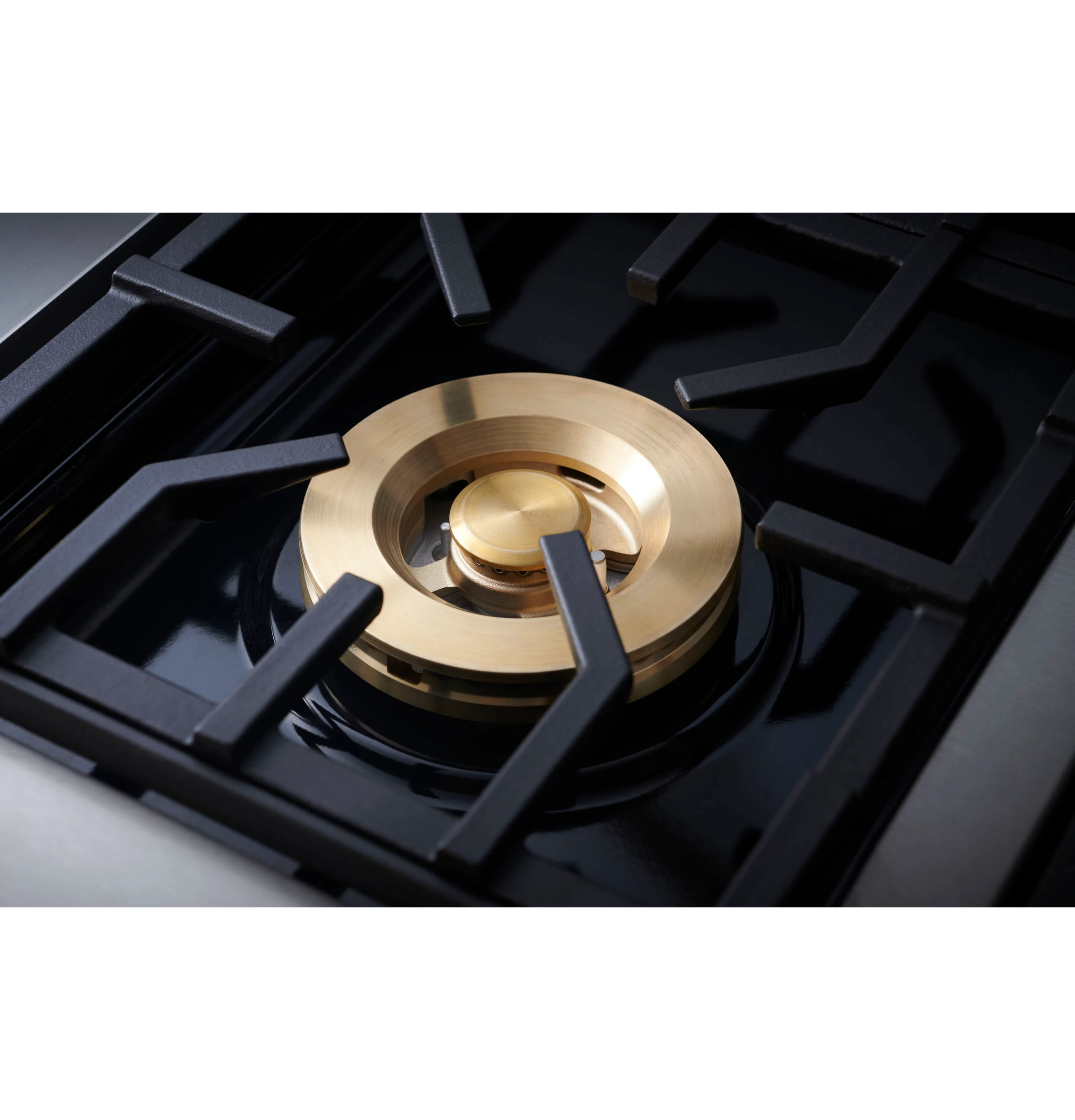

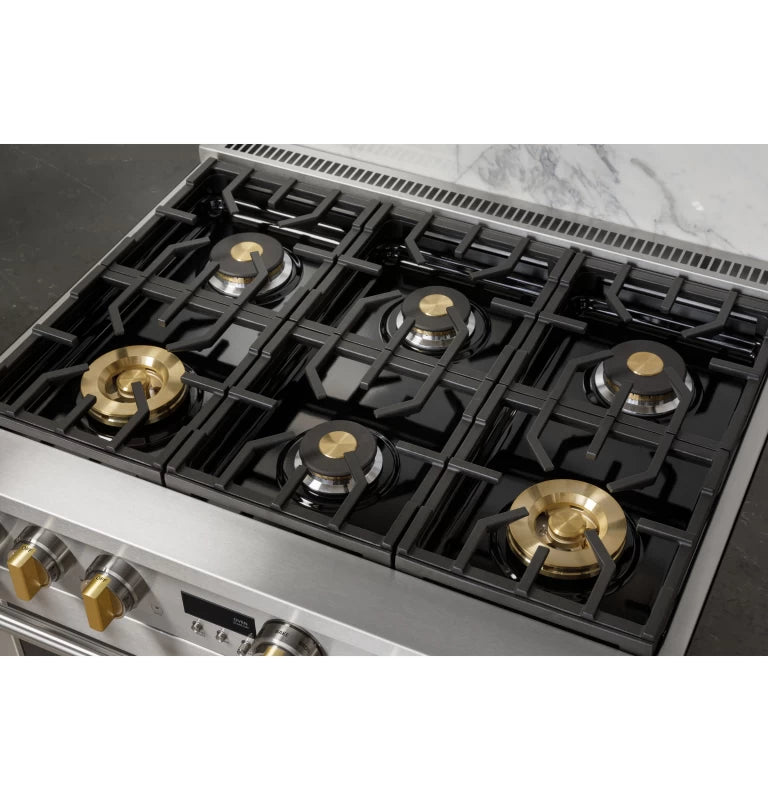

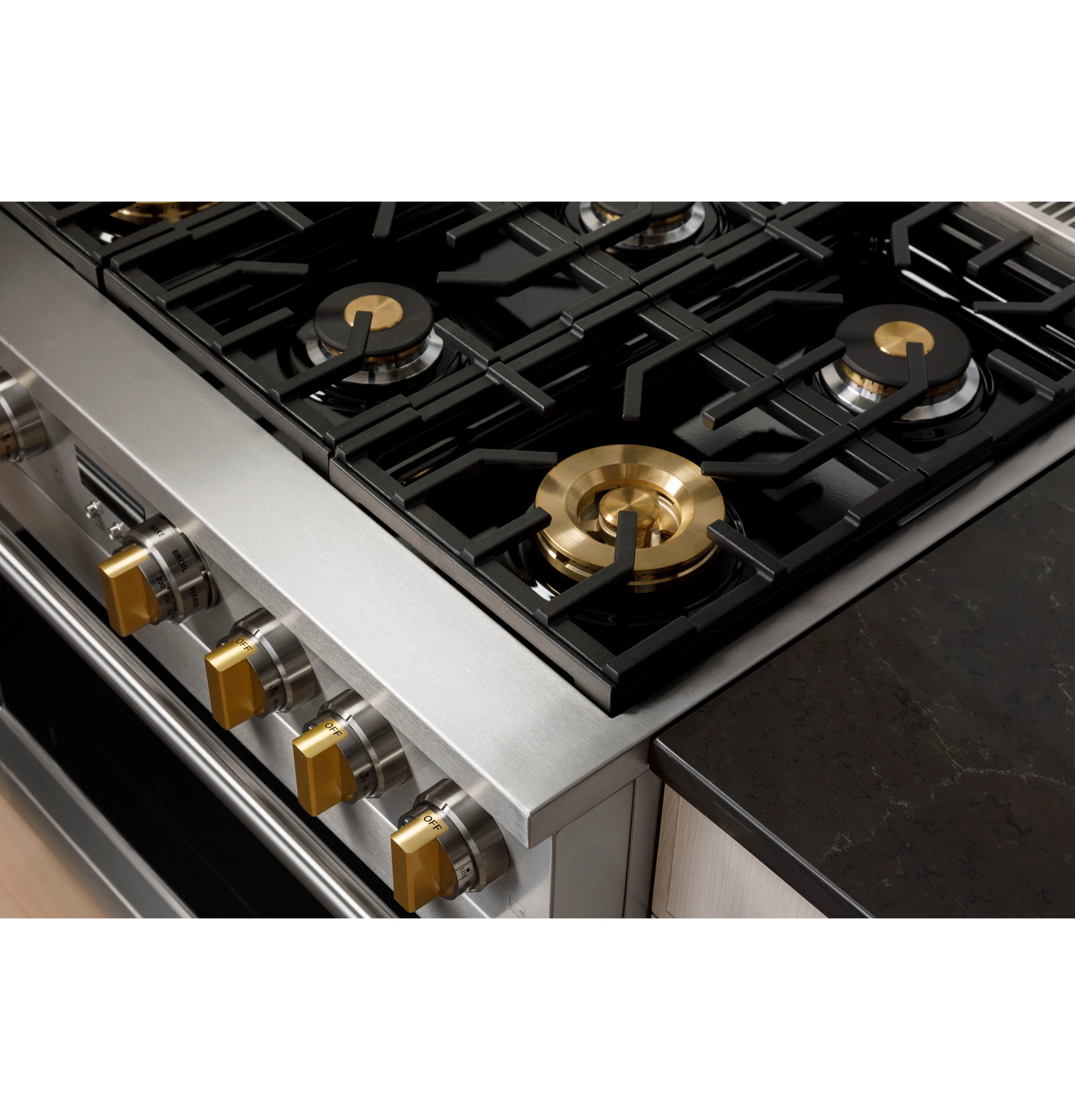

Solid Brass Burners
Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

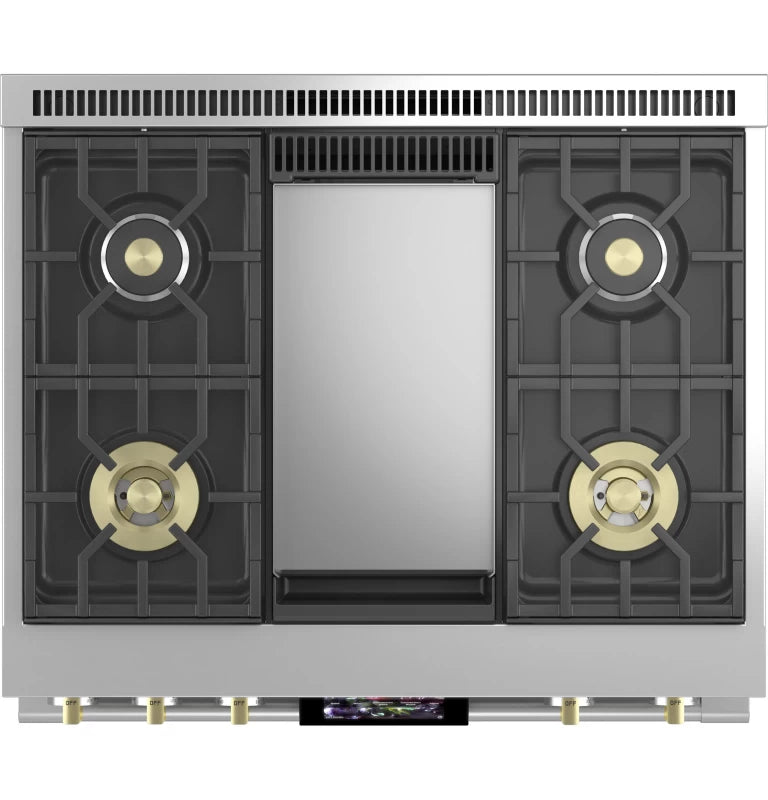

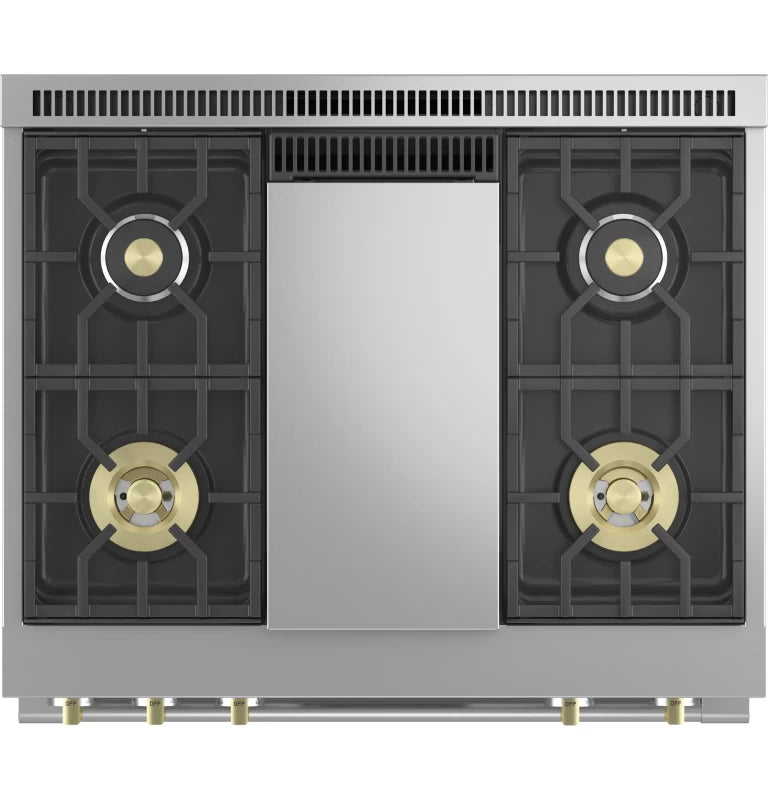

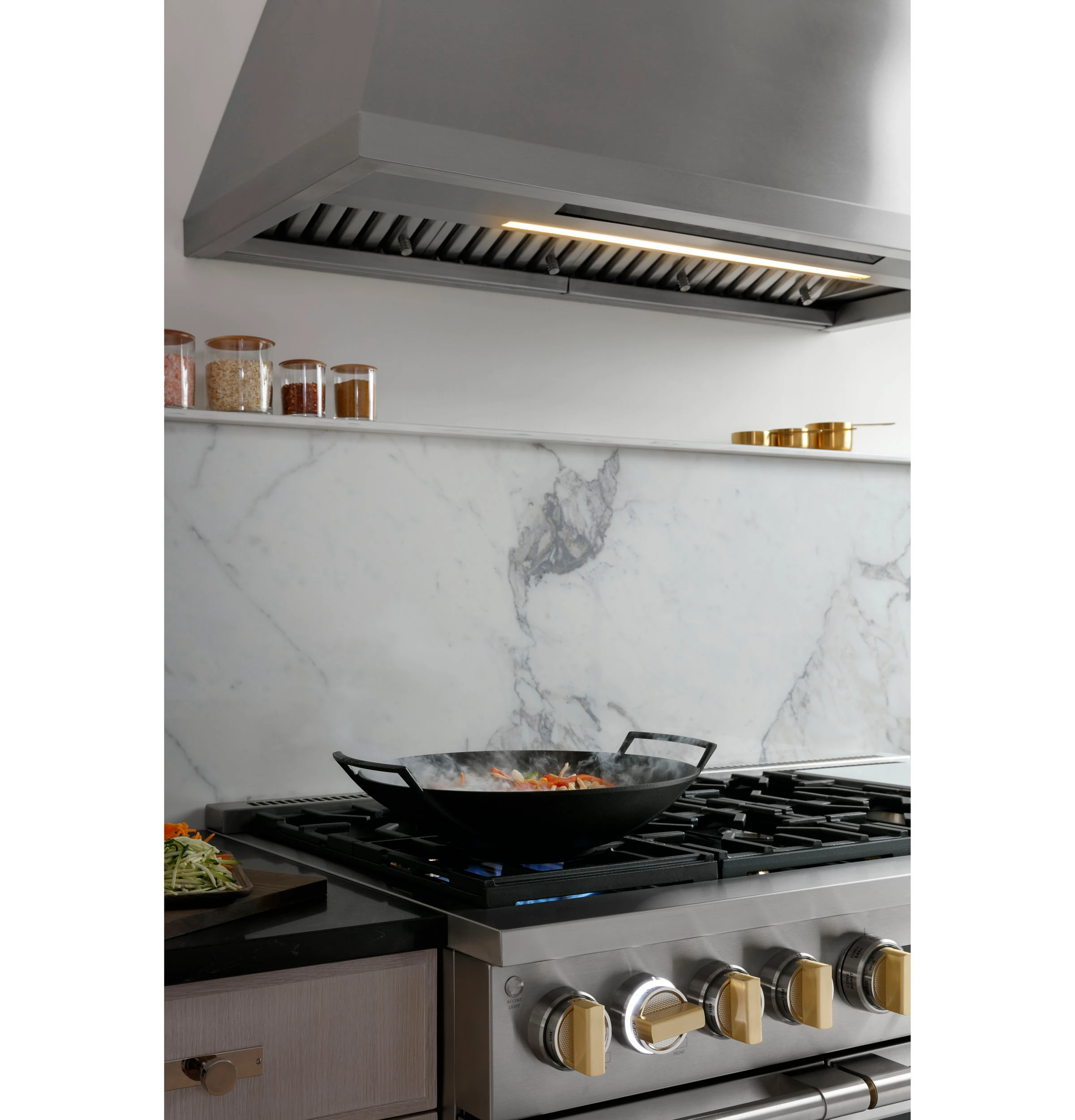

3-Piece Grates with Reversible Wok Feature
Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

Hot Air Fry
A must-have for health-conscious cooks, the Hot Air Fry mode crisps food to crunchy perfection, without using oils or butter

Precision Oven Modes with SmartHQ(TM) app
Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

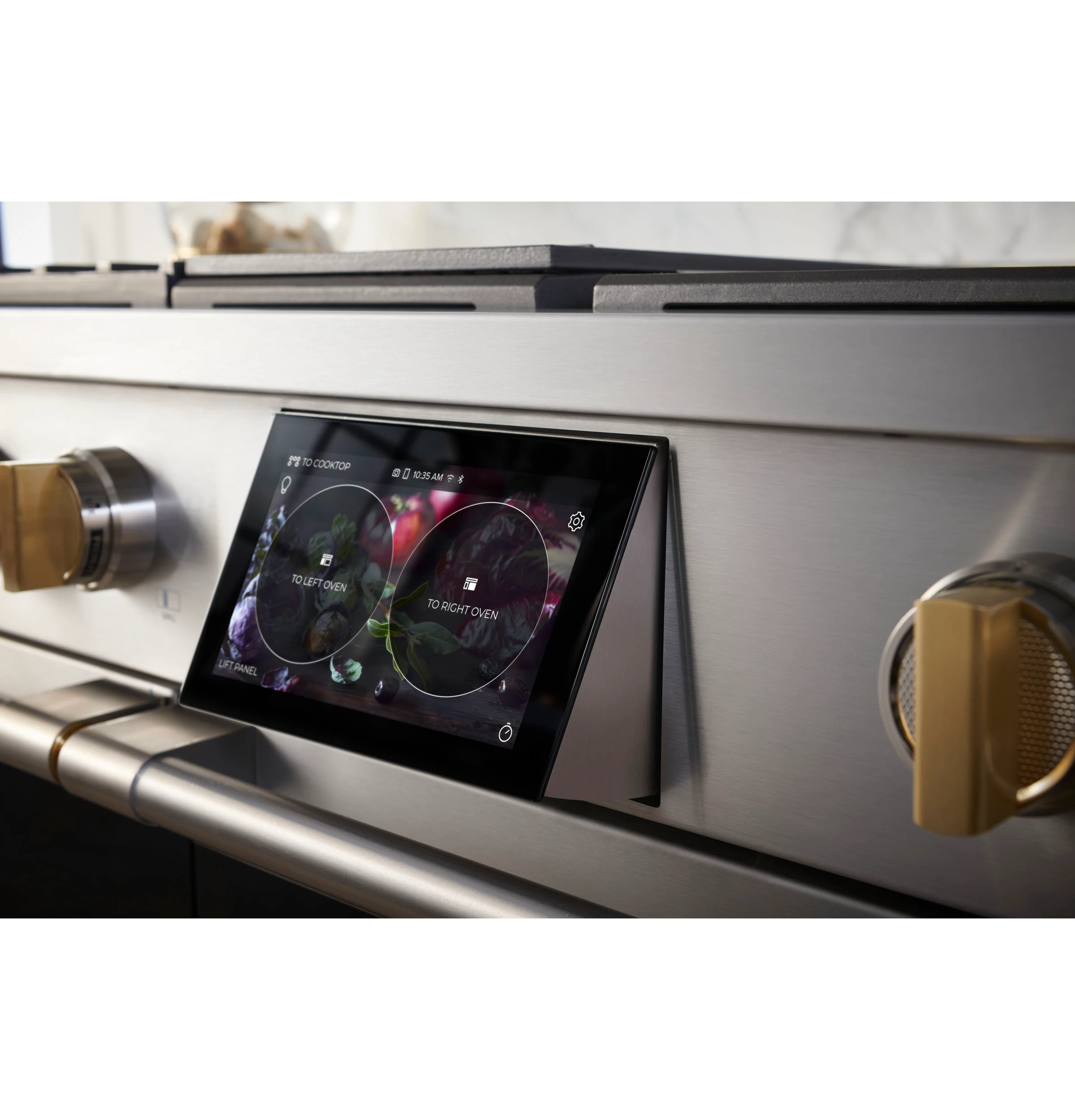

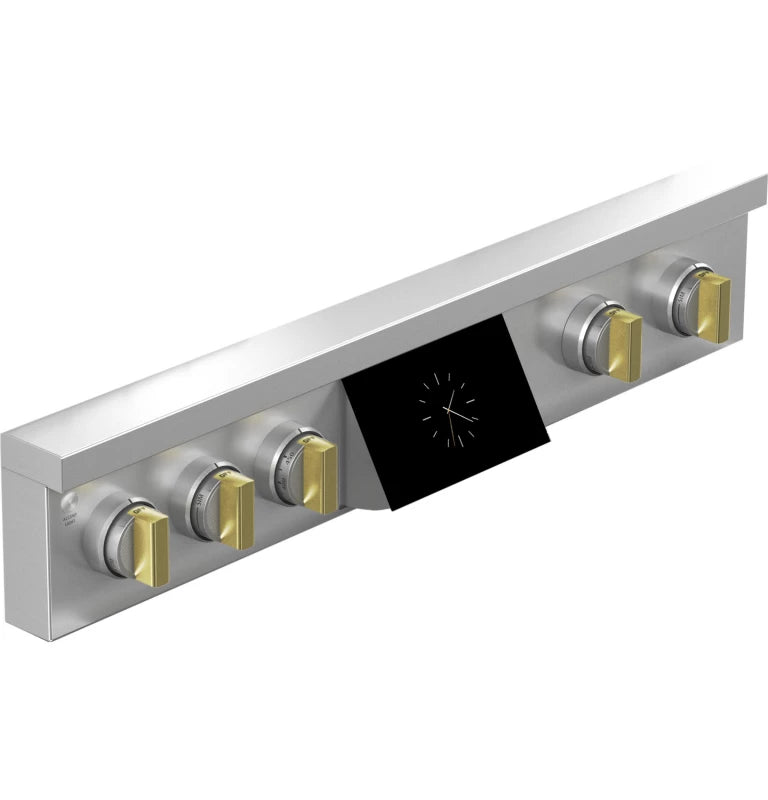

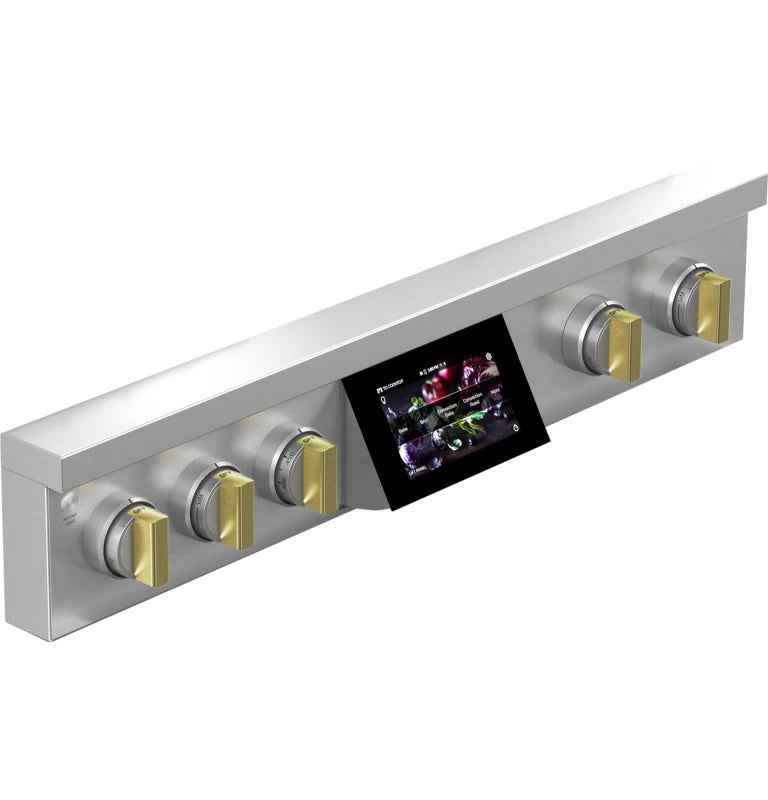

Articulating 7" Touch LCD Control
With just a touch, this intelligently designed LCD swings out toward the user for a more ergonomic experience and then moves back flush with the control panel when not in use

WiFi Monitoring and Remote Control with the SmartHQ(TM) app
Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

Chef Connect
Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

Industry Exclusive-Custom Color LED Accent Lighting
For an elevated level of luxury, use the SmartHQ(TM) app to customize the accent lighting color and brightness to perfectly match kitchen d(eback)cor or dining ambiance

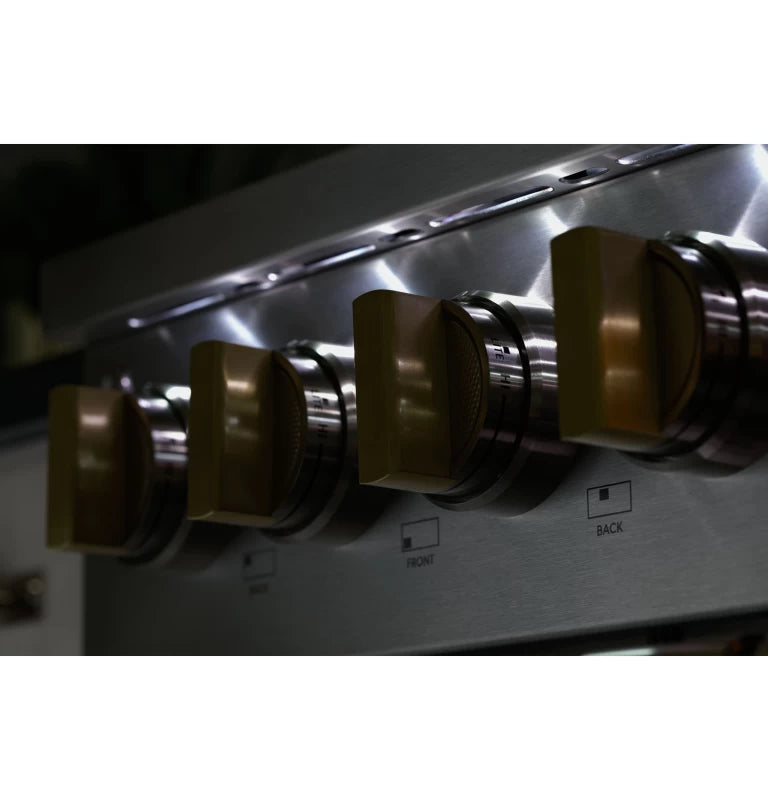

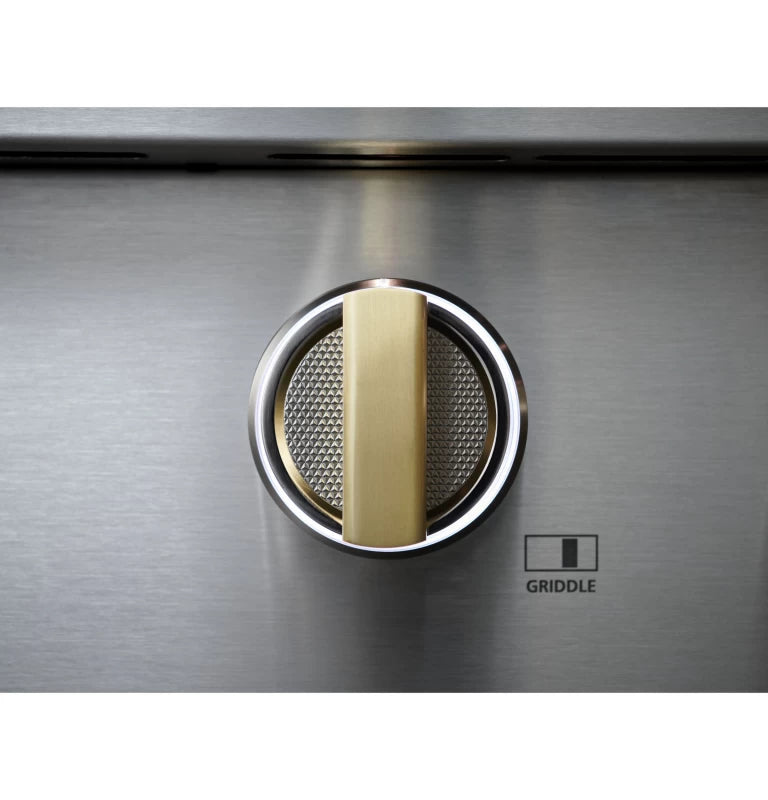

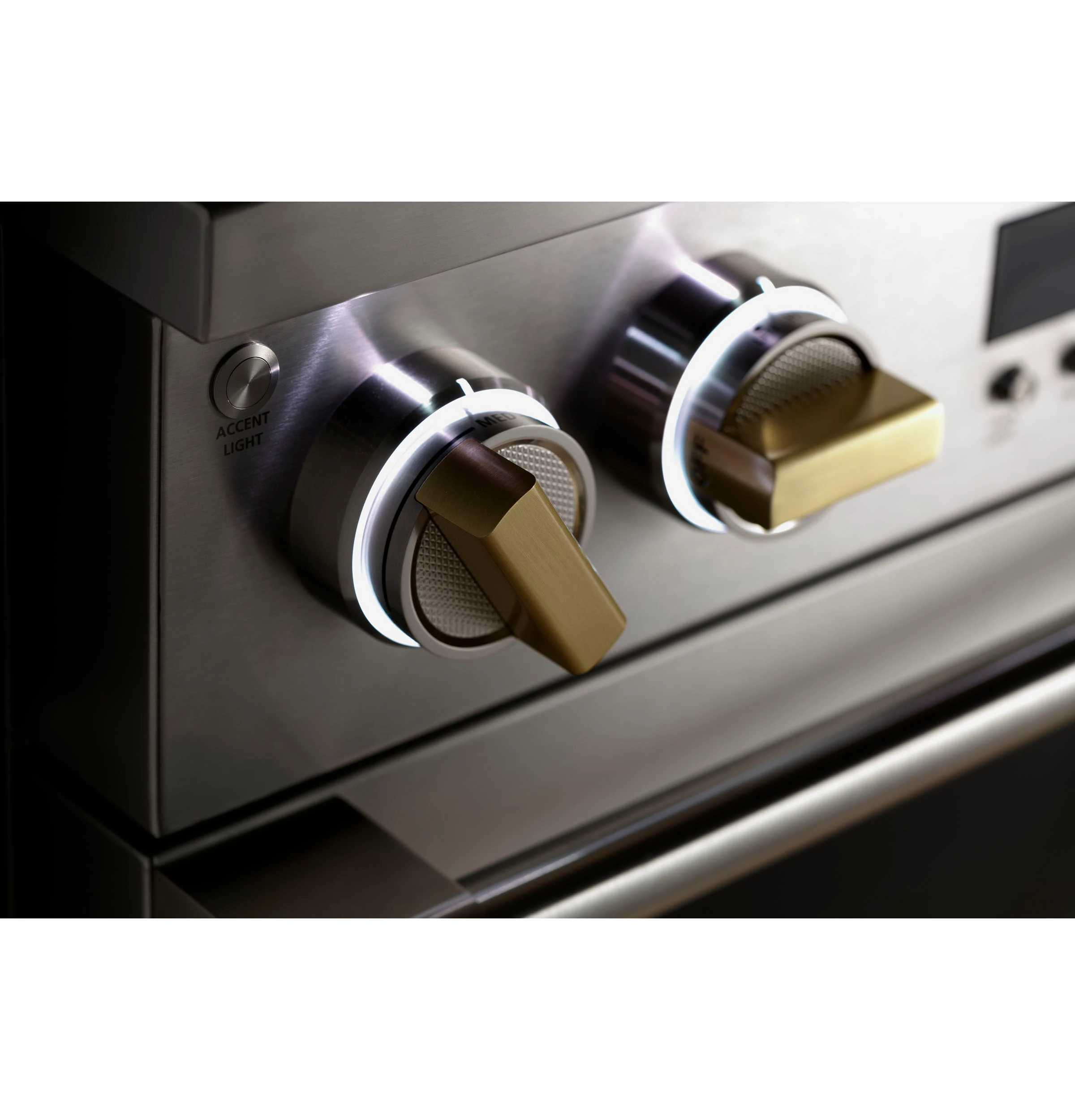

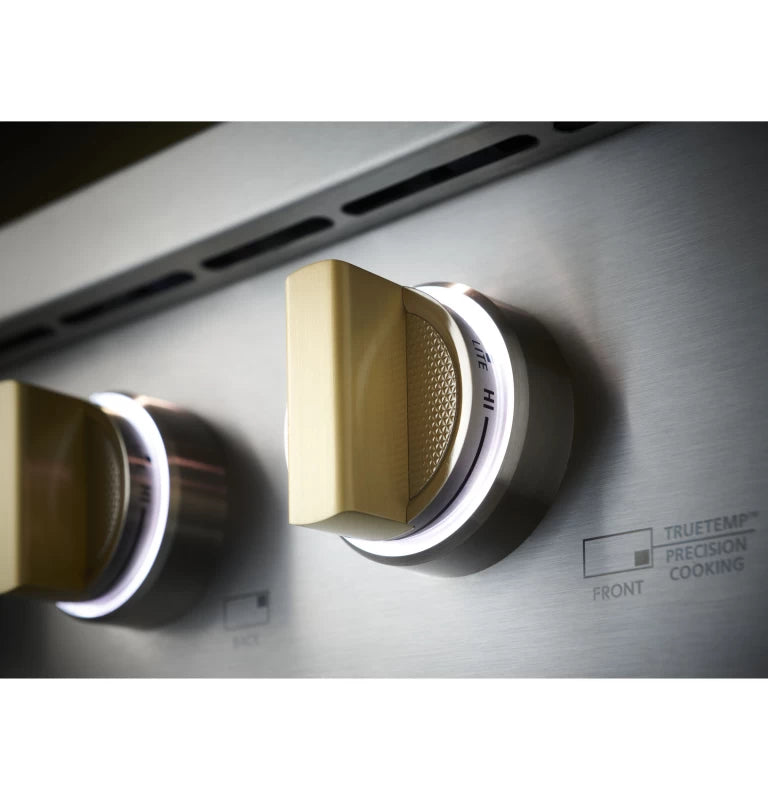

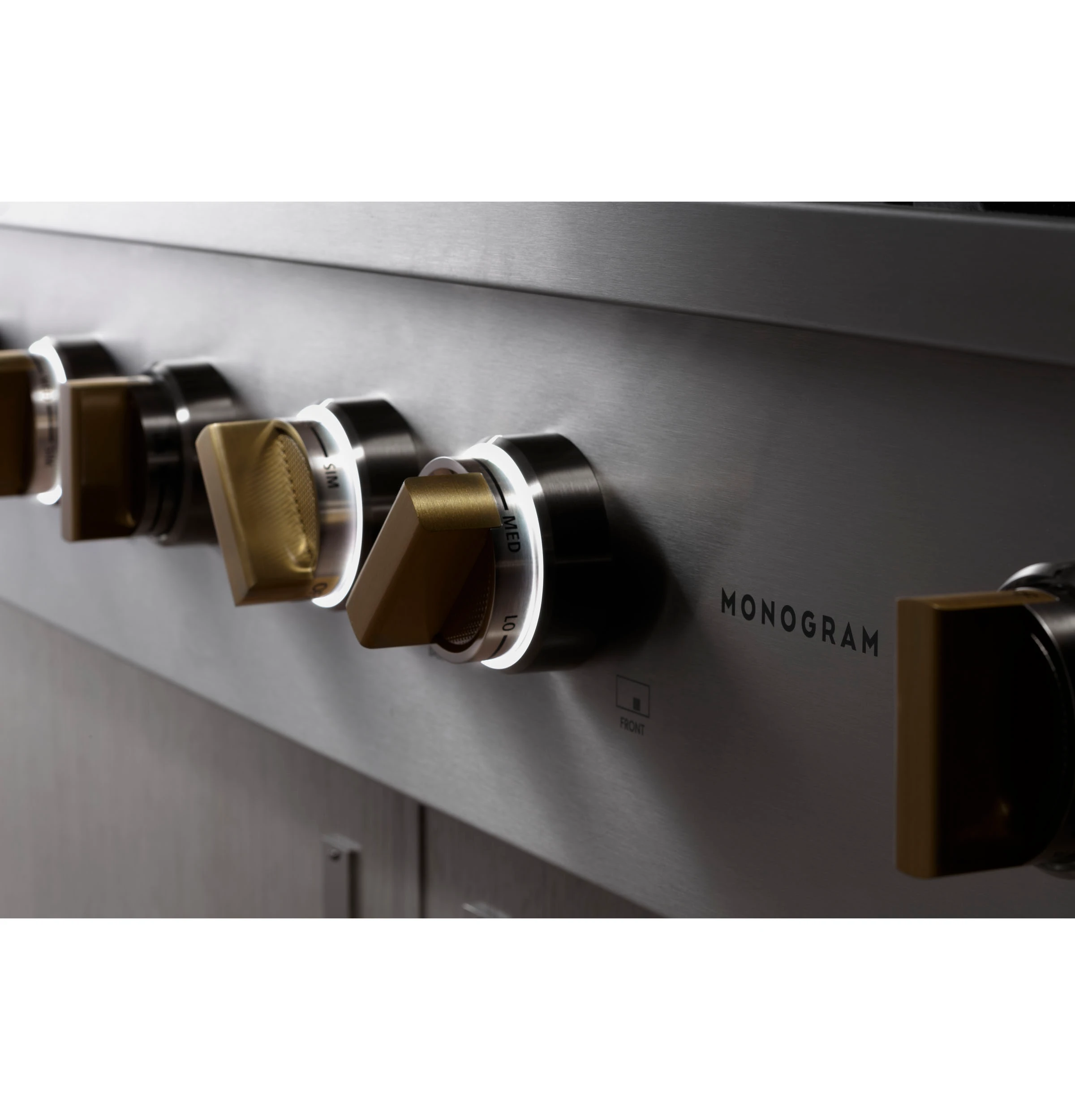

Ring-Lit Knobs
Delivering a modern approach to customization, the SmartHQ(TM) app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

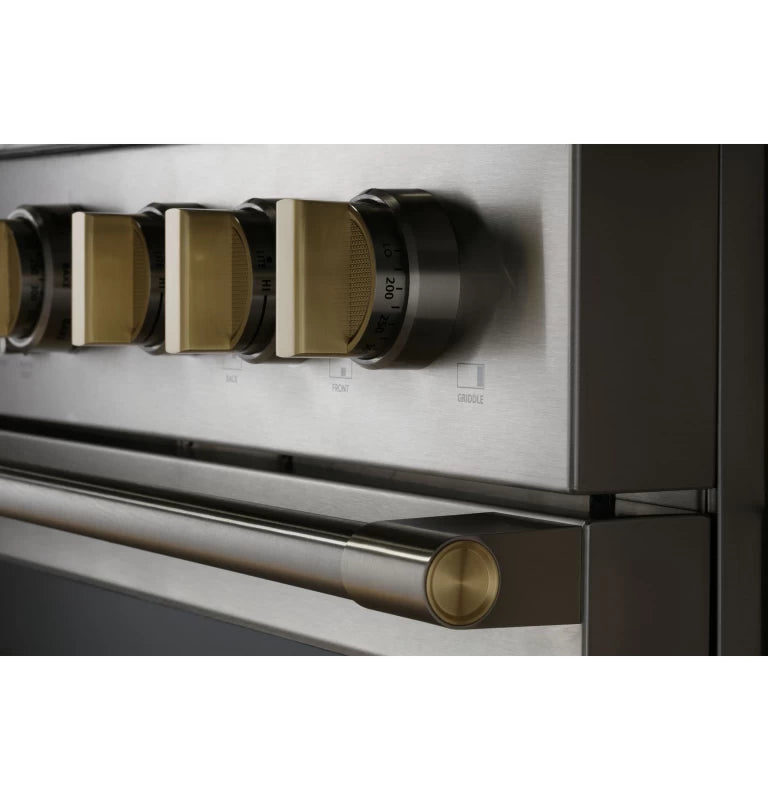

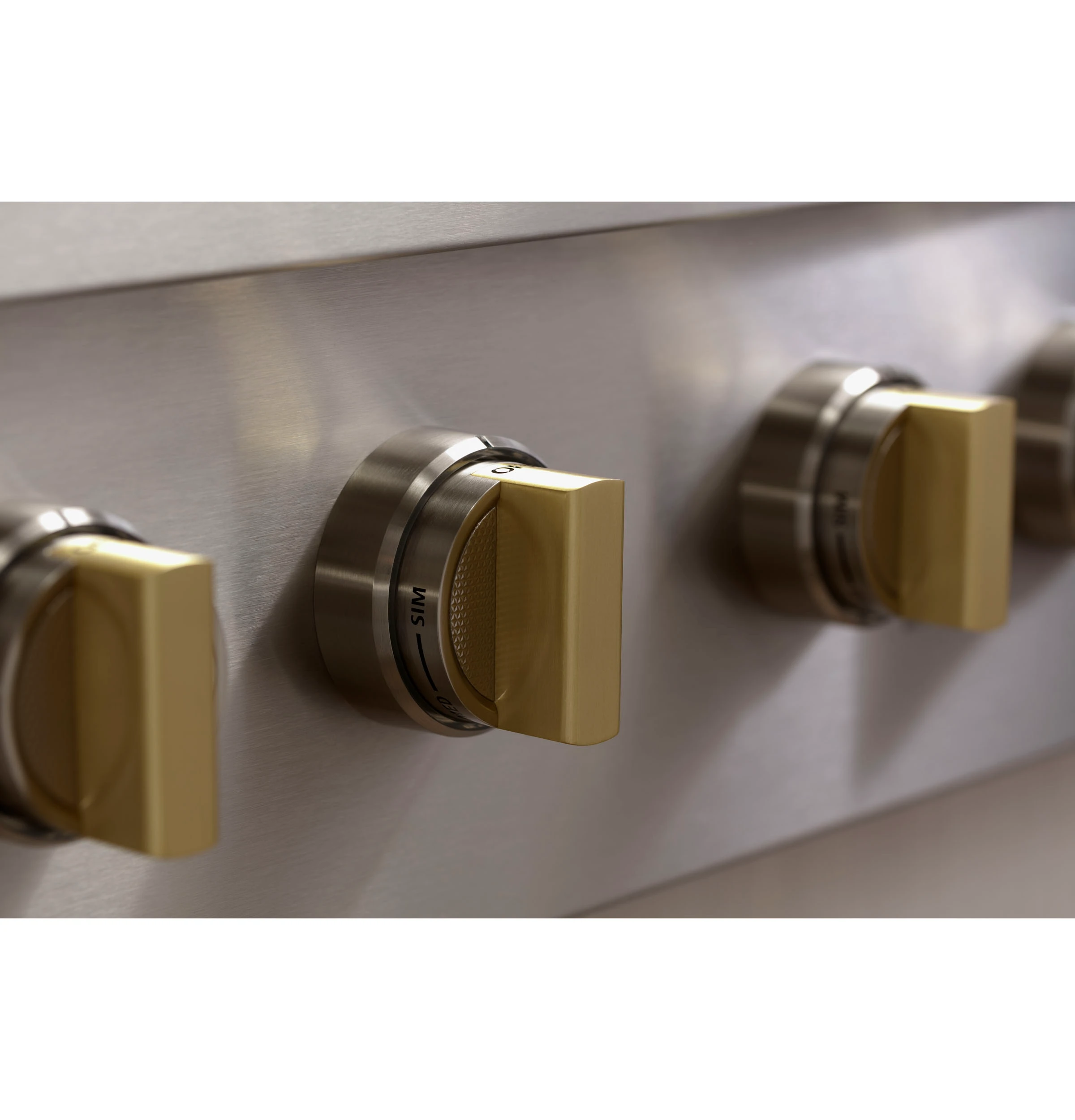

Solid Brass Blades on Precision Machined Knobs
With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

Seamless Stainless Top Frame
Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

Key Features

Built-In WiFi, Powered by SmartHQ app

Perfectly in sync with your busy lifestyle, connect, control, and manage your oven from anywhere with your smartphone or tablet

Better When Connected

Downloadable upgrades ensure your oven is always enhanced with the latest features, like Air Fry and Precision Cooking Modes

Versatile Gas Burner Configuration

Delivering exceptional cooking flexibility, the 21,000 and 23,000-BTU multi-ring brass burners and dual-stack burners offer a range of heat settings, from gentle simmer to intense flame

Solid Brass Burners

Monogram burners are constructed of 100% brass, embracing the natural thermal properties of this premium quality material. As they are exposed to heat, a natural patina will build up to protect the burners from corrosion and ensure that your brass burners will withstand even the highest temperatures

3-Piece Grates with Reversible Wok Feature

Reversible grates are easy to clean and complement different culinary techniques, with a flat side for traditional cooking and contoured side that perfectly holds round-bottom woks

Hot Air Fry

A must-have for health-conscious cooks, the Hot Air Fry mode crisps food to crunchy perfection, without using oils or butter

Precision Oven Modes with SmartHQ app

Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

WiFi Monitoring and Remote Control with the SmartHQ app

Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

Chef Connect

Stay completely connected with Chef Connect, the smart and convenient feature that can effortlessly synchronize a range of kitchen items such as surface lights and even the vent when the burners are on

Industry Exclusive—Custom Color LED Accent Lighting

For an elevated level of luxury, use the SmartHQ™ app to customize the accent lighting color and brightness to perfectly match kitchen décor or dining ambiance

Solid Brass Blades on Precision Machined Knobs

With an unmatched attention to detail, all knobs on the new Monogram Pro ranges and range tops come with solid brass accents

Ring-Lit Knobs

Delivering a modern approach to customization, the SmartHQ™ app allows for the range knobs to be set in any color you choose, indicating when a burner is on and showing the status of the oven

Seamless Stainless Top Frame

Meticulously crafted from one piece of stainless steel that covers the cooktop and control panel, this seamless and stylish surface is easy to clean and beautiful to look at

Industry Exclusive—TrueTemp Burner

This powerful 21,000 BTU gas burner offers a precision temperature-management system that works with Hestan Cue cookware for a consistently delicious cooking experience.Hestan Cue cookware comes free if you register and connect your appliance through the SmartHQ app

Articulating 7" Touch LCD Control

With just a touch, this intelligently designed LCD swings out toward the user for a more ergonomic experience and then moves back flush with the control panel when not in use

Built-In WiFi, Powered by SmartHQ™ app

Perfectly in sync with your busy lifestyle, connect, control, and manage your oven from anywhere with your smartphone or tablet

Precision Oven Modes with SmartHQ™ app

Simplify the cooking process with Precision Oven Modes that automatically track progress and make time and temperature adjustments

WiFi Monitoring and Remote Control with the SmartHQ™ app

Perfect for a busy lifestyle, built-in WiFi capabilities allow for the remote activation of cooking functions, like preheating the oven, setting timers, activating Chef Connect and more

Industry Exclusive—TrueTemp™ Burner

This powerful 21,000 BTU gas burner offers a precision temperature-management system that works with Hestan Cue™ cookware for a consistently delicious cooking experience.Hestan Cue cookware comes free if you register and connect your appliance through the SmartHQ app
