Product Details for MIELE PDR908HPELLW
Technical Details
Construction type and design
| Design | Front-loader, stackable |
| Linie | Performance Plus |
| Front | Lotus White |
| Control panel color | Stainless Steel |
| Load in lbs.(kg) | 18 |
| Drum volume in ft (l) | 4.59 |
| Drying system | Heat pump |
| Door opening [ ] in in.(mm) | 14 5/8 (370) |
| Door opening angle in degrees | 167.0 |
| Door hinging | left |
| Stainless steel honeycomb drum | Yes |
Application
| Suitable for the hotel and catering industry | Yes |
| Suitable for retirement and care homes | Yes |
| Suitable for facility management | Yes |
| Suitable for launderettes | Yes |
| Suitable for dry cleaners | Yes |
| Suitable for commercial laundries | Yes |
| Suitable for small businesses | Yes |
| Suitable for universities, nurseries, and schools | Yes |
| Suitable for hospitals | Yes |
| Suitable for camp sites | Yes |
| Suitable for sports clubs | Yes |
| Suitable for beauty salons, spas and fit ness centers | Yes |
| Suitable for doctors' and dentists' practices | Yes |
| Suitable for the petrochemical industry | Yes |
| Suitable for the food-processing industry | Yes |
| Suitable for amusement parks and holiday complexes | Yes |
| Suitable for public/community care facilities | Yes |
Performance data
| Maximum evaporation capacity in l/hour and gal. qts./hour | 3 |
| Specific energy consumption in kWh/kg an d kWh/p | 0.200 |
| Program cycle in min. | 88 |
| Program cycle time for cottons/Normal drying, residual moisture 48% in min. | 88 |
| Program cycle time for cottons/Normal drying, residual moisture 40% in min. | 76 |
| Specific energy consumption for cottons/Normal drying, residual moisture 48% in kWh/kg | 0.200 |
| Specific energy consumption for mixed fabric/Normal drying, residual moisture 40% in kWh/kg | 0.170 |
Control
| Control system | M Touch Flex |
| Programmability | programmable |
| Program controls | Residual moisture controlled |
| Max. delay start in h | 24 |
| Countdown indicator | Yes |
| Program sequence indicator | Yes |
| Language can be selected easily at any time | Yes |
Standard electrical connection
| Type of heating | Heat pump |
| Electrical connection | 2 |
| Fuse rating in A | 30 |
| NEMA plug: Twist Lock L6-30 | Yes |
| Total connected load in kW | 1.200 |
Dimensions and weight of dryer
| External dimensions, net height in inches | 33 1/2 (850) |
| External dimensions, net width in inches | 23 1/2 (596) |
| External dimensions, net depth in inches | 30 5/8 (777) |
| External dimensions, gross height in inches | 37 1/16 (940) |
| External dimensions, gross width in inches | 26 |
| External dimensions, gross depth in inches | 32 5/16 (820) |
| Net weight in lbs. (kg) | 157 |
| Gross weight in lbs. (kg) | 170 |
| Maximum floor load in N | 920 |
Emission values
| Emissions - sound pressure at workplace | 70 |
| Heat dissipation into the room in MJ/h | 3.60 |
Features
| Intelligent drum reversal | Yes |
| Axial airflow | Yes |
| Fluff filter in the door | Yes |
| Low-maintenance heat exchanger filter system | Yes |
| PerfectDry | Yes |
| SoftLift drum ribs | Yes |
| Gentle tumble function | Yes |
| Condensed water drainage | Yes |
| Communication slot | Yes |
| Drying basket (optional) | Yes |
| Drum lighting | Yes |
| Machine-independent accessories | Yes |
Efficiency and sustainability
| Recycling rate in % | 95 |
| Contains fluorinated greenhouse gases | Yes |
| Hermetically sealed system | Yes |
| Coolant | R134a |
| Refrigerant global warming potential in kg CO2e | 1430 |
| Appliance global warming potential in kg CO2e | 844 |
| Refrigerant quantity in kg | 0.590 |
Connection options
| Payment system (optional) | Yes |
| Optical interface for service access | Yes |
Standards, test certificates, and symbols
| WEEE | Yes |
| c ETL US | Yes |
Features
- Drum volume 4.59 (130.00) ft (l), load size 18 (8.0) lb (kg)
- Drum lighting
No laundry item is overlooked when unloading thanks to the perfectly lit honeycomb drum. - Delay start up to 24 hours
The program start time can be pre-set up to 24 hours in advance for efficient planning. - Tested for intensive use - unique Miele quality
- Patented heat-exchanger filtration system *
For easy cleaning: a low-maintenance filter system protects the heat exchanger from dust particles. - Countdown indicator
After the program has started, the display shows the cycle time remaining. - Top convenience with full-touch color display - M Touch Flex
- Patented condensate drainage *
Emptying not necessary: The condensed water can be drained directly via a hose. - Precision drying of all fabrics - PerfectDry
- Programmable dryer controls
According to requirements: Programmable controls enable perfect adaptation to suit individual needs. - Stackable
The washer-dryer stack or dryer-only stack delivers top performance on a small footprint. - Future-proof connectivity via Wi-Fi
- View manufacturer details: Miele & Cie. KG
- Manufactured with great care by Miele & Cie. KG
- M Touch Flex controls
Use all drying programs and machine functions conveniently with a tap on the clear text touch display. - Safety information
- Language can be selected easily at any time
Simple and fast: users can easily switch to a different language at any time during operation. - Convenient lint filter *
Easy to access: the second lint filter reliably captures lint and is easy to clean. - Large capacity
The large capacity drum ensures perfect drying results even with large loads. - Low consumption values
Economical and efficient: Laundry machines from Miele Professional boast exceptionally low consumption values. - Energy-saving heat-pump system *
Approx. 50% reduction in energy consumption thanks to pioneering heat-pump technology. - Energy-saving heat pump system
Approx. 50% reduction in energy consumption thanks to pioneering heat-pump technology. - Excellent durability
The professional technology ensures excellent reliability and durability for daily work routine, - Perfect Anti-crease
The laundry is tumbled regularly after the end of the program to protect it from creasing. - Special drying basket
The basket offers plenty of room for sports shoes as well as for delicate special and synthetic textiles. - SoftLift drum ribs ensure gentle fabric care
The SoftLift drum ribs allow laundry to be dried gently and evenly. - Honeycomb drum
Less folding, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum. - Short program cycles
Premium commercial technology allows you to benefit from the shortest program cycles. - PerfectDry system
On the basis of a constant residual moisture measurement, the PerfectDry system perfectly dries garments. - Axial airflow
For perfect drying results, air is passed through the drum according to the principle of longitudinal air flow. - Intelligent dryers
Gentle and uniform drying thanks to intelligent technology. - Connection of payment system
Optimum use in self-service areas is possible thanks to the connection for payment systems.
Description

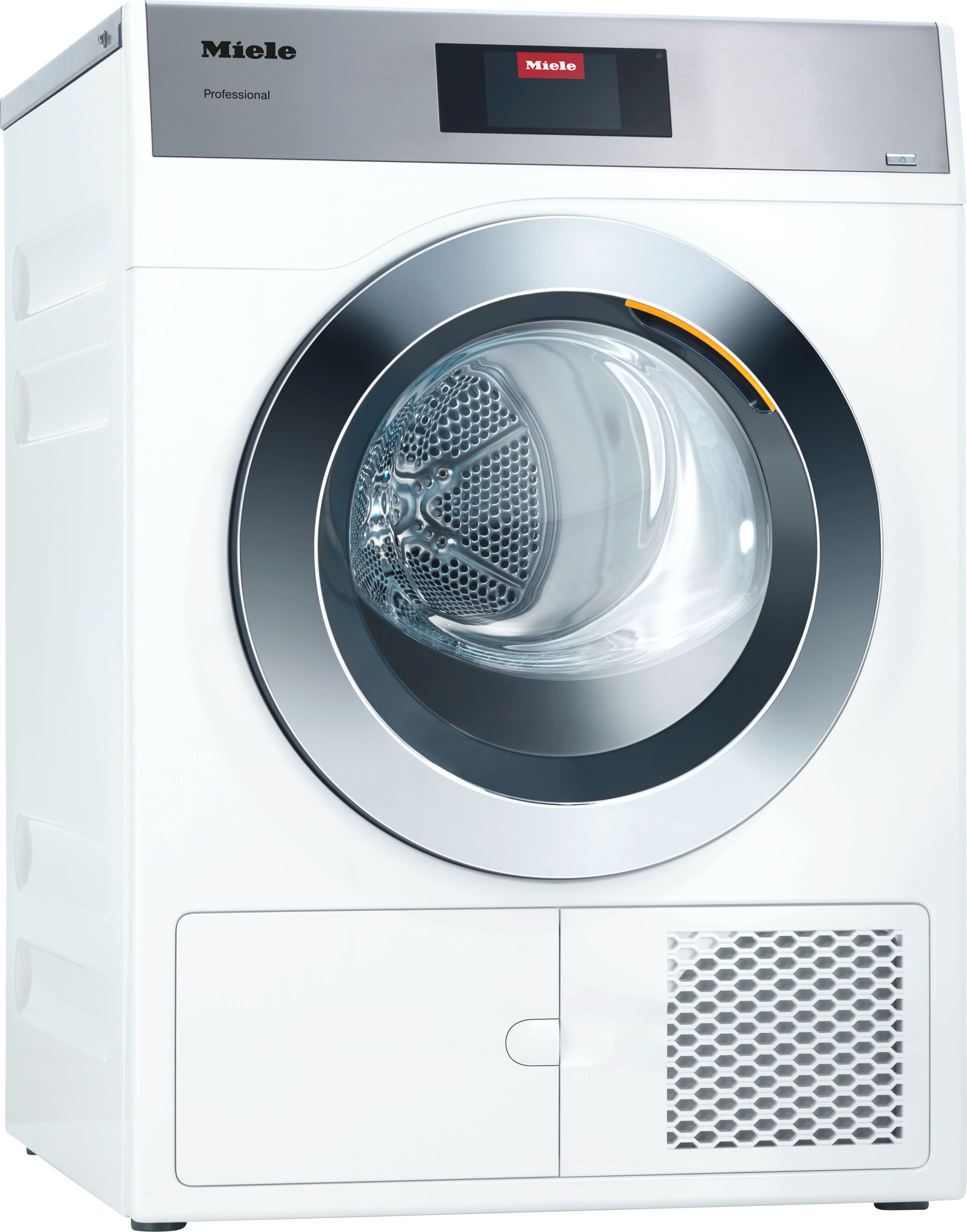

PDR 908 HP [EL] Lotus white, powder-coated - Professional heat-pump dryer, Little Giants with very low energy consumption and short program runtimes. Load size 18 (8.0) lb (kg).
Manuals & Guides
- PDR908HPELLW - Installation plan PDF
- PDR908HPELLW - Warranty conditions PDF
- PDR908HPELLW - Product sheet PDF
- PDR908HPELLW - Product datasheet PDF
- PDR908HPELLW - Warranty conditions PDF
- PDR908HPELLW - Operating instructions/Installation instructions PDF
- PDR908HPELLW - Operating instructions/Installation instructions PDF
Key Features
Delay start up to 24 hours
The program start time can be pre-set up to 24 hours in advance for efficient planning.
Drum lighting
No laundry item is overlooked when unloading thanks to the perfectly lit honeycomb drum.
Countdown indicator
After the program has started, the display shows the cycle time remaining.

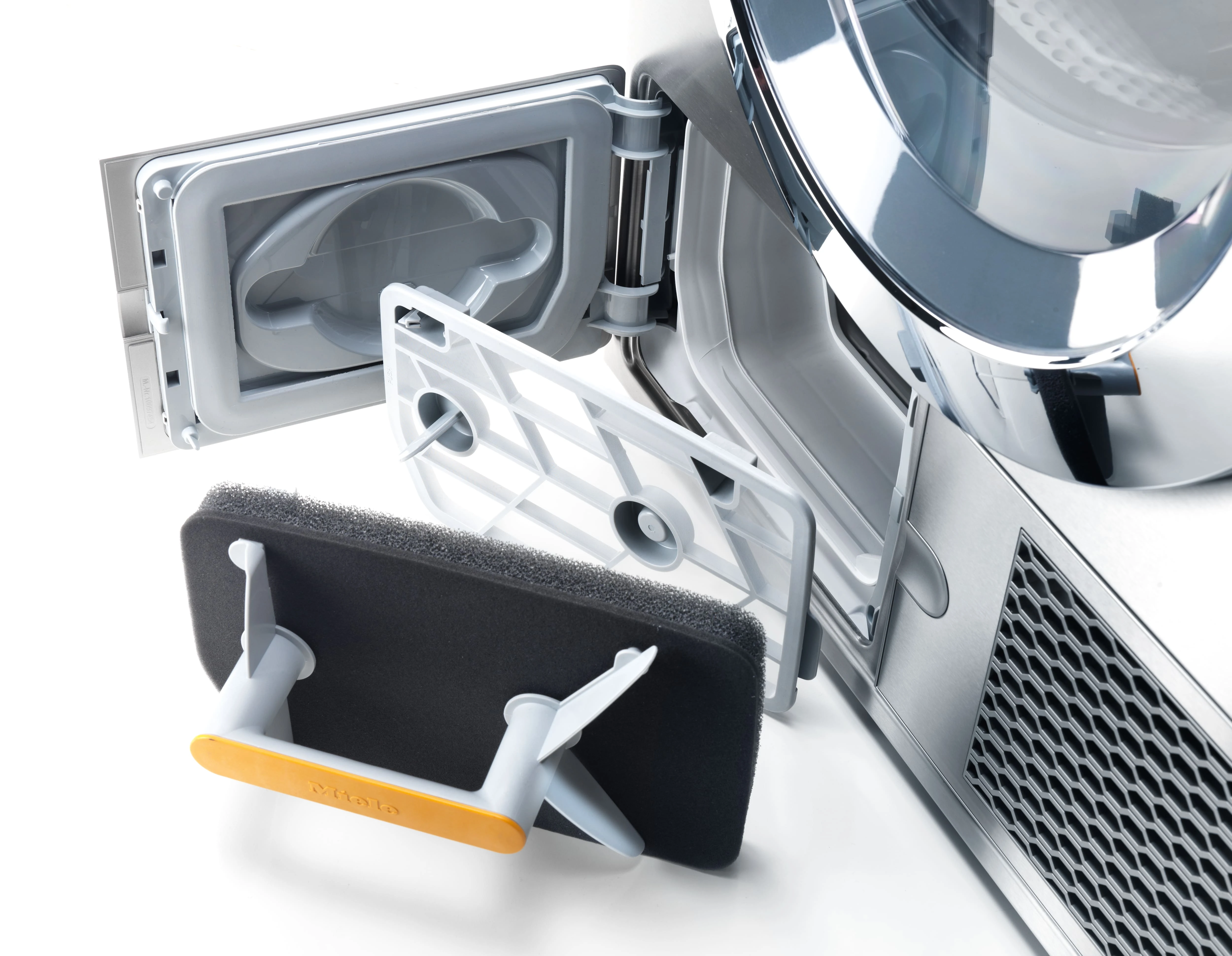

Patented heat-exchanger filtration system *
For easy cleaning: a low-maintenance filter system protects the heat exchanger from dust particles.

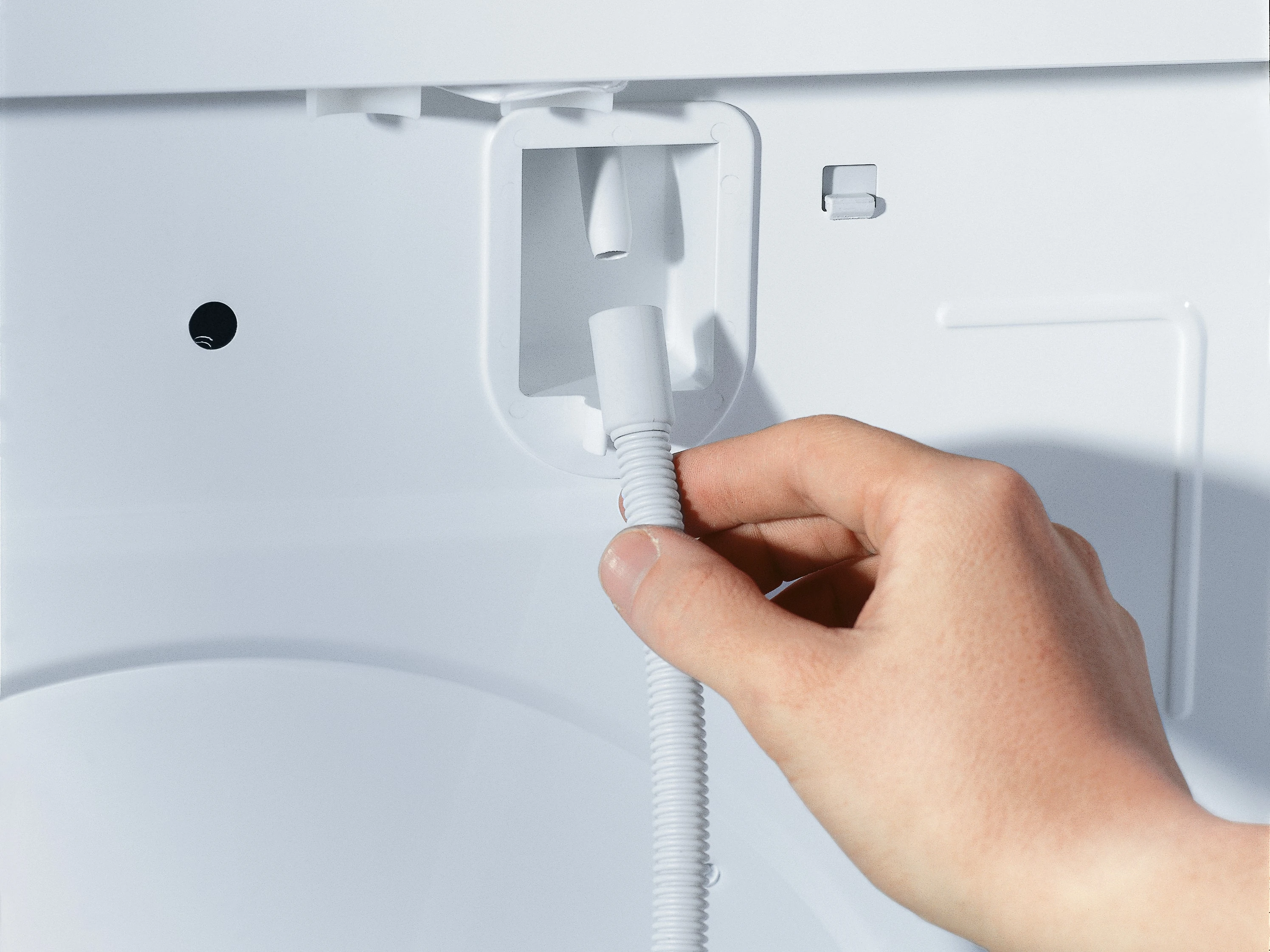

Patented condensate drainage *
Emptying not necessary: The condensed water can be drained directly via a hose.
Programmable dryer controls
According to requirements: Programmable controls enable perfect adaptation to suit individual needs.

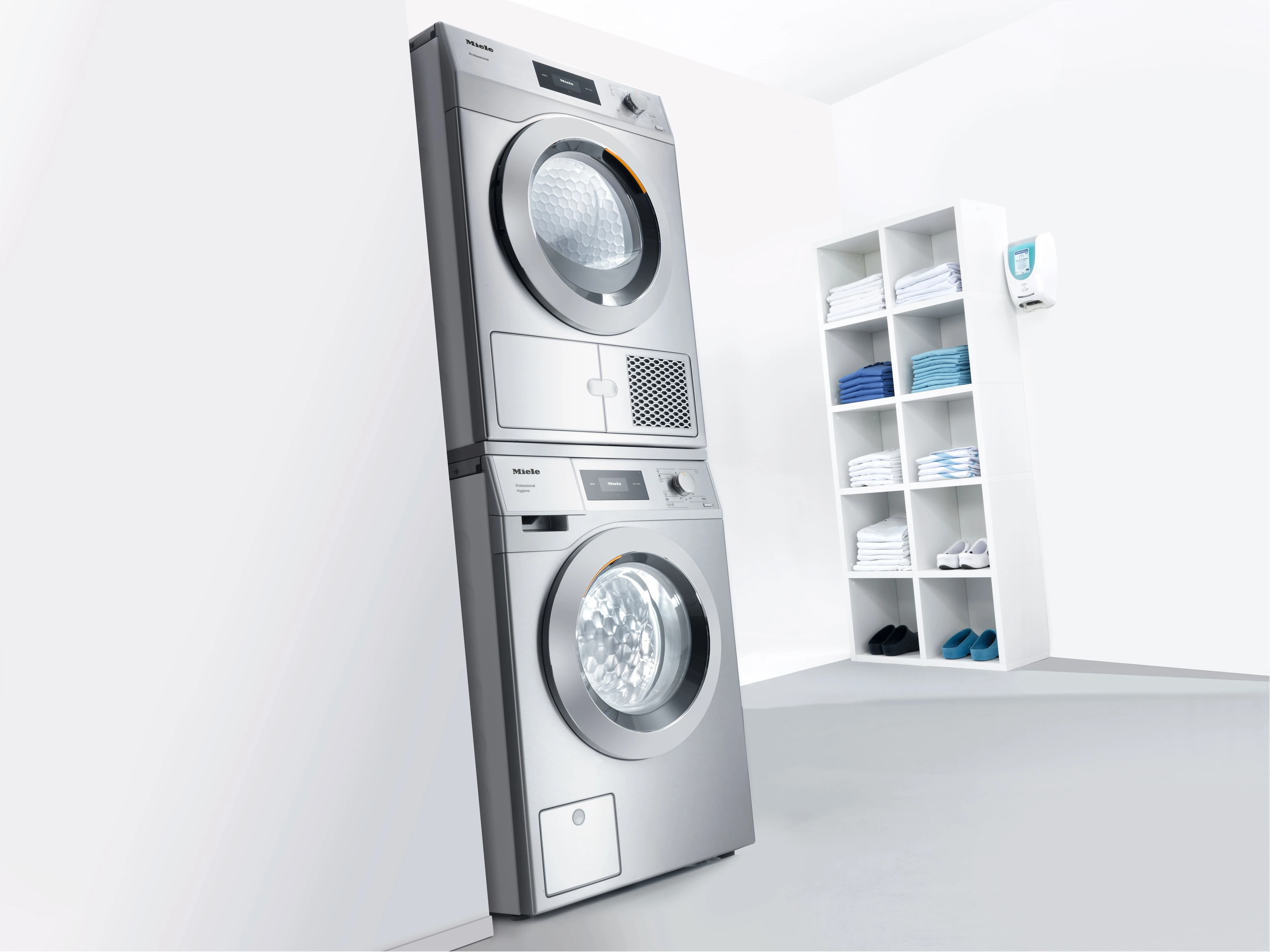

Stackable
The washer-dryer stack or dryer-only stack delivers top performance on a small footprint.

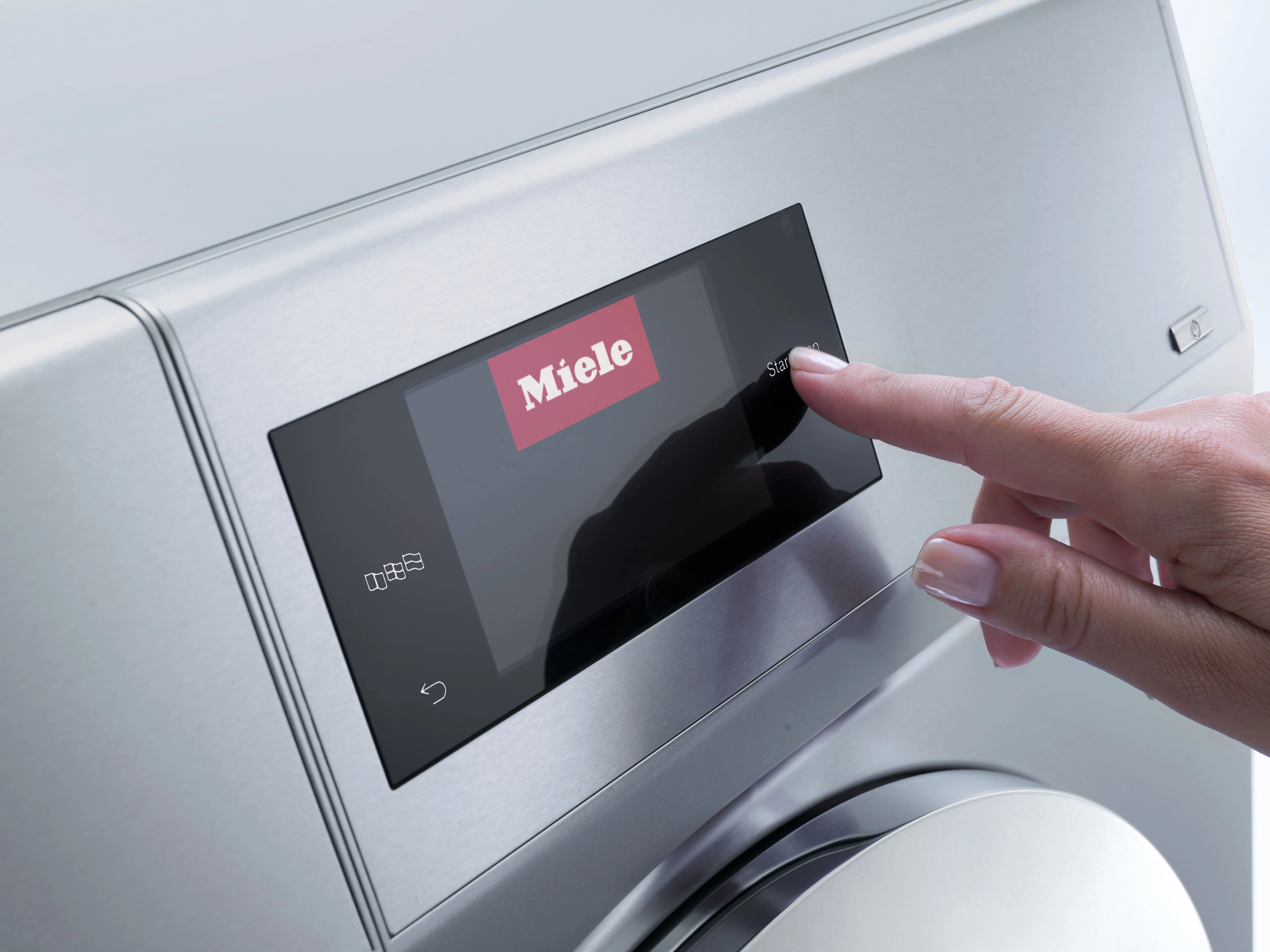

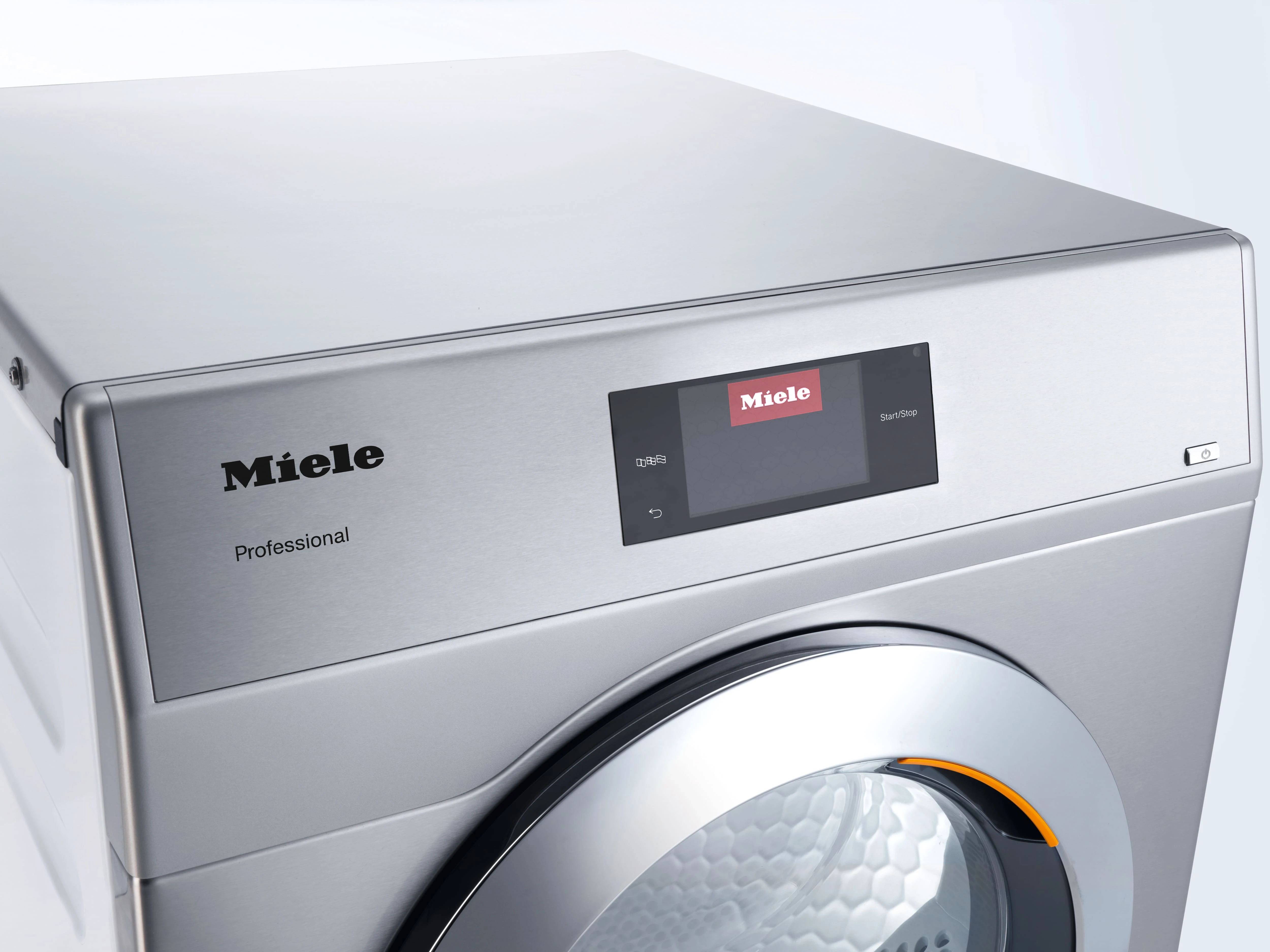

M Touch Flex controls
Use all drying programs and machine functions conveniently with a tap on the clear text touch display.
Language can be selected easily at any time
Simple and fast: users can easily switch to a different language at any time during operation.

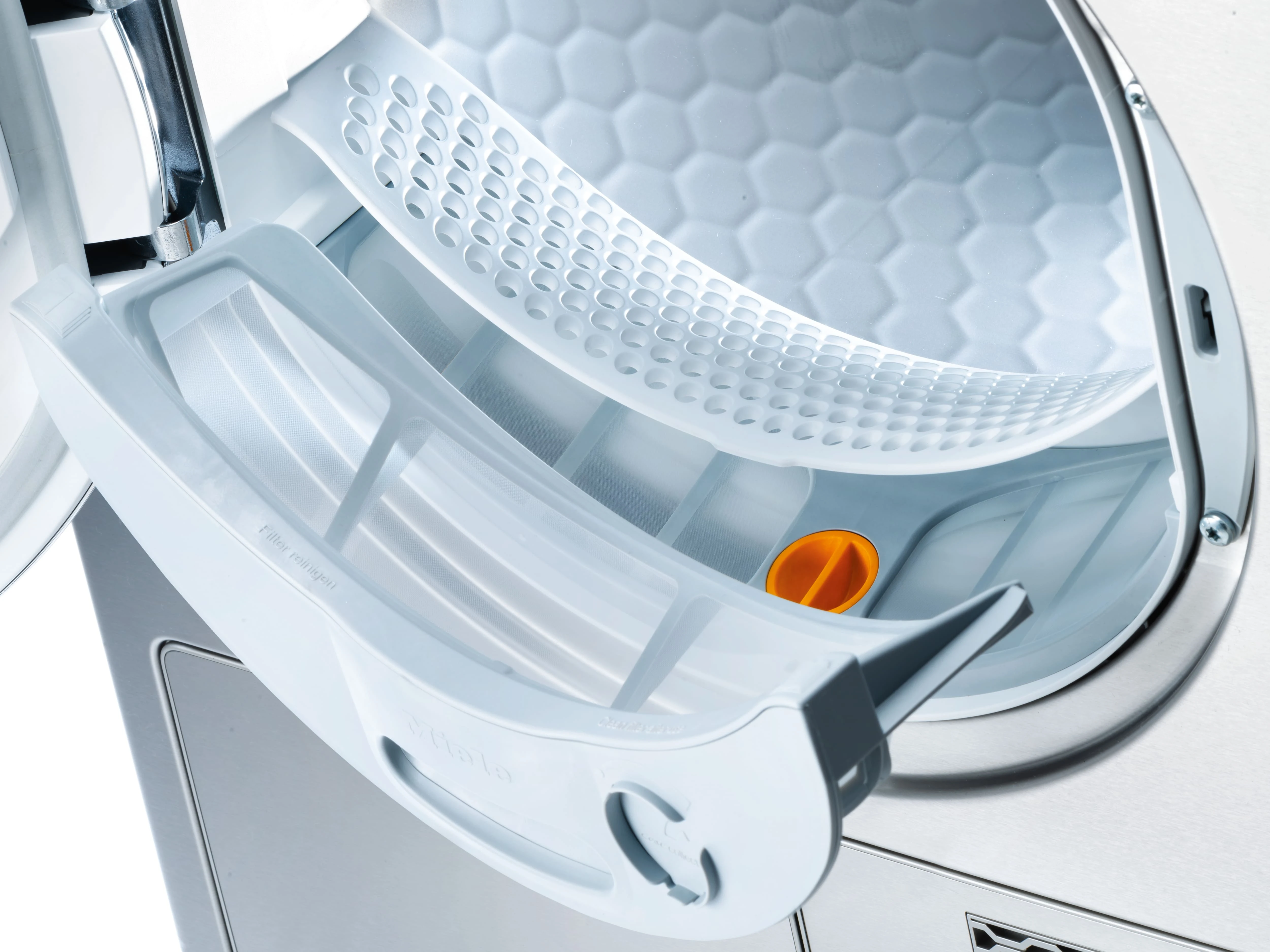

Convenient lint filter *
Easy to access: the second lint filter reliably captures lint and is easy to clean.
Large capacity
The large capacity drum ensures perfect drying results even with large loads.
Low consumption values
Economical and efficient: Laundry machines from Miele Professional boast exceptionally low consumption values.

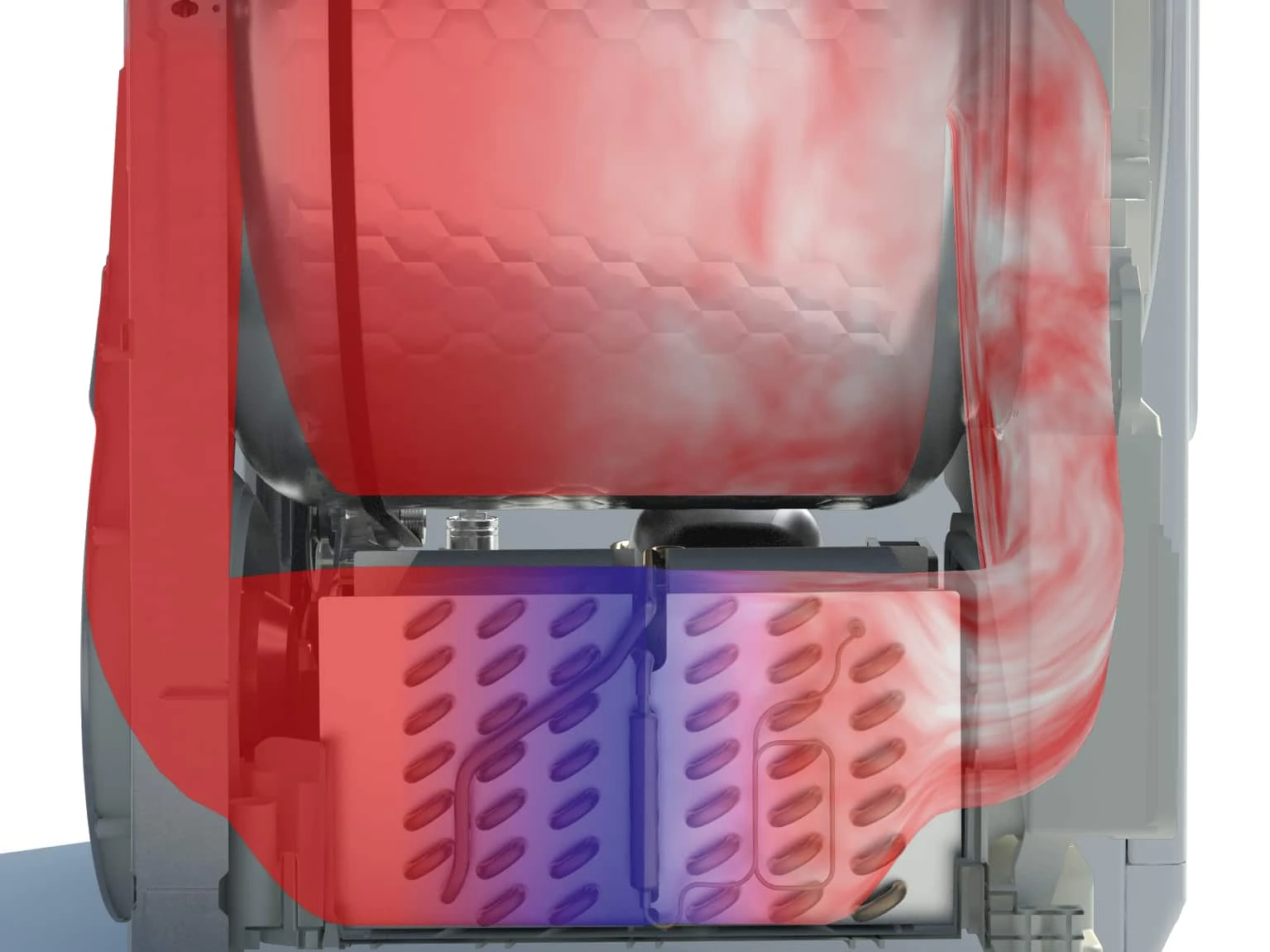

Energy-saving heat-pump system *
Approx. 50% reduction in energy consumption thanks to pioneering heat-pump technology.
Excellent durability
The professional technology ensures excellent reliability and durability for daily work routine,
Perfect Anti-crease
The laundry is tumbled regularly after the end of the program to protect it from creasing.

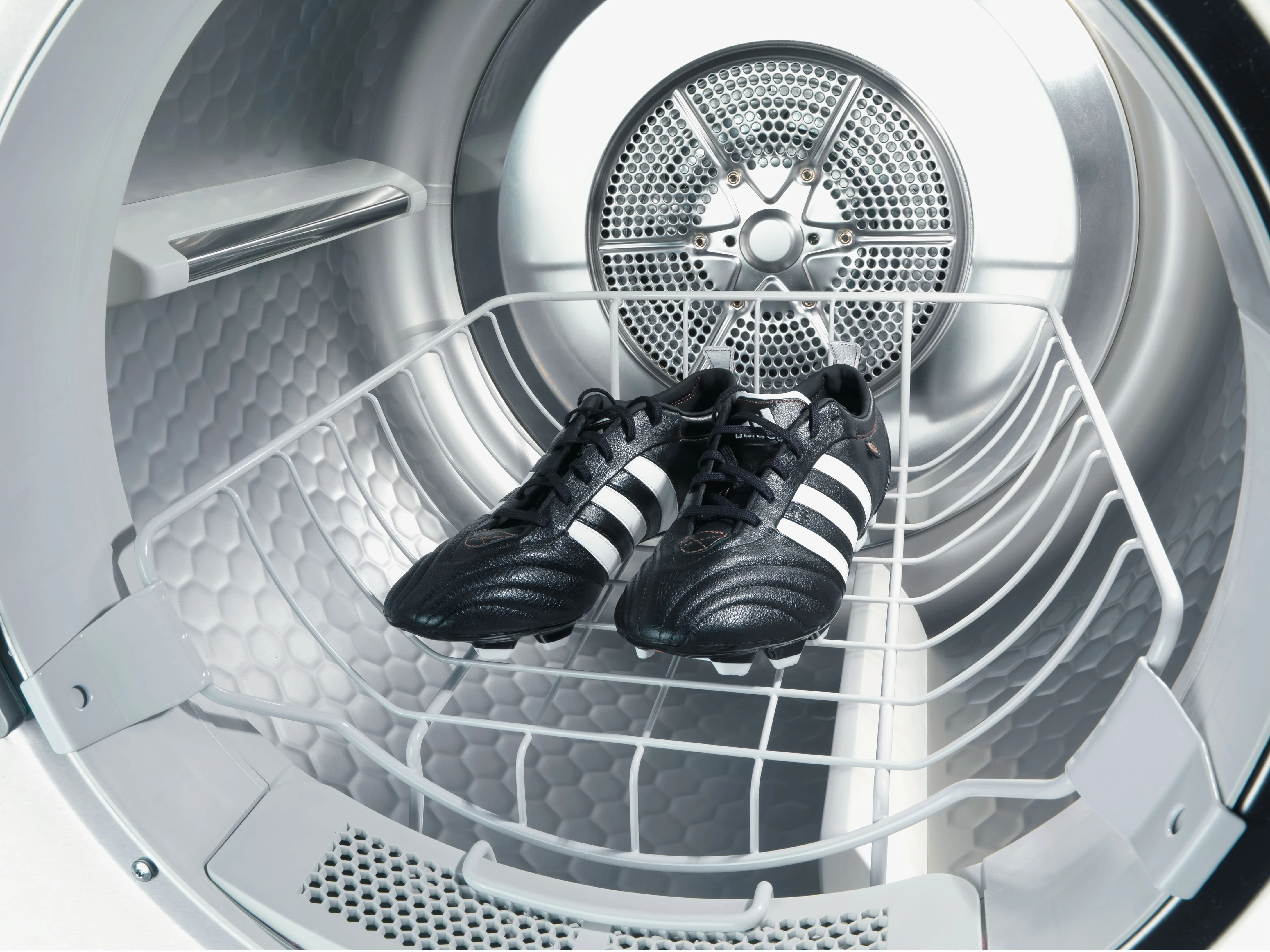

Special drying basket
The basket offers plenty of room for sports shoes as well as for delicate special and synthetic textiles.

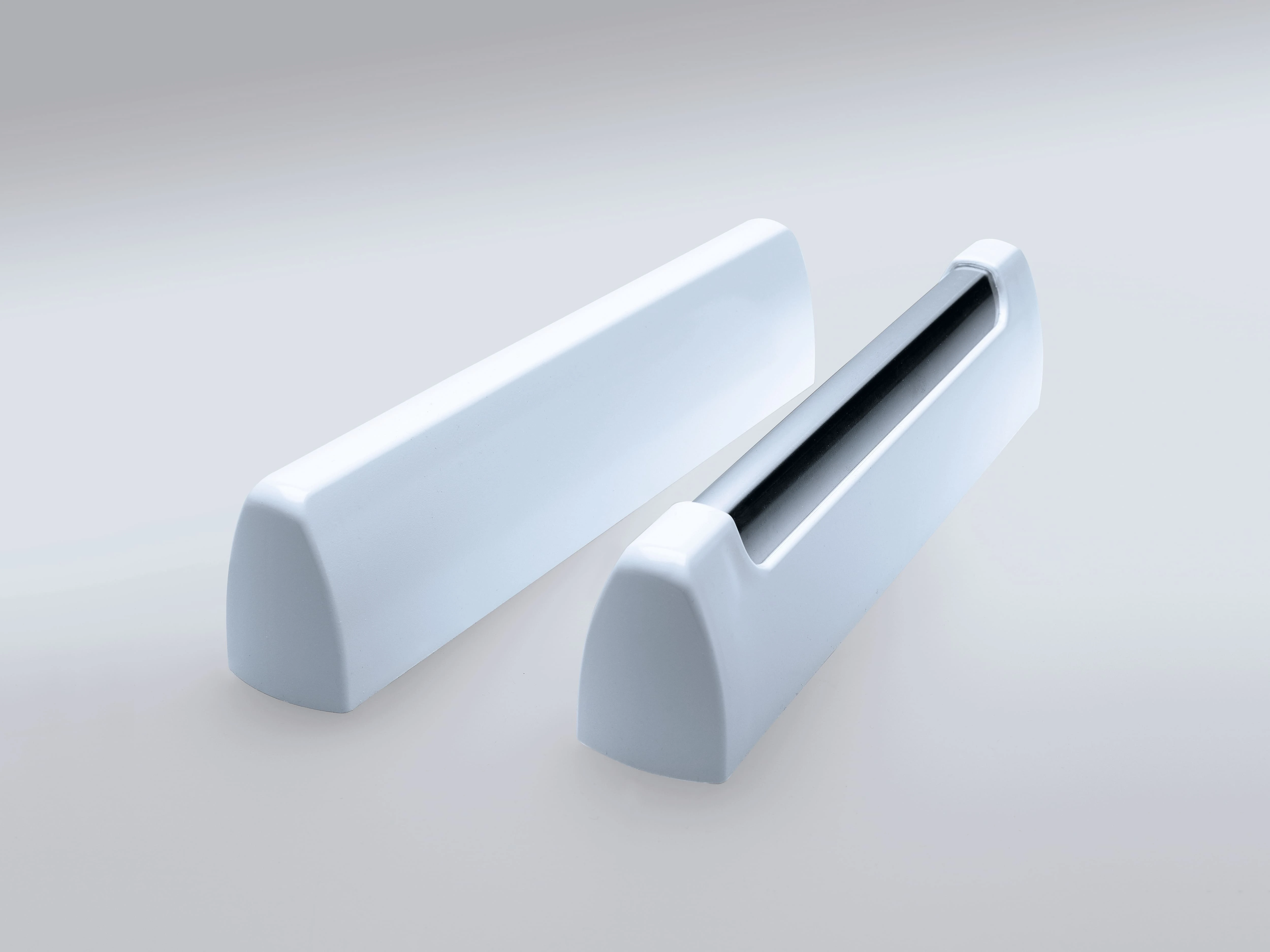

SoftLift drum ribs ensure gentle fabric care
The SoftLift drum ribs allow laundry to be dried gently and evenly.
Short program cycles
Premium commercial technology allows you to benefit from the shortest program cycles.

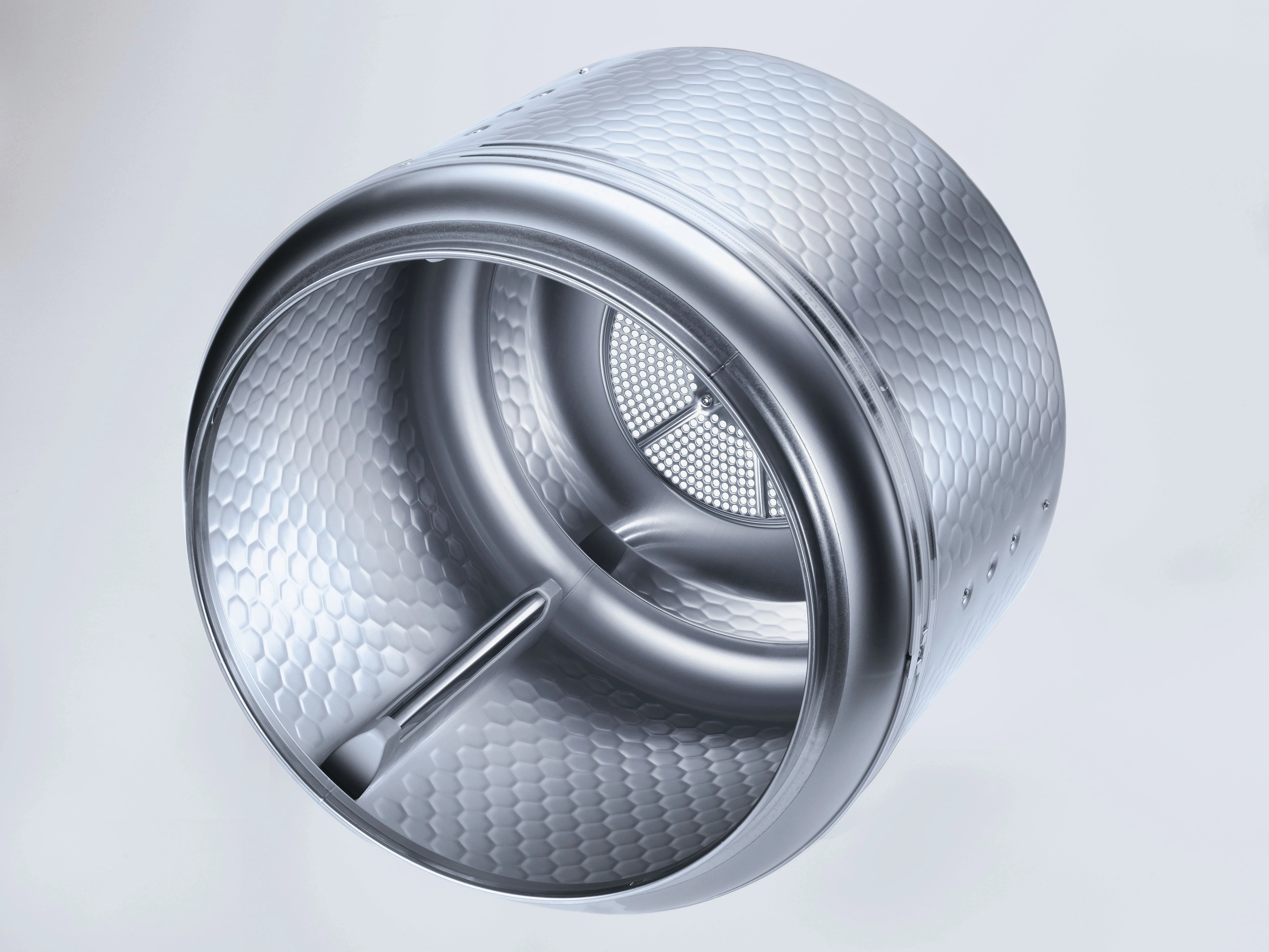

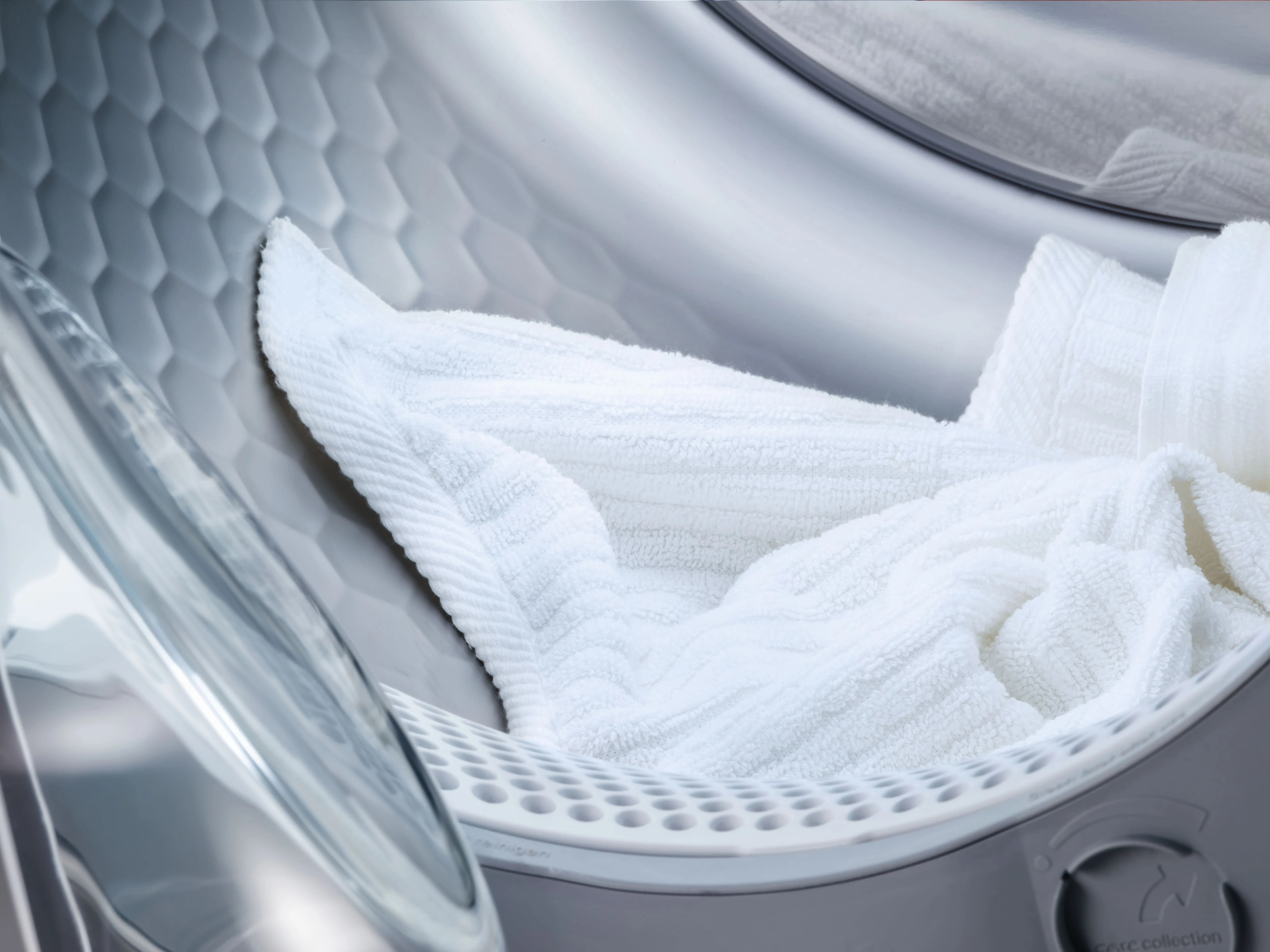

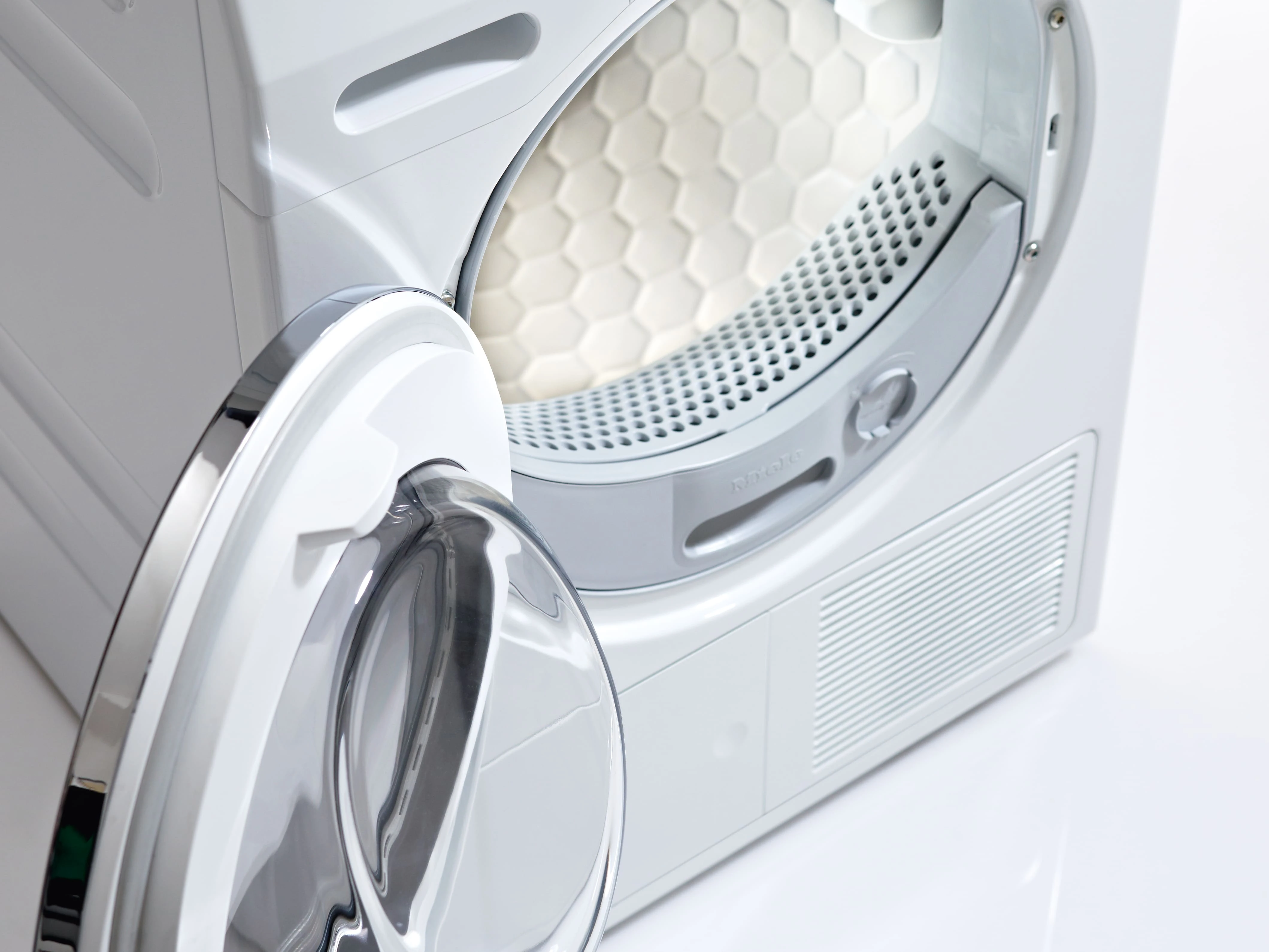

Honeycomb drum
Less folding, easy finishing: Laundry is dried very gently and evenly in the honeycomb drum.
PerfectDry system
On the basis of a constant residual moisture measurement, the PerfectDry system perfectly dries garments.

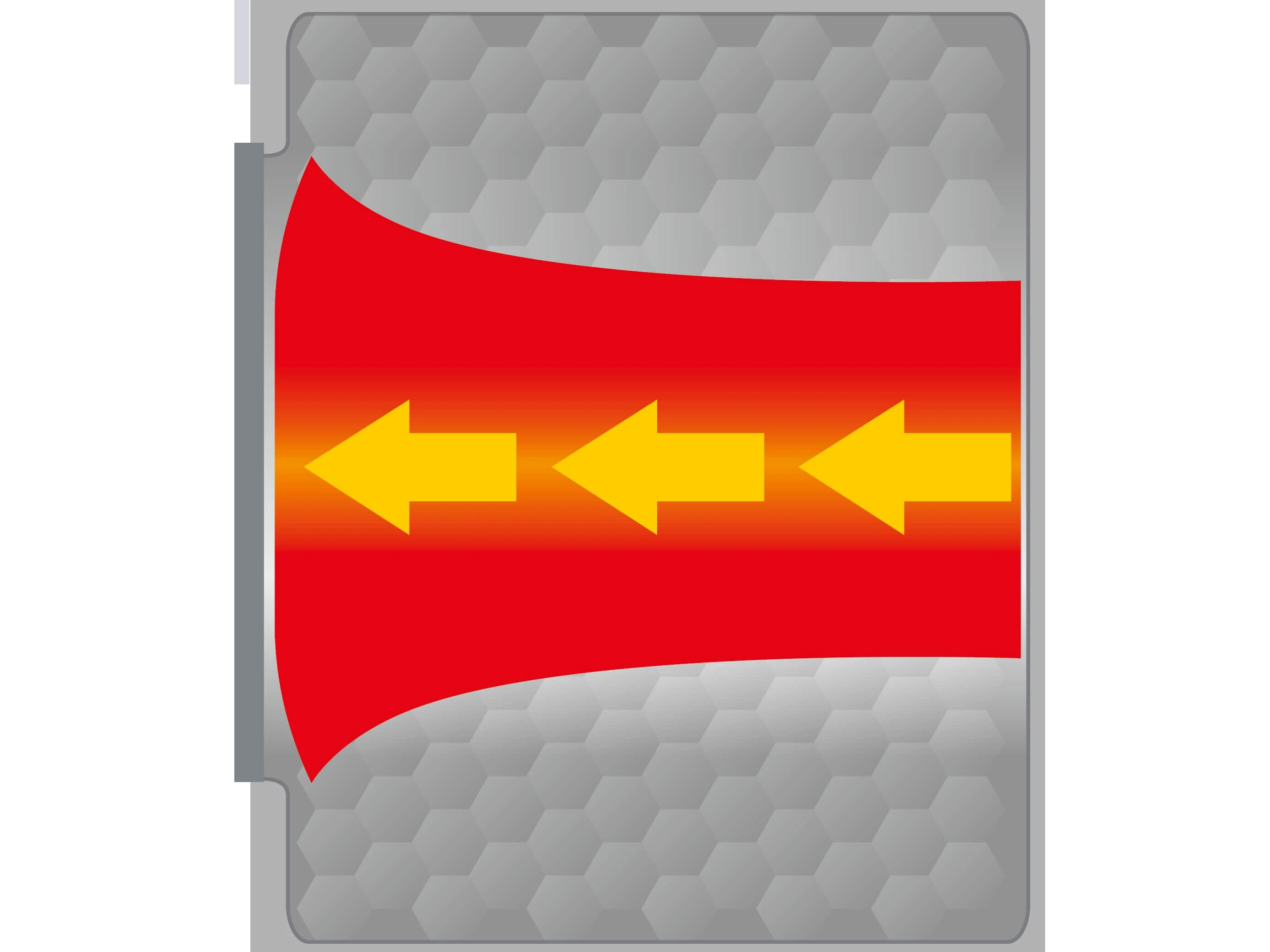

Axial airflow
For perfect drying results, air is passed through the drum according to the principle of longitudinal air flow.
Intelligent dryers
Gentle and uniform drying thanks to intelligent technology.

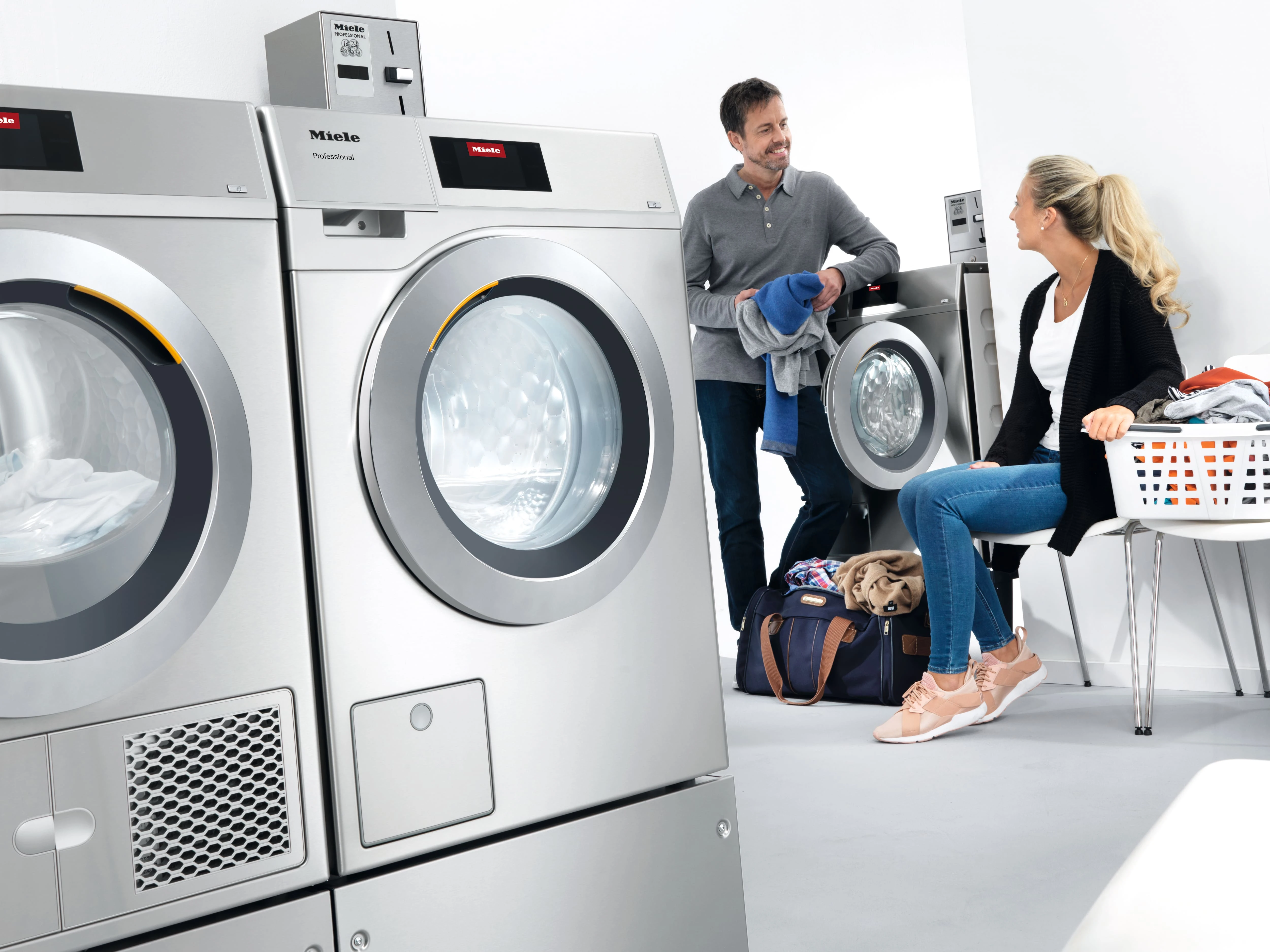

Connection of payment system
Optimum use in self-service areas is possible thanks to the connection for payment systems.
Drum volume 4.59 (130.00) ft (l), load size 18 (8.0) lb (kg)
