SKU: KMR13563LPGD | UPC: 4002516495468

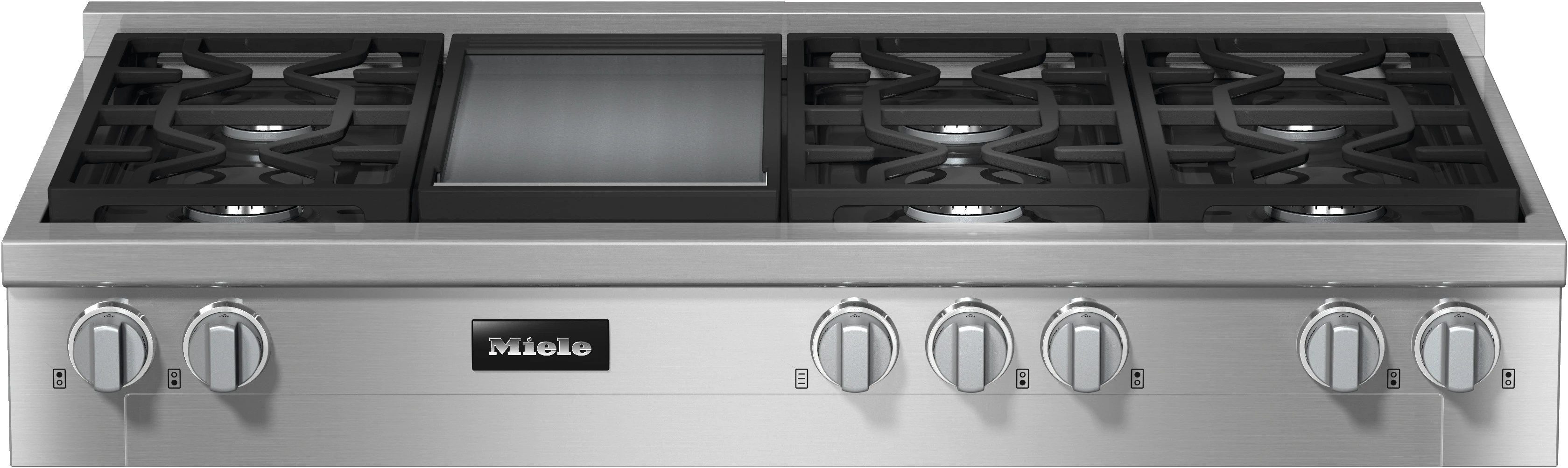

Miele KMR13563LPGD 48" Rangetop 6 Burner/Griddle LP DirectSelect Clean Touch Steel

Quick Specification More details

Width:
47.99"
Depth:
24.13"
Height:
7.52"
Type:
Rangetops

About this product

ComfortClean Dishwasher-Safe Grates
Clean Touch Steel™Front
Backlit Precision Knobs
M Pro Infrared Griddle

SKU: KMR13563LPGD | UPC: 4002516495468

Miele KMR13563LPGD 48" Rangetop 6 Burner/Griddle LP DirectSelect Clean Touch Steel

$7,199.00 ~~$11,443.97~~ Save $4,244.97 / 37% OFF

Out of stock

Active Rebates

We’ll confirm fit, specs & delivery before you order.

• Chat • Email • Call Us

Quick Specification More details

Width:
47.99"
Depth:
24.13"
Height:
7.52"
Type:
Rangetops

About this product

ComfortClean Dishwasher-Safe Grates
Clean Touch Steel™Front
Backlit Precision Knobs
M Pro Infrared Griddle

Product Details
Manuals & Guides
Key Features
From The Manufacturer
Rebates
Reviews

$7,199.00 ~~$11,443.97~~ Save $4,244.97 / 37% OFF

Product Details for Miele KMR13563LPGD

Technical Details

General information

Model number	KMR 1356-3LP GD EDST/CLST
Manufacturer material number	11852660
EAN number	4002516495468

Heating type

Fuel type

Gas

Design

Rangetop	TRUE
Casing	Stainless steel
Front panel	CleanSteel
Genuine metal knobs	TRUE
Cast iron pot rests (matte black enameled)	TRUE

Cooking zone details

Number of gas burners	6
Number of griddle surfaces	1

1st cooking zone/cooking area

Position	front left
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1500
Maximum power output in BTU/hr	19500
Max. rating in W	5700

2nd cooking zone/cooking area

Position	rear left
Type	High-speed burner
Minimum power output in BTU/hr	1500
Maximum power output in BTU/hr	12500
Max. rating in W	2900

3rd cooking zone/cooking area

Position	left center
Type	Griddle surface
Maximum power output in BTU/hr	14300
Max. rating in W	4200

4th cooking zone/cooking area

Position	Rear center right
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1500
Maximum power output in BTU/hr	19500
Max. rating in W	3800

5th cooking zone/cooking area

Position	rear right
Type	High-speed burner
Minimum power output in BTU/hr	1500
Maximum power output in BTU/hr	12500
Max. rating in W	2900

6th cooking zone/cooking area

Position	front right
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1500
Maximum power output in BTU/hr	19500
Max. rating in W	5700

7th cooking zone/cooking area

Position	Center right front
Type	Ultra high-speed burner
Minimum power output in BTU/hr	1500
Maximum power output in BTU/hr	19500
Max. rating in W	5700

8th cooking zone/cooking area

True Simmer function	TRUE
Width of griddle surface in in.(mm)	10 1/4 (258)
Depth of griddle surface in in.(mm)	17 1/8 (434)

User convenience

Operation via genuine metal knobs with backlit

TRUE

Cleaning convenience

Dishwasher-safe trivets	TRUE
Single-piece cooktop surround	TRUE

Safety

Automatic re-ignition

TRUE

Technical data

Dimensions (width) in in. (mm)	48 (1219)
Dimensions (height) in in. (mm)	7 5/8 (191)
Dimensions (depth) in in. (mm) with bullnose	27 1/4 (692)
Dimensions (depth) in in. (mm) without bullnose	25 5/8 (650)
Weight in lbs. (kg)	171 (78)
Total output in BTU/hr	117300
Total connected load in kW	34.400
Voltage in V	120
Fuse rating in A	10
Number of phases	1
Power cord length in in. (m)	3 (1.2)

Dimensions & weight

Width	47.99 in.
Height	7.52 in.
Length	24.13 in.
Weight	379.11 lbs.
Gross Weight	187.39 lbs.

Number of boxes, shipping dimensions, & shipping weight

Number of Boxes	1
Shipping Width	54.49 in.
Shipping Height	14.92 in.
Shipping Length	33.62 in.
Shipping Weight	419.11 lbs.
Source	Manufacturer
Total of Shipping Weight	419.11 lbs.

Cubic feet measurement & dimensional weight

Cubic Feet Measurement	15.82 ft³
Cubic Feet Measurement	5.04 ft³
Dimensional Weight	62.65 lbs.
Total of Cubes	5.04 ft³
Total of Dimensional Weight	62.65 lbs.

Description

KMR 1356-3LP GD EDST/CLST - 48-inch Range Top with 6 burners and griddle plate for flexibility and high performance

Manuals & Guides

Key Features

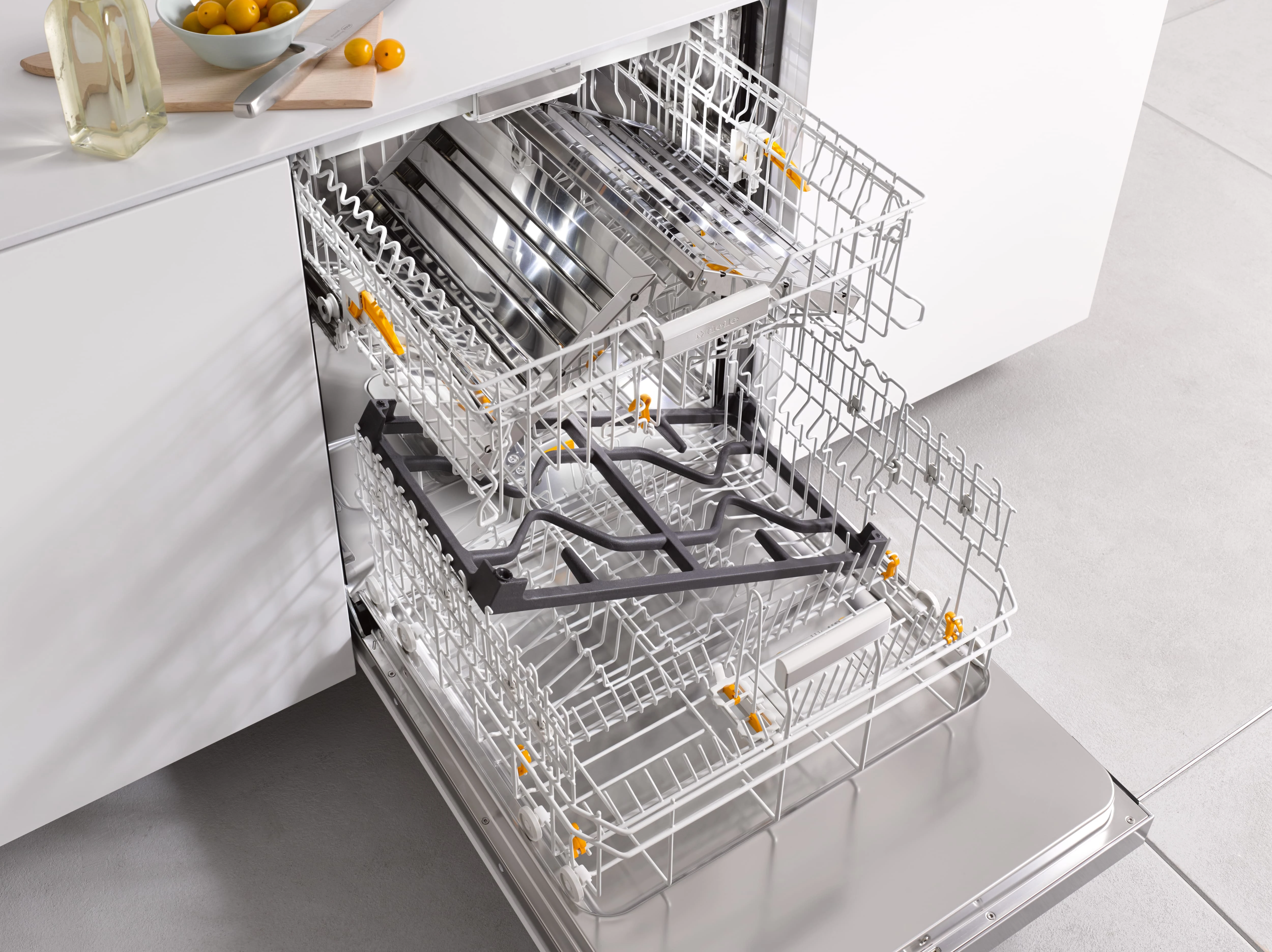

ComfortClean Dishwasher-Safe Grates

When it’s time for clean-up, simply place the dishwasher-safe grates in your dishwasher.

Clean Touch Steel™Front

This innovative finish resists fingerprints, scratches and smudges. A special treatment stands up to aggressive handling – keeping the exterior cleaner and easier to maintain.

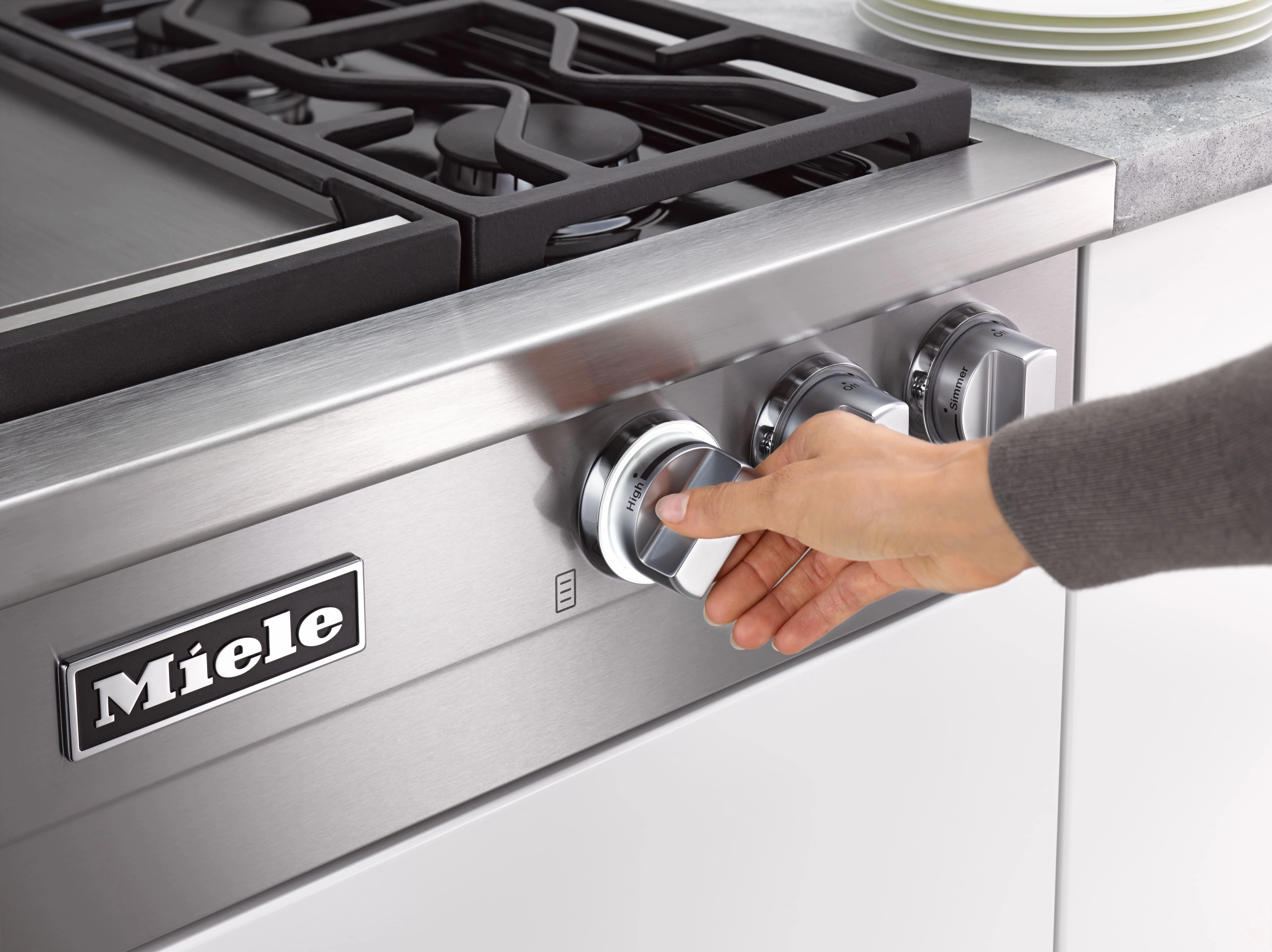

Backlit Precision Knobs

This elegant design feature is not only a useful visual cue for a burner-in-use, but also a design element that sets Miele apart - and with QuickStart, there’s no need to press or hold the control in order to switch the burners on.

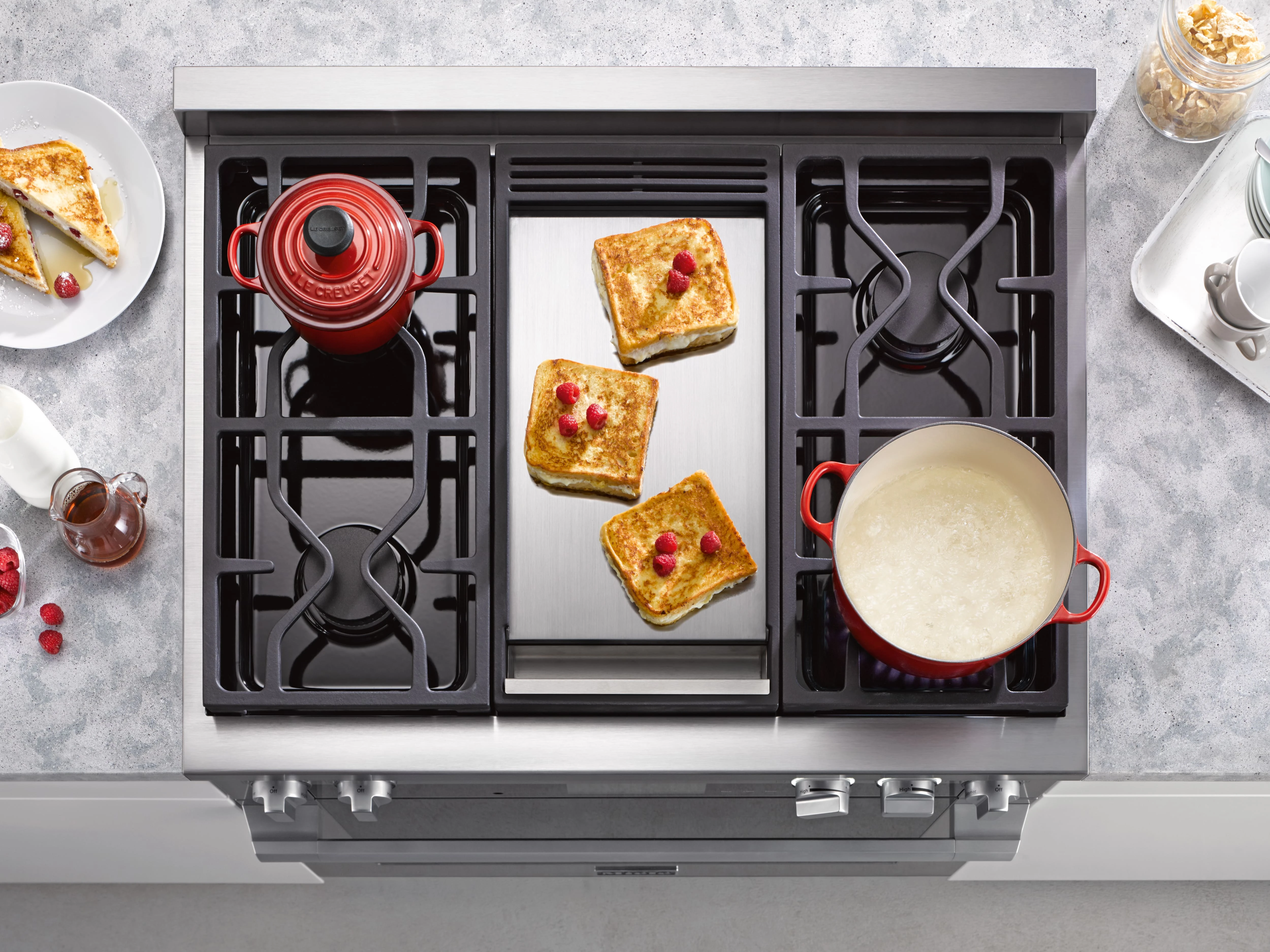

M Pro Infrared Griddle

Experience Miele’s precise M Pro infrared griddle, delivering even heat distribution for superior performance - from french toast, pancakes, eggs, fish or steaks, professional results can be achieved in the convenience of your home.

Continuous simmer

Achieving the perfect temperature and even heat for simmering is easy with Miele TrueSimmer function. Whether you are melting chocolate or thickening a sauce, this feature offers precise results.
