Miele KMR13543LP 48-inch Range Top Clean Touch Steel
Sale price
$6,799.00
Regular price
$8,320.97
Save
$1,521.97
/ 18% OFF
Out of stock
Thanks for contacting us.
We'll get back to you as soon as possible.
Error!
Something went wrong, please try again later.
Sale price
$6,799.00
Regular price
$8,320.97
Save
$1,521.97
/ 18% OFF
Product Details for Miele KMR13543LP
Technical Details
Dimensions & weight
| Width | 47.99 in. |
| Height | 7.52 in. |
| Length | 24.13 in. |
| Weight | 330.5 lbs. |
| Gross Weight | 165.35 lbs. |
Number of boxes, shipping dimensions, & shipping weight
| Number of Boxes | 1 |
| Shipping Width | 54.49 in. |
| Shipping Height | 14.92 in. |
| Shipping Length | 33.62 in. |
| Shipping Weight | 370.5 lbs. |
| Total of Shipping Weight | 370.50 lbs. |
| Source | Manufacturer |
Cubic feet measurement & dimensional weight
| Cubic Feet Measurement | 5.04 ft³ |
| Dimensional Weight | 62.65 lbs. |
| Total of Cubes | 5.04 ft³ |
| Total of Dimensional Weight | 62.65 lbs. |
Heating type
| Fuel type | Gas |
Design
| Rangetop | TRUE |
| Casing | Stainless steel |
| Front panel | CleanSteel |
| Genuine metal knobs | TRUE |
| Cast iron pot rests (matte black enameled) | TRUE |
Cooking zone details
| Number of gas burners | 8 |
1st cooking zone/cooking area
| Position | front left |
| Type | Ultra high-speed burner |
| Minimum power output in BTU/hr | 1700 |
| Maximum power output in BTU/hr | 19500 |
| Max. rating in W | 5700 |
2nd cooking zone/cooking area
| Position | rear left |
| Type | High-speed burner |
| Minimum power output in BTU/hr | 1200 |
| Maximum power output in BTU/hr | 12500 |
| Max. rating in W | 2900 |
3rd cooking zone/cooking area
| Position | Rear center left |
| Type | Ultra high-speed burner |
| Minimum power output in BTU/hr | 1700 |
| Maximum power output in BTU/hr | 19500 |
| Max. rating in W | 4000 |
4th cooking zone/cooking area
| Position | Rear center right |
| Type | Ultra high-speed burner |
| Minimum power output in BTU/hr | 1700 |
| Maximum power output in BTU/hr | 19500 |
| Max. rating in W | 4000 |
5th cooking zone/cooking area
| Position | rear right |
| Type | High-speed burner |
| Minimum power output in BTU/hr | 1200 |
| Maximum power output in BTU/hr | 12500 |
| Max. rating in W | 2900 |
6th cooking zone/cooking area
| Position | front right |
| Type | Ultra high-speed burner |
| Minimum power output in BTU/hr | 1700 |
| Maximum power output in BTU/hr | 19500 |
| Max. rating in W | 5700 |
7th cooking zone/cooking area
| Position | Center right front |
| Type | Ultra high-speed burner |
| Minimum power output in BTU/hr | 1700 |
| Maximum power output in BTU/hr | 19500 |
| Max. rating in W | 5700 |
8th cooking zone/cooking area
| Position | Center left front |
| Type | Ultra high-speed burner |
| Minimum power output in BTU/hr | 1700 |
| Maximum power output in BTU/hr | 19500 |
| Max. rating in W | 5700 |
| True Simmer function | TRUE |
User convenience
| Operation via genuine metal knobs with backlit | TRUE |
Cleaning convenience
| Dishwasher-safe trivets | TRUE |
| Single-piece cooktop surround | TRUE |
Safety
| Automatic re-ignition | TRUE |
Technical data
| Dimensions (width) in in. (mm) | 48 (1219) |
| Dimensions (height) in in. (mm) | 7 5/8 (191) |
| Dimensions (depth) in in. (mm) with bullnose | 27 1/4 (692) |
| Dimensions (depth) in in. (mm) without bullnose | 25 5/8 (650) |
| Weight in lbs. (kg) | 149 (68) |
| Total output in BTU/hr | 142000 |
| Total connected load in kW | 41.600 |
| Voltage in V | 120 |
| Fuse rating in A | 10 |
| Number of phases | 1 |
| Power cord length in in. (m) | 3 (1.2) |
Description

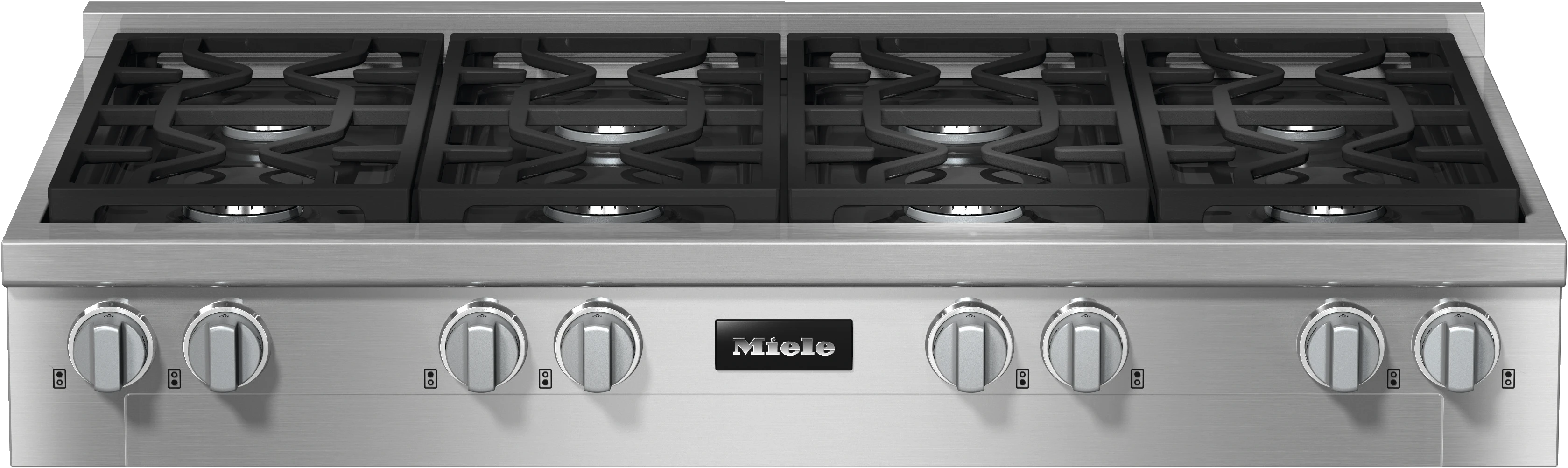

The brand Miele KMR13543LP combines commercial‑level power and premium design in a 48″ built‑in rangetop fueled by liquid propane. Featuring eight sealed burners—including several ultra high‑speed burners reaching up to 19,500 BTU—it delivers a total output of 142,000 BTU for versatile performance. The sleek Clean Touch Steel™ finish resists fingerprints, while backlit metal knobs with QuickStart offer precise and safe control. Practicality is enhanced with continuous cast‑iron grates and dishwasher‑safe ComfortClean grates for easy cleanup. Other professional touches include automatic re‑ignition safety, true simmer capability for delicate cooking, and a single‑piece stainless surround for seamless integration.
Manuals & Guides
Key Features

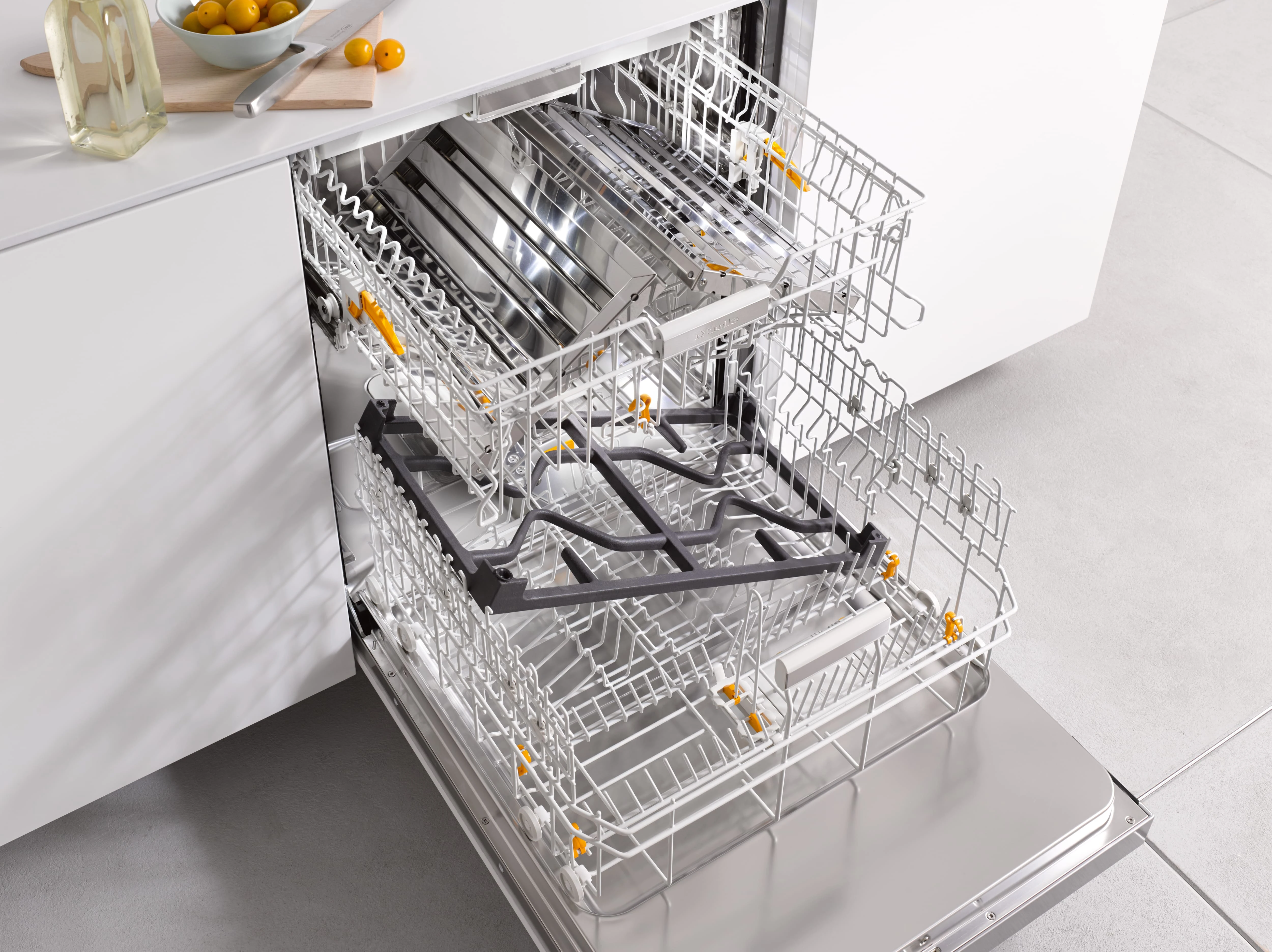

ComfortClean Dishwasher-Safe Grates
When it’s time for clean-up, simply place the dishwasher-safe grates in your dishwasher.
Clean Touch Steel™Front
This innovative finish resists fingerprints, scratches and smudges. A special treatment stands up to aggressive handling – keeping the exterior cleaner and easier to maintain.

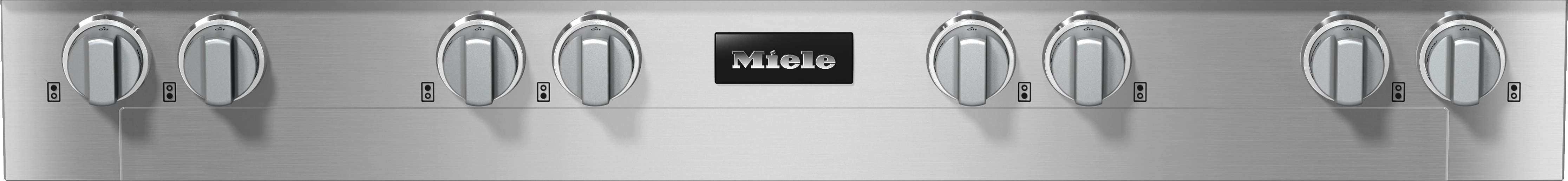

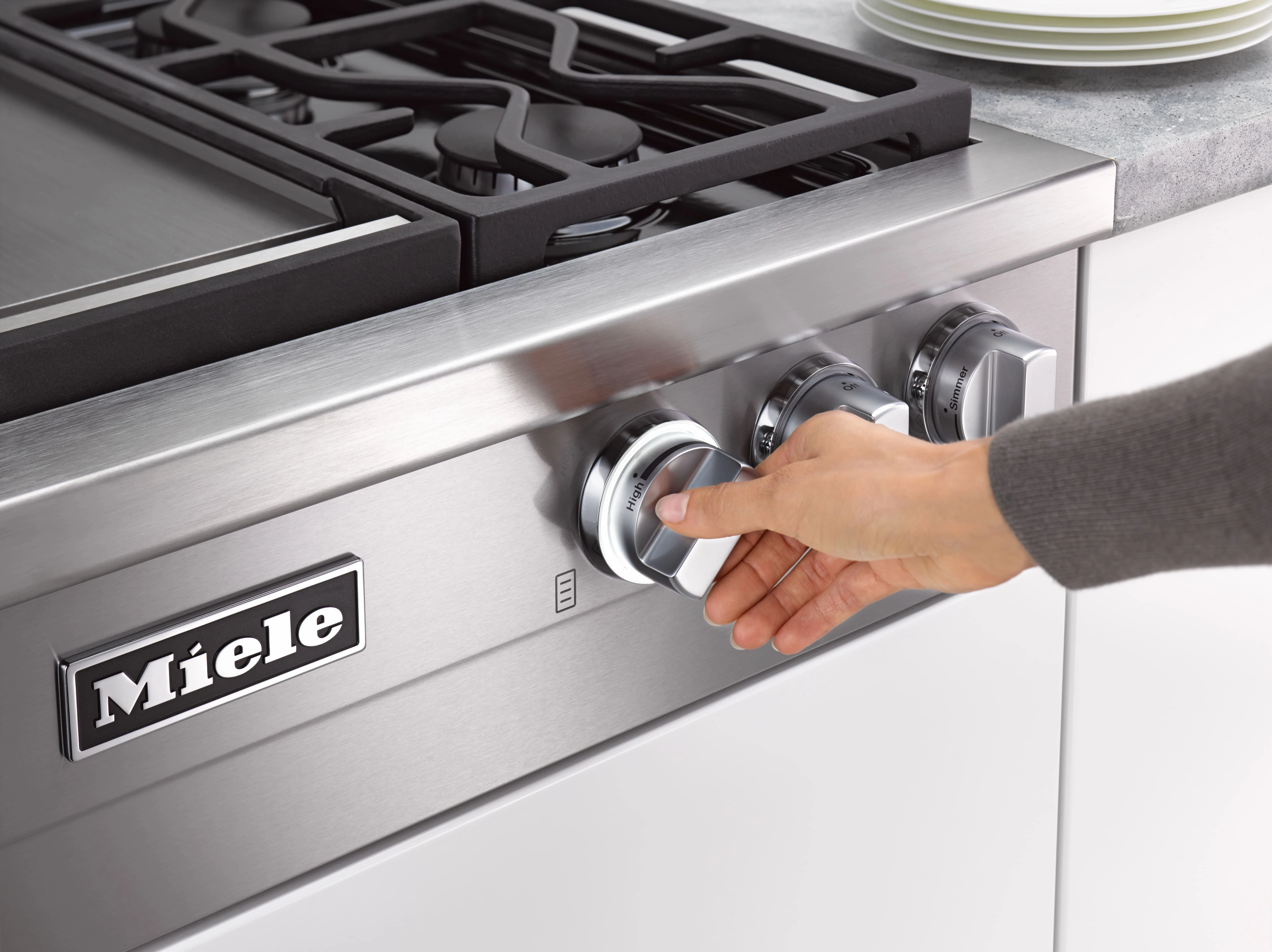

Backlit Precision Knobs
This elegant design feature is not only a useful visual cue for a burner-in-use, but also a design element that sets Miele apart - and with QuickStart, there’s no need to press or hold the control in order to switch the burners on.

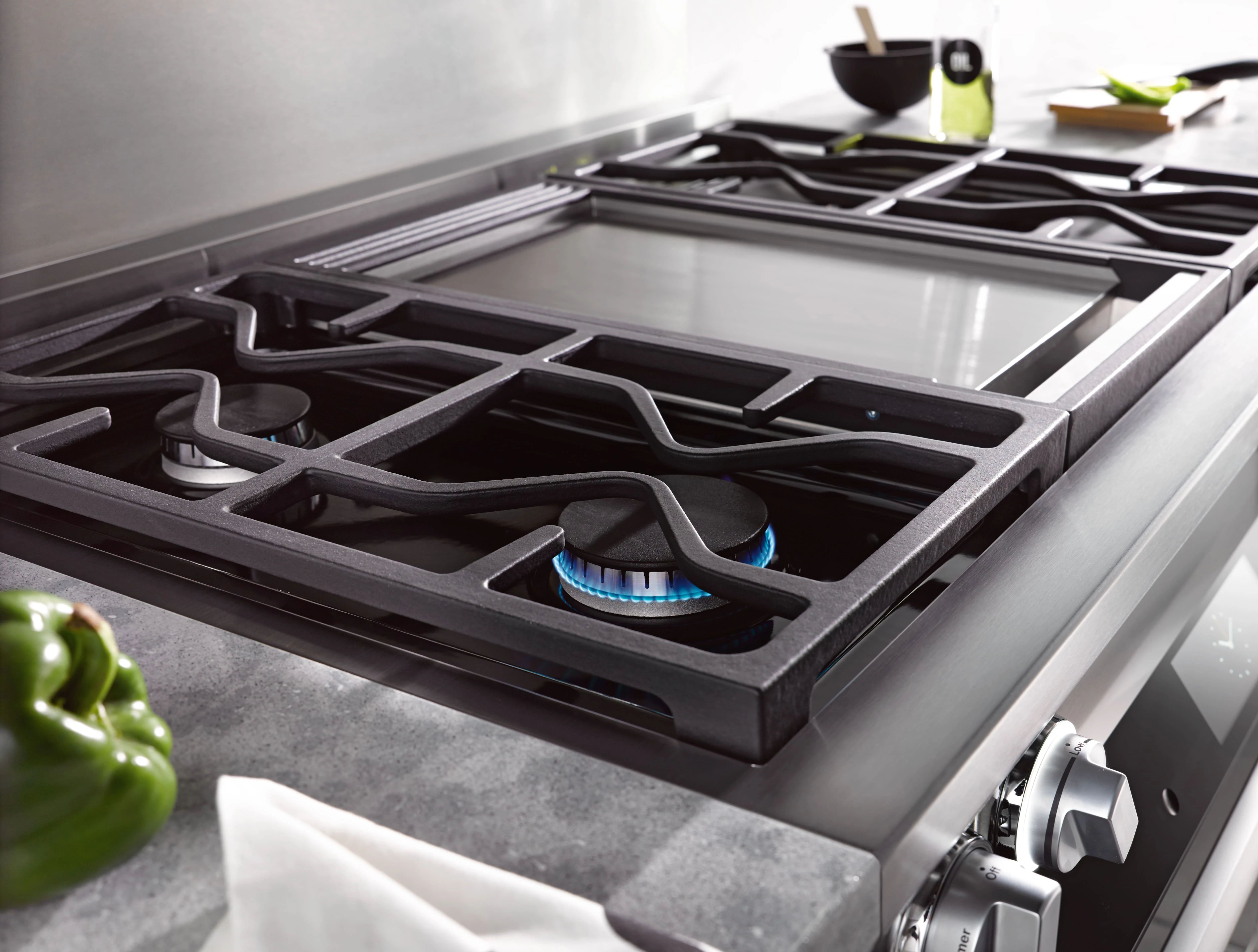

Continuous simmer
Achieving the perfect temperature and even heat for simmering is easy with Miele TrueSimmer function. Whether you are melting chocolate or thickening a sauce, this feature offers precise results.
